MITSUBISHI ENDEAVOR 2004 Service Repair Manual

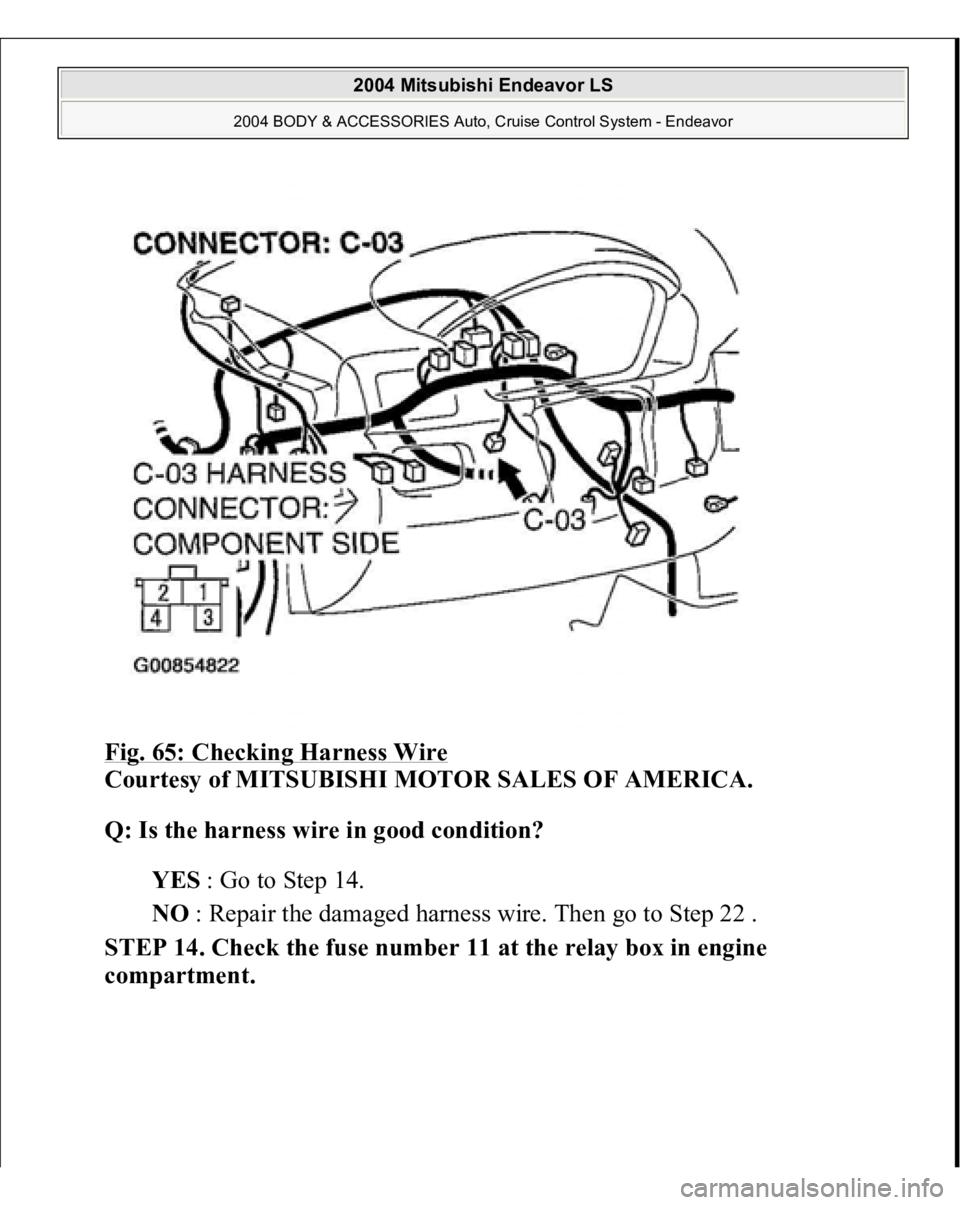

Fig. 65: Checking Harness Wire

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire in good condition?
YES : Go to Step 14.
NO : Repair the damaged harness wire. Then go to Step 22 .
STEP 14. Check the fuse number 11 at the relay box in engine
compartment.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

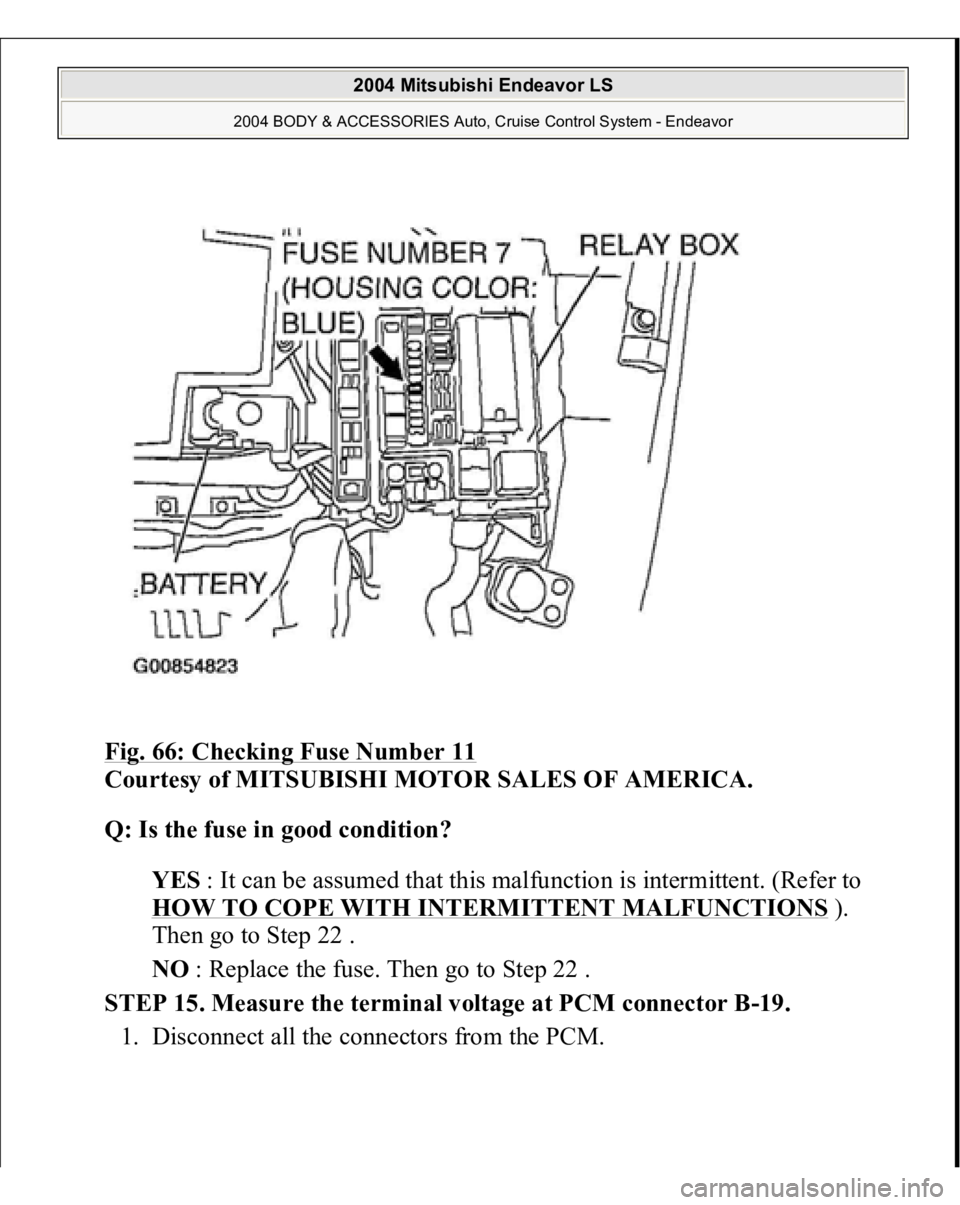

Fig. 66: Checking Fuse Number 11

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the fuse in good condition?
YES : It can be assumed that this malfunction is intermittent. (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
Then go to Step 22 .
NO : Replace the fuse. Then go to Step 22 .
STEP 15. Measure the terminal voltage at PCM connector B-19.
1. Disconnect all the connectors from the PCM.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

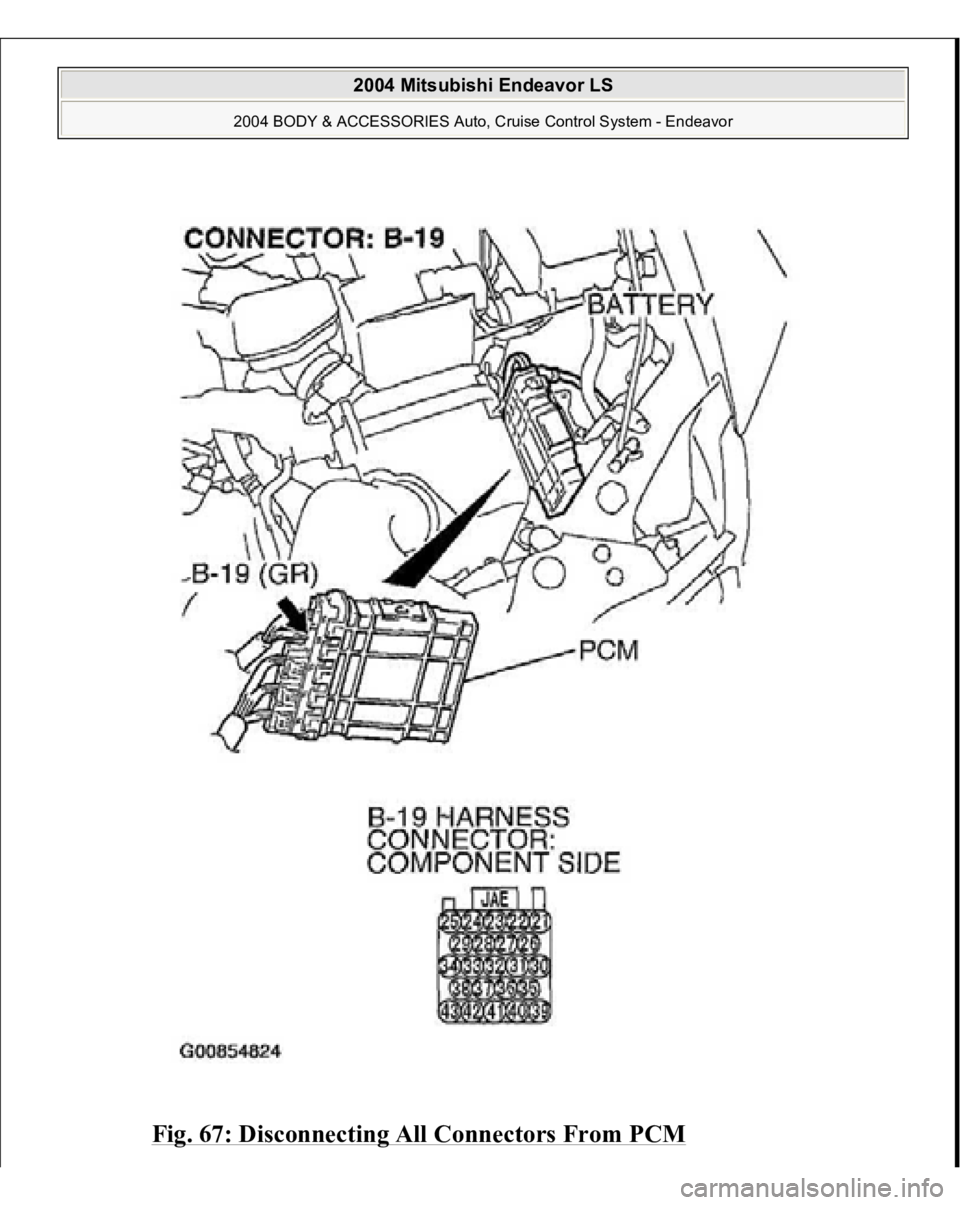

Fig. 67: Disconnecting All Connectors From PCM

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

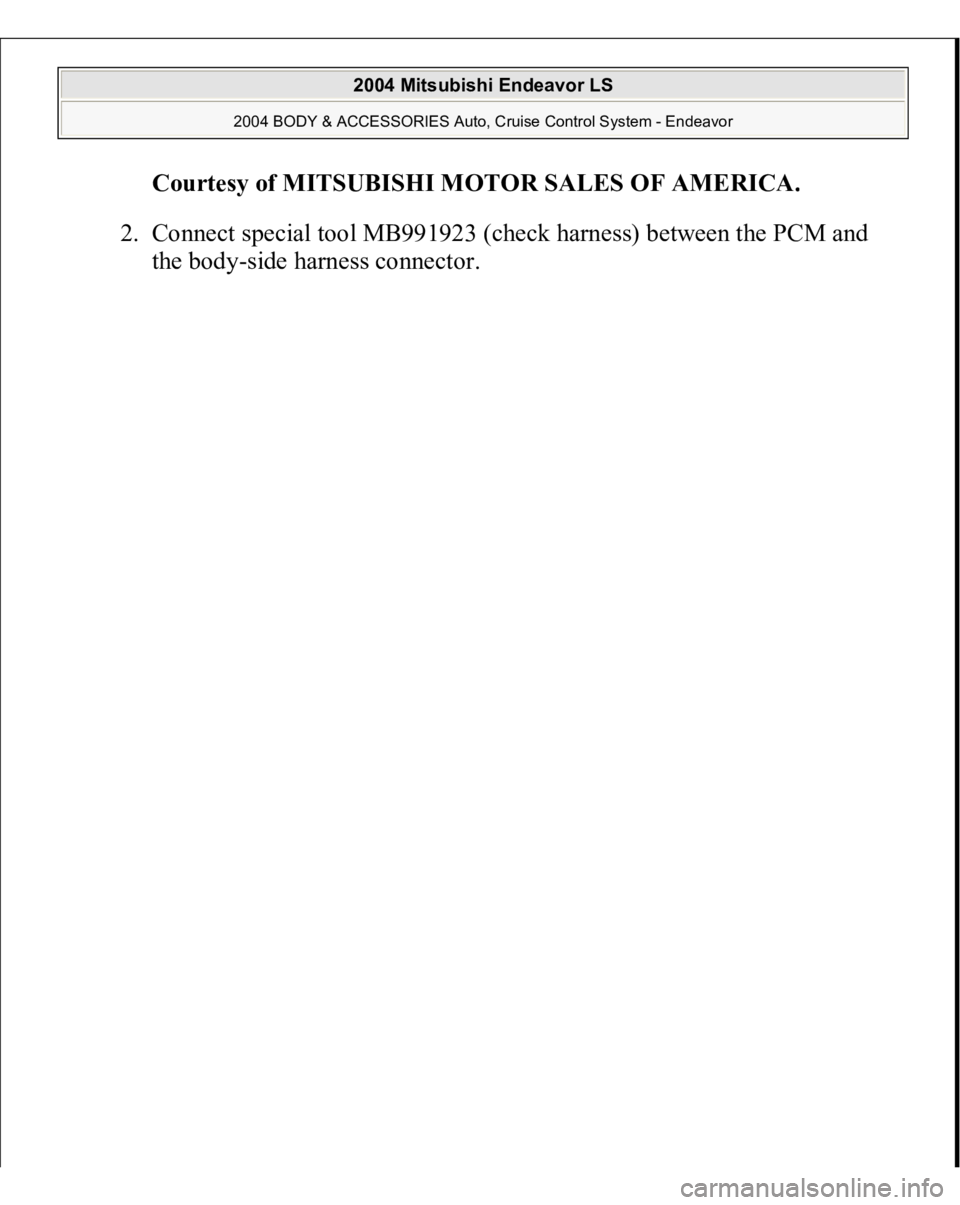

2. Connect special tool MB991923 (check harness) between the PCM and
the bod
y-side harness connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

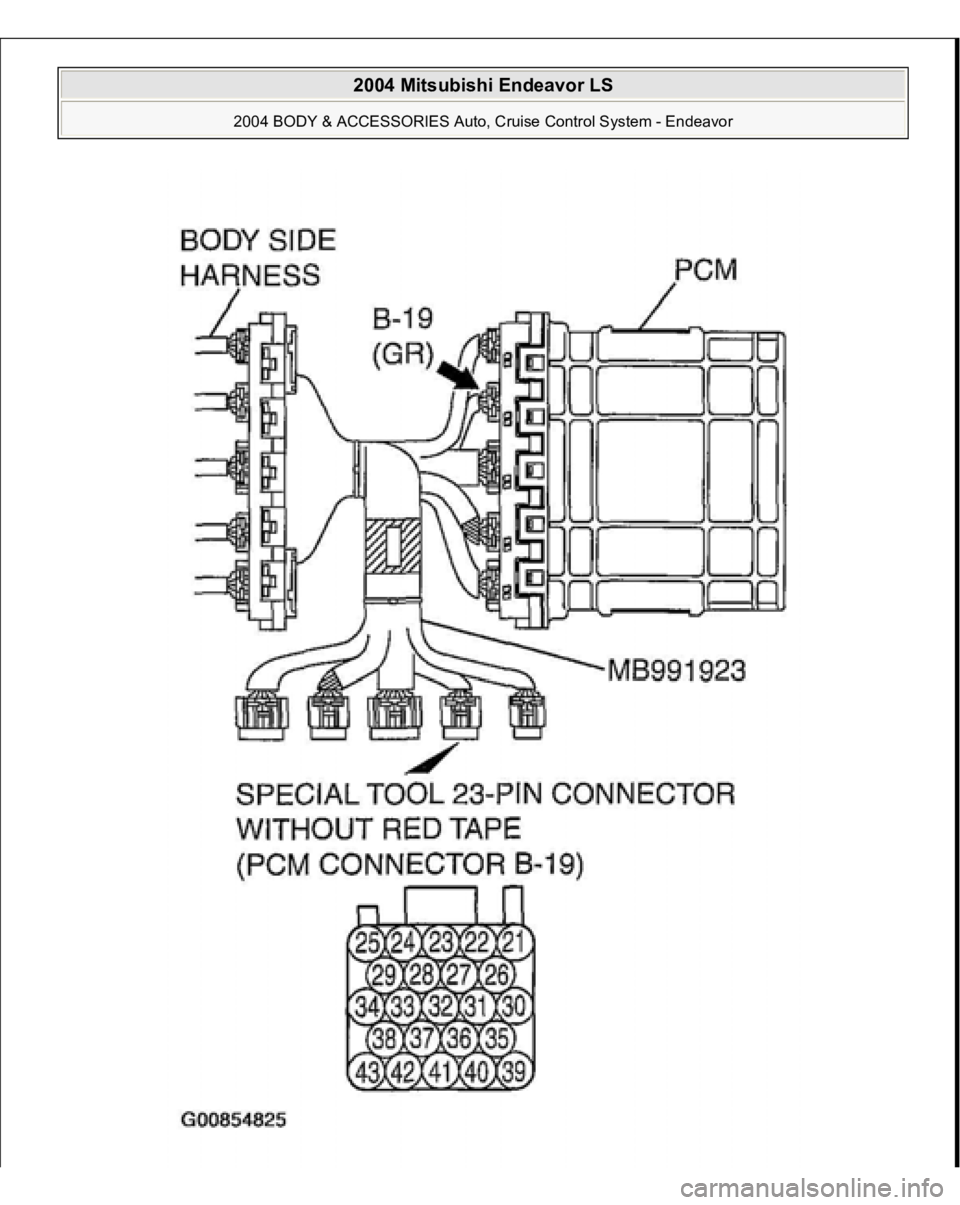

Fig. 68: Connecting Special Tool MB991923

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position.
4. Measure the terminal voltage between special tool 23-pin connector
(without red tape) terminal 33 (PCM connector B-19 terminal 33) and
ground.
When the brake pedal is depressed, the voltage should measure
battery positive voltage (approximately 12 volts). When the brake pedal is released, the voltage should measure 1 volt
or less.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

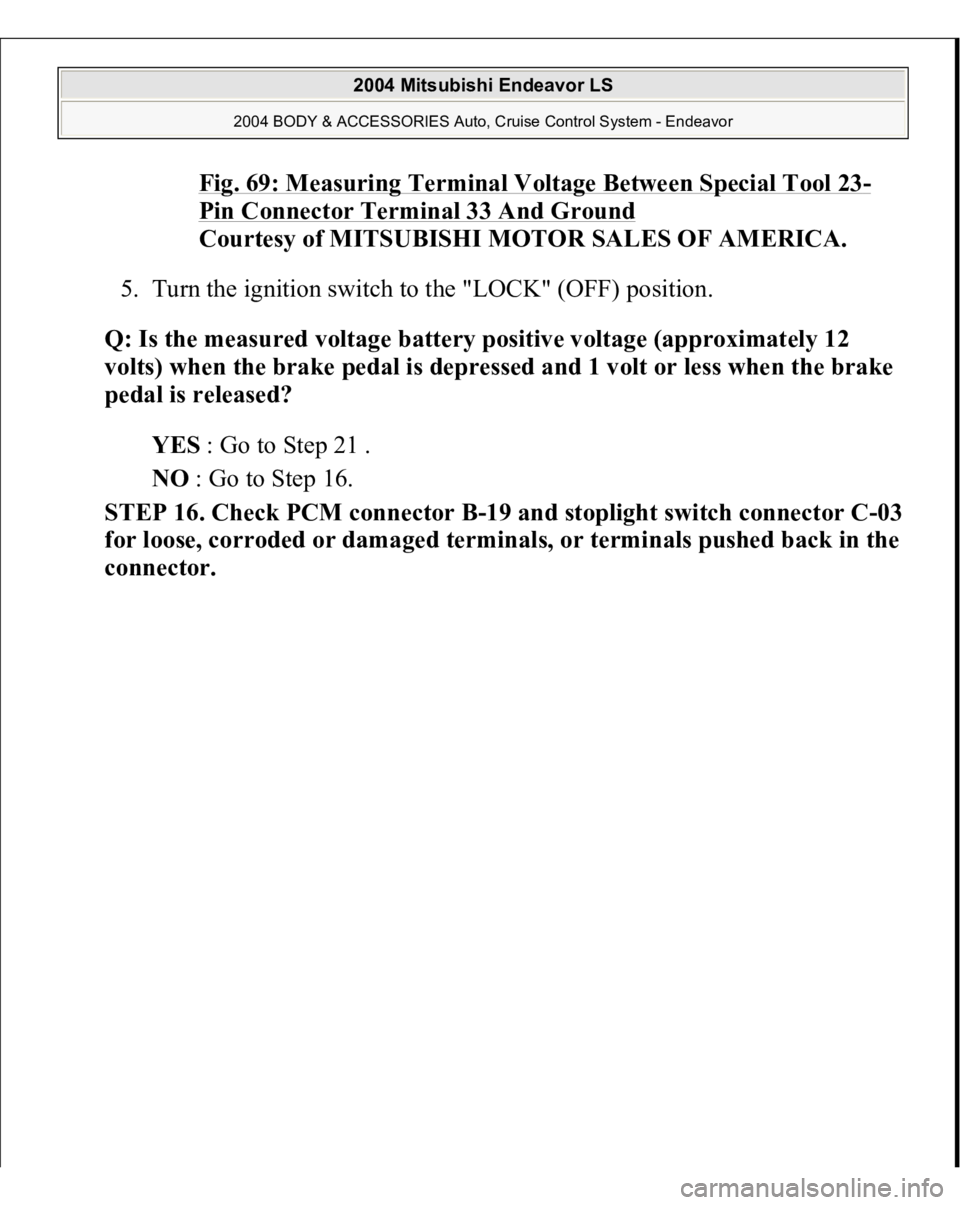

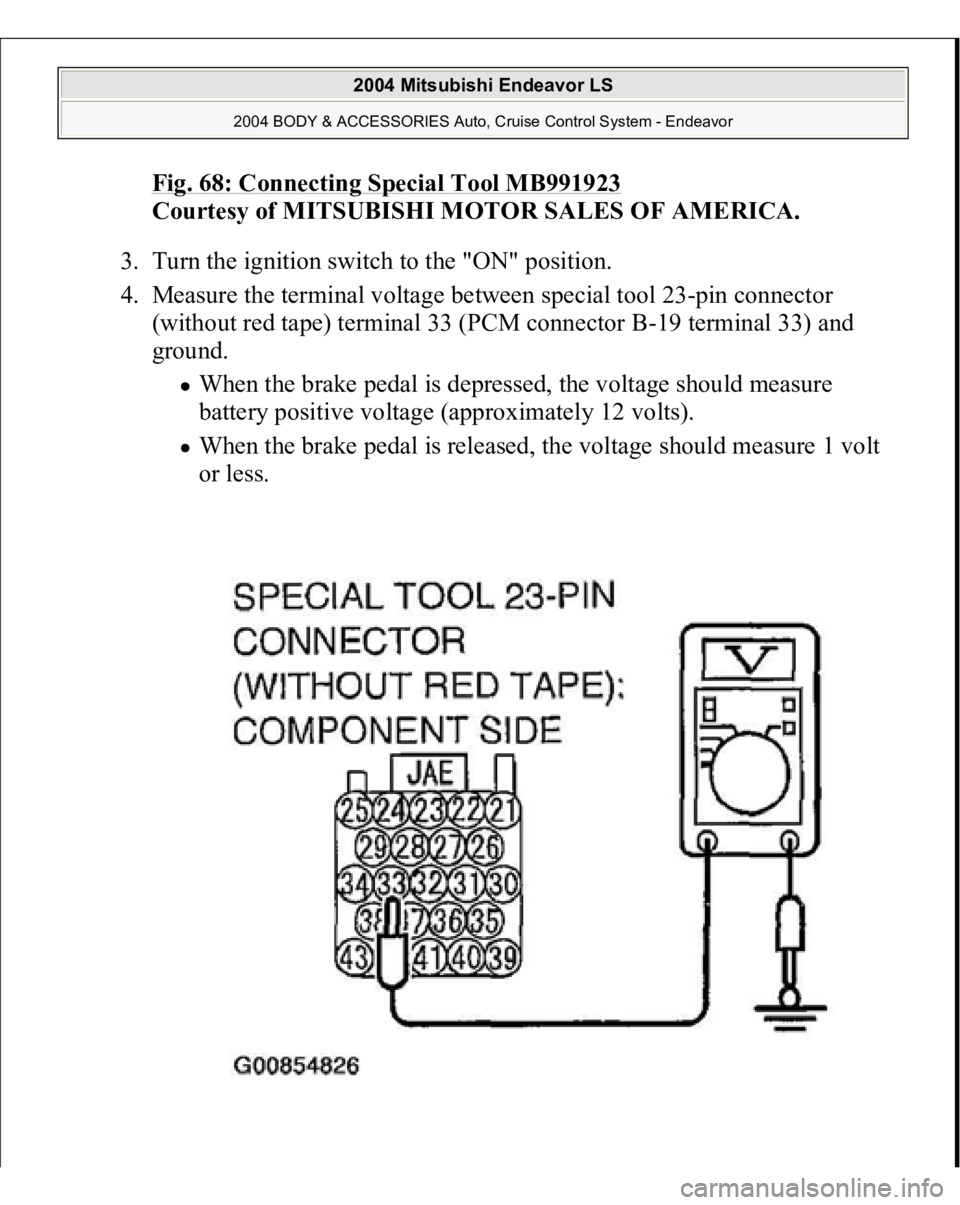

Fig. 69: Measuring Terminal Voltage Between Special Tool 23
-
Pin Connector Terminal 33 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage (approximately 12
volts) when the brake pedal is depressed and 1 volt or less when the brake
pedal is released?
YES : Go to Step 21 .
NO : Go to Step 16.
STEP 16. Check PCM connector B-19 and stoplight switch connector C-03
for loose, corroded or dama
ged terminals, or terminals
pushed back in the
connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

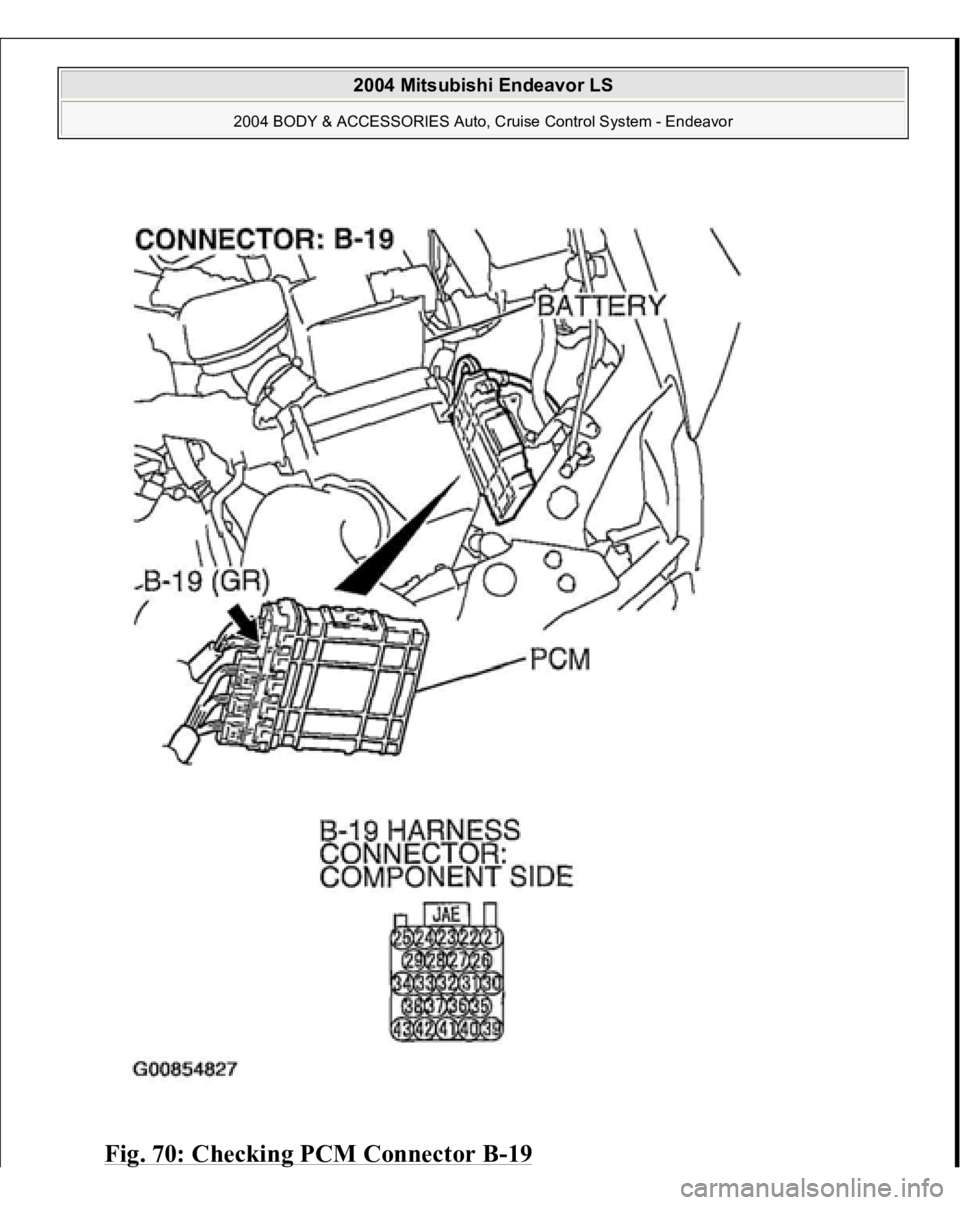

Fig. 70: Checkin
g PCM Connector
B-19

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

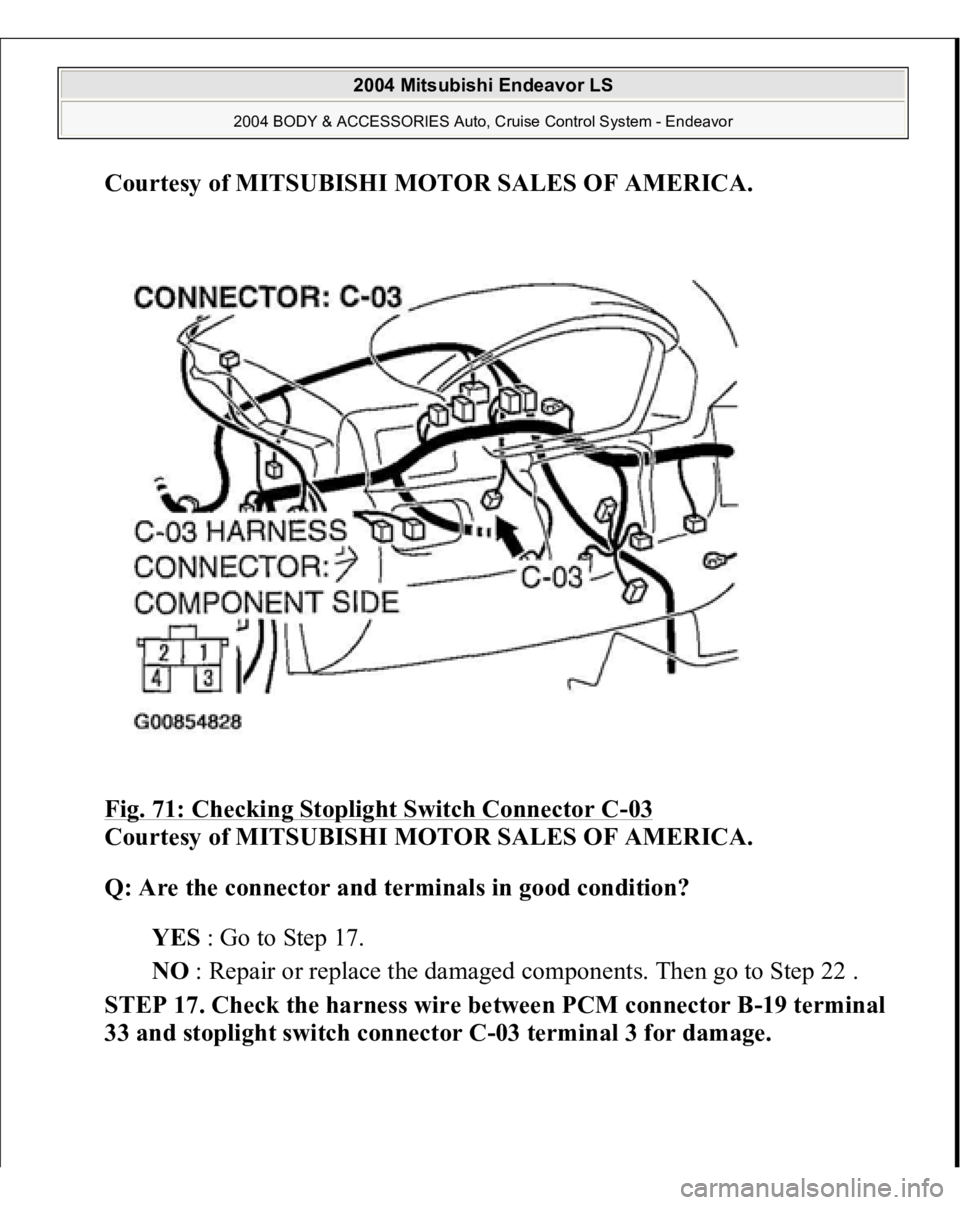

Fig. 71: Checking Stoplight Switch Connector C
-03
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connector and terminals in good condition?
YES : Go to Step 17.
NO : Repair or replace the damaged components. Then go to Step 22 .
STEP 17. Check the harness wire between PCM connector B-19 terminal
33 and stoplight switch connector C-03 terminal 3 for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

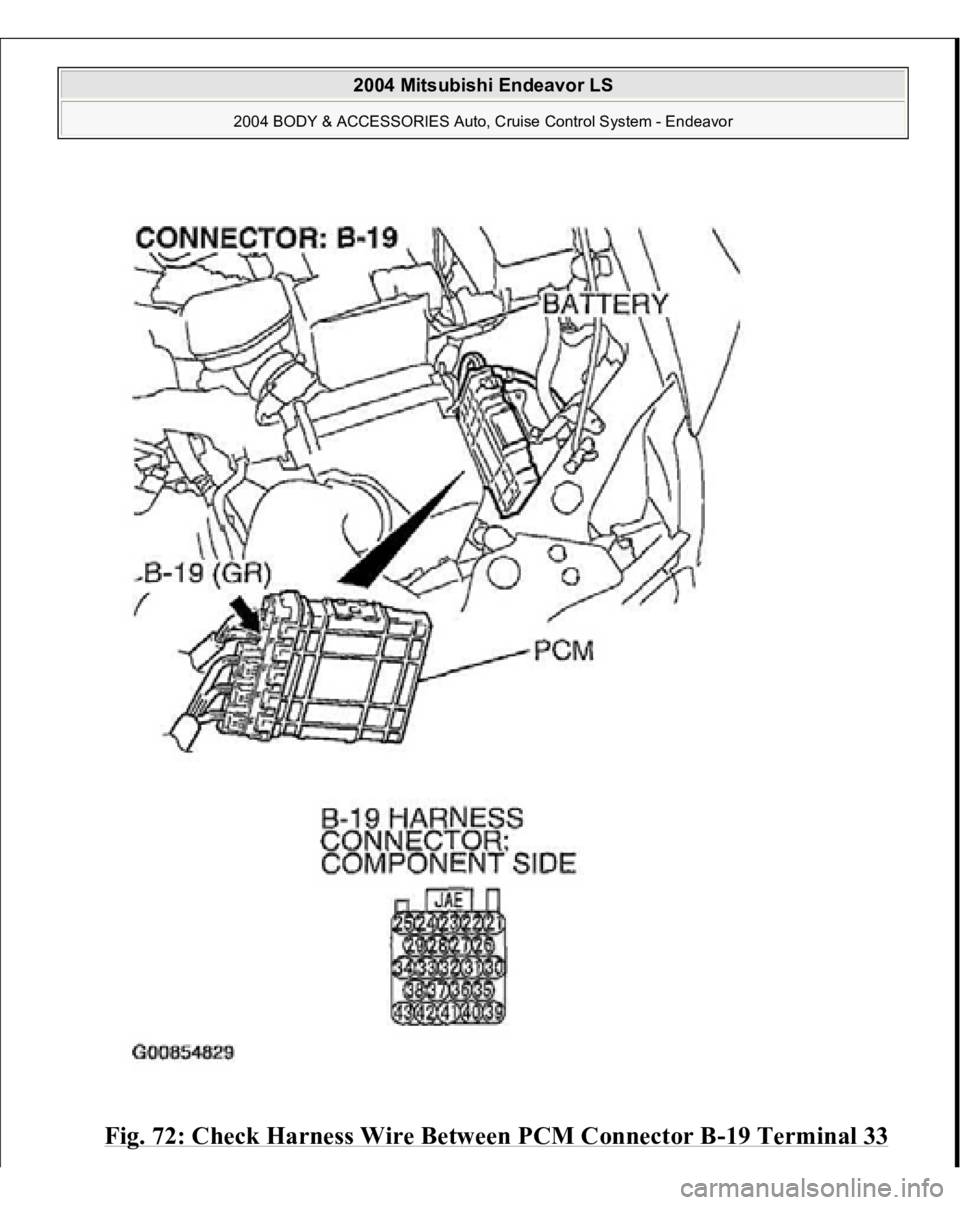

Fig. 72: Check Harness Wire Between PCM Connector B
-19 Terminal 33

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
