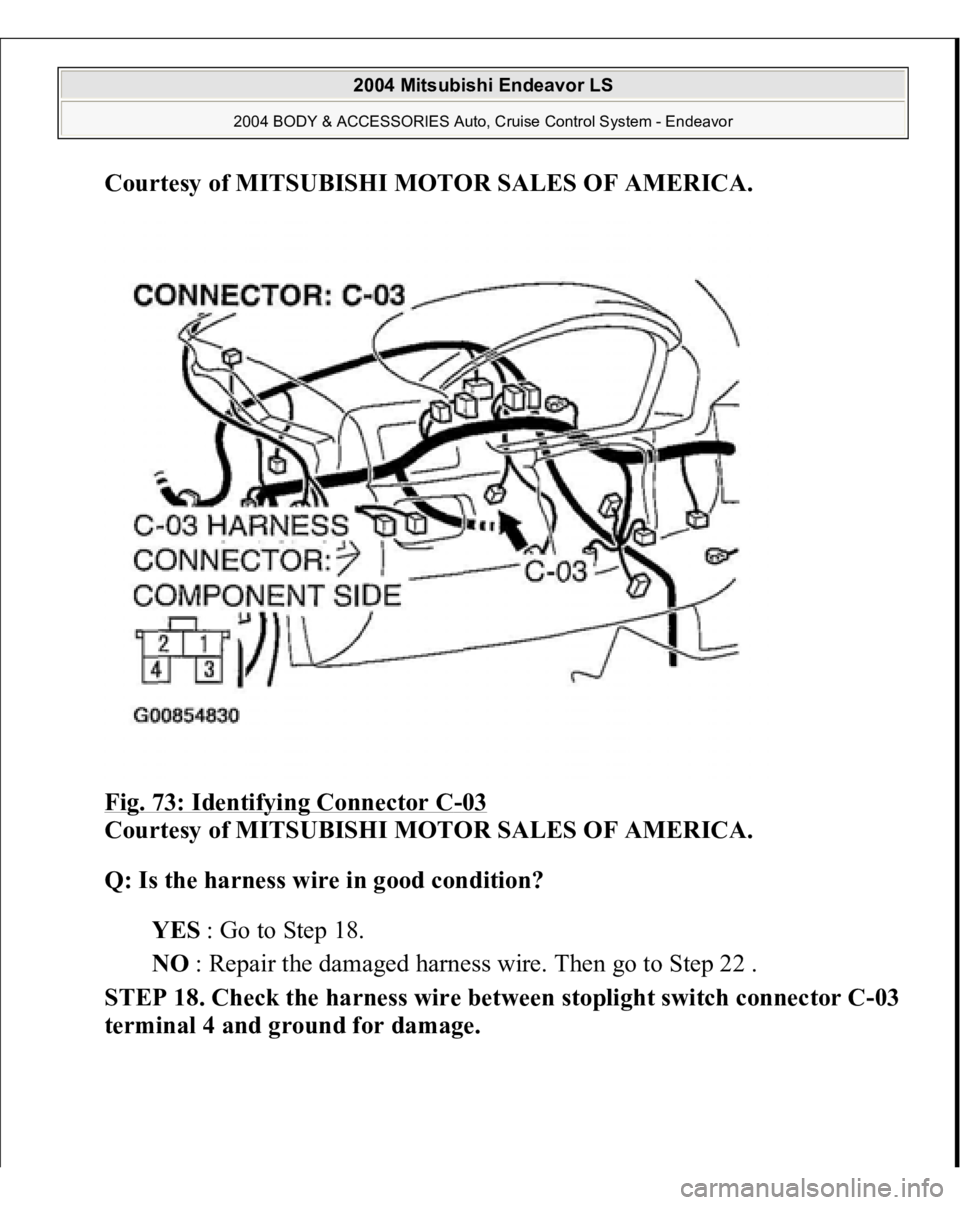

Fig. 73: Identifying Connector C
-03
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire in good condition?
YES : Go to Step 18.
NO : Repair the damaged harness wire. Then go to Step 22 .
STEP 18. Check the harness wire between stoplight switch connector C-03
terminal 4 and ground for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

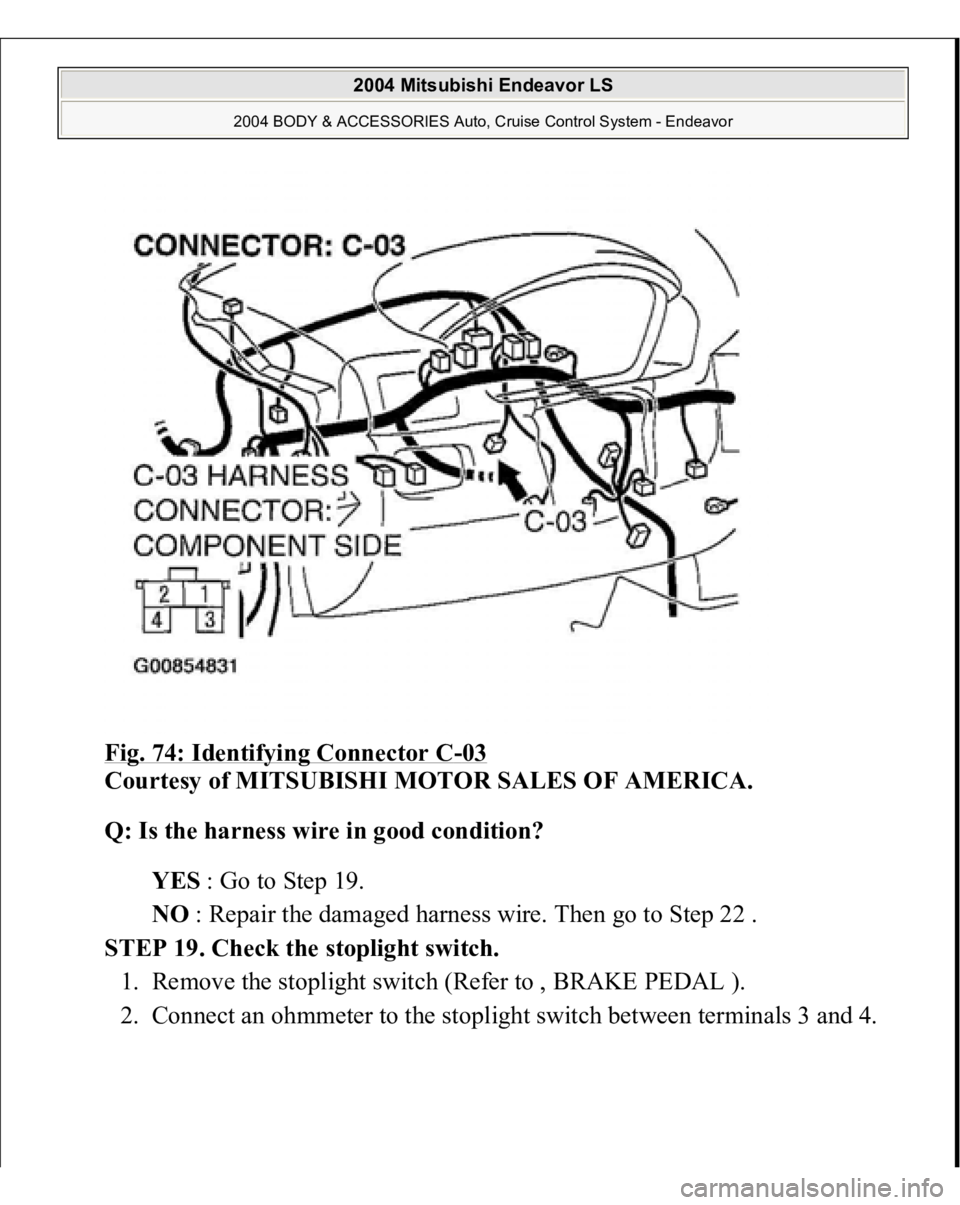

Fig. 74: Identifying Connector C
-03
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire in good condition?
YES : Go to Step 19.
NO : Repair the damaged harness wire. Then go to Step 22 .
STEP 19. Check the stoplight switch.
1. Remove the stoplight switch (Refer to , BRAKE PEDAL ).
2. Connect an ohmmeter to the stoplight switch between terminals 3 and 4.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

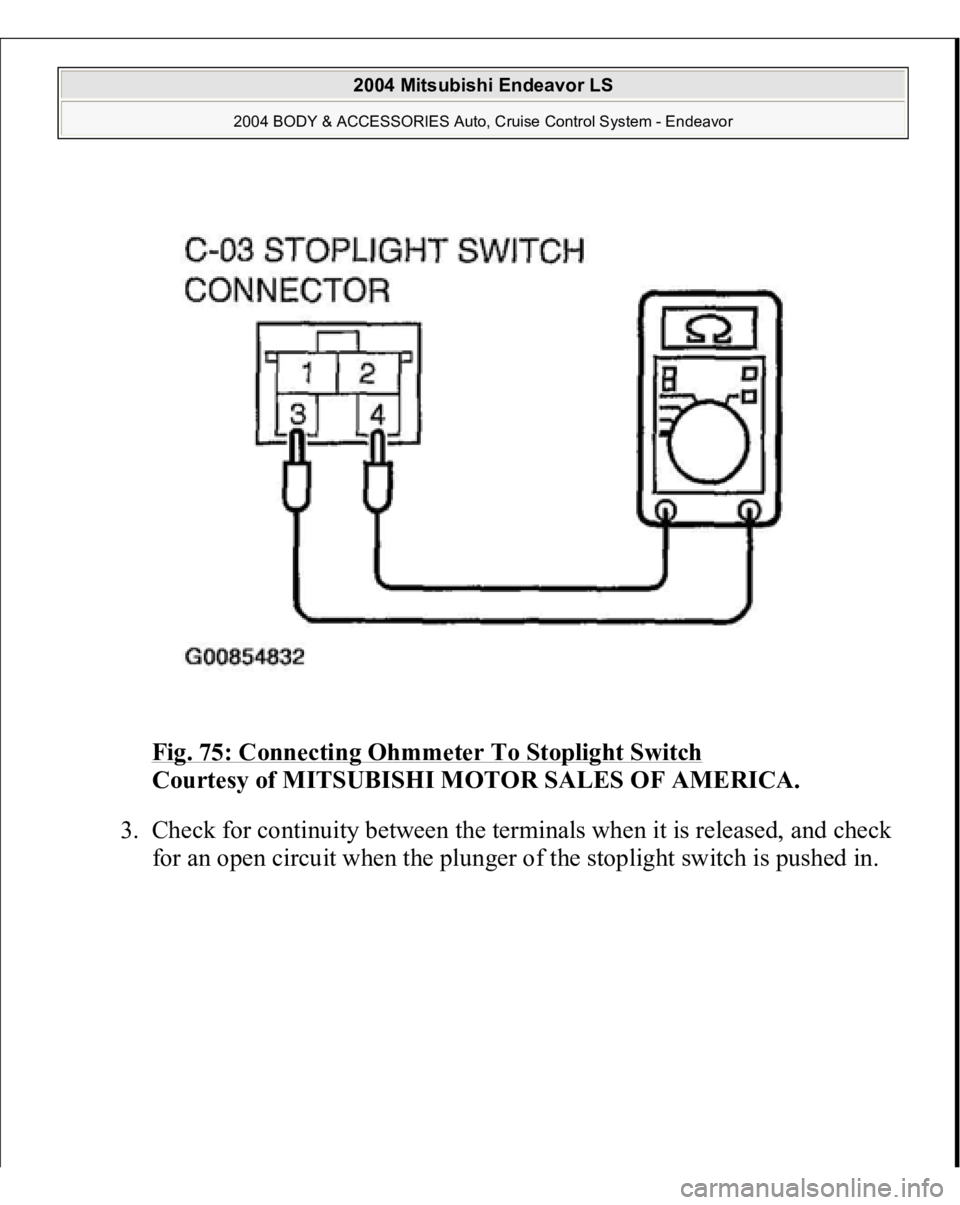

Fig. 75: Connecting Ohmmeter To Stoplight Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check for continuity between the terminals when it is released, and check
for an open circuit when the plunger of the stoplight switch is pushed in.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

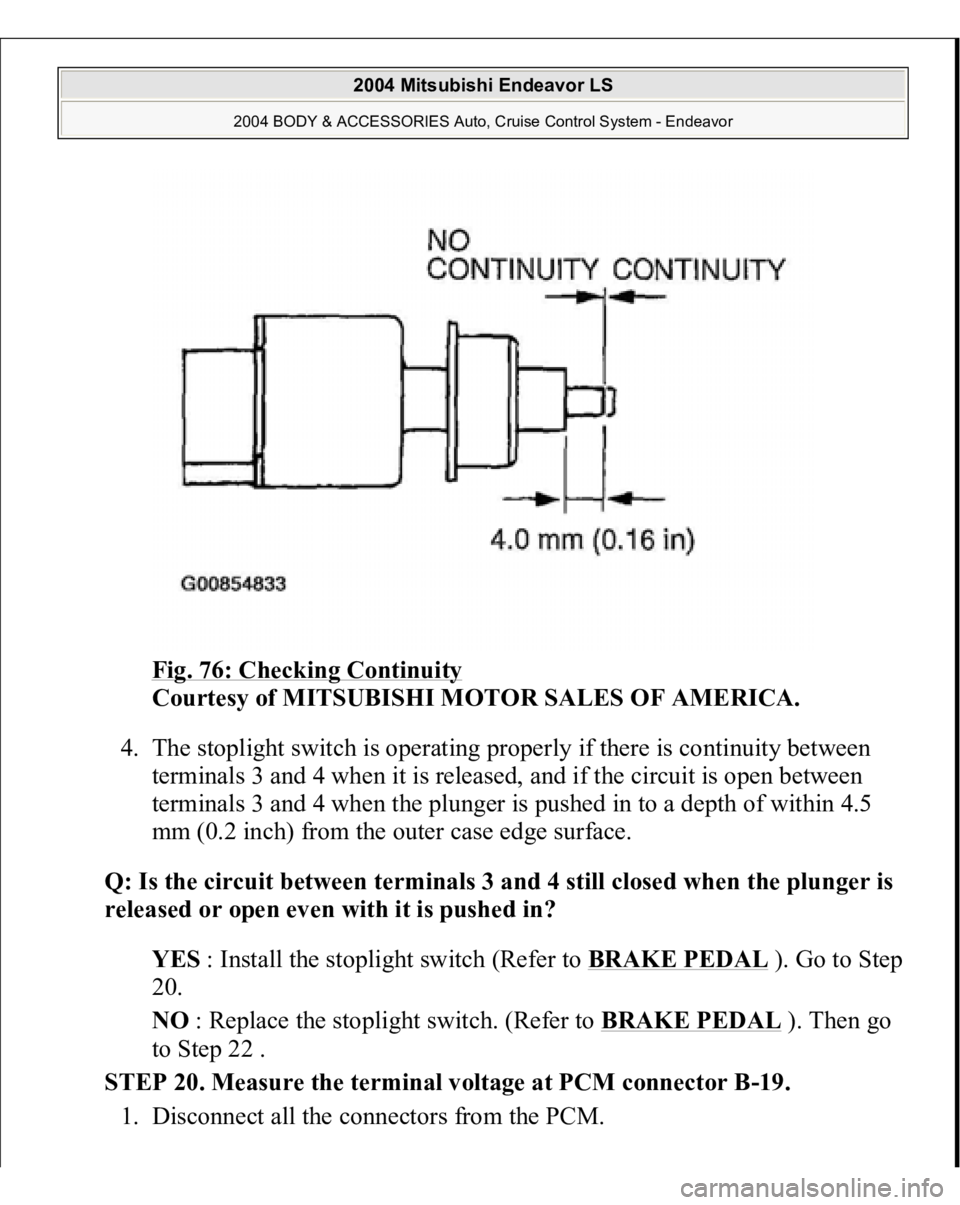

Fig. 76: Checking Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. The stoplight switch is operating properly if there is continuity between
terminals 3 and 4 when it is released, and if the circuit is open between
terminals 3 and 4 when the plunger is pushed in to a depth of within 4.5
mm (0.2 inch) from the outer case edge surface.
Q: Is the circuit between terminals 3 and 4 still closed when the plunger is
released or open even with it is pushed in?
YES : Install the stoplight switch (Refer to BRAKE PEDAL
). Go to Step
20.
NO : Replace the stoplight switch. (Refer to BRAKE PEDAL ). Then go
to Step 22 .
STEP 20. Measure the terminal voltage at PCM connector B-19.
1. Disconnect all the connectors from the PCM.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

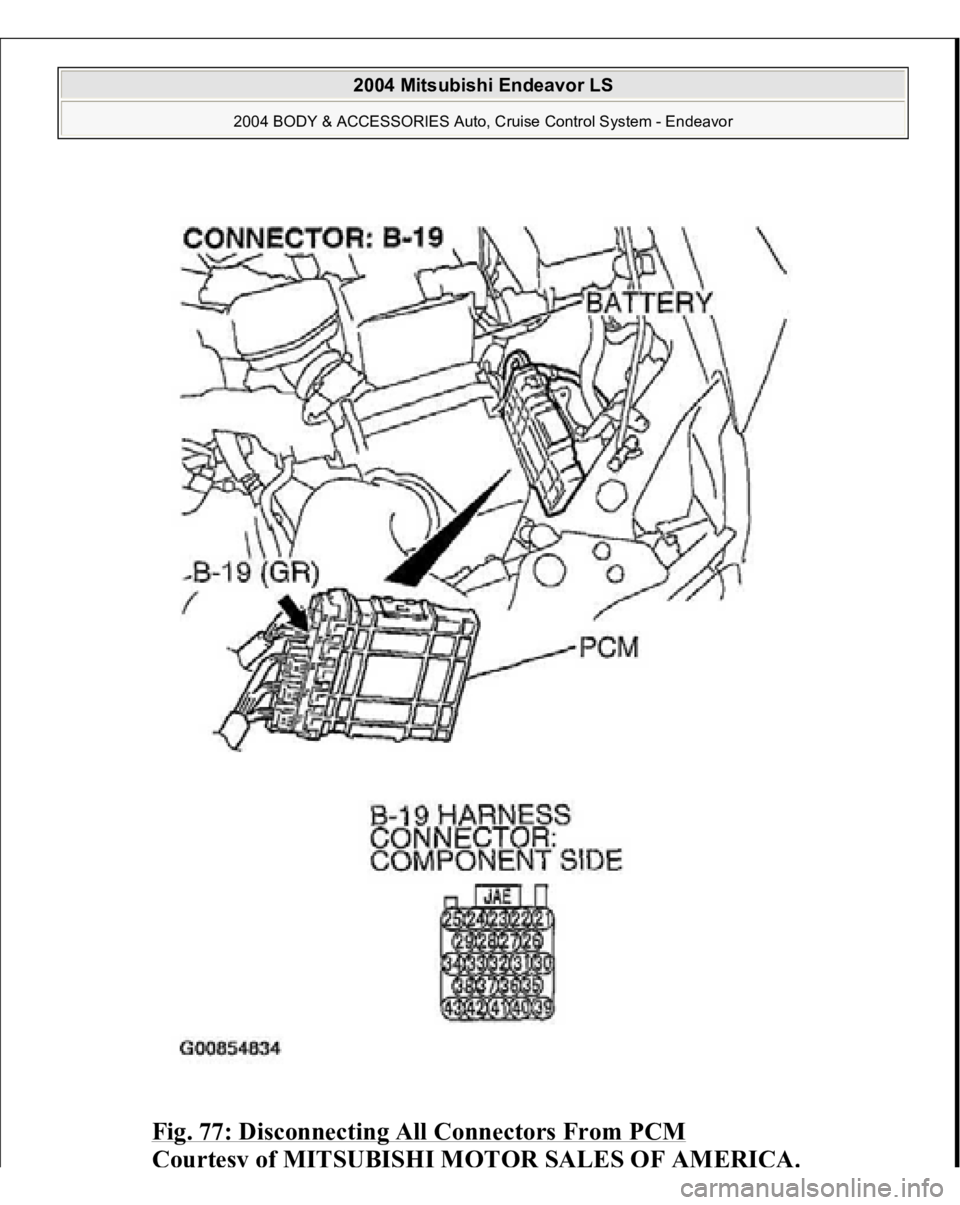

Fig. 77: Disconnecting All Connectors From PCM

Cou
rtesy
of MIT
SU
BI
SHI M
OTOR SALE
S OF AMERI
CA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

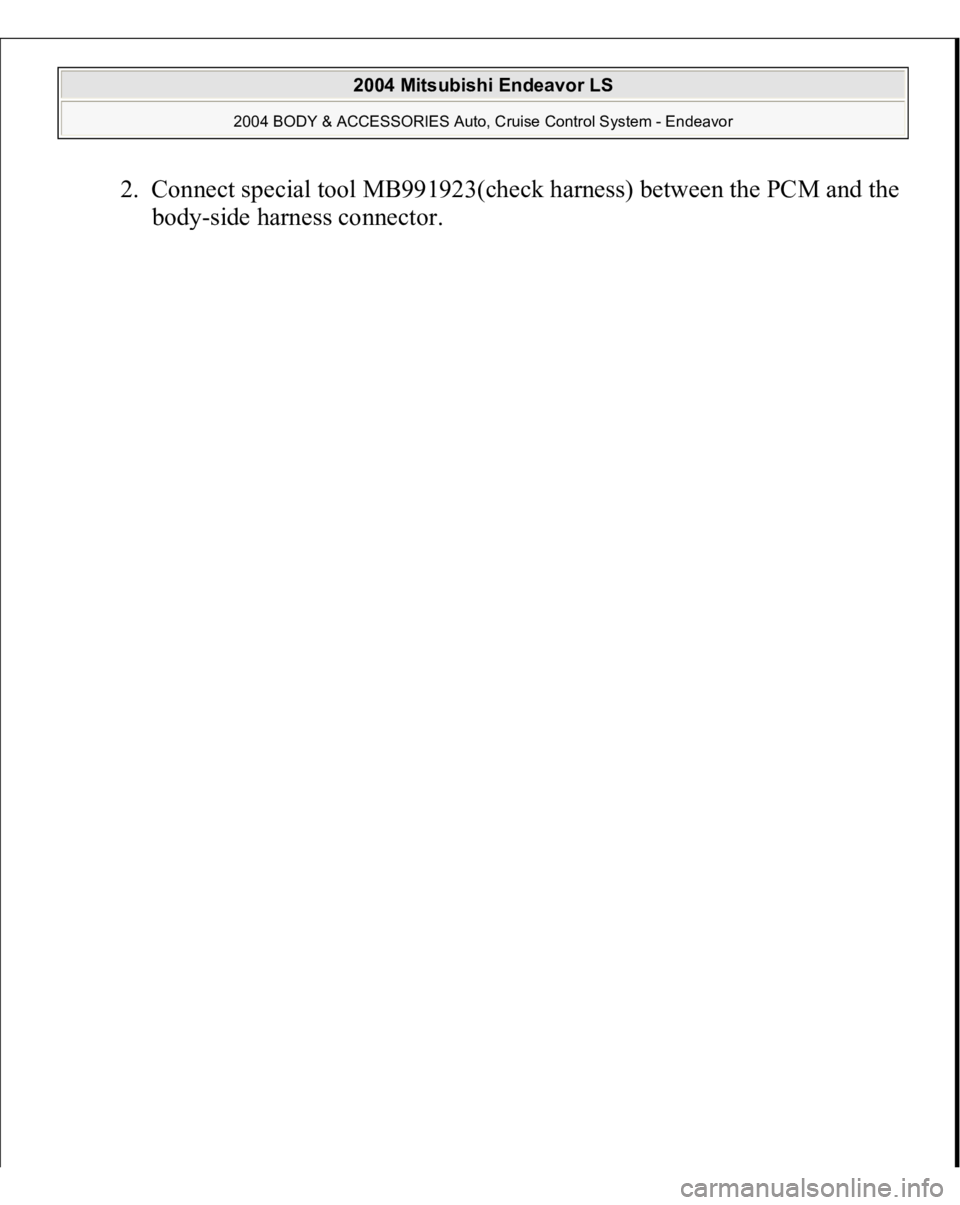

2. Connect special tool MB991923(check harness) between the PCM and the
body-side harness connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

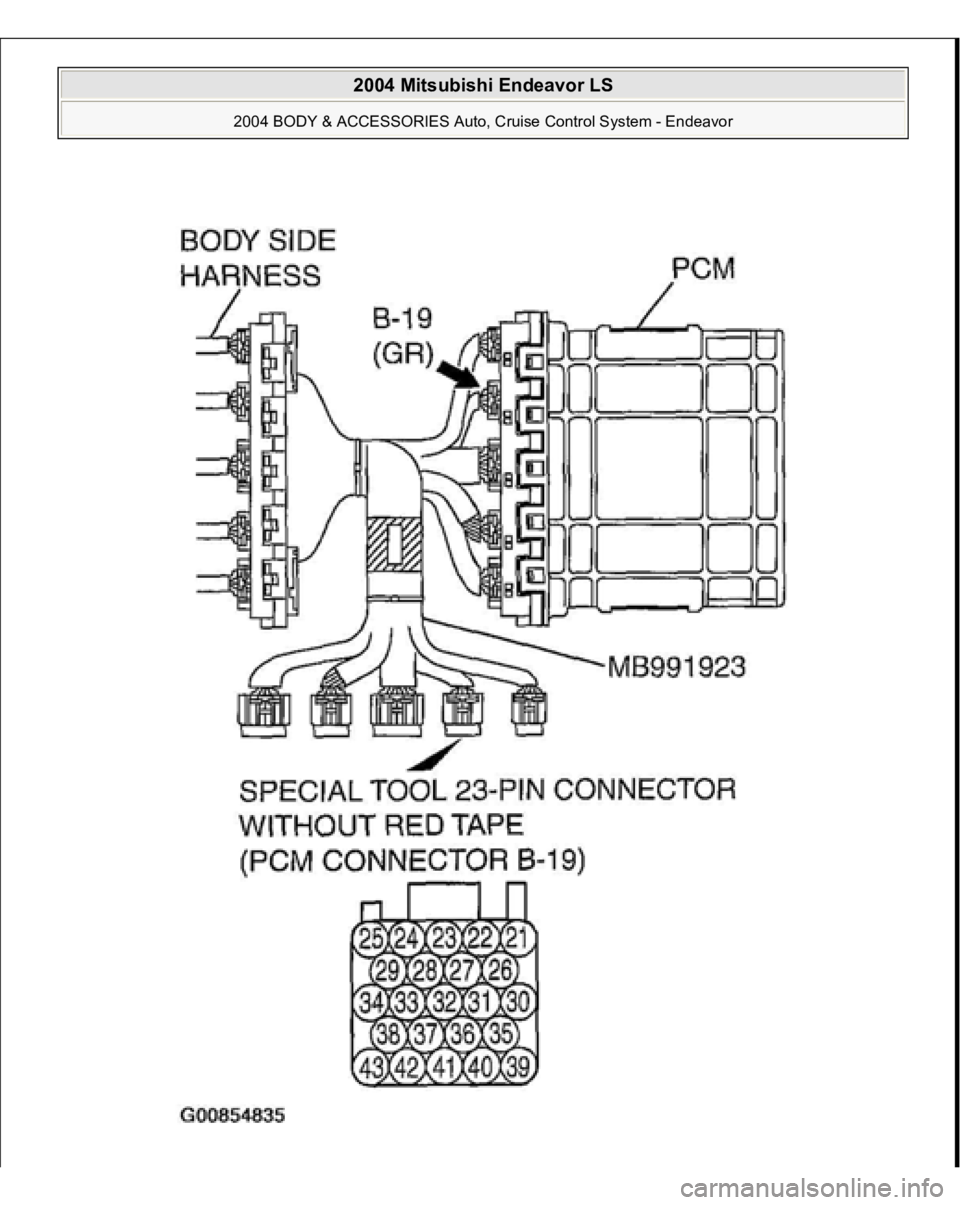

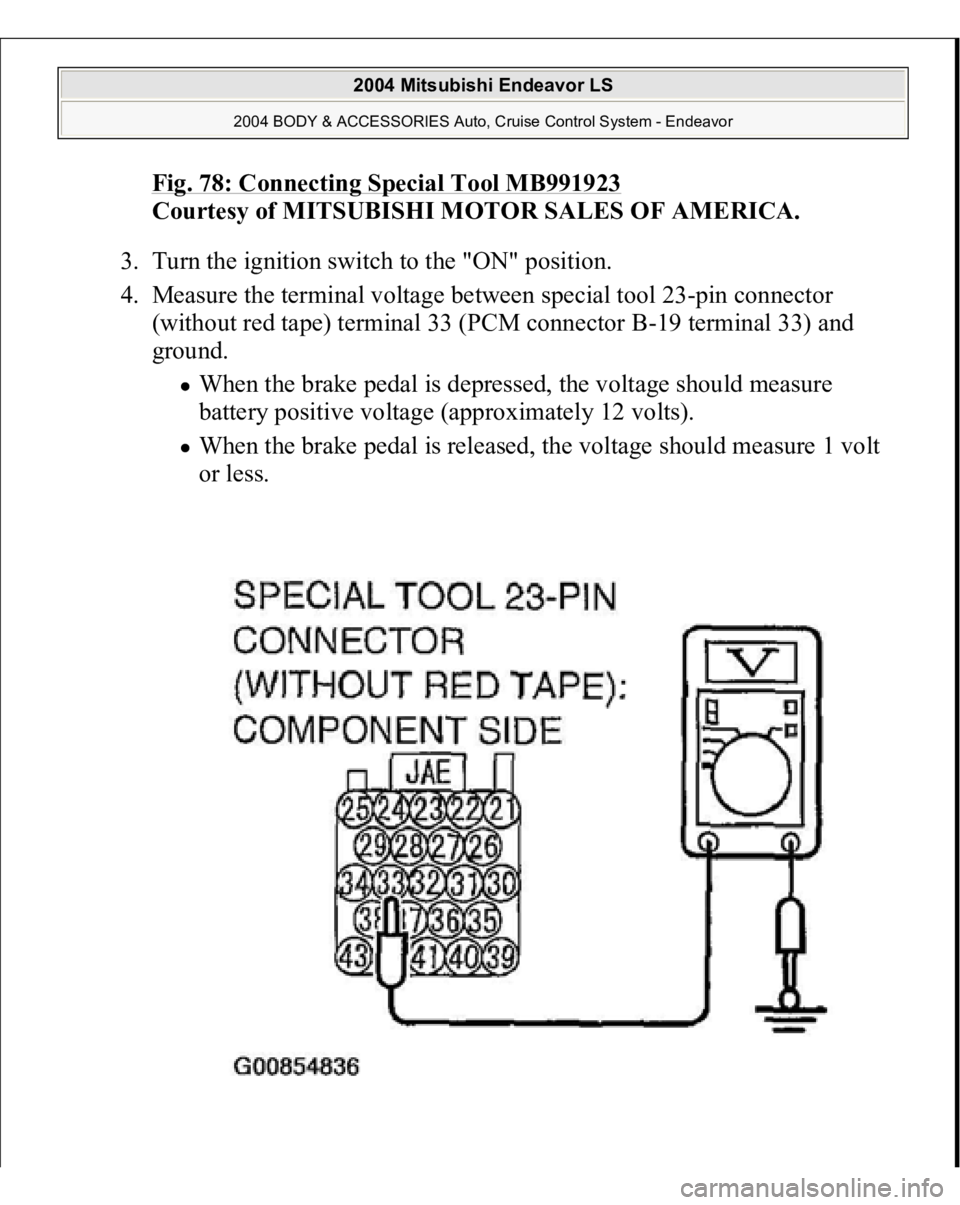

Fig. 78: Connecting Special Tool MB991923

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position.
4. Measure the terminal voltage between special tool 23-pin connector
(without red tape) terminal 33 (PCM connector B-19 terminal 33) and
ground.
When the brake pedal is depressed, the voltage should measure
battery positive voltage (approximately 12 volts). When the brake pedal is released, the voltage should measure 1 volt
or less.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

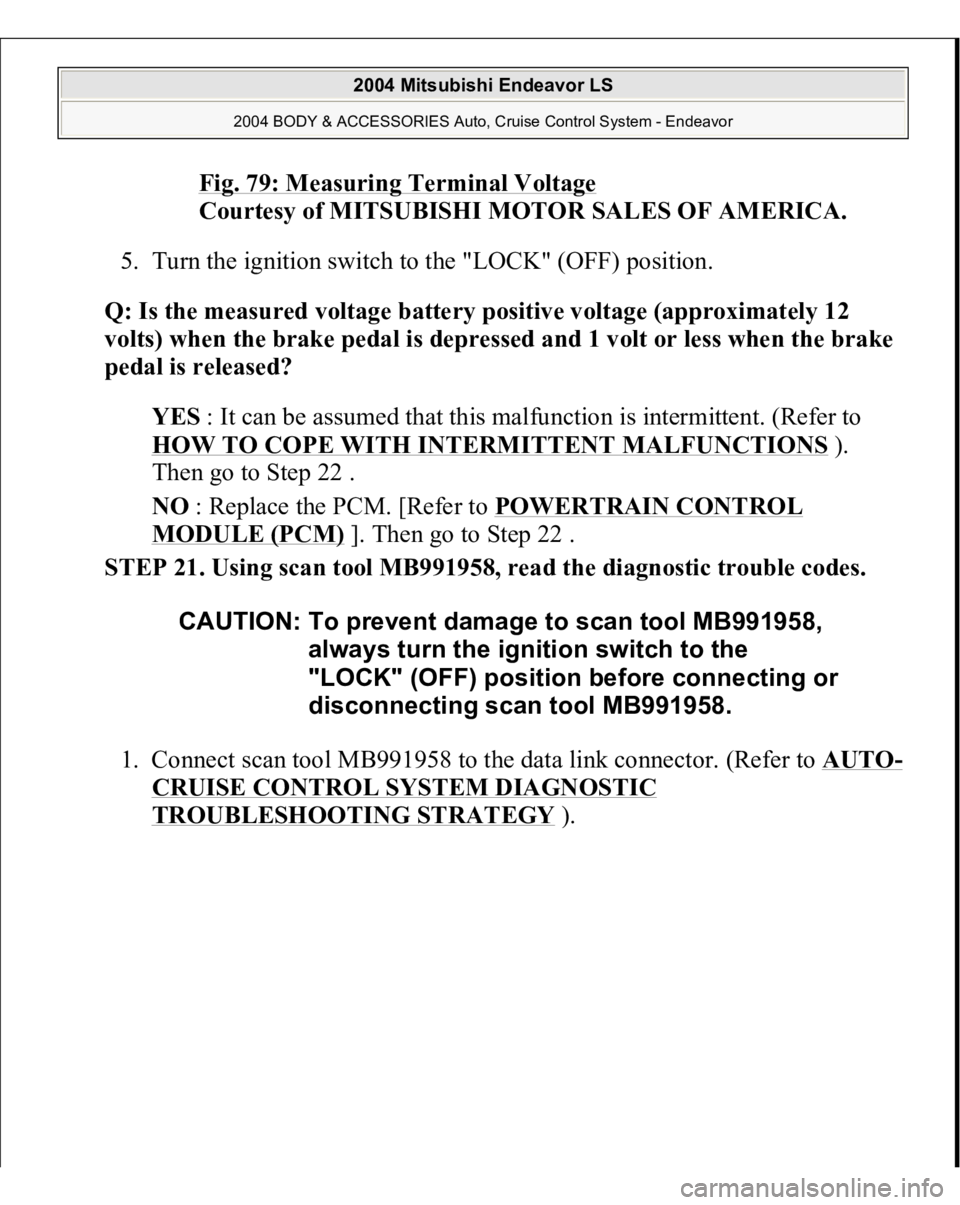

Fig. 79: Measuring Terminal Voltage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage (approximately 12
volts) when the brake pedal is depressed and 1 volt or less when the brake
pedal is released?
YES : It can be assumed that this malfunction is intermittent. (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
Then go to Step 22 .
NO : Replace the PCM. [Refer to POWERTRAIN CONTROL
MODULE (PCM)
]. Then go to Step 22 .
STEP 21. Using scan tool MB991958, read the diagnostic trouble codes.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 80: Connecting Scan Tool To Data Link Connector

2004 Mitsubishi Endeavor LS
