MITSUBISHI ENDEAVOR 2004 Service Repair Manual

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

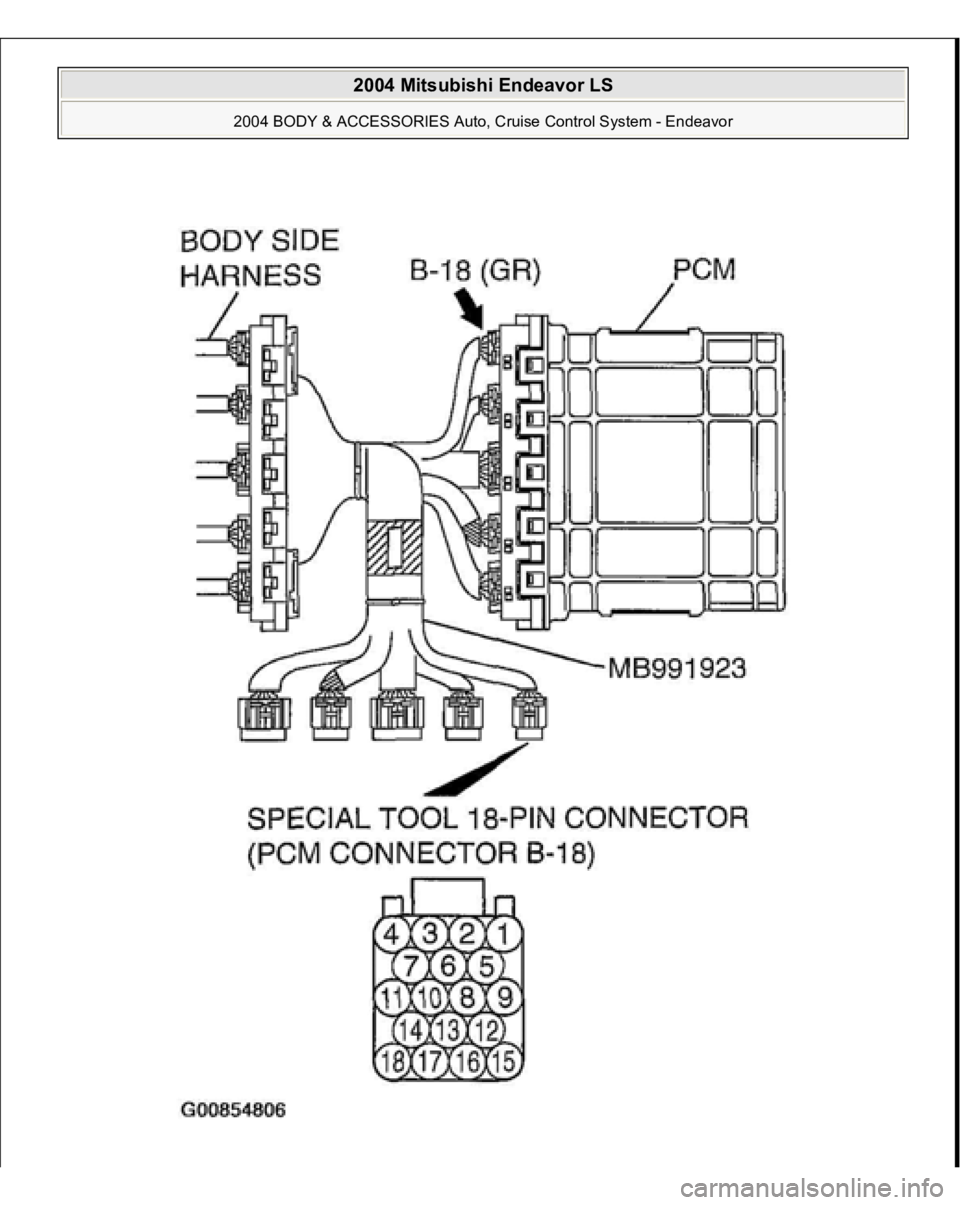

Fig. 49: Connecting Special Tool MB991923 Between PCM And Body Side Harness Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position.
4. Measure the terminal voltage between special tool 18-pin connector
terminal 9 (PCM connector B-18 terminal 9) and ground.
When the brake pedal is depressed, the voltage should measure
battery positive voltage (approximately 12 volts). When the brake pedal is released, the voltage should measure 1 volt
or less.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

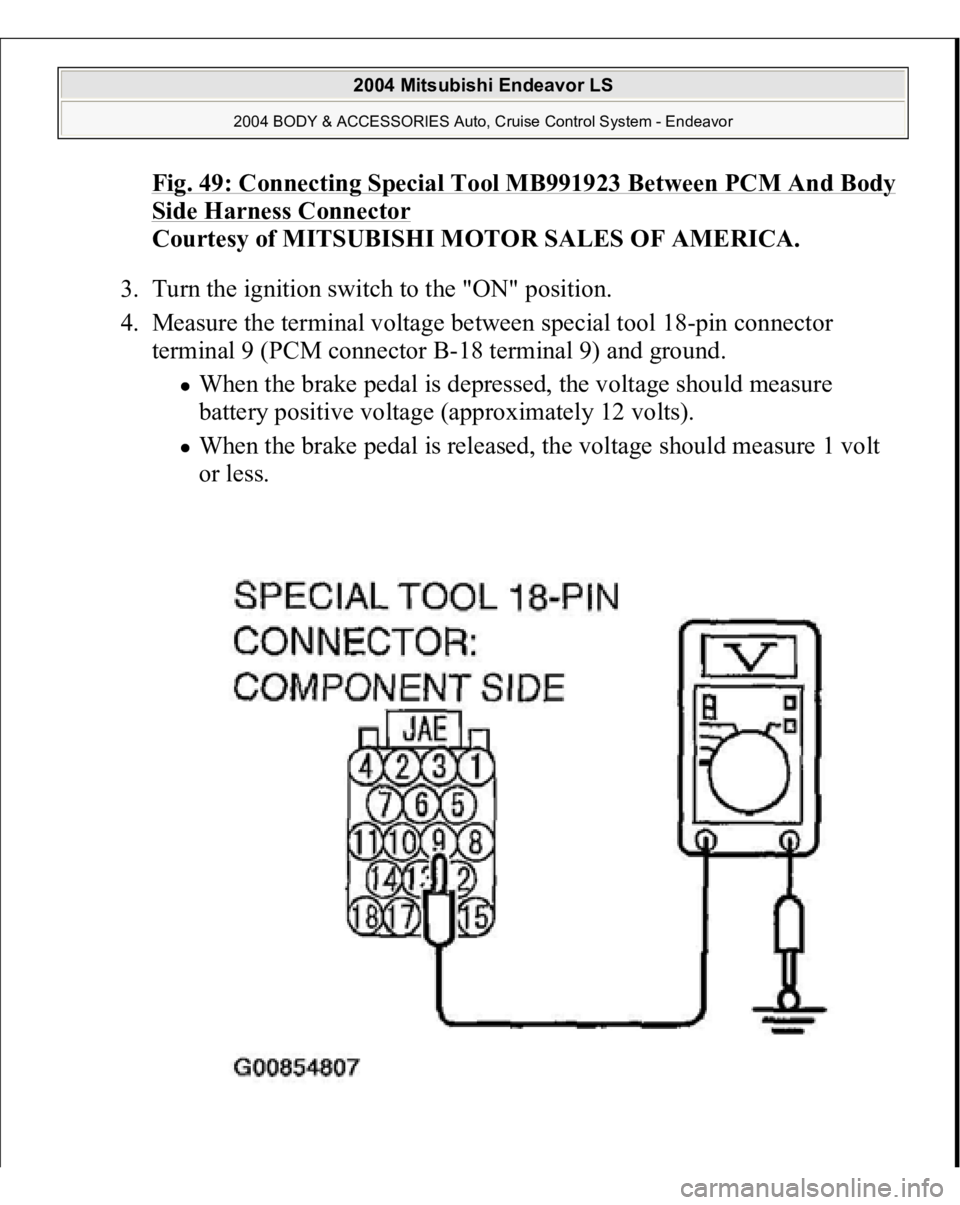

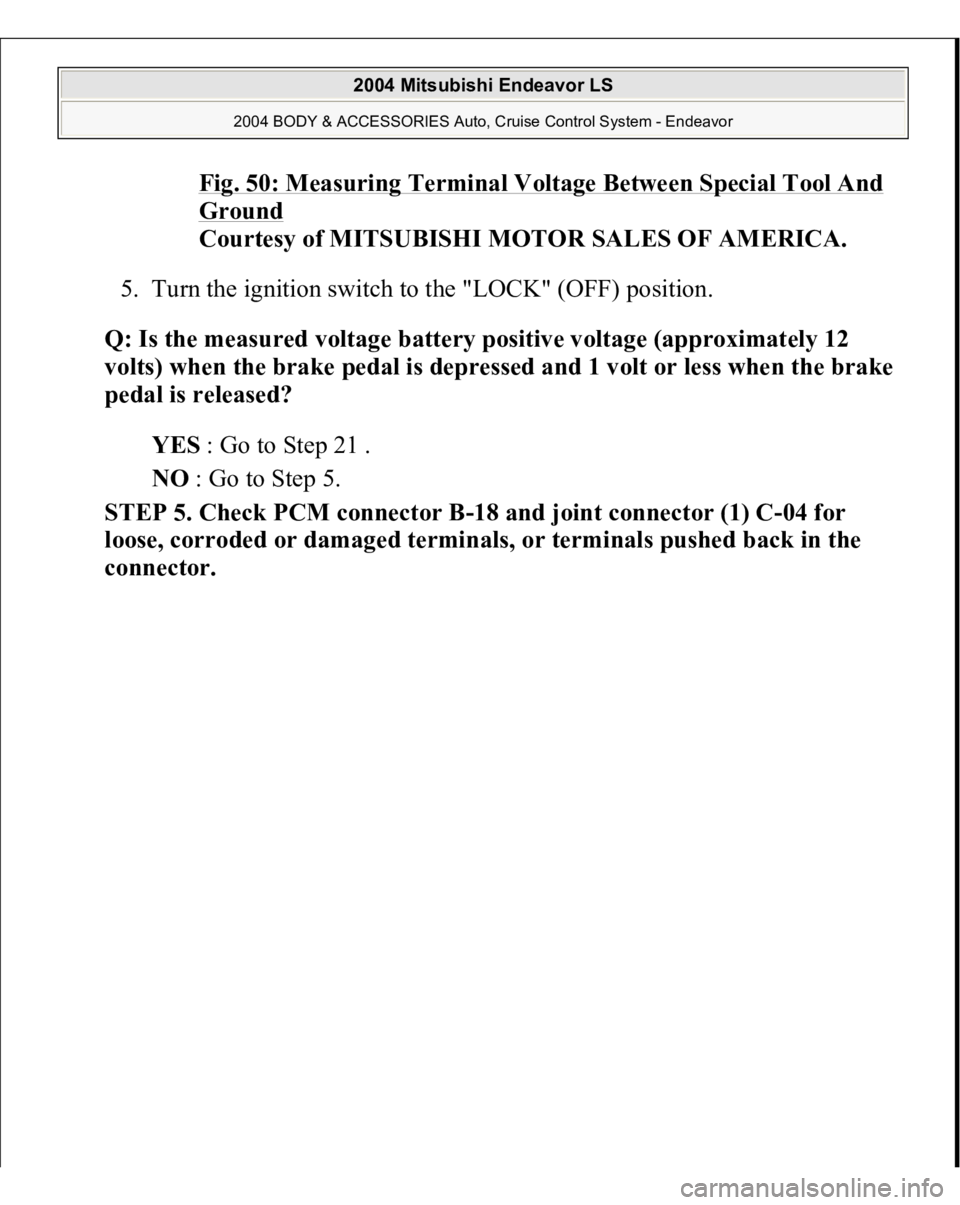

Fig. 50: Measuring Terminal Voltage Between Special Tool And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage (approximately 12
volts) when the brake pedal is depressed and 1 volt or less when the brake
pedal is released?
YES : Go to Step 21 .
NO : Go to Step 5.
STEP 5. Check PCM connector B-18 and joint connector (1) C-04 for
loose, corroded or damaged terminals, or terminals pushed back in the
connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

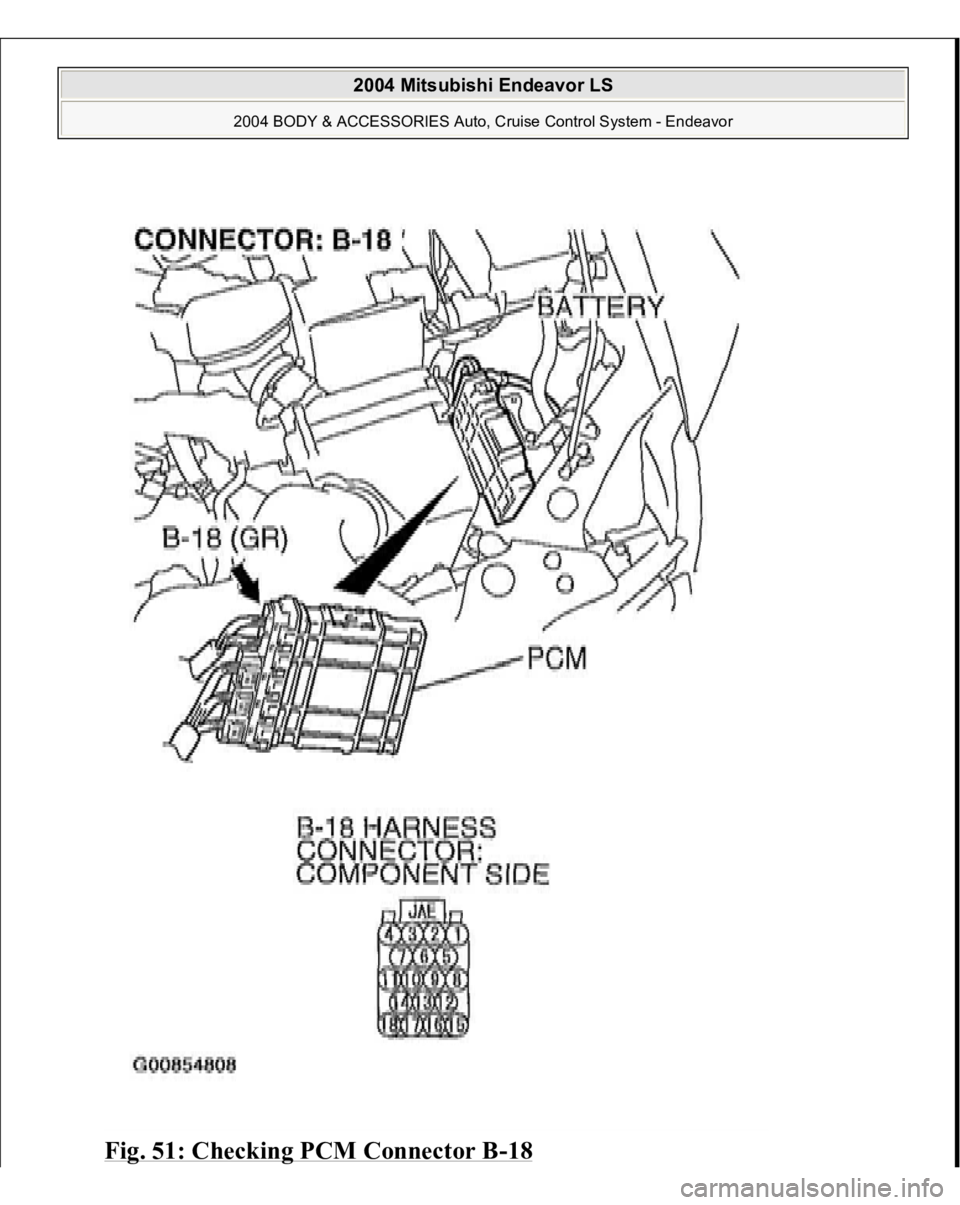

Fig. 51: Checking PCM Connector B
-18

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

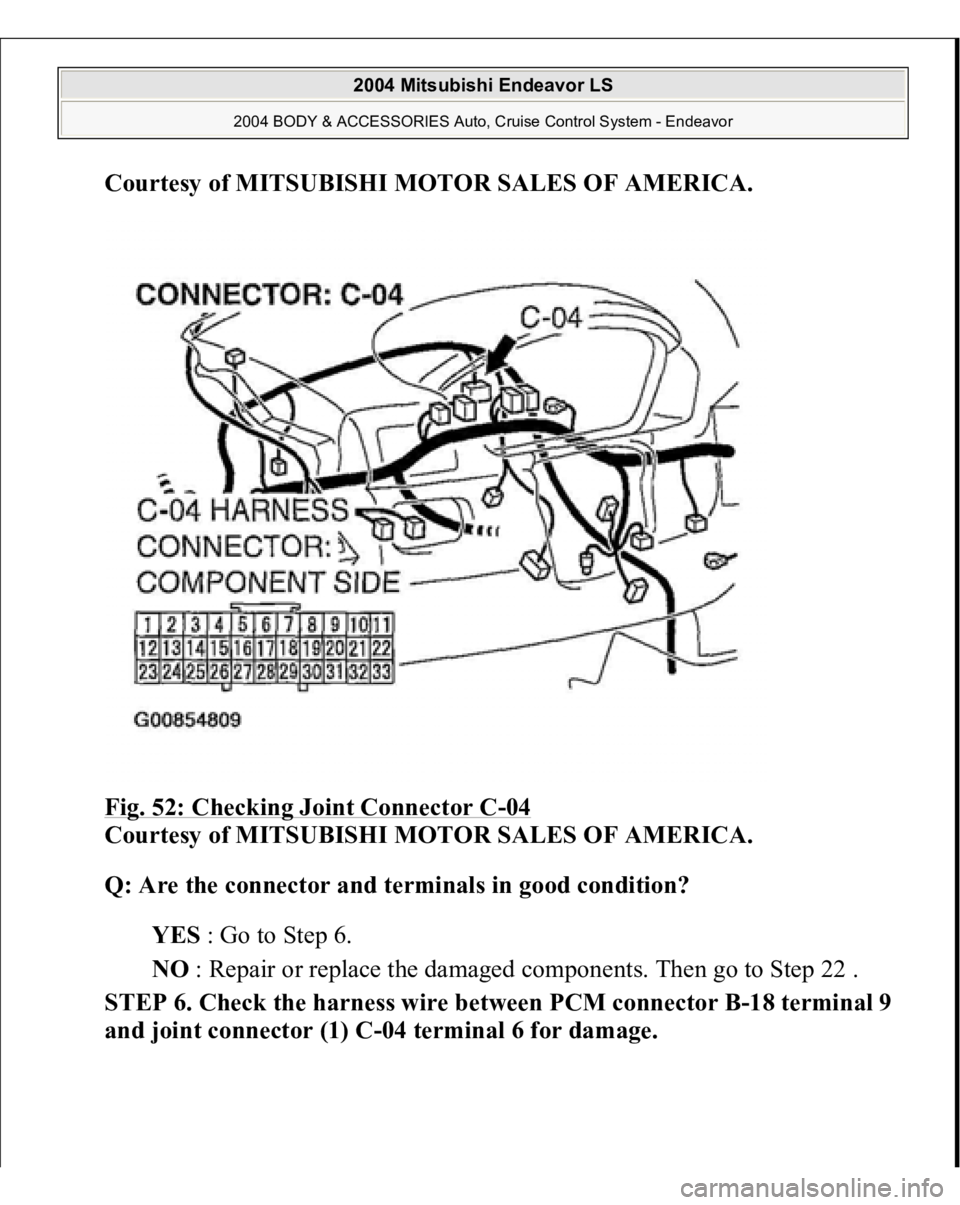

Fig. 52: Checking Joint Connector C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connector and terminals in good condition?
YES : Go to Step 6.
NO : Repair or replace the damaged components. Then go to Step 22 .
STEP 6. Check the harness wire between PCM connector B-18 terminal 9
and joint connector (1) C-04 terminal 6 for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

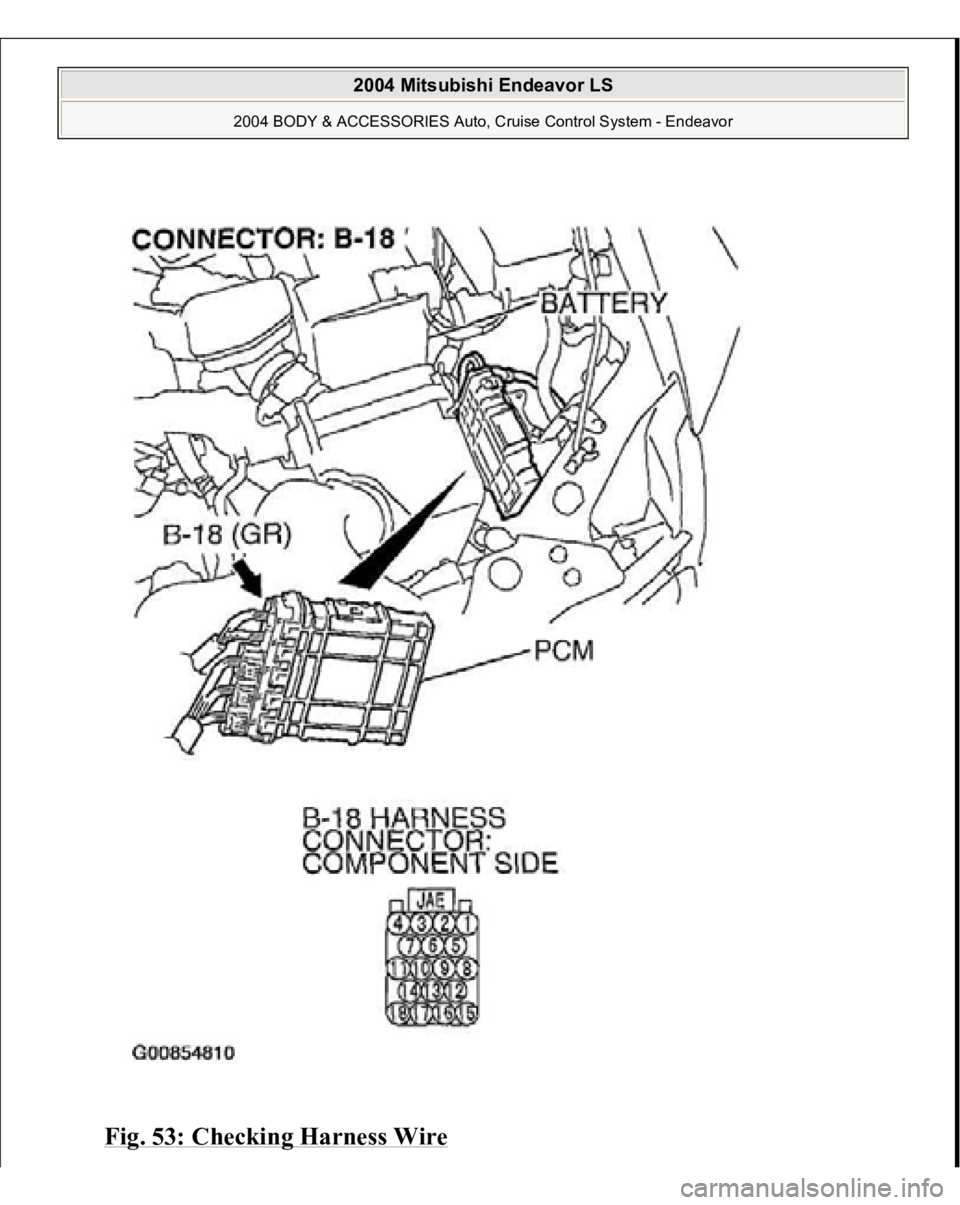

Fig. 53: Checkin
g Harness Wire

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

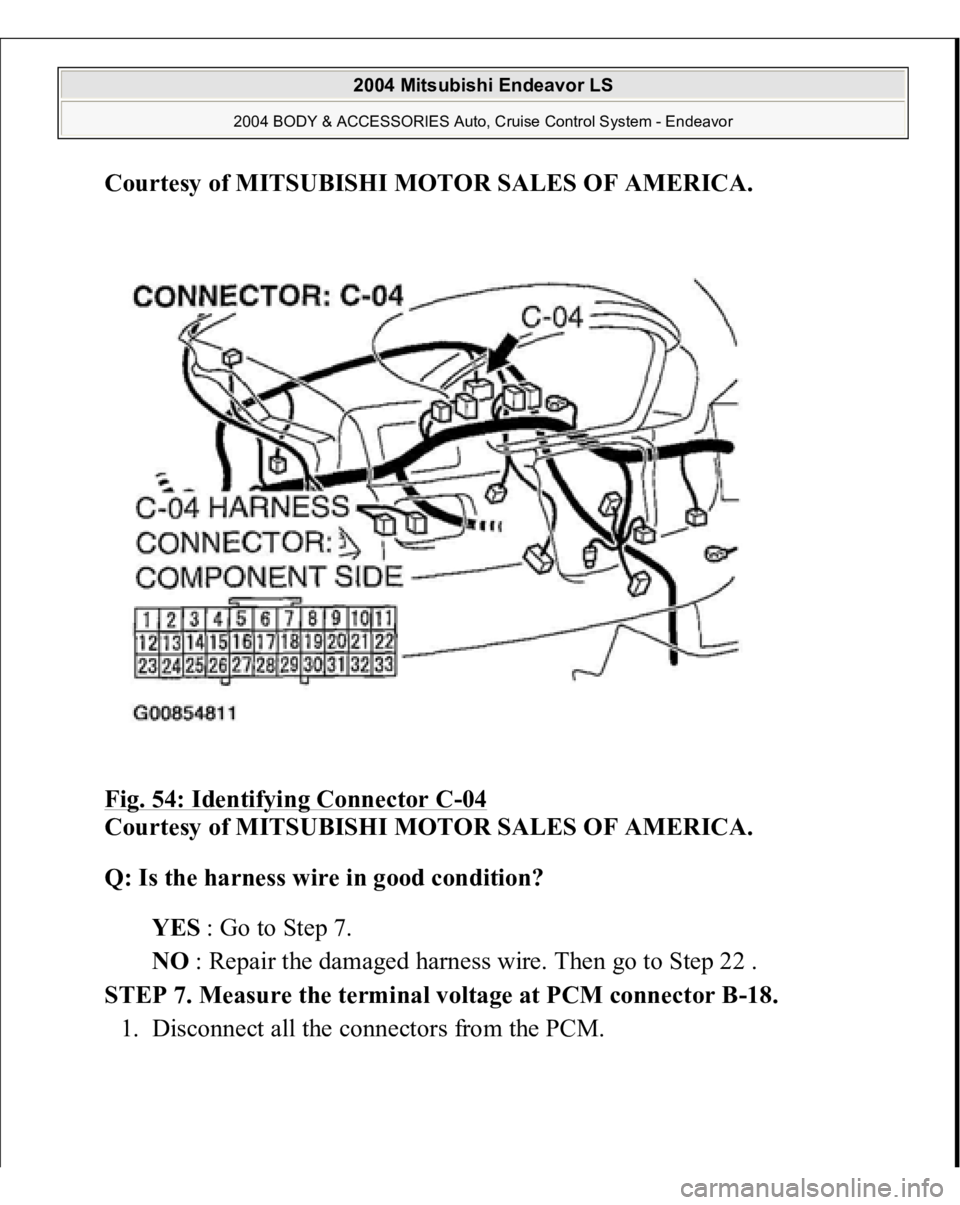

Fig. 54: Identifying Connector C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire in good condition?
YES : Go to Step 7.
NO : Repair the damaged harness wire. Then go to Step 22 .
STEP 7. Measure the terminal voltage at PCM connector B-18.
1. Disconnect all the connectors from the PCM.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

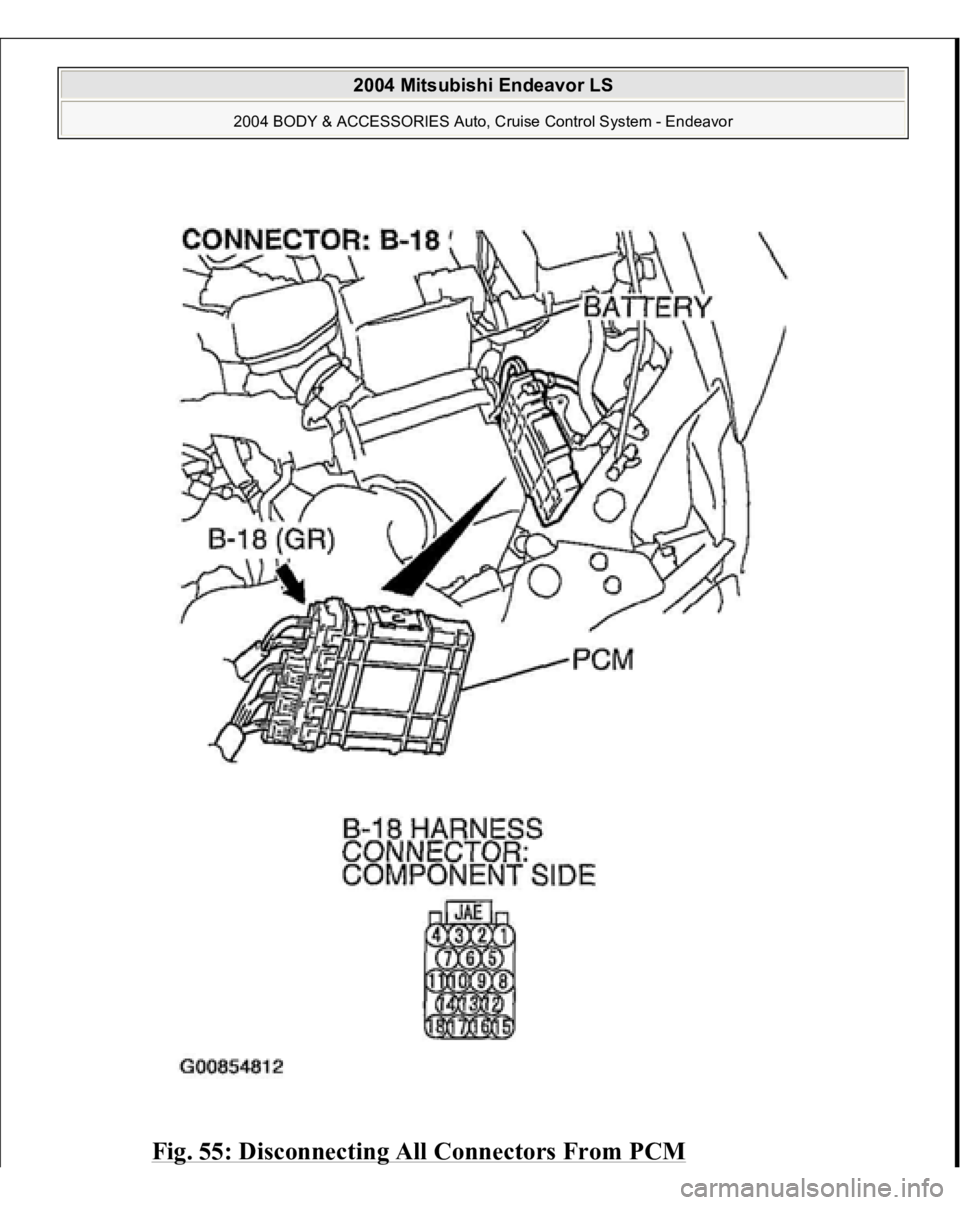

Fig. 55: Disconnecting All Connectors From PCM

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

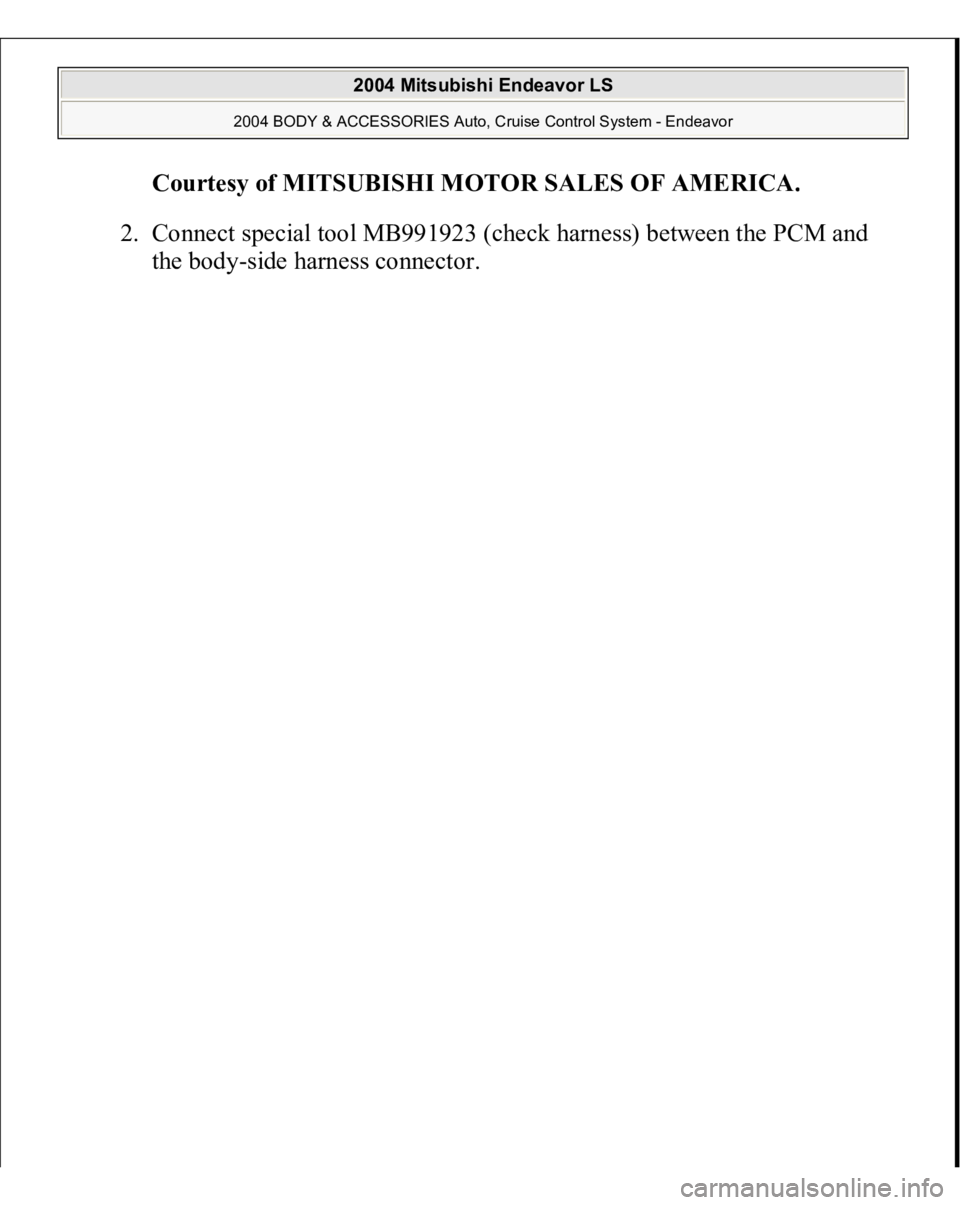

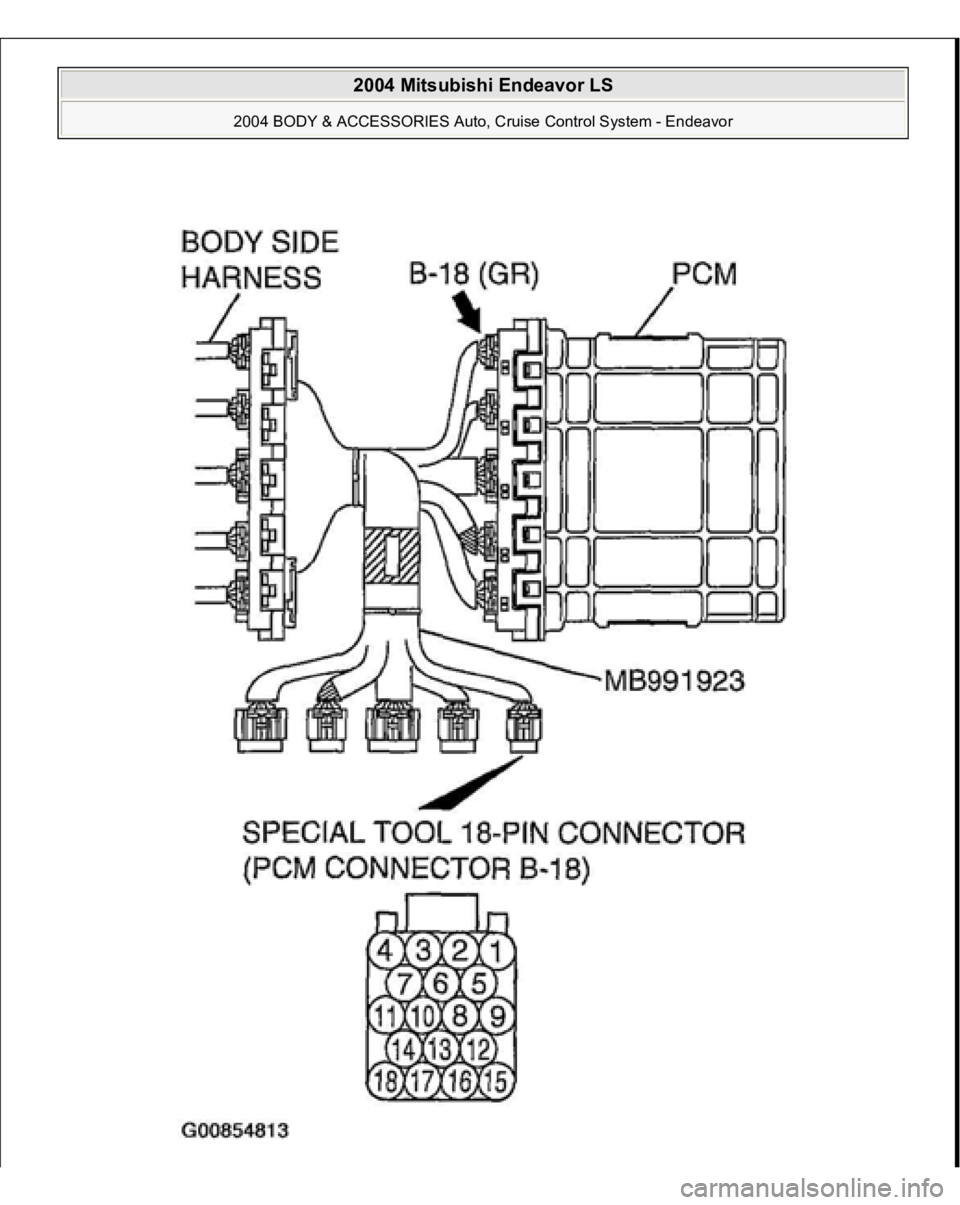

2. Connect special tool MB991923 (check harness) between the PCM and
the bod
y-side harness connector.
