2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to read the diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC 22 set?
YES : Replace the PCM. [Refer to POWERTRAIN CONTROL
MODULE (PCM)
]. Then go to Step 22.
NO : It can be assumed that this malfunction is intermittent. (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
Step 22. Using scan tool MB991958, read the diagnostic trouble codes.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 81: Connecting Scan Tool To Data Link Connector

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to read the diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC 22 set?
YES : Replace to Step 1 .
NO : The procedure is complete.
DTC 23: Powertrain Control module (PCM) and Its Related Components DTC SET CONDITIONS This DTC is set when there is a failure in the PCM and its related components. TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
Malfunction of the MFI system. Malfunction of the A/T system. Malfunction of the PCM.
DIAGNOSIS REQUIRED SPECIAL TOOL:
MB991958: Scan Tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A
STEP 1. Using scan tool MB991958, read the diagnostic trouble code.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 82: Connecting Scan Tool To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

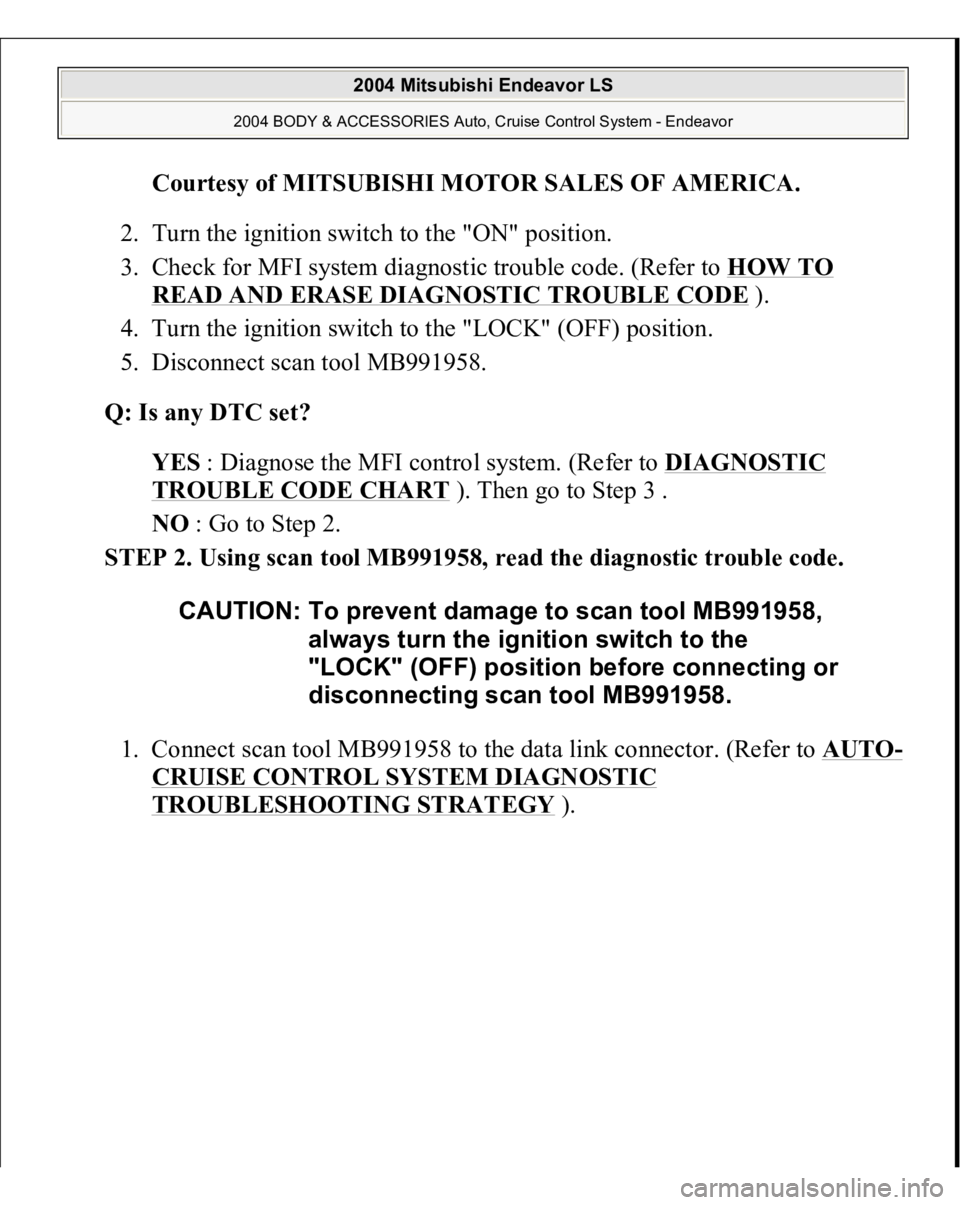

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Check for MFI system diagnostic trouble code. (Refer to HOW TO
READ AND ERASE DIAGNOSTIC TROUBLE CODE
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is any DTC set?
YES : Diagnose the MFI control system. (Refer to DIAGNOSTIC
TROUBLE CODE CHART
). Then go to Step 3 .
NO : Go to Step 2.
STEP 2. Using scan tool MB991958, read the diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 83: Connecting Scan Tool To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

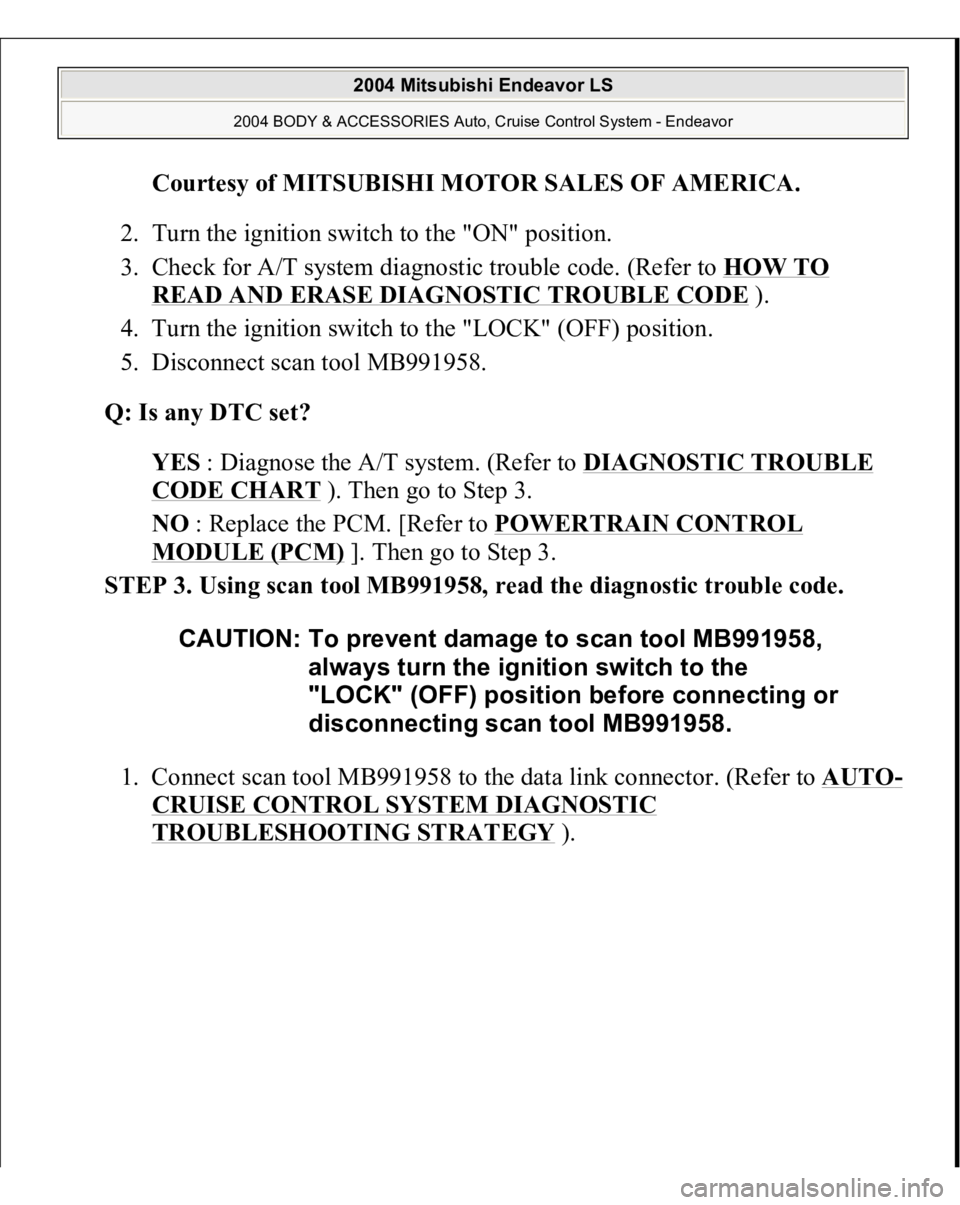

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Check for A/T system diagnostic trouble code. (Refer to HOW TO
READ AND ERASE DIAGNOSTIC TROUBLE CODE
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is any DTC set?
YES : Diagnose the A/T system. (Refer to DIAGNOSTIC TROUBLE
CODE CHART
). Then go to Step 3.
NO : Replace the PCM. [Refer to POWERTRAIN CONTROL
MODULE (PCM)
]. Then go to Step 3.
STEP 3. Using scan tool MB991958, read the diagnostic trouble code.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Fig. 84: Connecting Scan Tool To Data Link Connector

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

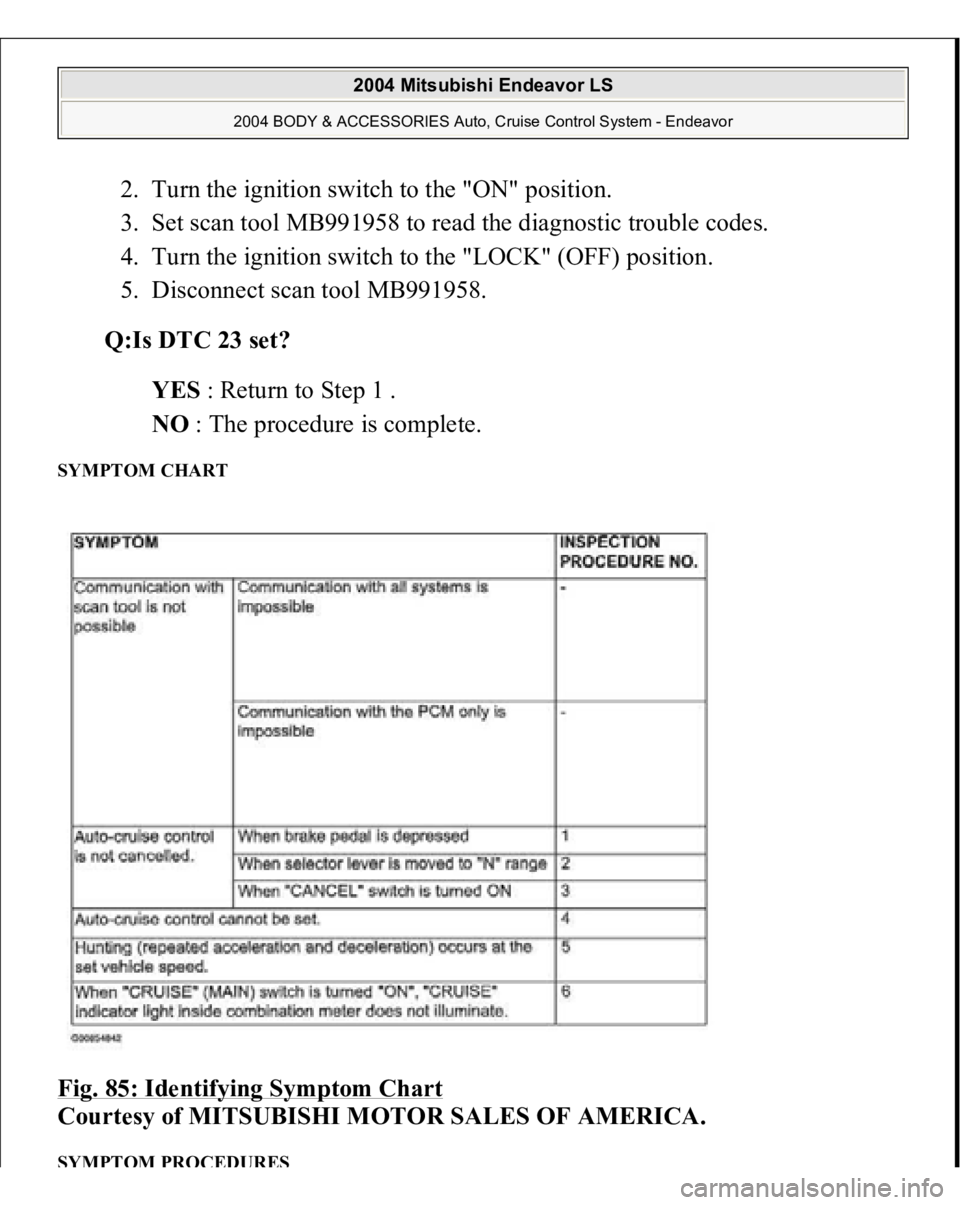

2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to read the diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q:Is DTC 23 set?
YES : Return to Step 1 .
NO : The procedure is complete.
SYMPTOM CHART Fig. 85: Identifying Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMPTOM PROCEDURES
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
