MITSUBISHI ENDEAVOR 2004 Service Repair Manual

Fig. 56: Connecting Special Tool MB991923

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Turn the ignition switch to the "ON" position.
4. Measure the terminal voltage between special tool 18-pin connector
terminal 9 (PCM connector B-18 terminal 9) and ground.
When the brake pedal is depressed, the voltage should measure
battery positive voltage (approximately 12 volts). When the brake pedal is released, the voltage should measure 1 volt
or less.

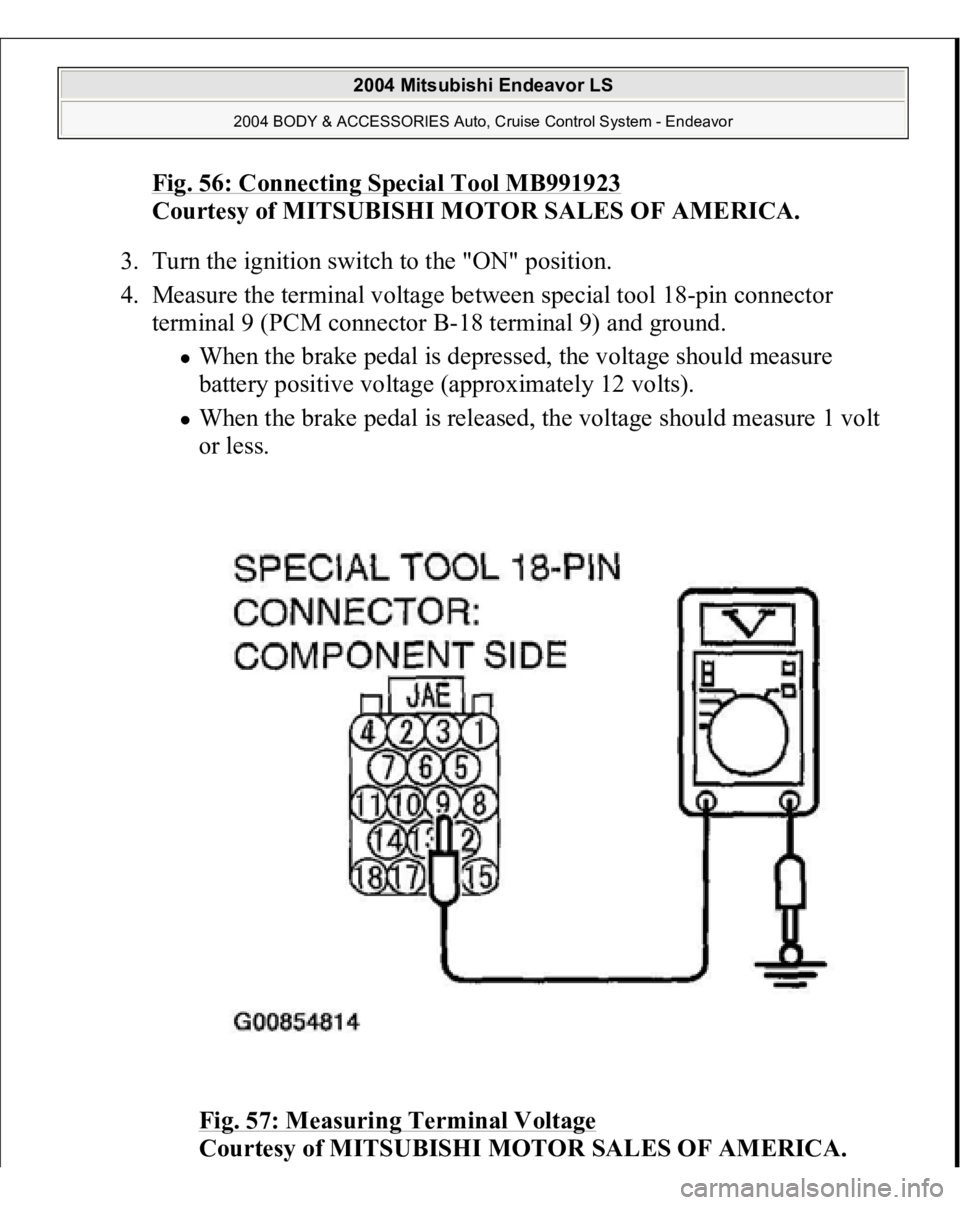

Fig. 57: Measuring Terminal Voltage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage (approximately 12
volts) when the brake pedal is depressed and 1 volt or less when the brake
pedal is released?
YES : It can be assumed that this malfunction is intermittent. (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
Then go to Step 22 .
NO : Replace the PCM. [Refer to POWERTRAIN CONTROL
MODULE (PCM)
]. Then go to Step 22 .
STEP 8. Measure the power supply voltage at stoplight switch connector
C-03 by backprobing.
1. Do not disconnect stoplight switch connector C-03.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

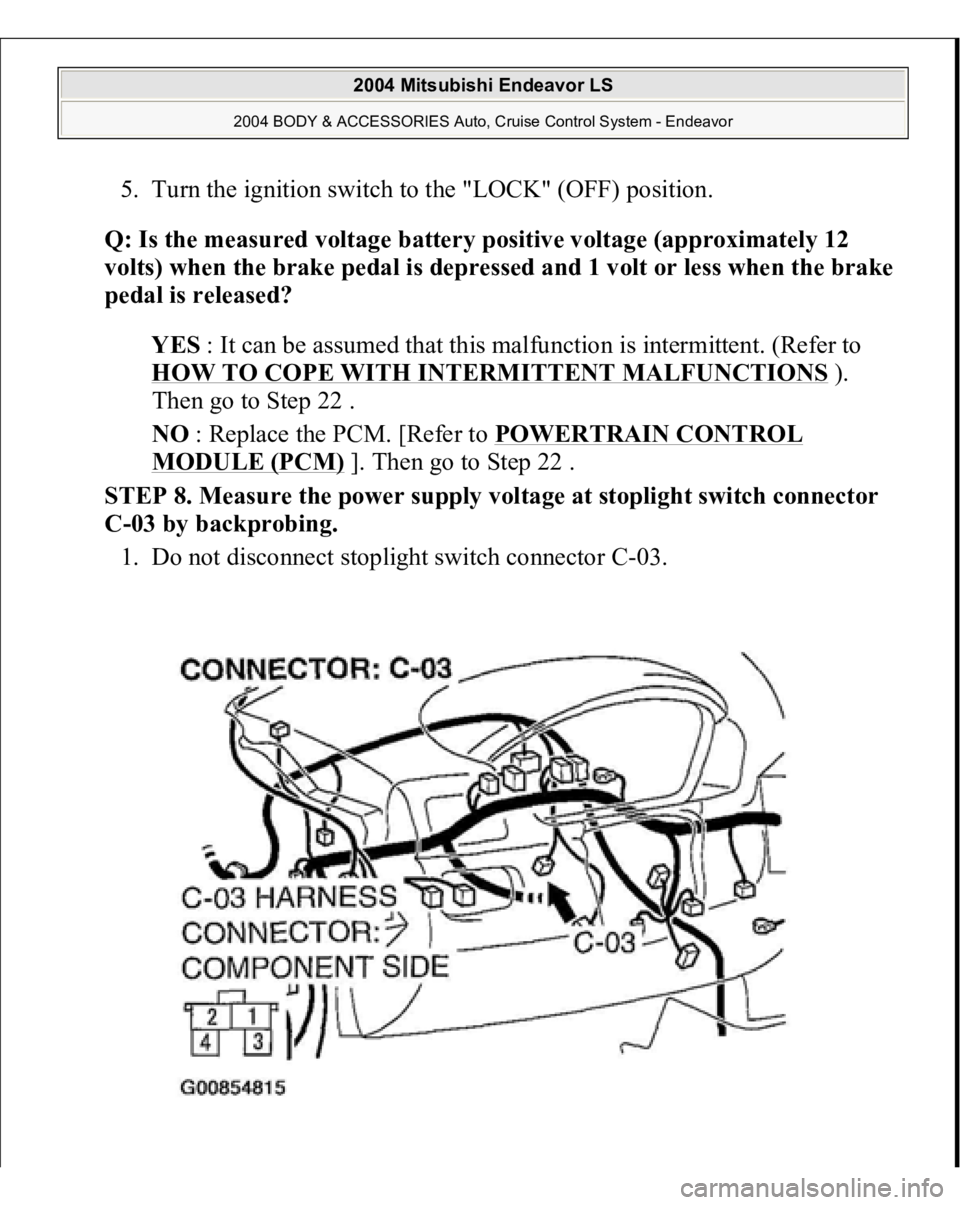

Fig. 58: Identifying Connector C
-03
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure the power supply voltage between stoplight switch connector C-
03 terminal 2 and ground by backprobing.
When the brake pedal is depressed, the voltage should measure 1 volt
or less. When the brake pedal is released, the voltage should measure battery
positive voltage (approximately 12 volts).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

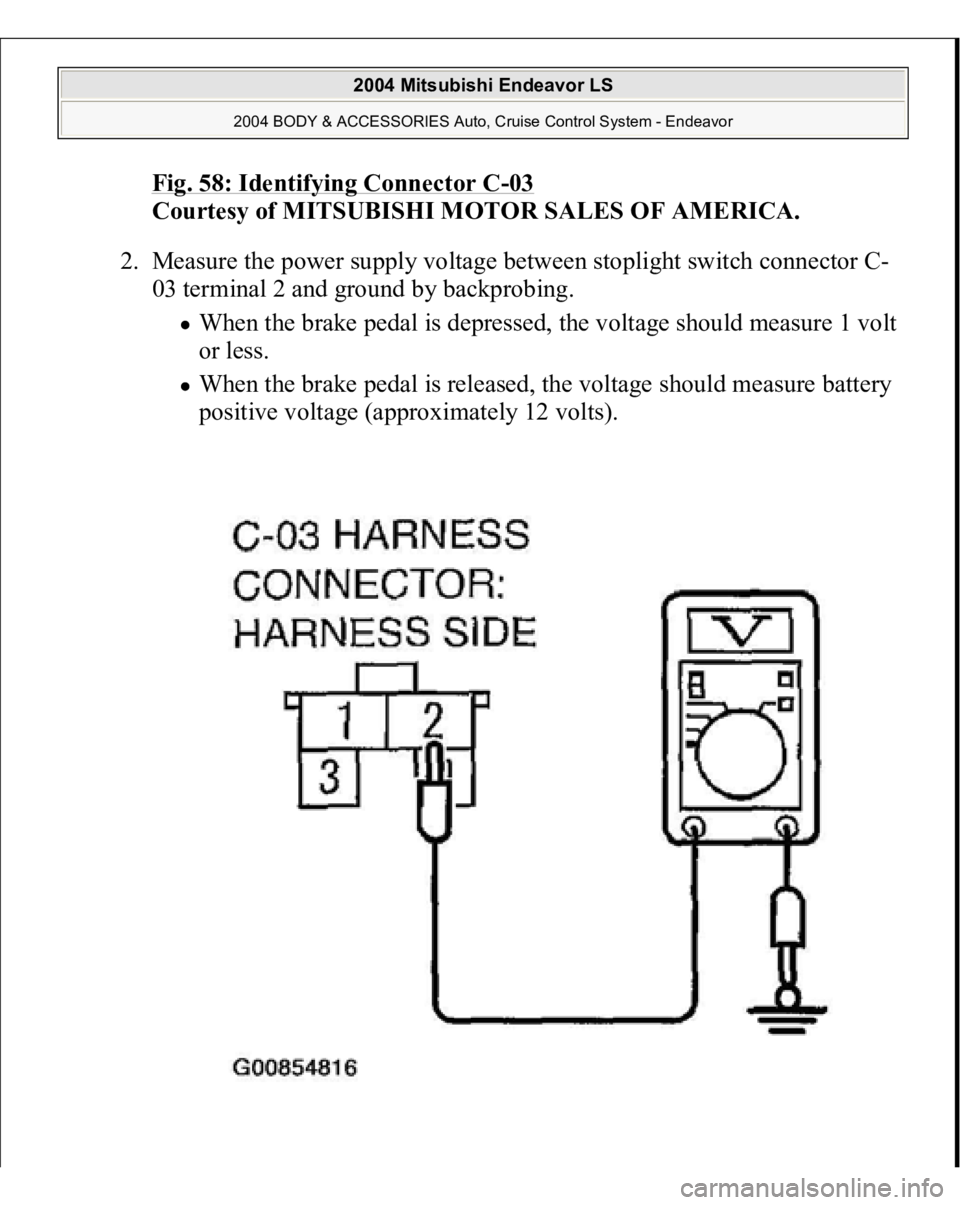

Fig. 59: Measuring Power Supply Voltage

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured volta
ge 1 volt or less when the brake
pedal is de
pressed
and battery positive voltage (approximately 12 volts) when the brake
pedal is released?
YES : Go to Step 9.
NO : Go to Step 12 .
STEP 9. Check stoplight switch connector C-03 and joint connector (1) C-
04 for loose, corroded or damaged terminals, or terminals pushed back in
the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

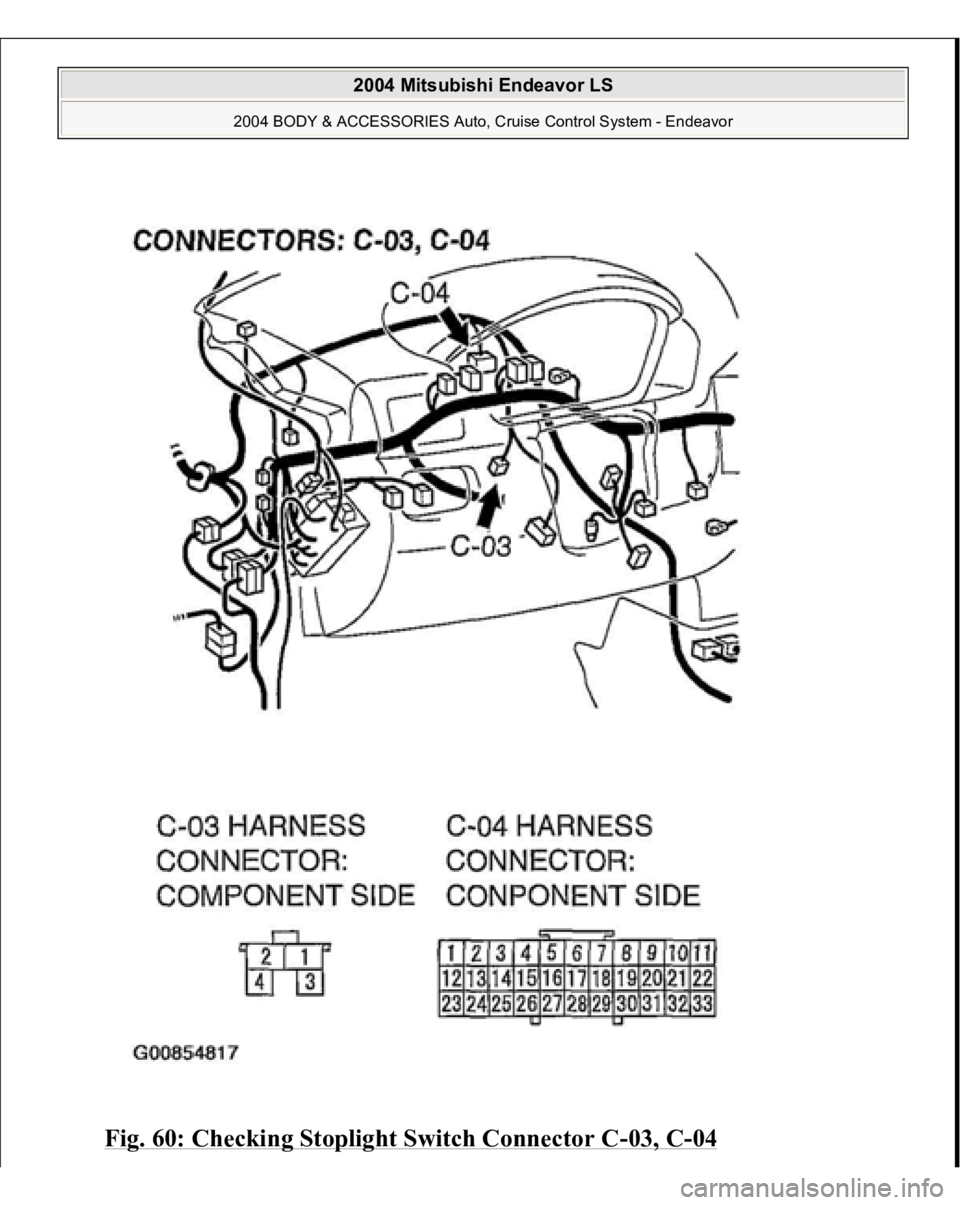

Fig. 60: Checking Stoplight Switch Connector C
-03, C
-04

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

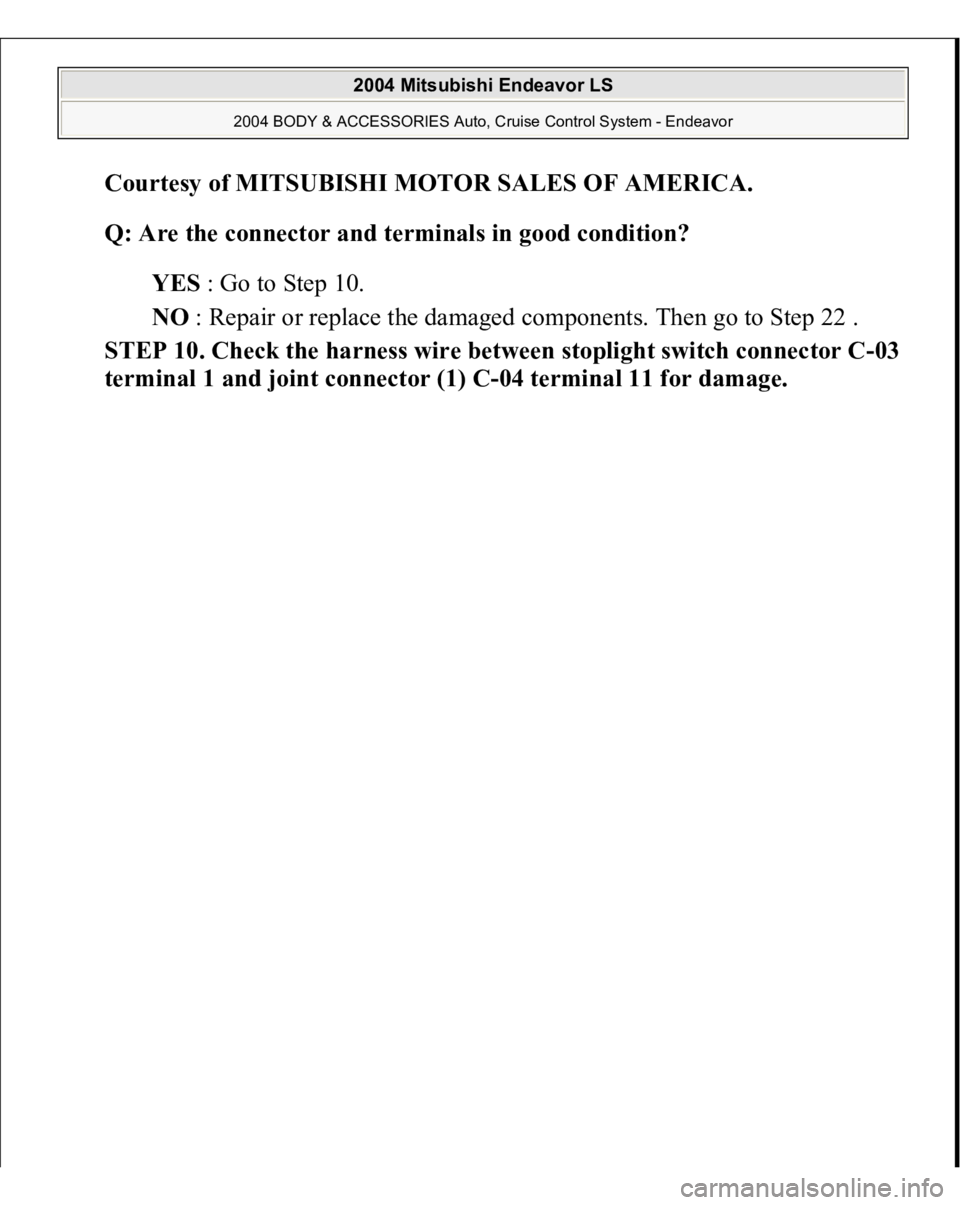

Q: Are the connector and terminals in good condition?
YES : Go to Step 10.
NO : Repair or replace the damaged components. Then go to Step 22 .
STEP 10. Check the harness wire between stoplight switch connector C-03
terminal 1 and joint connector (1) C-04 terminal 11 for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

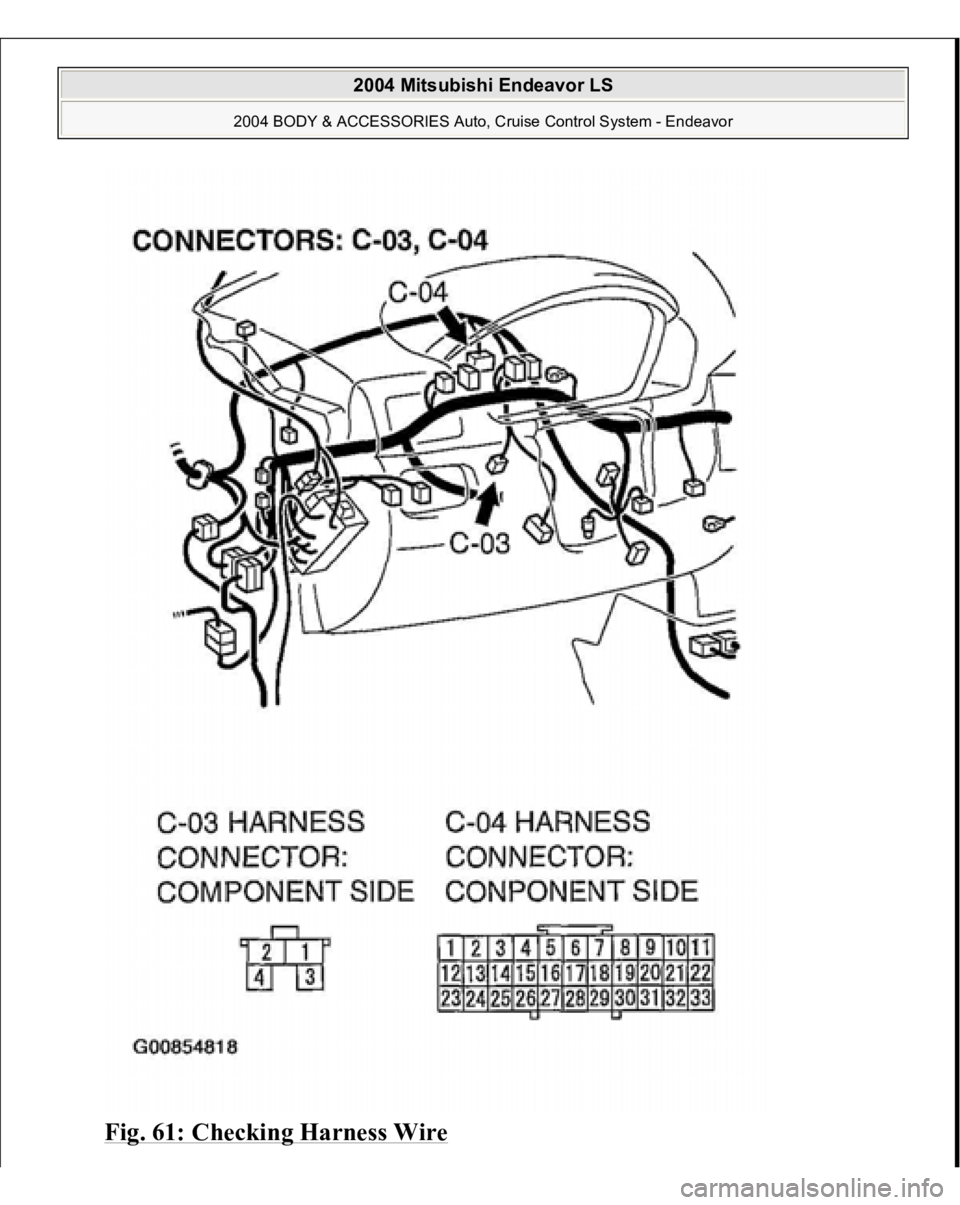

Fig. 61: Checkin
g Harness Wire

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
Q: Is the harness wire in good condition?
YES : Go to Step 11.
NO : Repair the damaged harness wire. Then go to Step 22 .
STEP 11. Check the stoplight switch.
1. Remove the stoplight switch. (Refer to BRAKE PEDAL
).
2. Connect an ohmmeter to the stoplight switch between terminals 1 and 2.

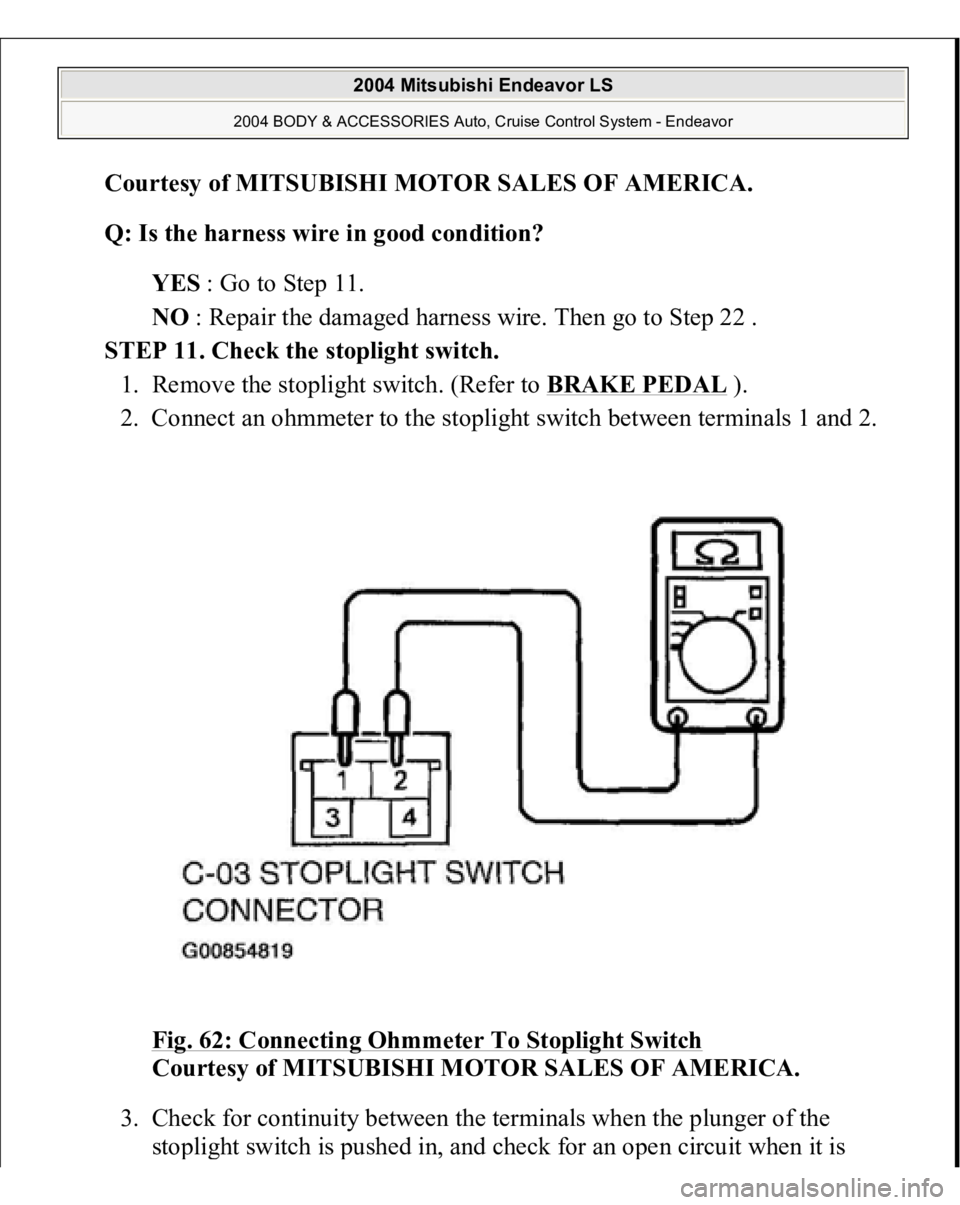

Fig. 62: Connecting Ohmmeter To Stoplight Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check for continuity between the terminals when the plunger of the
sto
plight switch is
pushed in, and check for an o
pen circuit when it is

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

released.

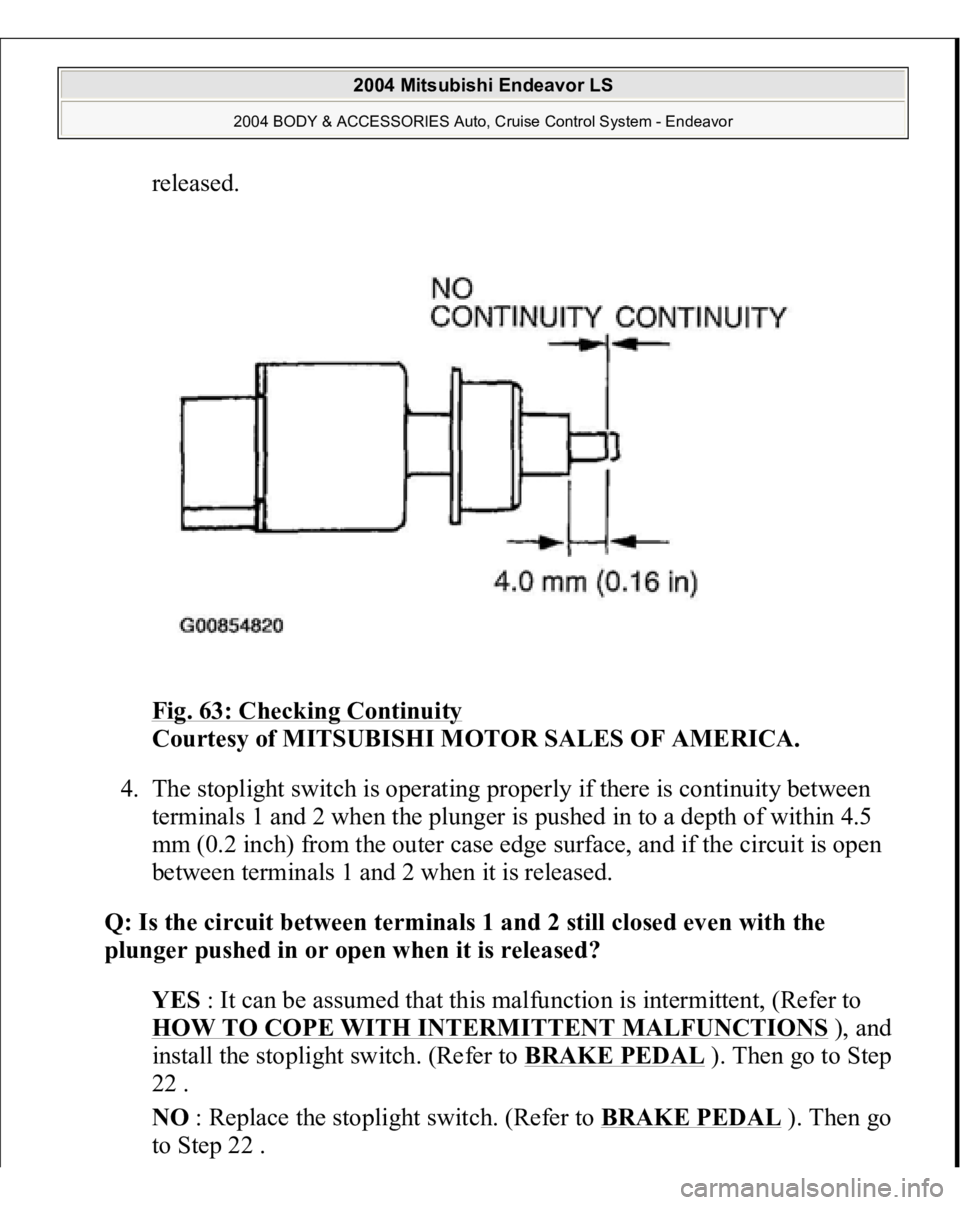

Fig. 63: Checking Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. The stoplight switch is operating properly if there is continuity between
terminals 1 and 2 when the plunger is pushed in to a depth of within 4.5
mm (0.2 inch) from the outer case edge surface, and if the circuit is open
between terminals 1 and 2 when it is released.
Q: Is the circuit between terminals 1 and 2 still closed even with the
plunger pushed in or open when it is released?
YES : It can be assumed that this malfunction is intermittent, (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
), and
install the stoplight switch. (Refer to BRAKE PEDAL
). Then go to Step
22 .
NO : Replace the stoplight switch. (Refer to BRAKE PEDAL
). Then go
to Step 2
2 .

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

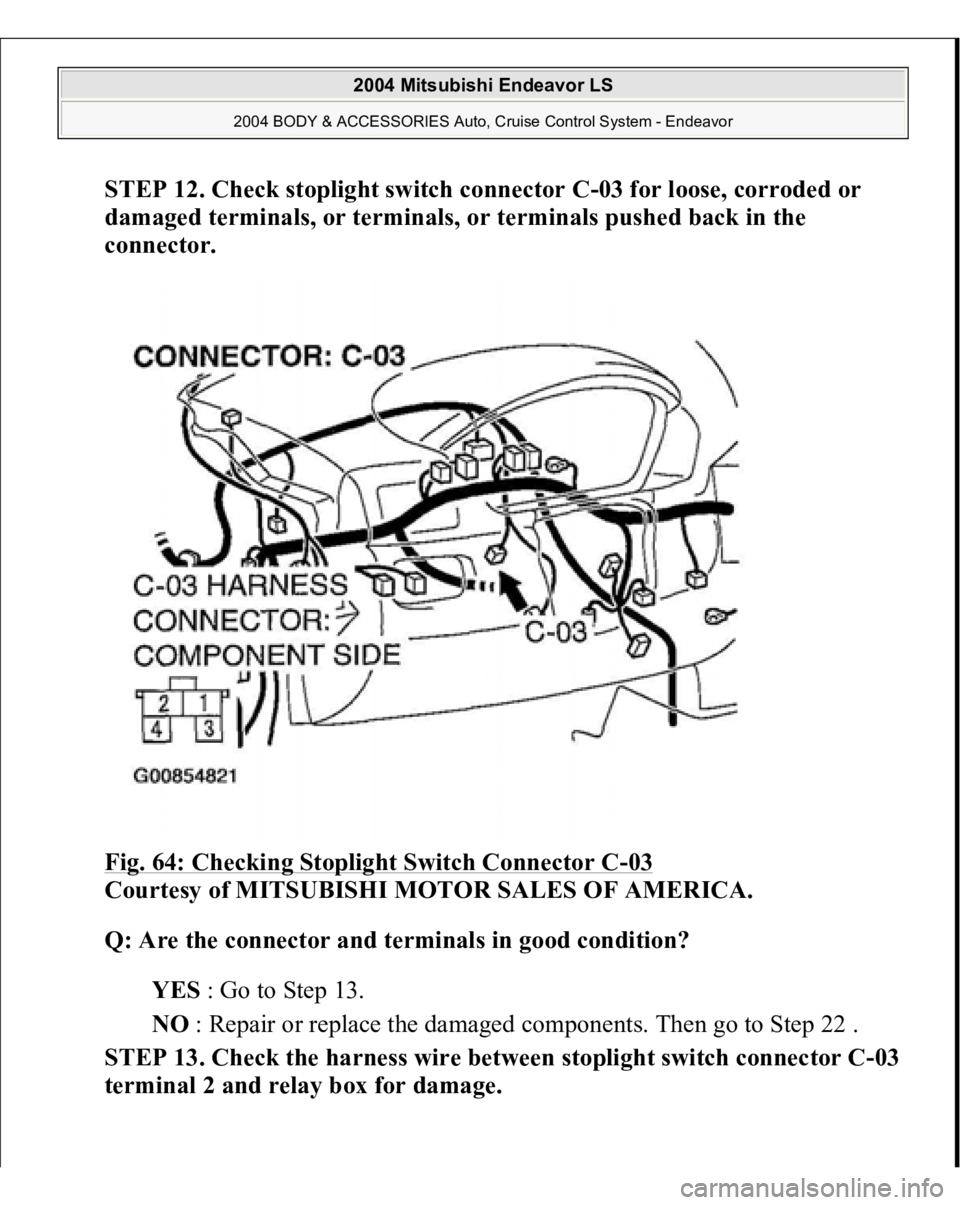

STEP 12. Check stoplight switch connector C-03 for loose, corroded or
damaged terminals, or terminals, or terminals pushed back in the
connector.
Fig. 64: Checking Stoplight Switch Connector C
-03
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connector and terminals in good condition?
YES : Go to Step 13.
NO : Repair or replace the damaged components. Then go to Step 22 .
STEP 13. Check the harness wire between stoplight switch connector C-03
terminal 2 and relay box for damage.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
