Seat and seat belts
2-23
2

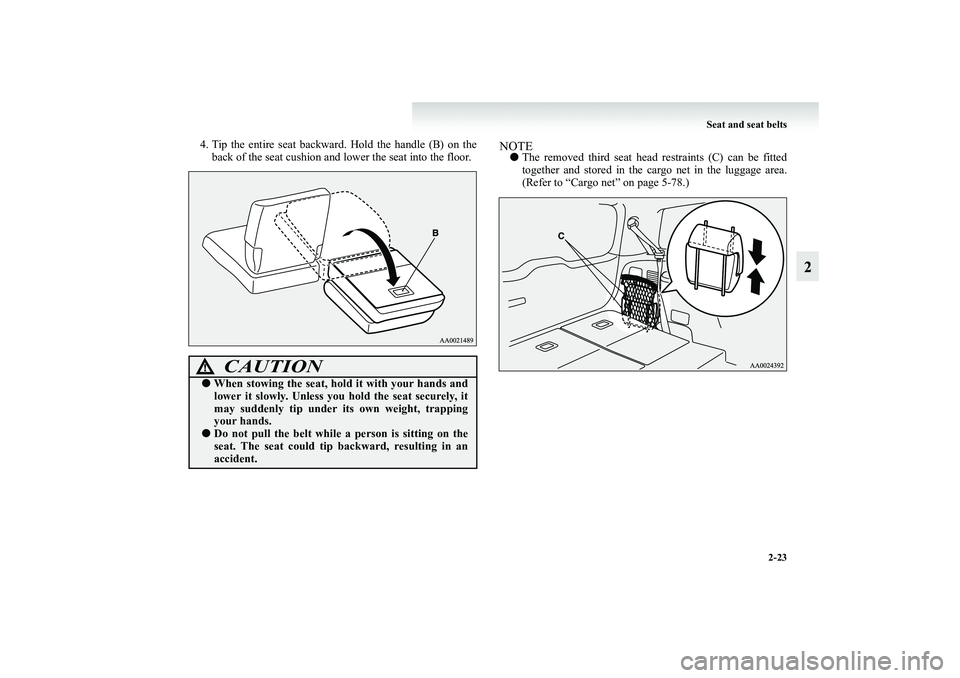

4. Tip the entire seat backward. Hold the handle (B) on the
back of the seat cushion and lower the seat into the floor.
NOTE●The removed third seat head restraints (C) can be fitted
together and stored in the cargo net in the luggage area.
(Refer to “Cargo net” on page 5-78.)
CAUTION
!●When stowing the seat, hold it with your hands and
lower it slowly. Unless you hold the seat securely, it
may suddenly tip under its own weight, trapping
your hands.●Do not pull the belt while a person is sitting on the
seat. The seat could tip backward, resulting in an
accident.
BK-XP08E1ENUK.en-uk.book Page 23 Monday, August 13, 2007 2:20 PM

2-24 Seat and seat belts
2

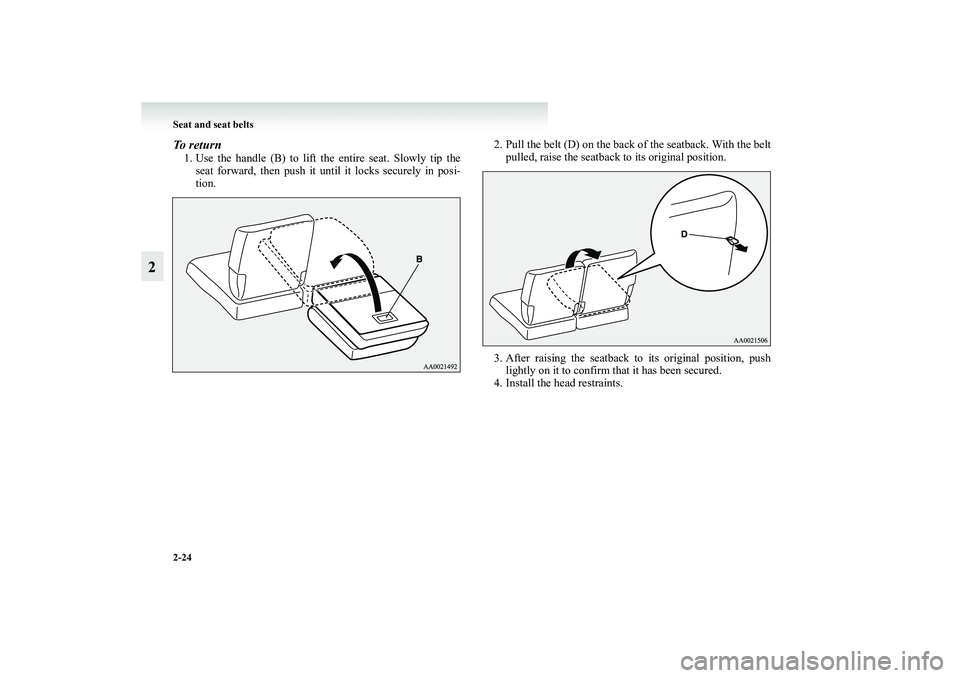

To return1. Use the handle (B) to lift the entire seat. Slowly tip the
seat forward, then push it until it locks securely in posi-
tion.2. Pull the belt (D) on the back of the seatback. With the belt
pulled, raise the seatback to its original position.
3. After raising the seatback to its original position, push
lightly on it to confirm that it has been secured.
4. Install the head restraints.
BK-XP08E1ENUK.en-uk.book Page 24 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-25

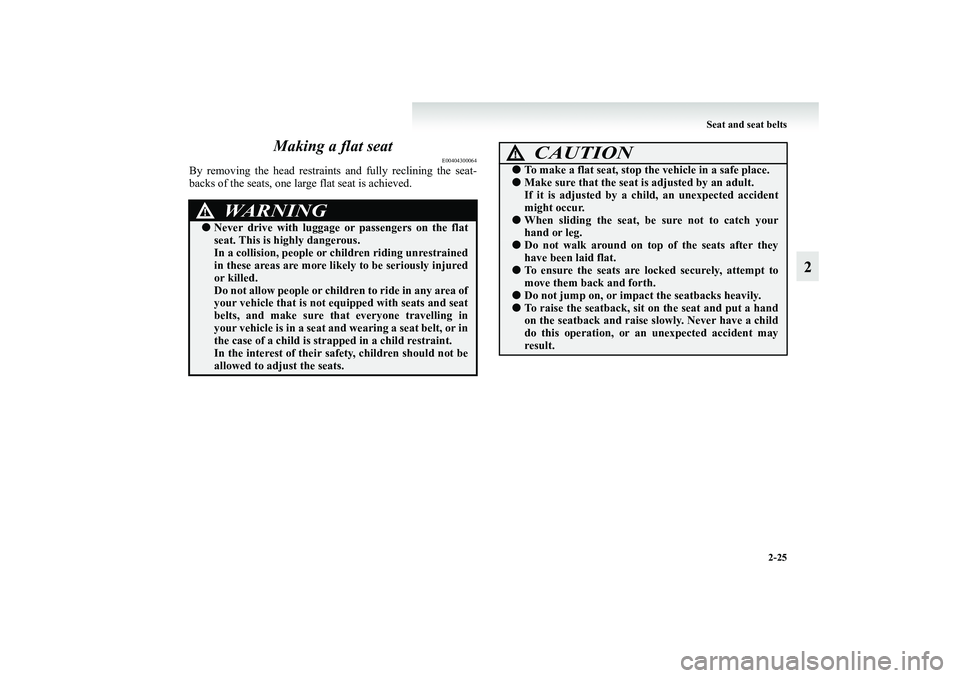

2 Making a flat seat
E00404300064
By removing the head restraints and fully reclining the seat-
backs of the seats, one large flat seat is achieved.
WARNING
!●Never drive with luggage or passengers on the flat
seat. This is highly dangerous.
In a collision, people or children riding unrestrained
in these areas are more likely to be seriously injured
or killed.
Do not allow people or children to ride in any area of
your vehicle that is not equipped with seats and seat
belts, and make sure that everyone travelling in
your vehicle is in a seat and wearing a seat belt, or in
the case of a child is strapped in a child restraint.
In the interest of their safety, children should not be
allowed to adjust the seats.
CAUTION
!●To make a flat seat, stop the vehicle in a safe place.●Make sure that the seat is adjusted by an adult.
If it is adjusted by a child, an unexpected accident
might occur.●When sliding the seat, be sure not to catch your
hand or leg.●Do not walk around on top of the seats after they
have been laid flat.●To ensure the seats are locked securely, attempt to
move them back and forth.●Do not jump on, or impact the seatbacks heavily.●To raise the seatback, sit on the seat and put a hand
on the seatback and raise slowly. Never have a child
do this operation, or an unexpected accident may
result.
BK-XP08E1ENUK.en-uk.book Page 25 Monday, August 13, 2007 2:20 PM

2-26 Seat and seat belts
2

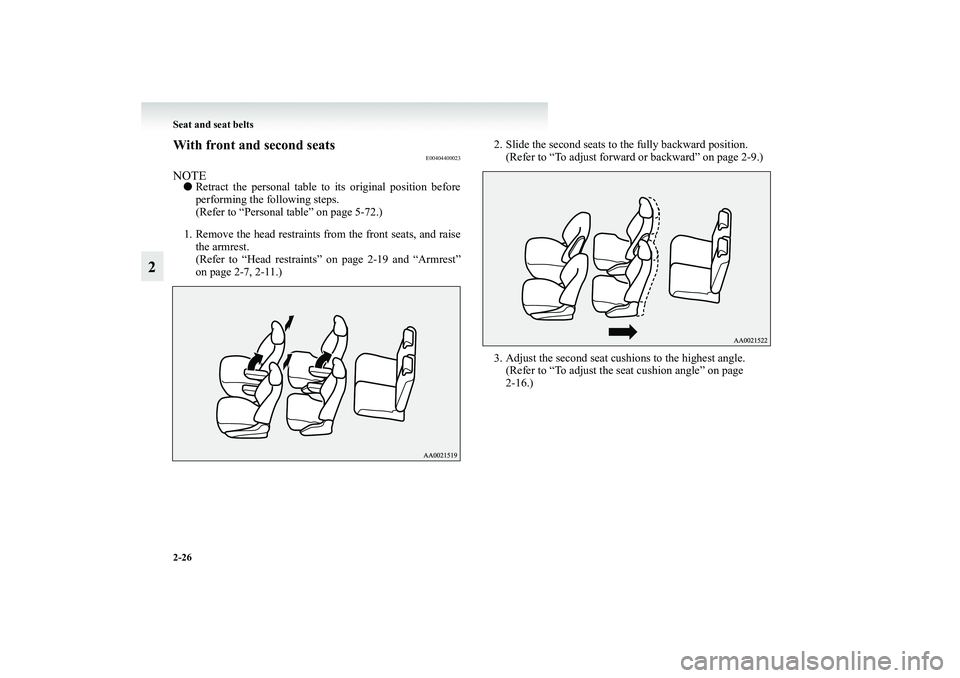

With front and second seats
E00404400023
NOTE●Retract the personal table to its original position before
performing the following steps.
(Refer to “Personal table” on page 5-72.)
1. Remove the head restraints from the front seats, and raise
the armrest.
(Refer to “Head restraints” on page 2-19 and “Armrest”
on page 2-7, 2-11.)2. Slide the second seats to the fully backward position.
(Refer to “To adjust forward or backward” on page 2-9.)
3. Adjust the second seat cushions to the highest angle.
(Refer to “To adjust the seat cushion angle” on page
2-16.)
BK-XP08E1ENUK.en-uk.book Page 26 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-27
2

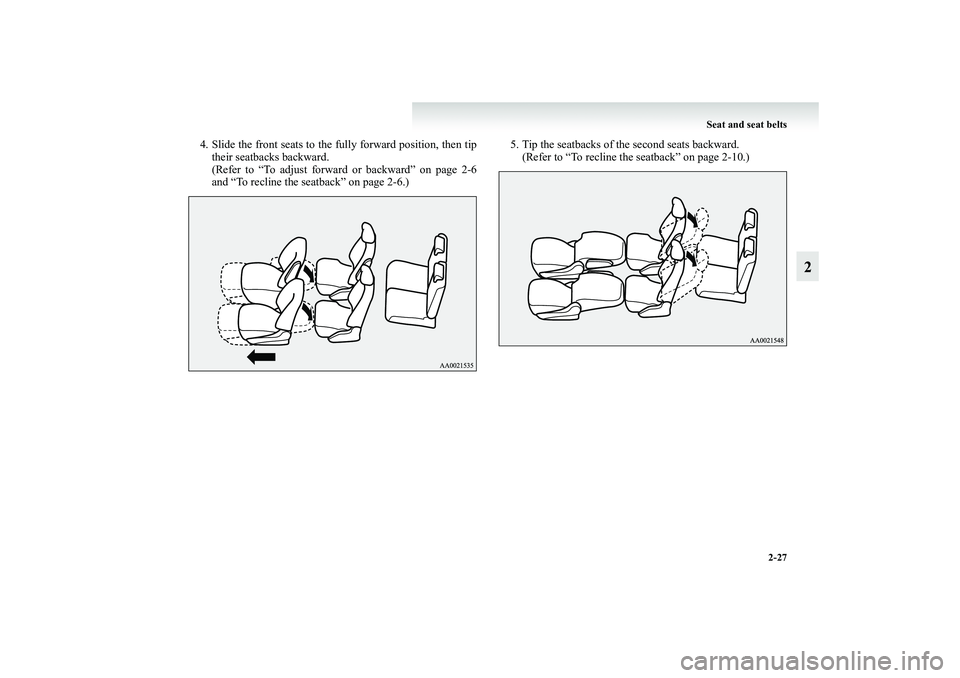

4. Slide the front seats to the fully forward position, then tip
their seatbacks backward.
(Refer to “To adjust forward or backward” on page 2-6
and “To recline the seatback” on page 2-6.)5. Tip the seatbacks of the second seats backward.
(Refer to “To recline the seatback” on page 2-10.)
BK-XP08E1ENUK.en-uk.book Page 27 Monday, August 13, 2007 2:20 PM

2-28 Seat and seat belts
2

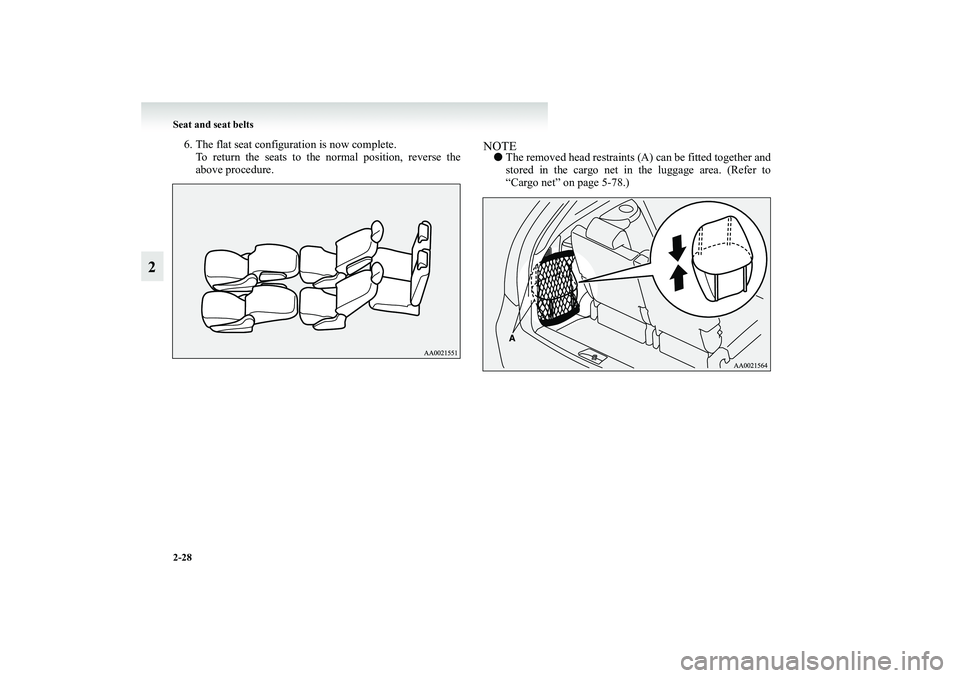

6. The flat seat configuration is now complete.
To return the seats to the normal position, reverse the
above procedure.
NOTE●The removed head restraints (A) can be fitted together and
stored in the cargo net in the luggage area. (Refer to
“Cargo net” on page 5-78.)
BK-XP08E1ENUK.en-uk.book Page 28 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-29
2

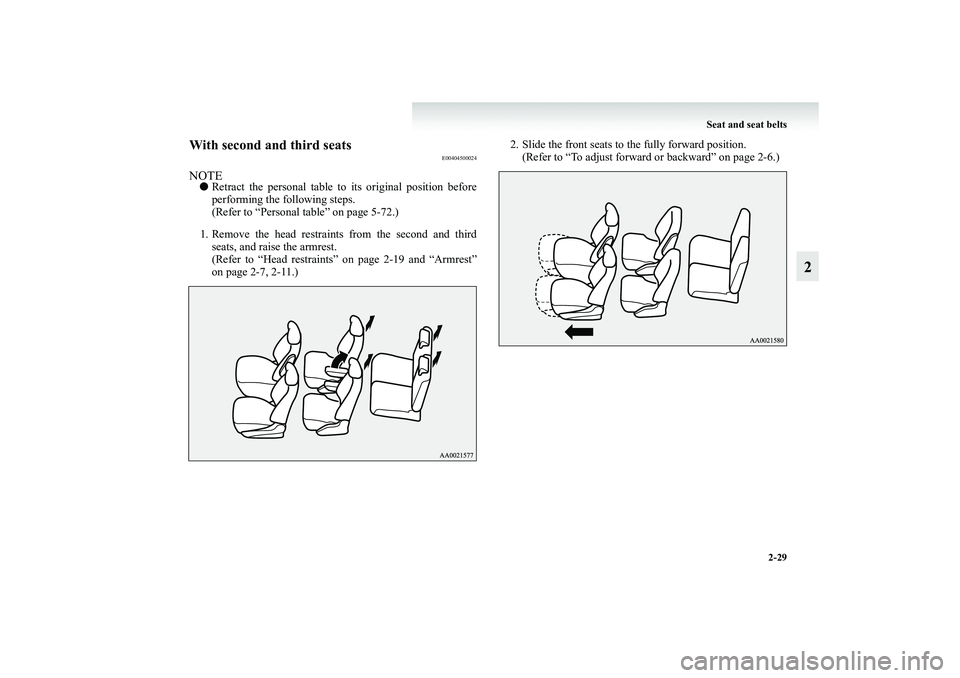

With second and third seats
E00404500024
NOTE●Retract the personal table to its original position before
performing the following steps.
(Refer to “Personal table” on page 5-72.)
1. Remove the head restraints from the second and third
seats, and raise the armrest.
(Refer to “Head restraints” on page 2-19 and “Armrest”
on page 2-7, 2-11.)2. Slide the front seats to the fully forward position.
(Refer to “To adjust forward or backward” on page 2-6.)
BK-XP08E1ENUK.en-uk.book Page 29 Monday, August 13, 2007 2:20 PM

2-30 Seat and seat belts
2

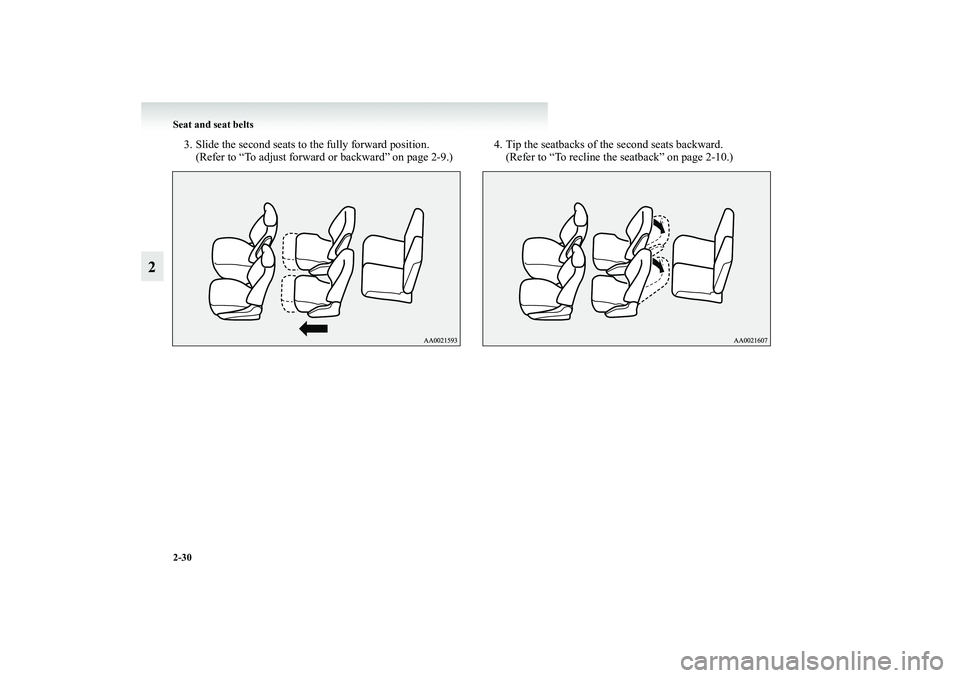

3. Slide the second seats to the fully forward position.
(Refer to “To adjust forward or backward” on page 2-9.)4. Tip the seatbacks of the second seats backward.
(Refer to “To recline the seatback” on page 2-10.)
BK-XP08E1ENUK.en-uk.book Page 30 Monday, August 13, 2007 2:20 PM

Seat and seat belts
2-31
2

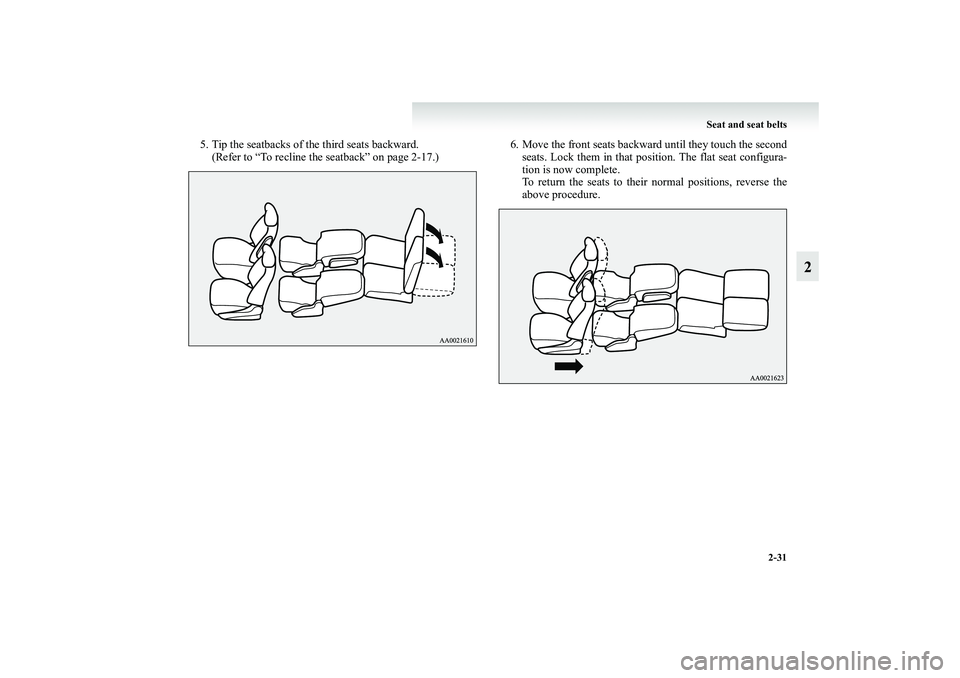

5. Tip the seatbacks of the third seats backward.
(Refer to “To recline the seatback” on page 2-17.)6. Move the front seats backward until they touch the second
seats. Lock them in that position. The flat seat configura-
tion is now complete.
To return the seats to their normal positions, reverse the
above procedure.
BK-XP08E1ENUK.en-uk.book Page 31 Monday, August 13, 2007 2:20 PM

2-32 Seat and seat belts
2

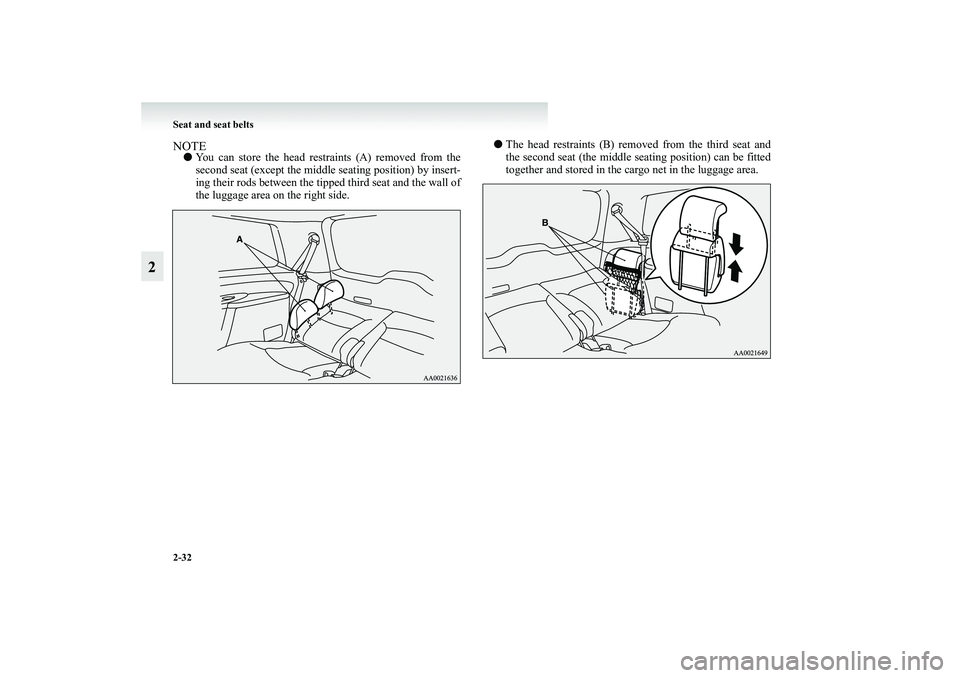

NOTE●You can store the head restraints (A) removed from the
second seat (except the middle seating position) by insert-
ing their rods between the tipped third seat and the wall of
the luggage area on the right side.●The head restraints (B) removed from the third seat and
the second seat (the middle seating position) can be fitted
together and stored in the cargo net in the luggage area.
