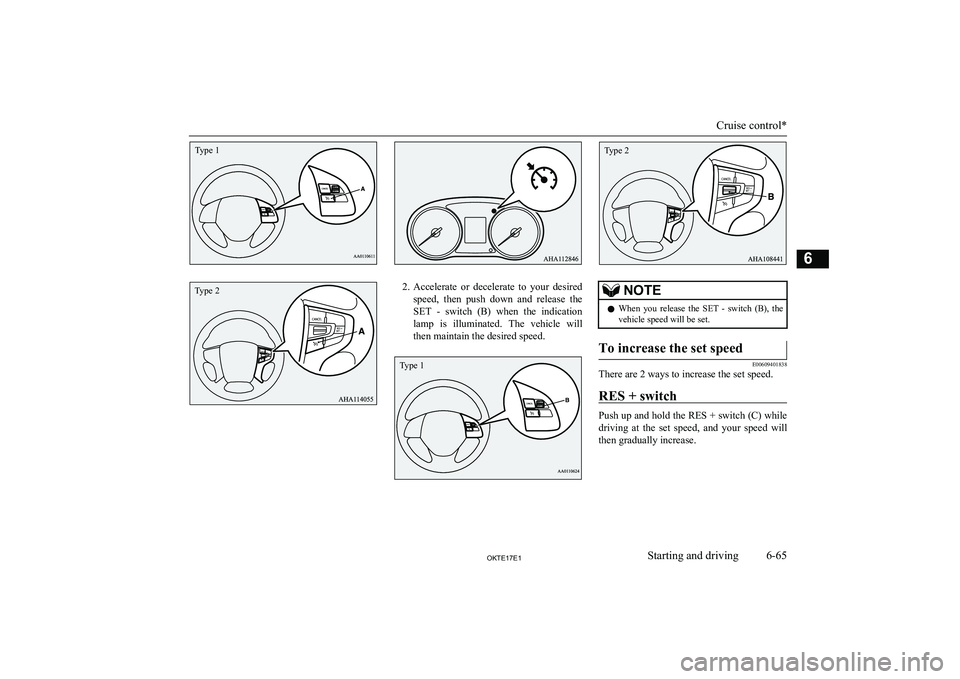

2.Accelerate or decelerate to your desired
speed, then push down and release the SET - switch (B) when the indication
lamp is illuminated. The vehicle will then maintain the desired speed.
NOTEl When you release the SET - switch (B), the
vehicle speed will be set.To increase the set speed
E00609401838
There are 2 ways to increase the set speed.
RES + switch
Push up and hold the RES + switch (C) whiledriving at the set speed, and your speed will
then gradually increase.
Cruise control*
6-65OKTE17E1Starting and driving6Type 1 Type 2 Type 1 Type 2

When you reach your desired speed, release
the switch. Your new cruising speed is now set.
To increase your speed in small amounts,
push up the RES + switch (C) for less than approximately 1 second and release it.
Each time you push up the RES + switch (C), your vehicle will go approximately 1.6 km/h (1 mph) faster.
Accelerator pedal
While driving at the set speed, use the accel-
erator pedal to reach your desired speed and
then push down the SET - switch (B) and re- lease the switch momentarily to set a new de-
sired cruising speed.
To decrease the set speed
E00609501770
There are 2 ways to decrease the set speed.
SET - switch
Push down and hold the SET - switch (B) while driving at the set speed, and your speed
will slow down gradually.
When you reach your desired speed, release the switch. Your new cruising speed is nowset.
Cruise control*

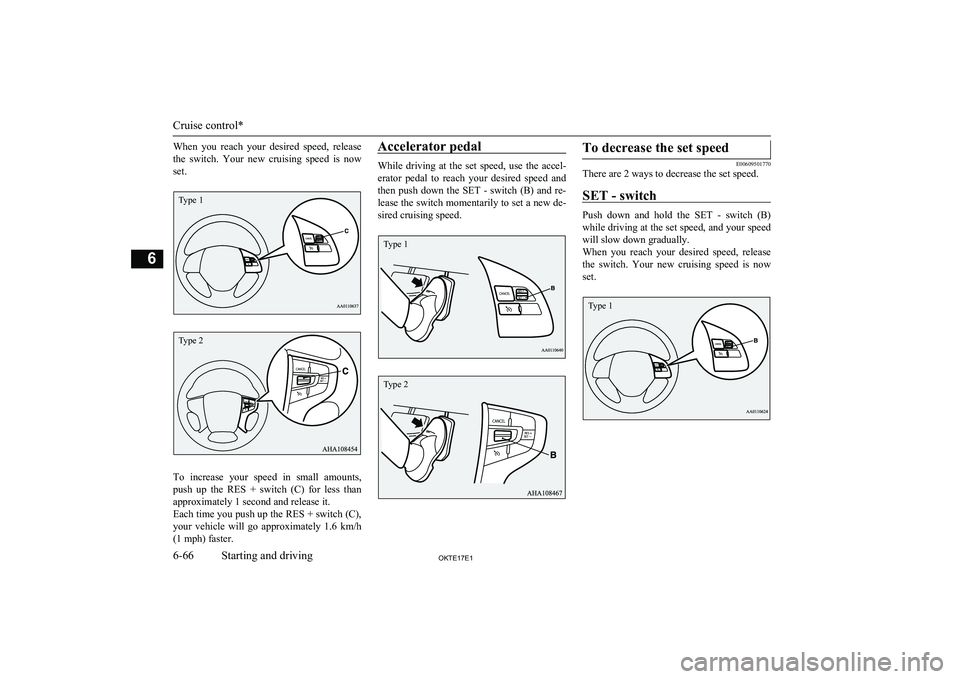

6-66OKTE17E1Starting and driving6Type 1 Type 2 Type 1 Type 2 Type 1

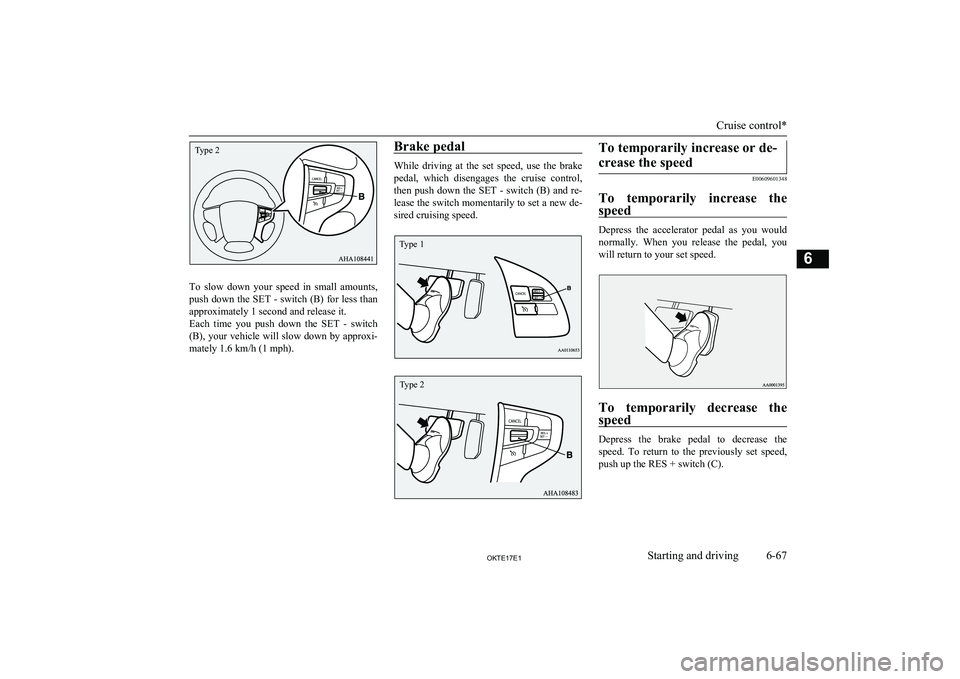

To slow down your speed in small amounts,
push down the SET - switch (B) for less than approximately 1 second and release it.
Each time you push down the SET - switch (B), your vehicle will slow down by approxi-
mately 1.6 km/h (1 mph).
Brake pedal
While driving at the set speed, use the brake
pedal, which disengages the cruise control,
then push down the SET - switch (B) and re-
lease the switch momentarily to set a new de- sired cruising speed.
To temporarily increase or de-
crease the speed
E00609601348
To temporarily increase the speed
Depress the accelerator pedal as you would
normally. When you release the pedal, you will return to your set speed.
To temporarily decrease the
speed
Depress the brake pedal to decrease the speed. To return to the previously set speed,
push up the RES + switch (C).
Cruise control*
6-67OKTE17E1Starting and driving6Type 2 Type 1 Type 2

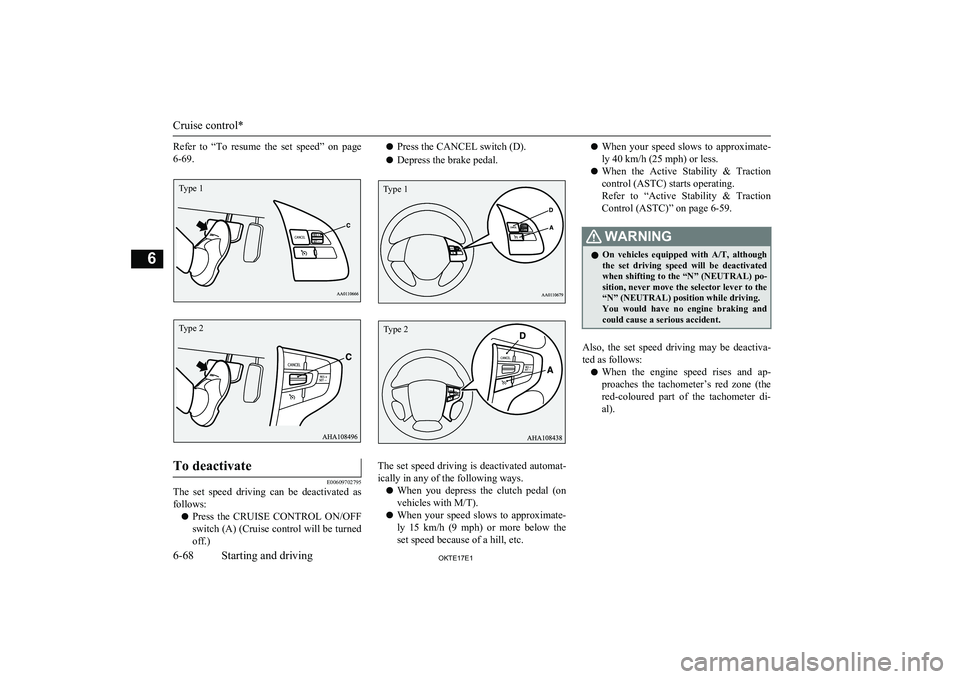

Refer to “To resume the set speed” on page
6-69.To deactivate
E00609702795
The set speed driving can be deactivated as
follows:
l Press the CRUISE CONTROL ON/OFF
switch (A) (Cruise control will be turned off.)
l Press the CANCEL switch (D).
l Depress the brake pedal.
The set speed driving is deactivated automat-
ically in any of the following ways.
l When you depress the clutch pedal (on
vehicles with M/T).
l When your speed slows to approximate-
ly 15 km/h (9 mph) or more below the set speed because of a hill, etc.
l When your speed slows to approximate-
ly 40 km/h (25 mph) or less.
l When the Active Stability & Traction
control (ASTC) starts operating.
Refer to “Active Stability & Traction Control (ASTC)” on page 6-59.WARNINGl On vehicles equipped with
A/T, although
the set driving speed will be deactivated
when shifting to the “N” (NEUTRAL) po- sition, never move the selector lever to the
“N” (NEUTRAL) position while driving.
You would have no engine braking and
could cause a serious accident.
Also, the set speed driving may be deactiva-
ted as follows:
l When the engine speed rises and ap-
proaches the tachometer’s red zone (the red-coloured part of the tachometer di-
al).
Cruise control*
6-68OKTE17E1Starting and driving6Type 1 Type 2 Type 1 Type 2

CAUTIONlWhen the set speed driving is deactivated
automatically in any situation other thanthose listed above, there may be a system
malfunction.
Press the CRUISE CONTROL ON/OFF switch to turn off the cruise control and have your vehicle inspected by a MITSUBISHI

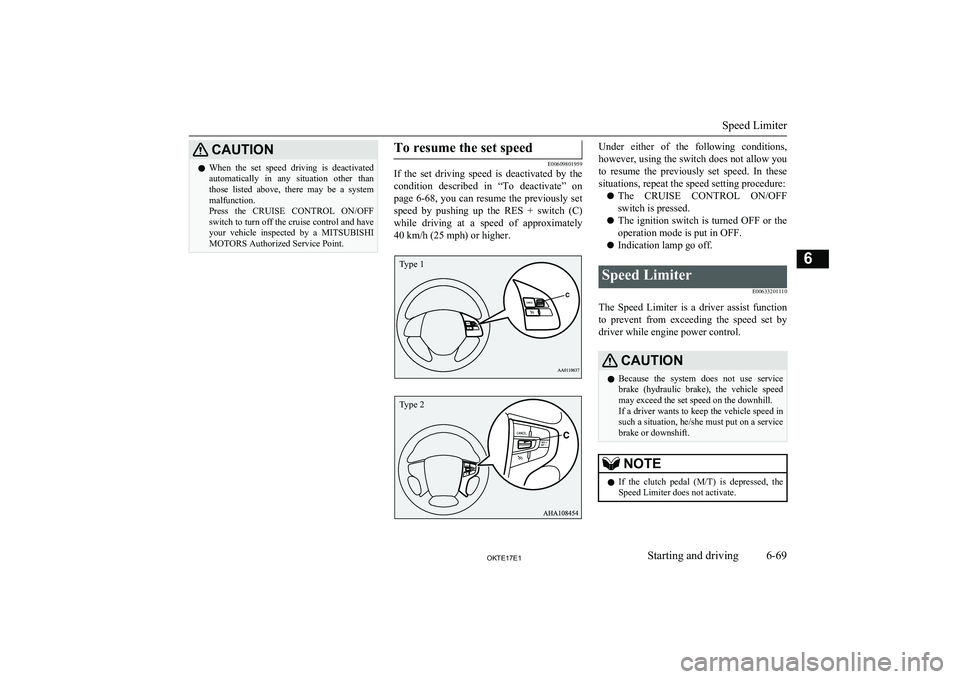

MOTORS Authorized Service Point.To resume the set speed
E00609801959
If the set driving speed is deactivated by the
condition described in “To deactivate” on
page 6-68, you can resume the previously set
speed by pushing up the RES + switch (C)
while driving at a speed of approximately 40 km/h (25 mph) or higher.
Under either of the following conditions, however, using the switch does not allow you
to resume the previously set speed. In these
situations, repeat the speed setting procedure:
l The CRUISE CONTROL ON/OFF
switch is pressed.
l The ignition switch is turned OFF or the
operation mode is put in OFF.
l Indication lamp go off.Speed Limiter
E00633201110
The Speed Limiter is a driver assist functionto prevent from exceeding the speed set by
driver while engine power control.
CAUTIONl Because the system does not use service
brake (hydraulic brake), the vehicle speed may exceed the set speed on the downhill.
If a driver wants to keep the vehicle speed in such a situation, he/she must put on a servicebrake or downshift.NOTEl If the clutch pedal
(M/T) is depressed, the
Speed Limiter does not activate.
Speed Limiter
6-69OKTE17E1Starting and driving6 Type 1 Type 2

If the vehicle speed exceeds the set speed,control state “LIMIT” and the Speed Limit-
er’s symbol will blink in the combination me-
ter.
If the vehicle speed exceeds the set speed af- ter indicated control state “LIMIT” and the
Speed Limiter’s symbol, beep alert will sound a certain period of time.
While running without blinked control state “LIMIT” and the Speed Limiter’s symbol, if
you decrease the set speed and vehicle speed is more than set speed, control state “LIMIT” and the Speed Limiter’s symbol blinking
starts but beep alert is delayed.
In this case, when vehicle speed keeps ex- ceeding set speed for about 30 seconds after
control state “LIMIT” and the Speed Limit- er’s symbol are blinked, beep alert will sound
a certain period of time.
If the vehicle speeds decreases less than set
speeds, control state “LIMIT” and the Speed Limiter’s symbol stop blinking. When beep
alert is sounding, the beep alert also goes off.NOTEl However, this gives priority to audio and
visual signal of safety reasons or driver’s de-mand.NOTEl If the set speed is too lower based on current
shift position, the Speed Limiter may notlimit the vehicle speed to prevent engine
stall.Speed Limiter control switches
E00633301094
There are 4 switches which relate to the
Speed Limiter on the steering wheel.
A-SPEED LIMITER ON/OFF switch
To turn on/off the Speed Limiter.
B-SET - switch
To set the current vehicle speed to a set speed decrease the set speed.
C-RES + switch
To resume the Speed Limiter with set speed memorized or increase the set speed.
D-CANCEL switch
To cancel the Speed Limiter.
NOTEl Press the switch one by one.
l The Speed Limiter may be cancelled auto-
matically, if two or more switches are press-ed at the same time.
Speed Limiter
6-70OKTE17E1Starting and driving6 Type 1 Type 2

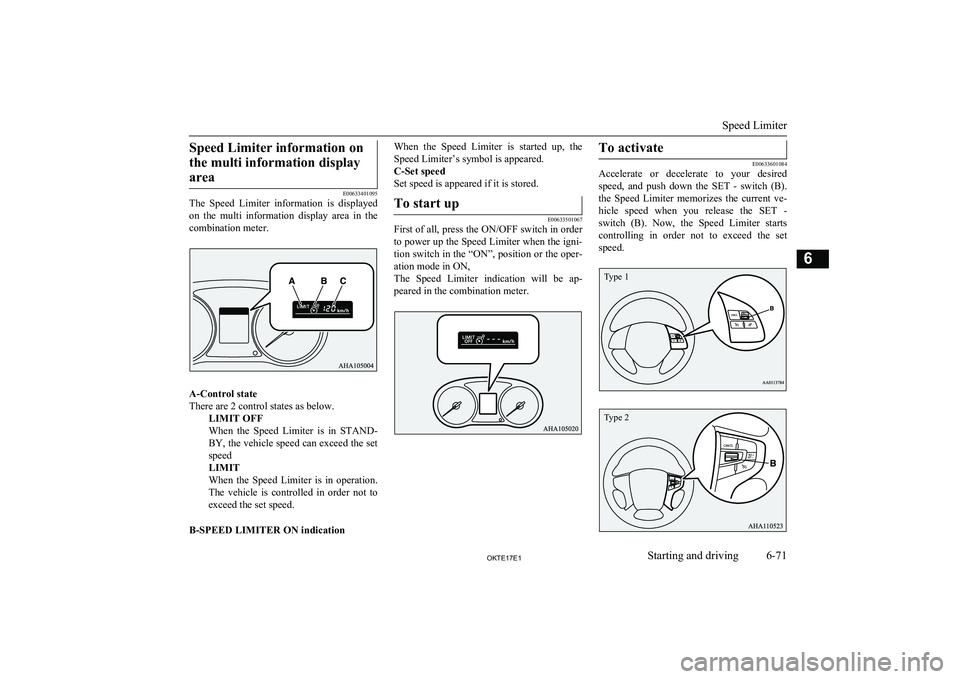

Speed Limiter information onthe multi information display area
E00633401095
The Speed Limiter information is displayed
on the multi information display area in the
combination meter.
A-Control state
There are 2 control states as below.
LIMIT OFF
When the Speed Limiter is in STAND-
BY, the vehicle speed can exceed the set speed
LIMIT
When the Speed Limiter is in operation.
The vehicle is controlled in order not to exceed the set speed.
B-SPEED LIMITER ON indication
When the Speed Limiter is started up, the Speed Limiter’s symbol is appeared.
C-Set speed
Set speed is appeared if it is stored.To start up
E00633501067
First of all, press the ON/OFF switch in order to power up the Speed Limiter when the igni-
tion switch in the “ON”, position or the oper- ation mode in ON,
The Speed Limiter indication will be ap-
peared in the combination meter.
To activate
E00633601084
Accelerate or decelerate to your desired
speed, and push down the SET - switch (B).
the Speed Limiter memorizes the current ve- hicle speed when you release the SET -
switch (B). Now, the Speed Limiter starts controlling in order not to exceed the set speed.
Speed Limiter
6-71OKTE17E1Starting and driving6 Type 1 Type 2

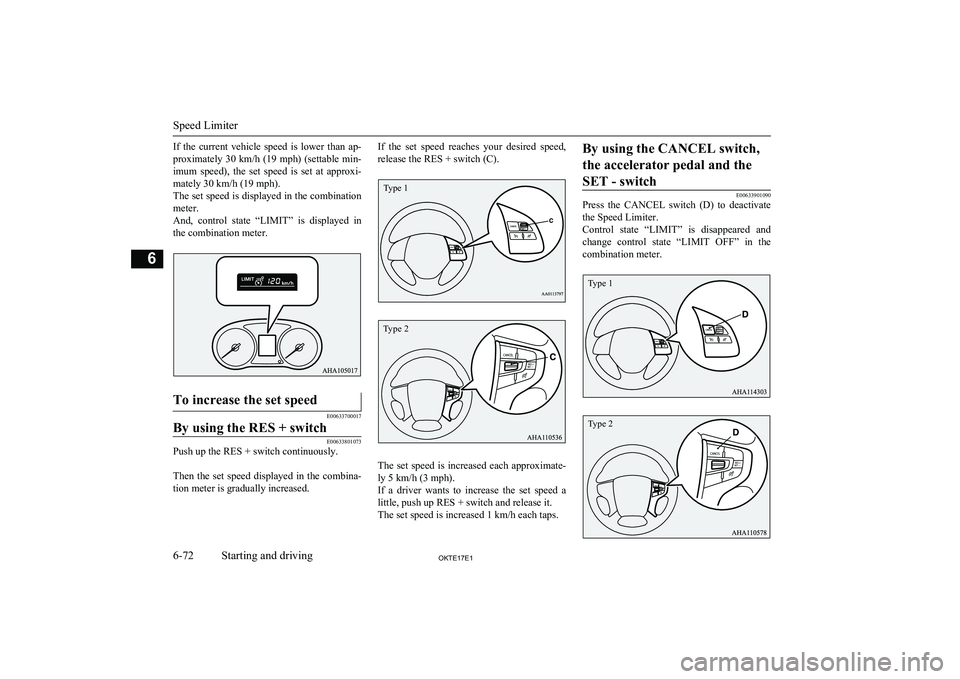

If the current vehicle speed is lower than ap-proximately 30 km/h (19 mph) (settable min- imum speed), the set speed is set at approxi-
mately 30 km/h (19 mph).
The set speed is displayed in the combination meter.
And, control state “LIMIT” is displayed in
the combination meter.To increase the set speed
E00633700017
By using the RES + switch
E00633801073
Push up the RES + switch continuously.
Then the set speed displayed in the combina- tion meter is gradually increased.
If the set speed reaches your desired speed,
release the RES + switch (C).
The set speed is increased each approximate- ly 5 km/h (3 mph).
If a driver wants to increase the set speed a
little, push up RES + switch and release it. The set speed is increased 1 km/h each taps.
By using the CANCEL switch,
the accelerator pedal and the
SET - switch
E00633901090
Press the CANCEL switch (D) to deactivate
the Speed Limiter.
Control state “LIMIT” is disappeared and change control state “LIMIT OFF” in the
combination meter.
Speed Limiter
6-72OKTE17E1Starting and driving6 Type 1 Type 2 Type 1 Type 2

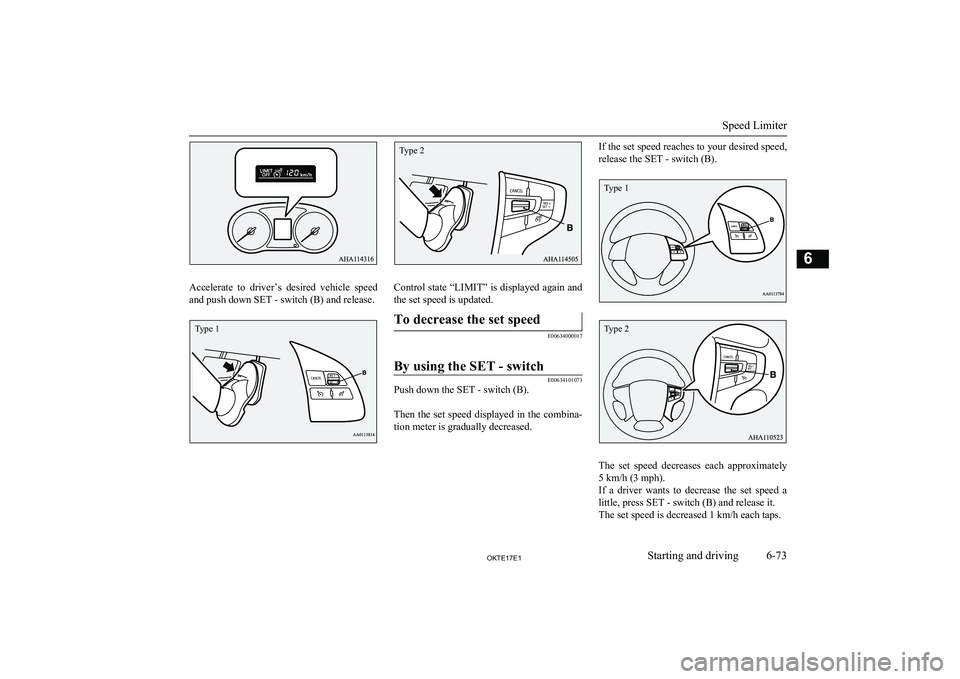

Accelerate to driver’s desired vehicle speedand push down SET - switch (B) and release.Control state “LIMIT” is displayed again andthe set speed is updated.
To decrease the set speed
E00634000017

By using the SET - switch
E00634101073
Push down the SET - switch (B).

Then the set speed displayed in the combina- tion meter is gradually decreased.
If the set speed reaches to your desired speed,
release the SET - switch (B).
The set speed decreases each approximately5 km/h (3 mph).
If a driver wants to decrease the set speed a
little, press SET - switch (B) and release it.
The set speed is decreased 1 km/h each taps.
Speed Limiter
6-73OKTE17E1Starting and driving6 Type 1 Type 2 Type 1 Type 2

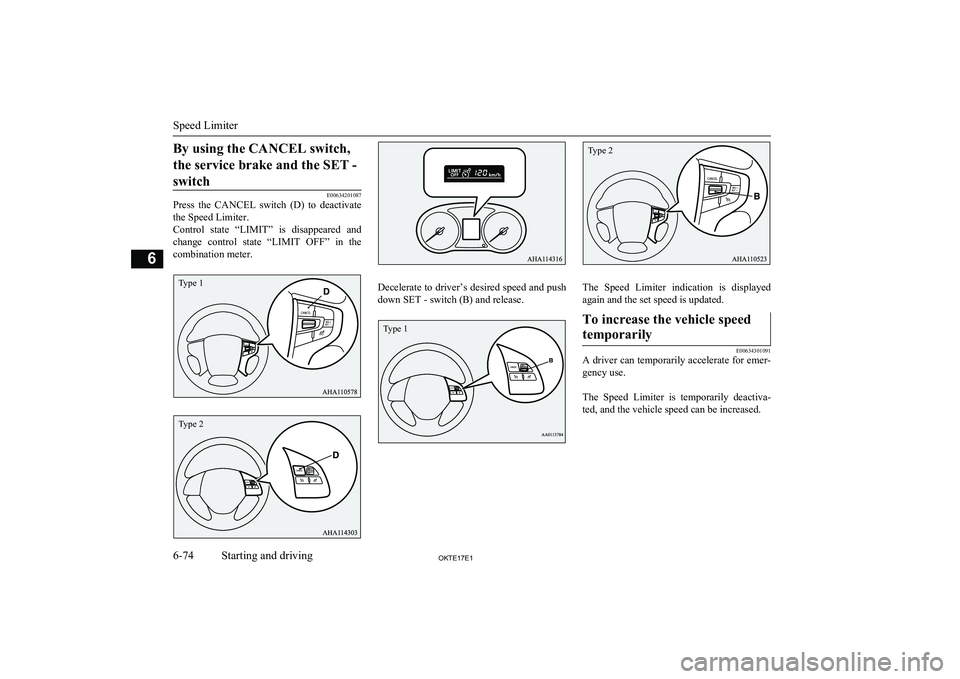

By using the CANCEL switch,the service brake and the SET - switch
E00634201087
Press the CANCEL switch (D) to deactivate
the Speed Limiter.
Control state “LIMIT” is disappeared and
change control state “LIMIT OFF” in the combination meter.
Decelerate to driver’s desired speed and push
down SET - switch (B) and release.The Speed Limiter indication is displayed
again and the set speed is updated.
To increase the vehicle speed
temporarily
E00634301091
A driver can temporarily accelerate for emer-
gency use.

The Speed Limiter is temporarily deactiva- ted, and the vehicle speed can be increased.
