COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-53
NOTE:
Prior to the wiring harness inspection, check
intermediate connectors C-13
C-137
connector C-06 (terminal 50) and engine coolant
temperature gauge unit connector B-112 (terminal
1) in good condition?
YES :
Go to Step 4.
NO : Repair or replace the damage
component(s).
STEP 4. Retest the system
Q: Is the engine coolant temperature gauge normal?
YES :
The procedure is complete. If no
malfunctions are found in all steps, an
intermittent malfunction is suspected (Refer
to GROUP 00, How to Use
Troubleshooting/Inspection Service
Points-How to Cope with Intermittent
Malfunction P.00-5).
NO : Replace the combination meter.
AC303800
Connector: C-13
Harness side
AG
AC303818
AM
Connector: C-137
Harness side
Page 442 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-54
INSPECTION PROCEDURE 6: Combination meter does not work. (the instruments do not work)
TECHNICAL DESCRIPTION (COMMENT)
The cause is thought to be malfunction of the power,
earth circuitry or combination meter.
TROUBLESHOOTING HINTS
•Malfunction of the combination meter
•Damaged wiring harness or connectors
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet IGNITION
SWITCH (IG1)
COMBINATION
METER
CONTROL CIRCUIT BATTERY
RELAY
BOX
NOTELH drive vehicles
RH drive vehicles
Combination Meter Power Source Circuit
Page 443 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-55
DIAGNOSIS PROCEDURE
STEP 1. Voltage measurement at combination
meter connector C-04 in order to check the
battery circuit of power supply system to the
combination meter.
(1) Disconnect the combination meter connector
C-04 and measure the voltage at combination
meter connector C-04 harness side.
(2) Measure the voltage between terminal 7 and
earth.
OK: System voltage
Q: IS the check result normal?
YES :
Go to Step 4.
NO : Go to Step 2.
STEP 2. Connector check: Combination meter
connector C-04.
Q: Is combination meter connector C-04 in good
condition?
YES :
Go to Step 3.
NO : Repair or replace the connector. Check to
see that all meters operate.
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
AC301541
Connector C-04
(Harness side)
EZ
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
Page 444 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-56
STEP 3. Check the wiring harness between
combination meter connector C-04 (terminal 7)
and battery.
NOTE: .Prior to the wiring harness inspection, check
intermediate connectors C-27
C-115
and repair if necessary.
Q: Are the wiring harness between combination meter
connector C-04 (terminal 7) and battery in good
condition?
YES :
There is no action to be taken.
NO : Repair or replace the wiring harness. Check
to see that all meters operate.
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
AC303798AX
Connector: C-27
Harness side
AC303802
Connector: C-103
Harness sideC-103 (GR)
AG
AC303818
AO
Connector: C-103
Harness side
C-103 (GR)
AC303816
Connector: C-115
Harness side
AZ
Page 445 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-57

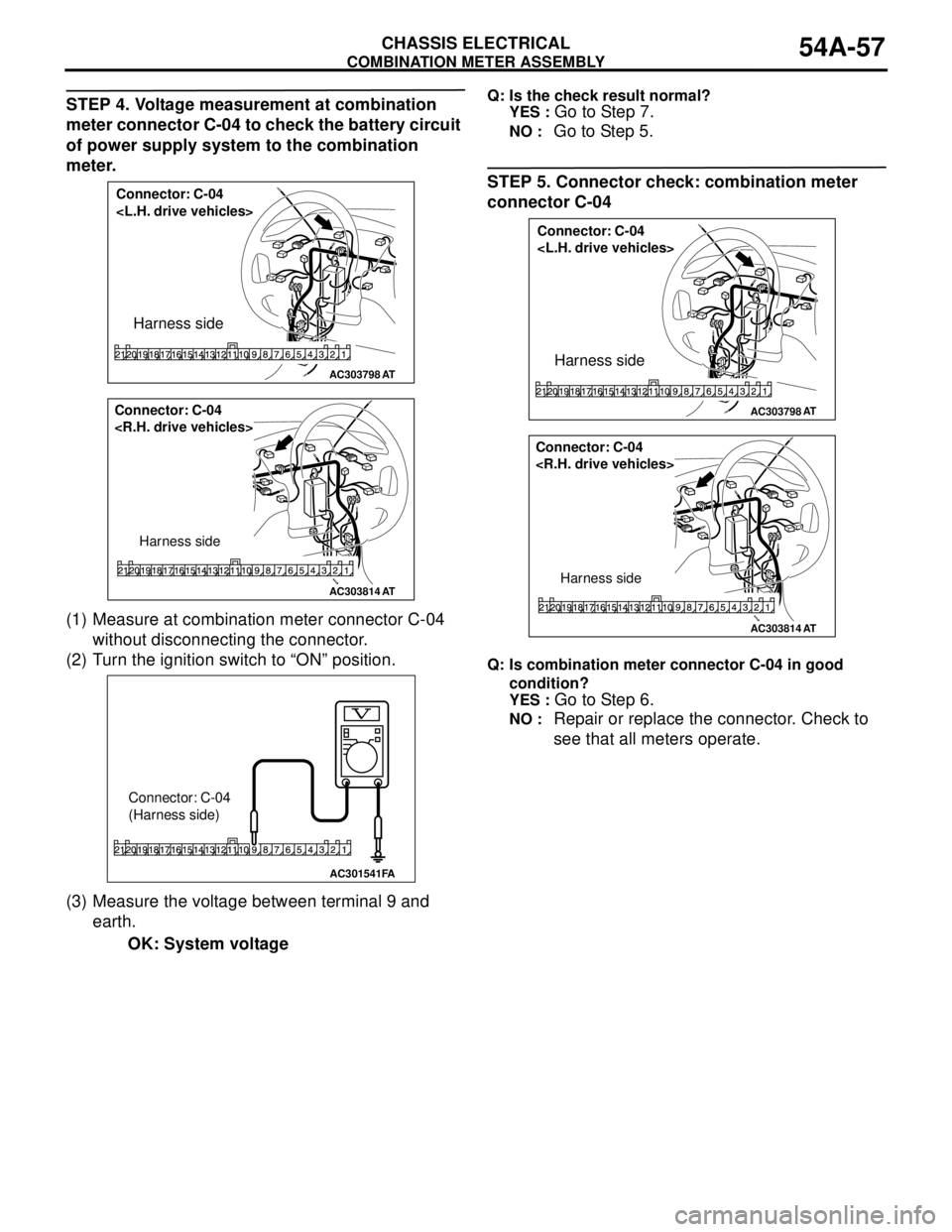

STEP 4. Voltage measurement at combination
meter connector C-04 to check the battery circuit
of power supply system to the combination
meter.
(1) Measure at combination meter connector C-04
without disconnecting the connector.
(2) Turn the ignition switch to “ON” position.
(3) Measure the voltage between terminal 9 and
earth.
OK: System voltageQ: Is the check result normal?
YES :
Go to Step 7.
NO : Go to Step 5.
STEP 5. Connector check: combination meter
connector C-04
Q: Is combination meter connector C-04 in good
condition?
YES :
Go to Step 6.
NO : Repair or replace the connector. Check to
see that all meters operate.
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
AC301541
Connector: C-04
(Harness side)
FA
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
Page 446 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-58

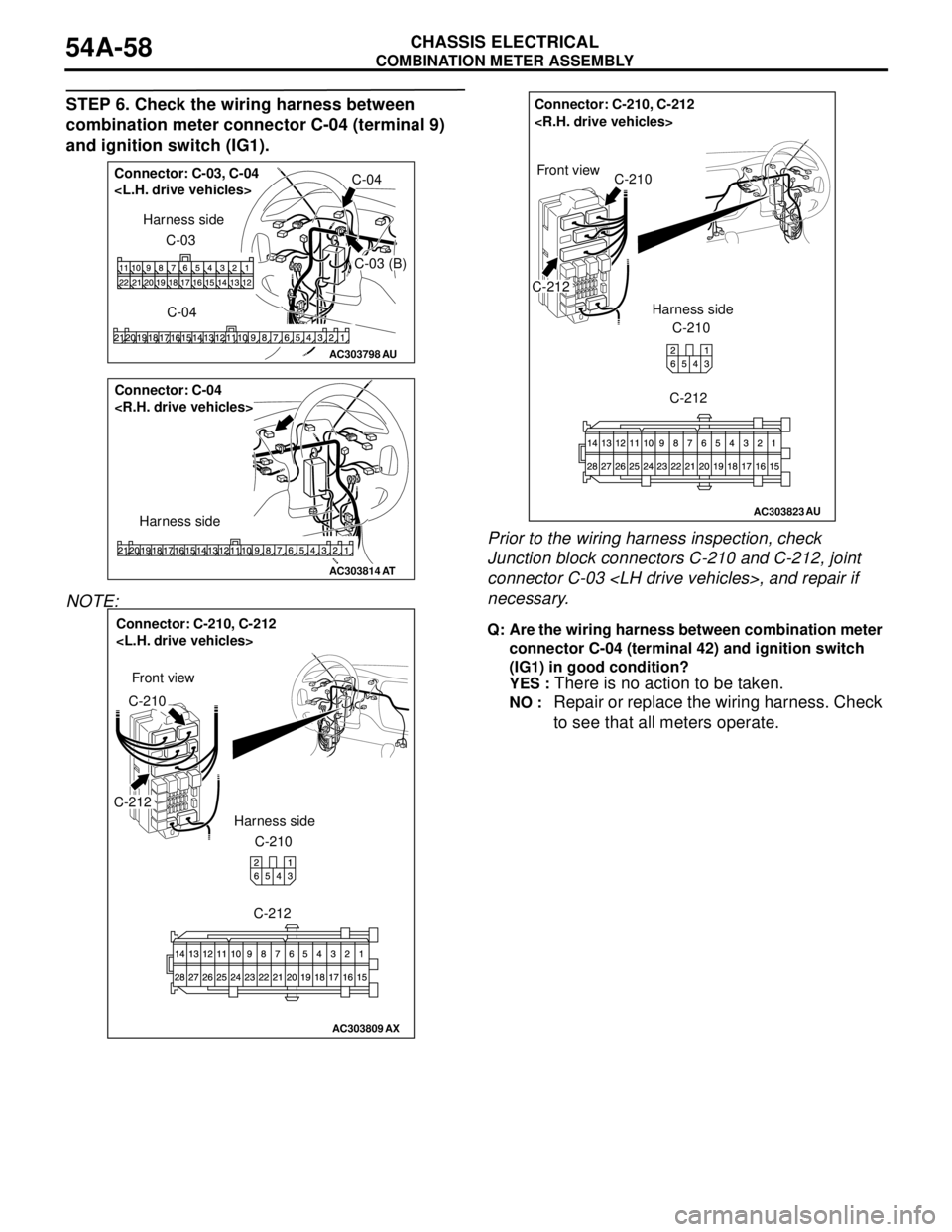

STEP 6. Check the wiring harness between
combination meter connector C-04 (terminal 9)
and ignition switch (IG1).
NOTE: Prior to the wiring harness inspection, check
Junction block connectors C-210 and C-212, joint
connector C-03
necessary.
Q: Are the wiring harness between combination meter
connector C-04 (terminal 42) and ignition switch
(IG1) in good condition?
YES :
There is no action to be taken.
NO : Repair or replace the wiring harness. Check
to see that all meters operate.
AC303798AU
Connector: C-03, C-04
C-03 (B)
C-04 C-03 Harness side
AC303814
Connector: C-04
Harness side
AT
AC303809
Connector: C-210, C-212
C-212
C-210
C-210 Harness side
C-212
AX
Front view
AC303823
Connector: C-210, C-212
C-210
C-212Front view
Harness side
C-210
C-212
AU
Page 447 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-59

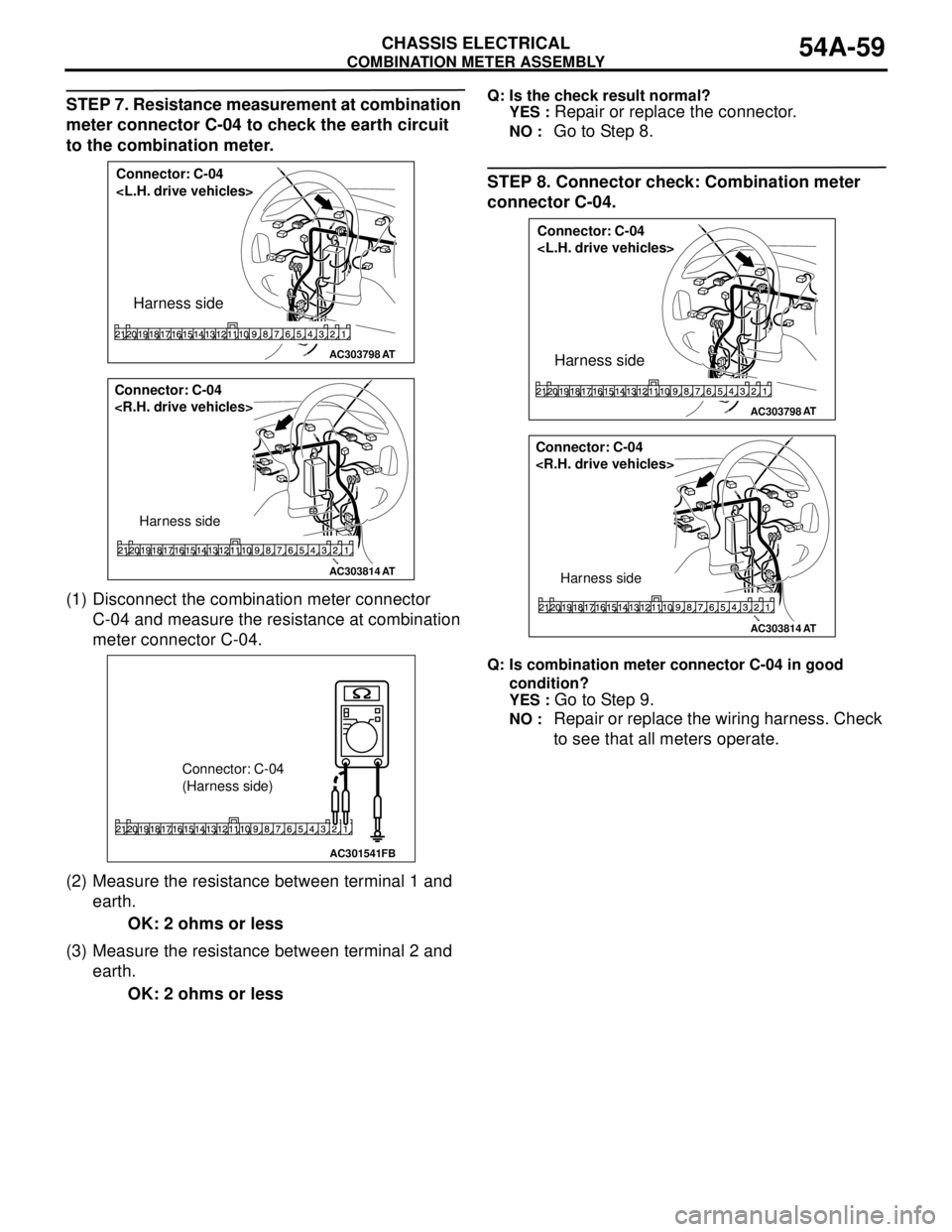

STEP 7. Resistance measurement at combination
meter connector C-04 to check the earth circuit
to the combination meter.
(1) Disconnect the combination meter connector
C-04 and measure the resistance at combination
meter connector C-04.
(2) Measure the resistance between terminal 1 and
earth.
OK: 2 ohms or less
(3) Measure the resistance between terminal 2 and
earth.
OK: 2 ohms or lessQ: Is the check result normal?
YES :
Repair or replace the connector.
NO : Go to Step 8.
STEP 8. Connector check: Combination meter
connector C-04.
Q: Is combination meter connector C-04 in good
condition?
YES :
Go to Step 9.
NO : Repair or replace the wiring harness. Check
to see that all meters operate.
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
AC301541FB
Connector: C-04
(Harness side)
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
Page 448 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-60
STEP 9. Check the wiring harness between
combination meter connector C-04 (terminal 1
and 2) and earth.
Q: Are the wiring harness between combination meter
connector C-04 (terminal 1 and 2) and earth in
good condition?
YES :
This procedure is complete.
NO : Repair or replace the wiring harness. Check
to see that all meters operate.
ON-VEHICLE SERVICE
SPEEDOMETER CHECKM1543000900423
Adjust the pressure of tyres to the specified level.
(Refer to GROUP 31, On-vehicle Service P.31-7.)
CAUTION
Do not operate the clutch suddenly. Do not
increase/decrease speed rapidly while testing.
1. Set the vehicle onto a speedometer tester and
use wheel chocks to hold the rear wheels.2. To prevent the front wheel from moving from side
to side, attach tension bars to the tie-down hook,
and secure both ends to anchor plates.
3. To prevent the vehicle from moving, attach a chain
or wire to the rear retraction hook, and make sure
the end of the chain or wire is secured.
4. Check if the speedometer indicator range is within
the standard values.
Standard value:
5. If not to the standard value, inspect for proper tyre
size. If not correct, replace the tyres with original
size tyres and retest. If correct, replace the
speedometer. If still not to standard value, replace
the vehicle speed sensor.
TACHOMETER CHECKM1543001000434
1. Attach an external high quality tachometer to the
engine speed detection connector on the harness
side (such as with a paper clip).
AC303798
Connector: C-04
Harness side
AT
AC303814
Connector: C-04
Harness side
AT
AC305135AB
Wheel stopper
Standard indicator
km/h (mph)Allowance range km/h
(mph)
20 (12) 20 − 24 (12 − 15)
40 (25) 40 − 44 (25 − 28)
80 (50) 80 − 85 (50 − 53)
120 (75) 121 − 127 (75 − 79)
160 (100) 162 − 169 (100 − 105)
200 (125) 203 − 211 (126 − 131)
AC001288
Tension bar
Front
Anchor plate
AB
AC305138AB
Engine speed
indicator
Paper clip
Probe for detection
of engine speed
Page 449 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-61
NOTE: For tachometer check, use an external
high quality inductive tachometer.
2. Compare the readings of the vehicle tachometer
and the external tachometer at every engine
speed, and check if the variations are within the
standard values.
Standard values:
FUEL TANK GAUGE UNIT CHECKM1543001200461
Remove the fuel tank gauge unit. (Refer to GROUP
13C, Fuel Tank P.13C-4.)
FUEL TANK GAUGE UNIT RESISTANCE
1. Check that resistance value between the fuel
gauge terminal and earth terminal is at the
standard value when the fuel tank gauge unit float
is between position "F" (highest) and position "E"
(lowest).
Standard values:
2. Check that resistance value changes smoothly
when the float moves slowly between position "F"
(highest) and position "E" (lowest).
3. If all checks are correct, go to fuel tank gauge unit
float height check. If any check is not correct,
replace the fuel tank gauge unit.
FUEL TANK GAUGE UNIT FLOAT HEIGHT
1. Move the float and measure height A at position
"F" (highest) and B at position "E" (lowest) with
the float arm touching stopper.
Standard values:
2. If all checks are correct, go to fuel tank gauge unit
float height check. If any check is not correct,
replace the fuel tank gauge unit.
ENGINE COOLANT TEMPERATURE
GAUGE UNIT CHECK
M1543001500398
1. Drain the engine coolant. (Refer to GROUP 14,
On-vehicle Service P.14-22.)
2. Remove the engine coolant temperature gauge
unit. Engine speed (r/min) Indication allowance of
tachometer r/min
700
± 120
2, 000
− 175 + 225
3, 000
− 175 + 300
4, 000
− 225 + 375
5, 000
− 225 + 425
6, 000
− 225 + 475
7, 000
− 200 + 500
8, 000
− 100 + 500
AC005208
123
AE
Fuel tank gauge unit
Earth
Position F
Position E
Float Position Resistance of Gauge
Position F 3 ± 1 Ω
Position E 110 ± 1 Ω
Float Position Float Centre Hight
Position F (A) 24.1 ± 2.0 mm
Position E (B) 151.6 ± 2.0 mm
AC005209
AD
Position F
Position E
Stopper
A
B
Page 450 of 788
COMBINATION METER ASSEMBLY
CHASSIS ELECTRICAL54A-62
3. Put engine coolant temperature gauge unit into
the hot water in specified temperature, and
ensure that basic resistance is within standard
value.
Standard value: 104 ± 13.5 Ω (at 70C°)
Reference value4. After inspection, apply specified sealant at
threads of engine coolant temperature gauge unit,
and tighten to the specified torque.
Semi-drying sealant: 3M 1215 or equivalent
5. Add engine coolant. (Refer to GROUP 14,
On-vehicle Service P.14-22.)
Temperature (°C) Resistance Ω
50 230
60 155
80 73
ACX00779
AI
Circuit tester
Thermometer
ACX00780
AH
11 ± 1 N·m
