Heater without air conditioning function (if so equipped) 7-4 Comfort controls
7
Air flows mainly to the windshield and the door windows.
N00737700031

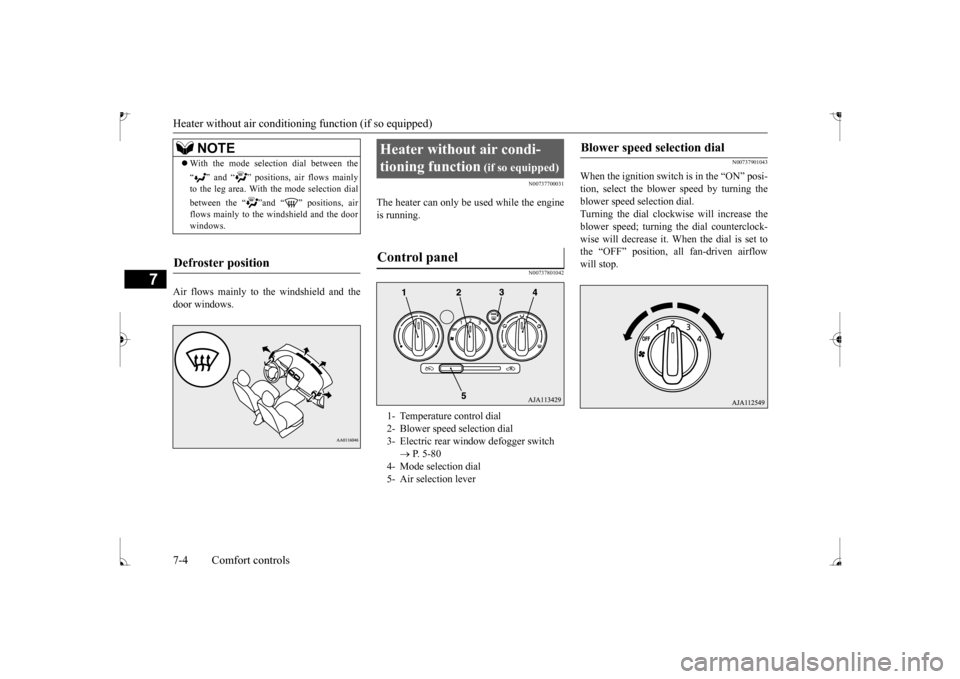

The heater can only be used while the engineis running.
N00737801042
N00737901043
When the ignition switch is in the “ON” posi- tion, select the blower speed by turning the blower speed selection dial.Turning the dial clockwise will increase the blower speed; turning
the dial counterclock-
wise will decrease it. When the dial is set tothe “OFF” position, all fan-driven airflow will stop.
NOTE
 With the mode selec
tion dial between the
“ ” and “ ” positions, air flows mainly to the leg area. With the mode selection dial between the “ ”and “ ” positions, air flows mainly to the windshield and the door windows.
Defroster position
Heater without air condi- tioning function
(if so equipped)

1- Temperature control dial 2- Blower speed selection dial 3- Electric rear win
dow defogger switch
 P. 5-80
4- Mode selection dial 5- Air selection lever
Blower speed selection dial

BK0235100US.book 4 ページ ２０１５年１１月２０日\b 5 Y

Heater without air conditioning function (if so equipped)
Comfort controls 7-5
7
N00738001067
Turn the temperature c
ontrol dial clockwise
to make the air warmer
. Turn it counterclock-
wise to make the air cooler.
N00738101071
To change the amount of air flowing from the vents, turn the mode
selection dial. Refer to
“Changing the mode sele
ction” on page 7-2.
N00738201056

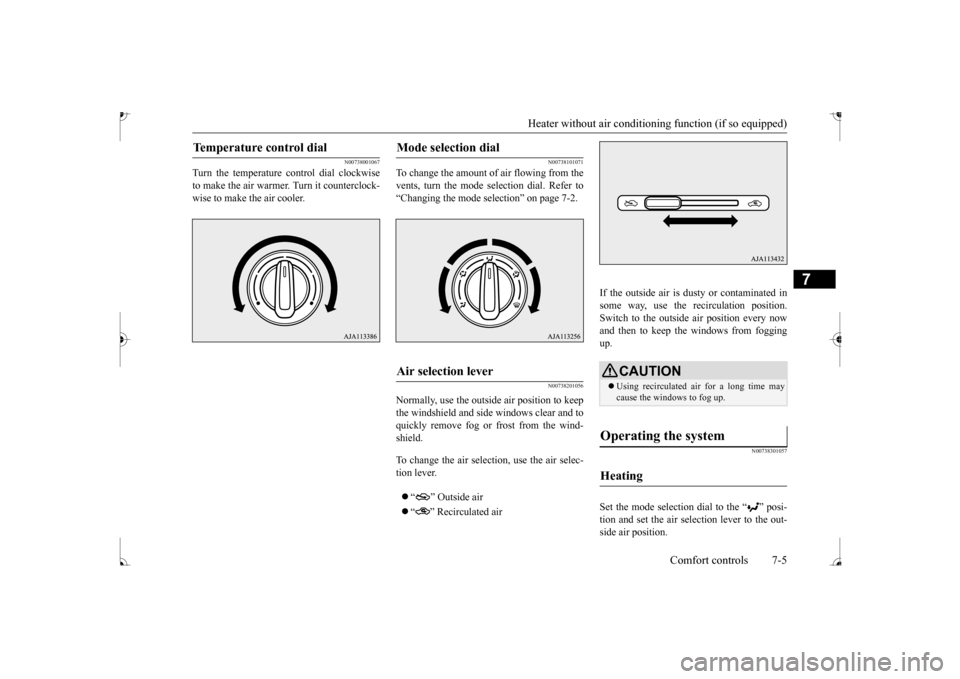

Normally, use the outside air position to keep the windshield and side
windows clear and to
quickly remove fog or frost from the wind- shield. To change the air selection, use the air selec- tion lever.  “ ” Outside air  “ ” Recirculated air
If the outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside
air position every now
and then to keep the windows from fogging up.
N00738301057
Set the mode selection
dial to the “ ” posi-
tion and set the air selection lever to the out- side air position.
Temperature control dial

Mode selection dial

Air selection lever

CAUTION Using recirculated ai
r for a long time may
cause the windows to fog up.
Operating the system

Heating

BK0235100US.book 5 ページ ２０１５年１１月２０日\b 5 Y

Heater without air conditioning function (if so equipped) 7-6 Comfort controls
7
Turn the temperature control dial clockwise or counterclockwise to
the desired tempera-
ture. Select the desire
d blower speed to fit
your needs.
N00738401045
Set the mode selection
dial to the positions
shown in the illustration and set the air selec- tion lever to the outside air position. The air flow will be directed to the leg area and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperat
ure control dial) flows
to the upper part of the passenger compart-ment.
N00738501091
Set the mode selection dial (between “ ” windshield and door window. For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the mode select
ion dial to the “ ”
CAUTION The engine speed may increase when the heating is operating. Since creeping will occur strongly if theengine speed becomes
high while the vehicle
with a CVT is stationa
ry, fully depress the
brake pedal to prevent the vehicle fromcreeping.NOTE
 For quick heating, set the blower speed at the 3rd position.
Combination of unheated air and heated air

Defrosting or defogging (wind-shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.
BK0235100US.book 6 ページ ２０１５年１１月２０日\b 5 Y

Manual air conditioning (if so equipped)
Comfort controls 7-7
7
2. Set the air selection le
ver to the outside air
position.3. Select your desired
blower speed by turn-
ing the blower spee
d selection dial.
4. Select your desired
temperature by turn-
ing the temperature control dial.

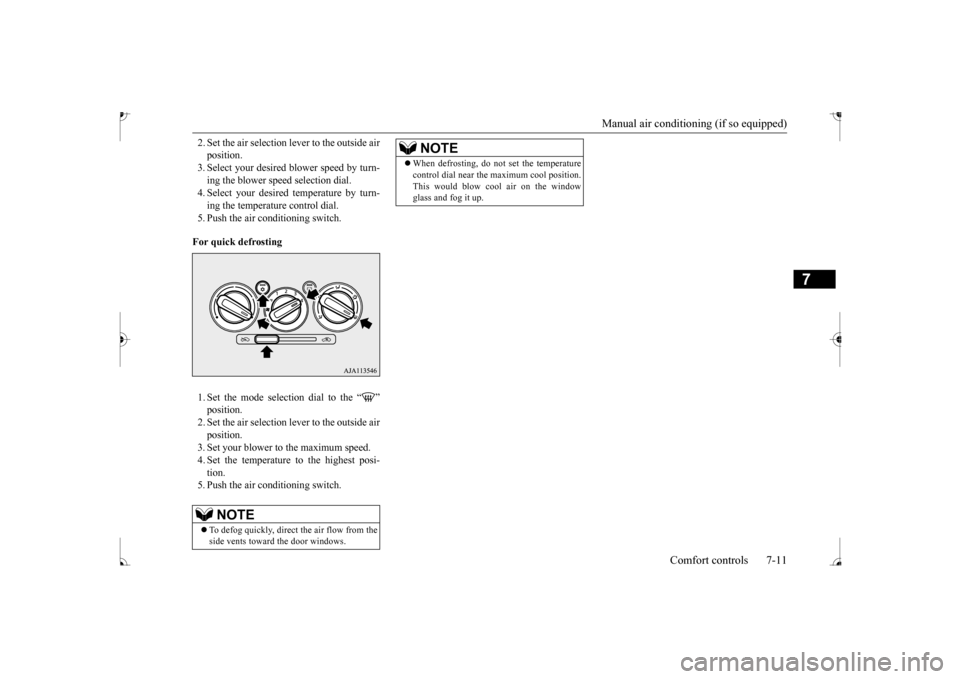

For quick defrosting 1. Set the mode selection dial to the “ ” 2. Set the air selection le
ver to the outside air
position. 3. Set your blower to the maximum speed. 4. Set the temperature to the highest posi-tion.
N00730300344

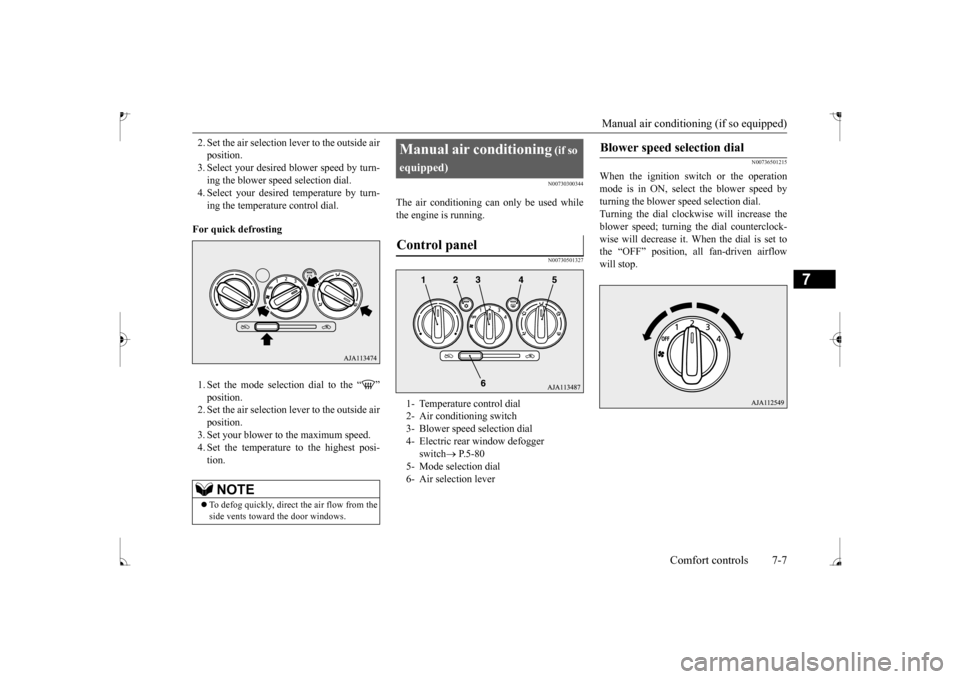

The air conditioning can only be used whilethe engine is running.
N00730501327
N00736501215
When the ignition switch or the operation mode is in ON, select
the blower speed by
turning the blower speed selection dial.Turning the dial clockwise will increase the blower speed; turning
the dial counterclock-
wise will decrease it. When the dial is set tothe “OFF” position, all fan-driven airflow will stop.
NOTE
 To defog quickly, direct the air flow from the side vents toward the door windows.
Manual air conditioning
(if so
equipped)

1- Temperature control dial 2- Air conditioning switch 3- Blower speed selection dial 4- Electric rear window defogger
switch
 P.5-80
5- Mode selection dial 6- Air selection lever
Blower speed selection dial

BK0235100US.book 7 ページ ２０１５年１１月２０日\b 5 Y

Manual air conditioning (if so equipped) 7-8 Comfort controls
7
N00736601258
Turn the temperature control dial clockwise to make the air warmer
. Turn it counterclock-
wise to make the air cooler.
N00736701233
To change the amount of air flowing from the vents, turn the mode
selection dial. Refer to
“Changing the mode sele
ction” on page 7-2.
N00736801423

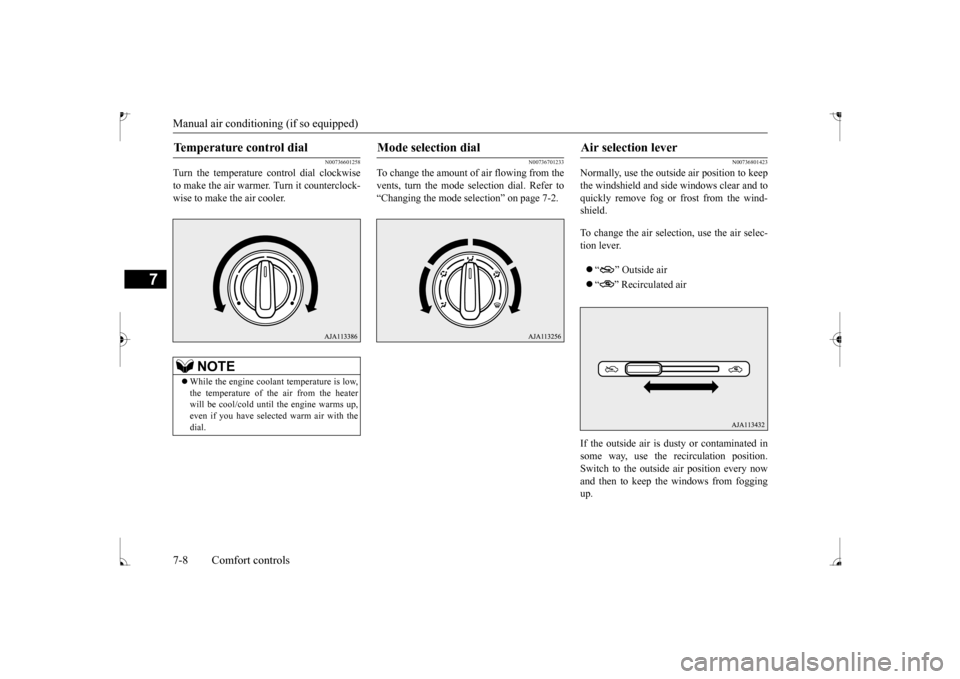

Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the wind-shield. To change the air selection, use the air selec- tion lever.  “ ” Outside air  “ ” Recirculated air
If the outside air is dusty or contaminated in some way, use the
recirculat
ion position.
Switch to the outside
air position every now
and then to keep the windows from foggingup.
Temperature control dial

NOTE
 While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until
the engine warms up,
even if you have selected warm air with the dial.
Mode selection dial

Air selection lever

BK0235100US.book 8 ページ ２０１５年１１月２０日\b 5 Y

Manual air conditioning (if so equipped)
Comfort controls 7-9
7
N00731001488
Push the switch, and the air conditioning compressor will turn on. The air conditioningindicator light (A) will come on. Push the switch again and the air condition- ing compressor will stop and the indicator light (A) goes off.
N00731101304
Set the mode selection dial to the “ ” posi- tion and set the air sele
ction lever to the out-
side air position. Turn the temperature control dial clockwise or counterclockwise to
the desired tempera-
ture. Select the desire
d blower speed to fit
your needs.
N00731201376
1. Set the mode selection dial to the “ ” 2. Set the air selection le
ver to the outside air
position.3. Push the air conditioning switch. 4. Change the temperature by turning the control dial clockwise or counterclock-wise. 5. Set the desired blower speed.
CAUTION Using recirculated ai
r for a long time may
cause the windows to fog up.
Air conditioning switch

Operating the ai
r conditioning
system

Heating

NOTE
 For quick heating, set th
e blower speed at the
3rd position.
Cooling

CAUTION The engine speed may increase when the air conditioning (cooling or
heating) is operat-
ing. Since creeping will oc
cur strongly if the
engine speed becomes
high while the vehicle
with a CVT is stationary, fully depress the brake pedal to prevent the vehicle from creeping.
BK0235100US.book 9 ページ ２０１５年１１月２０日\b 5 Y

Manual air conditioning (if so equipped) 7-10 Comfort controls
7
N00731301292
Set the mode selection
dial to the positions
shown in the illustration and set the air selec- tion lever to the outside air position. The air flow will be directed to the leg area and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperat
ure control dial) flows
to the upper part of the passenger compart-ment.
N00731401596
Set the mode selection dial (between “ ” windshield and door window. For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the mode select
ion dial to the “ ”
NOTE
 If the outside air is dusty or contaminated in some way, set the air selection lever to therecirculation pos
ition. Let in some outside
air from time to time for good ventilation.  To cool the leg areas, set the mode selection dial to the “ ” position.

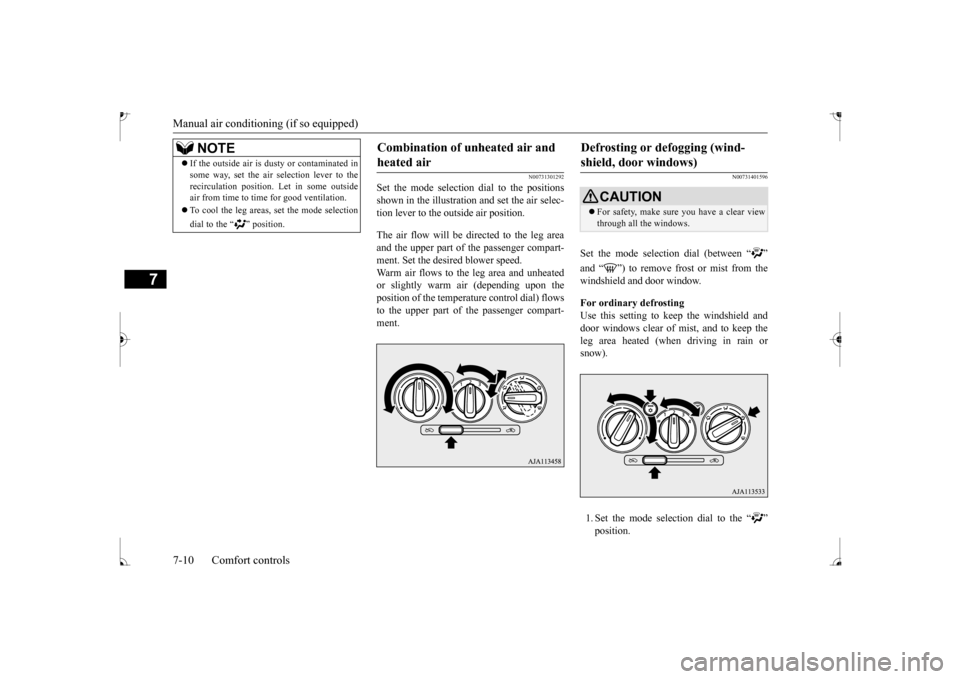

Combination of unheated air and heated air

Defrosting or defogging (wind-shield, door windows)

CAUTION For safety, make sure you have a clear view through all the windows.
BK0235100US.book 10 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Manual air conditioning (if so equipped)
Comfort controls 7-11
7
2. Set the air selection le
ver to the outside air
position.3. Select your desired
blower speed by turn-
ing the blower spee
d selection dial.
4. Select your desired
temperature by turn-
ing the temperature control dial. 5. Push the air conditioning switch. For quick defrosting 1. Set the mode selection dial to the “ ”2. Set the air selection le
ver to the outside air
position. 3. Set your blower to the maximum speed.4. Set the temperature to the highest posi- tion. 5. Push the air conditioning switch.
NOTE
 To defog quickly, direct the air flow from the side vents toward the door windows.
 When defrosting, do not set the temperature control dial near the
maximum cool position.
This would blow cool air on the windowglass and fog it up.NOTE
BK0235100US.book 11 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Automatic air conditioning (if so equipped)
7
N00731501353
The air conditioning can only be used
while the engine is running.
N00711801624
Automatic air conditioning
(if so equipped)

Ty p e 1 Ty p e 2
1- Temperature control switch 2- Air conditioning switch 3- MODE switch4- Air selection switch 5- Blower speed selection switch 6- Defogger switch7- AUTO switch 8- Electric rear window defogger switch
 P.5-80
9- OFF switch 10- Temperature display 11- Mode selection display 12- Air selecti
on indicator
13- Air conditioning indicator 14- AUTO indicator 15- Blower speed display
NOTE
 There is an interior air temperature sensor (A) in the illustrated position. Never place anything ov
er the sensor, since
doing so will prevent it from functioningproperly.
BK0235100US.book 12 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

Automatic air conditioning (if so equipped)
Comfort controls 7-13
7
N00736900179

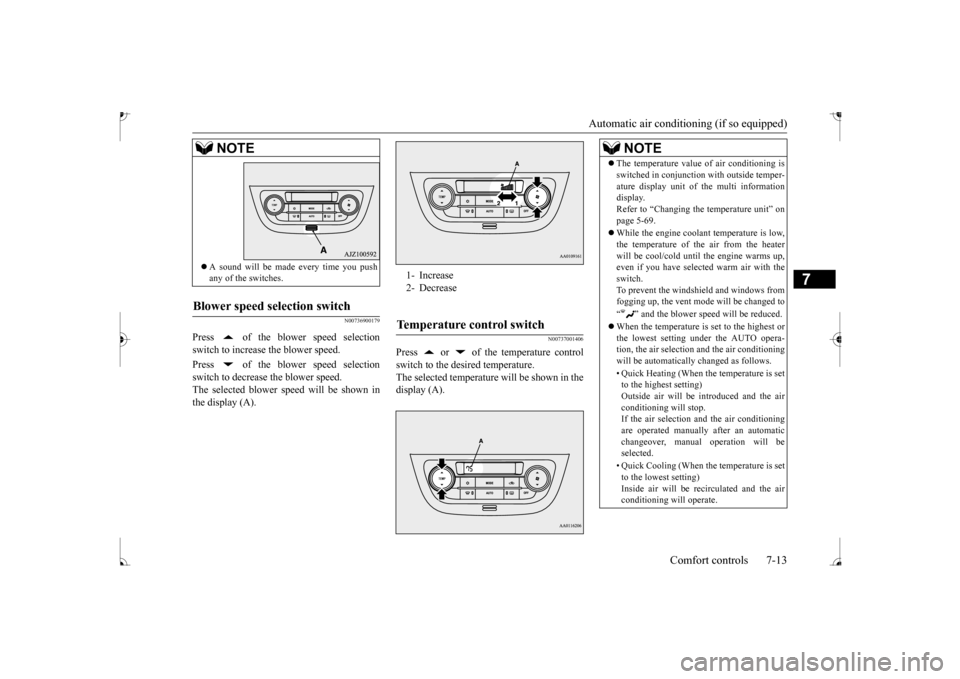

Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.The selected blower speed will be shown in the display (A).
N00737001406
Press or of the temperature controlswitch to the desired temperature. The selected temperature will be shown in thedisplay (A).
 A sound will be made every time you push any of the switches.
Blower speed selection switch

NOTE
1- Increase 2- DecreaseTemperature control switch

NOTE
 The temperature value
of air conditioning is
switched in conjunction
with outside temper-
ature display unit of the multi informationdisplay. Refer to “Changing the
temperature unit” on
page 5-69.  While the engine coolant temperature is low, the temperature of the air from the heaterwill be cool/cold unti
l the engine warms up,
even if you have selected warm air with the switch.To prevent the windshield and windows from fogging up, the vent mode
will be changed to
“ ” and the blower speed will be reduced. When the temperature is set to the highest or the lowest setting under the AUTO opera-tion, the air selection
and the air conditioning
will be automatically changed as follows. • Quick Heating (When the temperature is set to the highest setting) Outside air will be introduced and the airconditioning will stop. If the air selection
and the air conditioning
are operated manually after an automaticchangeover, manual
operation will be
selected. • Quick Cooling (When th
e temperature is set
to the lowest setting) Inside air will be re
circulated and the air
conditioning will operate.
BK0235100US.book 13 ページ ２０１５年１１月２０日　金曜日　午後３時１２分
