Storage spaces 5-108 Features and controls
5
• When the remote control transmitter of the keyless entry system or the F.A.S.T.-key is used to lock the vehicle. • When the door lock/unlock switch or liftgate switch is pressed to lock thevehicle while carrying the F.A.S.T.-key. Auto cut-out function If the light is left switched on with theignition switch is in the “OFF” or “ACC” position or the operati
on mode is in OFF
or ACC, and a door or the liftgate is opened, it goes off automatically after approximately 30 minutes.The light will illuminate again after it automatically goes off in the following cases:• When the ignition switch is turned to the “ON” position or the operation mode is put in ON.• When the keyless entry system or the F.A.S.T.-key is operated. • When all doors and the liftgate areclosed.
3- ( )
rdless of whether a
door or the liftgate
is open or closed.
N00526100176
The light illuminates when the liftgate is opened, and goes out when the liftgate isclosed.
N00526400528
NOTE
 When the key was used to start the engine: if the key is removed while the doors and lift- gate are closed, the light is illuminated andafter approximately 30
seconds it goes off.
When the F.A.S.T.-key was used to start the engine: if the operation mode is put in OFFwhile the doors and liftgate are closed, thelight illuminates and
after approximately 30
seconds it goes off.  The time until the light goes off (delayed off) can be adjusted. See your authorized Mitsubishi Motors dealer for details.  The auto cut-out function cannot be operated when the dome light switch is in the “ ” Also, this function ca
n be deactivated. See
your authorized Mitsubish
i Motors dealer for
details.
Cargo room light
NOTE
Storage spaces
CAUTION Never leave lighters,
carbonated drink cans,
or spectacles in the cabin when parking the vehicle in hot sunshine. The cabin will become extremely hot,
so lighters and other
flammable items ma
y catch fire and
unopened drink cans (i
ncluding beer cans)
may rupture. The heat may also deform orcrack plastic spectacle
lenses and other spec-
tacle parts that ar
e made of plastic.
Keep the lids of storage spaces closed while driving the vehicle. A lid or the contents of a storage space could ot
herwise cause injuries
during a sudden stop.NOTE
 Do not leave valuables in any storage space when leaving the vehicle.
BK0235100US.book 108 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

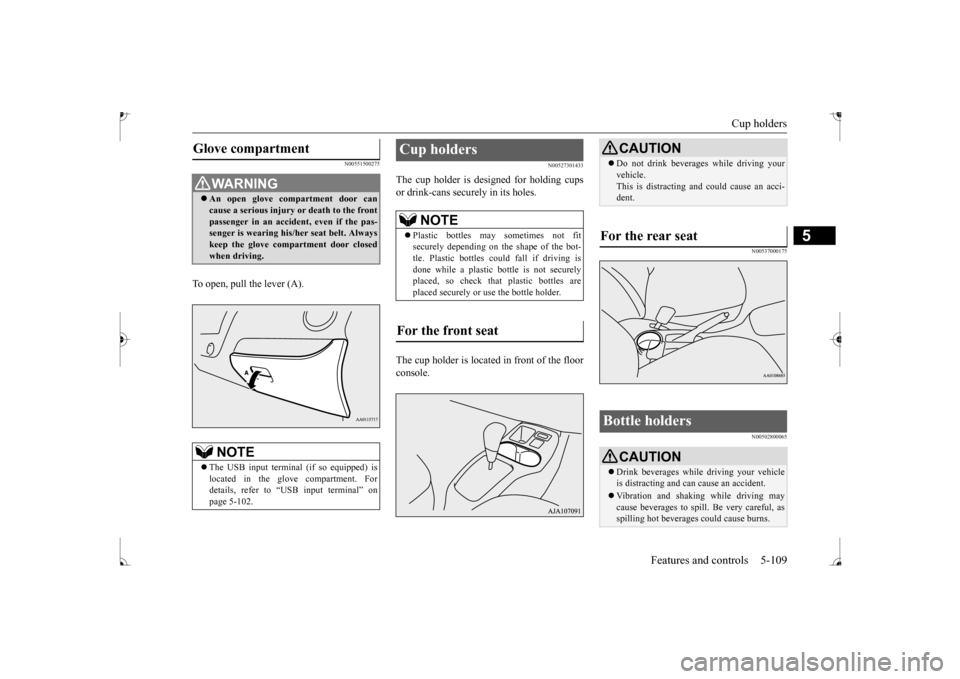

Cup holders
Features and controls 5-109
5
N00551500275
To open, pull the lever (A).
N00527301433
The cup holder is de
signed for holding cups
or drink-cans secu
rely in its holes.
The cup holder is located in front of the floor console.
N00537000175 N00502800065
Glove compartment
WA R N I N G An open glove compartment door can cause a serious injury or death to the frontpassenger in an accident, even if the pas- senger is wearing his/her seat belt. Always keep the glove comp
artment door closed
when driving.NOTE
 The USB input terminal (if so equipped) is located in the glove compartment. Fordetails, refer to “USB input terminal” on page 5-102.
Cup holders
NOTE
 Plastic bottles may
sometimes not fit
securely depending on the shape of the bot- tle. Plastic bottles c
ould fall if driving is
done while a plastic bottle is not securely placed, so check that plastic bottles are placed securely or
use the bottle holder.
For the front seat
CAUTIONDo not drink beverages while driving your vehicle.This is distracting a
nd could cause an acci-
dent.
For the rear seat Bottle holders
CAUTION Drink beverages while
driving your vehicle
is distracting and ca
n cause an accident.
Vibration and shaking while driving may cause beverages to spill.
Be very careful, as
spilling hot beverage
s could cause burns.
BK0235100US.book 109 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

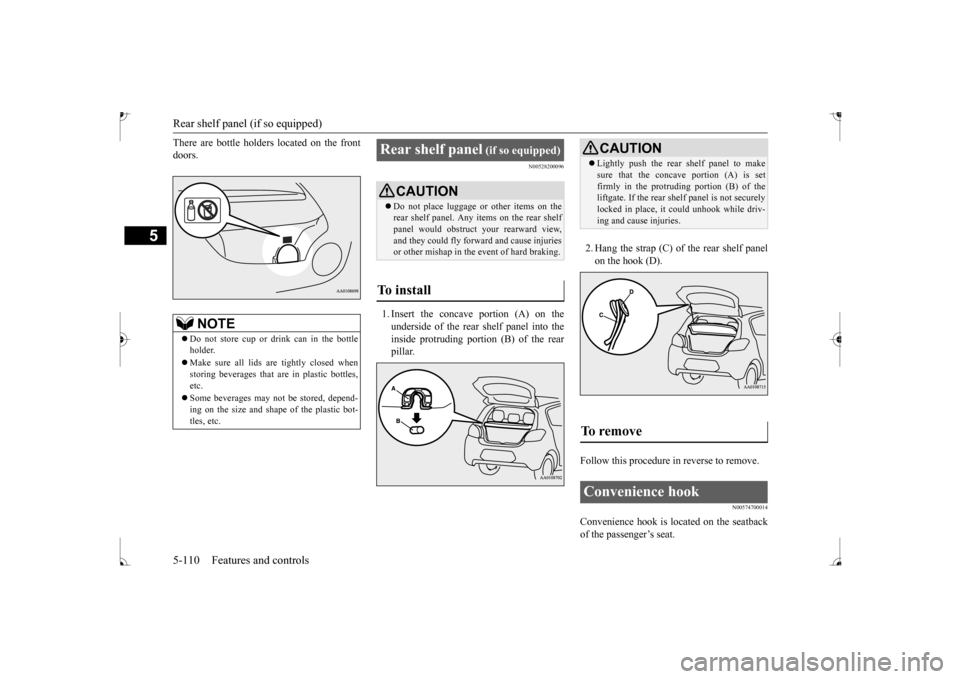

Rear shelf panel (if so equipped)
5
There are bottle holders
located on the front
doors.
N00528200096
1. Insert the concave portion (A) on the underside of the rear shelf panel into the inside protruding portion (B) of the rearpillar.
2. Hang the strap (C) of the rear shelf panel on the hook (D).
Follow this procedure in reverse to remove.
N00574700014
Convenience hook is lo
cated on the seatback
of the passenger’s seat.
NOTE
 Do not store cup or drink can in the bottle holder.  Make sure all lids are tightly closed when storing beverages that
are in plastic bottles,
etc.  Some beverages may not
be stored, depend-
ing on the size and shape of the plastic bot-tles, etc.
Rear shelf panel
(if so equipped)
CAUTION Do not place luggage or other items on the rear shelf panel. Any items on the rear shelf panel would obstruct your rearward view,and they could fly forward and cause injuries or other mishap in the event of hard braking.
To install

CAUTION Lightly push the rear shelf panel to make sure that the concave portion (A) is setfirmly in the protruding portion (B) of theliftgate. If the rear shelf panel is not securely locked in place, it could unhook while driv- ing and cause injuries.
To remove

Convenience hook
BK0235100US.book 110 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

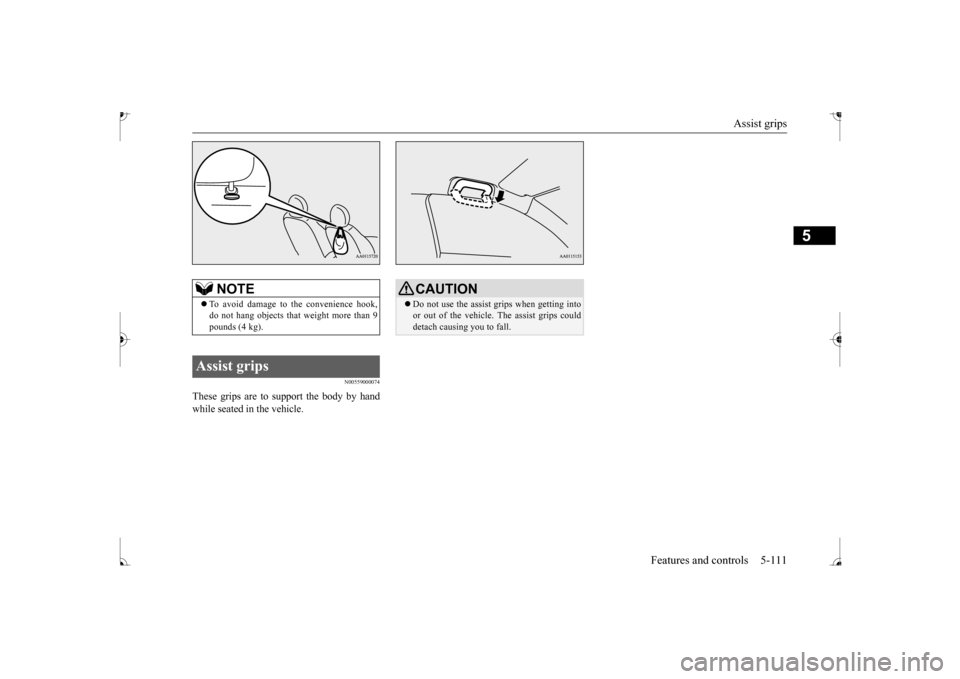

Assist grips
Features and controls 5-111
5
N00559000074
These grips are to support the body by hand while seated in the vehicle.
NOTE
 To avoid damage to
the convenience hook,
do not hang objects that
weight more than 9
pounds (4 kg).
Assist grips
CAUTION Do not use the assist grips when getting into or out of the vehicle. The assist grips coulddetach causing you to fall.
BK0235100US.book 111 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

BK0235100US.book 112 ページ ２０１５年１１月２０日　金曜日　午後３時１２分

6

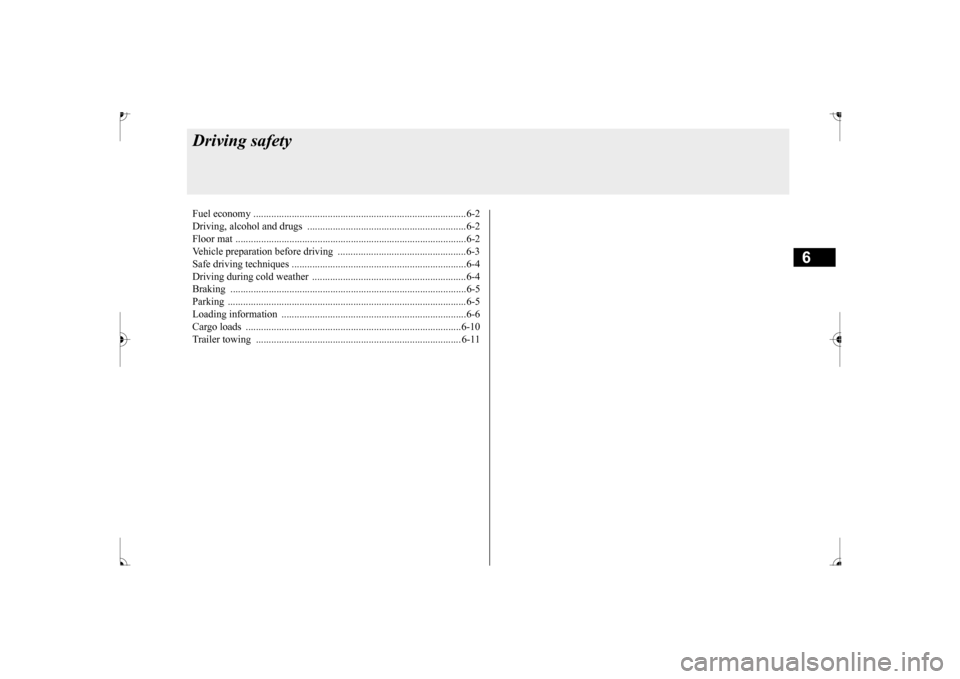

Driving safetyFuel economy .......
...........
...........
............
...........
.........
........
.........
.....6-2
Driving, alcohol and drugs ..
...........
...........
...........
...........
...........
.....6-2
Floor mat ..........................................................................................6-2Vehicle preparation before driving ..................................................6-3 Safe driving techniques ....................................................................6-4 Driving during cold weather ............................................................6-4Braking ............................................................................................6-5 Parking .............................................................................................6-5 Loading information ........................................................................6-6Cargo loads ....................................................................................6-10 Trailer towing ................................................................................ 6-11
BK0235100US.book 1 ページ ２０１５年１１月２０日\b 5 Y

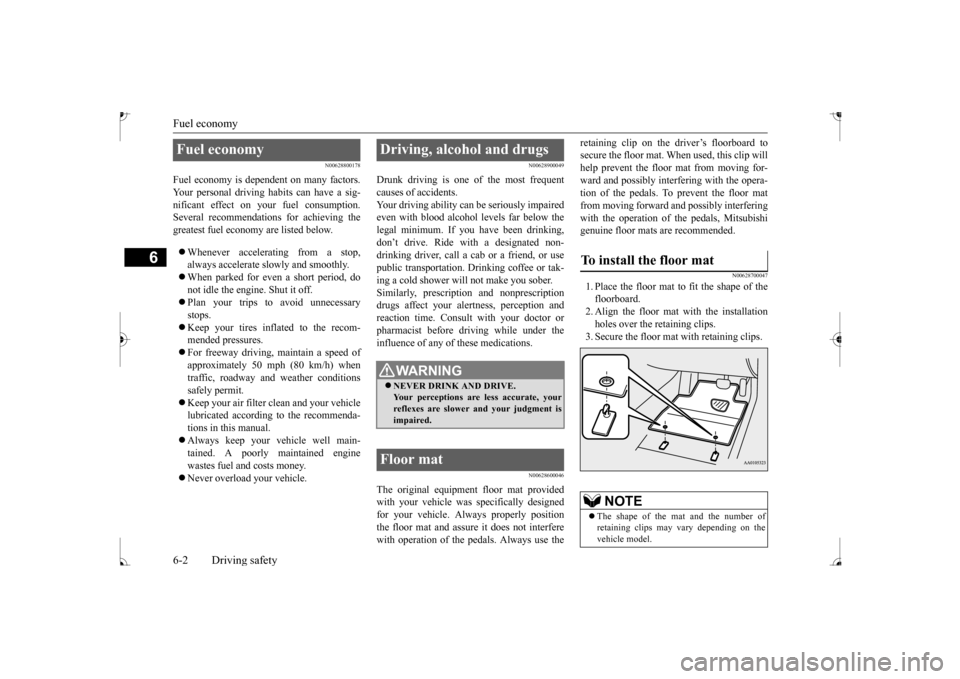

Fuel economy 6-2 Driving safety
6
N00628800178
Fuel economy is depe
ndent on many factors.
Your personal driving habits can have a sig- nificant effect on your
fuel consumption.
Several recommendations
for achieving the
greatest fuel economy are listed below.  Whenever accelerating from a stop, always accelerate
slowly and smoothly.
 When parked for even a short period, do not idle the engine. Shut it off. Plan your trips to avoid unnecessary stops.  Keep your tires inflated to the recom- mended pressures.  For freeway driving, maintain a speed of approximately 50 mph (80 km/h) whentraffic, roadway and weather conditions safely permit.  Keep your air filter clean and your vehicle lubricated according
to the recommenda-
tions in this manual.  Always keep your ve
hicle well main-
tained. A poorly maintained engine wastes fuel and costs money.  Never overload your vehicle.
N00628900049
Drunk driving is one of the most frequent causes of accidents. Your driving ability can be seriously impairedeven with blood alcohol levels far below the legal minimum. If you have been drinking, don’t drive. Ride with a designated non-drinking driver, call a cab or a friend, or use public transportation. Drinking coffee or tak- ing a cold shower will not make you sober. Similarly, prescription and nonprescription drugs affect your alertness, perception andreaction time. Consu
lt with your doctor or
pharmacist before driving while under the influence of any of these medications.
N00628600046
The original equipment floor mat providedwith your vehicle was specifically designed for your vehicle. Al
ways properly position
the floor mat and assure it does not interferewith operation of the pedals. Always use the
retaining clip on the driver’s floorboard to secure the floor mat. When used, this clip willhelp prevent the floor mat from moving for- ward and possibly interfering with the opera- tion of the pedals. To prevent the floor matfrom moving forward and possibly interfering with the operation of the pedals, Mitsubishi genuine floor mats are recommended.
N00628700047
1. Place the floor mat to fit the shape of thefloorboard. 2. Align the floor mat with the installation holes over the retaining clips.3. Secure the floor mat with retaining clips.
Fuel economy
Driving, alcohol and drugs
WA R N I N G NEVER DRINK AND DRIVE. Your perceptions are
less accurate, your
reflexes are slower and your judgment isimpaired.
Floor mat
To install the floor mat
NOTE
 The shape of the mat and the number of retaining clips may vary depending on thevehicle model.
BK0235100US.book 2 ページ ２０１５年１１月２０日\b 5 Y

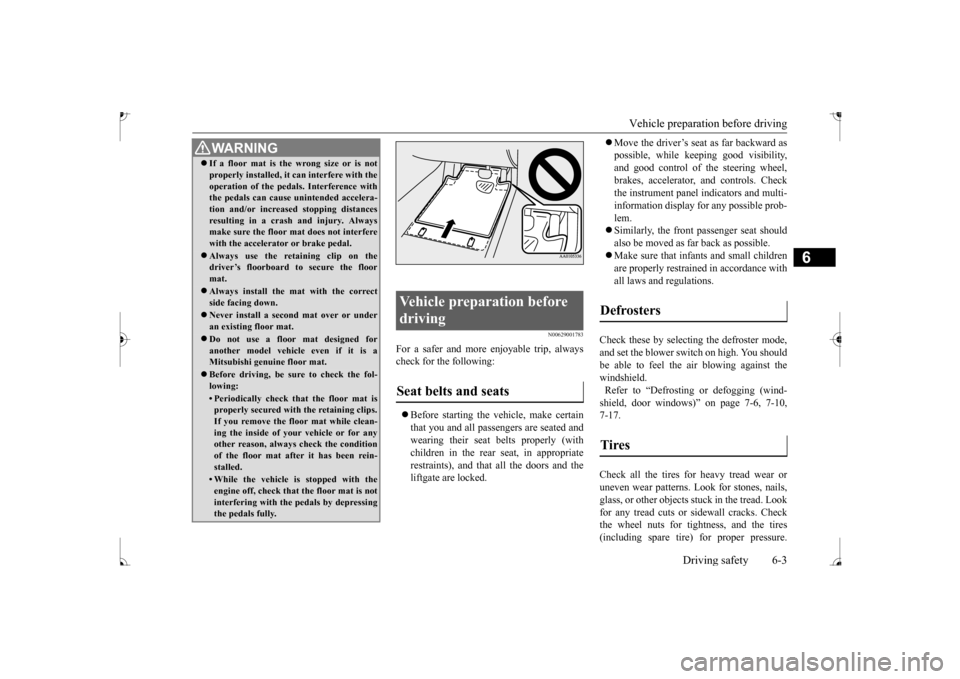

Vehicle preparatio
n before driving
Driving safety 6-3
6
N00629001783
For a safer and more enjoyable trip, always check for the following:  Before starting the vehicle, make certain that you and all passengers are seated andwearing their seat
belts properly (with
children in the rear seat, in appropriate restraints), and that
all the doors and the
liftgate are locked.
 Move the driver’s seat as far backward as possible, while keeping good visibility,and good control of the steering wheel, brakes, accelerator, and controls. Check the instrument panel indicators and multi-information display for any possible prob- lem.  Similarly, the front
passenger seat should
also be moved as fa
r back as possible.
 Make sure that infants and small children are properly restrained in accordance with all laws and regulations.
Check these by selectin
g the defroster mode,
and set the blower switch on high. You should be able to feel the air blowing against thewindshield. Refer to “Defrosti
ng or defogging (wind-
shield, door windows)” on page 7-6, 7-10,7-17. Check all the tires for heavy tread wear or uneven wear patterns. Look for stones, nails, glass, or other objects
stuck in the tread. Look
for any tread cuts or
sidewall cracks. Check
the wheel nuts for tightness, and the tires (including spare tire) for proper pressure.
WA R N I N G If a floor mat is the
wrong size or is not
properly installed, it can interfere with theoperation of the pedals. Interference withthe pedals can cause unintended accelera- tion and/or increase
d stopping distances
resulting in a cras
h and injury. Always
make sure the floor mat does not interfere with the accelerator or brake pedal. Always use the retaining clip on the driver’s floorboard to secure the floor mat. Always install the mat with the correct side facing down. Never install a second mat over or under an existing floor mat. Do not use a floor mat designed for another model vehicle even if it is aMitsubishi genu
ine floor mat.
Before driving, be sure to check the fol- lowing:• Periodically check that the floor mat isproperly secured with the retaining clips. If you remove the fl
oor mat while clean-
ing the inside of you
r vehicle or for any
other reason, always
check the condition
of the floor mat afte
r it has been rein-
stalled.• While the vehicle is stopped with theengine off, check that
the floor mat is not
interfering with the pedals by depressing the pedals fully.
Vehicle preparation before driving Seat belts and seats
Defrosters Tires
BK0235100US.book 3 ページ ２０１５年１１月２０日\b 5 Y

Safe driving techniques 6-4 Driving safety
6
Replace your tires before they are heavily worn out.On vehicles equipped with a tire pressure monitoring system, there
is a risk of damage
to the tire inflation pressure sensors when thetire is replaced on the
rim. Tire replacement
should, only be perform
ed by an authorized
Mitsubishi Motors dealer. Have someone watch while you turn all the exterior lights on and off. Also check the turn signal indicators and hi
gh-beam indicators on
the instrument panel. Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or
other leaks. Make sure
all the fluid levels are
correct. Also, if you
can smell fuel, you need
to find out why imme
diately and have it
fixed.
N00629200137
Even this vehicle’s sa
fety equipment, and
your safest driving, ca
nnot guarantee that you
can avoid an accident or injury. However, if
you give extra attention to the following areas, you can better protect yourself andyour passengers:  Drive defensively. Be aware of traffic, road and weather c
onditions. Leave plenty
of stopping distance
between your vehicle
and the vehicle ahead.  Before changing lanes, check your mir- rors, your blind spots, and use your turn-signal light.  While driving, watch the behavior of other drivers, bicycl
ists, and pedestrians.
 Always obey applicab
le laws and regula-
tions. Be a polite and alert driver. Alwaysleave room for unexpected events, such as sudden braking.  If you plan to drive in another country, obey their vehicle re
gistration laws and
make sure you will be able to get the right fuel.
N00629400474
 Check the battery. At the same time, check the terminals and wiring. Duringextremely cold weather, the battery will not be as strong. Also, the battery power level may drop beca
use more power is
used for cold starting and driving.
Before driving the vehicle, check to see if the engine runs at the proper speed and ifthe headlights are as bright as normally. Charge or replace the battery if necessary. During extreme cold weather, it is possi-ble that a very low battery could freeze.  Warm the engine sufficiently. After start- ing the engine, allow a short warm-up time to distribute oil to all cylinders. Then drive your vehicle slowly. Stay at low speeds at first so that the man- ual transaxle oil or the automatic transaxle fluid has time to spread to all the lubrica-tion points.  Manual transaxle can be harder to shift in cold weather conditions. This is normaland shifting will get easier as the transaxle warms up.  Check the engine antifreeze. If there is not enough coolant because of a leak or from engine overheating, add Mitsubishi Motors Genuine Super LongLife Coolant Premium or equivalent.
Lights Fluid leaks Safe driving techniques
Driving during cold weather
WA R N I N G The battery gives off explosive hydrogen gas. Any spark or flame can cause the bat- tery to explode, which could cause serious injury or death.Always wear protecti
ve clothes and a face
mask when working wi
th your battery, or
let a skilled mechanic do it.
BK0235100US.book 4 ページ ２０１５年１１月２０日\b 5 Y

Braking
Driving safety 6-5
6
Please read this section in conjunction with the “Engine coolant” on page 9-7.
N00629500521
All parts of the brake system are critical to safety. Have the vehicle serviced by an autho- rized Mitsubishi Motors dealer or a repairfacility of your choice at regular intervals according to the “WARRANTY AND MAINTENANCE MANUAL”. Check the brake system while driving at a low speed immediately
after starting, espe-
cially when the brakes are wet, to confirm they work normally. A film of water can be formed on the brakediscs or brake drums, and prevent normal braking after driving in heavy rain or through large puddles, or after the vehicle is washed.If this occurs, dry the brakes out by driving slowly while lightly depressing the brake pedal.
On snowy roads, ice can form on the braking system, making the brak
es less effective.
While driving in such conditions, pay closeattention to surrounding
vehicles and to the
condition of the road surface. From time to time, lightly depress the brake pedal andcheck how effective the brakes are. It is important to take
advantage of the engine
braking by downshifting while driving on steep downhill roads in order to prevent thebrakes from overheating.
N00629600333
When parking on a hill, set the parking brake,and turn the front wheels toward the curb on a downhill, or away from
the curb on an uphill.
If necessary, apply chocks to the wheels.
Place the gearshift lever into the “R” hill slope, into the 1st position when parking on an uphill slope. Be sure that the parking brake is firmly set when parked and that the selector lever is in the “P” (PARK) position.When parking on a hill, it is important to set the parking brake before
moving the selector
lever to the “P” (PARK) position. This pre-vents loading the parking brake against the transaxle. When this happens, it is difficult to move the selector lever out of the “P” Never leave the engine running while you take a short nap or rest. Also, never leave the engine running in a closed or poorly venti-lated place.
WA R N I N G Never open the radiator cap when the radiator is hot. You could be seriously burned.
Braking When brakes are wet
When driving in cold weather When driving downhill Parking Parking on a hill
For vehicles equipped with man- ual transaxle For vehicles equipped with contin- uously variable transmission (CVT) Parking with the engine run- ning
