diagram MITSUBISHI MONTERO 1998 Service Manual

specified, replace solenoid. If solenoid tests as specified, go to
next step.
4) Ensure solenoid holds vacuum with nipple "B" unplugged,
and negative jumper wire disconnected. If solenoid does not test as
specified, replace solenoid. If solenoid tests as specified, go to
next step.
5) Check resistance between solenoid terminals. If resistance
is not 36-44 ohms at 68
F (20C), replace solenoid. If resistance is
as specified, go to next step.
6) Remove turbocharger by-pass valve. Connect vacuum pump to
by-pass valve nipple. Apply 16 in. Hg of vacuum. Ensure vacuum holds
and valve begins to open. If by-pass valve does not test as specified,
replace by-pass valve. If by-pass valve tests as specified, go to step
8).
7) Turn ignition switch to ON position. Using scan tool, turn
turbocharger wastegate solenoid on and off (item 12). Clicking sound
should be heard. If clicking sound is not heard, go to next step. If
clicking sound is heard, go to step 10).
8) Disconnect solenoid connector. Turn ignition switch to ON
position. Using DVOM, check for voltage between chassis ground and
solenoid connector terminal No. 1. If battery voltage does not exist,
repair wiring harness as necessary. If battery voltage exists, go to
next step.
9) Turn ignition switch to OFF position. Disconnect PCM
connector. Ground PCM connector terminal No. 41. Check continuity
between chassis ground and solenoid connector terminal No. 2. If
continuity does not exist, repair wiring harness as necessary. If
continuity exists, go to next step.
10) Test is complete. Intermittent problem may exist. Road
test vehicle (if necessary) and attempt to duplicate conditions that
caused original complaint. Recheck for DTCs. If no DTCs are displayed,
go to INTERMITTENT DTCS .
DTC P1105: FUEL PRESSURE SOLENOID FAILURE
NOTE: This test applies to 3000GT turbo only. For terminal
identification, see TERMINAL IDENTIFICATION. For circuit and
wire color identification, see L - WIRING DIAGRAMS article.
1) If using scan tool, go to step 6). Remove vacuum hoses
from fuel pressure solenoid. Disconnect solenoid harness connector.
Connect a vacuum pump to solenoid nipple "A". See Fig. 47. Apply
vacuum and go to next step.
2) Using jumper wires, connect battery voltage and ground to
solenoid terminals. Ensure solenoid does not hold vacuum with nipple
"B" unplugged, and negative jumper wire disconnected. If solenoid does
not test as specified, replace solenoid. If solenoid tests as
specified, go to next step.
Fig. 47: Testing Fuel Pressure Solenoid
Courtesy of Mitsubishi Motor Sales of America
3) Ensure solenoid holds vacuum with nipple "B" plugged, and
negative jumper wire disconnected. If solenoid does not test as

specified, replace solenoid. If solenoid tests as specified, go to
next step.
4) Ensure solenoid holds vacuum with nipple "B" unplugged,
and negative jumper wire connected. If solenoid does not test as
specified, replace solenoid. If solenoid tests as specified, go to
next step.
5) Check resistance between solenoid terminals. If resistance
is not 36-44 ohms at 68
F (20C), replace solenoid. If resistance is
as specified, go to step 7).
6) Turn ignition switch to ON position. Using scan tool, turn
fuel pressure solenoid on and off (item 09). Clicking sound should be
heard. If clicking sound is heard, go to step 9). If clicking sound is
not heard, go to next step.
7) Disconnect fuel pressure solenoid connector. Using DVOM,
check for voltage between chassis ground and fuel pressure solenoid
terminal No. 1. If battery voltage does not exist, repair wiring
harness as necessary. If battery voltage exists, go to next step.
8) Turn ignition switch to OFF position. Disconnect PCM
connector. Ground PCM connector terminal No. 48. Check continuity
between chassis ground and fuel pressure solenoid connector terminal
No. 2. If continuity does not exist, repair wiring harness as
necessary. If continuity exists, go to next step.
9) Test is complete. Intermittent problem may exist. Road
test vehicle (if necessary) and attempt to duplicate conditions that
caused original complaint. Recheck for DTCs. If no DTCs are displayed,
go to INTERMITTENT DTCS .
DTC P1400: MANIFOLD DIFFERENTIAL PRESSURE (MDP) SENSOR
CIRCUIT FAILURE
NOTE: For terminal identification, see TERMINAL IDENTIFICATION. For
circuit and wire color identification, see
L - WIRING DIAGRAMS article.
1) Component testing procedure without using scan tool not
available from manufacturer at time of publication. Warm vehicle to
normal operating temperature and allow engine to idle. Go to next
step.
2) Using scan tool, read intake manifold pressure (item 95).\
See INTAKE MANIFOLD PRESSURE SPECIFICATIONS table. If scan tool does
not read as specified, replace MDP sensor. If scan tool reads as
specified, go to next step.
INTAKE MANIFOLD PRESSURE SPECIFICATIONS TABLE









\









\









\









\









\









\






Application psi (kPa)
Montero .............................. 3.0-4.9 (20.6-34.0)
3000GT
DOHC
Non-Turbo ........................ 3.7-5.7 (25.5-38.9)
Turbo ............................ 4.2-6.2 (29.0-42.4)
SOHC ............................... 3.9-5.8 (26.5-39.9)









\









\









\









\









\









\






3) Disconnect MDP sensor connector. Using DVOM, check
continuity between chassis ground and MDP sensor connector terminal
No. 2. If continuity does not exist, repair wiring harness as
necessary. If continuity exists, go to next step.
4) Turn ignition switch to OFF position. With MDP sensor
connector disconnected, disconnect PCM connector. Ground PCM connector
terminal No. 92. Check continuity between chassis ground and MDP
sensor connector terminal No. 1. If continuity does not exist, repair

See Fig. 1 . Connect negative voltmeter lead to ground.
2) Disconnect generator output wire from terminal "B".
Install a 100-amp ammeter in series with terminal "B" and disconnected
output lead. Connect positive lead of ammeter to terminal "B" and
negative lead to disconnected output wire. Install a tachometer, and
reconnect negative battery cable.
3) Turn ignition switch on and ensure voltmeter indicates
battery voltage. If voltage is not present, check for open in wire
between generator terminal "S" and positive battery terminal. Check
for blown fusible link.
4) Start engine. Ensure all lights and accessories are off.
Operate engine at 2500 RPM and read voltmeter when generator output
current drops to 10 amps or less. Voltage regulator is okay if voltage
output is within specification. See REGULATOR VOLTAGE SPECIFICATIONS
table.
REGULATOR VOLTAGE SPECIFICATIONS TABLE









\









\









\









\









\









\






Ambient Temperature Voltage
-4
F (-20C) ................................... 14.2-15.4
68F (20C) .................................... 13.9-14.9
140F (60C) ................................... 13.4-14.6
176F (80C) ................................... 13.1-14.5








\









\









\









\









\









\






GENERATOR RELAY TEST
NOTE: Information for all other models is not available from
manufacturer at time of publication.
Diamante & Mirage
Remove generator relay. On Diamante, relay is located in
relay box in engine compartment near battery. On Mirage, relay is
located in relay box in engine compartment between battery and strut
tower. On both models, connect positive lead of ohmmeter to relay
terminal No. 4. See WIRING DIAGRAMS. Connect negative lead of ohmmeter
to relay terminal No. 2. Continuity should be present. Switch ohmmeter
lead locations. Continuity should not be present. Replace generator
relay if continuity is not as specified.
BENCH TESTING
RECTIFIER ASSEMBLY
1) Using ohmmeter, check for continuity between diodes and
stator coil lead connection. See Fig. 2. Reverse leads. If continuity
is present in both directions, diode is shorted. Replace rectifier
assembly.
2) To check entire diode assembly, use an ohmmeter to check
for continuity between both ends of each diode. See Fig. 2. Switch
ohmmeter leads. Continuity should be present in one direction only. If
continuity is not as specified, diode is defective. Replace rectifier
assembly.

Generator Adjusting Bolt
Diamante, Mirage, Montero & Montero Sport (3.0L) ......... 16 (22\
)
Eclipse, Galant & Montero Sport (2.4L) .............. 9-11 (12-15\
)
3000GT
DOHC ................................................... 33 (44)\
SOHC .............................................. 9-11 (12-15)\
Generator Pivot Bolt Nut
Diamante, Mirage & 3000GT (DOHC) ......................... 33 (44\
)
Eclipse, Galant & Montero Sport (2.4L) ............. 15-18 (20-25\
)
Montero & Montero Sport (3.0L) ........................... 38 (52\
)
3000GT (SOHC) ...................................... 15-18 (20-25\
)









\









\









\









\









\









\









\







WIRING DIAGRAMS

Fig. 4: Charging System Wiring Diagram (Diamante)

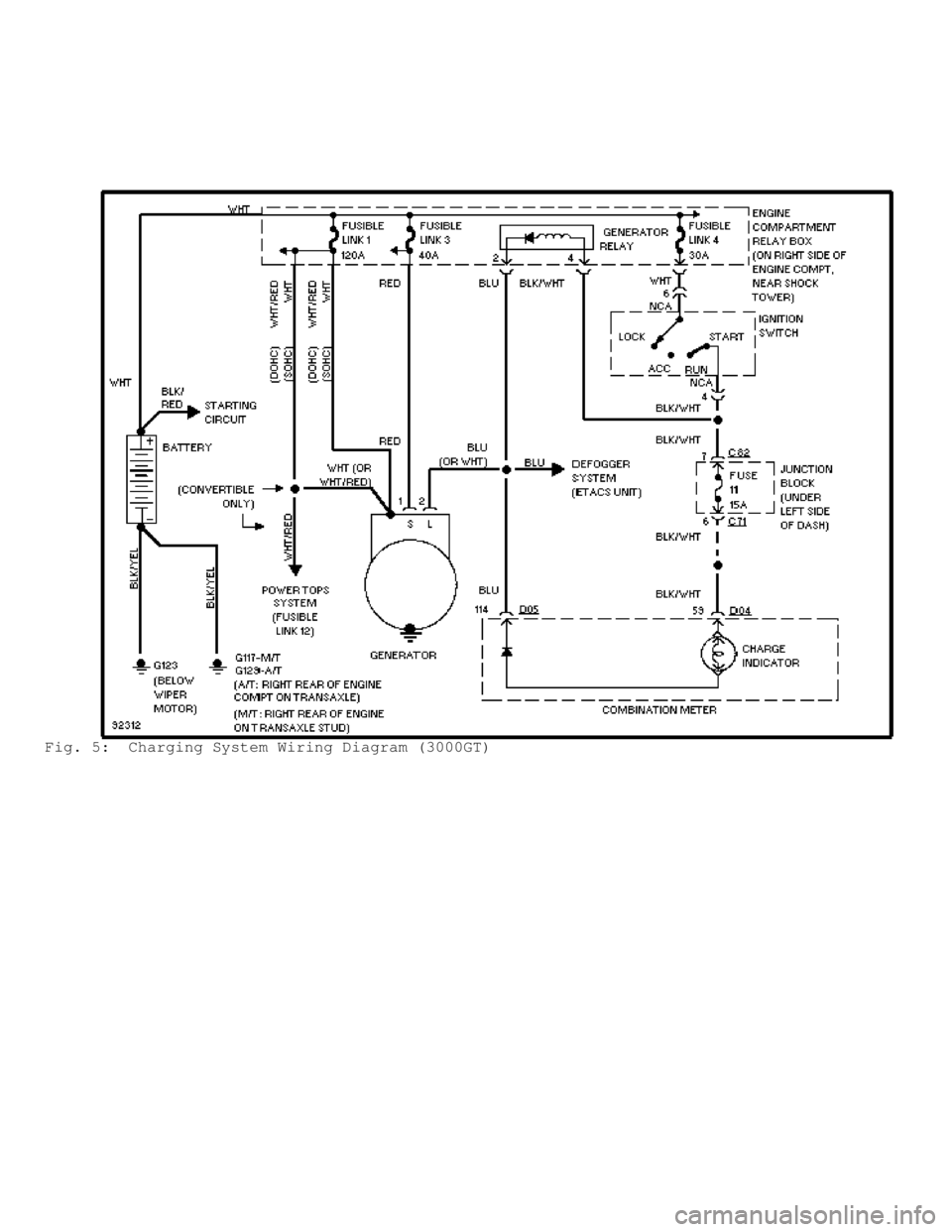

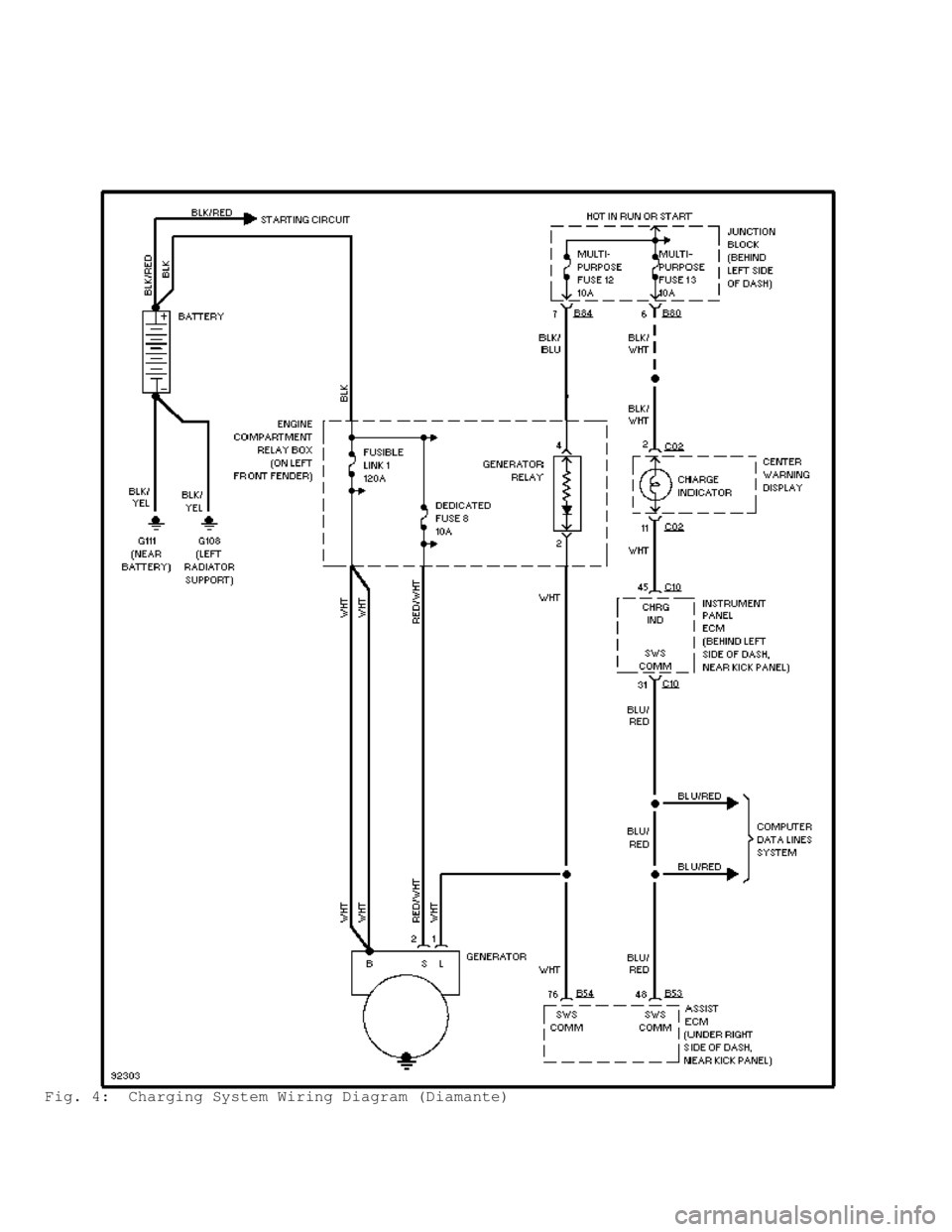

Fig. 5: Charging System Wiring Diagram (3000GT)

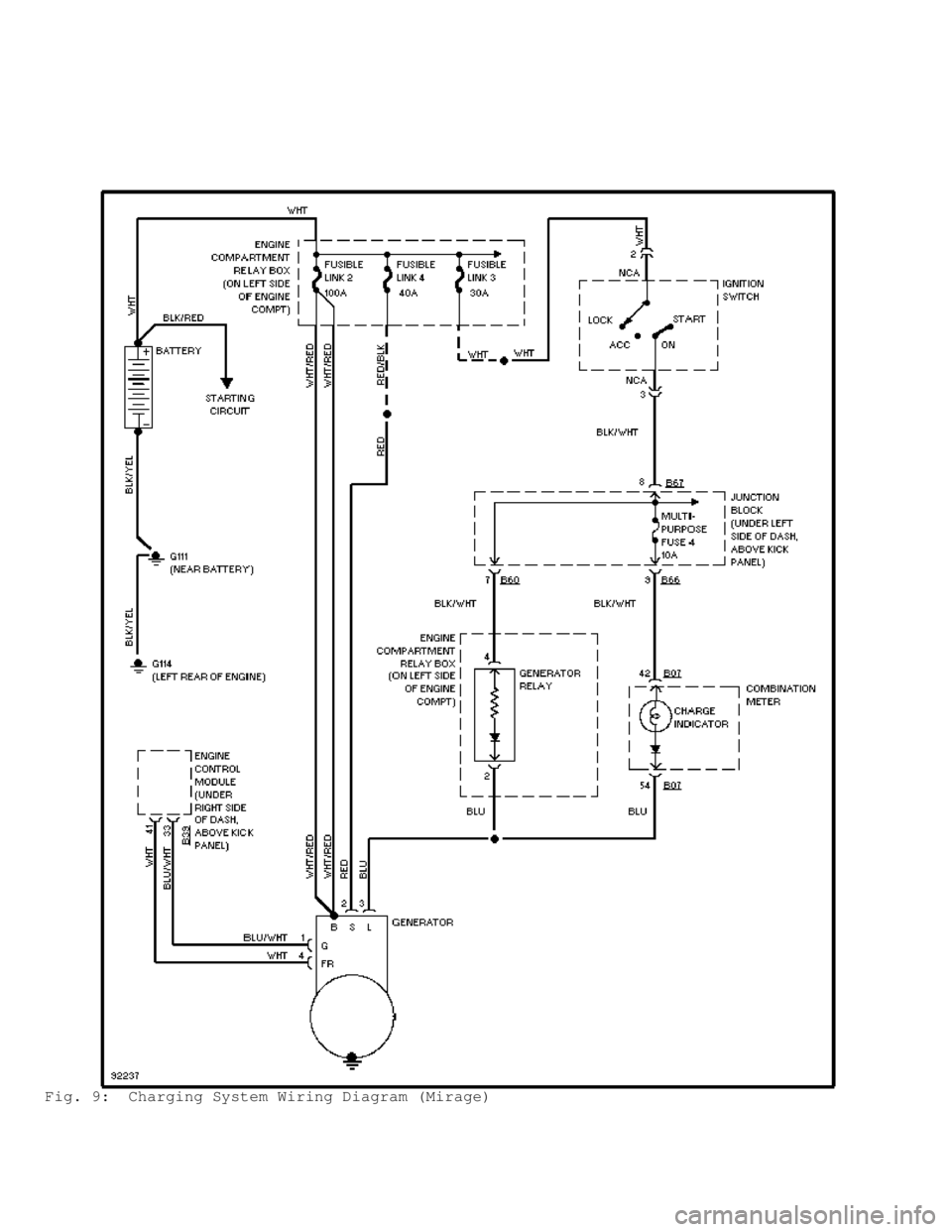

Fig. 6: Charging System Wiring Diagram (Eclipse 2.0L Non-Turbo)

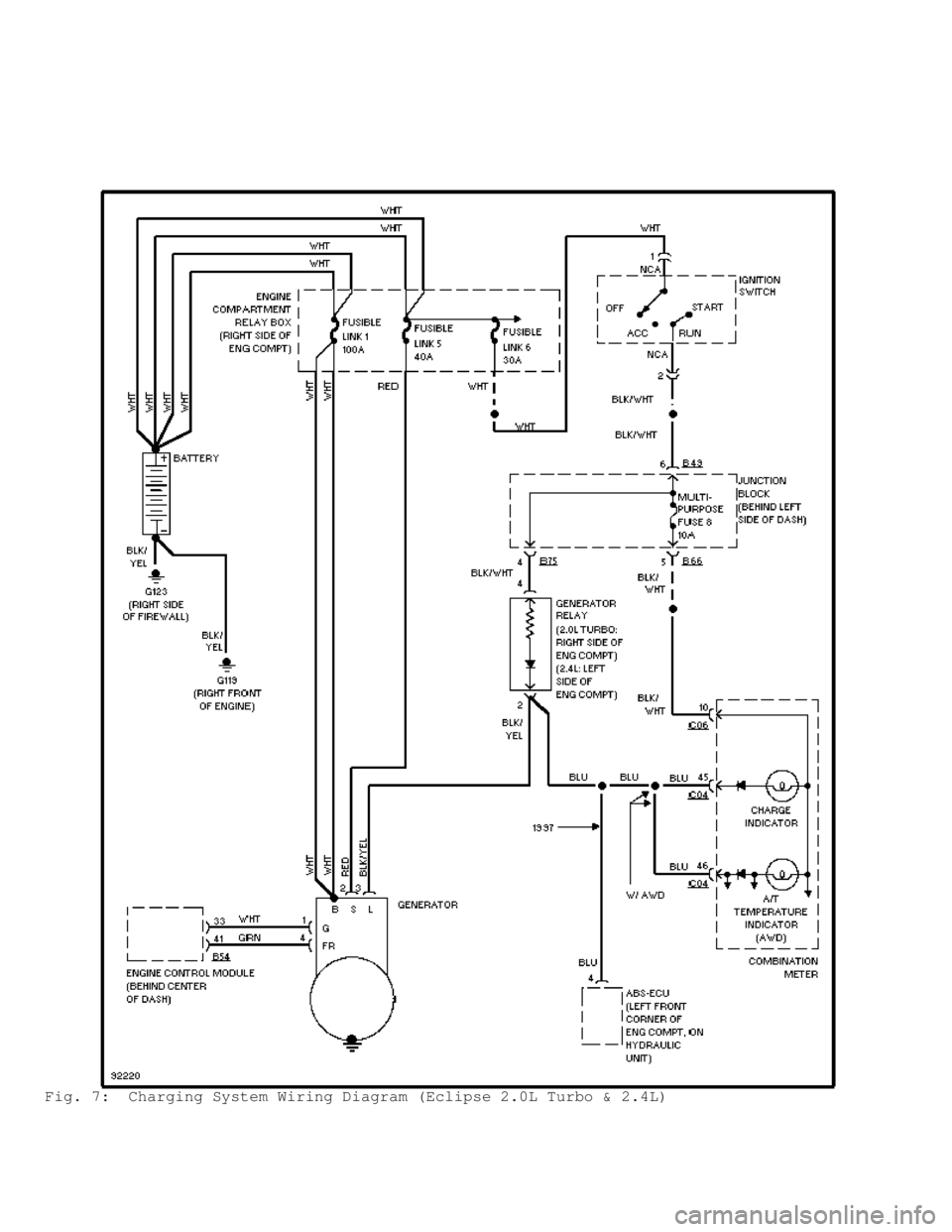

Fig. 7: Charging System Wiring Diagram (Eclipse 2.0L Turbo & 2.4L)

Fig. 8: Charging System Wiring Diagram (Galant)

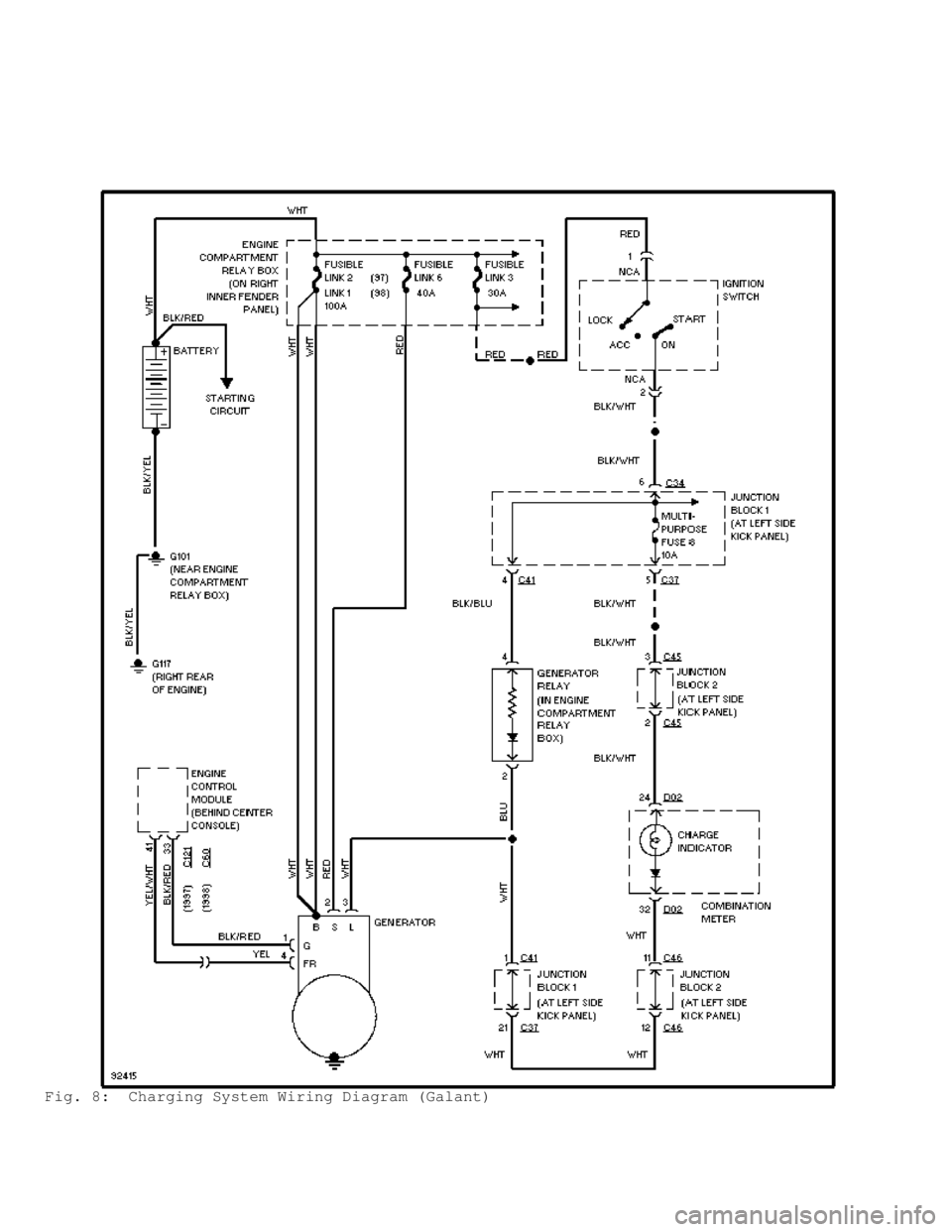

Fig. 9: Charging System Wiring Diagram (Mirage)
