MITSUBISHI MONTERO 1998 Service Manual
MONTERO 1998
MITSUBISHI
MITSUBISHI
https://www.carmanualsonline.info/img/19/57333/w960_57333-0.png
MITSUBISHI MONTERO 1998 Service Manual
Page 1110 of 1501
Fig. 5: Testing Wiper/Washer Switch (Diamante)
Courtesy of Mitsubishi Motor Sales of America
ECLIPSE
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 6 and 7. If
continuity is not as specified, replace steering column combination
switch.
Page 1111 of 1501

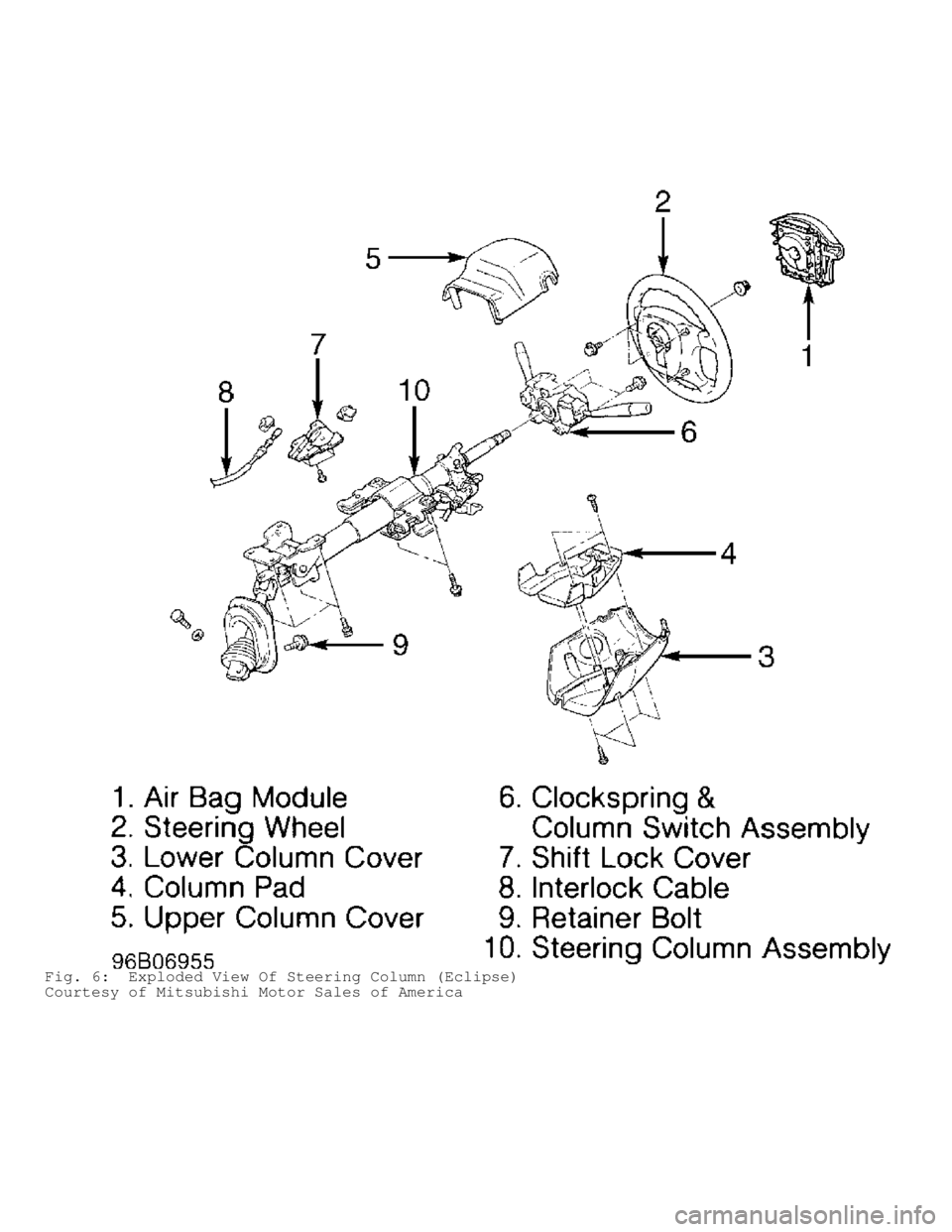

Fig. 6: Exploded View Of Steering Column (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Page 1114 of 1501
Fig. 9: Testing Key Reminder Switch (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 6 and 10. If
continuity is not as specified, replace wiper/washer switch.
Page 1116 of 1501

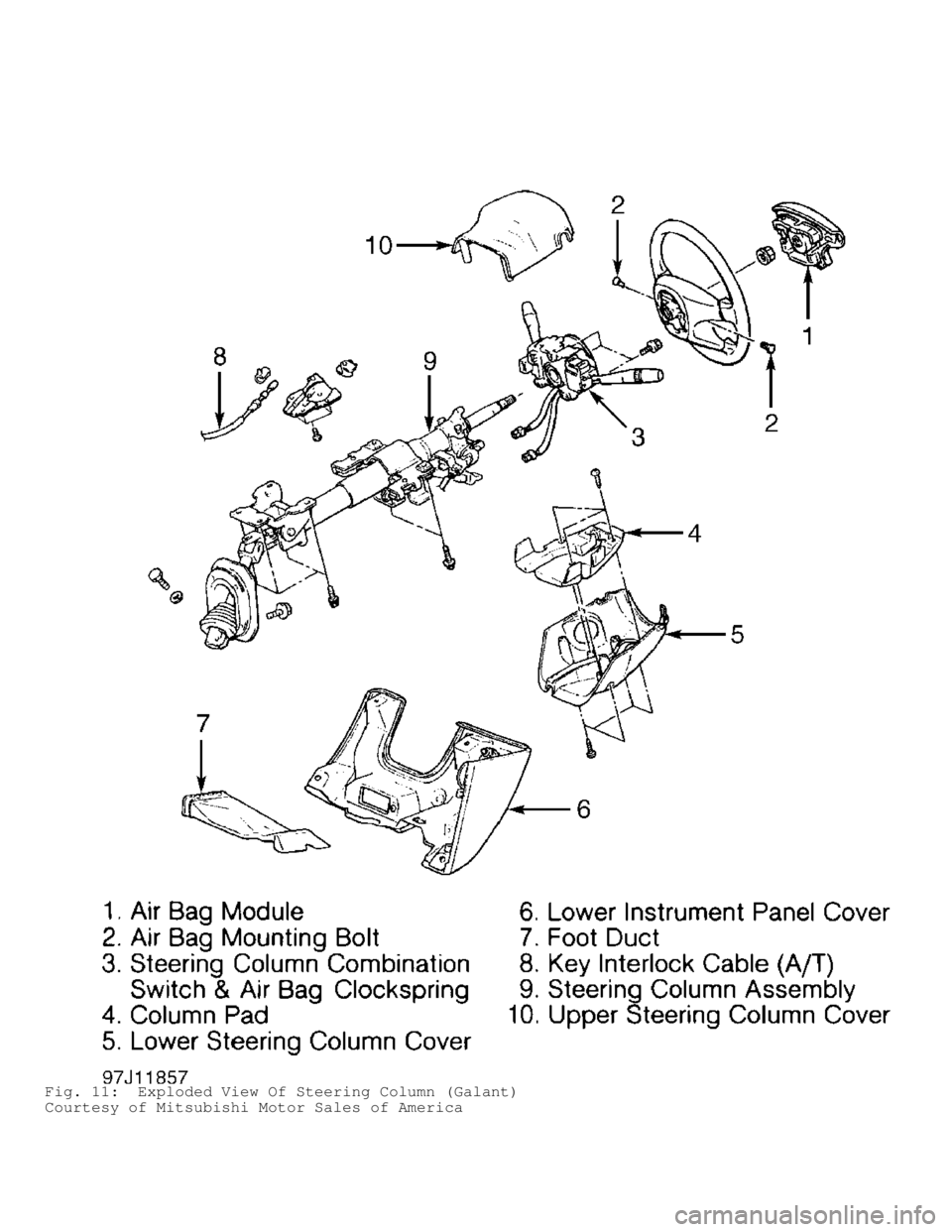

Fig. 11: Exploded View Of Steering Column (Galant)
Courtesy of Mitsubishi Motor Sales of America
Page 1118 of 1501
between specified terminals. See Fig. 12. If continuity is not as
specified, replace key reminder switch.
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT) .
See Figs. 11 and 13. If continuity is not as specified, replace
steering column combination switch.
STEERING COLUMN COMBINATION SWITCH CONTINUITY CHECK TABLE (GALANT)
\
\
\
\
\
\
Switch Check Continuity
& Position Between Terminals No.
Lights Switch
Headlight ON .............. ( 1) 1 & ( 2) 6; ( 2) 5 & ( 2) 7
Taillight ON ( 2) ................................. 5 & 7
Dimmer Switch ( 1)
Low Beam ......................................... 4 & 6
High Beam ........................................ 3 & 4
Passing
Low Beam ............................. 1, 2 & 6; 3 & 4
High Beam ............................ 1, 2 & 6; 4 & 6
Turn Signal Switch ( 2)
Left Turn ........................................ 3 & 8
Right Turn ....................................... 8 & 9
( 1) - Check at connector "A". See Fig. 13.
( 2) - Check at connector "B". See Fig. 13.
\
\
\
\
\
\
Fig. 13: Identifying Lighting & Turn Signal Switches (Galant)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.
Page 1120 of 1501
Fig. 15: Exploded View Of Steering Column (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Page 1122 of 1501
specified, replace key reminder switch.
Fig. 17: Testing Key Reminder Switch (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 15 and 18. If
continuity is not as specified, replace steering column combination
switch.
Page 1123 of 1501

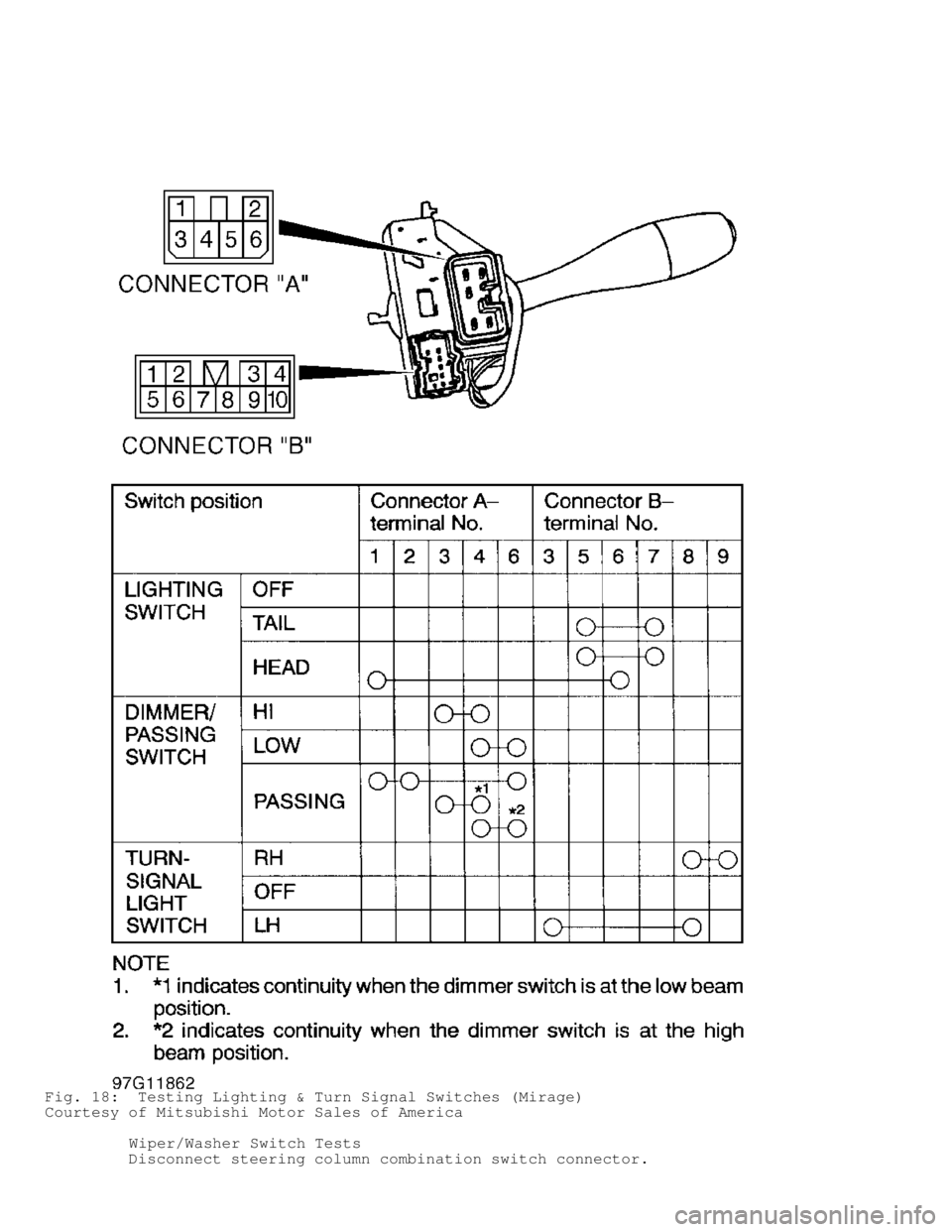

Fig. 18: Testing Lighting & Turn Signal Switches (Mirage)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Tests
Disconnect steering column combination switch connector.
Page 1124 of 1501
Check continuity between specified terminals. See Fig. 14. If
continuity is not as specified, replace wiper/washer switch.
MONTERO
Ignition Switch & Key Reminder Switch Tests
Disconnect ignition switch and key reminder switch
connectors. Check continuity between specified terminals. See Figs. 19
and 20. If continuity is not as specified, replace ignition switch or
key reminder switch.

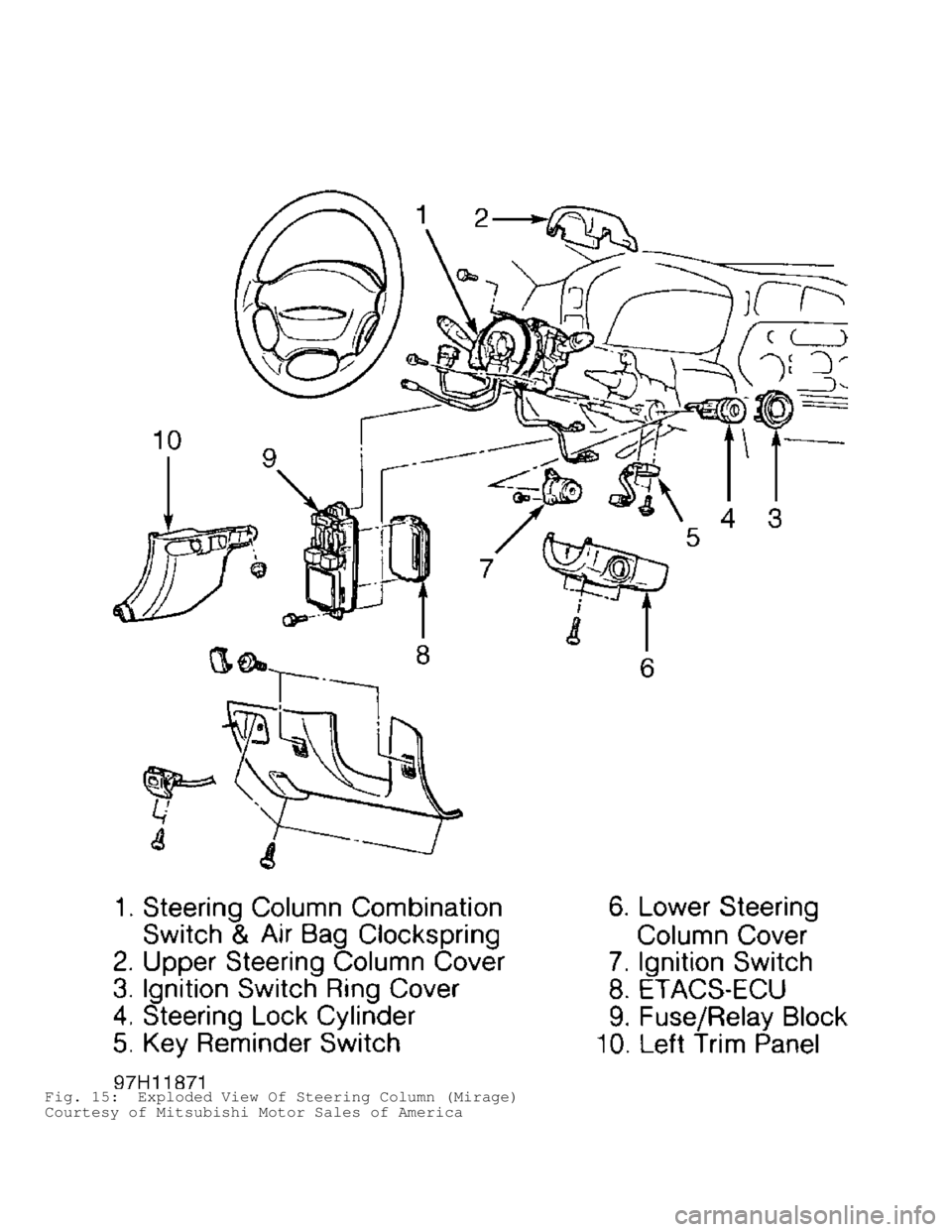

Fig. 19: Exploded View Of Steering Column (Montero)
Courtesy of Mitsubishi Motor Sales of America
Page 1125 of 1501
Fig. 20: Testing Ignition Switch & Key Reminder Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
