MITSUBISHI MONTERO 1998 Service Manual
Page 1126 of 1501
Check continuity between specified terminals. See Figs. 19 and 21. If
continuity is not as specified, replace steering column combination
switch.

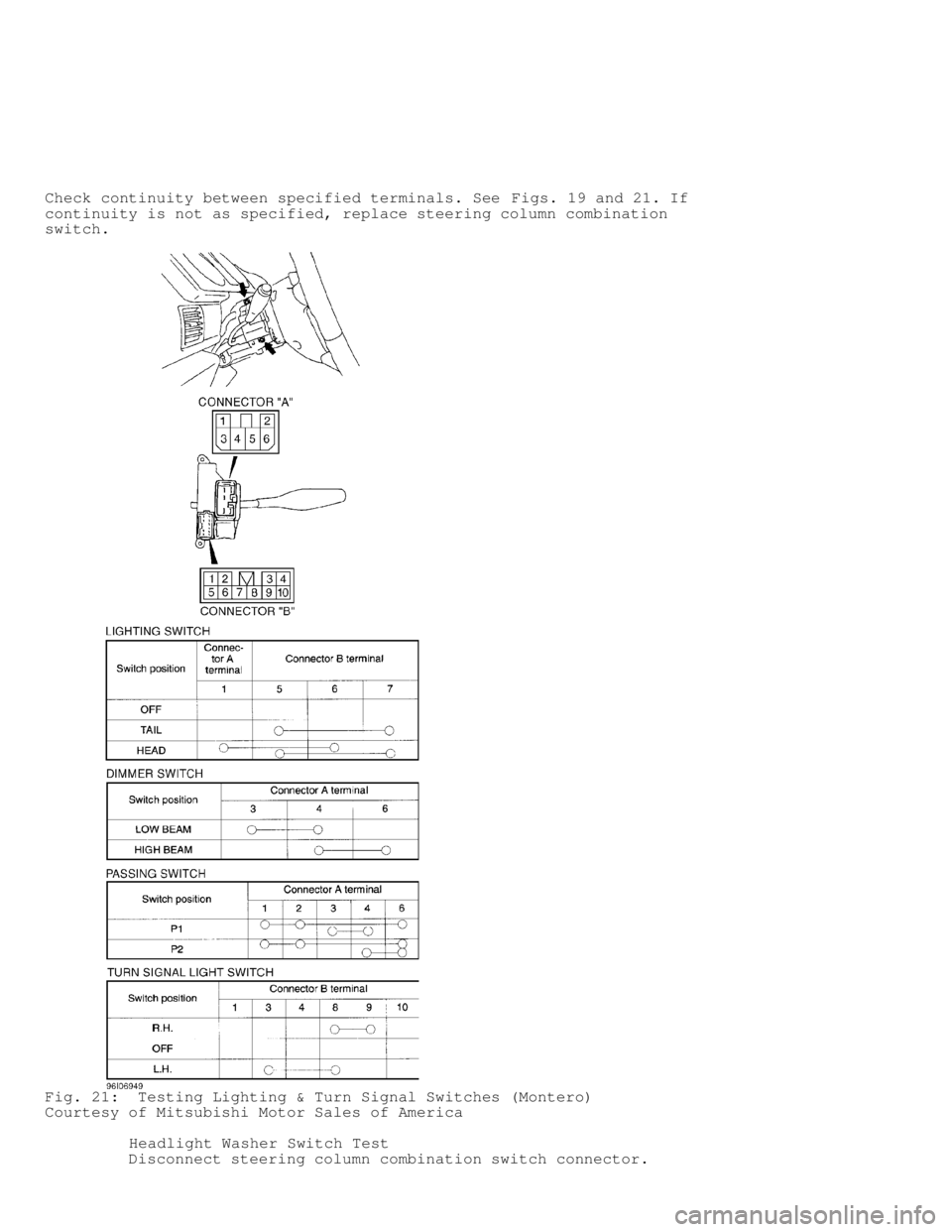

Fig. 21: Testing Lighting & Turn Signal Switches (Montero)
Courtesy of Mitsubishi Motor Sales of America
Headlight Washer Switch Test
Disconnect steering column combination switch connector.
Page 1127 of 1501
Check continuity between specified terminals. See Figs. 19 and 22. If
continuity is not as specified, replace steering column combination
switch.

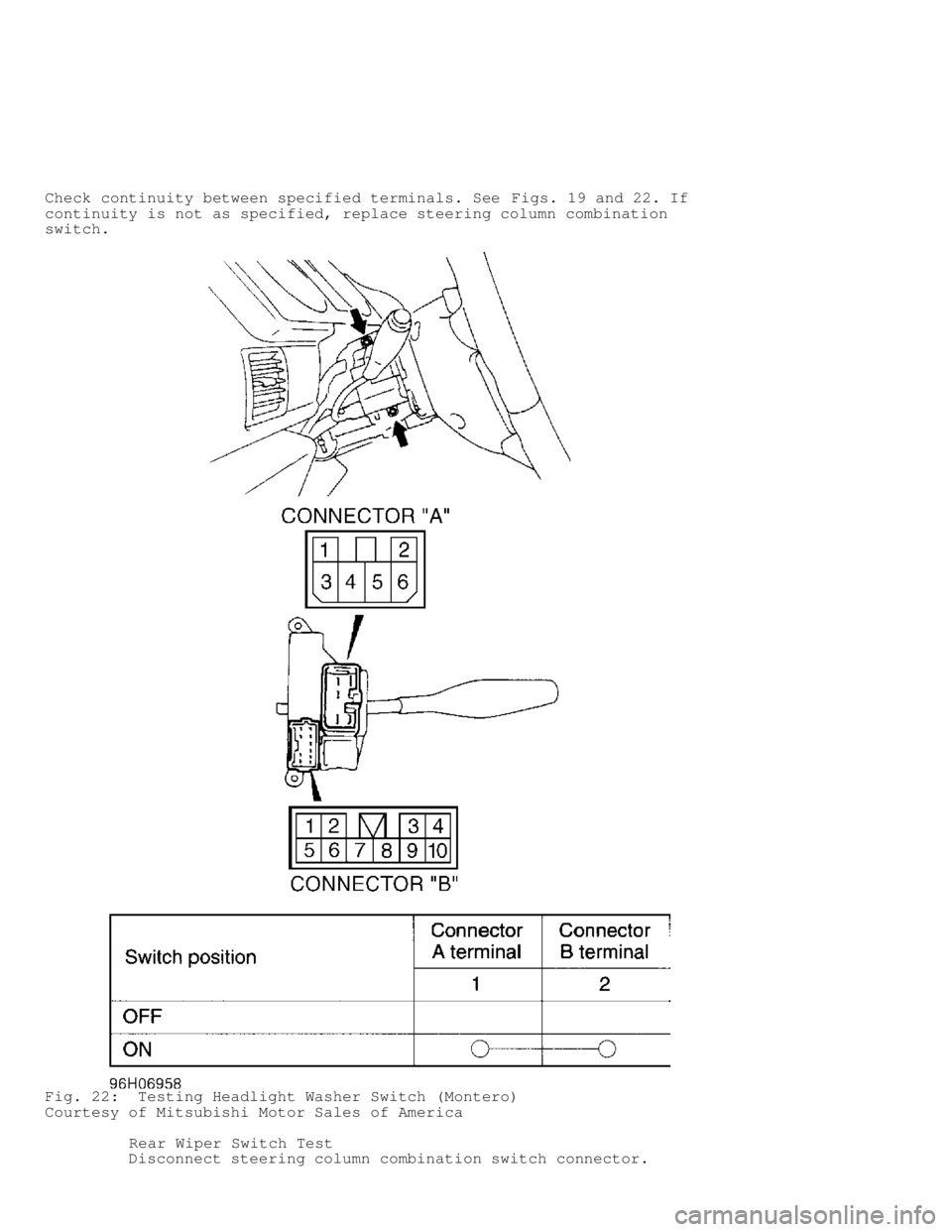

Fig. 22: Testing Headlight Washer Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Rear Wiper Switch Test
Disconnect steering column combination switch connector.
Page 1128 of 1501
Check continuity between specified terminals. See Figs. 19 and 23. If
continuity is not as specified, replace steering column combination
switch.

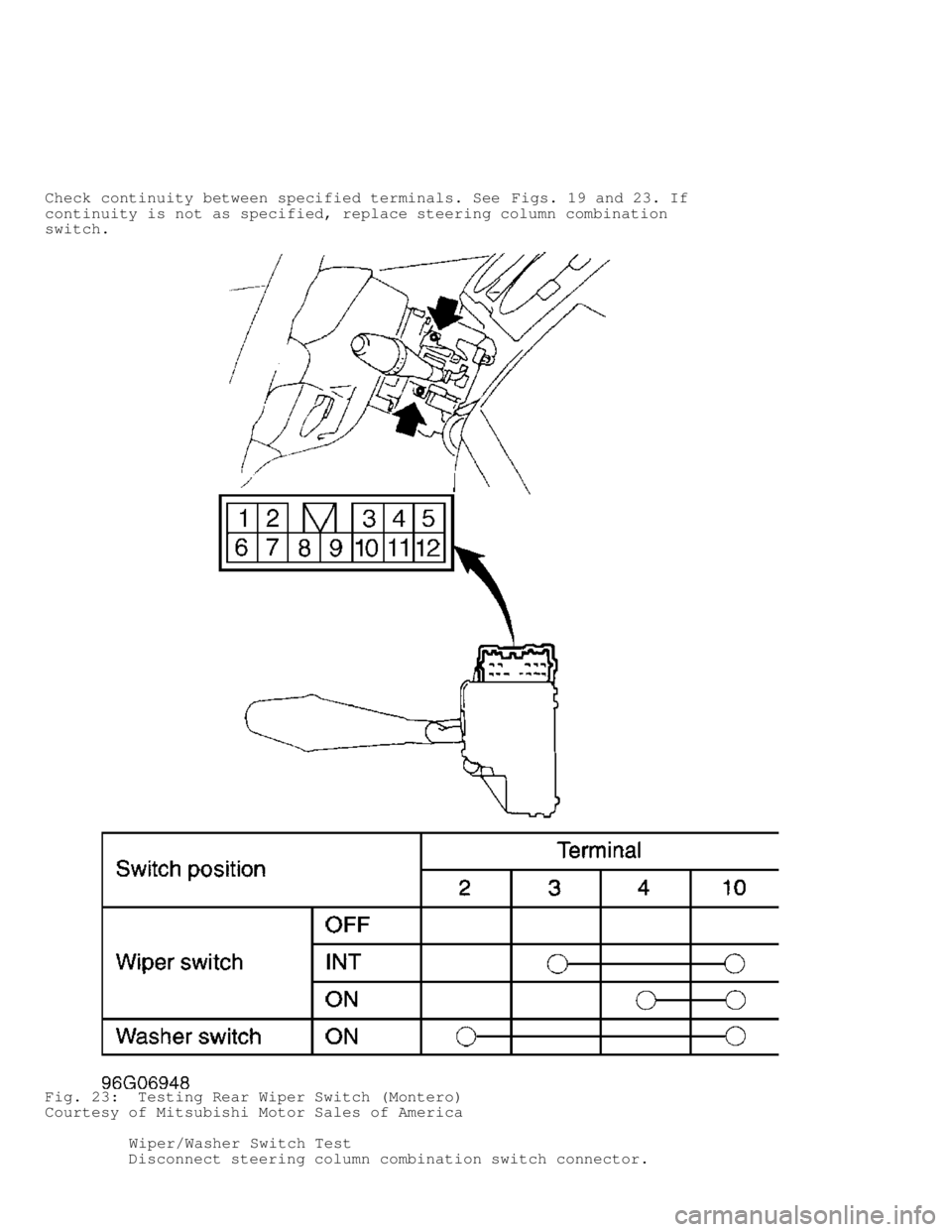

Fig. 23: Testing Rear Wiper Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
Wiper/Washer Switch Test
Disconnect steering column combination switch connector.
Page 1129 of 1501
Check continuity between specified terminals. See Figs. 19 and 24. If
continuity is not as specified, replace steering column combination
switch.

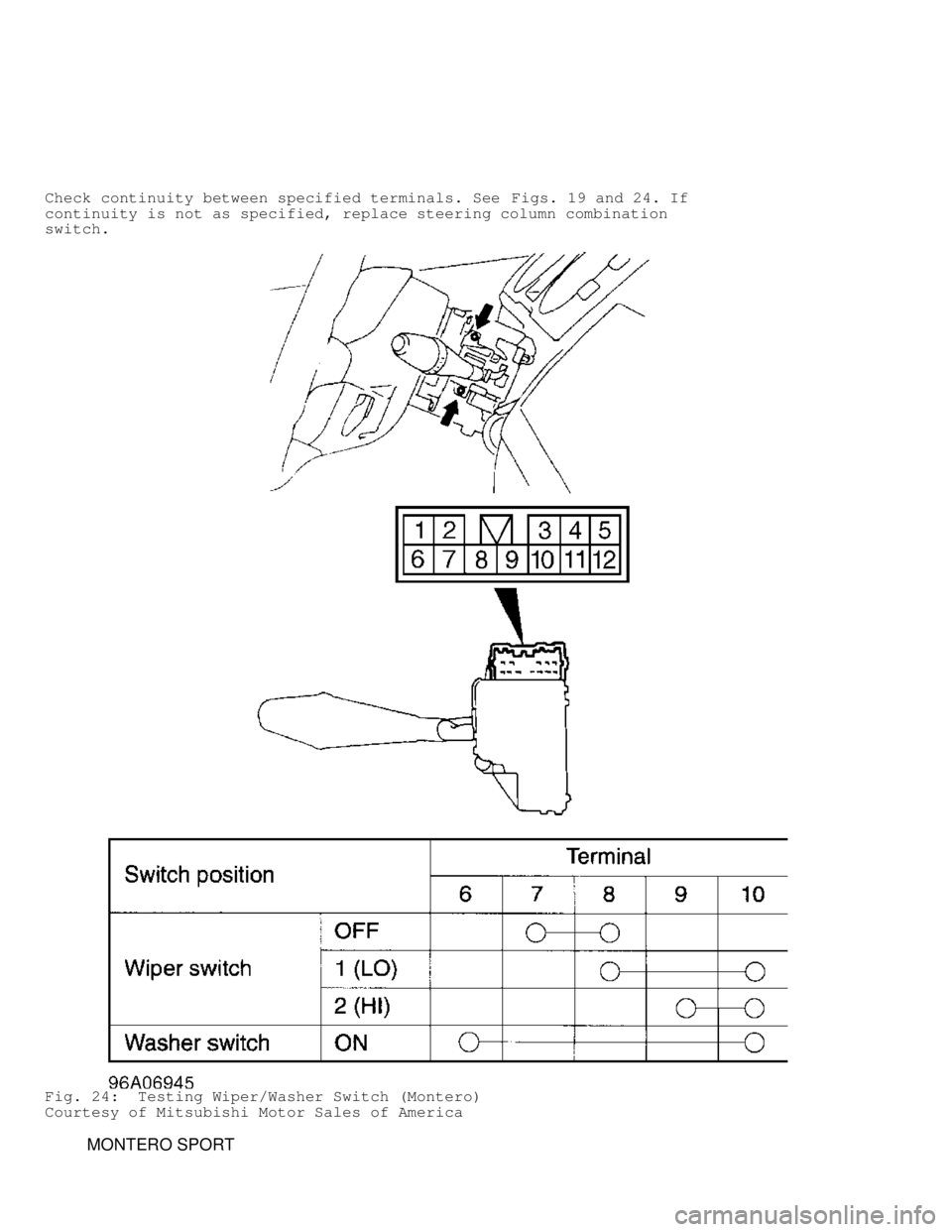

Fig. 24: Testing Wiper/Washer Switch (Montero)
Courtesy of Mitsubishi Motor Sales of America
MONTERO SPORT
Page 1130 of 1501
Ignition Switch Test
Disconnect ignition switch connectors. Check continuity
between specified terminals. See Figs. 25 and 26. If continuity is not
as specified, replace ignition switch.

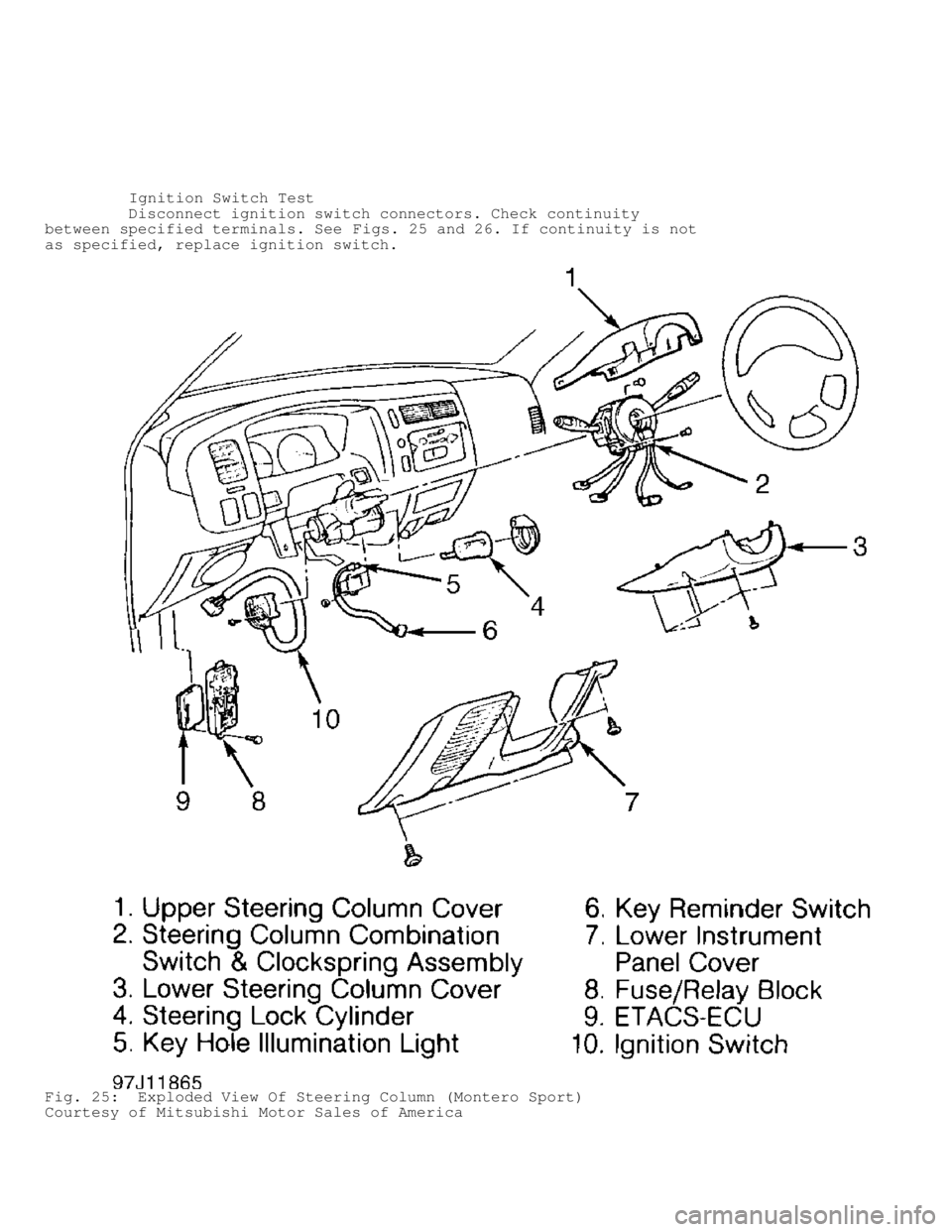

Fig. 25: Exploded View Of Steering Column (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Page 1131 of 1501

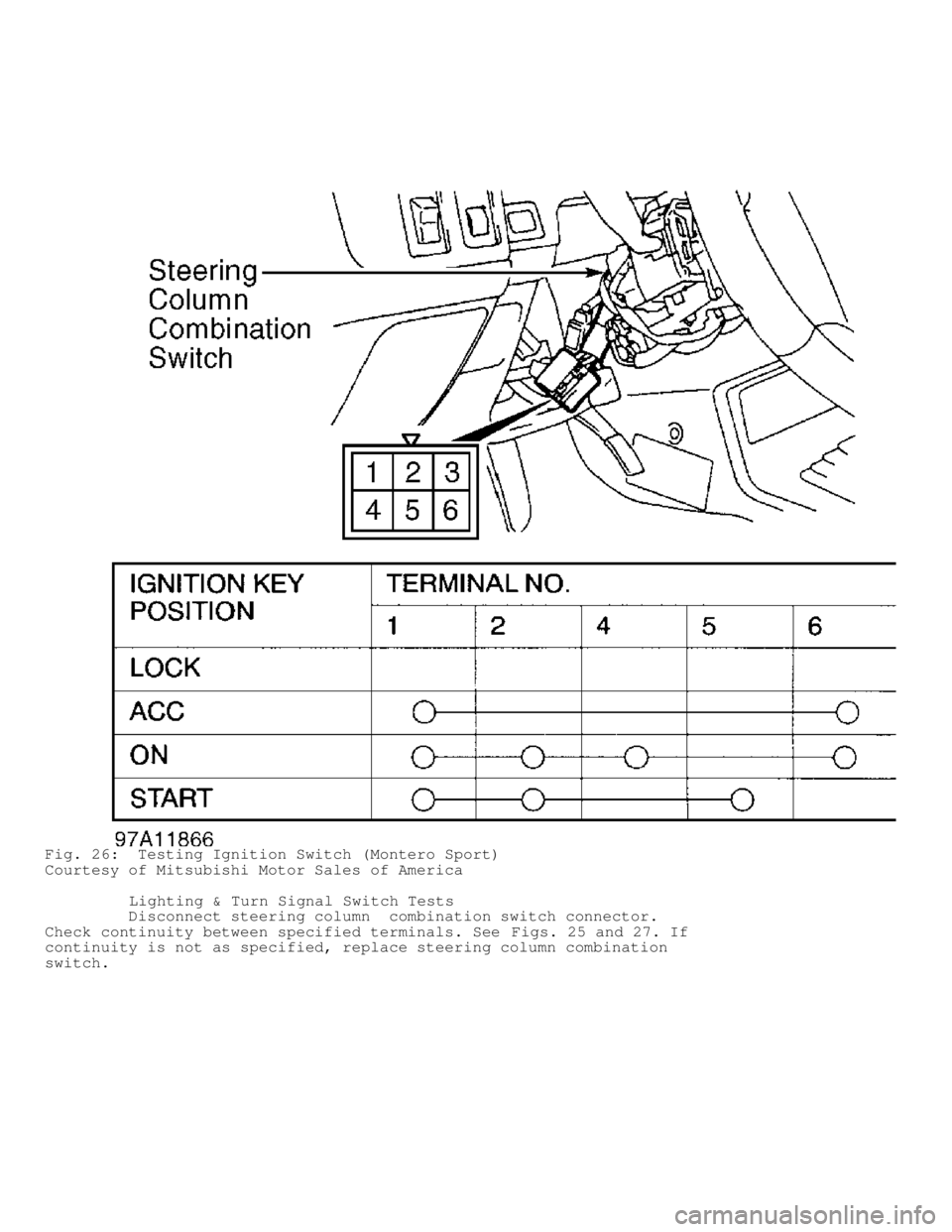

Fig. 26: Testing Ignition Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Lighting & Turn Signal Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 25 and 27. If
continuity is not as specified, replace steering column combination
switch.
Page 1132 of 1501

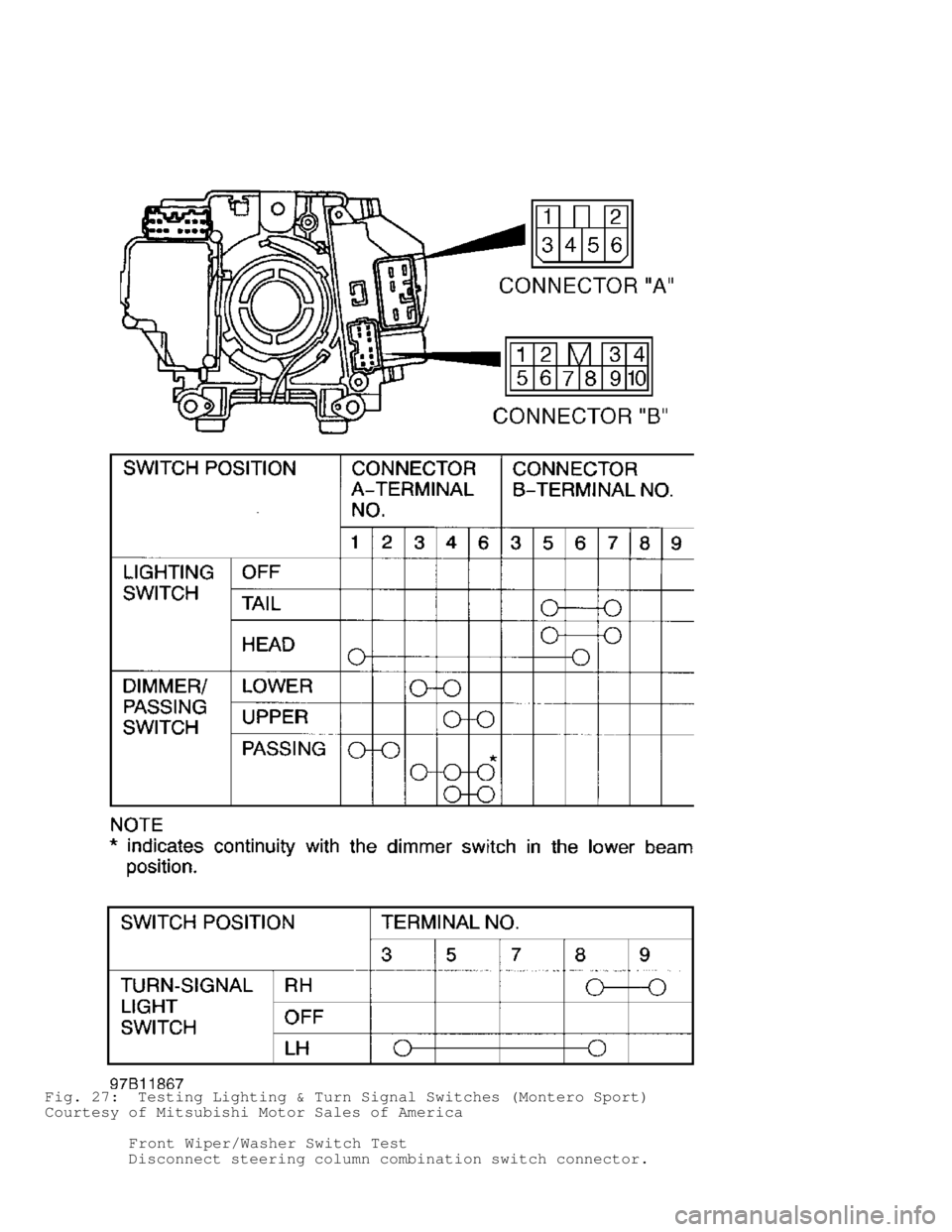

Fig. 27: Testing Lighting & Turn Signal Switches (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Front Wiper/Washer Switch Test
Disconnect steering column combination switch connector.
Page 1133 of 1501
Check continuity between specified terminals. See Figs. 25 and 28. If
continuity is not as specified, replace steering column combination
switch.

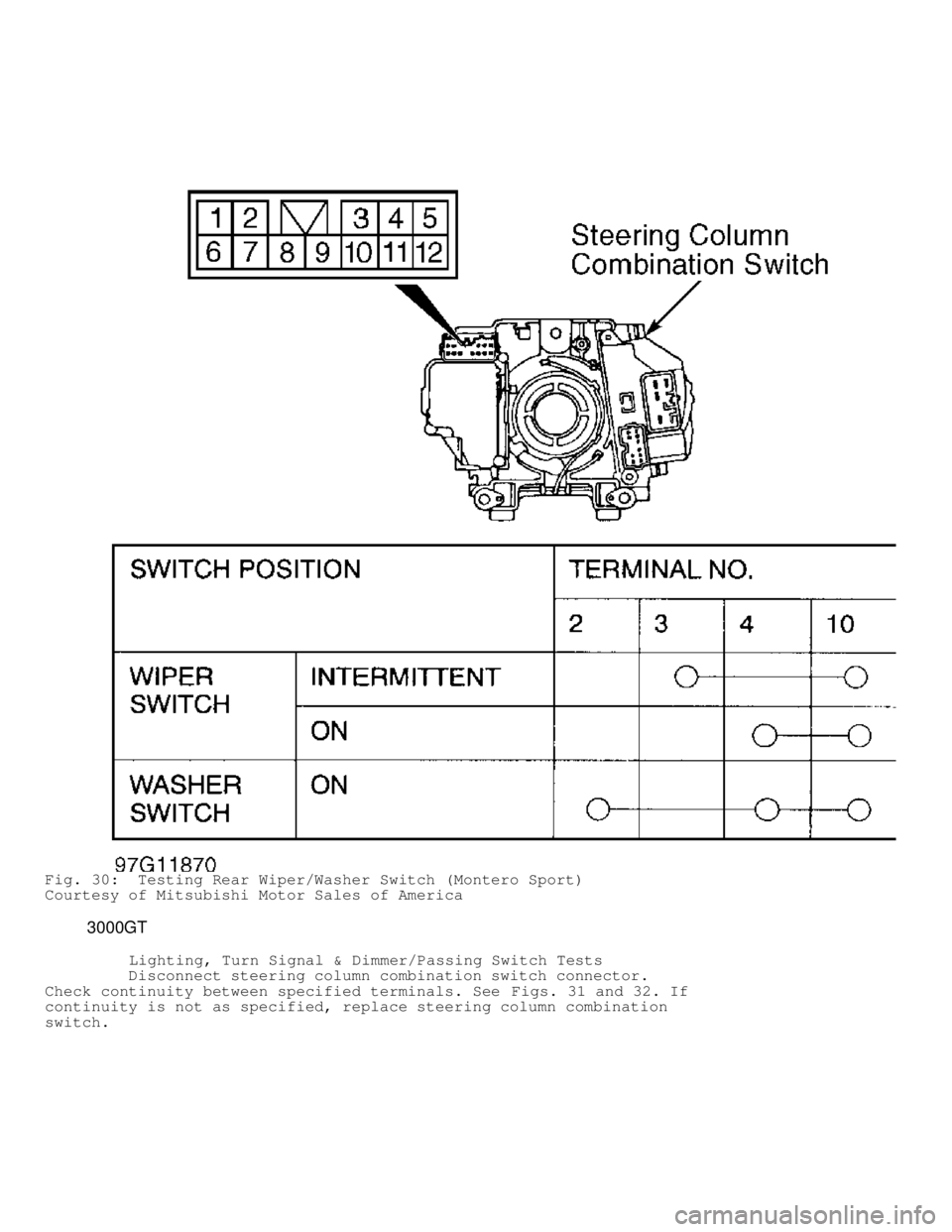

Fig. 28: Front Wiper/Washer Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Key Reminder Switch Test
Disconnect key reminder switch connectors. Check continuity
between specified terminals. See Figs. 25 and 29. If continuity is not
as specified, replace key reminder switch.
Page 1134 of 1501
Rear Wiper/Washer Switch Test
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Fig. 30. If
continuity is not as specified, replace steering column combination
switch.
Fig. 29: Testing Key Reminder Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Page 1135 of 1501
Fig. 30: Testing Rear Wiper/Washer Switch (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
3000GT
Lighting, Turn Signal & Dimmer/Passing Switch Tests
Disconnect steering column combination switch connector.
Check continuity between specified terminals. See Figs. 31 and 32. If
continuity is not as specified, replace steering column combination
switch.
