Page 391 of 1839

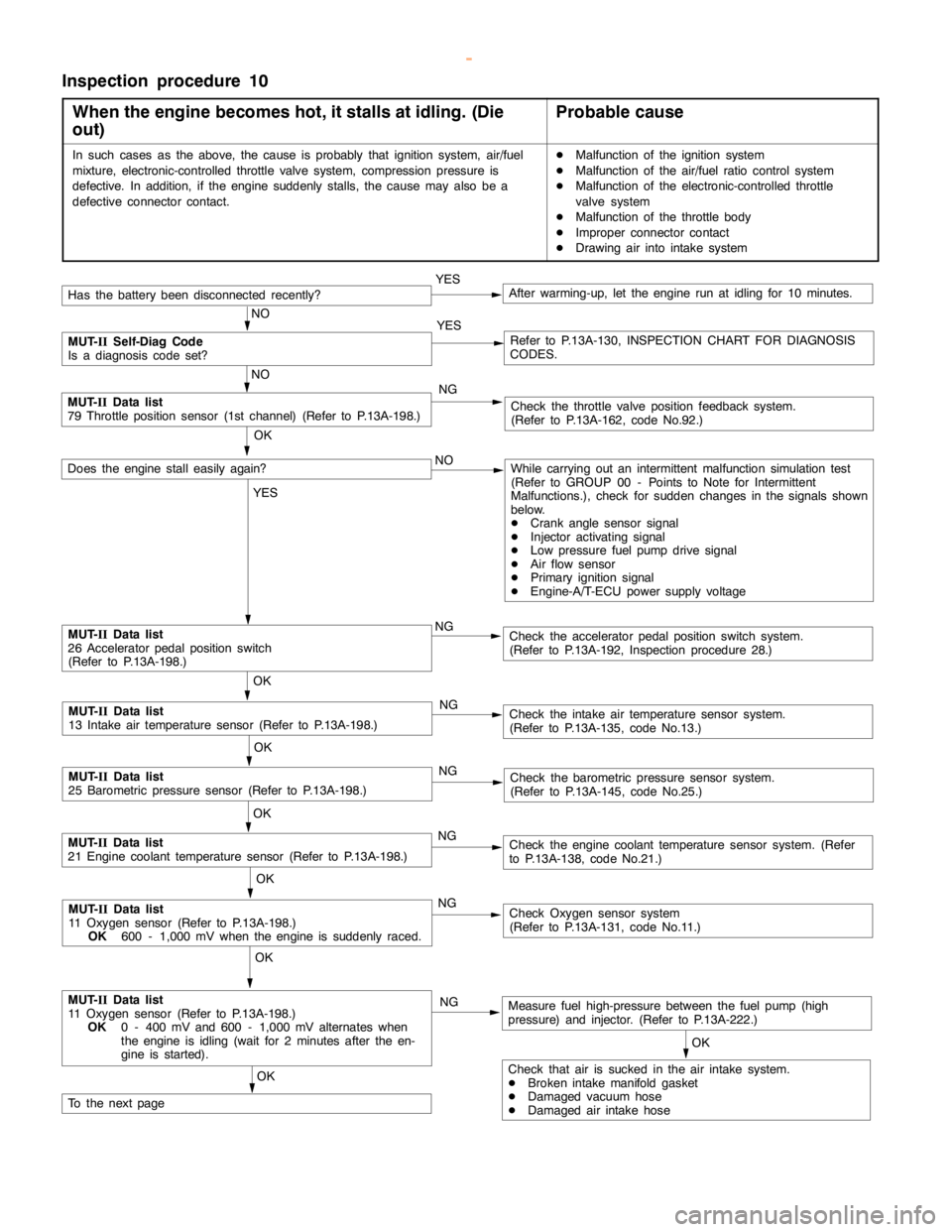

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-177 Inspection procedure 9 When the engine is cold, it stalls at idling. (Die out) Probable cause In such cases as the above, the cause is probably that the air/fuel mixt

Page 392 of 1839

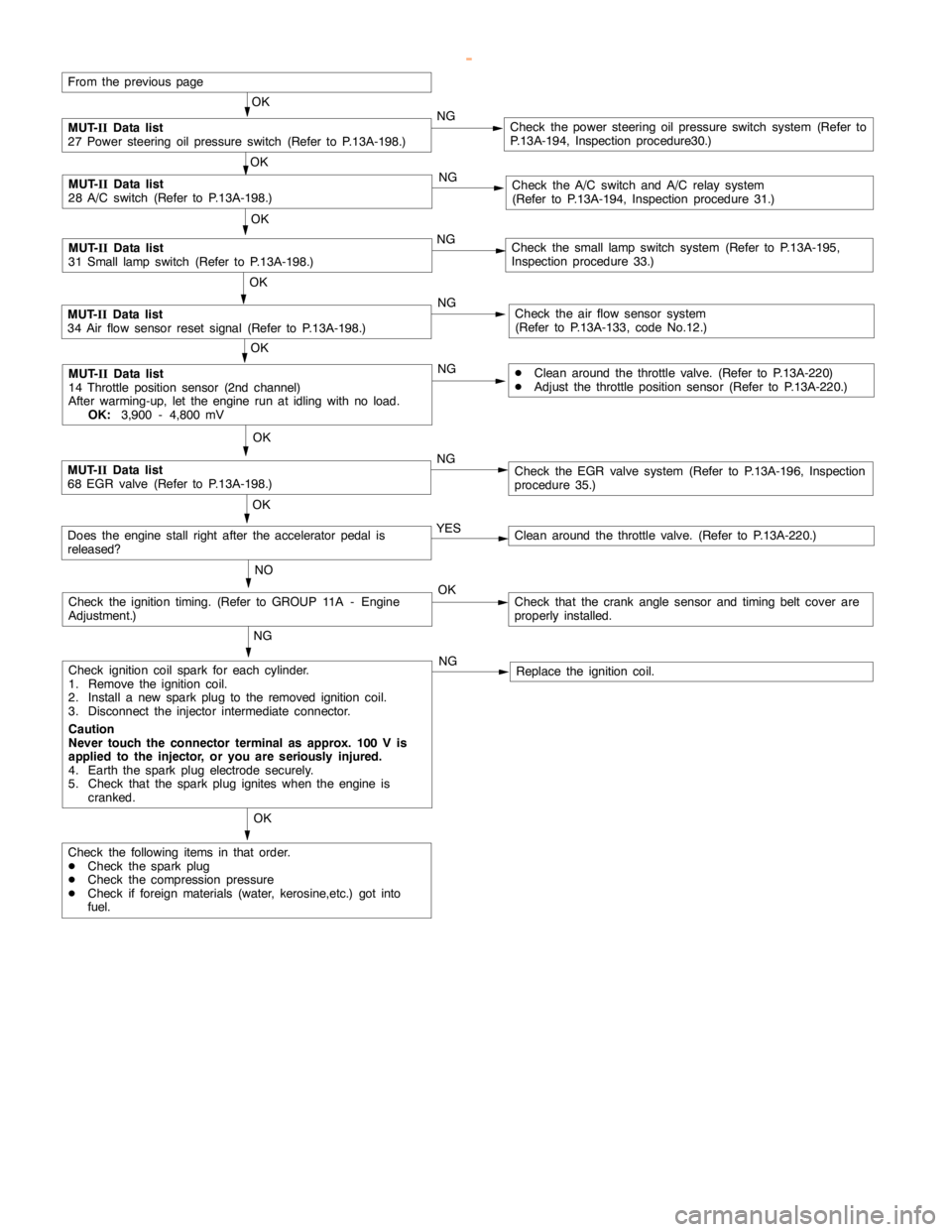

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-178 Inspection procedure 10 When the engine becomes hot, it stalls at idling. (Die out) Probable cause In such cases as the above, the cause is probably that ignition sys

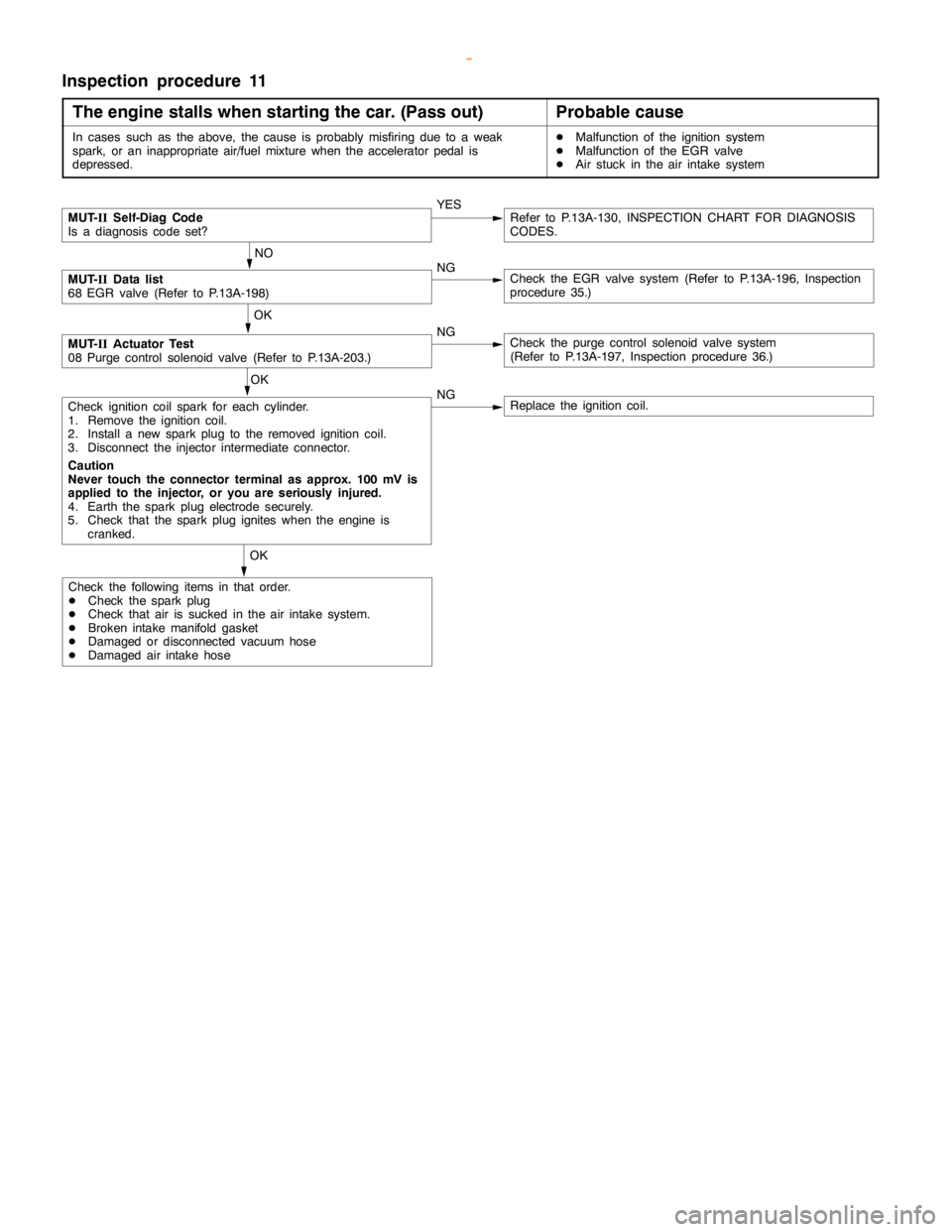

Page 393 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-179 OK Check the following items in that order. DCheck the sparkplug DCheck the compression pressure DCheck if foreign materials (water, kerosine,etc.) got into fuel. OK

Page 394 of 1839

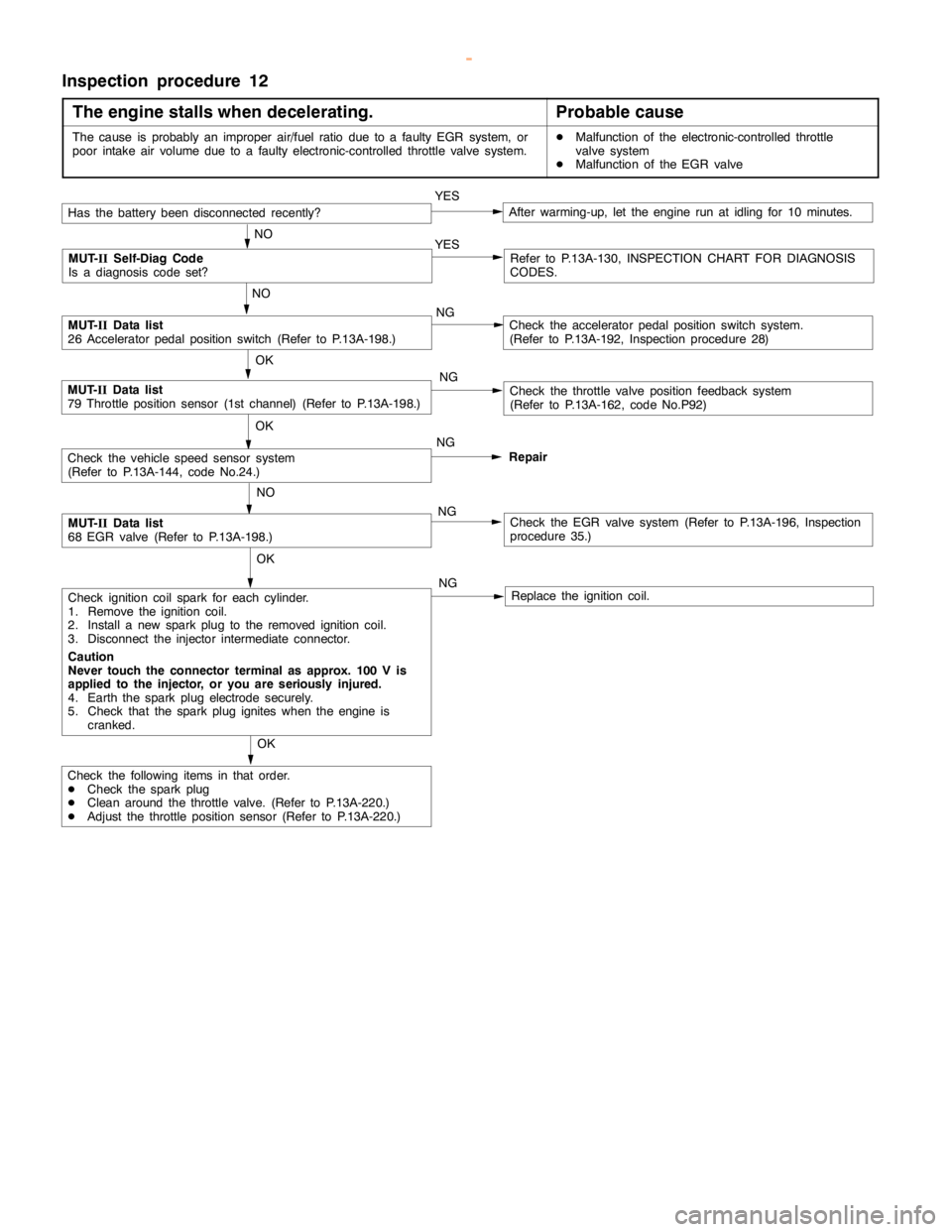

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-180 Inspection procedure 11 The engine stalls when starting the car. (Pass out) Probable cause In cases such as the above, the cause is probably misfiring due to a weak s

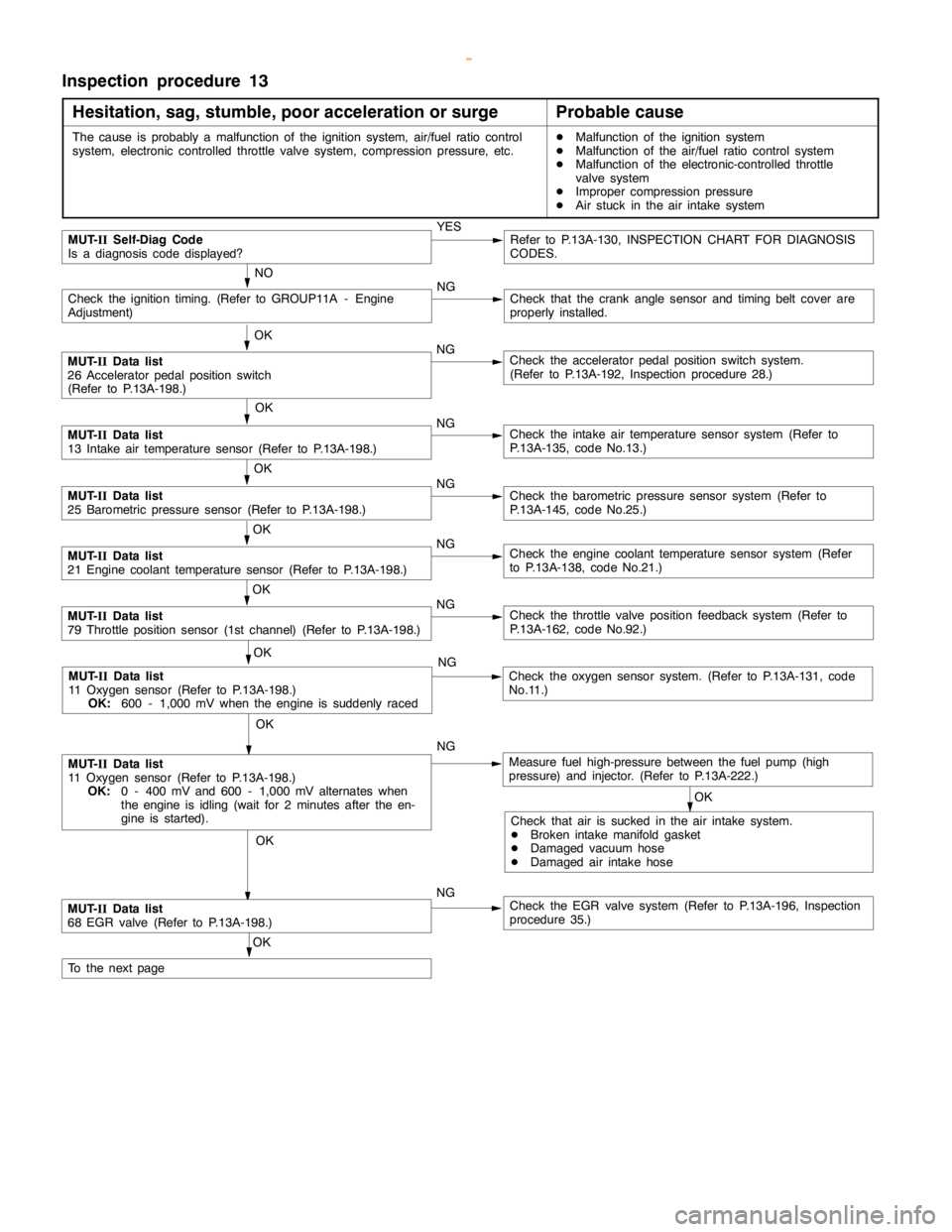

Page 395 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-181 Inspection procedure 12 The engine stalls when decelerating. Probable cause The cause is probably an improper air/fuel ratio due to a faulty EGR system, or poor intak

Page 396 of 1839

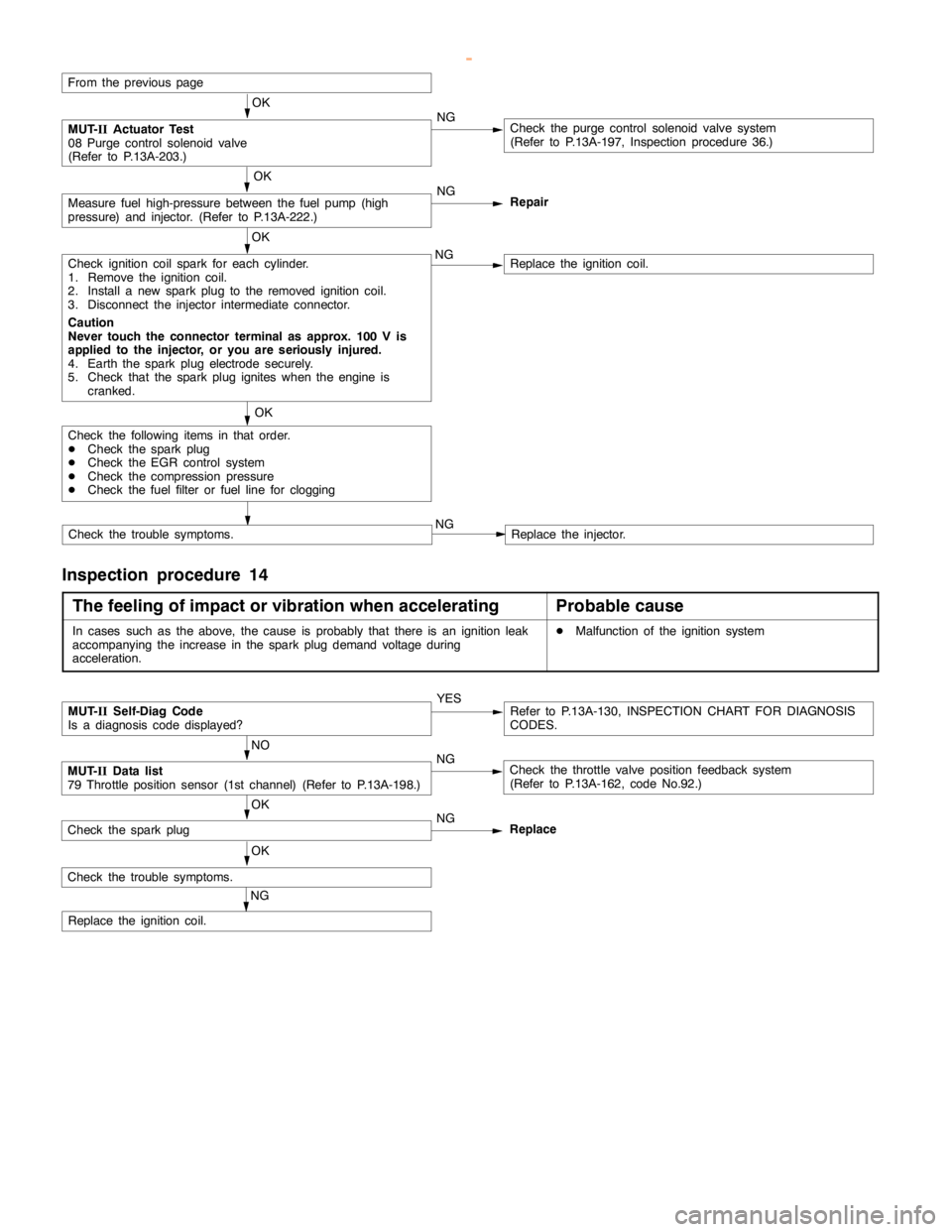

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-182 Inspection procedure 13 Hesitation, sag, stumble, poor acceleration or surge Probable cause The cause is probably a malfunction of the ignition system, air/fuel ratio

Page 397 of 1839

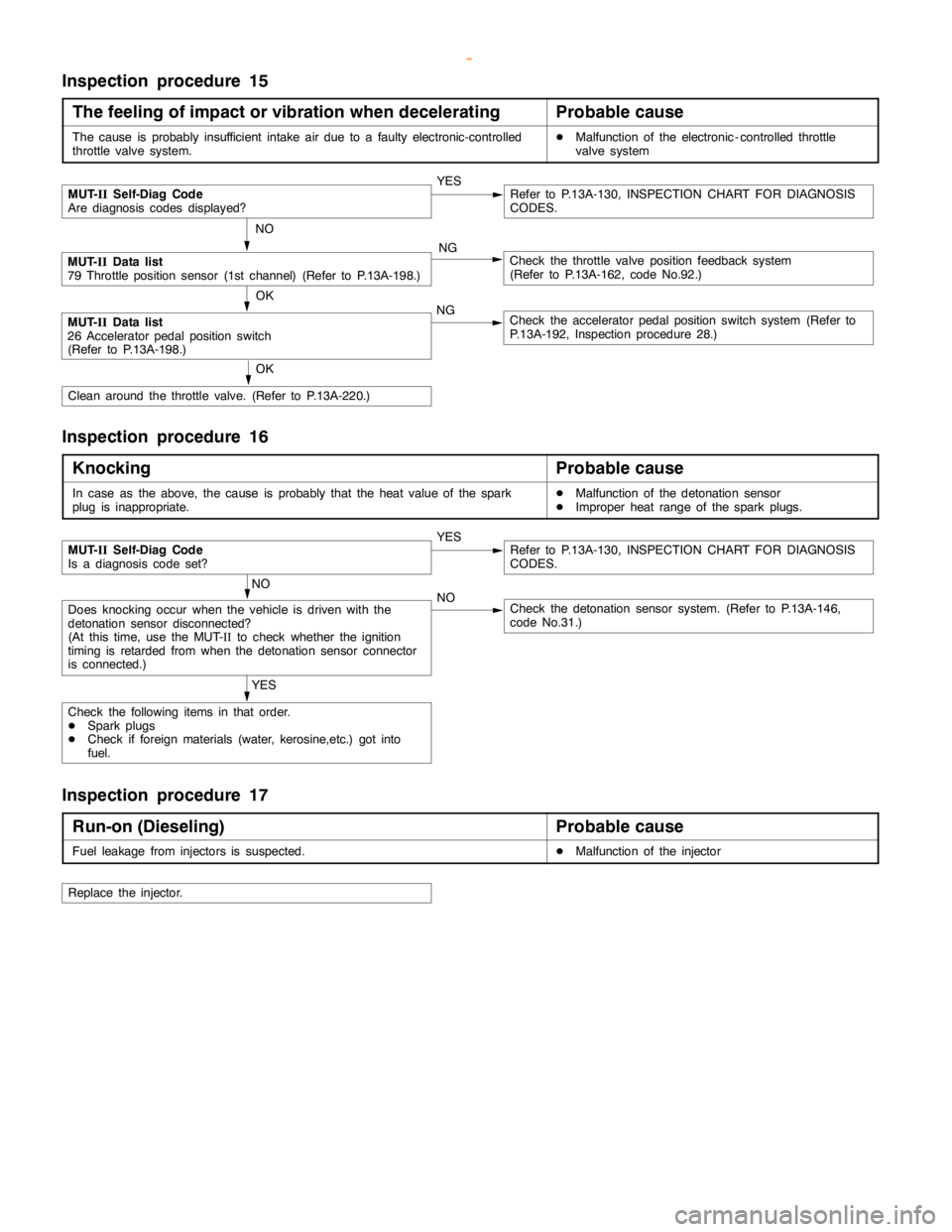

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-183 OK Check the following items in that order. DCheck the sparkplug DCheck the EGR control system DCheck the compression pressure DCheck the fuel filter or fuelline for

Page 398 of 1839

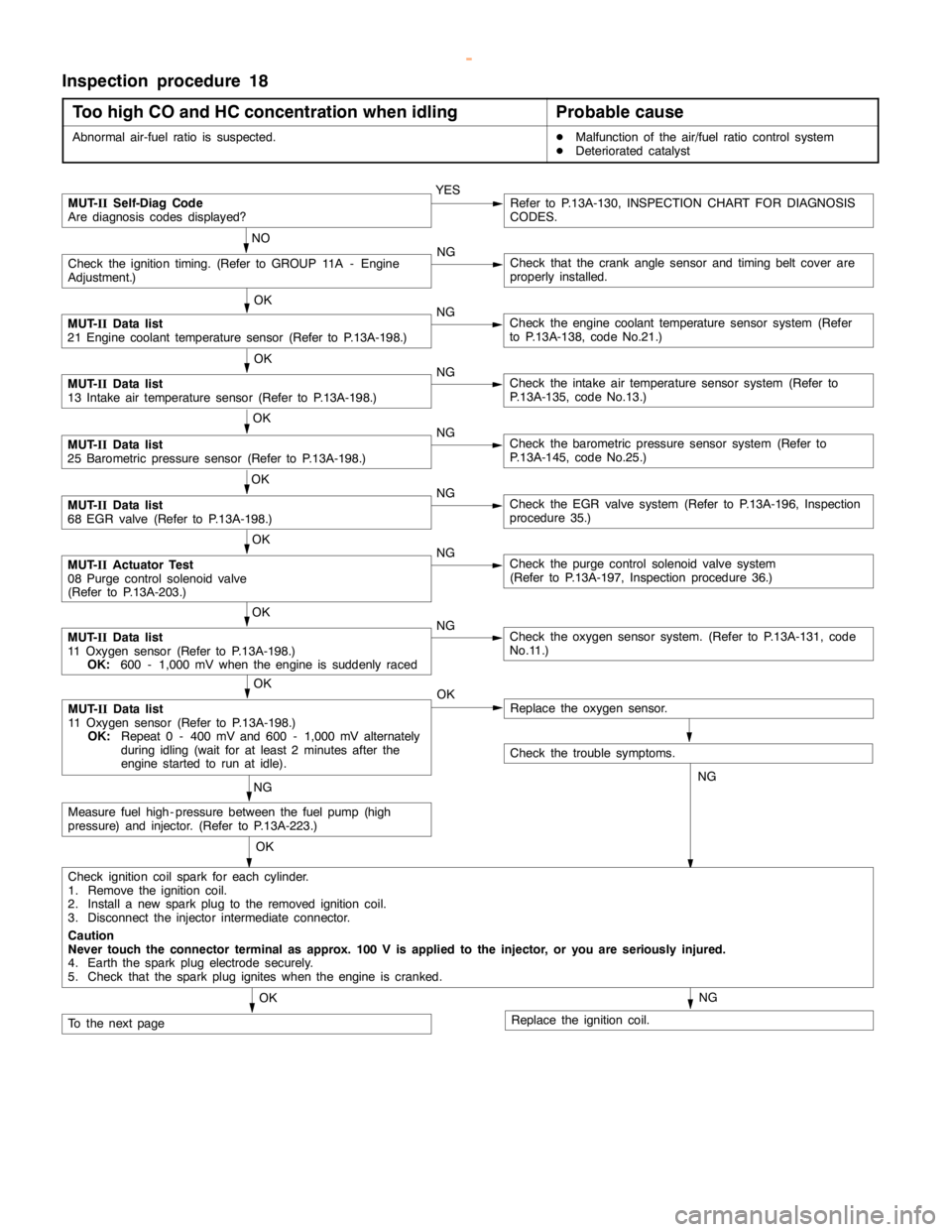

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-184 Inspection procedure 15 The feeling of impact or vibration when decelerating Probable cause The cause is probably insufficient intake air due to a faulty electronic-c

Page 399 of 1839

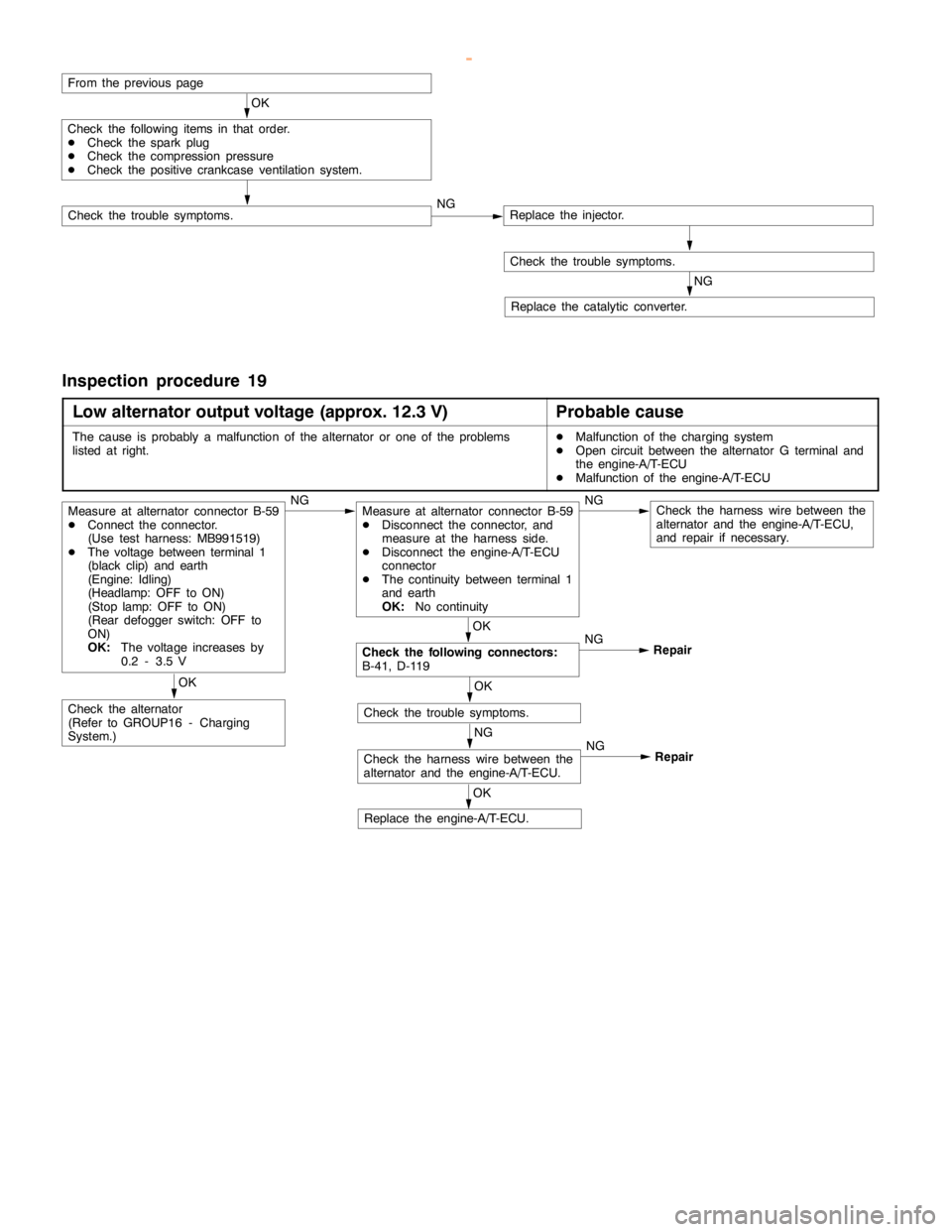

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-185 Inspection procedure 18 Too high CO and HC concentration when idling Probable cause Abnormal air-fuel ratio is suspected.DMalfunction of the air/fuel ratio control sy

Page 400 of 1839

MITSUBISHI MONTERO 2000 Service Repair Manual GDI -Troubleshooting <A/T>13A-186 Check the trouble symptoms.NG From the previouspage Check the trouble symptoms. Replace the catalytic converter. OK Check the following items in that order. DCheck th
