Troubleshooting53
Troubleshooting
ProblemCause Action to take
The angle change
mark does not display. The angle change
mark display is set to
OFF.Set the angle change
mark display to ON.
→ “To set indications”
P40
The angle cannot be
changed due to the
disc speci
fi cations.
The disc takes a while
to begin playing. There are many
recorded
fi les, folders,
and/or trees. Do not record
unnecessary folders
or fi
les.
There are fi les or
folders that cannot be
played. · The
fi les were
saved with a name
or recorded in a
format that cannot
be played on the
system.
· Files are not recorded in a
supported format.
· The disc is not
properly recorded. Check the operation
of the recording
equipment.
File and/or folder
names are not
properly displayed.
Sound quality is poor;
the disc skips.
Problem Cause Action to take
Images and audio do
not play.
The system
SOURCE is DISC.
There is no disc
inserted. Insert a disc. The system SOURCE is VIDEO.
(if so equipped)
The external device
connected to the
video input terminals
is stopped.Set the external
device to playback
mode.
The system does not
function (when playing
DVD video, DVD-VR)
even after pressing
the buttons. Depending on the
DVD video or DVD-
VR disc, there are
sometimes limitations
on device operations.
—
The audio language,
subtitle language,
and/or angle do not
change. Depending on the
DVD video or DVD-VR
disc, subtitles, angles,
and languages cannot
be changed.Check the DVD video
directions.
Page 52 of 56
Troubleshooting
54
Troubleshooting
Problem Cause Action to take
The playback time
is not displayed
correctly. A variable bit rate
(VBR) fi
le (song) is
playing. When a variable bit
rate (VBR) fi
le (song)
is being played, the
playback time may not
be displayed correctly.
The system audio
does not play over the
vehicle speakers. (If
so equipped) MMCS or audio sound
has not been switched
to the system.
Switch the sound to
the system.
Page 53 of 56

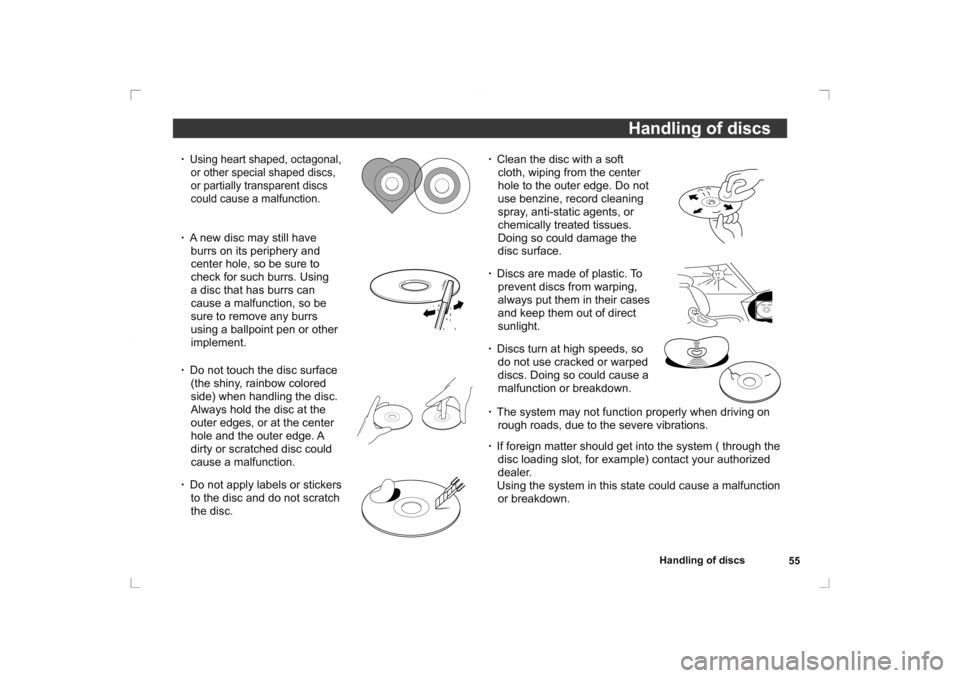

Handling of discs55
Handling of discs
• Clean the disc with a soft
cloth, wiping from the center
hole to the outer edge. Do not
use benzine, record cleaning
spray, anti-static agents, or
chemically treated tissues.
Doing so could damage the
disc surface.• Discs are made of plastic. To prevent discs from warping,
always put them in their cases
and keep them out of direct
sunlight.• Discs turn at high speeds, so do not use cracked or warped
discs. Doing so could cause a
malfunction or breakdown.• The system may not function properly when driving on rough roads, due to the severe vibrations.• If foreign matter should get into the system ( through the disc loading slot, for example) contact your authorized
dealer.
Using the system in this state could cause a malfunction or breakdown.
• Using heart shaped, octagonal, or other special shaped discs,
or partially transparent discs
could cause a malfunction.• A new disc may still have burrs on its periphery and
center hole, so be sure to
check for such burrs. Using
a disc that has burrs can
cause a malfunction, so be
sure to remove any burrs
using a ballpoint pen or other
implement.• Do not touch the disc surface (the shiny, rainbow colored
side) when handling the disc.
Always hold the disc at the
outer edges, or at the center
hole and the outer edge. A
dirty or scratched disc could
cause a malfunction.• Do not apply labels or stickers to the disc and do not scratch
the disc.
Page 54 of 56
Glossary
56
Glossary
Term
Meaning
VBR (Variable Bit Rate):
The bit rate varies according to the rate of
compression. CBR (Constant Bit Rate) is a format
that sets a fi xed bit rate. The bit rate varies according
to the rate of compression, so players that do not
support VBR cannot play VBR compressed fi les.
WMA:
Abbreviation for Windows Media Audio. An audio
compression technology developed by Microsoft
Corporation.
WMA-Tag:
Information such as the title or artist name that is
recorded in a WMA fi le
Language code:
Code for the language set when viewing DVD video.
Sampling frequency:
Frequency at which sampling (analog samples
digitized at fi xed intervals) is done to convert analog
audio signals to digital audio signals.
Bit rate:
Value that expresses rate per second of signal
transfer in bits.
Multisession:
Recording on several different occasions when
recording onto CD-R.
Region number:
There are 6 region numbers (as well as individual
country codes) for DVD videos. Region numbers for
the disc and the player must match in order to play
the disc.
Term Meaning
AAC:
AAC is an abbreviation of Advanced Audio Coding,
which is a compressed audio format in which the video
compression standards MPEG-2 and MPEG-4 are used.
Aspect ratio:
the width to height ratio of a screen or image.
BONUS (bonus track):
Special additional track included on a DVD audio or
other media
CD-DA:
Music CD
CD-R:
Recordable CD media. Data can be recorded once
and cannot be rerecorded or erased.
CD-RW:
Recordable CD media. Data can be recorded,
rerecorded, and erased.
CD-TEXT:
Function that records text such as album, song, and
artist names onto music CDs.
Country Code:
Region code set when watching DVD video.
CURSOR:
Mark used to select items in sequence on the screen.
In the system CURSOR menu, items that can be set
change color.
DVD-VR (DVD Video Recording Format):
DVD writing formats such as DVD-R and DVD-RW
(video recording formats primarily for household use)
ID3-Tag:
Information such as the title or artist name that is
recorded in an MP3 fi le.
Term
Meaning
MP3:
Abbreviation for MPEG1 Audio Layer 3.
MPEG:
An audio data compression standard.
Abbreviation for Moving Picture Coding Experts
Group, a video compression standard.
NTSC:
Abbreviation for National Television Standards
Committee.
PAL:
Phase Alternating Line.
PBC (Playback control):
A video CD playback format, in which numbers can
be entered and the desired track may be selected on
the displayed screen.
PLAY LIST:
A list including the desired playback order and the
like. Made in advance when creating MP3/WMA/AAC
fi les.
Rating:
Depending on the DVD video, ratings such as age
restrictions may be set for certain content.
SOURCE:
Type of music or video. System source selections
include DISC and VIDEO (auxiliary input).
Titles:
First, DVD videos are set off by titles. Each title is
divided into chapters.
Chapter:
Numbers assigned to titles are called title numbers,
and numbers assigned to chapters are called chapter
numbers.
Page 55 of 56
Index57Index
O
On-Screen Mark ................................................ 40
Opening and closing the display and
system power ...................................................... 8
Operating status symbol .................................... 26
P
PAL ..................................................................... 16
Password ..................................................... 38, 39
Password Change ............................................. 39
PAUSE ................................................................. 9
PBC ................................................................... 49
Play list ........................................................ 46, 48
Play list mode .................................................... 48
Play list index mode........................................... 48
PREW button ........................................................ 9
R
Rating ......................................................... 36, 38
Region numbers ............................................... 15
Repeat mode or random mode.......................... 47
Replacing the wireless headphone batteries ..... 13
REW .................................................................... 9
RND ................................................................... 47
RNF ................................................................... 47
RPF ................................................................... 47
S
SET UP ................................................................ 9
A
AAC .............................................................. 5, 17
ALL ............................................................. 34, 47
ANGLE ..................................................... 9, 32, 36
Angle Mark ....................................................... 40
Angle number .............................................. 33, 34
Aspect................................................................ 41
AUDIO button ................................................ 9, 32
Audio DRC......................................................... 41
Audio language............................................ 37, 42
Audio output mode ........................................... 49Auxiliary Video connector (RCA)
.......... 29
B
BRIGHT ............................................................. 27
C
Chapter number................................................. 33
COLOR .............................................................. 27
CONTRAST ....................................................... 27
Country Change ................................................ 39
Country Code .............................................. 39, 44
CURSOR menu .................................................... 9
D
DISC ............................................................ 15, 25
DISC indicator ..................................................... 7
Display mode ..................................................... 47
F
Folder ............................................................... 20
Folder arrangement ........................................... 20
FOLDER mode .................................................. 47
FULL .................................................................. 28
FWD (Fast forward) ........................................... 26
I
ID3-Tag ............................................................... 20
L
Language code .................................................. 42
Letter Box .......................................................... 41
LINE................................................................... 41
M
Main menu ......................................................... 32
Menu language .................................................. 37
Mode Priority ..................................................... 40
MP3/WMA/AAC ........................................... 16, 17
MPEG ................................................................. 17
N
NEXT button ....................................................... 26
No Limit ............................................................. 38
NON ................................................................... 41
NORMAL ........................................................... 28
NTSC ................................................................. 16
Page 56 of 56
Index
58
IndexSLOW button ....................................................... 9
Slow playback ..................................................... 9
SOURCE ............................................................ 9
Stop ............................................................... 9, 31
SUB-Title Language ........................................... 37
T
Tag info mode .................................................... 48
The meaning of the marks displayed on DVDs . 15
TINT ................................................................... 27
Title menu .......................................................... 31
Title number ................................................. 33, 35
To adjust display attributes ................................ 27
To adjust screen size ......................................... 28
To change display modes .................................. 47
To change the angle ................................ 9, 32, 34
To change the audio language ................. 9, 32, 34
To change the screen angle, audio language,
or subtitle language ........................................... 32
To change the subtitle language .................. 32, 34
To insert/eject the disc ....................................... 24
To view video on the system.............................. 29
Track number .............................................. 46, 49
TREE INDEX mode ........................................... 48
V
VIDEO .......................................................... 24, 29
Video CD .......................................................... 49
W
What are MP3/WMA/AAC? ............................... 17
Wireless headphone .......................................... 12
WMA-Tag ........................................................... 20
Z
ZOOM ................................................................ 28
