11
SpecificationsVehicle labeling ...............
............................................................... 11-2
Vehicle dimensions ..........
............................................................... 11-3
Vehicle weights ................
............................................................... 11-3
Engine specifications
..............................................
........................ 11-4
Battery........................................
..................................................... 11-4
Tires and wheels ..............
............................................................... 11-5
Capacity .....................................
..................................................... 11-5
BK0202700US.bo
ok 1 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Vehicle labeling 11-2 Specifications
11
N01147401752
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist police if your vehicle is stolen. The vehicle emission control information label is affixed on the underside of the engine hood.
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of the vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine hood.
The vehicle information code plate is located on the front passenger door sill. The engine serial number is stamped on the cylinder block as shown in the illustration.
N01148100603
The tire and loading information placard islocated on the driver’s door sill.

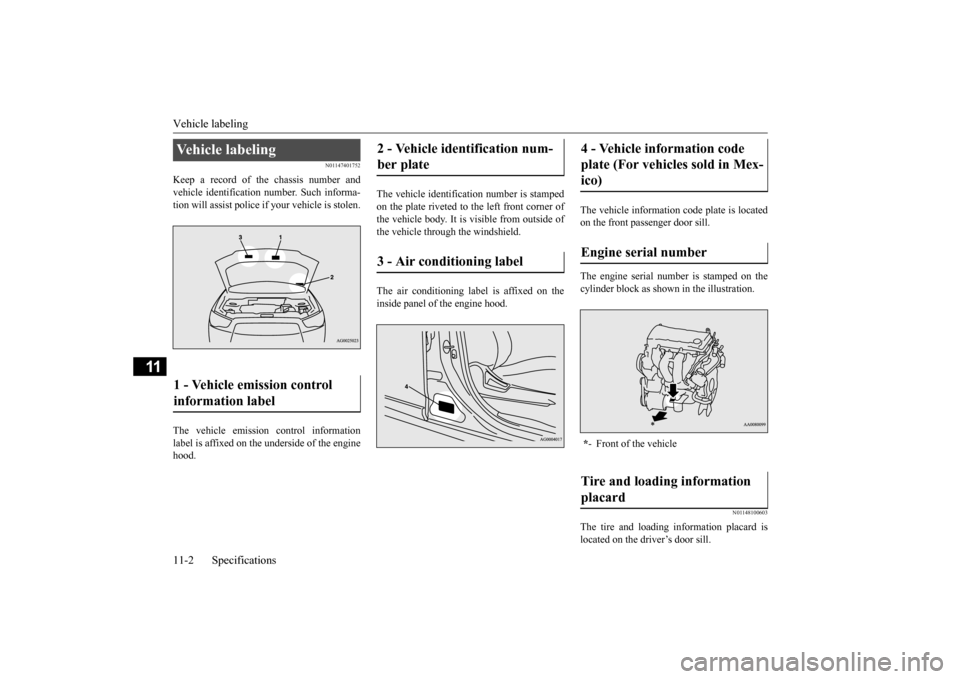

Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num-ber plate 3 - Air conditioning label
4 - Vehicle information code plate (For vehicles sold in Mex- ico) Engine serial number * - Front of the vehicleTire and loading information placard
BK0202700US.bo
ok 2 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Vehicle dimensions
Specifications 11-3
11
N01148200167
The certification label is located on the driver’s door sill.
N01147500479
N01147600858

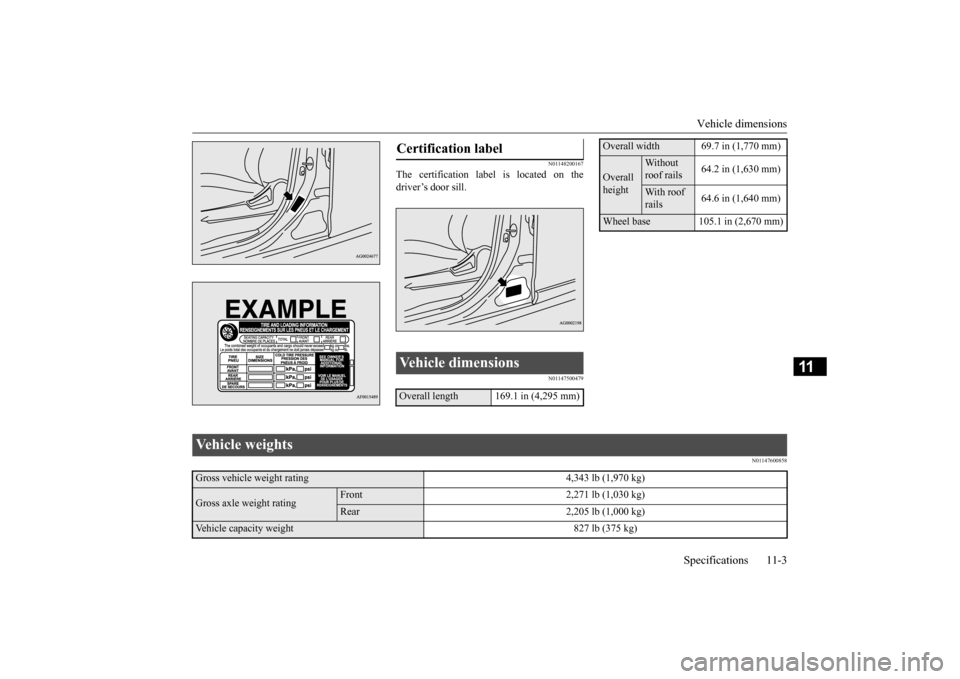

Certification label Vehicle dimensions Overall length 169.1 in (4,295 mm)
Overall width 69.7 in (1,770 mm)Overall height
Without roof rails
64.2 in (1,630 mm)
With roof rails
64.6 in (1,640 mm)
Wheel base 105.1 in (2,670 mm)
Vehicle weights Gross vehicle weight rating 4,343 lb (1,970 kg)Gross axle weight rating
Front 2,271 lb (1,030 kg)Rear 2,205 lb (1,000 kg)
Vehicle capacity weight 827 lb (375 kg)
BK0202700US.bo
ok 3 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Engine specifications 11-4 Specifications
11
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maximum number of occupants
N01147700442
N01147800283
Battery is a 12 volt type.
Maximum roof load 176 lb (80 kg)Seating capacity 5 persons
NOTE
 Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-11.
Engine specifications Engine model
4B11
Engine displacement
121.9 CID (1,998 cm
3)
No. of cylinders and cylinder arrangement 4 in lineBore
3.39 in (86.0 mm)
Stroke
3.39 in (86.0 mm)
Compression ratio 10.0Thermostat valve opening temperature 189 °F (87 °C)Spark plugs
NGK DIFR6C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order
1-3-4-2
Battery
BCI Group No.35 (530CCA/118RC)
BK0202700US.bo
ok 4 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Tires and wheels
Specifications 11-5
11
N01147900721
PCD: Pitch Circle Diameter (installation holes)
N01148002071
Tires and wheels Tire
P215/70R16
99H
P225/55R18
97H
Wheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Off- set
1.81 in (46 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.  These tires satisfy vehicle loading conditions described in this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive vehicles 15.3 gal (58 L)
Refer to “Fuel selection” on page 3-2
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Vehicles with manual trans- axle
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the IL
SAC certification mark (“star-
burst” symbol) on the container. If these oils are not available, and API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
Vehicles with continuously variable trans- mission (CVT)
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.5
qt (7.1 L) Mitsubishi Motors Genuine CVTF - J4
Transfer oil .50 qt (0.47 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API classi- fication GL-5 SAE 80
BK0202700US.bo
ok 5 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Capacity 11-6 Specifications
11
* : similar high quality ethylene glycol based non-silicate, non-am
ine, non-nitrate and non-borate
coolant with long life hybrid
organic acid tech-

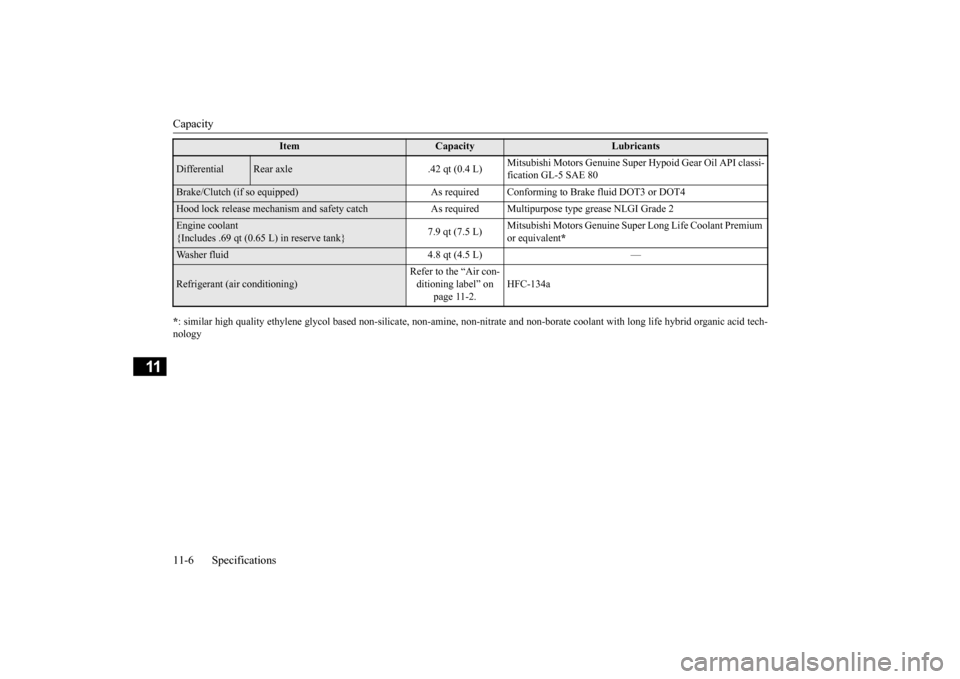

nologyDifferential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API classi- fication GL-5 SAE 80
Brake/Clutch (if so equipped) As required C
onforming to Brake fluid DOT3 or DOT4
Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant {Includes .69 qt (0.65 L) in reserve tank}
7.9 qt (7.5 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or equivalent
*
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFC-134a
Item
Capacity
Lubricants
BK0202700US.bo
