MITSUBISHI OUTLANDER SPORT 2014 3.G Owners Manual

Indicator lamp, warning lamp, and information screen display list6-32 Instruments and controls
6
E00531401032

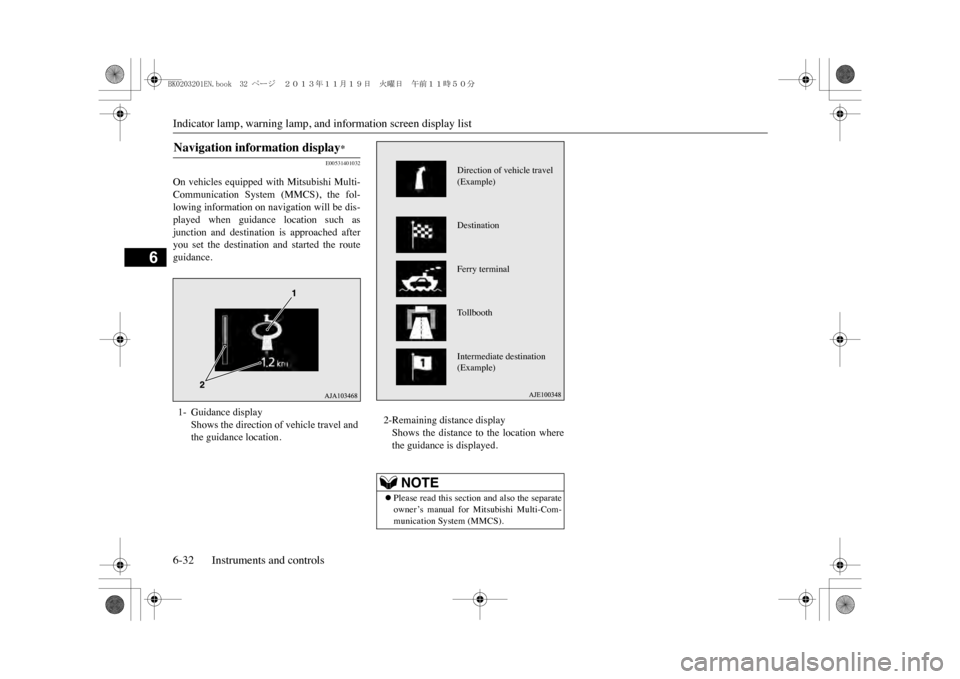

On vehicles equipped with Mitsubishi Multi-Communication System (MMCS), the fol-lowing information on navigation will be dis-played when guidance location such asjunction and destination is approached afteryou set the destination and started the routeguidance.Navigation information display
*
1- Guidance display
Shows the direction of vehicle travel andthe guidance location.
2-Remaining distance displayShows the distance to the location wherethe guidance is displayed.NOTE
zPlease read this section and also the separateowner’s manual for Mitsubishi Multi-Com-munication System (MMCS).
Direction of vehicle travel (Example)DestinationFerry terminalTo l l b o o t hIntermediate destination (Example)
BK0203201EN.book 32 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-33
6
E00524201836

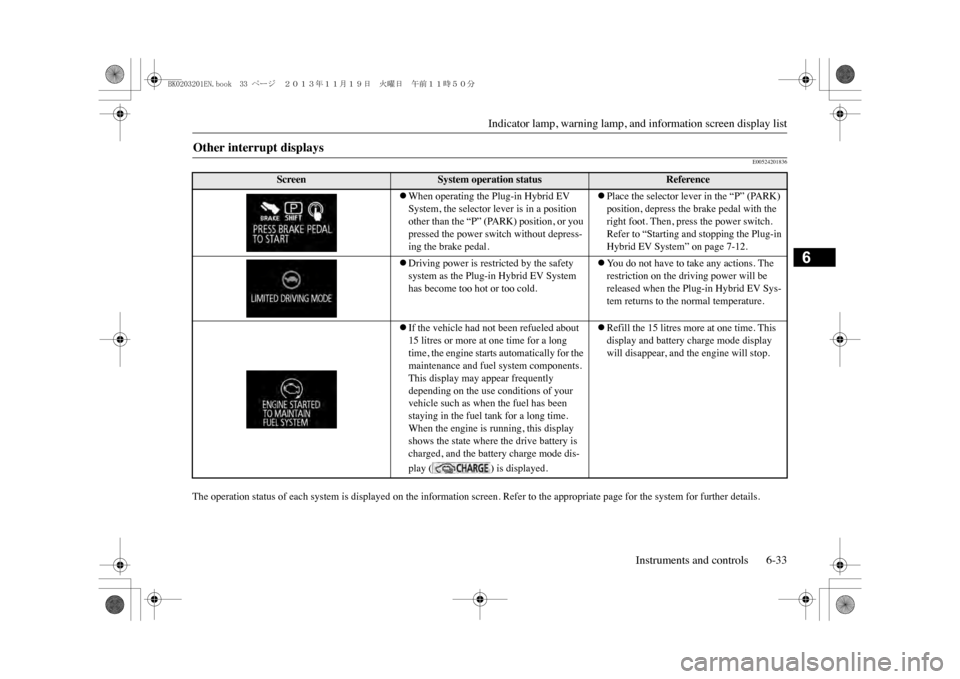

The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for fu
rther details.
Other interrupt displays
Screen
System operation status
Reference
zWhen operating the Plug-in Hybrid EV System, the selector lever is in a position other than the “P” (PARK) position, or you pressed the power switch without depress-ing the brake pedal.
zPlace the selector lever in the “P” (PARK) position, depress the brake pedal with the right foot. Then, press the power switch.Refer to “Starting and stopping the Plug-in Hybrid EV System” on page 7-12.
zDriving power is restricted by the safety system as the Plug-in Hybrid EV System has become too hot or too cold.
zYo u d o n o t h a v e t o t a k e a n y a c t i o n s . T h e restriction on the driving power will be released when the Plug-in Hybrid EV Sys-tem returns to the normal temperature.
zIf the vehicle had not been refueled about 15 litres or more at one time for a long time, the engine starts automatically for the maintenance and fuel system components.This display may appear frequently depending on the use conditions of your vehicle such as when the fuel has been staying in the fuel tank for a long time.When the engine is running, this display shows the state where the drive battery is charged, and the battery charge mode dis-play (
) is displayed.
zRefill the 15 litres more at one time. This display and battery charge mode display will disappear, and the engine will stop.
BK0203201EN.book 33 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-34 Instruments and controls
6
Screen
System operation status
Reference

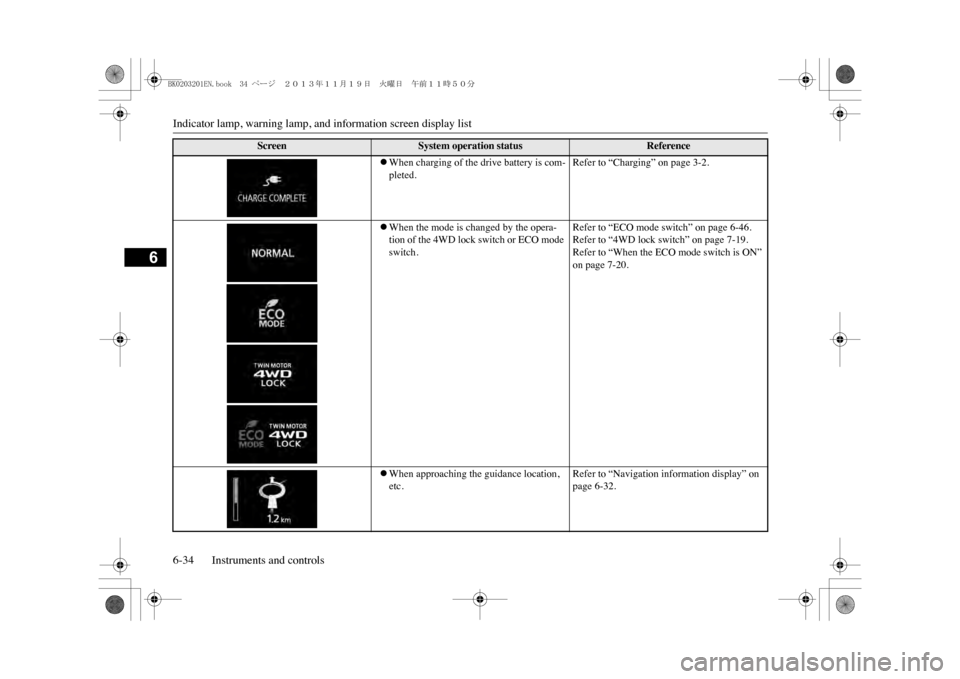

zWhen charging of the drive battery is com-pleted.
Refer to “Charging” on page 3-2.
zWhen the mode is changed by the opera-tion of the 4WD lock switch or ECO mode switch.
Refer to “ECO mode switch” on page 6-46.Refer to “4WD lock switch” on page 7-19.Refer to “When the ECO mode switch is ON” on page 7-20.
zWhen approaching the guidance location, etc.
Refer to “Navigation information display” on page 6-32.
BK0203201EN.book 34 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-35
6

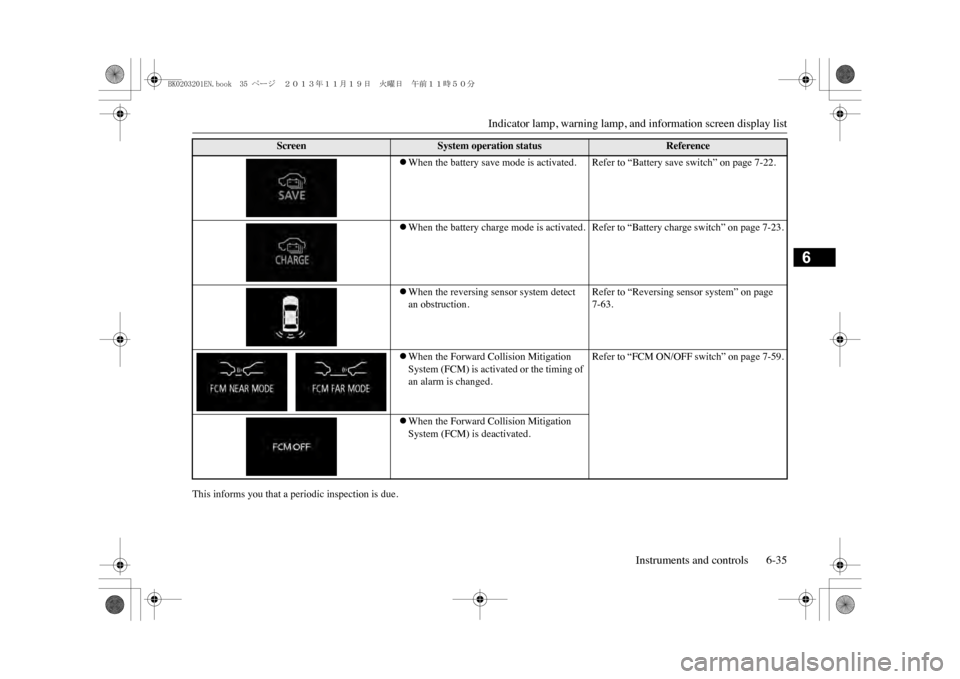

This informs you that a periodic inspection is due.
zWhen the battery save mode is activated. Refer to “Battery save switch” on page 7-22.zWhen the battery charge mode is activated. Refer to “Battery charge switch” on page 7-23.zWhen the reversing sensor system detect an obstruction.
Refer to “Reversing sensor system” on page 7-63.
zWhen the Forward Collision Mitigation System (FCM) is activated or the timing of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 7-59.
zWhen the Forward Collision Mitigation System (FCM) is deactivated.
Screen
System operation status
Reference
BK0203201EN.book 35 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamps6-36 Instruments and controls
6
The setting for rest interval can be changed.
E00501600100E00501701427
These indicator lamps blink inthe following situations.zWhen the turn-signal leveris moved to activate a turn-signal lamp.
Refer to “Turn-signal lever” on page 6-45.
zWhen the hazard warning flasher switchis pressed to activate the hazard warninglamps.Refer to “Hazard warning flasher switch”on page 6-45.
Screen
Solution
We r e c o m m e n d y o u t o h a v e i t c h e c k e d . R e f e r t o “ S e r v i c e r e m i n d e r ” f o r f u r t h e r d e t a i l s o n p a g e 6-11.
Screen
Solution
Stop the vehicle in a safe place, stop the Plug-in Hybrid EV system, and take a rest.Use this display as rough guide for taking rests during a long drive.The interval from the start of your trip until this message is displayed can be set.Refer to “Changing the time until “REST REMINDER” is displayed” on page 6-19.The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds about every 5 minutes to encourage you to take a rest.zIn the following cases, the time driven is reset and the display returns to the previous dis-play screen. After this, when the set time is reached again, the buzzer and display encourage you to take a rest.•The buzzer sounds 3 times.•Put the operation mode in OFF.• The multi information display switch is held for about 2 seconds or more.
Indicator lamps Tu r n - s i g n a l i n d i c a t o r lamps/Hazard warning indica-tor lamps BK0203201EN.book 36 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Warning lamps
Instruments and controls 6-37
6
zWhen the hazard warning lamps automat-ically activate due to sudden brakingwhile driving. (Vehicle equipped withemergency stop signal system)Refer to “Emergency stop signal system”on page 7-29.
E00501800173E00501901520
E00502000071E00508900173E00530101045
The ready indicator keepsflashing until Plug-in HybridEV System is activated. Whenthe Plug-in Hybrid EV Systemhas activated normally and the
vehicle becomes ready to run, the lamp stopsflashing and stays lit. Refer to “Starting thePlug-in Hybrid EV System” on page 7-12.If the indicator keeps flashing, the vehiclescan not drive.
E00530201020
This indicator flashes whenthe normal charging cable isconnected.After that, the lamp switchesto being illuminated when
charging starts and goes out when charging iscompleted.
E00502400147E00502503673
This lamp illuminates whenthe operation mode of thepower switch is put in ON,and goes off after a few sec-onds.
Always make sure that the lamp goes offbefore driving.With the operation mode in ON, the brakewarning lamp illuminates under the followingconditions:zWhen the parking brake has been applied.zWhen the brake fluid level in the reservoirfalls to a low level.zWhen the braking system is an abnormal-ity.
High-beam indicator lamp
This indicator lamp illumi-nates when the high beam isused.
Front fog lamp indicator lamp
This lamp illuminates whilethe front fog lamps are on.
Rear fog lamp indicator lamp
*
This lamp illuminates whilethe rear fog lamp is on.
Position lamp indicator lamp
This indicator lamp illumi-nates while the position lampsare on.
Ready indicator
Charging indicator Wa r n i n g l a m p s Brake warning lamp
BK0203201EN.book 37 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Warning lamps6-38 Instruments and controls
6
With the operation mode in ON, a buzzersounds under the following condition:zThe vehicle speed exceeds 8 km/h withthe parking brake applied.
E00502602938
This lamp is a part of anonboard diagnostic systemwhich monitors the emissions,engine control system.If a problem is detected in one
of these systems, this lamp illuminates orflashes.Although your vehicle will usually be driva-ble and not need towing, we recommend youto have the system checked as soon as possi-ble.This lamp will also illuminate when the oper-ation mode of the power switch is put in ON,and goes off after the Plug-in Hybrid EV Sys-tem has started. If it does not go off after thePlug-in Hybrid EV System has started, werecommend you to have the vehicle checked.
This data will be erased if a auxiliary batterycable is disconnected which will make a rapiddiagnosis difficult. Do not disconnect a auxil-iary battery cable when the check enginewarning lamp is ON.
CAUTIONzIn the situations listed below, brake perfor-mance may be compromised or the vehiclemay become unstable if brakes are appliedsuddenly; consequen
tly, avoid driving at
high speeds or applyi
ng the brakes suddenly.
Furthermore, immediately the vehicle shouldbe brought to a stop in
a safe location and we
recommend you to have it checked.•The brake warning lamp does not illumi-nate when the parking brake is applied ordoes not turn off when the parking brake isreleased.•The brake warning lamp and the ABSwarning lamp illuminate at the same time.For details, refer to “ABS warning lamp”on page 7-30.•The brake warning lamp remains illumi-nated while driving.
zThe vehicle should be brought to a halt in thefollowing manner when brake performancehas deteriorated.• Depress the brake pedal harder than usual.Even if the brake pedal moves down to thevery end of its possible stroke, keep itpressed down hard.
• Should the brakes fail, use regenerativebraking to reduce your speed and carefullypull the parking brake lever.Depress the brake pedal to operate the stoplamp to alert the vehicles behind you.
Check engine warning lamp
CAUTION
CAUTIONzProlonged driving with this lamp on maycause further damage to the emission controlsystem. It could also
affect fuel economy and
drivability.zIf the lamp does not illuminate when theoperation mode is put in ON, we recommendyou to have the system checked.zIf the lamp illuminates while the Plug-inHybrid EV System is
operating, avoid driv-
ing at high speeds and have the systeminspected by a MITSUBISHI MOTORSAuthorised Service Poin
t as soon as possible.
NOTE
zThe engine electronic control moduleaccommodating the onboard diagnostic sys-tem has various fault data (especially aboutthe exhaust emission) stored.
BK0203201EN.book 38 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Information screen display
Instruments and controls 6-39
6
E00502702287
This warning lamp will illu-minate when there is a prob-lem with the charging systemfor the auxiliary battery.Normally, when the operation
mode of the power switch is put in ON, thiswarning lamp will illuminate. Then, when thePlug-in Hybrid EV System is started and theready indicator illuminates, the warning lampwill go out.
E00537300023
This warning lamp will illu-minate when there is a fault atthe Plug-in Hybrid EV Sys-tem.Refer to “Service precautions”
on page 11-2.Normally, this warning lamp illuminateswhen the operation mode of the power switchis put in ON, and goes off after a few seconds.
E00537200022
This warning lamp will illu-minate when there can notused at the regenerative brakewhile the Plug-in Hybrid EVSystem is operating.
The warning is also displayed on the multiinformation display.
Normally, this warning lamp illuminateswhen the operation mode of the power switchis put in ON, and goes off after the Plug-inHybrid EV System is activated.
E00524601117E00524701381
This warning is displayed if you drive withthe parking brake still applied. The warninglamp in the instrument cluster only illumi-nates when the parking brake is applied.
Auxiliary battery charge warn-ing lamp
CAUTIONzIf the warning lamp stays on after the readyindicator illuminates, there may be a prob-lem with the charging system for the auxil-iary battery.•Immediately park your vehicle in a safeplace and we recommend you to have itchecked.•Do not charge the auxiliary battery.
Plug-in Hybrid EV System warning lamp
CAUTIONzIf the lamp illuminates while the Plug-inHybrid EV System is
operating, immediately
park your vehicle in a safe place and we rec-ommend you to consult a MITSUBISHIMOTORS Authorised Service Point.
Regenerative brake warning lamp
CAUTIONzIf the lamp illuminates while the Plug-inHybrid EV System is
operating, we recom-
mend you to have the vehicle inspected by aMITSUBISHI MOTORS Authorised ServicePoint.
Information screen display Brake warning display
BK0203201EN.book 39 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Combination headlamps and dipper switch6-40 Instruments and controls
6
When the operation mode of the powerswitch is put in ON, if the brake fluid is low,this warning is displayed.The warning lamp in the instrument clusteralso illuminates.
E00524901309
If the engine oil pressure drops while thePlug-in Hybrid EV System is operating, the
warning display is displayed on the informa-tion screen in the multi information display.
E00506003416
CAUTIONzIf a vehicle is driven without releasing theparking brake, the brake will be overheated,resulting in ineffectiv
e braking and possible
brake failure.If this warning is displayed, release the park-ing brake.CAUTIONzIf this warning stays illuminated and doesnot go out while driving, there is a danger ofineffective braking. If this happens, immedi-ately park your vehicle in a safe place andwe recommend you to have it checked.
zIf the brake warning disp
lay is displayed and
the brake warning lamp and the ABS warn-ing lamp are illuminated at the same time,the braking force dist
ribution function will
not operate, so the vehicle may be destabi-lised during sudden braking. Avoid suddenbraking and high-speed driving, stop thevehicle in a safe place, and we recommendyou to have it checked.zThe vehicle should be brought to a halt in thefollowing manner when brake performancehas deteriorated.•Depress the brake pedal harder than usual.Even if the brake pe
dal moves down to the
very end of its possible stroke, keep itpressed down hard.• Should the brakes fail, use regenerativebrake to reduce your speed and carefullypull the parking brake lever.Depress the brake pedal to operate the stoplamp to alert the vehicles behind you.
Oil pressure warning display
CAUTION
CAUTIONzIf the vehicle is driven while the engine oil islow, or the oil level is normal but the warn-ing is displayed, the engine may burn out andbe damaged.zIf the warning is displayed while the Plug-inHybrid EV System is operating, immediatelypark your vehicle in a safe place and checkthe engine oil level.zIf the warning is disp
layed while the engine
oil level is normal, have it inspected.
Combination headlamps and dipper switch Headlamps
NOTE
zDo not leave the lights on for a long timewhile the Plug-in Hybrid EV System is sta-tionary (not operating). A run-down auxil-iary battery could result.
BK0203201EN.book 40 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Combination headlamps and dipper switch
Instruments and controls 6-41
6
Rotate the switch to turn on the lamps.
Rotate the switch to turn on the lamps.
zWhen it rains, or when the vehicle has beenwashed, the inside of the lens sometimesbecomes foggy, but this does not indicate afunctional problem.When the lamp is swit
ched on, the heat will
remove the fog. However, if water gathersinside the lamp, we recommend you to havechecked.
Ty p e 1 OFF All lamps off
Position, tail, licence plate, instru-ment panel lamps and downlight onHeadlamps and other lamps go onNOTE
Ty p e 2 OFF All lamps offAUTO
With the operation mode of the power switch is in ON, head-lamps, position, tail, licence plate, instrument panel lamps and down-light turn on and off automatically in accordance with outside light level. All lamps turn off automati-cally when the operation mode is put in OFF.

Position, tail, licence plate, instru-ment panel lamps and downlight onHeadlamps and other lamps go on
NOTE
zThe sensitivity of the automatic on/off con-trol can be adjusted. For further information,contact a MITSUBISHI MOTORS Author-ised Service Point.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment.Refer to the separate owner’s manual fordetails.zIf the front fog lamps turn on when they aresupposed to with the
switch in the “AUTO”
position, the lamps turn off automaticallywith operation mode off.zDo not cover the sensor (A) for the automaticon/off control by affixing a sticker or label tothe windscreen.zIf the lamps do not turn on or off with theswitch in the “AUTO”
position, manually
operate the switch and we recommend you tohave your vehicle checked.
