Outside rear-view mirrors7-8 Starting and driving
7
1. Place the lever (A) to the same side as themirror whose adjustment is desired.2. Press the switch (B) to the left, right, up ordown to adjust the mirror position.3. Return the lever (A) back to the middleposition (•).
E00601101741
The outside mirror can be folded in towardsthe side window to prevent damage whenparking in narrow areas.Push the mirror towards the back of the vehi-cle with your hand to retract it in. Whenextending the mirror, pull it out towards thefront of the vehicle until it clicks to lock inplace.
With the operation mode in ON or ACC, pushthe mirror retractor switch to retract the mir-rors. Push it again to extend the mirrors totheir original positions.After placing the operation mode in OFF, it ispossible to retract and extend the mirrorsusing the mirror retractor switch for about 30seconds.
L- Left outside mirror adjustmentR- Right outside mirror adjustment1-Up2-Down3-Right4-Left
Except for vehicles equipped with the mir-ror retractor switchVe h i c l e s e q u i p p e d with the mirror retrac-tor switch

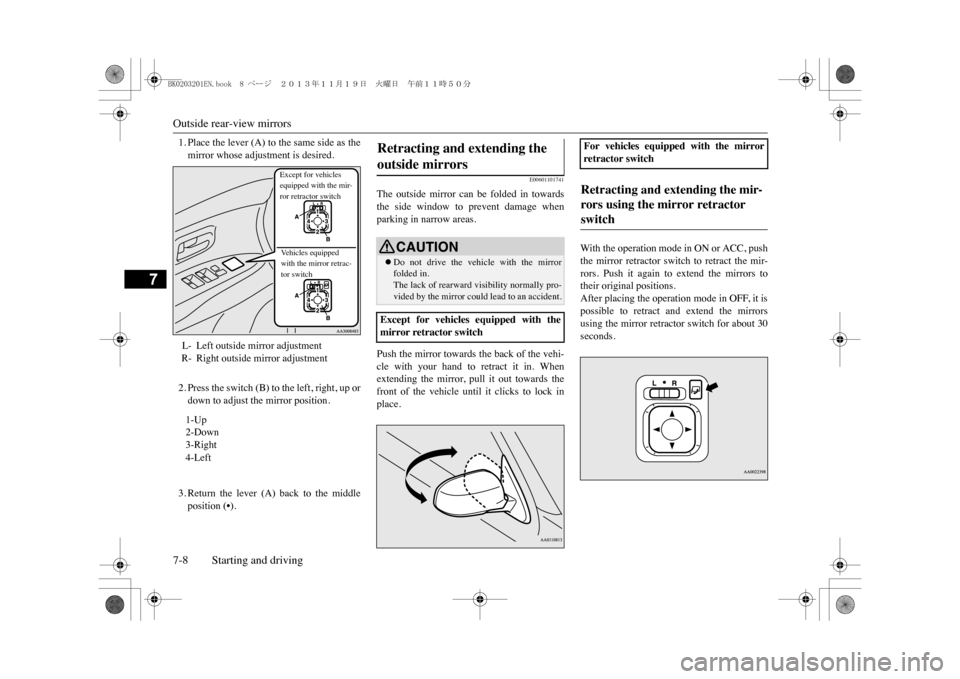

Retracting and extending the outside mirrors
CAUTIONzDo not drive the vehicle with the mirrorfolded in.The lack of rearward visibility normally pro-vided by the mirror could lead to an accident.
Except for vehicles equipped with themirror retractor switch
For vehicles equipped with the mirrorretractor switchRetracting and extending the mir-rors using the mirror retractor switch
BK0203201EN.book 8 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Outside rear-view mirrors
Starting and driving 7-9
7
The mirrors automatically retract or extendwhen the doors are locked or unlocked usingthe remote control switches or the keylessoperation function of the keyless operationsystem.Refer to “Keyless operation system: To oper-ate using the key-less operation function,Keyless entry system” on pages 4-9.
E00601201582

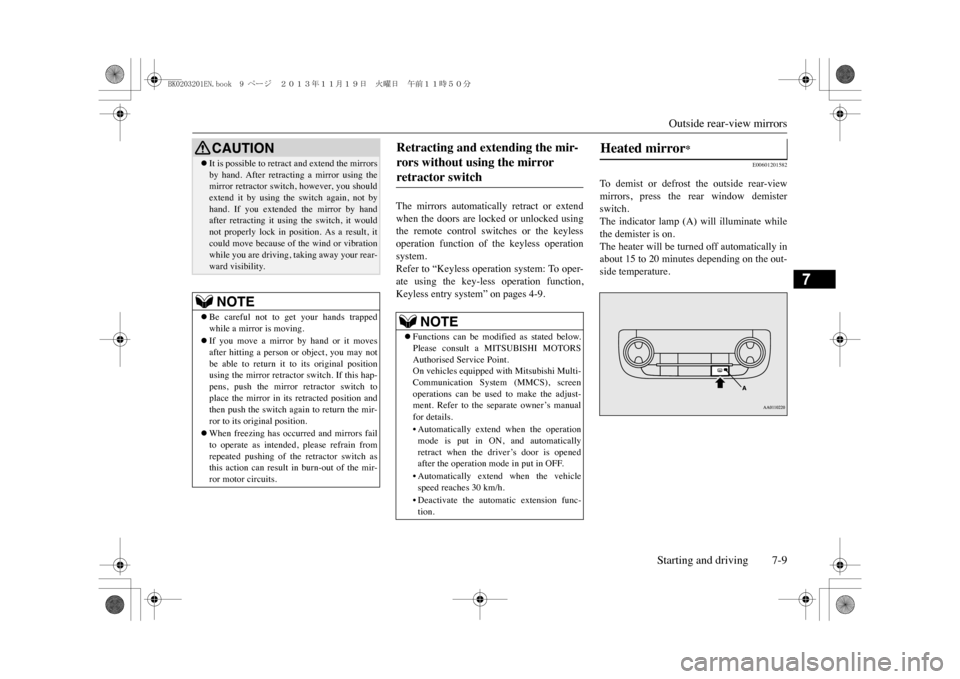

To d e m i s t o r d e f r o s t t h e o u t s i d e r e a r - v i e wmirrors, press the rear window demisterswitch.The indicator lamp (A) will illuminate whilethe demister is on.The heater will be turned off automatically inabout 15 to 20 minutes depending on the out-side temperature.
CAUTIONzIt is possible to retract and extend the mirrorsby hand. After retracting a mirror using themirror retractor switch, however, you shouldextend it by using the switch again, not byhand. If you extended the mirror by handafter retracting it using the switch, it wouldnot properly lock in position. As a result, itcould move because of the wind or vibrationwhile you are driving, taking away your rear-ward visibility.NOTE
zBe careful not to get your hands trappedwhile a mirror is moving.zIf you move a mirror by hand or it movesafter hitting a person or object, you may notbe able to return it to its original positionusing the mirror retractor switch. If this hap-pens, push the mirror retractor switch toplace the mirror in its retracted position andthen push the switch again to return the mir-ror to its original position.zWhen freezing has occu
rred and mirrors fail
to operate as intended, please refrain fromrepeated pushing of the retractor switch asthis action can result in burn-out of the mir-ror motor circuits.
Retracting and extending the mir-rors without using the mirror retractor switch
NOTE
zFunctions can be modifi
ed as stated below.
Please consult a MITSUBISHI MOTORSAuthorised Service Point.On vehicles equipped
with Mitsubishi Multi-
Communication System (MMCS), screenoperations can be used to make the adjust-ment. Refer to the separate owner’s manualfor details.•Automatically extend when the operationmode is put in ON, and automaticallyretract when the driver’s door is openedafter the operation mode in put in OFF.•Automatically extend when the vehiclespeed reaches 30 km/h.•Deactivate the automatic extension func-tion.
Heated mirror
*
BK0203201EN.book 9 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Power switch7-10 Starting and driving
7
E00631801079
In order to prevent theft, the Plug-in HybridEV System will not start unless a preregis-tered keyless operation key is used. (Immobi-lizer function)If you are carrying the keyless operation key,you can start the Plug-in Hybrid EV System.
The indicator lamp on the power switch turnsoff.The operation mode cannot be put in OFFunless the electrical parking switch ispressed.Electrical devices such as the audio andaccessory socket can be operated. Can beused when the Ready indicator is off.The indicator lamp on the power switch illu-minates orange.All vehicle’s electrical devices can be oper-ated.The indicator lamp on the power switch illu-minates blue. The indicator lamp turns offwhen the Plug-in Hybrid EV System is oper-ating.
NOTE
zThe heater mirrors can be turned on automat-ically.For further information, we recommend youto consult a MITSUBISHI MOTORSAuthorised Service Point. On vehiclesequipped with Mitsubishi Multi-Communi-cation System (MMCS), screen operationscan be used to make the adjustment. Refer tothe separate owner’s manual for details.

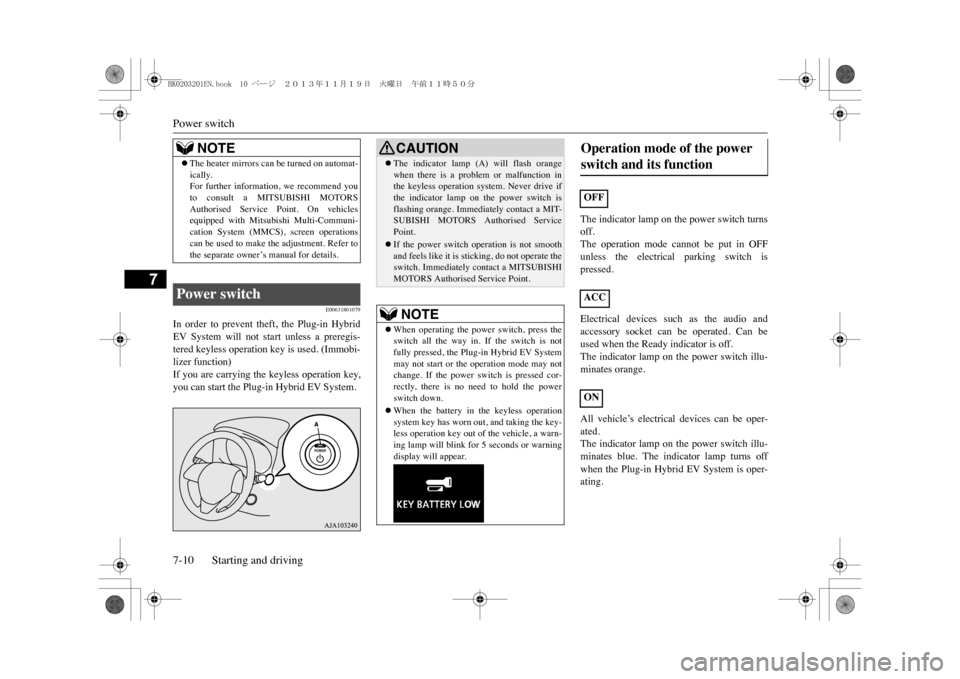

Power switch
CAUTIONzThe indicator lamp (A) will flash orangewhen there is a problem or malfunction inthe keyless operation system. Never drive ifthe indicator lamp on the power switch isflashing orange. Immedi
ately contact a MIT-
SUBISHI MOTORS Authorised ServicePoint.zIf the power switch operation is not smoothand feels like it is stic
king, do not operate the
switch. Immediately contact a MITSUBISHIMOTORS Authorised Service Point.NOTE
zWhen operating the power
switch, press the
switch all the way in. If the switch is notfully pressed, the Plug-
in Hybrid EV System
may not start or the operation mode may notchange. If the power
switch is pressed cor-
rectly, there is no n
eed to hold the power
switch down.zWhen the battery in the keyless operationsystem key has worn
out, and taking the key-
less operation key out of the vehicle, a warn-ing lamp will blink fo
r 5 seconds or warning
display will appear.
Operation mode of the power switch and its function OFFACCON
BK0203201EN.book 10 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Power switch
Starting and driving 7-11
7
E00631901041
If you press the power switch withoutdepressing the brake pedal, you can changethe operation mode in the order of OFF, ACC,ON, OFF.
E00632801034
After about 30 minutes has elapsed with theoperation mode in ACC, the function auto-
matically cuts out the power for the audiosystem and other electric devices that can beoperated with that position.When the power switch operate again, thepower is supplied again.
E00632201041
NOTE
zYo u r v e h i c l e i s e q u i p p e
d with an electronic
immobilizer.To s t a r t t h e P l u g - i n H y b r i d E V S y s t e m , t h eID code which the transponder inside the keysends must match the one registered in theimmobilizer computer. Refer to “Electronicimmobilizer (Anti-theft starting system)” onpage 4-3.

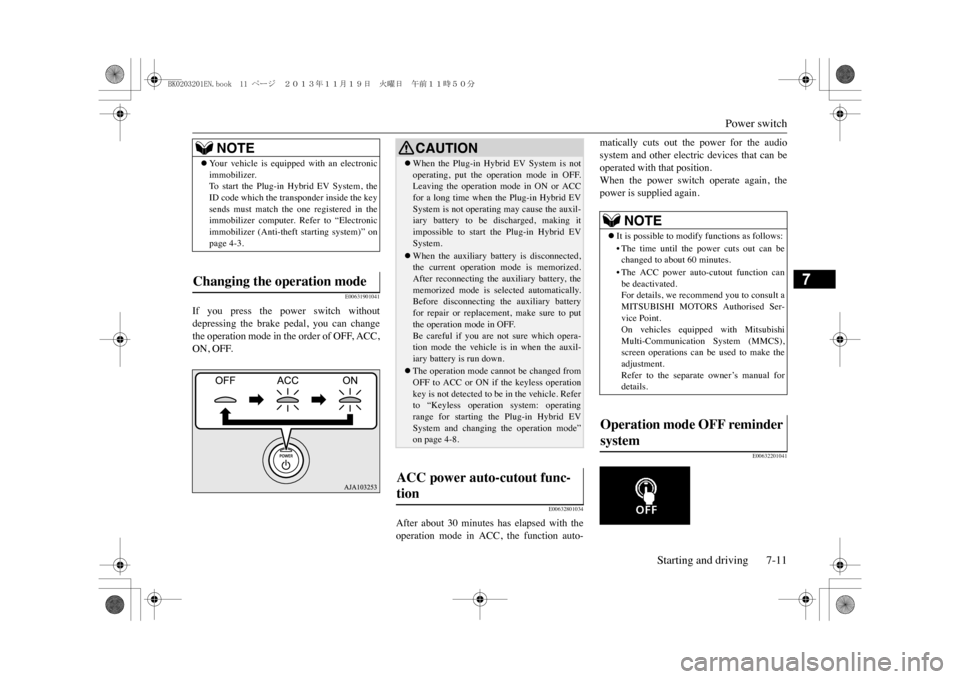

Changing the operation mode
CAUTIONzWhen the Plug-in Hybrid EV System is notoperating, put the operation mode in OFF.Leaving the operation mode in ON or ACCfor a long time when the Plug-in Hybrid EVSystem is not operating may cause the auxil-iary battery to be discharged, making itimpossible to start the Plug-in Hybrid EVSystem. zWhen the auxiliary battery is disconnected,the current operation mode is memorized.After reconnecting the auxiliary battery, thememorized mode is selected automatically.Before disconnecting the auxiliary batteryfor repair or replacement, make sure to putthe operation mode in OFF. Be careful if you are not sure which opera-tion mode the vehicle is in when the auxil-iary battery is run down.zThe operation mode ca
nnot be changed from
OFF to ACC or ON if the keyless operationkey is not detected to be in the vehicle. Referto “Keyless operation system: operatingrange for starting the Plug-in Hybrid EVSystem and changing
the operation mode”
on page 4-8.
ACC power auto-cutout func-tion
NOTE
zIt is possible to modify functions as follows:•The time until the power cuts out can bechanged to about 60 minutes.•The ACC power auto-cutout function canbe deactivated.For details, we recommend you to consult aMITSUBISHI MOTORS Authorised Ser-vice Point.On vehicles equipp
ed with Mitsubishi
Multi-Communication System (MMCS),screen operations can be used to make theadjustment.Refer to the separate
owner’s manual for
details.
Operation mode OFF reminder system
BK0203201EN.book 11 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Starting and stopping the Plug-in Hybrid EV System7-12 Starting and driving
7
When the operation mode is in any modeother than OFF, if you close all the doors andthe tailgate then try to lock the doors and tail-gate by pressing the driver’s or front passen-ger’s dppr lock/unlock switch, or the tailgateLOCK switch, a warning display will appear,and the outer buzzer will sounds and you can-not lock the doors and tailgate.
E00632301042
If the driver’s door is opened with the Plug-inHybrid EV System stopped and the operationmode in any mode other than OFF, the opera-tion mode ON reminder inner buzzer soundsintermittently to remind you to put the opera-tion mode in OFF.
E00620601295E00620701443
1. Check that the EV charging cable is notconnected to your vehicle.2. Fasten the seat belt.3. Make sure the parking brake is applied.4. When you press the power switch whiledepressing the brake pedal with your rightfoot, the READY indicator in the meterblinks and the activation of Plug-inHyblid EV System starts.
5. When the READY indicator changesfrom blinking to staying on, the startup ofPlugin-Hyblid EV System is activated andthe vehicle is now ready to drive.
E00620801268
1. Stop your vehicle completely.
Operation mode ON reminder system

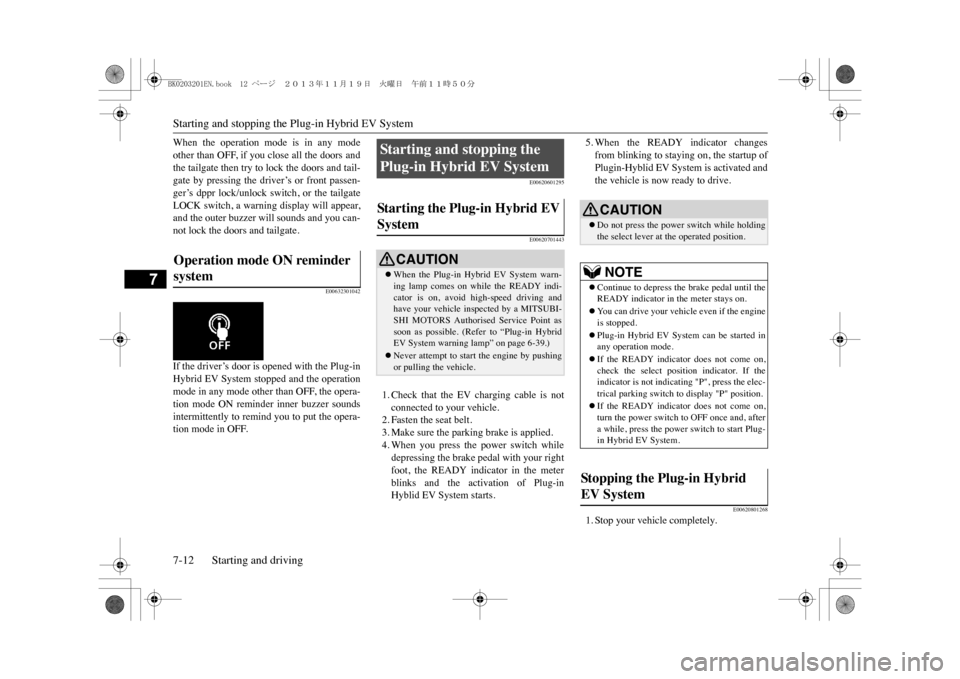

Starti ng and sto pping th e Plug-in Hybrid EV System Star ting the Plug- in Hybrid EV System
CAUTIONzWhen the Plug-in Hybrid EV System warn-ing lamp comes on while the READY indi-cator is on, avoid high-speed driving andhave your vehicle inspected by a MITSUBI-SHI MOTORS Authorised Service Point assoon as possible. (Refer
to “Plug-in Hybrid
EV System warning lamp” on page 6-39.)zNever attempt to start the engine by pushingor pulling the vehicle.
CAUTIONzDo not press the power
switch while holding
the select lever at the operated position.NOTE
zContinue to depress th
e brake pedal until the
READY indicator in the meter stays on.zYo u c a n d r i v e y o u r v e h i c l e e v e n i f t h e e n g i n eis stopped.zPlug-in Hybrid EV System can be started inany operation mode.zIf the READY indicator does not come on,check the select position indicator. If theindicator is not indicating "P", press the elec-trical parking switch
to display "P" position.
zIf the READY indicator does not come on,turn the power switch to OFF once and, aftera while, press the power switch to start Plug-in Hybrid EV System.
St o pp i ng t h e P l u g - i n H y b r i d EV System
BK0203201EN.book 12 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Starting and stopping the Plug-in Hybrid EV System
Starting and driving 7-13
7
2. Apply the parking brake firmly whiledepressing the brake pedal.3. After pressing the electrical parkingswitch, press the power switch to stopPlug-in Hybrid EV System. (Refer to“Electrical Parking switch” on page 7-16,)
E00632901022

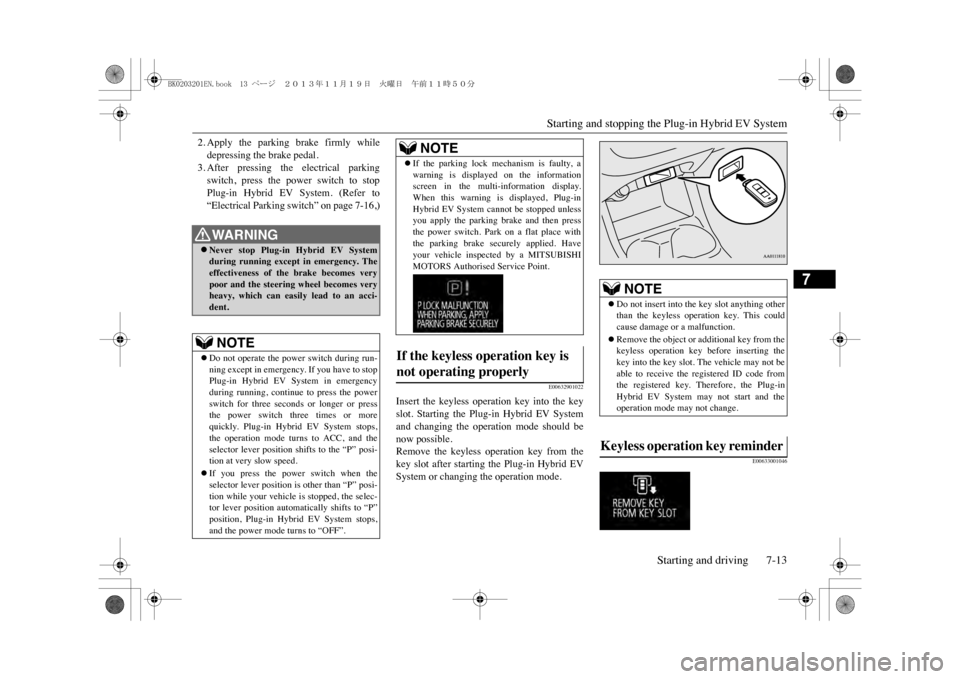

Insert the keyless operation key into the keyslot. Starting the Plug-in Hybrid EV Systemand changing the operation mode should benow possible. Remove the keyless operation key from thekey slot after starting the Plug-in Hybrid EVSystem or changing the operation mode.
E00633001046
WA R N I N GzNever stop Plug-in Hybrid EV Systemduring running except in emergency. Theeffectiveness of the brake becomes verypoor and the steering wheel becomes veryheavy, which can easily lead to an acci-dent.NOTE
zDo not operate the pow
er switch during run-
ning except in emergency. If you have to stopPlug-in Hybrid EV System in emergencyduring running, continue
to press the power
switch for three seconds or longer or pressthe power switch three times or morequickly. Plug-in Hybrid EV System stops,the operation mode turns to ACC, and theselector lever position shifts to the “P” posi-tion at very slow speed.zIf you press the power switch when theselector lever position is other than “P” posi-tion while your vehicle is stopped, the selec-tor lever position automatically shifts to “P”position, Plug-in Hybrid EV System stops,and the power mode turns to “OFF”.
zIf the parking lock mechanism is faulty, awarning is displayed on the informationscreen in the multi-information display.When this warning is displayed, Plug-inHybrid EV System ca
nnot be stopped unless
you apply the parking brake and then pressthe power switch. Park on a flat place withthe parking brake securely applied. Haveyour vehicle inspected by a MITSUBISHIMOTORS Authorised Service Point.
If the keyless operation key is not operating properly
NOTE
NOTE
zDo not insert into the
key slot a
nything other
than the keyless operation key. This couldcause damage or a malfunction. zRemove the object or additional key from thekeyless operation key before inserting thekey into the key slot. The vehicle may not beable to receive the registered ID code fromthe registered key. Therefore, the Plug-inHybrid EV System may not start and theoperation mode may not change.
Keyless operation key reminder
BK0203201EN.book 13 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Selector Lever (Joystick Type)7-14 Starting and driving
7
If the operation mode is in OFF and thedriver’s door is opened with the keyless oper-ation key in the key slot, the outer buzzersounds for approximately 3 seconds and theinner buzzer sounds for approximately 1 min-ute or warning display will appear to remindyou to remove the key.
E00636100054
E00636200026
Operate the selector lever slowly and securelyin the following method.˙ (home position) to “D” or “R”: Simply shiftthe lever.˙ (home position) to “N”: Shift and hold at“N” position for a while.˙ (home position) to “B”: You can shift theselector lever to “B” only when the selectposition is in “D” position.When shifted from
˙ (home position) to “B”,
the regenerative brake force will increase byone step.When shifted to “B” once again, the regener-ative brake force will become the maximum.When you shift the selector lever to “D”, theselect position returns to “D”.
The selector lever always returns to its homeposition when it is released.

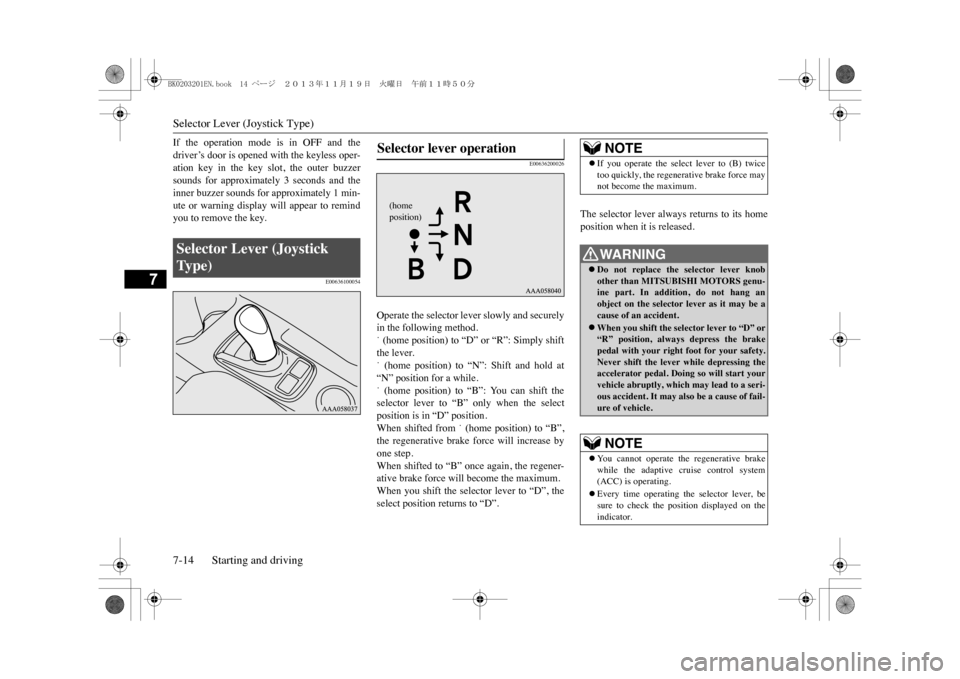

Selector Lever (Joystick Ty p e )
Selector lever operation
(home position)
NOTE
zIf you operate the select lever to (B) twicetoo quickly, the regenerative brake force maynot become the maximum.WA R N I N GzDo not replace the selector lever knobother than MITSUBISHI MOTORS genu-ine part. In addition, do not hang anobject on the selector
lever as it may be a
cause of an accident.zWhen you shift the selector lever to “D” or“R” position, always
depress the brake
pedal with your right foot for your safety.Never shift the lever while depressing theaccelerator pedal. Doing so will start yourvehicle abruptly, which
may lead to a seri-
ous accident. It may also be a cause of fail-ure of vehicle.NOTE
zYo u c a n n o t o p e r a t e t h e r e g e n e r a t i v e b r a k ewhile the adaptive cruise control system(ACC) is operating.zEvery time operating the selector lever, besure to check the position displayed on theindicator.
BK0203201EN.book 14 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

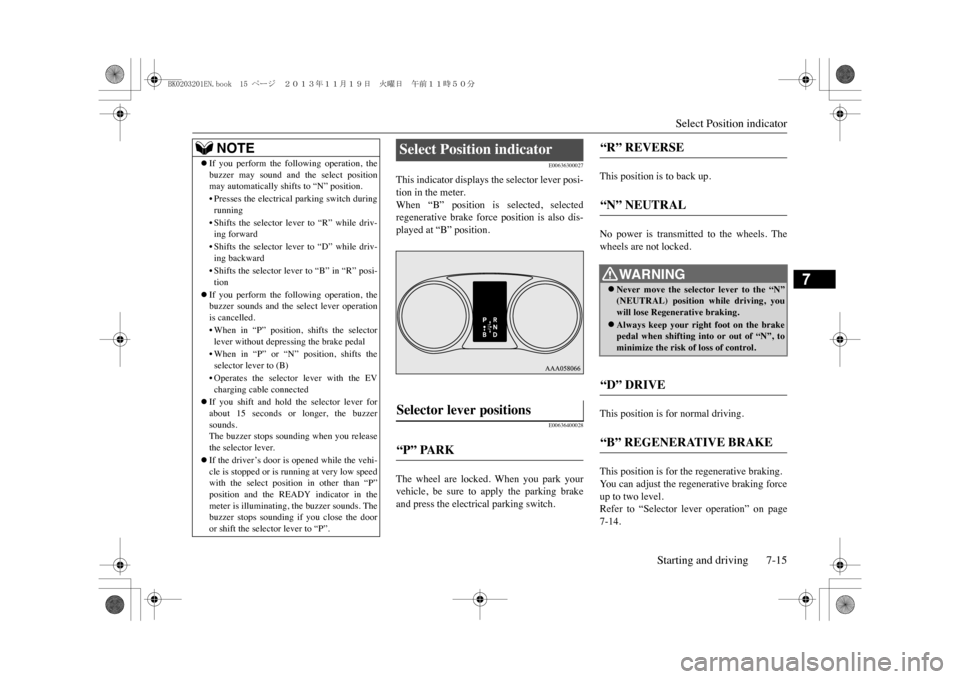

Select Position indicator
Starting and driving 7-15
7
E00636300027
This indicator displays the selector lever posi-tion in the meter.When “B” position is selected, selectedregenerative brake force position is also dis-played at “B” position.
E00636400028
The wheel are locked. When you park yourvehicle, be sure to apply the parking brakeand press the electrical parking switch.
This position is to back up.No power is transmitted to the wheels. Thewheels are not locked.This position is for normal driving.This position is for the regenerative braking.Yo u c a n a d j u s t t h e r e g e n e r a t i v e b r a k i n g f o r c eup to two level.Refer to “Selector lever operation” on page7-14.
zIf you perform the following operation, thebuzzer may sound and the select positionmay automatically shifts to “N” position.•Presses the electrical parking switch duringrunning•Shifts the selector lever to “R” while driv-ing forward•Shifts the selector lever to “D” while driv-ing backward•Shifts the selector lever to “B” in “R” posi-tion
zIf you perform the following operation, thebuzzer sounds and the select lever operationis cancelled.•When in “P” position,
shifts the selector
lever without depres
sing the brake pedal
•When in “P” or “N” position, shifts theselector lever to (B)•Operates the selector lever with the EVcharging cable connected
zIf you shift and hold the selector lever forabout 15 seconds or longer, the buzzersounds.The buzzer stops sounding when you releasethe selector lever.zIf the driver’s door is opened while the vehi-cle is stopped or is running at very low speedwith the select position in other than “P”position and the READY indicator in themeter is illuminating, the buzzer sounds. Thebuzzer stops sounding if you close the dooror shift the selector lever to “P”.NOTE
Select Position indicator Selector lever positions “P” PARK
“R” REVERSE “N” NEUTRAL
WA R N I N GzNever move the select
or lever to the “N”
(NEUTRAL) position
while driving, you
will lose Regene
rative braking.
zAlways keep you
r right foot on the brake
pedal when shifting into or out of “N”, tominimize the risk of loss of control.
“D” DRIVE “B” REGENERATIVE BRAKE
BK0203201EN.book 15 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Electrical Parking switch7-16 Starting and driving
7
Refer to “When driving downhill” on page7-26.
E00636600020
When you park your vehicle, be sure to applythe parking brake and press the electricalparking switch to lock the wheels. The indi-cator on the switch illuminates in green andthe select position indicator displays “P” onthe information screen in the meter.
If the driver’s door is opened with the selectposition other than “P” when the vehicle is ata stop, the buzzer sounds to warn to press theelectrical parking switch.
WA R N I N GzSudden Regenerative brake may cause thetyres to skid.Select this position
according to the road
conditions and vehicle speed.

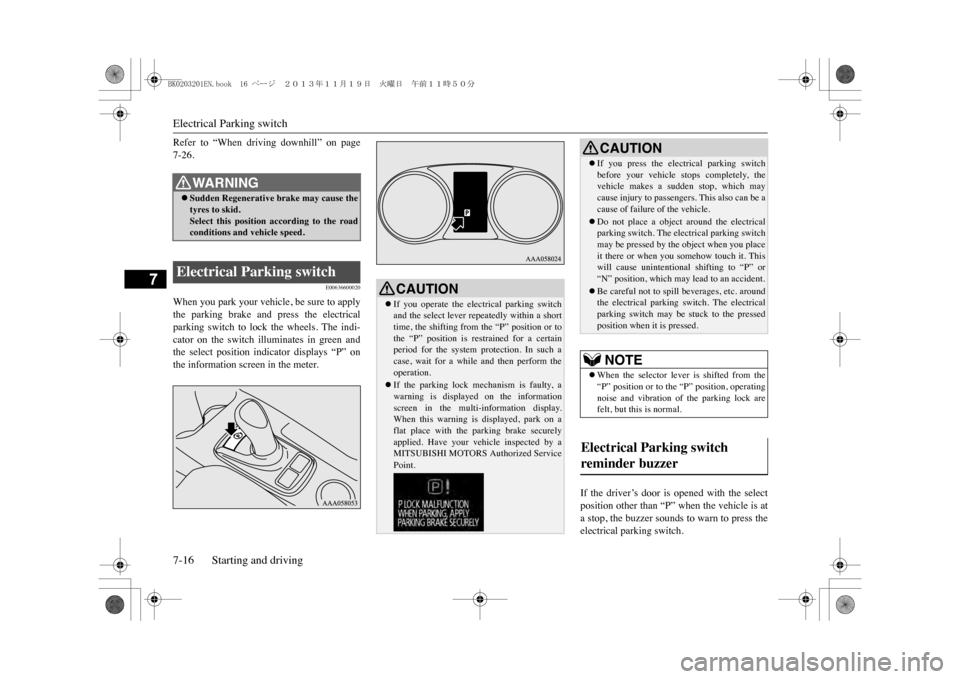

Electrical Parking switch
CAUTIONzIf you operate the electrical parking switchand the select lever repeatedly within a shorttime, the shifting from the “P” position or tothe “P” position is restrained for a certainperiod for the system protection. In such acase, wait for a while and then perform theoperation.zIf the parking lock mechanism is faulty, awarning is displayed on the informationscreen in the multi-information display.When this warning is displayed, park on aflat place with the parking brake securelyapplied. Have your ve
hicle inspected by a
MITSUBISHI MOTORS Authorized ServicePoint.
zIf you press the electrical parking switchbefore your vehicle stops completely, thevehicle makes a sudden stop, which maycause injury to passengers. This also can be acause of failure of the vehicle.zDo not place a object around the electricalparking switch. The electrical parking switchmay be pressed by the object when you placeit there or when you somehow touch it. Thiswill cause unintentional shifting to “P” or“N” position, which may lead to an accident.zBe careful not to spill beverages, etc. aroundthe electrical parking switch. The electricalparking switch may be stuck to the pressedposition when it is pressed.NOTE
zWhen the selector lever is shifted from the“P” position or to the “P” position, operatingnoise and vibration of the parking lock arefelt, but this is normal.
Electrical Parking switch reminder buzzer
CAUTION
BK0203201EN.book 16 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Regenerative braking level selector (paddle)*
Starting and driving 7-17
7
E00636700021

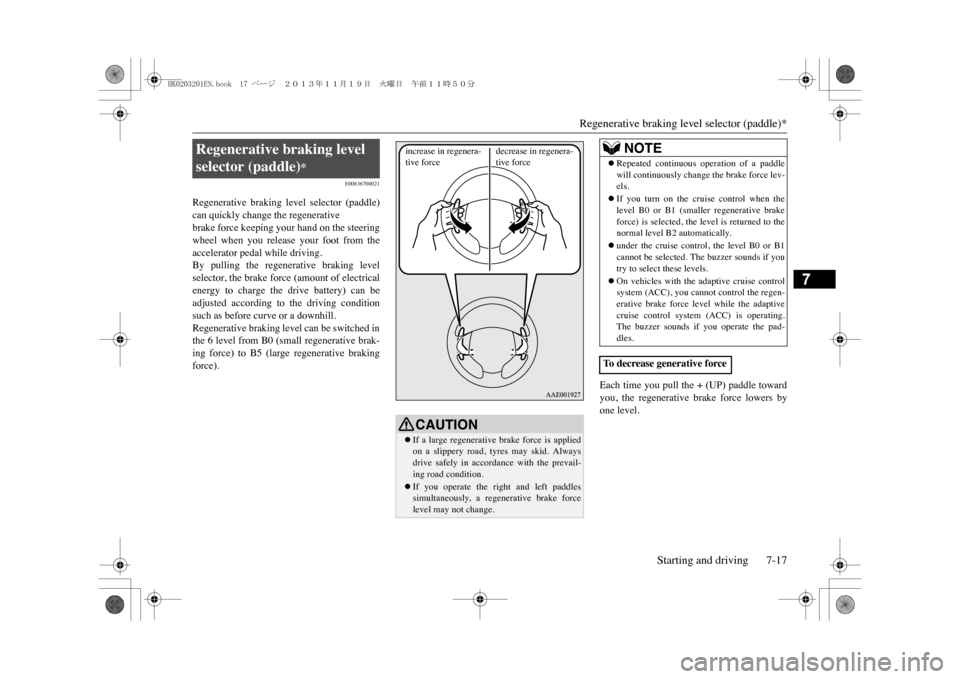

Regenerative braking level selector (paddle)can quickly change the regenerative brake force keeping your hand on the steeringwheel when you release your foot from theaccelerator pedal while driving.By pulling the regenerative braking levelselector, the brake force (amount of electricalenergy to charge the drive battery) can beadjusted according to the driving conditionsuch as before curve or a downhill.Regenerative braking level can be switched inthe 6 level from B0 (small regenerative brak-ing force) to B5 (large regenerative brakingforce).
Each time you pull the + (UP) paddle towardyou, the regenerative brake force lowers byone level.
Regenerative braking level selector (paddle)
*
CAUTIONzIf a large regenerative brake force is appliedon a slippery road, ty
res may skid. Always
drive safely in accord
ance with the prevail-
ing road condition.zIf you operate the right
and left paddles
simultaneously, a regenerative brake forcelevel may not change.
decrease in regenera-tive force
increase in regenera-tive force
NOTE
zRepeated continuous
operation of a paddle
will continuously change
the brake force lev-
els.zIf you turn on the cruise control when thelevel B0 or B1 (smaller regenerative brakeforce) is selected, the level is returned to thenormal level B2 automatically.zunder the cruise control, the level B0 or B1cannot be selected. The buzzer sounds if youtry to select these levels.zOn vehicles with the adaptive cruise controlsystem (ACC), you cannot control the regen-erative brake force le
vel while the adaptive
cruise control system
(ACC) is operating.
The buzzer sounds if you operate the pad-dles.
To d e c r e a s e g e n e r a t i v e f o r c e
