Indicator lamp, warning lamp, and information screen display list6-22 Instruments and controls
6
E00523901344
When there is information to be announced, such as lamp reminder, the buzzer sounds and the screen switches to the displays sho
wn below. Refer
to the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically.Refer to “Warning display list” on page 6-22.Refer to “Navigation information display” on page 6-32.Refer to “Other interrupt displays” on page 6-33.
E00524001993
19- Information screen display list
m P. 6-22
Information screen display list
NOTE
zA warning may be displayed on the in
formation screen and the buzzer ma
y sound in the following rare cases.
This is caused by the system picking up inte
rference such as noise or strong electromagnetic waves, and is not a functional pro
blem.
•An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a rad
ar station.
•Abnormal voltage or a static electricity
discharge is generated by th
e operation of installed elect
rical equipment (including
after-market parts).
If the warning display appears many times,
we recommend you to consult a MITSUBISHI MOTORS Authorised Service Point.
Warning display li st
Screen
Cause
Solution (Reference)
zOne or more minor failure is occurring in the Plug-in Hybrid EV System.
zHave your vehicle inspected by a MIT-SUBISHI MOTORS Authorised Service Point.
BK0203201EN.book 22 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-23
6
zOne or more failure is occurring in the Plug-in Hybrid EV System.
zImmediately park the vehicle in a safe place and contact a MITSUBISHI MOTORS Authorised Service Point.
zThe parking lock unit is in failure. The Plug-in Hybrid EV system cannot be kept in standstill condition without applying the parking brake.
zPark the vehicle at a safe, flat place and apply the parking brake. Contact a MIT-SUBISHI MOTORS Authorised Service Point.Refer to “Electrical parking switch” on page 7-16.
zYo u a r e a t t e m p t i n g t o s e t t h e o p e r a t i o n mode to “ON” when the charge connector is connected to the charge port.
zDisconnect the charge connector from the charge port before operating the power switch.
zCharging was interrupted due to system failure (electric leak detected).
zThere is an electric leak or the normal charge cable is faulty. Immediately stop using the cable and contact a MITSUBI-SHI MOTORS Authorised Service Point.
zCharging was interrupted due to poor con-nection of the charge cable or power fail-ure.
zConnect the charge cable correctly.Refer to “Normal charging” on page 3-8.zIf charging is interrupted due to a power failure, charging will be automatically resumed when the power is restored.
Screen
Cause
Solution (Reference)
BK0203201EN.book 23 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-24 Instruments and controls
6

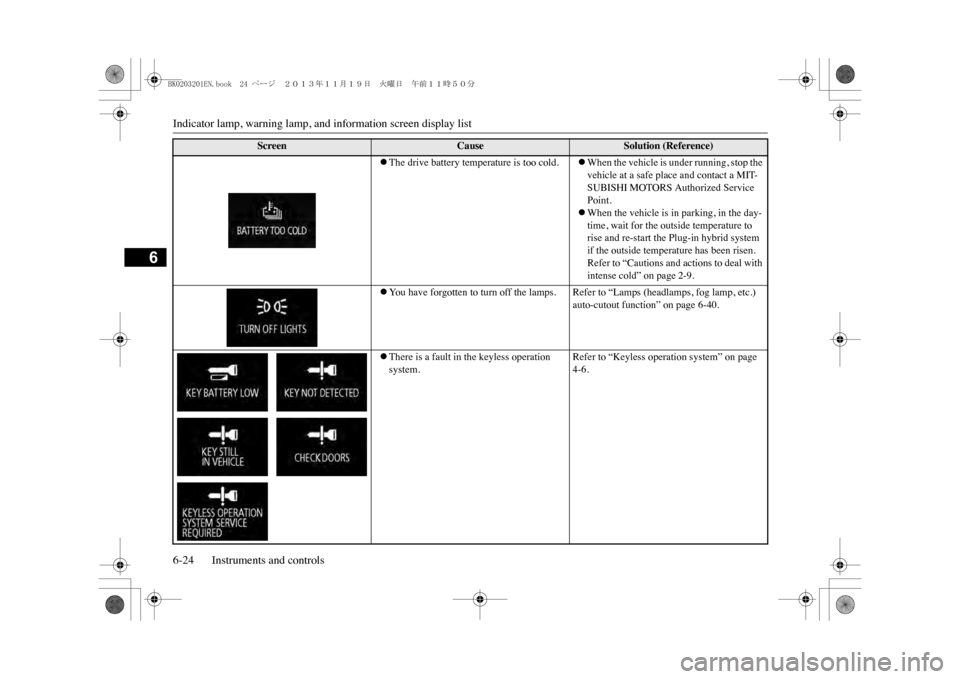

zThe drive battery temperature is too cold.
zWhen the vehicle is under running, stop the vehicle at a safe place and contact a MIT-SUBISHI MOTORS Authorized Service Point.zWhen the vehicle is in parking, in the day-time, wait for the outside temperature to rise and re-start the Plug-in hybrid system if the outside temperature has been risen.Refer to “Cautions and actions to deal with intense cold” on page 2-9.
zYo u h a v e f o r g o t t e n t o t u r n o f f t h e l a m p s . R e f e r t o “ L a m p s ( h e a d l a m p s , f o g l a m p , e t c . )
auto-cutout function” on page 6-40.
zThere is a fault in the keyless operation system.
Refer to “Keyless operation system” on page 4-6.
Screen
Cause
Solution (Reference)
BK0203201EN.book 24 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-25
6

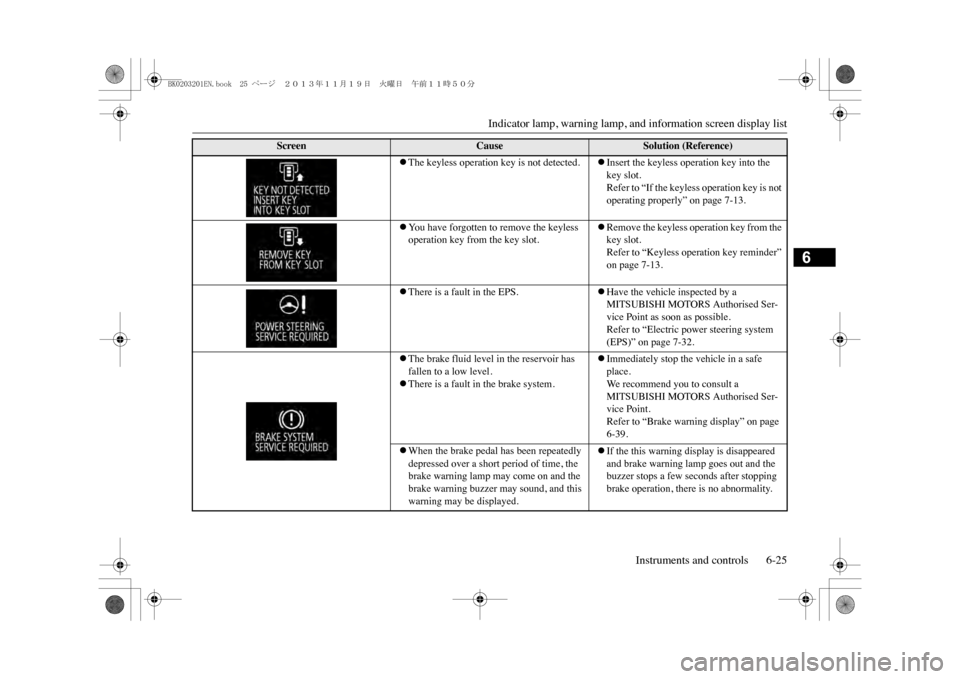

zThe keyless operation key is not detected.
zInsert the keyless operation key into the key slot.Refer to “If the keyless operation key is not operating properly” on page 7-13.
zYo u h a v e f o r g o t t e n t o r e m o v e t h e k e y l e s s operation key from the key slot.
zRemove the keyless operation key from the key slot.Refer to “Keyless operation key reminder” on page 7-13.
zThere is a fault in the EPS.
zHave the vehicle inspected by a MITSUBISHI MOTORS Authorised Ser-vice Point as soon as possible.Refer to “Electric power steering system (EPS)” on page 7-32.
zThe brake fluid level in the reservoir has fallen to a low level.zThere is a fault in the brake system.
zImmediately stop the vehicle in a safe place.We r e c o m m e n d y o u t o c o n s u l t a MITSUBISHI MOTORS Authorised Ser-vice Point.Refer to “Brake warning display” on page 6-39.
zWhen the brake pedal has been repeatedly depressed over a short period of time, the brake warning lamp may come on and the brake warning buzzer may sound, and this warning may be displayed.
zIf the this warning display is disappeared and brake warning lamp goes out and the buzzer stops a few seconds after stopping brake operation, there is no abnormality.
Screen
Cause
Solution (Reference)
BK0203201EN.book 25 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-26 Instruments and controls
6

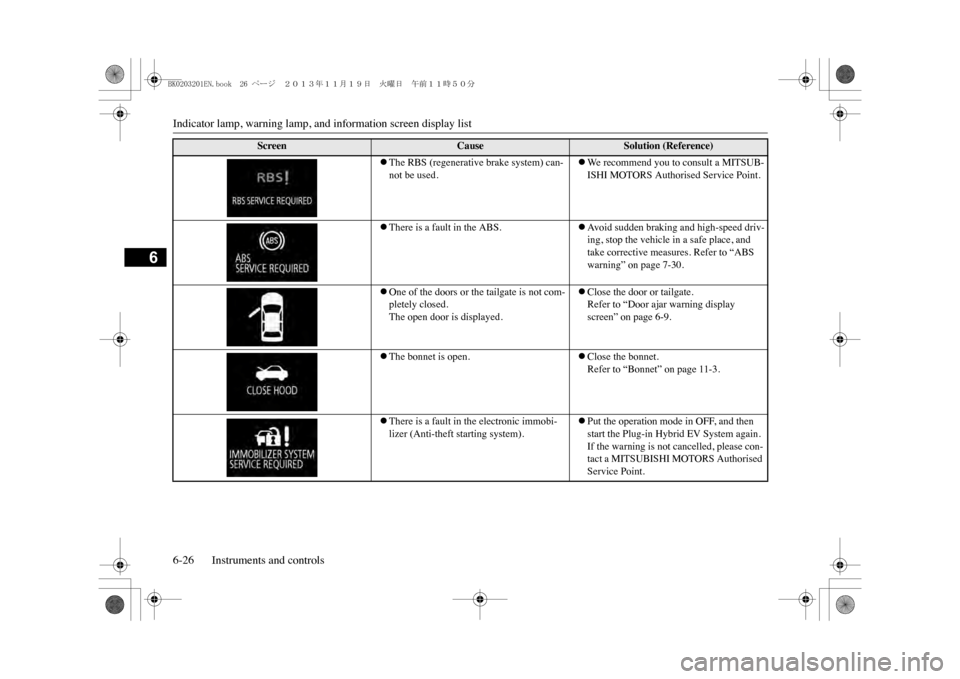

zThe RBS (regenerative brake system) can-not be used.
zWe recommend you to consult a MITSUB-ISHI MOTORS Authorised Service Point.
zThere is a fault in the ABS.
zAv o i d s u d d e n b r a k i n g a n d h i g h - s p e e d d r i v -ing, stop the vehicle in a safe place, and take corrective measures. Refer to “ABS warning” on page 7-30.
zOne of the doors or the tailgate is not com-pletely closed.The open door is displayed.
zClose the door or tailgate.Refer to “Door ajar warning display screen” on page 6-9.
zThe bonnet is open.
zClose the bonnet.Refer to “Bonnet” on page 11-3.
zThere is a fault in the electronic immobi-lizer (Anti-theft starting system).
zPut the operation mode in OFF, and then start the Plug-in Hybrid EV System again.If the warning is not cancelled, please con-tact a MITSUBISHI MOTORS Authorised Service Point.
Screen
Cause
Solution (Reference)
BK0203201EN.book 26 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-27
6

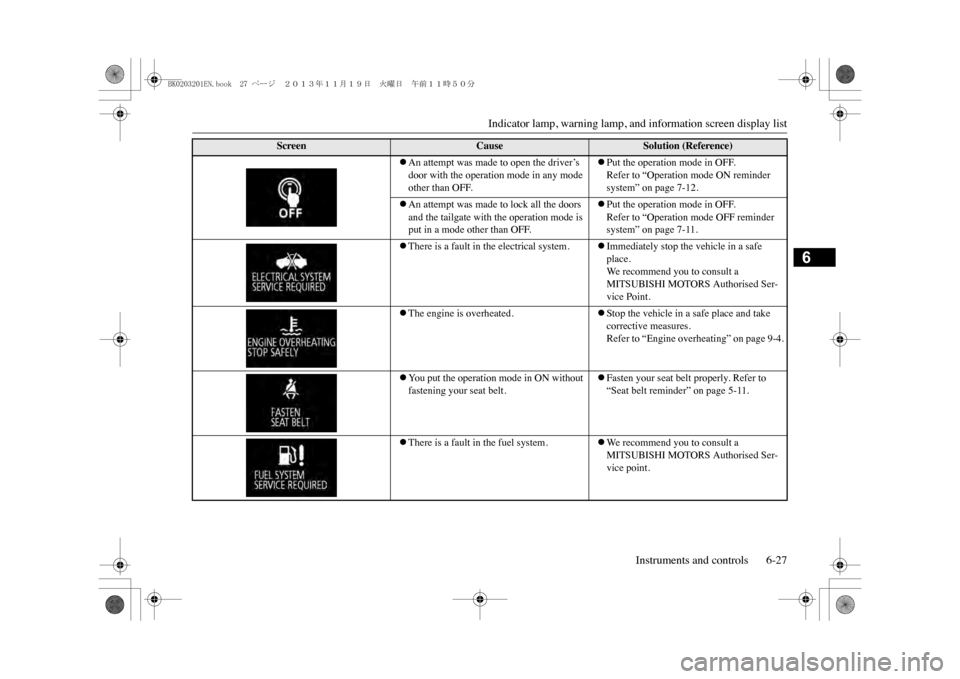

zAn attempt was made to open the driver’s door with the operation mode in any mode other than OFF.
zPut the operation mode in OFF.Refer to “Operation mode ON reminder system” on page 7-12.
zAn attempt was made to lock all the doors and the tailgate with the operation mode is put in a mode other than OFF.
zPut the operation mode in OFF.Refer to “Operation mode OFF reminder system” on page 7-11.
zThere is a fault in the electrical system.
zImmediately stop the vehicle in a safe place.We r e c o m m e n d y o u t o c o n s u l t a MITSUBISHI MOTORS Authorised Ser-vice Point.
zThe engine is overheated.
zStop the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 9-4.
zYo u p u t t h e o p e r a t i o n m o d e i n O N w i t h o u t fastening your seat belt.
zFasten your seat belt properly. Refer to “Seat belt reminder” on page 5-11.
zThere is a fault in the fuel system.
zWe r e c o m m e n d y o u t o c o n s u l t a MITSUBISHI MOTORS Authorised Ser-vice point.
Screen
Cause
Solution (Reference)
BK0203201EN.book 27 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-28 Instruments and controls
6
zThe fuel is running low.
zRefuel as soon as possible. Refer to “Fuel remaining warning display” on page 6-10.
zYo u a r e d r i v i n g w i t h t h e p a r k i n g b r a k e s t i l l applied.
zRelease the parking brake. Refer to “Brake warning display” on page 6-39.
zThere is a fault in the engine oil circulation system.
zImmediately stop the vehicle in a safe place. We recommend you to have it checked.Refer to “Oil pressure warning display” on page 6-40.
zThere is a fault in the SRS airbag or the pre-tensioner system.
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d , immediately.Refer to “Supplemental restraint system (SRS) warning lamp” on page 5-30.
zThere is a fault in the active stability con-trol (ASC).
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Active stability control (ASC)” on page 7-32.
zThere is a fault in the Hill start assist.
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Hill start assist” on page 7-27.
Screen
Cause
Solution (Reference)
BK0203201EN.book 28 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-29
6

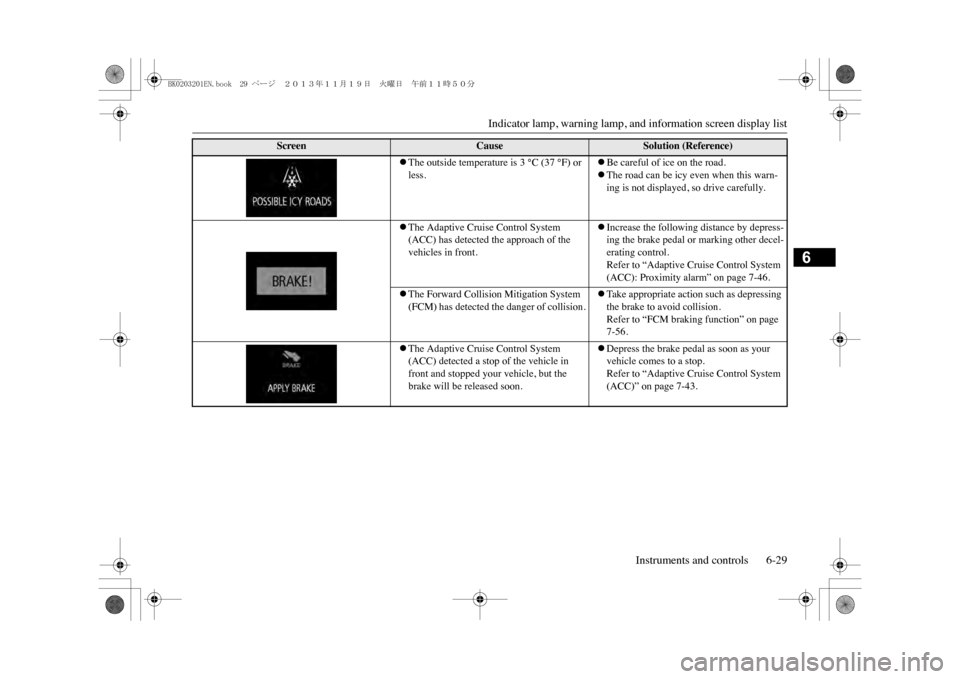

zThe outside temperature is 3 °C (37 °F) or less.
zBe careful of ice on the road.zThe road can be icy even when this warn-ing is not displayed, so drive carefully.
zThe Adaptive Cruise Control System (ACC) has detected the approach of the vehicles in front.
zIncrease the following distance by depress-ing the brake pedal or marking other decel-erating control.Refer to “Adaptive Cruise Control System (ACC): Proximity alarm” on page 7-46.
zThe Forward Collision Mitigation System (FCM) has detected the danger of collision.
zTa k e a p p r o p r i a t e a c t i o n s u c h a s d e p r e s s i n g the brake to avoid collision.Refer to “FCM braking function” on page 7-56.
zThe Adaptive Cruise Control System (ACC) detected a stop of the vehicle in front and stopped your vehicle, but the brake will be released soon.
zDepress the brake pedal as soon as your vehicle comes to a stop.Refer to “Adaptive Cruise Control System (ACC)” on page 7-43.
Screen
Cause
Solution (Reference)
BK0203201EN.book 29 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list6-30 Instruments and controls
6

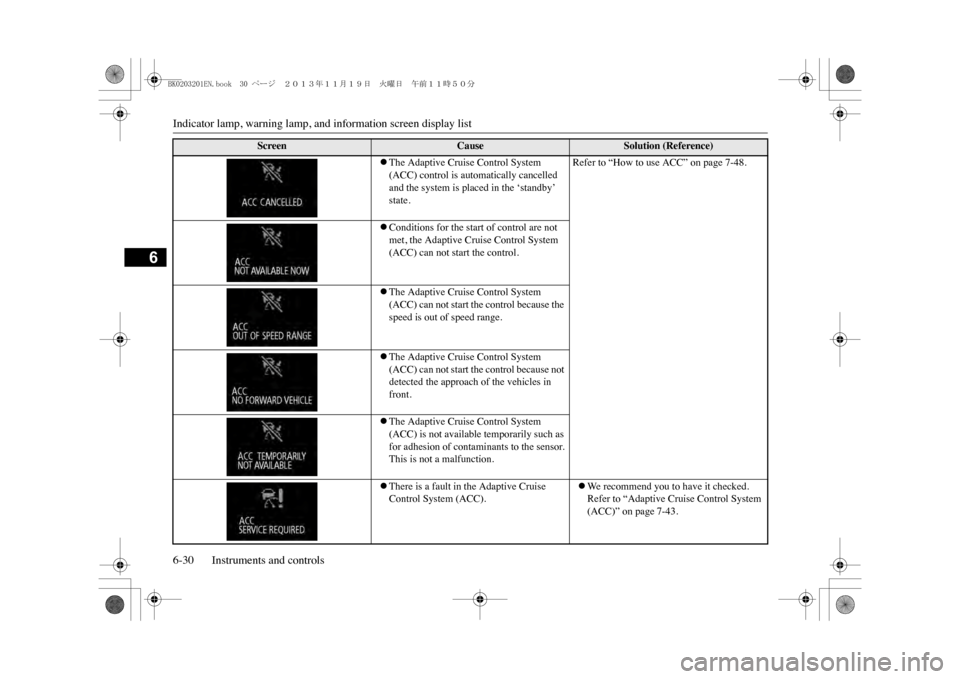

zThe Adaptive Cruise Control System (ACC) control is automatically cancelled and the system is placed in the ‘standby’ state.
Refer to “How to use ACC” on page 7-48.
zConditions for the start of control are not met, the Adaptive Cruise Control System (ACC) can not start the control.zThe Adaptive Cruise Control System (ACC) can not start the control because the speed is out of speed range.zThe Adaptive Cruise Control System (ACC) can not start the control because not detected the approach of the vehicles in front.zThe Adaptive Cruise Control System (ACC) is not available temporarily such as for adhesion of contaminants to the sensor.This is not a malfunction.zThere is a fault in the Adaptive Cruise Control System (ACC).
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Adaptive Cruise Control System (ACC)” on page 7-43.
Screen
Cause
Solution (Reference)
BK0203201EN.book 30 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Indicator lamp, warning lamp, and information screen display list
Instruments and controls 6-31
6
zThere is a fault in the Forward Collision Mitigation System (FCM).
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Forward Collision Mitigation System (FCM)” on page 7-55.
zFCM braking function of the Forward Col-lision Mitigation System (FCM) has been activated.
Refer to “FCM braking function” on page 7-56.
zThe Forward Collision Mitigation System (FCM) is not available temporarily such as for adhesion of contaminants to the sensor.This is not a malfunction.zThe Lane Departure Warning (LDW) has detected that your vehicle is about to leave or has left the lane.
Refer to “Lane Departure Warning (LDW)” on page 7-60.
zThe Lane Departure Warning (LDW) is not available temporarily for too high a tem-perature of the LDW camera.zThere is a fault in the Lane Departure Wa r n i n g ( L D W ) .
zWe r e c o m m e n d y o u t o h a v e i t c h e c k e d .Refer to “Lane Departure Warning (LDW)” on page 7-60.
Screen
Cause
Solution (Reference)
