MITSUBISHI OUTLANDER SPORT 2014 3.G Owner's Guide

EV charging cable3-6 Charging
3
: Illuminates : Blinking : Not illuminatesPOWER
FA U LT
CHARGING
Operating condition
Every time the charging cable plug (C) is connected to an outlet, all indicator lamps illuminate for 0.5 seconds.After initial processing is completed, when the normal charge connector is not connected to the charge port, or the normal charge connector is connected to the charge port but charging is not being performed.While the drive battery is being charged.When charging is completed.
POWER
FA U LT
CHARGING
Abnormal operating condition and corrective action
When an electric leakage occurs or the EV charging cable malfunctionsStop using the EV charging cable immediately and contact a MITSUBISHI MOTORS Author-ised Service Point.When the EV charging cable malfunctionsStop using the EV charging cable immediately and contact a MITSUBISHI MOTORS Author-ised Service Point.If the control box indicator lamp does not illuminate after connecting the charging cable plug to the outlet, check the circuit breaker for the outlet. If the breaker has tripped, the circuit may not be suitable for use with EV charging cable. You should have a licensed electrician inspect and repair the electrical circuit. If the breaker is not tripped, Stop using the EV charging cable and contact a MITSUBISHI MOTORS Authorised Service Point.
BK0203201EN.book 6 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

EV charging cableCharging 3-7
3
E08301201064E08301301065
1. Lightly wipe these off with a soft clothsoaked in a mild soap and water solution.

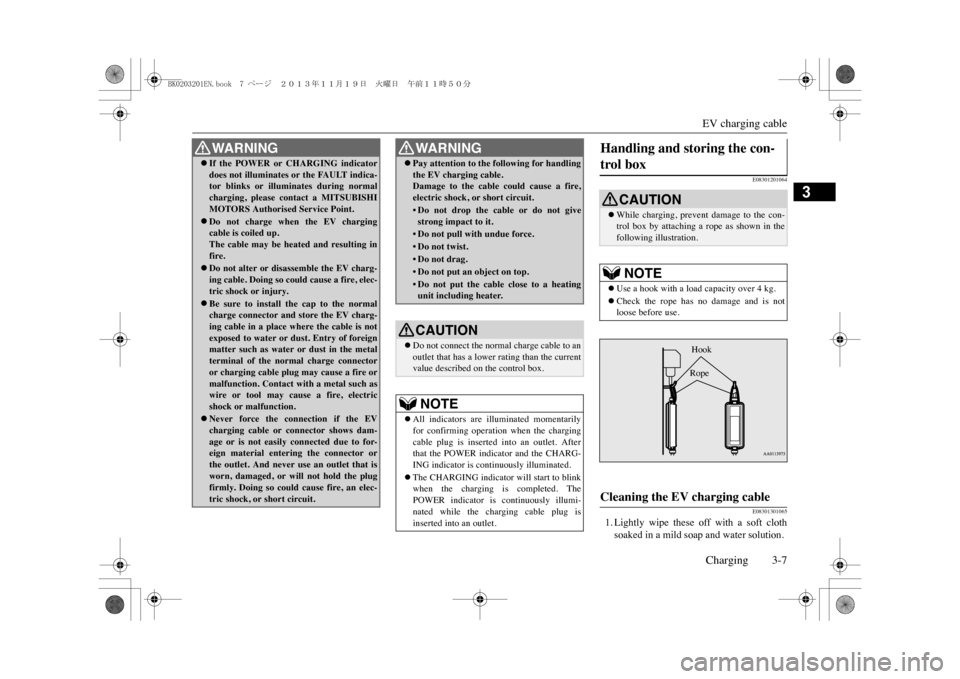

WA R N I N GzIf the POWER or CHARGING indicatordoes not illuminates or the FAULT indica-tor blinks or illuminates during normalcharging, please contact a MITSUBISHIMOTORS Authorised Service Point.zDo not charge when the EV chargingcable is coiled up.The cable may be heated and resulting infire.zDo not alter or disassemble the EV charg-ing cable. Doing so could cause a fire, elec-tric shock or injury.zBe sure to install the cap to the normalcharge connector and
store the EV charg-
ing cable in a place where the cable is notexposed to water or dust. Entry of foreignmatter such as water or dust in the metalterminal of the normal charge connectoror charging cable plug
may cause a fire or
malfunction. Contact with a metal such aswire or tool may cause a fire, electricshock or malfunction.zNever force the connection if the EVcharging cable or connector shows dam-age or is not easily connected due to for-eign material entering the connector orthe outlet. And never use an outlet that isworn, damaged, or will not hold the plugfirmly. Doing so could cause fire, an elec-tric shock, or
short circuit.
zPay attention to the following for handlingthe EV charging cable.Damage to the cable could cause a fire,electric shock,
or short circuit.
•Do not drop the cable or do not givestrong impact to it.•Do not pull with undue force.•Do not twist.•Do not drag.•Do not put an object on top.•Do not put the cable close to a heatingunit including heater.CAUTIONzDo not connect the normal charge cable to anoutlet that has a lower rating than the currentvalue described
on the control box.
NOTE
zAll indicators are illuminated momentarilyfor confirming operation when the chargingcable plug is inserted into an outlet. Afterthat the POWER indicator and the CHARG-ING indicator is continuously illuminated.zThe CHARGING indicator will start to blinkwhen the charging is completed. ThePOWER indicator is continuously illumi-nated while the charging cable plug isinserted into an outlet.WA R N I N G
Handling and storing the con-trol box
CAUTIONzWhile charging, prevent damage to the con-trol box by attaching a rope as shown in thefollowing illustration.NOTE
zUse a hook with a load capacity over 4 kg.zCheck the rope has no damage and is notloose before use.
Cleaning the EV charging cable
HookRope
BK0203201EN.book 7 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)3-8 Charging
3

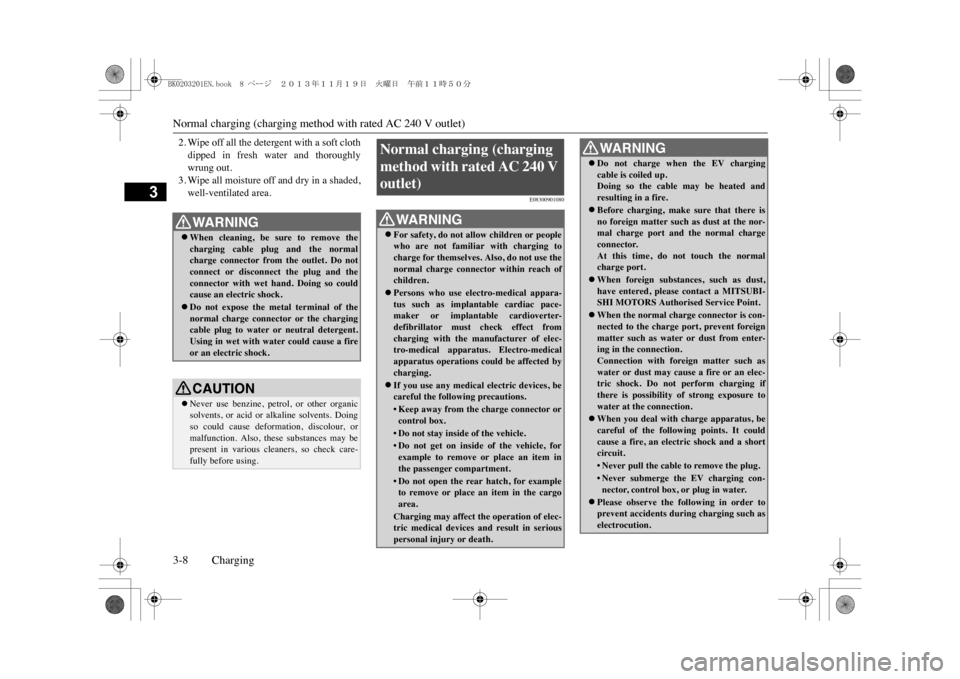

2. Wipe off all the detergent with a soft clothdipped in fresh water and thoroughlywrung out.3. Wipe all moisture off and dry in a shaded,well-ventilated area.
E08300901080
WA R N I N GzWhen cleaning, be sure to remove thecharging cable plug and the normalcharge connector from the outlet. Do notconnect or disconnect the plug and theconnector with wet hand. Doing so couldcause an electric shock.zDo not expose the metal terminal of thenormal charge connect
or or the charging
cable plug to water or neutral detergent.Using in wet with water could cause a fireor an electric shock.CAUTIONzNever use benzine, petr
ol, or other organic
solvents, or acid or alkaline solvents. Doingso could cause deform
ation, discolour, or
malfunction. Also, these substances may bepresent in various cleaners, so check care-fully before using.
Normal charging (charging method with rated AC 240 V outlet)
WA R N I N GzFor safety, do not allow children or peoplewho are not familiar with charging tocharge for themselves. Also, do not use thenormal charge connector within reach ofchildren.zPersons who use electro-medical appara-tus such as implantable cardiac pace-maker or implantable cardioverter-defibrillator must check effect fromcharging with the manufacturer of elec-tro-medical apparatus. Electro-medicalapparatus operations could be affected bycharging.zIf you use any medica
l electric devices, be
careful the following precautions.•Keep away from the charge connector orcontrol box.•Do not stay inside of the vehicle.•Do not get on inside of the vehicle, forexample to remove or place an item inthe passenger compartment.•Do not open the rear hatch, for exampleto remove or place an item in the cargoarea.Charging may affect the operation of elec-tric medical devices and result in seriouspersonal inju
ry or death.
zDo not charge when the EV chargingcable is coiled up.Doing so the cable may be heated andresulting in a fire.zBefore charging, make sure that there isno foreign matter such as dust at the nor-mal charge port and the normal chargeconnector.At this time, do not touch the normalcharge port.zWhen foreign substances, such as dust,have entered, please contact a MITSUBI-SHI MOTORS Authorised Service Point.zWhen the normal charge connector is con-nected to the charge port, prevent foreignmatter such as water or dust from enter-ing in the connection.Connection with foreign matter such aswater or dust may cause a fire or an elec-tric shock. Do not perform charging ifthere is possibility of strong exposure towater at the connection.zWhen you deal with
charge apparatus, be
careful of the following points. It couldcause a fire, an electric shock and a shortcircuit.•Never pull the cable to remove the plug.•Never submerge the EV charging con-nector, control box, or plug in water.
zPlease observe the following in order toprevent accidents during charging such aselectrocution.WA R N I N G
BK0203201EN.book 8 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)
Charging 3-9
3
E08304101035
The charging port courtesy lamp (A) illumi-nates when the charging lid is opened.

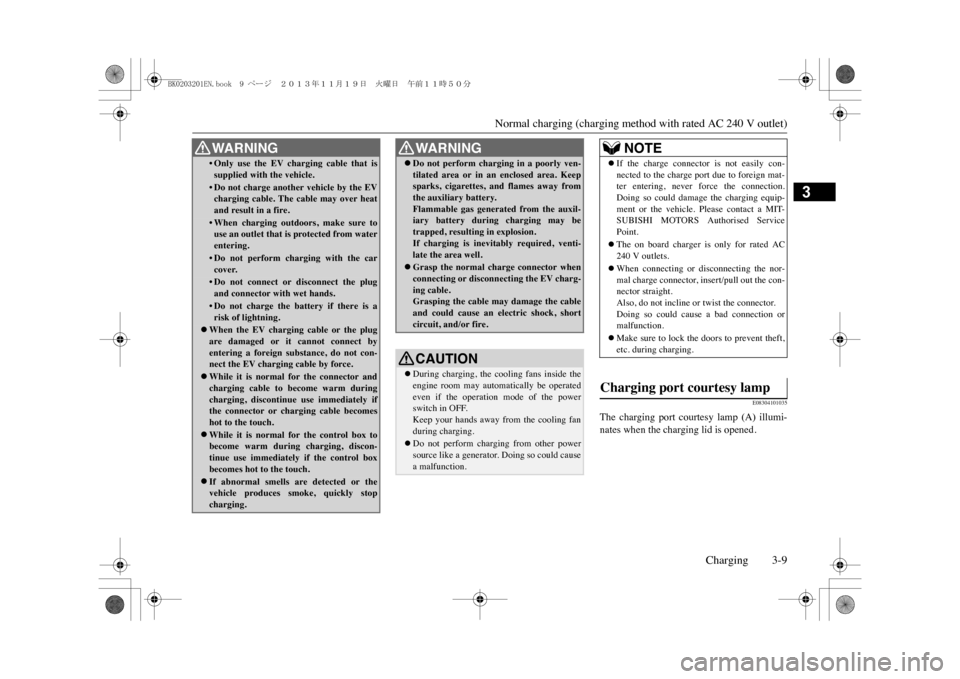

•Only use the EV charging cable that issupplied with the vehicle.•Do not charge another vehicle by the EVcharging cable. The cable may over heatand result in a fire.•When charging outd
oors, make sure to
use an outlet that is protected from waterentering.•Do not perform charging with the carcover.•Do not connect or disconnect the plugand connector with wet hands.•Do not charge the battery if there is arisk of lightning.
zWhen the EV charging cable or the plugare damaged or it cannot connect byentering a foreign substance, do not con-nect the EV charging cable by force.zWhile it is normal for the connector andcharging cable to become warm duringcharging, discontinue use immediately ifthe connector or charging cable becomeshot to the touch.zWhile it is normal for the control box tobecome warm during
charging, discon-
tinue use immediately if the control boxbecomes hot to the touch.zIf abnormal smells are detected or thevehicle produces smoke, quickly stopcharging.WA R N I N G
zDo not perform chargi
ng in a poorly ven-
tilated area or in an
enclosed area. Keep
sparks, cigarettes,
and flames away from
the auxiliary battery.Flammable gas generated from the auxil-iary battery during charging may betrapped, resulting in explosion.If charging is inevitably required, venti-late the area well.zGrasp the normal charge connector whenconnecting or disconn
ecting the EV charg-
ing cable.Grasping the cable may damage the cableand could cause an electric shock, shortcircuit, and/or fire.CAUTIONzDuring charging, the cooling fans inside theengine room may automatically be operatedeven if the operation mode of the powerswitch in OFF.Keep your hands away from the cooling fanduring charging.zDo not perform charging from other powersource like a generator. Doing so could causea malfunction.WA R N I N G
NOTE
zIf the charge connector is not easily con-nected to the charge port due to foreign mat-ter entering, never force the connection.Doing so could damage the charging equip-ment or the vehicle. Please contact a MIT-SUBISHI MOTORS Authorised ServicePoint.zThe on board charger is only for rated AC240 V outlets.zWhen connecting or disconnecting the nor-mal charge connector, insert/pull out the con-nector straight.Also, do not incline or twist the connector.Doing so could caus
e a bad connection or
malfunction.zMake sure to lock the doors to prevent theft,etc. during charging.
Charging port courtesy lamp
BK0203201EN.book 9 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)3-10 Charging
3

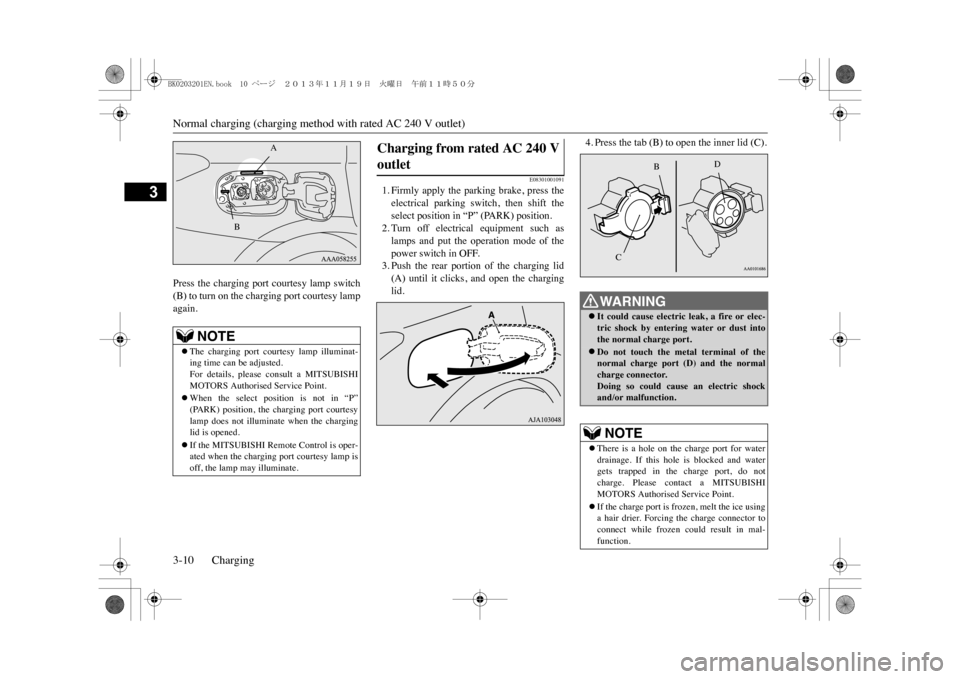

Press the charging port courtesy lamp switch(B) to turn on the charging port courtesy lampagain.
E08301001091
1. Firmly apply the parking brake, press theelectrical parking switch, then shift theselect position in “P” (PARK) position.2. Turn off electrical equipment such aslamps and put the operation mode of thepower switch in OFF.3. Push the rear portion of the charging lid(A) until it clicks, and open the charginglid.
4. Press the tab (B) to open the inner lid (C).
NOTE
zThe charging port courtesy lamp illuminat-ing time can be adjusted.For details, please consult a MITSUBISHIMOTORS Authorised Service Point.zWhen the select position is not in “P”(PARK) position, the charging port courtesylamp does not illuminate when the charginglid is opened.zIf the MITSUBISHI Remote Control is oper-ated when the charging port courtesy lamp isoff, the lamp may illuminate.
A
B
Charging from rated AC 240 V outlet
WA R N I N GzIt could cause electric leak, a fire or elec-tric shock by entering water or dust intothe normal charge port.zDo not touch the metal terminal of thenormal charge port (D) and the normalcharge connector.Doing so could cause an electric shockand/or malfunction.NOTE
zThere is a hole on the charge port for waterdrainage. If this hole
is blocked and water
gets trapped in the charge port, do notcharge. Please contact a MITSUBISHIMOTORS Authorised Service Point.zIf the charge port is frozen, melt the ice usinga hair drier. Forcing the charge connector toconnect while frozen could result in mal-function.
B
C
D
BK0203201EN.book 10 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)
Charging 3-11
3

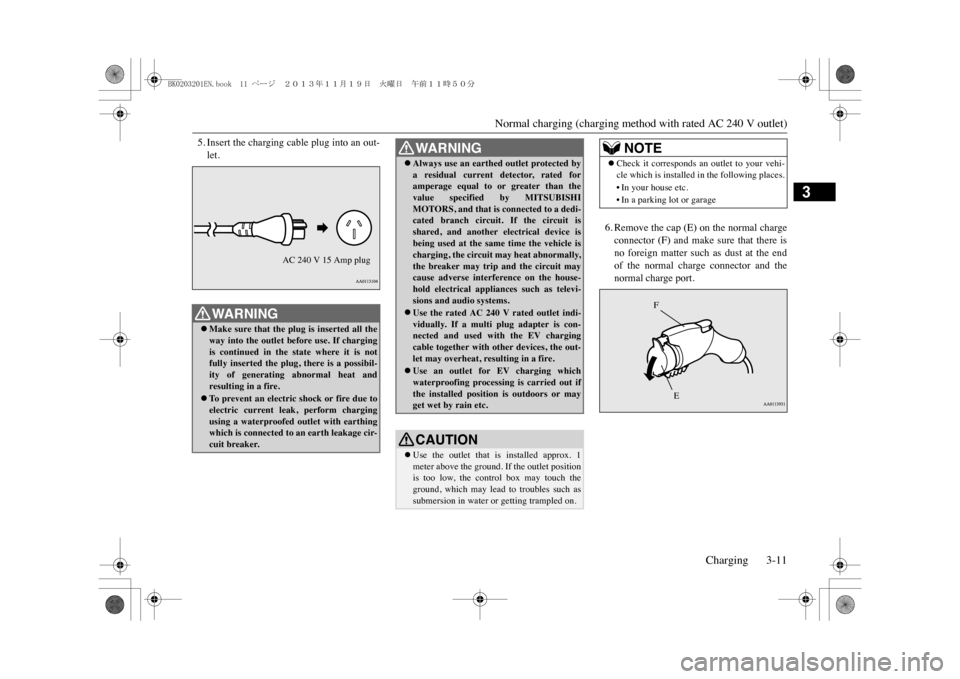

5. Insert the charging cable plug into an out-let.
6. Remove the cap (E) on the normal chargeconnector (F) and make sure that there isno foreign matter such as dust at the endof the normal charge connector and thenormal charge port.
WA R N I N GzMake sure that the plug is inserted all theway into the outlet before use. If chargingis continued in the state where it is notfully inserted the plug, there is a possibil-ity of generating abnormal heat andresulting in a fire.zTo p r e v e n t a n e l e c t r i c s h o c k o r f i r e d u e t oelectric current leak, perform chargingusing a waterproofed outlet with earthingwhich is connected to an earth leakage cir-cuit breaker.
AC 240 V 15 Amp plug
zAlways use an earthed outlet protected bya residual current detector, rated foramperage equal to or greater than thevalue specified by MITSUBISHIMOTORS, and that is connected to a dedi-cated branch circuit. If the circuit isshared, and another el
ectrical device is
being used at the same time the vehicle ischarging, the circuit may heat abnormally,the breaker may trip and the circuit maycause adverse interference on the house-hold electrical appliances such as televi-sions and audio systems.zUse the rated AC 240 V rated outlet indi-vidually. If a multi plug adapter is con-nected and used with the EV chargingcable together with other devices, the out-let may overheat, resulting in a fire.zUse an outlet for EV charging whichwaterproofing processing is carried out ifthe installed position
is outdoors or may
get wet by rain etc.CAUTIONzUse the outlet that is installed approx. 1meter above the ground. If the outlet positionis too low, the control box may touch theground, which may lead to troubles such assubmersion in water or getting trampled on.WA R N I N G
NOTE
zCheck it corresponds an outlet to your vehi-cle which is installed in the following places.•In your house etc.•In a parking lot or garage
F
E
BK0203201EN.book 11 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)3-12 Charging
3

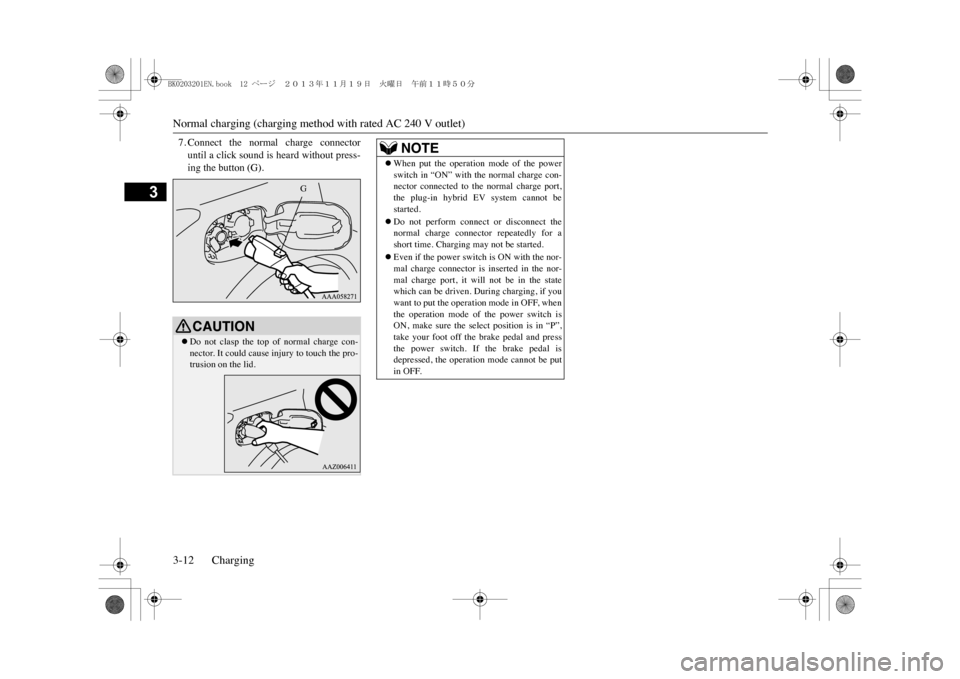

7. Connect the normal charge connectoruntil a click sound is heard without press-ing the button (G).CAUTIONzDo not clasp the top of normal charge con-nector. It could cause injury to touch the pro-trusion on the lid.
G
NOTE
zWhen put the operation mode of the powerswitch in “ON” with the normal charge con-nector connected to the normal charge port,the plug-in hybrid EV system cannot bestarted.zDo not perform connect
or disconnect the
normal charge connector repeatedly for ashort time. Charging may not be started.zEven if the power switch is ON with the nor-mal charge connector is inserted in the nor-mal charge port, it will not be in the statewhich can be driven. During charging, if youwant to put the operation mode in OFF, whenthe operation mode of the power switch isON, make sure the select position is in “P”,take your foot off the brake pedal and pressthe power switch. If the brake pedal isdepressed, the operati
on mode cannot be put
in OFF.
BK0203201EN.book 12 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)
Charging 3-13
3

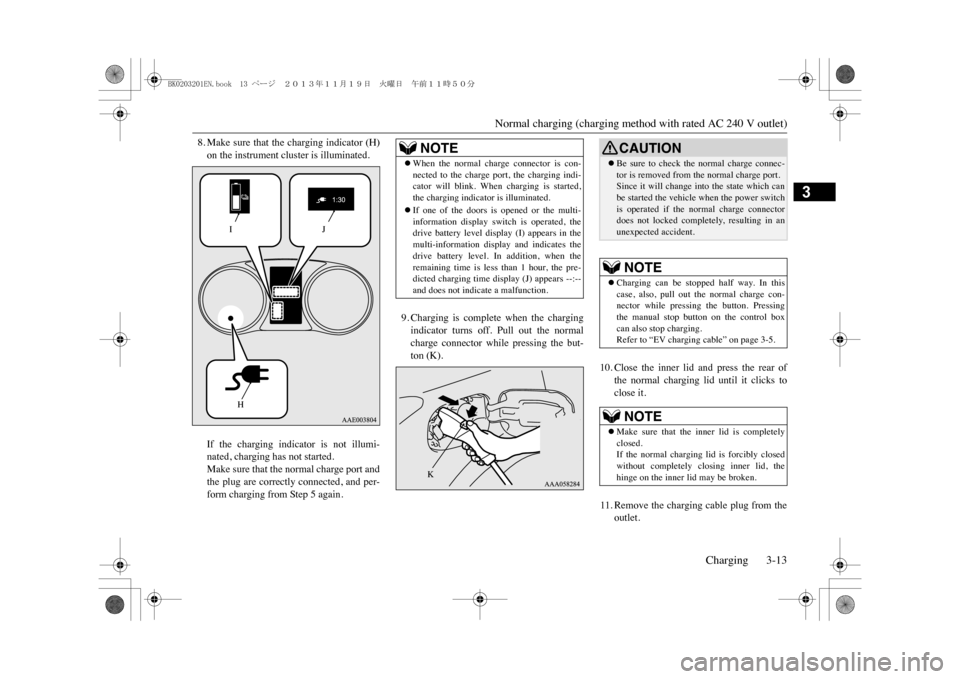

8. Make sure that the charging indicator (H)on the instrument cluster is illuminated.If the charging indicator is not illumi-nated, charging has not started.Make sure that the normal charge port andthe plug are correctly connected, and per-form charging from Step 5 again.
9. Charging is complete when the chargingindicator turns off. Pull out the normalcharge connector while pressing the but-ton (K).
10. Close the inner lid and press the rear of
the normal charging lid until it clicks toclose it.
11. Remove the charging cable plug from the
outlet.
IH
J
NOTE
zWhen the normal charge connector is con-nected to the charge port, the charging indi-cator will blink. When charging is started,the charging indicator is illuminated.zIf one of the doors is opened or the multi-information display switch is operated, thedrive battery level display (I) appears in themulti-information disp
lay and indicates the
drive battery level. In addition, when theremaining time is less than 1 hour, the pre-dicted charging time display (J) appears --:--and does not indicate a malfunction.
K
CAUTIONzBe sure to check the normal charge connec-tor is removed from the normal charge port.Since it will change into the state which canbe started the vehicle when the power switchis operated if the normal charge connectordoes not locked completely, resulting in anunexpected accident.NOTE
zCharging can be stopped half way. In thiscase, also, pull out the normal charge con-nector while pressing the button. Pressingthe manual stop button on the control boxcan also stop charging.Refer to “EV charging cable” on page 3-5.NOTE
zMake sure that the inner lid is completelyclosed.If the normal charging lid is forcibly closedwithout completely cl
osing inner lid, the
hinge on the inner lid may be broken.
BK0203201EN.book 13 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Normal charging (charging method with rated AC 240 V outlet)3-14 Charging
3
12. Install the cap on the normal charge con-

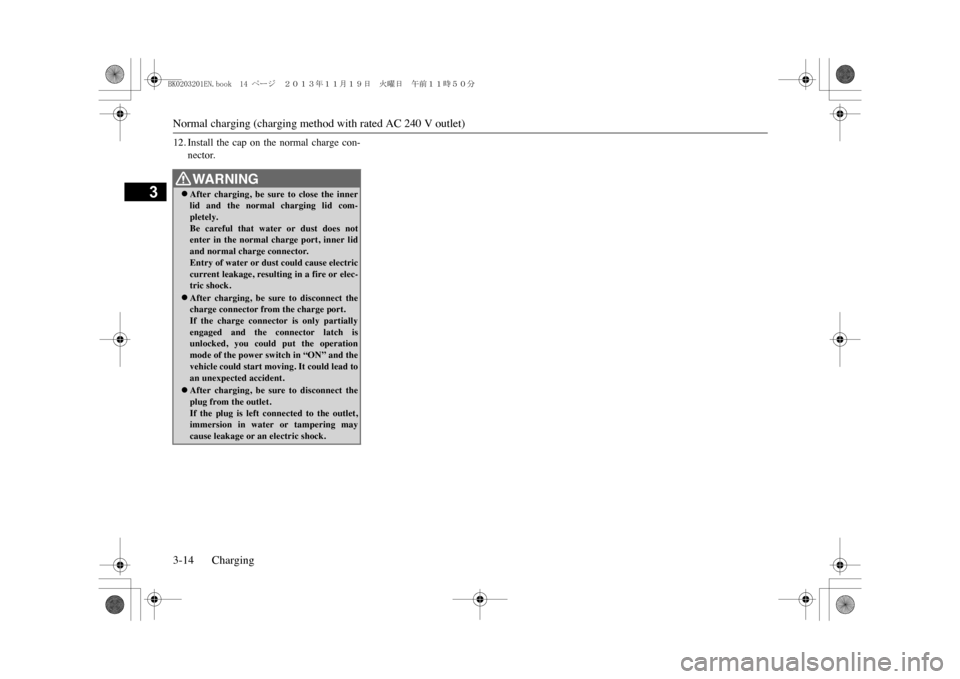

nector.WA R N I N GzAfter charging, be sure to close the innerlid and the normal charging lid com-pletely.Be careful that water or dust does notenter in the normal charge port, inner lidand normal charge connector.Entry of water or dust could cause electriccurrent leakage, resultin
g in a fire or elec-
tric shock.zAfter charging, be sure to disconnect thecharge connector from the charge port.If the charge connector is only partiallyengaged and the connector latch isunlocked, you could put the operationmode of the power switch in “ON” and thevehicle could start movi
ng. It could lead to
an unexpected accident.zAfter charging, be sure to disconnect theplug from the outlet.If the plug is left connected to the outlet,immersion in water or tampering maycause leakage or an electric shock.
BK0203201EN.book 14 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Charging troubleshooting guide
Charging 3-15
3
E08301501054
Charging troubleshooting guide
Symptom
Possible cause
Possible solution
Charging cannot be started.
The operation mode of the power switch in ON
Put the operation mode of the power switch in “OFF” before charging.
The drive battery is already fully charged.
Charging cannot be performed if the drive battery is already fully charged. Charging automatically turns off if the drive battery is fully charged.
The temperature of the drive battery is too high or too low to charge.
Confirm the drive battery temperature.Refer to “Cautions and actions to deal with intense heat” on page 2-8 and “Cautions and actions to deal with intense cold” on page 2-9.
The auxiliary battery is dis-charged.
The drive battery can not be charged if the vehicle electrical systems cannot be turned on. If the auxiliary battery is discharged, charge or emergency start the auxiliary battery. Refer to “Emergency starting” on page 9-2.
The vehicle or the charging cable has a malfunction.
The vehicle or charging cable may have a malfunction. Confirm if the warning lamp on the meter is illuminated. Confirm if the indicator on the control box is indicating a mal-function. If a warning is displayed, stop charging and contact a MITSUBISHI MOTORS Authorised Service Point.
