Fuel selection2-12 General information
2
E00200104259
A mixture of up to 10 % ethanol (grain alco-hol) and 90 % unleaded petrol may be used in
your vehicle, provided the octane number isat least as high as that recommended forunleaded petrol.
NOTE
z*1: Refer to “Limited driving mode
warning display” on page 6-33.
Display of the Limited driving mode warni
ng display does not i
ndicate a malfunction.
z*2: Refer to “ready indicator” on page 6-37.
z*3: To make warm up the drive battery, you shoul
d perform to communicate with the wireless
LAN device (which conforms to IEEE 802
.11 b and supports
iOS or Android) for MITSUBISHI Remote Cont
rol to the vehicle. If the information of
“” mark on the wireless LAN device is displ
ayed, connect the
EV charging cable as soon as possible.Refer to “MITSUBISHI Remote
Control” on page 3-17.
If the warming up of the drive battery is activated during home
or public charging device (EVSE:
Electric Vehicles Supply Equip
ment) charging, the
charging and warming up of the
drive battery may be stopped.
While warm up the drive battery, the following phenomena may occur.• The operation sound of on board equipmen
t and the state of charge is displa
yed on the multi information display.
Refer to “Charging from rated
AC 240V outlet” on page 3-10.
• Inside of the vehicle may be heated automatically.•The drive battery may not become full charge, or th
e remaining capacity of
drive battery may decrease.

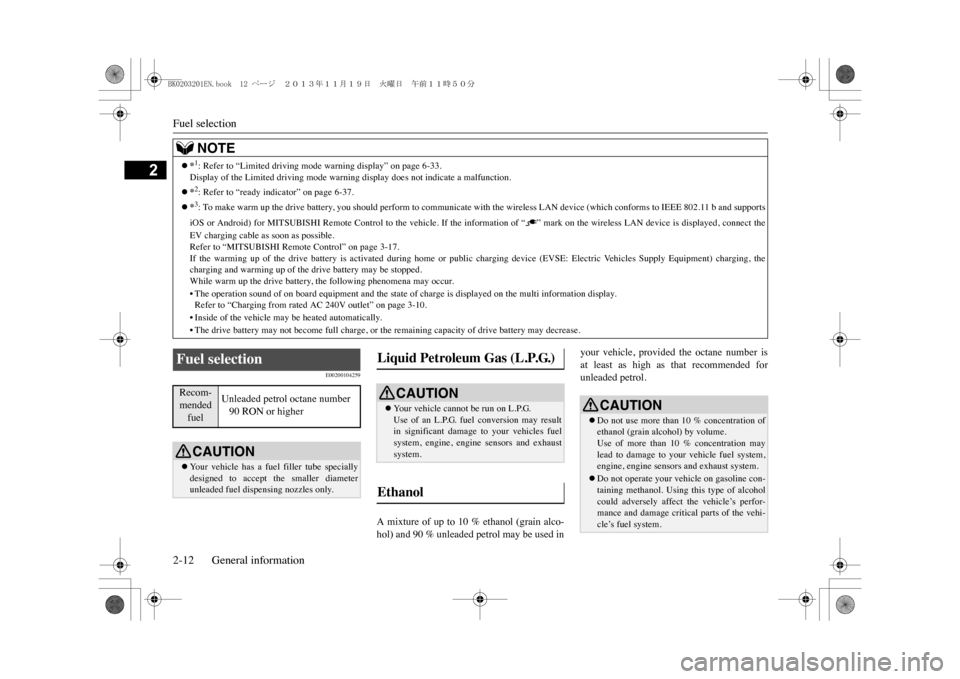

Fuel selection Recom-mended fuel
Unleaded petrol octane number 90 RON or higher
CAUTIONzYo u r v e h i c l e h a s a f u e l f i l l e r t u b e s p e c i a l l ydesigned to accept the smaller diameterunleaded fuel dispensing nozzles only.
Liquid Petroleum Gas (L.P.G.)
CAUTIONzYo u r v e h i c l e c a n n o t b e r u n o n L . P. G.Use of an L.P.G. fuel conversion may resultin significant damage to your vehicles fuelsystem, engine, engine
sensors and exhaust
system.
Ethanol
CAUTIONzDo not use more than 10 % concentration ofethanol (grain alcohol) by volume.Use of more than 10 % concentration maylead to damage to your vehicle fuel system,engine, engine sensor
s and exhaust system.
zDo not operate your ve
hicle on gasoline con-
taining methanol. Using this type of alcoholcould adversely affect
the vehicle’s perfor-
mance and damage critical parts of the vehi-cle’s fuel system.
BK0203201EN.book 12 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Filling the fuel tank
General information 2-13
2
E00200203572
45 litres1. Before filling with fuel, stop the plug-inhybrid EV system.
NOTE
zPoor quality petrol can cause problems suchas hard starting, sta
lling, engine noise and
hesitation. If your experience these prob-lems, try another brand and/or grade of pet-rol.If the check engine
warning lamp flashes,
have the system checked as soon as possibleat a MITSUBISHI MOTORS AuthorisedService Point.

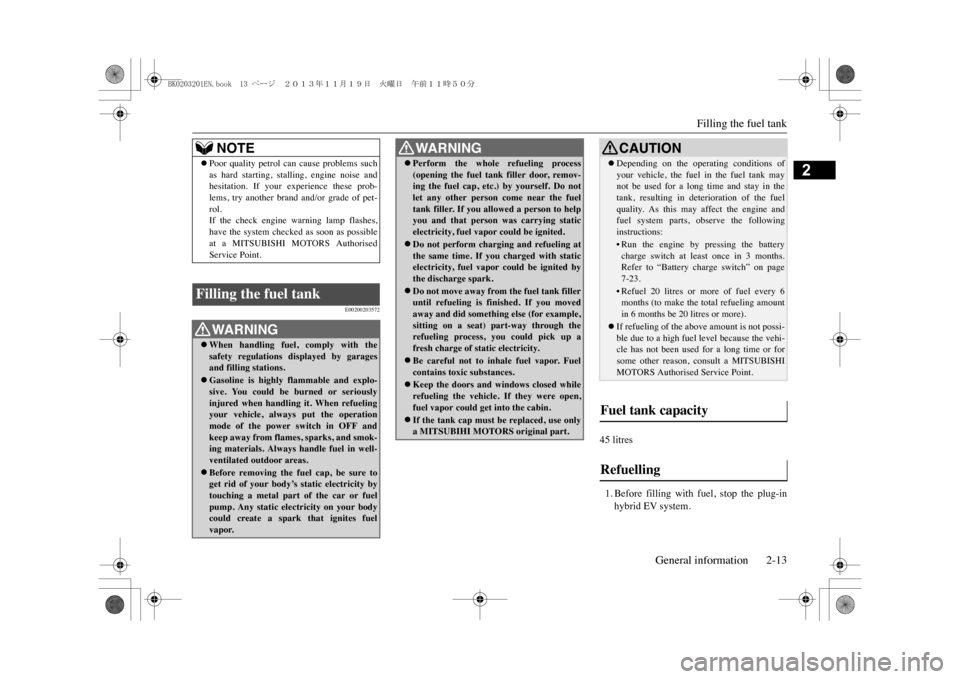

Filling the fuel tank
WA R N I N GzWhen handling fuel, comply with thesafety regulations displayed by garagesand filling stations.zGasoline is highly flammable and explo-sive. You could be burned or seriouslyinjured when handling it. When refuelingyour vehicle, always
put the operation
mode of the power switch in OFF andkeep away from flames, sparks, and smok-ing materials. Always handle fuel in well-ventilated outdoor areas.zBefore removing the fuel cap, be sure toget rid of your body’s static electricity bytouching a metal part of the car or fuelpump. Any static electricity on your bodycould create a spark that ignites fuelvapor.
zPerform the whole refueling process(opening the fuel tank filler door, remov-ing the fuel cap, etc.) by yourself. Do notlet any other person come near the fueltank filler. If you allowed a person to helpyou and that person was carrying staticelectricity, fuel vapor could be ignited.zDo not perform chargi
ng and refueling at
the same time. If you charged with staticelectricity, fuel vapor could be ignited bythe discharge spark.zDo not move away from the fuel tank filleruntil refueling is finished. If you movedaway and did something else (for example,sitting on a seat) part-way through therefueling process, you could pick up afresh charge of st
atic electricity.
zBe careful not to inhale fuel vapor. Fuelcontains toxic substances.zKeep the doors and windows closed whilerefueling the vehicle. If they were open,fuel vapor could get into the cabin.zIf the tank cap must be replaced, use onlya MITSUBIHI MOTORS original part.WA R N I N G
CAUTIONzDepending on the opera
ting conditions of
your vehicle, the fuel in the fuel tank maynot be used for a long time and stay in thetank, resulting in deterioration of the fuelquality. As this may af
fect the engine and
fuel system parts, observe the followinginstructions:•Run the engine by pressing the batterycharge switch at least once in 3 months.Refer to “Battery charge switch” on page7-23.• Refuel 20 litres or more of fuel every 6months (to make the total refueling amountin 6 months be 20 litres or more).
zIf refueling of the above
amount is not possi-
ble due to a high fuel level because the vehi-cle has not been used for a long time or forsome other reason, consult a MITSUBISHIMOTORS Authorised Service Point.
Fuel tank capacity Refuelling
BK0203201EN.book 13 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Installation of accessories2-14 General information
2

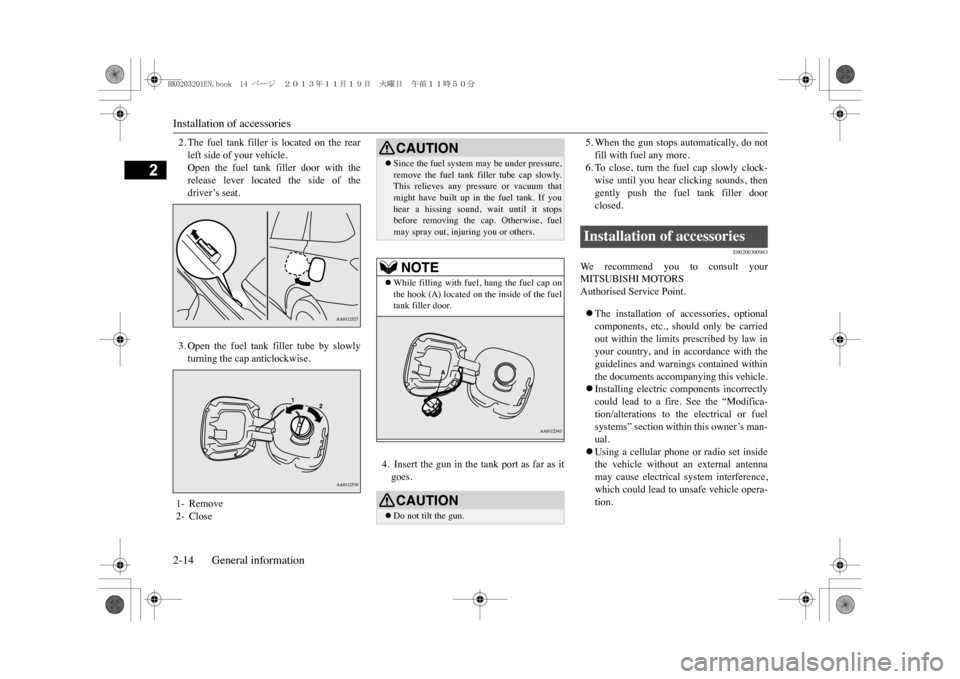

2. The fuel tank filler is located on the rearleft side of your vehicle.Open the fuel tank filler door with therelease lever located the side of thedriver’s seat.3. Open the fuel tank filler tube by slowlyturning the cap anticlockwise.
4. Insert the gun in the tank port as far as itgoes.
5. When the gun stops automatically, do notfill with fuel any more.6. To close, turn the fuel cap slowly clock-wise until you hear clicking sounds, thengently push the fuel tank filler doorclosed.
E00200300963
We r e c o m m e n d y o u t o c o n s u l t y o u rMITSUBISHI MOTORSAuthorised Service Point.zThe installation of accessories, optionalcomponents, etc., should only be carriedout within the limits prescribed by law inyour country, and in accordance with theguidelines and warnings contained withinthe documents accompanying this vehicle.zInstalling electric components incorrectlycould lead to a fire. See the “Modifica-tion/alterations to the electrical or fuelsystems” section within this owner’s man-ual.zUsing a cellular phone or radio set insidethe vehicle without an external antennamay cause electrical system interference,which could lead to unsafe vehicle opera-tion.
1- Remove2- Close
CAUTIONzSince the fuel system
may be under pressure,
remove the fuel tank filler tube cap slowly.This relieves any pressure or vacuum thatmight have built up in the fuel tank. If youhear a hissing sound, wait until it stopsbefore removing the cap. Otherwise, fuelmay spray out, injuring you or others.NOTE
zWhile filling with fuel, hang the fuel cap onthe hook (A) located on the inside of the fueltank filler door.CAUTIONzDo not tilt the gun.
Installation of accessories
BK0203201EN.book 14 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Modification/alterations to th
e electrical or fuel systemsGeneral information 2-15
2
zTy r e s a n d w h e e l s w h i c h d o n o t m e e t s p e c -ifications must not be used.Refer to the “Specifications” section forinformation regarding wheel and tyresizes.
Due to large number of accessory andreplacement parts of different manufacturesavailable in the market, it is not possible, notonly for MITSUBISHI MOTORS, but also aMITSUBISHI MOTORS Authorised ServicePoint, to check whether the attachment orinstallation of such parts affects the overallsafety of your MITSUBISHI-vehicle.Even when such parts are officially author-ised, for example by a “general operators per-mit” (an appraisal for the part) or through theexecution of the part in an officially approvedmanner of construction, or when a singleoperation permit following the attachment orinstallation of such parts, it cannot bededuced from that alone, that the drivingsafety of your vehicles has not been affected.Consider also that there basically exists noliability on the part of the appraiser or theofficial. Maximum safety can only be ensuredwith parts recommended, sold and fitted orinstalled by a MITSUBISHI MOTORS
authorised Service Point (MITSUBISHIMOTORS GENUINE replacement parts andMITSUBISHI MOTORS accessories). Thesame also pertains to modifications ofMITSUBISHI vehicles with respect to theproduction specifications. For safety reasons,do not attempt any modifications other thanthose that follow the recommendations of aMITSUBISHI MOTORS authorised ServicePoint.
E00200400368
MITSUBISHI MOTORS CORPORATIONhas always manufactured safe, high qualityvehicles. In order to maintain this safety andquality, it is important that any accessory thatis to be fitted, or any modifications carriedout which involve the electrical or fuel sys-tems, should be carried out in accordancewith MITSUBISHI guidelines.
E00200500499
MITSUBISHI MOTORS has gone to greatlengths to bring you a superbly crafted auto-mobile offering the highest quality anddependability.Use MITSUBISHI MOTORS GENUINEParts, designed and manufactured to maintainyour MITSUBISHI MOTORS automobile attop performance. MITSUBISHI MOTORSGENUINE Parts are identified by this markand are available at all MITSUBISHIMOTORS Authorised Service Points.
E00200600155
Important points!
Modification/alterations to the electrical or fuel systems
CAUTIONzIf the wires interfere
with the vehicle body or
improper installation methods are used (pro-tective fuses not included, etc.), electronicdevices may be adversely affected, resultingin a fire or other accident.
Genuine Parts Safety and disposal informa-tion for used engine oil
WA R N I N GzProlonged and repeated contact maycause serious skin disorders, includingdermatitis and cancer.zAv o i d c o n t a c t w i t h t h e s k i n a s f a r a s p o s s i -ble and wash thoroughly after any con-tact.
BK0203201EN.book 15 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Do not carry fuel-filled containers or spray cans inside your vehicle2-16 General information
2
It is illegal to pollute drains, water coursesand soil. Use authorised waste collectionfacilities, including civic amenity sites andgarages providing facilities for disposal ofused oil and used oil filters. If in doubt, con-tact your local authority for advice on dis-posal.
E00201000013
E00200800115
MITSUBISHI MOTORS from time to timereceives enquiries regarding shipping of vehi-cles overseas.The enquiries mainly fall into the followingcategories:zPrivate individuals wishing to take theirlocally purchased vehicle overseas.zPrivate individuals wishing to purchase anexport specification (e.g. left hand drive)vehicle here in Australia and take it over-seas.zCommercial enquiries wishing to arrangethe export of MITSUBISHI MOTORSvehicles to an associated or client com-pany.
MITSUBISHI MOTORS
advises the follow-
ing:Different countries have different vehicle reg-ulations, fuel standards, driving conditionsand customer preferences.A vehicle sold in several markets may lookoutwardly similar but have very significantdifferences.Ta k i n g a v e h i c l e b u i l t t o a n A u s t r a l i a n s p e c i -fication overseas therefore runs the risk of:
zNon-compliance with local regulations.zUnsatisfactory vehicle performance.zDifficulties in after sales service.zParts unavailable.zDiminished resale value.
We b e l i e v e t h e p r a c t i c e t o b e u n e c o n o m i c a n dstrongly recommend against it.
zKeep used engine oils
out of reach of chil-
dren.

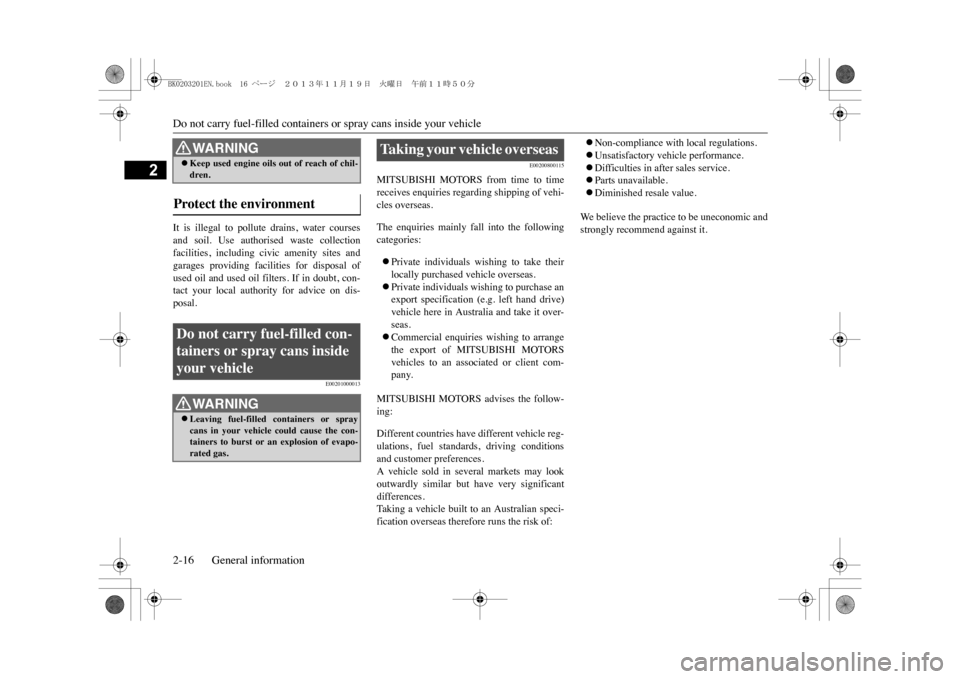

Protect the environment Do not carry fuel-filled con-tainers or spray cans inside your vehicle
WA R N I N GzLeaving fuel-filled containers or spraycans in your vehicle could cause the con-tainers to burst or an explosion of evapo-rated gas.WA R N I N G
Ta k i n g y o u r v e h i c l e o v e r s e a s
BK0203201EN.book 16 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

3
ChargingCharging ..........................................................................................3-2Battery ..............................................................................................3-3Basic knowledge for charging .........................................................3-3EV charging cable ............................................................................ 3-5Normal charging (charging method with rated AC 240 V outlet) ...3-8Charging troubleshooting guide ....................................................3-15MITSUBISHI Remote Control* .....................................................3-17
BK0203201EN.book 1 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

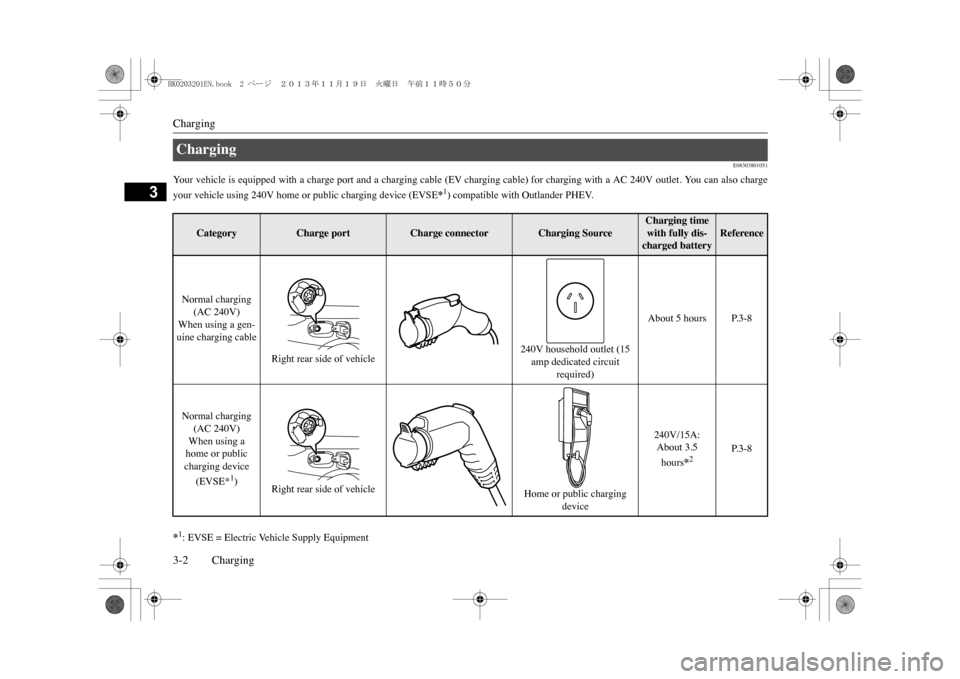

Charging3-2 Charging
3
E08303801051
Yo u r v e h i c l e i s e q u i p p e d w i t h a c h a r g e p o r t a n d a c h a r g i n g c a b l e ( E V c h a r g i n g c a b l e ) f o r c h a r g i n g w i t h a A C 2 4 0 V o u t l e t . Yo u c a
n also charge
your vehicle using 240V home or public charging device (EVSE
*1) compatible with Outlander PHEV.
*1: EVSE = Electric Vehicle Supply EquipmentCharging
Category
Charge port
Charge connector
Charging Source
Charging time with fully dis-charged battery
Reference
Normal charging
(AC 240V)
When using a gen-uine charging cable
Right rear side of vehicle
240V household outlet (15 amp dedicated circuit
required)
About 5 hours P.3-8
Normal charging
(AC 240V)When using a home or public charging device
(EVSE*
1)
Right rear side of vehicle
Home or public charging
device
240V/15A: About 3.5 hours
*2
P. 3 - 8
BK0203201EN.book 2 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

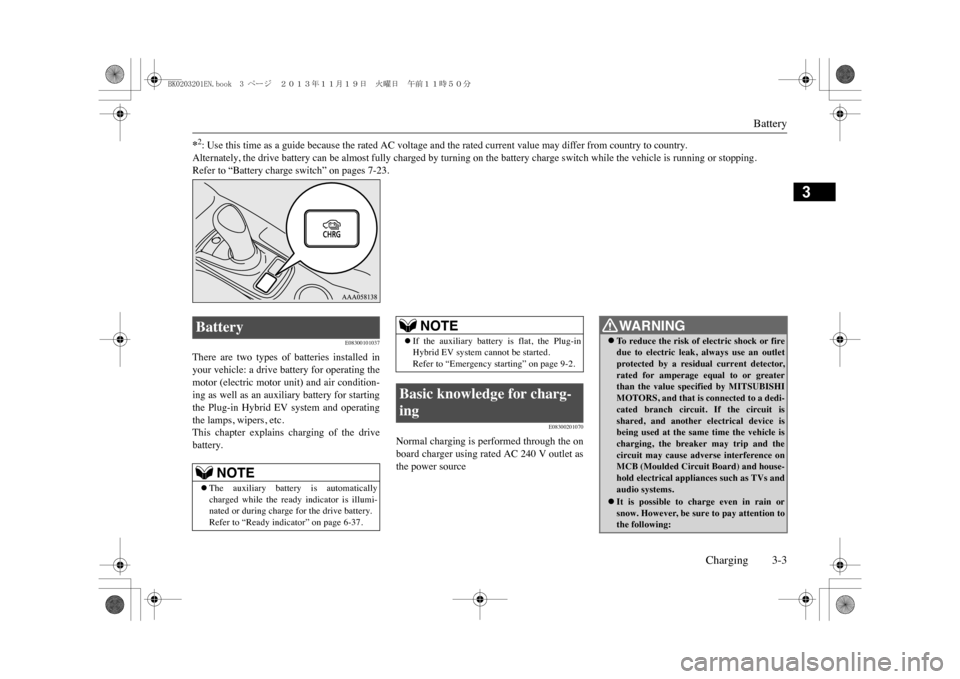

Battery
Charging 3-3
3
*2: Use this time as a guide because the rated AC voltage and the rated current value may differ from country to country.Alternately, the drive battery can be almost fully charged by turning on the battery charge switch while the vehicle is running
or stopping.
Refer to “Battery charge switch” on pages 7-23.
E08300101037
There are two types of batteries installed inyour vehicle: a drive battery for operating themotor (electric motor unit) and air condition-ing as well as an auxiliary battery for startingthe Plug-in Hybrid EV system and operatingthe lamps, wipers, etc.This chapter explains charging of the drivebattery.
E08300201070
Normal charging is performed through the onboard charger using rated AC 240 V outlet asthe power source
Battery
NOTE
zThe auxiliary battery is automaticallycharged while the ready indicator is illumi-nated or during charge for the drive battery.Refer to “Ready indica
tor” on page 6-37.
zIf the auxiliary battery is flat, the Plug-inHybrid EV system cannot be started.Refer to “Emergency starting” on page 9-2.
Basic knowledge for charg-ing
NOTE
WA R N I N GzTo r e d u c e t h e r i s k o f e l e c t r i c s h o c k o r f i r edue to electric leak,
always use an outlet
protected by a residual current detector,rated for amperage equal to or greaterthan the value specified by MITSUBISHIMOTORS, and that is connected to a dedi-cated branch circuit. If the circuit isshared, and another electrical device isbeing used at the same time the vehicle ischarging, the breaker may trip and thecircuit may cause adverse interference onMCB (Moulded Circui
t Board) and house-
hold electrical appliances such as TVs andaudio systems.zIt is possible to charge even in rain orsnow. However, be sure to pay attention tothe following:
BK0203201EN.book 3 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Basic knowledge for charging3-4 Charging
3

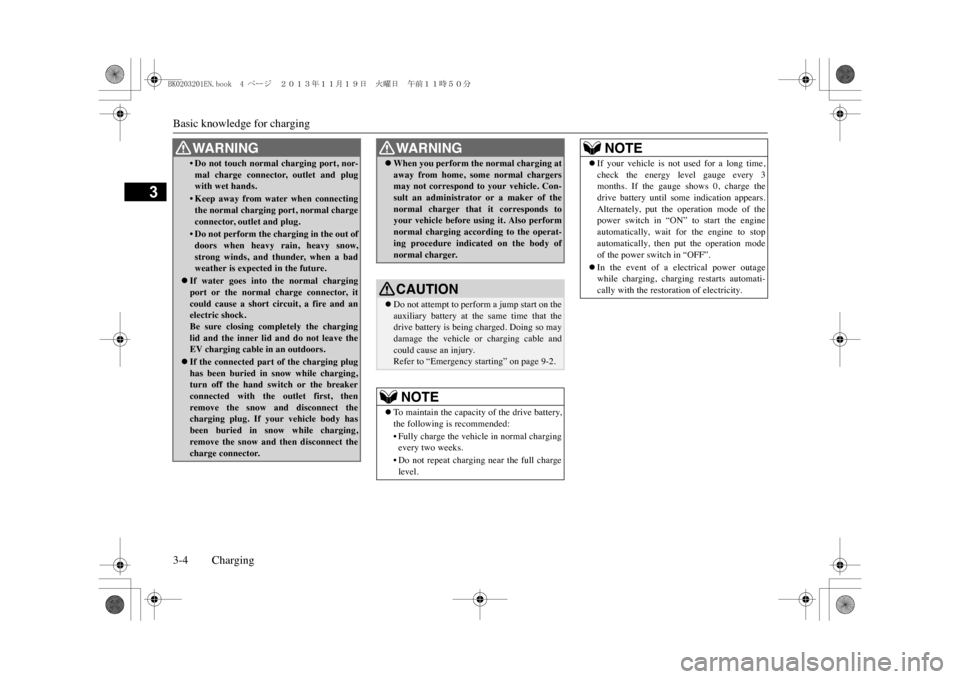

•Do not touch normal charging port, nor-mal charge connector, outlet and plugwith wet hands.•Keep away from water when connectingthe normal charging port, normal chargeconnector, outlet and plug.•Do not perform the ch
arging in the out of
doors when heavy rain, heavy snow,strong winds, and thunder, when a badweather is expected in the future.
zIf water goes into the normal chargingport or the normal charge connector, itcould cause a short ci
rcuit, a fire and an
electric shock. Be sure closing completely the charginglid and the inner lid and do not leave theEV charging cable
in an outdoors.
zIf the connected part of the charging plughas been buried in snow while charging,turn off the hand switch or the breakerconnected with the outlet first, thenremove the snow and disconnect thecharging plug. If your vehicle body hasbeen buried in snow while charging,remove the snow and then disconnect thecharge connector.WA R N I N G
zWhen you perform the normal charging ataway from home, some normal chargersmay not correspond to your vehicle. Con-sult an administrator or a maker of thenormal charger that it corresponds toyour vehicle before using it. Also performnormal charging according to the operat-ing procedure indicated on the body ofnormal charger.CAUTIONzDo not attempt to perform a jump start on theauxiliary battery at the same time that thedrive battery is being charged. Doing so maydamage the vehicle or charging cable andcould cause an injury.Refer to “Emergency starting” on page 9-2.NOTE
zTo m a i n t a i n t h e c a p a c i t y o f t h e d ri v e b a t t e r y,the following is recommended:•Fully charge the vehicle in normal chargingevery two weeks.• Do not repeat charging near the full chargelevel.WA R N I N G
zIf your vehicle is not used for a long time,check the energy level gauge every 3months. If the gauge shows 0, charge thedrive battery until some indication appears.Alternately, put the operation mode of thepower switch in “ON” to start the engineautomatically, wait for the engine to stopautomatically, then put the operation modeof the power switch in “OFF”.zIn the event of a electrical power outagewhile charging, charging restarts automati-cally with the restoration of electricity.NOTE
BK0203201EN.book 4 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

EV charging cableCharging 3-5
3
E08301101092
Yo u r v e h i c l e i s e q u i p p e d w i t h a n E V c h a r g i n g c a b l e t h a t c o n s i s t s o f a c a b l e ( A ) , c o n t r o l b o x ( B ) , E V c h a r g i n g c a b l e p l u g ( C ) , a
nd normal charge
connector (D).To s t o p c h a r g i n g , s i m p l y p r e s s m a n u a l s t o p b u t t o n ( E ) a n d s t o p i n d i c a t o r ( F ) i s i l l u m i n a t e d . R e - c o n n e c t t h e E V c h a r g i n g c a b l e p
lug (C) to charge
again.POWER (G), FAULT (H) and CHARGING (I) indicators located on the control box will illuminate/blink in response to the following
conditions:
EV charging cable
E- Manual stop button
G ( )-
POWER indicator
F- Stop indicator
H ( )-
FA U LT i n d i c a t o r
I ( )- CHARGING indicator
Indicator (LED) and button
E
G
F
HI
C
B
A
D
