MITSUBISHI SHOGUN 2003 Owner's Manual (in English)

I27A085A

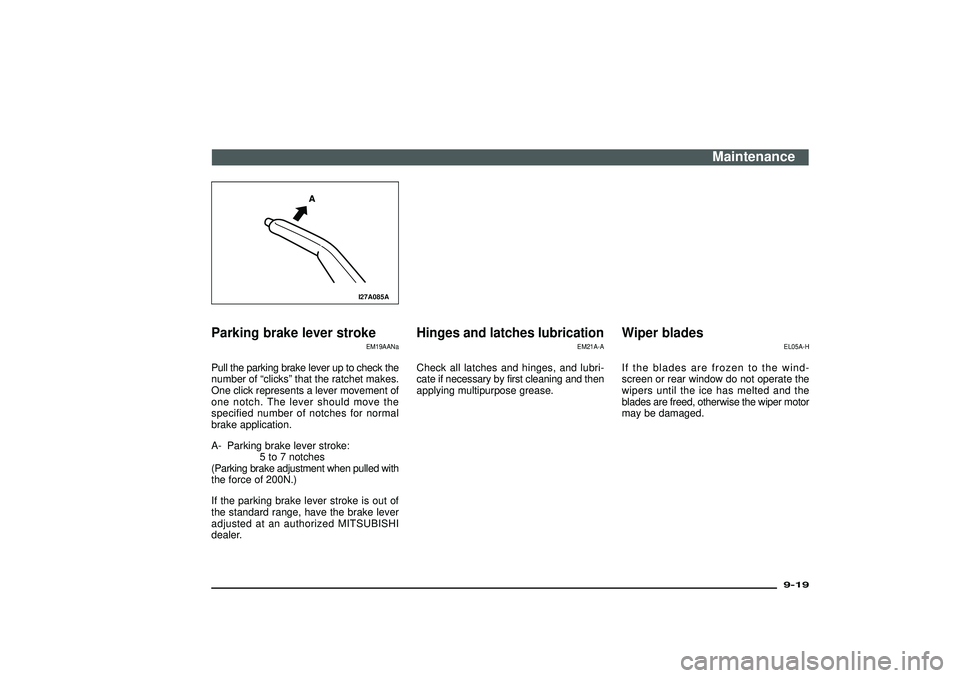

Parking brake lever stroke
EM19AANa
Pull the parking brake lever up to check the
number of“clicks”that the ratchet makes.
One click represents a lever movement of
one notch. The lever should move the
specified number of notches for normal
brake application.
A- Parking brake lever stroke:
5 to 7 notches
(Parking brake adjustment when pulled with
the force of 200N.)
If the parking brake lever stroke is out of
the standard range, have the brake lever
adjusted at an authorized MITSUBISHI
dealer.
Hinges and latches lubrication
EM21A-A
Check all latches and hinges, and lubri-
cate if necessary by first cleaning and then
applying multipurpose grease.
Wiper blades
EL05A-H
If the blades are frozen to the wind-
screen or rear window do not operate the
wipers until the ice has melted and the
blades are freed, otherwise the wiper motor
may be damaged.
Maintenance
9-19
Div:
Out put date:

L05A001A
ABC Front

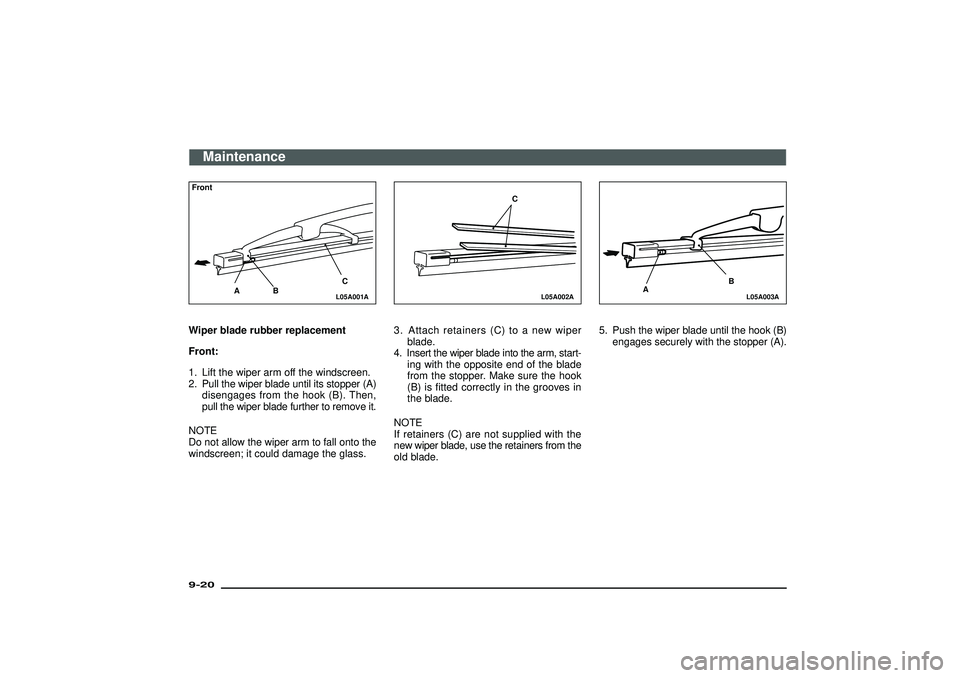

Wiper blade rubber replacement
Front:
1. Lift the wiper arm off the windscreen.
2. Pull the wiper blade until its stopper (A)
disengages from the hook (B). Then,
pull the wiper blade further to remove it.
NOTE
Do not allow the wiper arm to fall onto the
windscreen; it could damage the glass.
L05A002A
C
3. Attach retainers (C) to a new wiper
blade.
4. Insert the wiper blade into the arm, start-
ing with the opposite end of the blade
from the stopper. Make sure the hook
(B) is fitted correctly in the grooves in
the blade.
NOTE
If retainers (C) are not supplied with the
new wiper blade, use the retainers from the
old blade.
L05A003A
AB
5. Push the wiper blade until the hook (B)
engages securely with the stopper (A).
Maintenance
9-20Div:
Out put date:

L05A009A

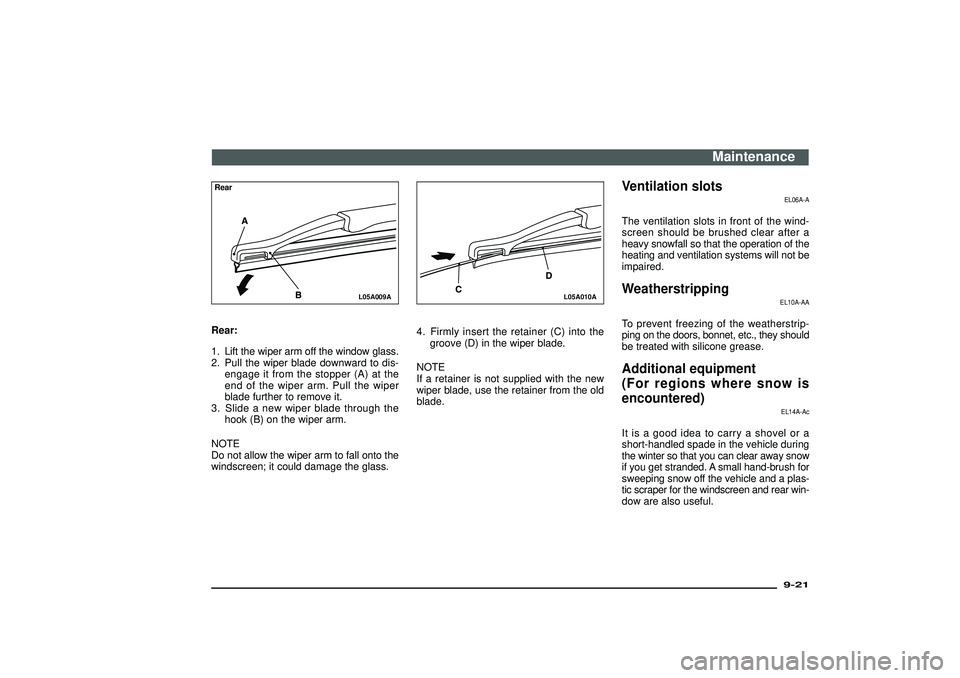

RearRear:
1. Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to dis-
engage it from the stopper (A) at the
end of the wiper arm. Pull the wiper
blade further to remove it.
3. Slide a new wiper blade through the
hook (B) on the wiper arm.
NOTE
Do not allow the wiper arm to fall onto the
windscreen; it could damage the glass.
L05A010A
4. Firmly insert the retainer (C) into the
groove (D) in the wiper blade.
NOTE
If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.
Ventilation slots
EL06A-A
The ventilation slots in front of the wind-
screen should be brushed clear after a
heavy snowfall so that the operation of the
heating and ventilation systems will not be
impaired.Weatherstripping
EL10A-AA
To prevent freezing of the weatherstrip-
ping on the doors, bonnet, etc., they should
be treated with silicone grease.Additional equipment
(For regions where snow is
encountered)
EL14A-Ac
It is a good idea to carry a shovel or a
short-handled spade in the vehicle during
the winter so that you can clear away snow
if you get stranded. A small hand-brush for
sweeping snow off the vehicle and a plas-
tic scraper for the windscreen and rear win-
dow are also useful.
Maintenance
9-21
Div:
Out put date:

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Div:
Out put date: April 5, 2001

Specifications
Chassis number .......................................... 10- 2
Engine number ............................................ 10- 2
Vehicle identification number plate
(RHD vehicles only)................................. 10- 3
Vehicle information code plate .................. 10- 3
Dimensions ................................................. 10- 6
Performance ................................................ 10- 7
Weight .......................................................... 10- 7
Engine .......................................................... 10- 9
Transmission ............................................... 10- 9
Electrical system......................................... 10-10
Tyres and wheels ........................................ 10-10
Other specifications.................................... 10-11
Fuel consumption ...................................... 10-12
Notes regarding diesel fuel........................ 10-14
Capacities .................................................... 10-16
Div:
Out put date:

B02A026A
Chassis number
EB02A-D
The chassis number is stamped as shown
in the illustration.
B02B013A
2500 modelsEngine number
EB02B-A
The engine number is stamped on the
engine cylinder block as shown in the illus-
tration.
B02B017A
3200 models
Specifications
10-2Div:
Out put date:

B02B014A
3500 models
B02C086A
Vehicle identification number
plate (RHD vehicles only)
EB02C-Zc
This is stamped on the number plate riv-
eted to the left front corner of the instru-
ment panel. It is visible from outside of the
vehicle through the windscreen.
B02C084A
A: RHD
B: LHDVehicle information code plate
EB02CAGa
The vehicle information code plate is riv-
eted as shown in the illustration.
The plate shows model code, engine
model, transmission model and body colour
code, etc.
Please use this number when ordering
replacement parts.
Specifications
10-3
Div:
Out put date:

B02C066A
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code
Specifications
10-4Div:
Out put date:

P01A132U
Specifications
10-5
Div:
Out put date:

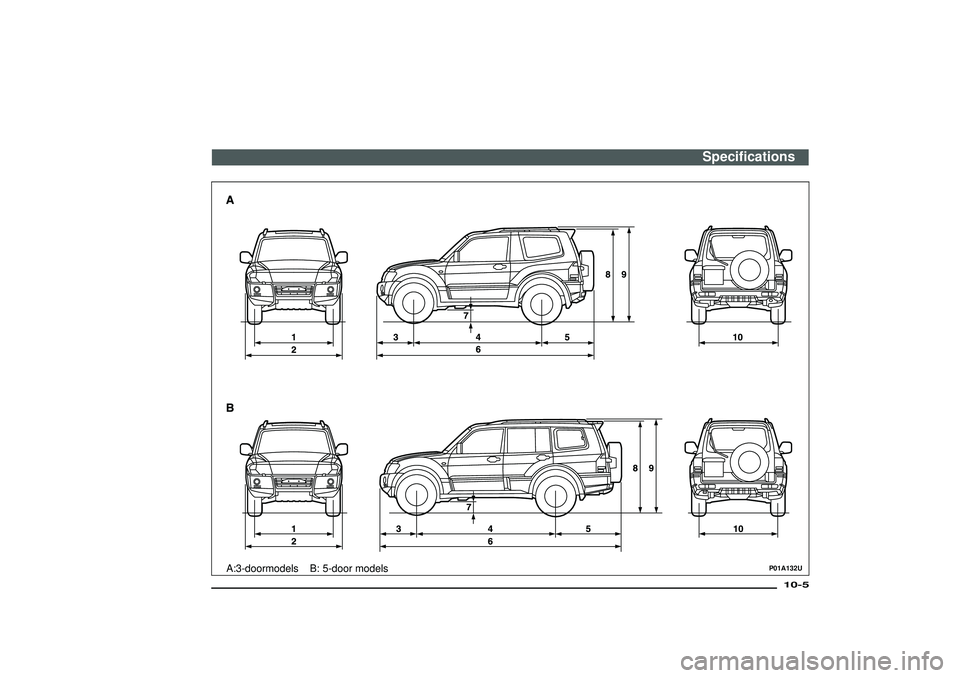

A:3-doormodels B:5-doo rmodels

Dimensions
EP01BOEb
Item 3-door models 5-door models
1 Front track 1, 560 mm
2 Overall width without side protector moulding 1, 885 mm
with side protector moulding 1, 895 mm
3 Front overhang 745 mm
4 Wheel base 2, 545 mm 2, 780 mm
5 Rear overhang with 235/80R16 size tyre 1, 005 mm 1, 285 mm
with 265/70R16 size tyre 1, 025 mm 1, 305 mm
6 Overall length with 235/80R16 size tyre 4, 295 mm 4, 810 mm
with 265/70R16 size tyre 4, 315 mm 4, 830 mm
7 Ground clearance
(unladen) 3200 models 225 mm
Except for 3200 models 235 mm
8 Overall height without roof rail 1, 845 mm 1, 855 mm
9 with roof rail 1, 875 mm 1, 885 mm
10 Rear track 1, 560 mm
Specifications
