MITSUBISHI SHOGUN 2003 Owner's Manual (in English)

N09A136A
Changing a fuse
EN29C-Vb
1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the“LOCK”posi-
tion.
2. Pull the fuse box lid (A) to remove it.
3. Remove the fuse puller (B) from the fuse
box lid (A).
N09A135A
4. The replacement of fuses located in the
driver’s seat foot area should be per-
formed from below the instrument panel.
N29C023A
5. Referring to the fuse load capacity table,
check the fuse pertaining to the prob-
lem.
C- Fuse is OK
D- Blown fuse
NOTE
If any system does not function but the fuse
corresponding to that system is normal,
there may be a fault in the system or else-
where.
Have your vehicle checked by an autho-
rized MITSUBISHI dealer.
For emergencies
8-33
Div:
Out put date:

N29C001A
6. Insert a new fuse of the same capac-
ity by using the fuse puller and insert the
fuse at the same place in the fuse box.
CAUTION
(1) If the newly inserted fuse blows
again after a short time, have the
electric system checked by an
authorized MITSUBISHI dealer to
find the cause and rectify it.
(2) Never use a fuse with a capac-
ity larger than that specified or
any substitute, such as wire, foil,
etc.; doing so will cause the cir-
cuit wiring to heat up and could
cause a fire.
Replacement of lamp bulbs
EN10A-Ab
Before replacing a bulb, ensure the lamp
is off. Do not touch the glass part of the
new bulb with your bare fingers; the skin oil
left on the glass will evaporate when the
bulb gets hot and the vapor will con-
dense on the reflector and dim the sur-
face.
N10B307A
Bulb capacity
EN10BOIb
A bulb should only be replaced with a new
bulb of the same rating and type. The des-
ignation can be found on the base of the
bulb.
Outside
1- Headlamps, upper/lower beam
..................................60/55W (H4)
2- Front fog lamps*
........................... 51W(HB4)·9006
3- Front turn-signal lamps . 21W (W21W)
4- Position lamps................ 5W(W5W)
5- Side turn-signal lamps ... 5W (WY5W)
6- Side step lamps*........... 5W(WY5W)
For emergencies
8-34Div:
Out put date:

N10B308A

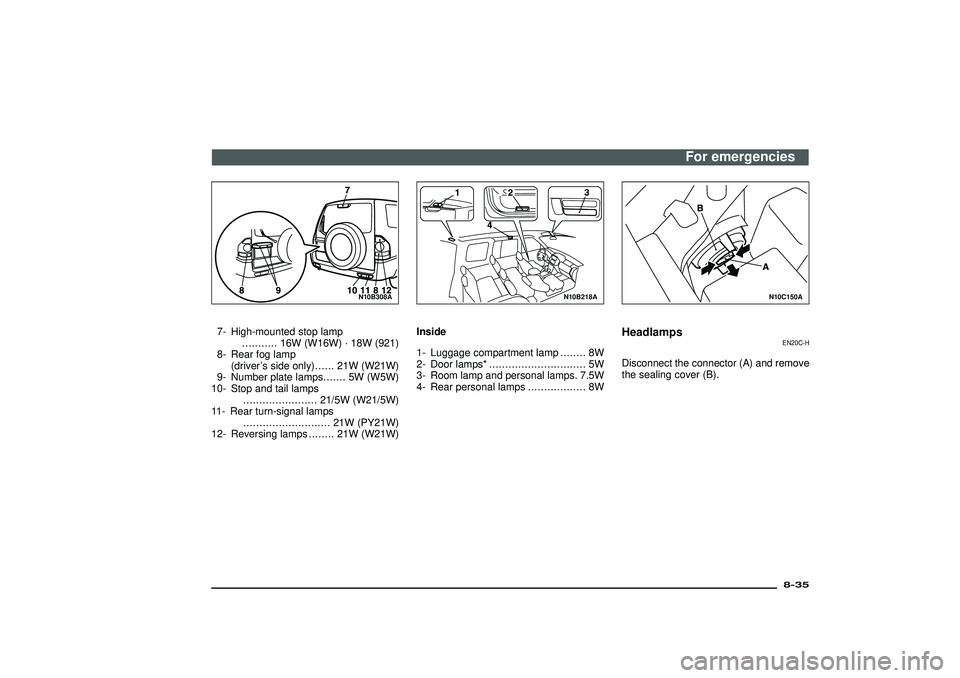

7- High-mounted stop lamp
........... 16W(W16W)·18W (921)
8- Rear fog lamp
(driver’s side only)...... 21W(W21W)
9- Number plate lamps....... 5W(W5W)
10- Stop and tail lamps
.......................21/5W (W21/5W)
11- Rear turn-signal lamps
........................... 21W(PY21W)
12- Reversing lamps........ 21W(W21W)
N10B218A
Inside
1- Luggage compartment lamp........ 8W
2- Door lamps*.............................. 5W
3- Room lamp and personal lamps. 7.5W
4- Rear personal lamps.................. 8W
N10C150A
Headlamps
EN20C-H
Disconnect the connector (A) and remove
the sealing cover (B).
For emergencies
8-35
Div:
Out put date:

N10C200A

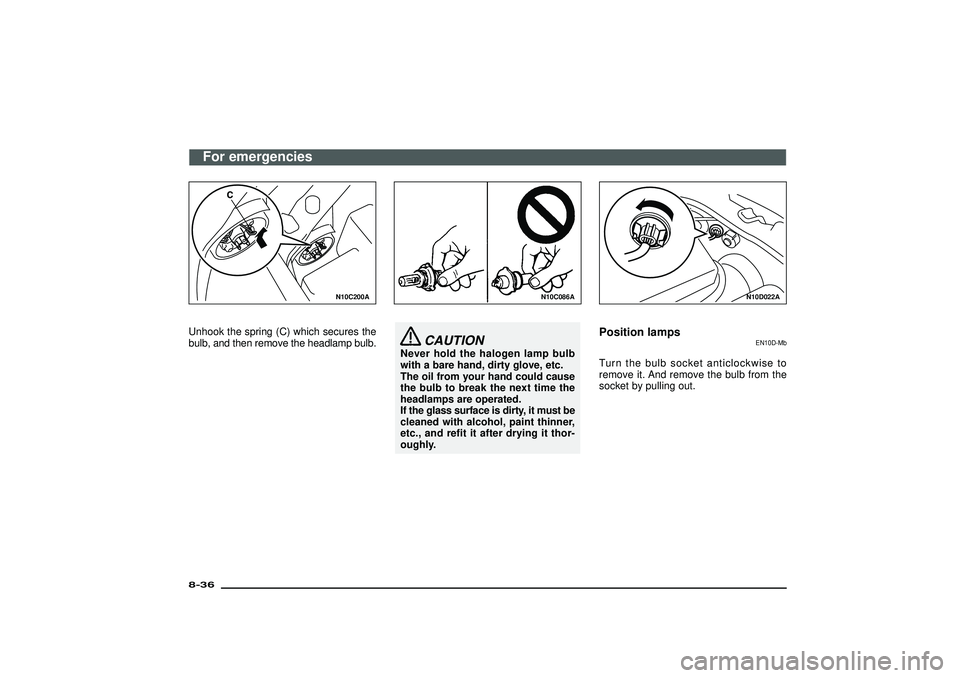

Unhook the spring (C) which secures the
bulb, and then remove the headlamp bulb.
N10C086A
CAUTION
Never hold the halogen lamp bulb
with a bare hand, dirty glove, etc.
The oil from your hand could cause
the bulb to break the next time the
headlamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner,
etc., and refit it after drying it thor-
oughly.
N10D022A
Position lamps
EN10D-Mb
Turn the bulb socket anticlockwise to
remove it. And remove the bulb from the
socket by pulling out.
For emergencies
8-36Div:
Out put date:

N10F089A

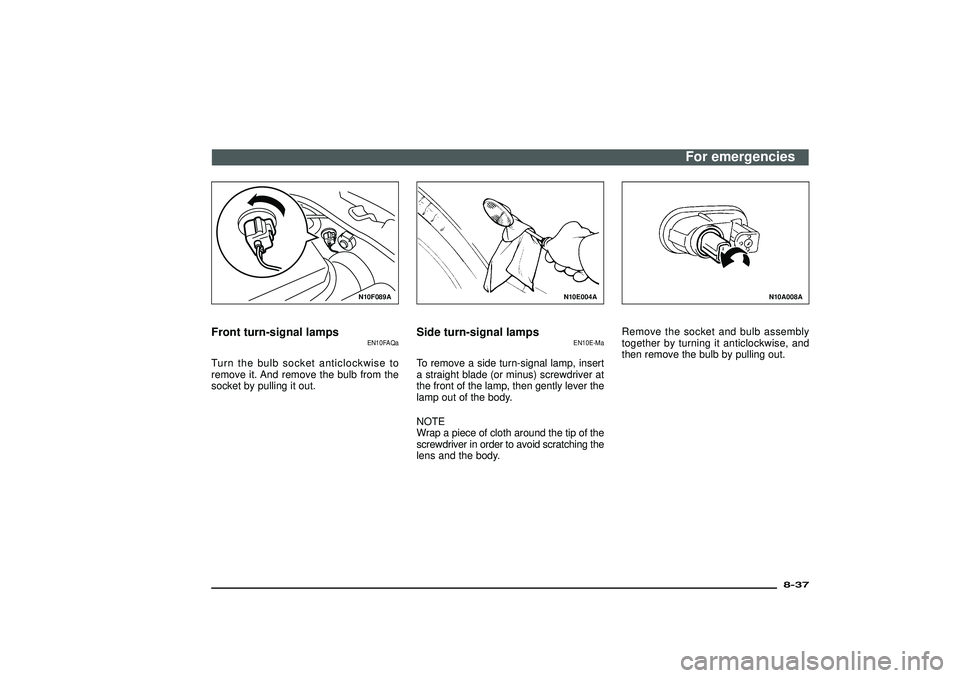

Front turn-signal lamps
EN10FAQa
Turn the bulb socket anticlockwise to
remove it. And remove the bulb from the
socket by pulling it out.
N10E004A
Side turn-signal lamps
EN10E-Ma
To remove a side turn-signal lamp, insert
a straight blade (or minus) screwdriver at
the front of the lamp, then gently lever the
lamp out of the body.
NOTE
Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens and the body.
N10A008A
Remove the socket and bulb assembly
together by turning it anticlockwise, and
then remove the bulb by pulling out.
For emergencies
8-37
Div:
Out put date:

N10X181A

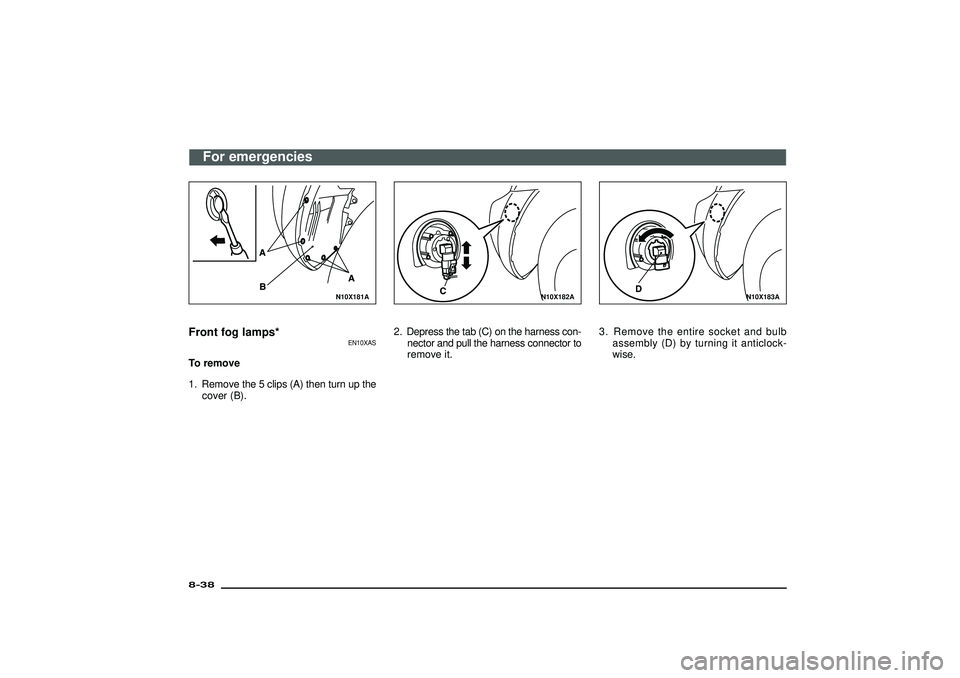

Front fog lamps*
EN10XAS
To remove
1. Remove the 5 clips (A) then turn up the
cover (B).
N10X182A
2. Depress the tab (C) on the harness con-
nector and pull the harness connector to
remove it.
N10X183A
3. Remove the entire socket and bulb
assembly (D) by turning it anticlock-
wise.
For emergencies
8-38Div:
Out put date:

N10X144A

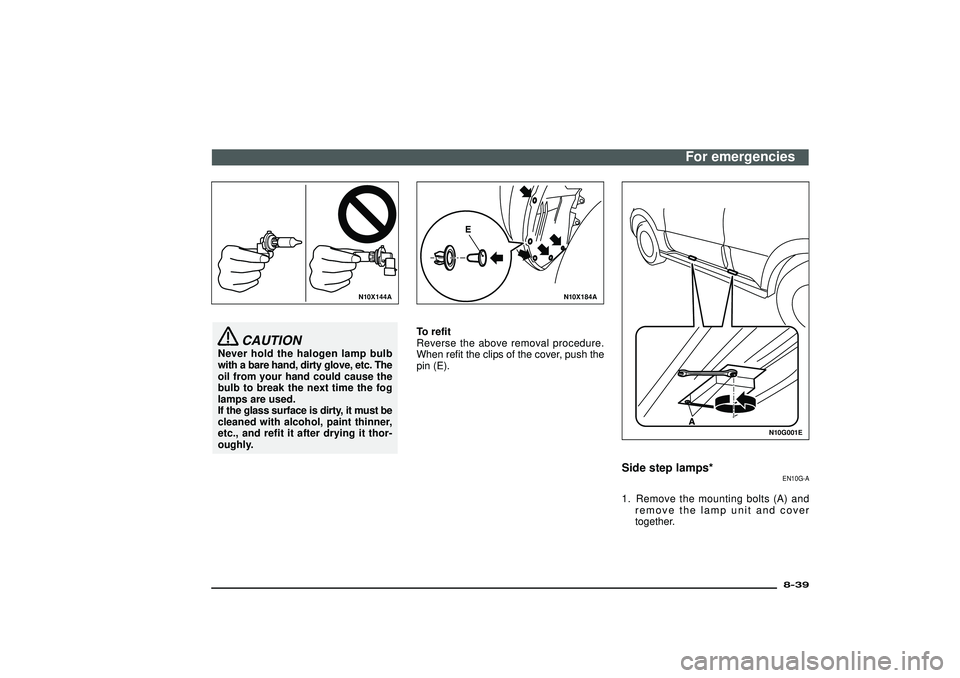

CAUTION
Never hold the halogen lamp bulb
with a bare hand, dirty glove, etc. The
oil from your hand could cause the
bulb to break the next time the fog
lamps are used.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner,
etc., and refit it after drying it thor-
oughly.
N10X184A
To refit
Reverse the above removal procedure.
When refit the clips of the cover, push the
pin (E).
N10G001E
Side step lamps*
EN10G-A
1. Remove the mounting bolts (A) and
remove the lamp unit and cover
together.
For emergencies
8-39
Div:
Out put date:

N10G002A

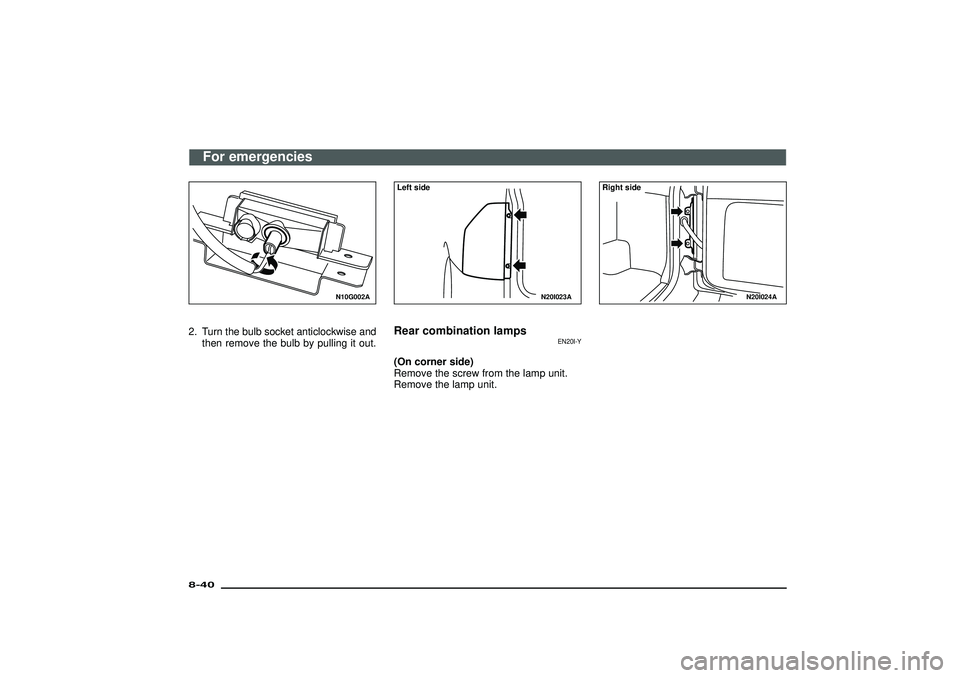

2. Turn the bulb socket anticlockwise and
then remove the bulb by pulling it out.
N20I023A
Left sideRear combination lamps
EN20I-Y
(On corner side)
Remove the screw from the lamp unit.
Remove the lamp unit.
N20I024A
Right side
For emergencies
8-40Div:
Out put date:

N20I025A

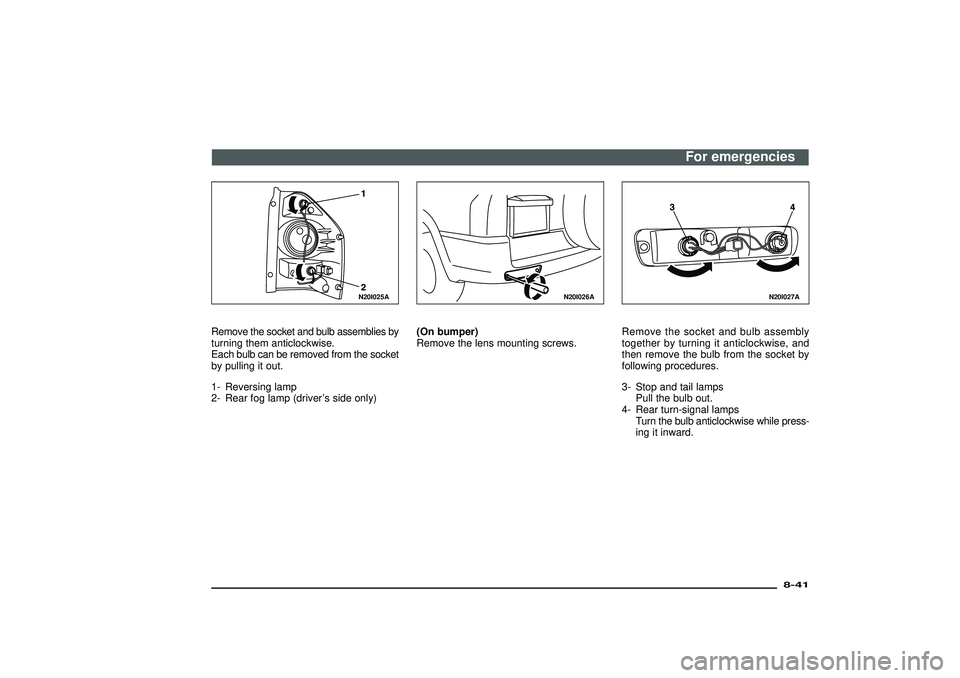

Remove the socket and bulb assemblies by
turning them anticlockwise.
Each bulb can be removed from the socket
by pulling it out.
1- Reversing lamp
2- Rear fog lamp (driver’s side only)
N20I026A
(On bumper)
Remove the lens mounting screws.
N20I027A
Remove the socket and bulb assembly
together by turning it anticlockwise, and
then remove the bulb from the socket by
following procedures.
3- Stop and tail lamps
Pull the bulb out.
4- Rear turn-signal lamps
Turn the bulb anticlockwise while press-
ing it inward.
For emergencies
8-41
Div:
Out put date:

N10V062A

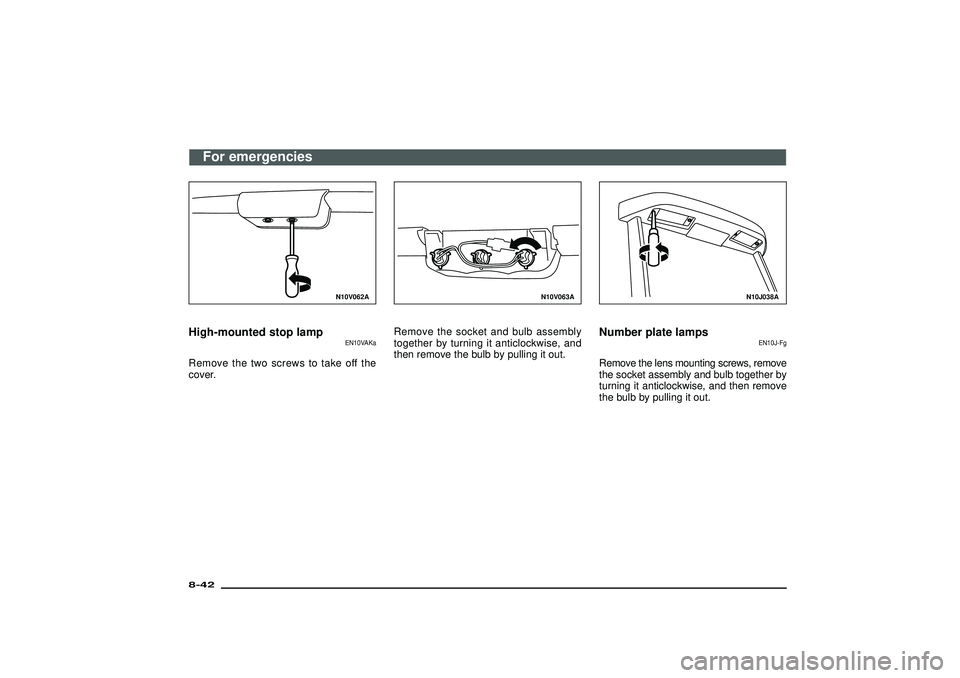

High-mounted stop lamp
EN10VAKa
Remove the two screws to take off the
cover.
N10V063A
Remove the socket and bulb assembly
together by turning it anticlockwise, and
then remove the bulb by pulling it out.
N10J038A
Number plate lamps
EN10J-Fg
Remove the lens mounting screws, remove
the socket assembly and bulb together by
turning it anticlockwise, and then remove
the bulb by pulling it out.
