MITSUBISHI SHOGUN 2003 Owner's Manual (in English)

Performance
EP01COE
Item3-door models 5-door models
2500 models 3200 models3500 models
2500 models 3200 models3500 models
M/T A/T M/T A/T
Maximum speed150km/h
(93 mph)170km/h
(106 mph)190km/h
(118 mph)185km/h
(115 mph)150km/h
(93 mph)170km/h
(106 mph)190km/h
(118 mph)185km/h
(115 mph)
Maximum climbing ability (in 1st gear) 35°35°
Minimum turning radiusBody 5.7 m 6.1 m
Wheel 5.3 m 5.7 m
Weight
EP01DOEa
3-door models
Item2500 models 3200 models
3500 models
GL GLX GLS GL GLX GLS
Kerb weight 1, 880 kg 1, 920 kg 1, 950 kg 1, 980 kg 1, 990 kg 2, 020 kg 1, 950 kg
Maximum gross vehicle weight 2, 510 kg, 2, 510 kg*2, 510 kg,
2, 610 kg*2, 510 kg, 2, 610 kg*2, 510 kg,
2, 610 kg*
Maximum axle weightFront 1, 200 kg
Rear 1, 600 kg
Maximum towable weightWith brake 2, 800 kg
Without brake 750 kg
Maximum trailer-nose weight11 5 k g
Maximum roof load100 kg
Seating capacity5 persons
* : In case of trailer towing
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
Specifications
10-7
Div:
Out put date:

5-door models
Item2500 models 3200 models 3500 models
GLX GLS GL GLX GLS GLX GLS
Kerb weight 2, 070 kg 2, 120 kg 2, 130 kg 2, 140 kg 2, 170 kg 2, 070 kg 2, 110 kg
Maximum gross vehicle weight 2, 760 kg, 2, 860 kg* 2, 810 kg, 2, 900 kg* 2, 760 kg, 2, 860 kg*
Maximum axle weightFront 1, 200 kg, 1, 200 kg*
Rear 1, 650 kg, 1, 790 kg*
Maximum towable weightWith brake 3, 300 kg
Without brake 750 kg
Maximum trailer-nose weight135 kg
Maximum roof load100 kg
Seating capacity7 persons, (5 persons)
* : In case of trailer towing
( ): In case of vehicle without third seat
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
Specifications
10-8Div:
Out put date:

Engine
EP01EOEa
ItemDiesel-powered vehicles
Petrol-powered vehicles
3500 models
2500 models 3200 models
Engine typeFour-cylinder, in line, water-cooled
four-cycle, overhead camshaft
with inter cooler turbo chargerFour-cylinder, in line, water-cooled
four-cycle, double overhead camshaft
with inter cooler turbo chargerSix-cylinder, 60°V, water-cooled
four-cycle, double overhead camshaft
Engine model
Total displacement
Bore
Stroke
Compression ratio4D56
2, 477 cc
91.1 mm
95.0 mm
21.0 : 14M41
3, 200 cc
98.5 mm
105.0 mm
17.0 : 16G74
3, 497 cc
93.0 mm
85.8 mm
10.4 : 1
Valve clearanceIntake 0.25 mm 0.1 mm Automatically
Exhaust 0.25 mm 0.15 mm Automatically
Firing order−−1-2-3-4-5-6
Maximum output 85 kW/4, 000r/min 118*
1, 121*
2kW/3, 800r/min 149 kW/5, 000 r/min
Maximum torque 240 Nm/2, 000r/min 373 Nm/2, 000r/min 318 Nm/4, 000 r/min
*
1: Vehicles to comply with the Euro 3 regulation
*2: Vehicles to comply with the Euro 2 regulationTransmission
EP01FOE
ItemM/T
A/T
2500 models 3200 models 3500 models
Gear ratio1st
2nd
3rd
4th
5th
Reverse3.918*
1, 3.952*
2
2.261*
1, 2.238*
2
1.395*
1, 1.398*
2
1.000
0.829*1, 0.819*
2
3.925*
1, 3.553*
2
4.234
2.238
1.398
1.000
0.760
3.5534.234
2.238
1.398
1.000
0.819
3.5533.789
2.057
1.421
1.000
0.731
3.865
Transfer gear ratioHigh
Low1.000
1.925*
1, 1.900*
2
1.000
1.900
*
1: Part time 4WD models
*2: Super select 4WD II models
Specifications
10-9
Div:
Out put date:

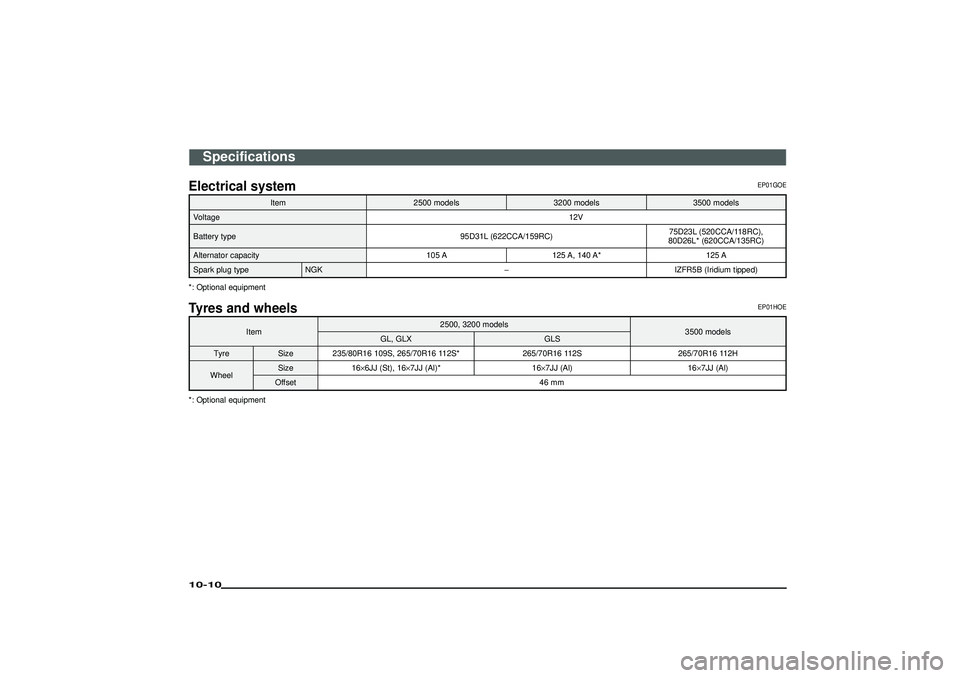

Electrical system
EP01GOE
Item 2500 models 3200 models 3500 models
Voltage12V
Battery type 95D31L (622CCA/159RC)75D23L (520CCA/118RC),
80D26L* (620CCA/135RC)
Alternator capacity 105 A 125 A, 140 A* 125 A
Spark plug type NGK−IZFR5B (Iridium tipped)
*: Optional equipment
Tyres and wheels
EP01HOE
Item2500, 3200 models
3500 models
GL, GLX GLS
Tyre Size 235/80R16 109S, 265/70R16 112S* 265/70R16 112S 265/70R16 112H
WheelSize 16×6JJ (St), 16×7JJ (Al)* 16×7JJ (Al) 16×7JJ (Al)
Offset 46 mm
*: Optional equipment
Specifications
10-10Div:
Out put date:

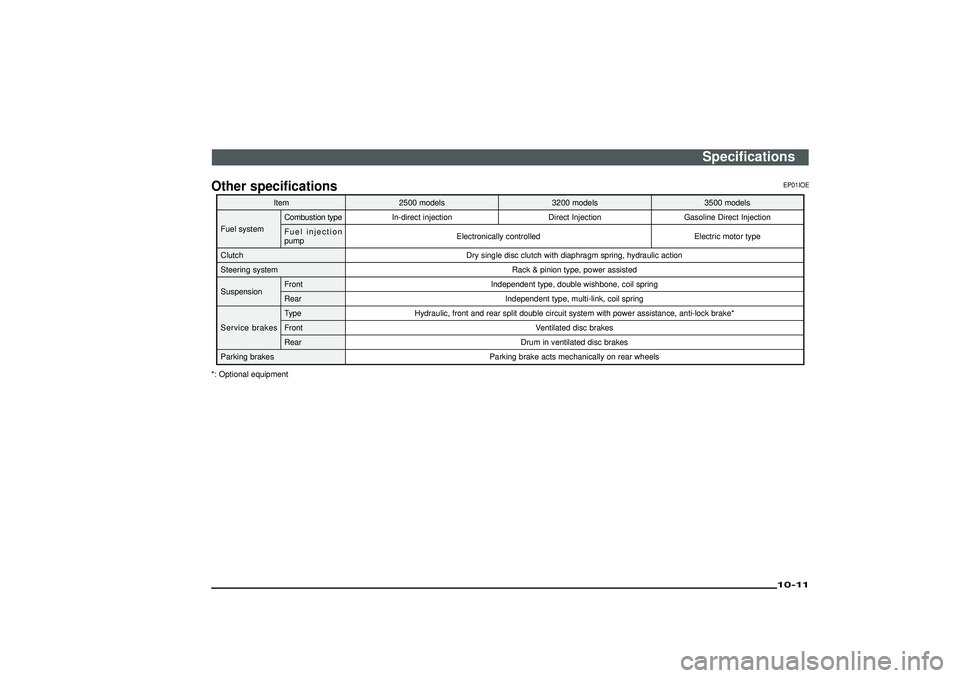

Other specifications
EP01IOE
Item 2500 models 3200 models 3500 models
Fuel systemCombustion typeIn-direct injection Direct Injection Gasoline Direct Injection
Fuel injection
pumpElectronically controlled Electric motor type
Clutch Dry single disc clutch with diaphragm spring, hydraulic action
Steering system Rack & pinion type, power assisted
SuspensionFront Independent type, double wishbone, coil spring
Rear Independent type, multi-link, coil spring
Service brakesType Hydraulic, front and rear split double circuit system with power assistance, anti-lock brake*
Front Ventilated disc brakes
Rear Drum in ventilated disc brakes
Parking brakes Parking brake acts mechanically on rear wheels
*: Optional equipment
Specifications
10-11
Div:
Out put date:

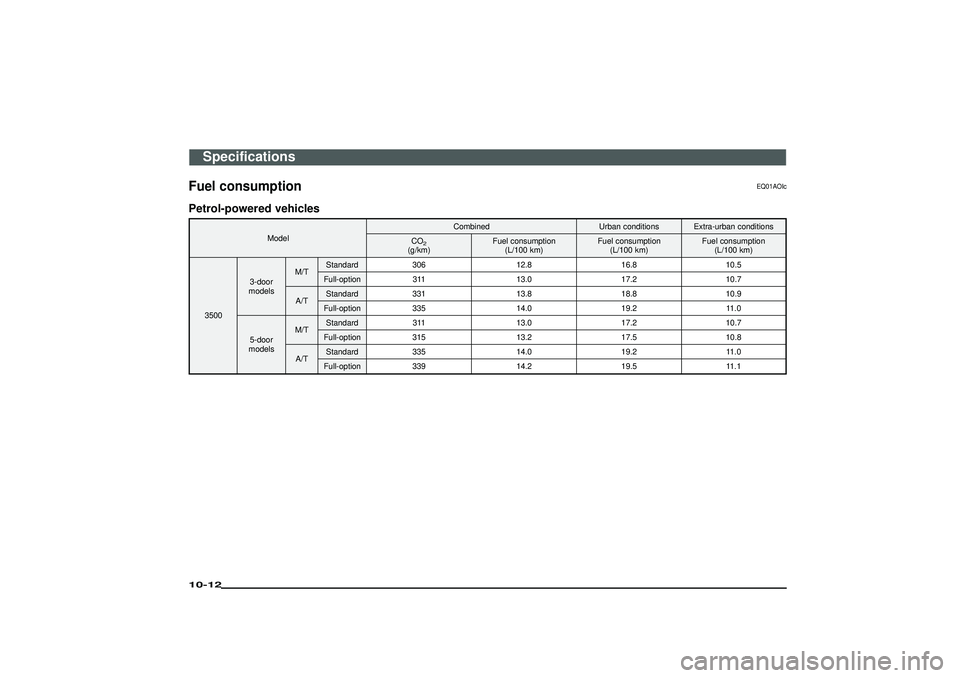

Fuel consumption
EQ01AOIc
Petrol-powered vehicles
ModelCombined Urban conditions Extra-urban conditions
CO
2
(g/km)Fuel consumption
(L/100 km)Fuel consumption
(L/100 km)Fuel consumption
(L/100 km)
35003-door
modelsM/TStandard 306 12.8 16.8 10.5
Full-option 311 13.0 17.2 10.7
A/TStandard 331 13.8 18.8 10.9
Full-option 335 14.0 19.2 11.0
5-door
modelsM/TStandard 311 13.0 17.2 10.7
Full-option 315 13.2 17.5 10.8
A/TStandard 335 14.0 19.2 11.0
Full-option 339 14.2 19.5 11.1
Specifications
10-12Div:
Out put date:

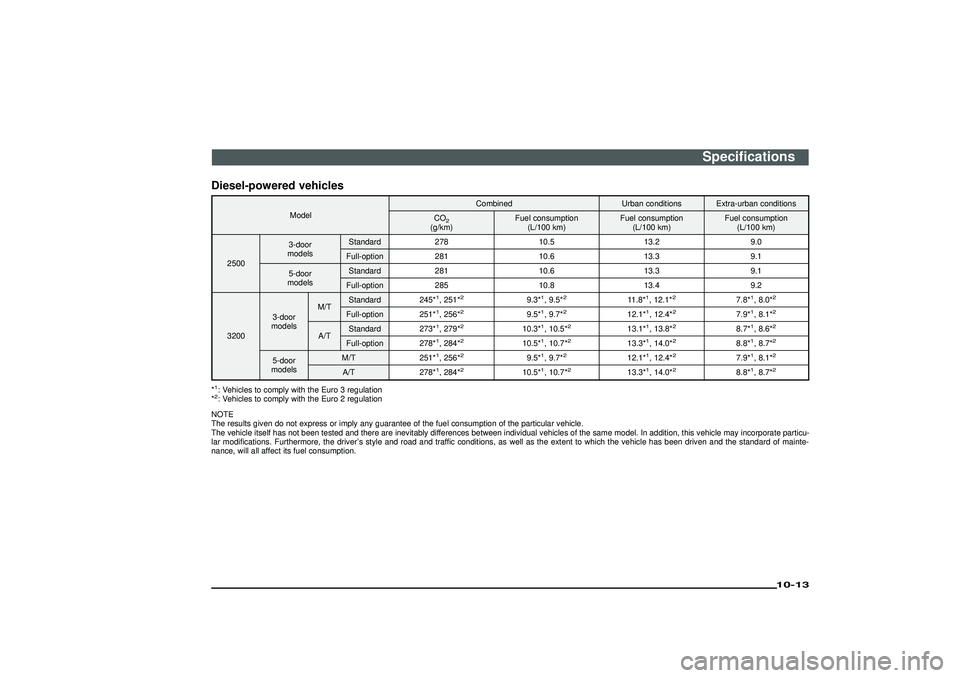

Diesel-powered vehicles
ModelCombined Urban conditions Extra-urban conditions
CO
2
(g/km)Fuel consumption
(L/100 km)Fuel consumption
(L/100 km)Fuel consumption
(L/100 km)
25003-door
modelsStandard 278 10.5 13.2 9.0
Full-option 281 10.6 13.3 9.1
5-door
modelsStandard 281 10.6 13.3 9.1
Full-option 285 10.8 13.4 9.2
32003-door
modelsM/TStandard 245*1, 251*
2
9.3*
1, 9.5*
2
11.8*
1, 12.1*
2
7.8*
1, 8.0*
2
Full-option 251*
1, 256*
2
9.5*
1, 9.7*
2
12.1*
1, 12.4*
2
7.9*
1, 8.1*
2
A/TStandard 273*
1, 279*
2
10.3*
1, 10.5*
2
13.1*
1, 13.8*
2
8.7*
1, 8.6*
2
Full-option 278*
1, 284*
2
10.5*
1, 10.7*
2
13.3*
1, 14.0*
2
8.8*
1, 8.7*
2
5-door
modelsM/T 251*
1, 256*
2
9.5*
1, 9.7*
2
12.1*
1, 12.4*
2
7.9*
1, 8.1*
2
A/T 278*
1, 284*
2
10.5*
1, 10.7*
2
13.3*
1, 14.0*
2
8.8*
1, 8.7*
2
*1: Vehicles to comply with the Euro 3 regulation
*2: Vehicles to comply with the Euro 2 regulation
NOTE
The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incorporate particu-
lar modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of mainte-
nance, will all affect its fuel consumption.
Specifications
10-13
Div:
Out put date:

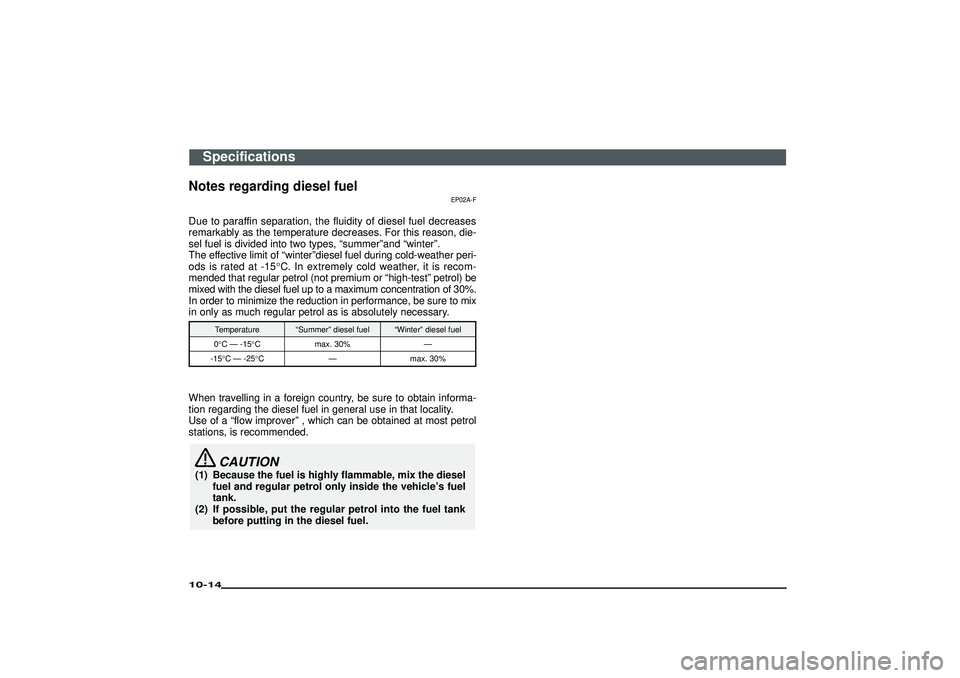

Notes regarding diesel fuel
EP02A-F
Due to paraffin separation, the fluidity of diesel fuel decreases
remarkably as the temperature decreases. For this reason, die-
sel fuel is divided into two types,“summer”and“winter”.
The effective limit of“winter”diesel fuel during cold-weather peri-
ods is rated at -15°C. In extremely cold weather, it is recom-
mended that regular petrol (not premium or“high-test”petrol) be
mixed with the diesel fuel up to a maximum concentration of 30%.
In order to minimize the reduction in performance, be sure to mix
in only as much regular petrol as is absolutely necessary.
Temperature“Summer”diesel fuel“Winter”diesel fuel
0°C—-15°C max. 30%—
-15°C—-25°C—max. 30%
When travelling in a foreign country, be sure to obtain informa-
tion regarding the diesel fuel in general use in that locality.
Use of a“flow improver”, which can be obtained at most petrol
stations, is recommended.
CAUTION
(1) Because the fuel is highly flammable, mix the diesel
fuel and regular petrol only inside the vehicle’s fuel
tank.
(2) If possible, put the regular petrol into the fuel tank
before putting in the diesel fuel.Specifications
10-14Div:
Out put date:

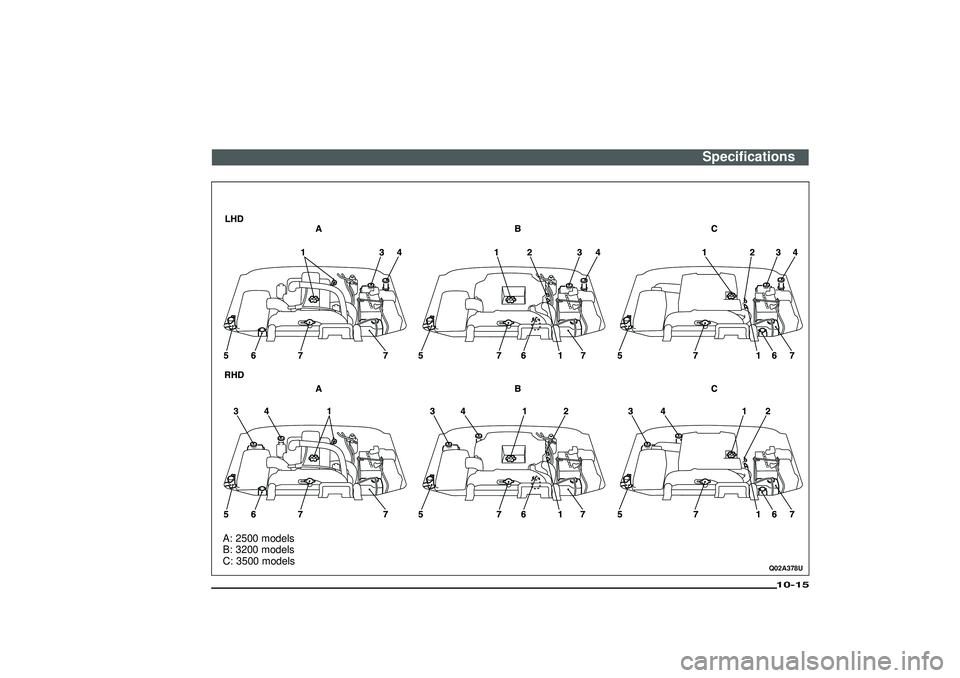

Q02A378U
Specifications
10-15
Div:
Out put date:
A: 2500 models
B: 3200 models
C: 3500 models

Capacities
EQ02AOIc
N o . Item Quantity Recommended lubricants1 Engine oil 2500 models
Oil pan 6.3 litres
Refer to page 9-2.
Oil filter 0.8 litre
Oil cooler 0.3 litre
3200 models Oil pan 7.5 litres
Oil filter 1.0 litre
Oil cooler 1.3 litres
3500 models Oil pan 4.3 litres
Oil filter 0.3 litre
Oil cooler 0.3 litre
2 Automatic transmission fluid 9.7 litres DIA QUEEN ATF SP III
3 Brake fluid As required Brake fluid DOT 3 or DOT 4
4 Clutch fluid As requiredSpecifications
