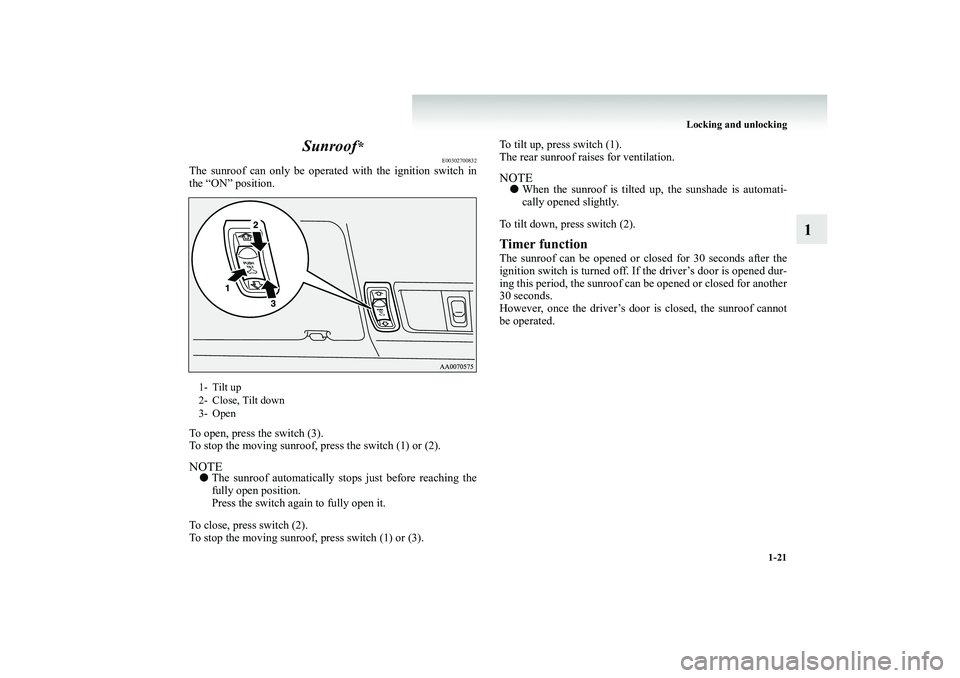

MITSUBISHI SHOGUN 2008 (in English) Service Manual

Locking and unlocking
1-21
1
Sunroof
*
E00302700832
The sunroof can only be operated with the ignition switch in the “ON” position. To open, press the switch (3). To stop the moving sunroof, press the switch (1) or (2).NOTE●
The sunroof automatically stop
s just before reaching the
fully open position. Press the switch again to fully open it.
To close, press switch (2). To stop the moving sunroof, press switch (1) or (3).
To tilt up, press switch (1). The rear sunroof raises for ventilation.NOTE●
When the sunroof is tilted up, the sunshade is automati- cally opened slightly.
To tilt down, press switch (2).Timer functionThe sunroof can be opened or closed for 30 seconds after the ignition switch is turned off. If the driver’s door is opened dur- ing this period, the sunroof can be opened or closed for another 30 seconds.However, once the driver’s door is closed, the sunroof cannot be operated.
1- Tilt up 2- Close, Tilt down3- Open
BK-BK2008E1ENUK.en-uk-Section4.fm Page
21 Wednesday, January 9, 2008 4:22 PM

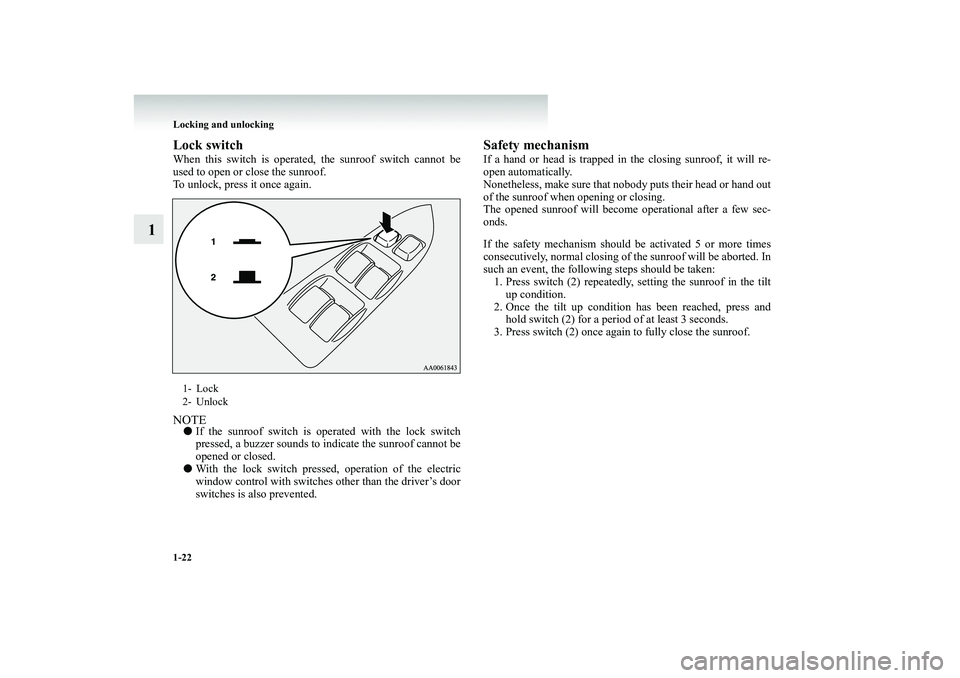

1-22 Locking and unlocking
1
Lock switchWhen this switch is operated
, the sunroof switch cannot be
used to open or close the sunroof.To unlock, press it once again.NOTE●
If the sunroof switch is operated with the lock switch pressed, a buzzer sounds to
indicate the sunroof cannot be
opened or closed.
●
With the lock switch presse
d, operation of the electric
window control with switches other than the driver’s door switches is also prevented.
Safety mechanismIf a hand or head is trapped in
the closing sunroof, it will re-
open automatically.Nonetheless, make sure that nobody puts their head or hand out of the sunroof when opening or closing. The opened sunroof will become
operational after a few sec-
onds. If the safety mechanism should be activated 5 or more times consecutively, normal closing of the sunroof will be aborted. In such an event, the followi
ng steps should be taken:
1. Press switch (2) repeatedly, setting the sunroof in the tilt
up condition.
2. Once the tilt up condition
has been reached, press and
hold switch (2) for a period of at least 3 seconds.
3. Press switch (2) once again
to fully close the sunroof.
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page
22 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-23
1

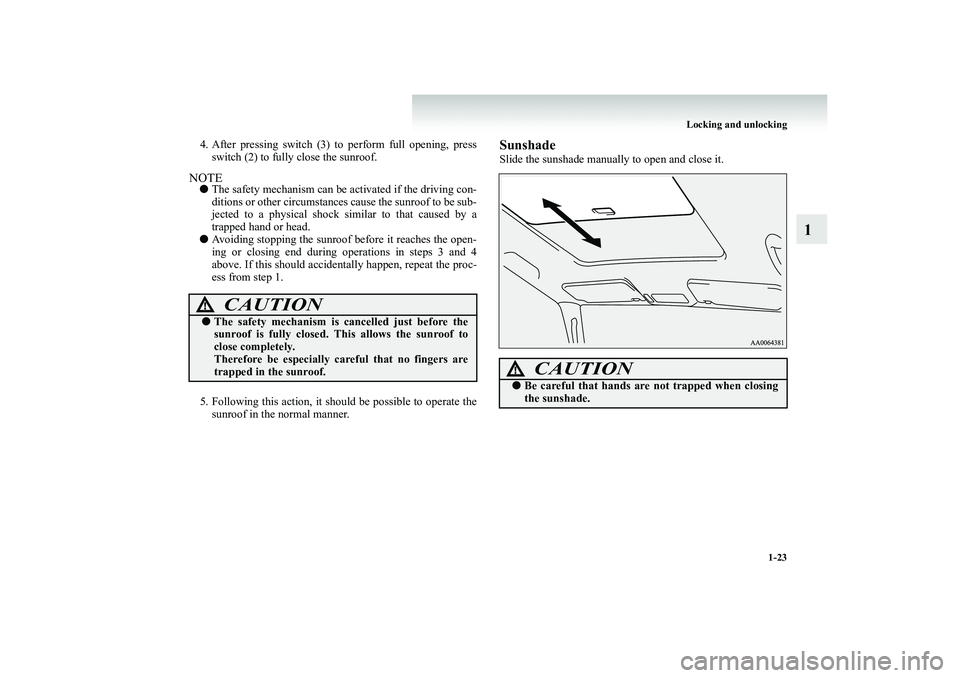

4. After pressing switch (3) to
perform full opening, press
switch (2) to fully
close the sunroof.
NOTE●
The safety mechanism can be
activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-jected to a physical shock similar to that caused by a trapped hand or head.
●
Avoiding stopping the sunroof be
fore it reaches the open-
ing or closing end during operations in steps 3 and 4 above. If this should accident
ally happen, repeat the proc-
ess from step 1.
5. Following this action, it should be possible to operate the
sunroof in the normal manner.
SunshadeSlide the sunshade manually to open and close it.
CAUTION
!●
The safety mechanism is cancelled just before the sunroof is fully closed. Th
is allows the sunroof to
close completely. Therefore be especially careful that no fingers are trapped in the sunroof.
CAUTION
!●
Be careful that hands are
not trapped when closing
the sunshade.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
23 Wednesday, January 9, 2008 4:22 PM

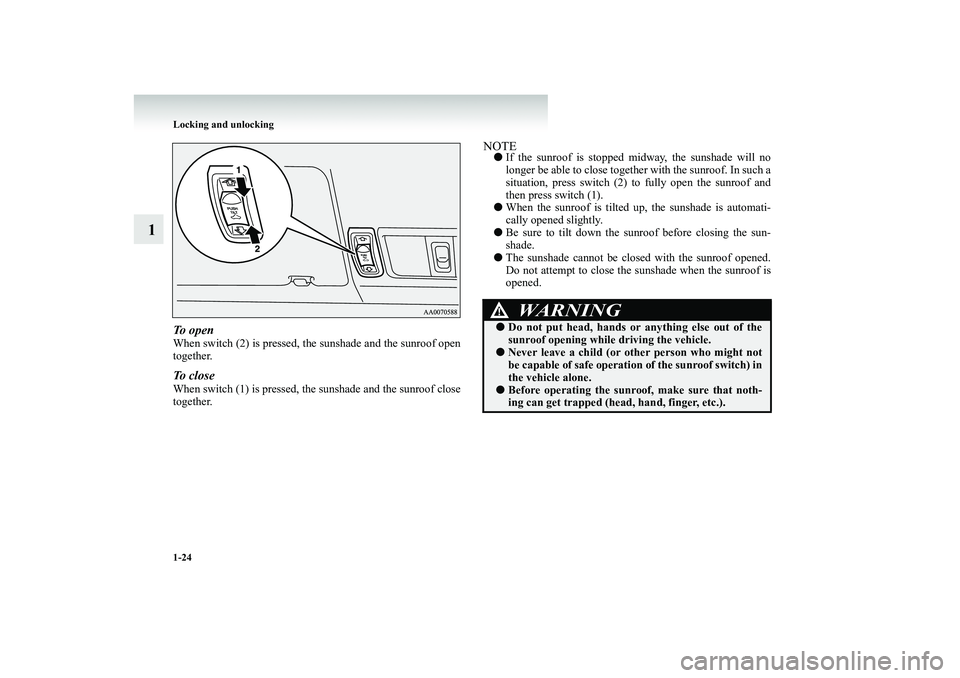

1-24 Locking and unlocking
1
To o p e nWhen switch (2) is pressed, th
e sunshade and the sunroof open
together.To c l o s eWhen switch (1) is pressed, the sunshade and the sunroof close together.
NOTE●
If the sunroof is stopped midway, the sunshade will no longer be able to close together
with the sunroof. In such a
situation, press switch (2) to
fully open the sunroof and
then press switch (1).
●
When the sunroof is tilted up
, the sunshade is automati-
cally opened slightly.
●
Be sure to tilt down the sunroof before closing the sun- shade.
●
The sunshade cannot be closed with the sunroof opened. Do not attempt to close the sunshade when the sunroof isopened.
WARNING
!●
Do not put head, hands or
anything else out of the
sunroof opening while driving the vehicle.
●
Never leave a child (or ot
her person who might not
be capable of safe operation
of the sunroof switch) in
the vehicle alone.
●
Before operating the sunroof, make sure that noth- ing can get trapped (head, hand, finger, etc.).
BK-BK2008E1ENUK.en-uk-Section4.fm Page
24 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-25
1
NOTE●
The sunroof stops just before
reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this position, wind throb is lower than with the sunroof fully open.
●
When leaving the vehicle un
attended, make sure you
close the sunroof and remove the ignition key.
●
Do not try to operate the su
nroof if it is frozen closed
(after snow fall or
during extr
eme cold).
●
Do not sit or place heavy lu
ggage on the sunroof or roof
opening edge.
●
Release the switch as soon as the sunroof reaches the fully open or fully closed position.
●
If the sunroof does not operat
e when the sunroof switch is
operated, release the switch
and check whether something
is trapped by the sunroof. If no
thing is trapped, we recom-
mend you to have the sunroof checked.
●
Depending on the model of ski carriers or roof carriers, the sunroof may make contact
with the carrier when the
sunroof is tilted up. Be careful when tilting up the sunroofif such a ski carrier or a
roof carrier is installed.
●
Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.
●
Be careful, not to put any wa
x on the weatherstrip (black
rubber) around the sunroof ope
ning. If stained with wax,
the weatherstrip cannot maintain a weatherproof seal withthe sunroof.
●
After washing the vehicle or after it has rained, wipe off any water that is on the sunroof before operating it.
●
Operating the sunroof repeated
ly with the engine station-
ary will run down the battery
. Operate the sunroof while
the engine is running.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
25 Wednesday, January 9, 2008 4:22 PM

BK-BK2008E1ENUK.en-uk-Section4.fm Page
26 Wednesday, January 9, 2008 4:22 PM

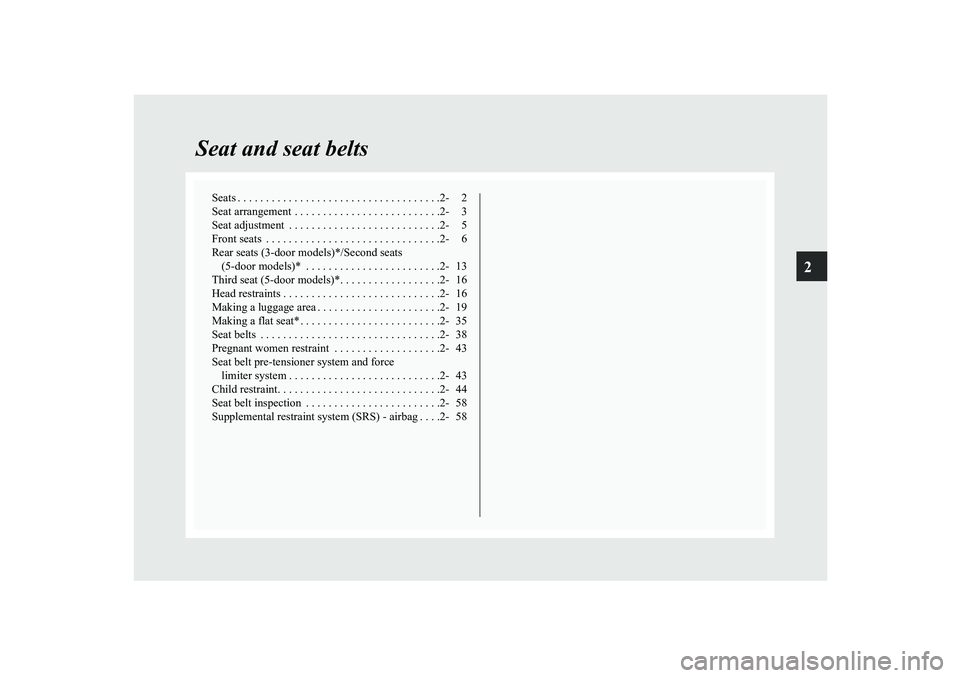

2
Seat and seat belts
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2 Seat arrangement . . . . . . . . . . . . . . . . . . . . . . . . . .2- 3Seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 5Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 6Rear seats (3-door m
odels)*/Second seats
(5-door models)* . . . . . . . . . . . . . . . . . . . . . . . .2- 13Third seat (5-door models)*. . . . . . . . . . . . . . . . . .2- 16Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 16Making a luggage area . . . . . . . . . . . . . . . . . . . . . .2- 19Making a flat seat* . . . . . . . . . . . . . . . . . . . . . . . . .2- 35Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 38Pregnant women restraint . . . . . . . . . . . . . . . . . . .2- 43Seat belt pre-tensioner system and force limiter system . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 43Child restraint. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 44Seat belt inspection . . . . . . . . . . . . . . . . . . . . . . . .2- 58Supplemental restraint system (SRS) - airbag . . . .2- 58
BK-BK2008E1ENUK.en-uk-Section5.fm Page 1 Wednesday, January 9, 2008 4:28 PM

2-2 Seat and seat belts
2

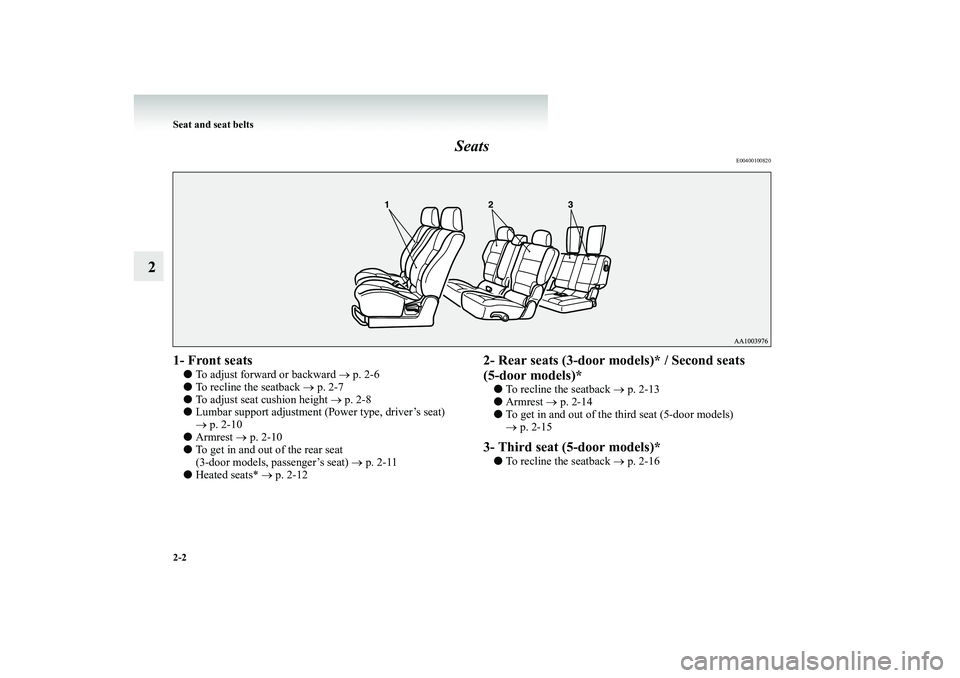

Seats
E00400100820
1- Front seats●
To adjust forward or backward
→ p. 2-6
●
To recline the seatback
→ p. 2-7
●
To adjust seat cushion height
→ p. 2-8
●
Lumbar support adjustment (P
ower type, driver’s seat)
→ p. 2-10
●
Armrest
→ p. 2-10
●
To get in and out of the rear seat (3-door models, passenger’s seat)
→ p. 2-11
●
Heated seats*
→ p. 2-12
2- Rear seats (3-door mo
dels)* / Second seats
(5-door models)*●
To recline the seatback
→ p. 2-13
●
Armrest
→ p. 2-14
●
To get in and out of the third seat (5-door models) → p. 2-15
3- Third seat (5-door models)*●
To recline the seatback
→ p. 2-16
BK-BK2008E1ENUK.en-uk-Section5.fm Page 2 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-3
2

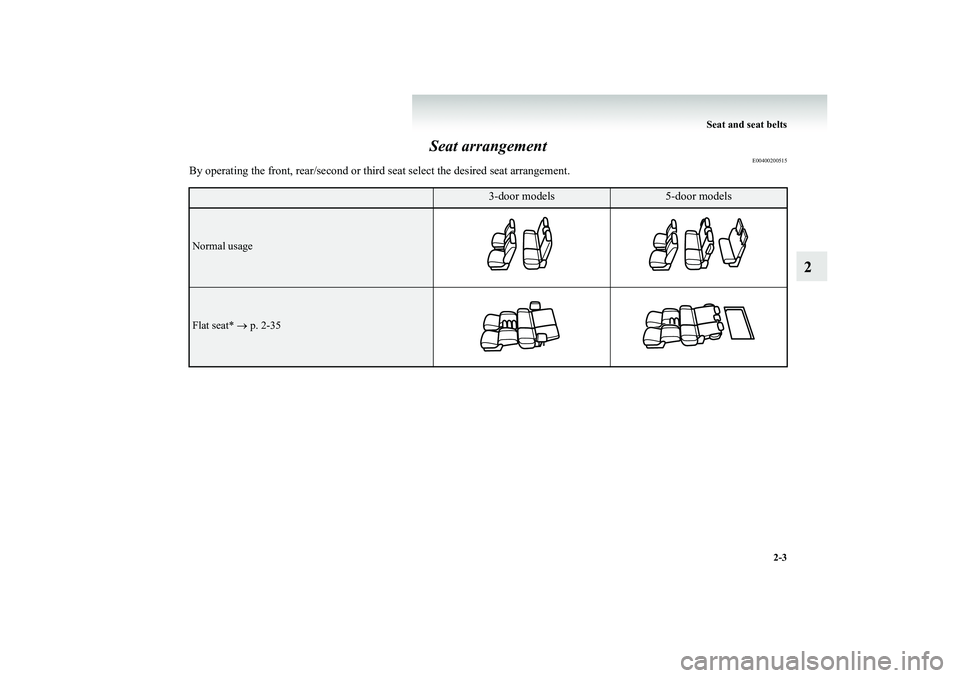

Seat arrangement
E00400200515
By operating the front, rear/second or third
seat select the desired seat arrangement.
3-door models
5-door models
Normal usageFlat seat*
→ p. 2-35
BK-BK2008E1ENUK.en-uk-Section5.fm Page 3 Wednesday, January 9, 2008 4:28 PM

2-4 Seat and seat belts
2

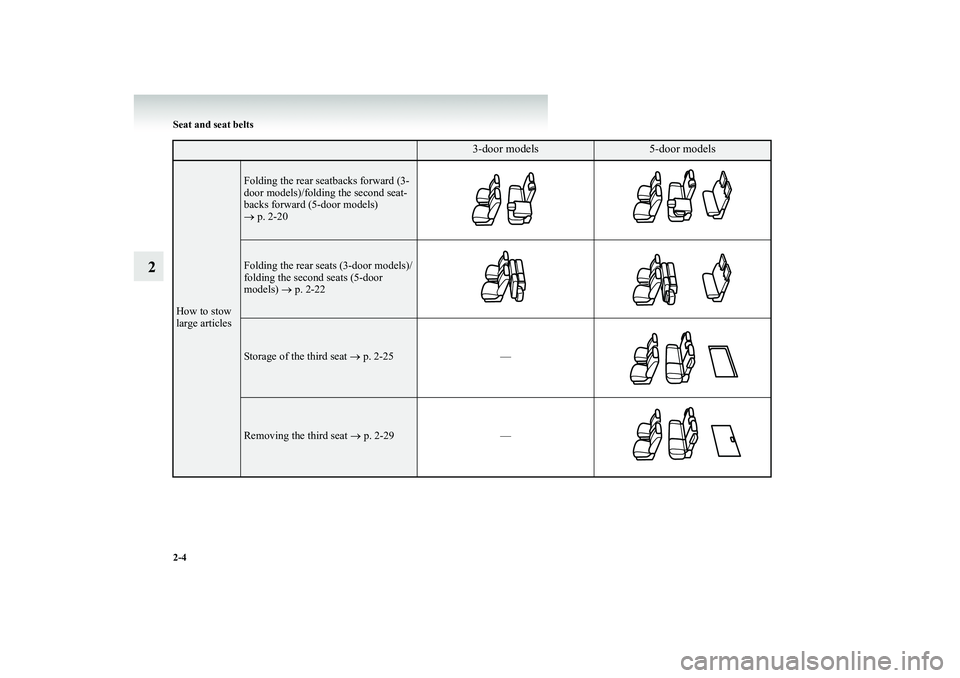

How to stow large articles
Folding the rear seatbacks forward (3-door models)/folding the second seat-backs forward (5-door models) → p. 2-20Folding the rear seats (3-door models)/ folding the second seats (5-door models)
→ p. 2-22
Storage of the third seat
→ p. 2-25 —
Removing the third seat
→ p. 2-29 —
3-door models
5-door models
