MITSUBISHI SHOGUN 2008 (in English) Owner's Guide

Locking and unlocking
1-11
1
“Child-protection” rear doors
(5-door models)
E00300900263
Child protection helps prevent the rear doors from being opened accidentally from the inside.If the lever is set to the locked
position, the rear doors cannot
be opened using the inside handle, but only with the outside handle.If the lever is set to the “Unlock” position, the child protection mechanism does not function.1- Lock 2- Unlock
CAUTION
!●
When driving with a child in the rear seat, please use the child protection to
prevent accidental door
opening which may cause an accident.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
11 Wednesday, January 9, 2008 4:22 PM

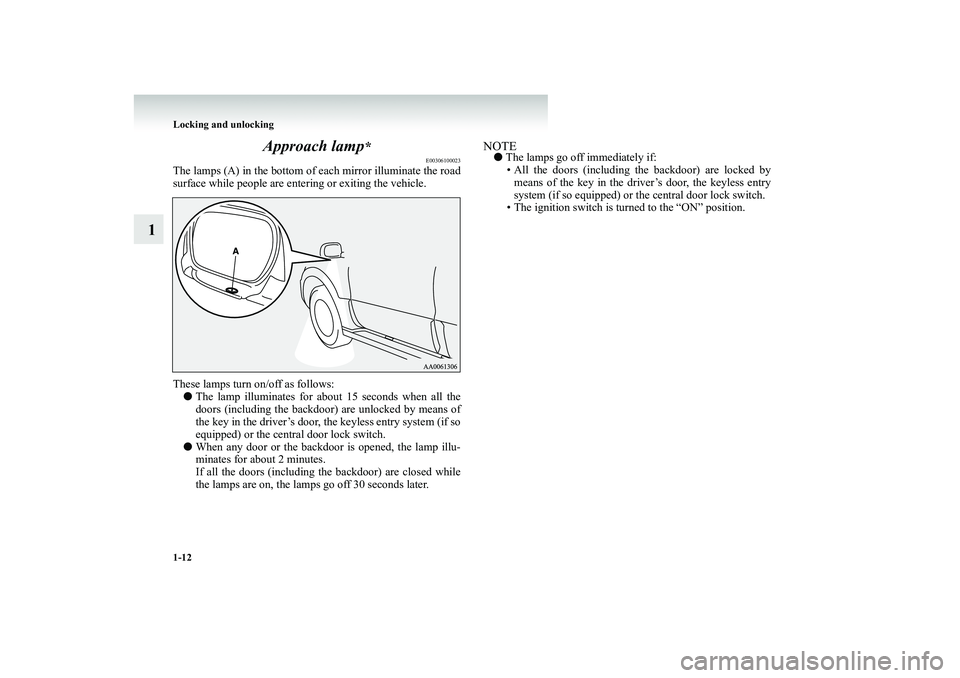

1-12 Locking and unlocking
1
Approach lamp
*
E00306100023
The lamps (A) in the bottom of
each mirror illuminate the road
surface while people are ente
ring or exiting the vehicle.
These lamps turn on/off as follows: ●
The lamp illuminates for about 15 seconds when all the doors (including the backdoor) are unlocked by means of the key in the driver’s door, the keyless entry system (if soequipped) or the central door lock switch.
●
When any door or the backdoor is opened, the lamp illu- minates for about 2 minutes.If all the doors (including th
e backdoor) are closed while
the lamps are on, the lamps go off 30 seconds later.
NOTE●
The lamps go off immediately if: • All the doors (including the backdoor) are locked by means of the key in the driv
er’s door, the keyless entry
system (if so equipped) or the central door lock switch.• The ignition switch is turned to the “ON” position.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
12 Wednesday, January 9, 2008 4:22 PM

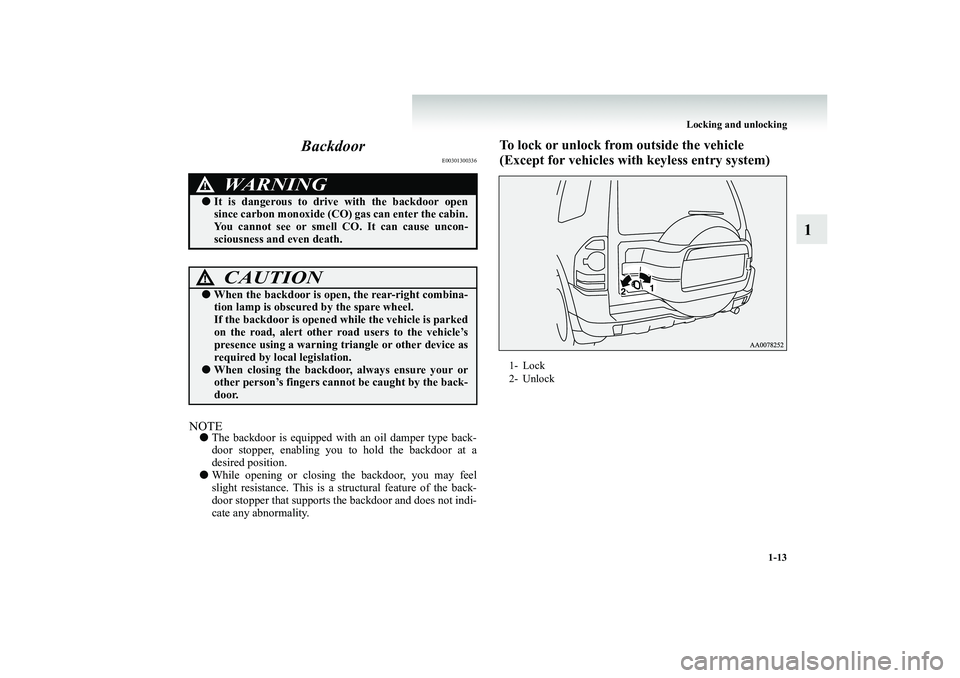

Locking and unlocking
1-13
1
Backdoor
E00301300336
NOTE●
The backdoor is equipped with an oil damper type back- door stopper, enabling you to hold the backdoor at a desired position.
●
While opening or closing the backdoor, you may feel slight resistance. This is a st
ructural feature of the back-
door stopper that supports the backdoor and does not indi- cate any abnormality.
To lock or unlock from outside the vehicle (Except for vehicles with
keyless entry system)
WARNING
!●
It is dangerous to drive with the backdoor open since carbon monoxide (CO)
gas can enter the cabin.
You cannot see or smell
CO. It can cause uncon-
sciousness and even death.CAUTION
!●
When the backdoor is open
, the rear-right combina-
tion lamp is obscured
by the spare wheel.
If the backdoor is opened
while the vehicle is parked
on the road, alert other r
oad users to the vehicle’s
presence using a warning tr
iangle or other device as
required by local legislation.
●
When closing the backdoor, always ensure your or other person’s fingers cannot
be caught by the back-
door.
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page
13 Wednesday, January 9, 2008 4:22 PM

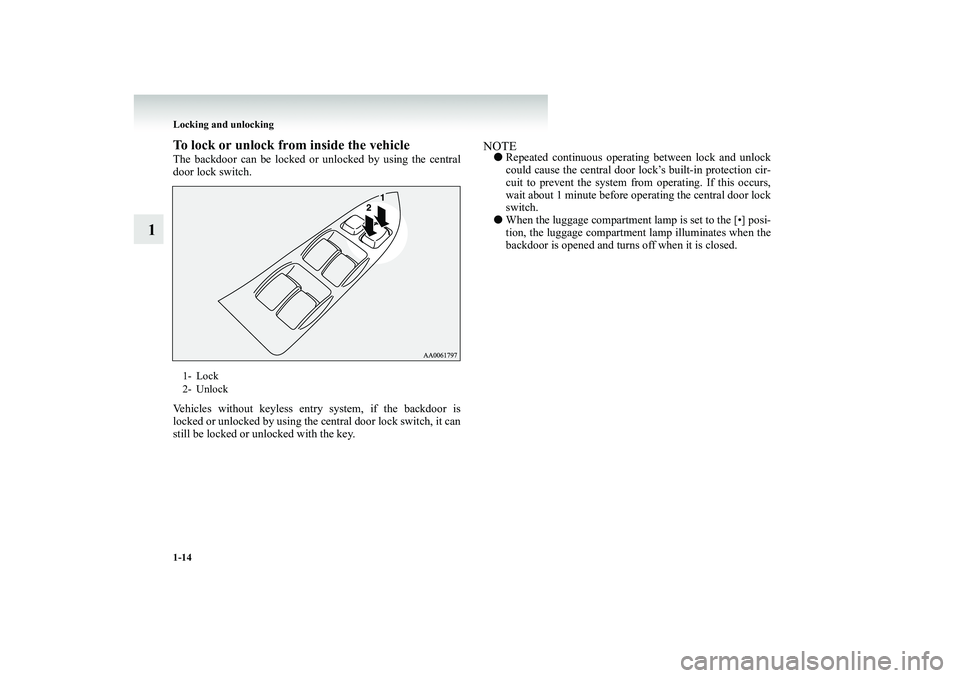

1-14 Locking and unlocking
1
To lock or unlock from
inside the vehicle
The backdoor can be locked or
unlocked by using the central
door lock switch. Vehicles without keyless entry system, if the backdoor is locked or unlocked by using the central door lock switch, it can still be locked or unlocked with the key.
NOTE●
Repeated continuous operating between lock and unlock could cause the central door lo
ck’s built-in protection cir-
cuit to prevent the system from
operating. If this occurs,
wait about 1 minute before op
erating the central door lock
switch.
●
When the luggage compartment lamp is set to the [•] posi- tion, the luggage compartment lamp illuminates when thebackdoor is opened and turns off when it is closed.
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page
14 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-15
1

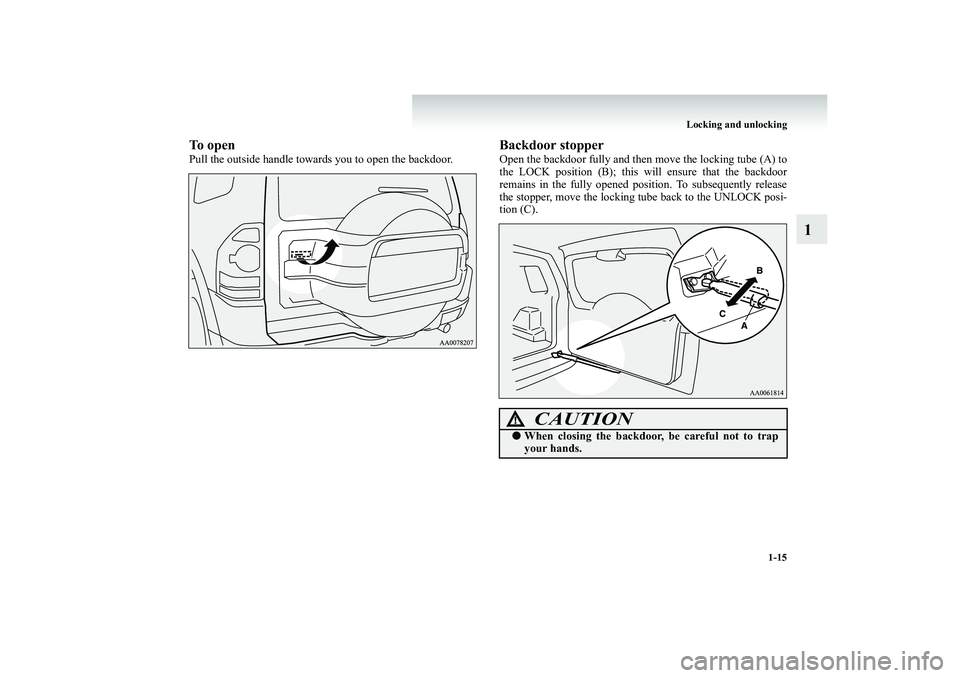

To openPull the outside handle towards you to open the backdoor.
Backdoor stopperOpen the backdoor fully and then
move the locking tube (A) to
the LOCK position (B); this will ensure that the backdoorremains in the fully opened position. To subsequently release the stopper, move the locking
tube back to the UNLOCK posi-
tion (C).
CAUTION
!●
When closing the backdoor
, be careful not to trap
your hands.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
15 Wednesday, January 9, 2008 4:22 PM

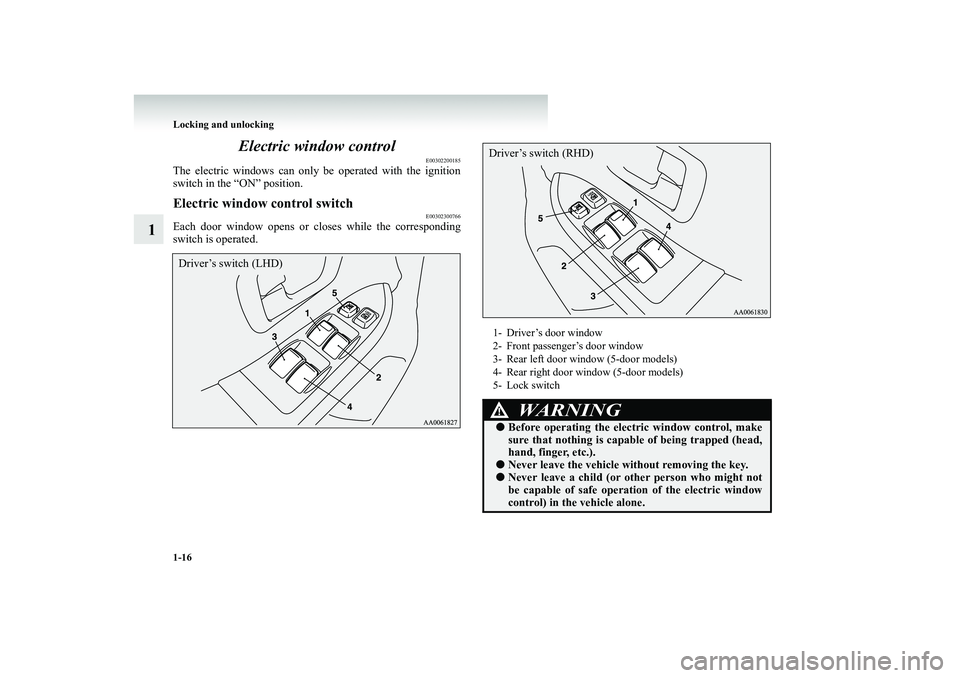

1-16 Locking and unlocking
1
Electric window control
E00302200185
The electric windows can only be operated with the ignition switch in the “ON” position.Electric window control switch
E00302300766
Each door window opens or
closes while the corresponding
switch is operated.Driver’s switch (LHD)
1- Driver’s door window 2- Front passenger’s door window 3- Rear left door window (5-door models) 4- Rear right door window (5-door models)5- Lock switch
WARNING
!●
Before operating the elect
ric window control, make
sure that nothing is capable of being trapped (head, hand, finger, etc.).
●
Never leave the vehicle without removing the key.
●
Never leave a child (or ot
her person who might not
be capable of safe operati
on of the el
ectric window
control) in the vehicle alone.
Driver’s switch (RHD)
BK-BK2008E1ENUK.en-uk-Section4.fm Page
16 Wednesday, January 9, 2008 4:22 PM

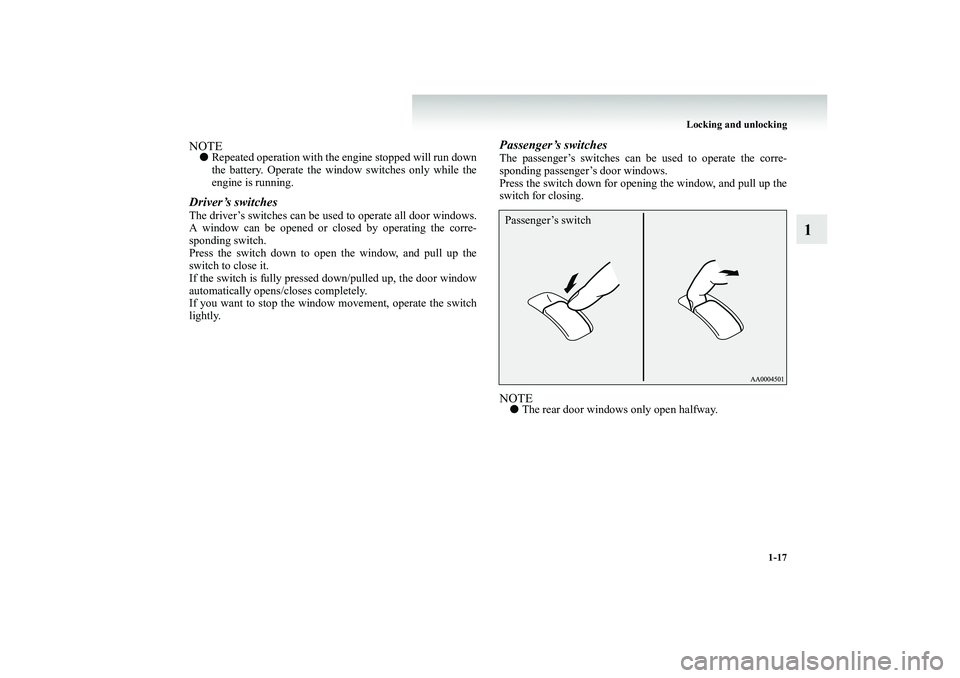

Locking and unlocking
1-17
1
NOTE●
Repeated operation with the engine stopped will run down the battery. Operate the window switches only while the engine is running.
Driver’s switchesThe driver’s switches can be us
ed to operate a
ll door windows.
A window can be opened or closed by operating the corre- sponding switch. Press the switch down to open the window, and pull up theswitch to close it. If the switch is fully pressed down/pulled up, the door window automatically opens/closes completely.If you want to stop the window movement, operate the switch lightly.
Passenger’s switchesThe passenger’s switches can be used to operate the corre- sponding passenger’s door windows. Press the switch down for opening the window, and pull up the switch for closing.NOTE●
The rear door windows only open halfway.
Passenger’s switch
BK-BK2008E1ENUK.en-uk-Section4.fm Page
17 Wednesday, January 9, 2008 4:22 PM

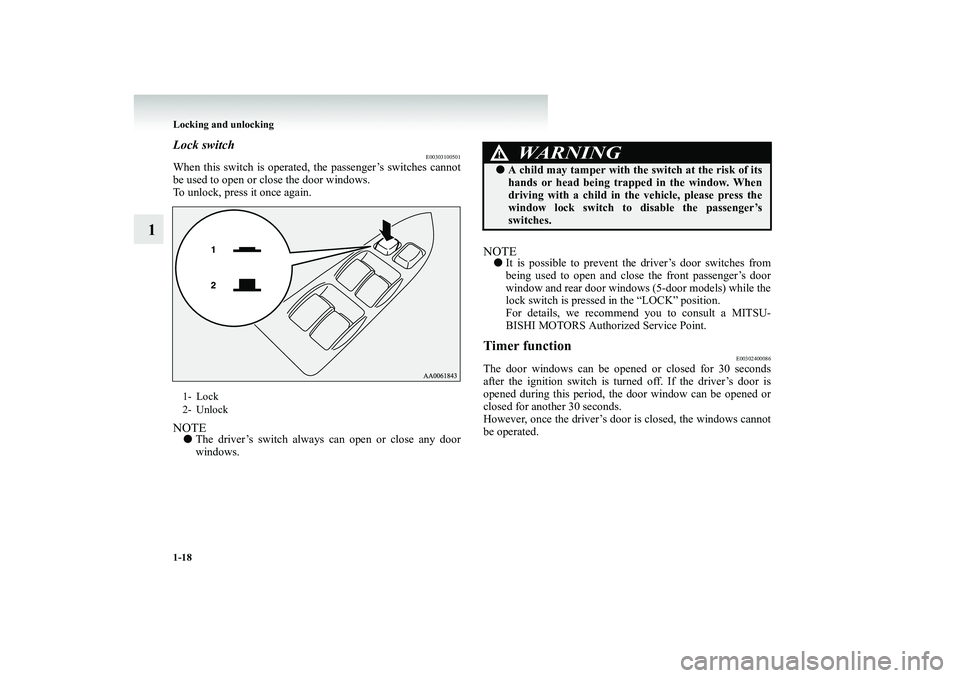

1-18 Locking and unlocking
1
Lock switch
E00303100501
When this switch is operated, the passenger’s switches cannot be used to open or close the door windows. To unlock, press it once again.NOTE●
The driver’s switch always can open or close any door windows.
NOTE●
It is possible to prevent the driver’s door switches from being used to open and close the front passenger’s door window and rear door windows (5-door models) while thelock switch is pressed in the “LOCK” position. For details, we recommend you to consult a MITSU- BISHI MOTORS Authorized Service Point.
Timer function
E00302400086
The door windows can be opened or closed for 30 seconds after the ignition switch is turned off. If the driver’s door is opened during this period, the door window can be opened orclosed for another 30 seconds. However, once the driver’s door is closed, the windows cannot be operated.
1- Lock 2- Unlock
WARNING
!●
A child may tamper with the sw
itch at the risk of its
hands or head being trapped in the window. Whendriving with a child in the vehicle, please press the window lock switch to
disable the passenger’s
switches.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
18 Wednesday, January 9, 2008 4:22 PM

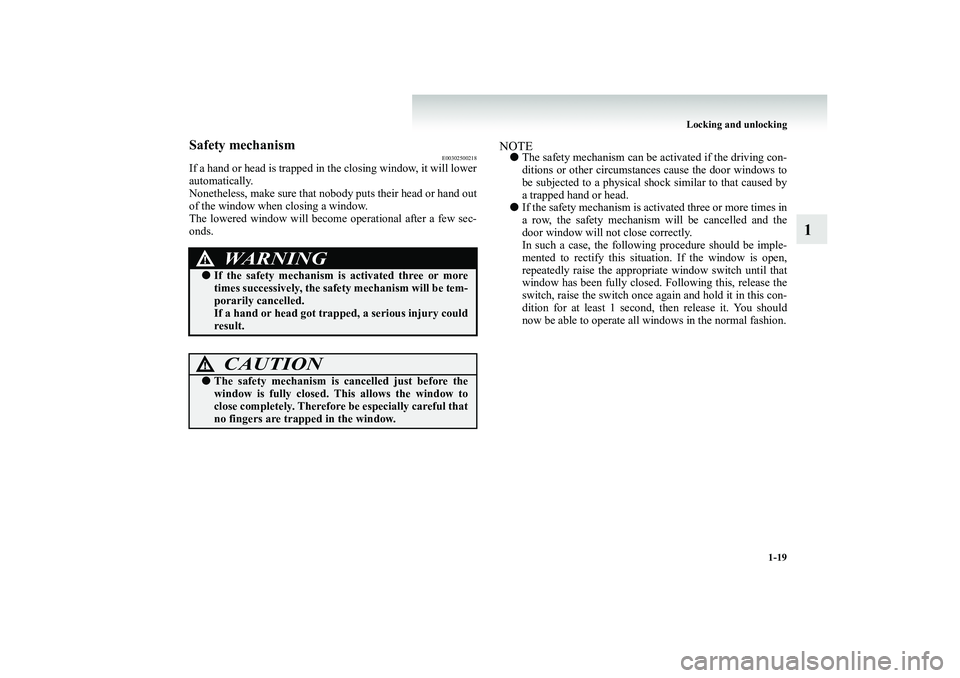

Locking and unlocking
1-19
1
Safety mechanism
E00302500218
If a hand or head is trapped in the closing window, it will lower automatically. Nonetheless, make sure that nobody puts their head or hand out of the window when closing a window.The lowered window will become
operational after a few sec-
onds.
NOTE●
The safety mechanism can be
activated if the driving con-
ditions or other circumstances cause the door windows to be subjected to a physical shock similar to that caused by a trapped hand or head.
●
If the safety mechanism is ac
tivated three or more times in
a row, the safety mechanism will be cancelled and the door window will not close correctly.In such a case, the following
procedure should be imple-
mented to rectify this situation. If the window is open, repeatedly raise the appropri
ate window switch until that
window has been fully closed. Following this, release the switch, raise the switch once again and hold it in this con- dition for at least 1 second, then release it. You shouldnow be able to operate all windows in the normal fashion.
WARNING
!●
If the safety mechanism is activated three or more times successively, the safety mechanism will be tem- porarily cancelled.If a hand or head got trap
ped, a serious injury could
result.CAUTION
!●
The safety mechanism is cancelled just before the window is fully closed. This allows the window toclose completely. Therefore
be especially careful that
no fingers are trapped in the window.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
19 Wednesday, January 9, 2008 4:22 PM

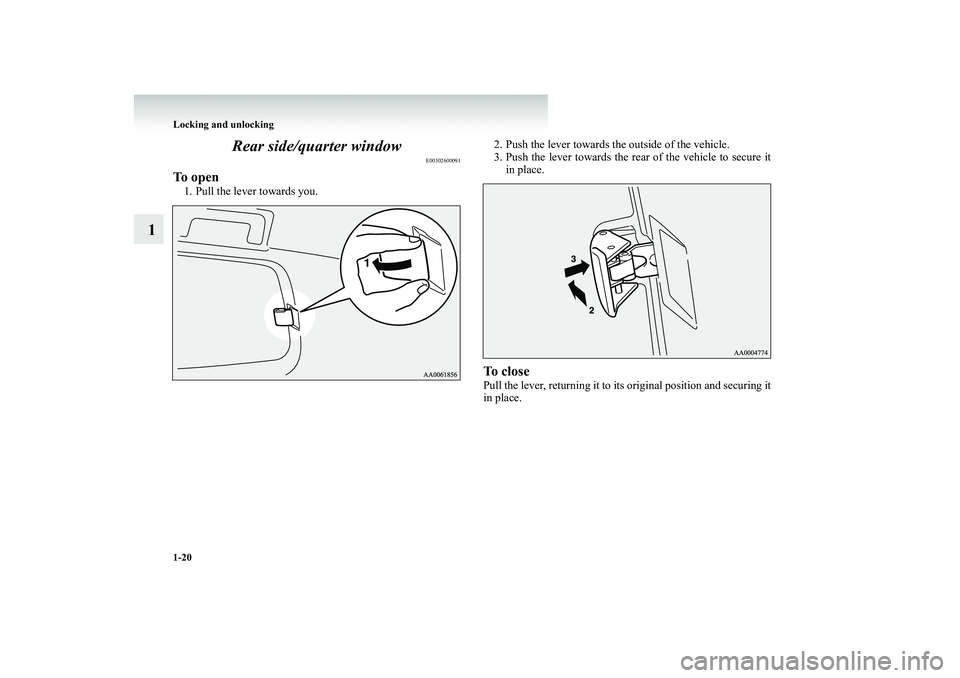

1-20 Locking and unlocking
1
Rear side/quarter window
E00302600091
To open1. Pull the lever towards you.
2. Push the lever towards the outside of the vehicle. 3. Push the lever towards the rear
of the vehicle to secure it
in place.
To closePull the lever, returning it to its original position and securing it in place.
