MITSUBISHI SHOGUN 2008 (in English) Owner's Guide

1

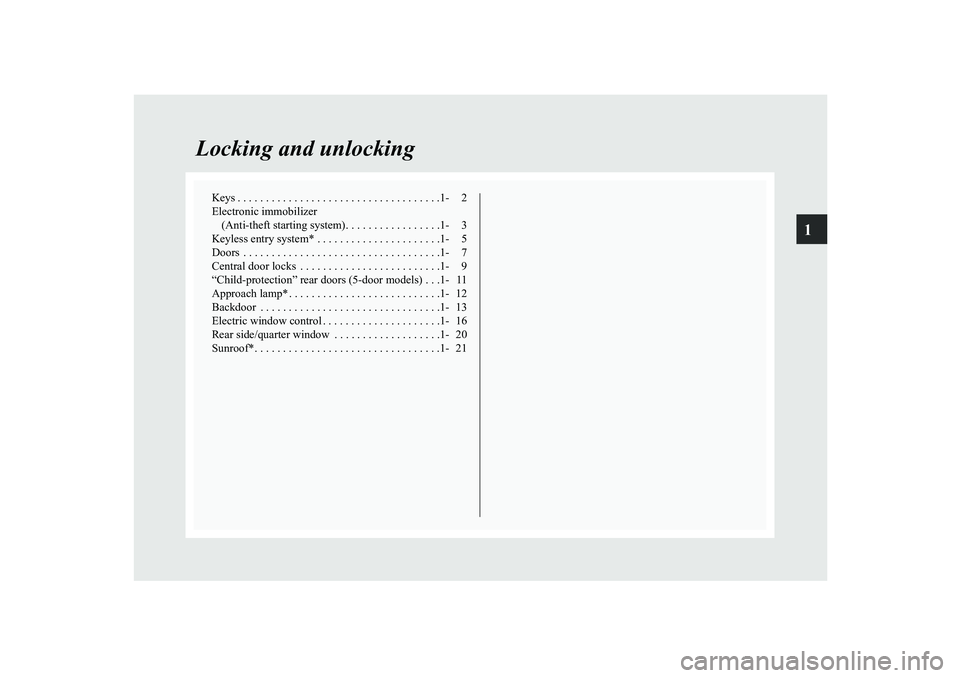

Locking and unlocking
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2 Electronic immobilizer (Anti-theft starting system). .
. . . . . . . . . . . . . . .1- 3
Keyless entry system* . . . . . .
. . . . . . . . . . . . . . . .1- 5
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 7Central door locks . . . . . . . . . . . . . . . . . . . . . . . . .1- 9“Child-protection” rear doors (5-door models) . . .1- 11Approach lamp* . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 12Backdoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 13Electric window control . . . . . .
. . . . . . . . . . . . . . .1- 16
Rear side/quarter window . . . . . . . . . . . . . . . . . . .1- 20Sunroof*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 21
BK-BK2008E1ENUK.en-uk-Section4.fm Page 1 Wednesday, January 9, 2008 4:22 PM

1-2 Locking and unlocking
1

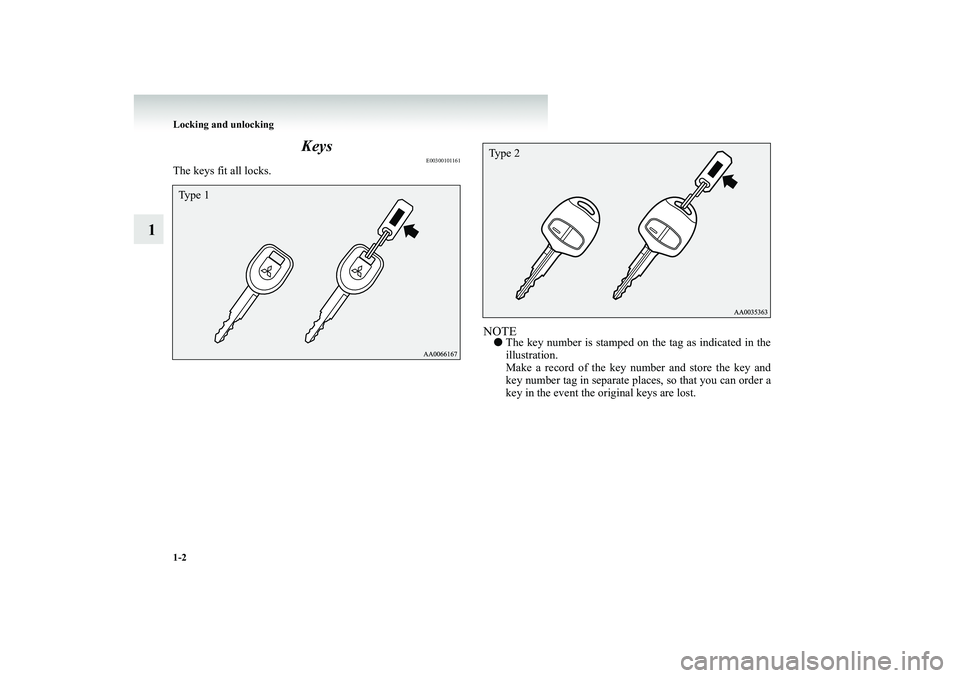

Keys
E00300101161
The keys fit all locks.
NOTE●
The key number is stamped on the tag as indicated in the illustration.Make a record of the key nu
mber and store the key and
key number tag in separate pl
aces, so that you can order a
key in the event the original keys are lost.
Type 1
Type 2
BK-BK2008E1ENUK.en-uk-Section4.fm Page 2 Wednesday, January 9, 2008 4:22 PM

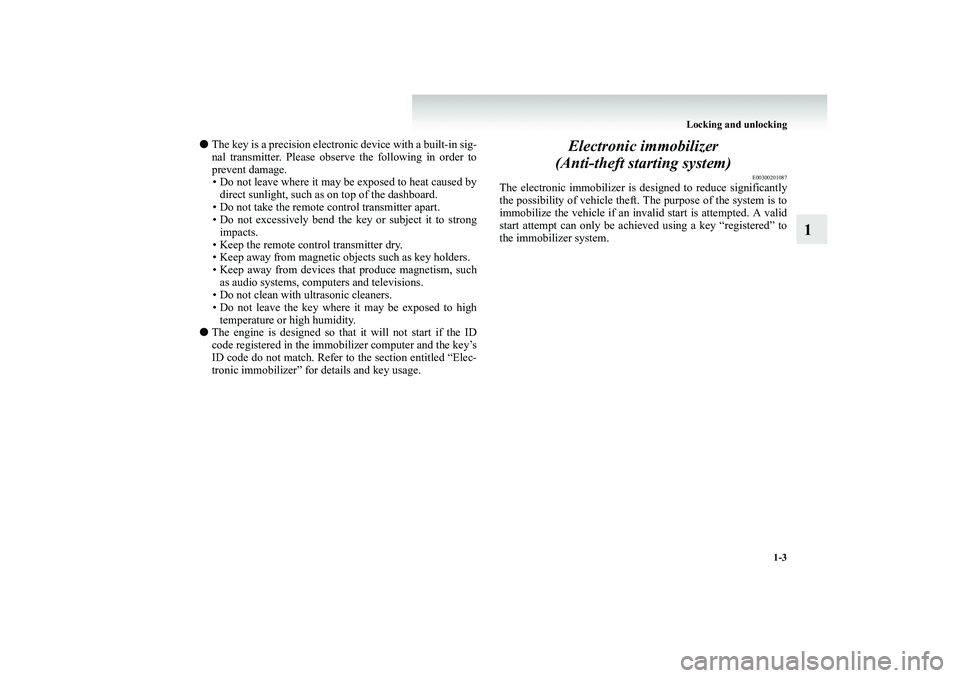

Locking and unlocking
1-3
1
●
The key is a precision electroni
c device with a built-in sig-
nal transmitter. Please observe the following in order to prevent damage. • Do not leave where it may be exposed to heat caused bydirect sunlight, such as on top of the dashboard. • Do not take the remote control transmitter apart. • Do not excessively bend the key or subject it to strongimpacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key holders.• Keep away from devices th
at produce magnetism, such
as audio systems, computers and televisions. • Do not clean with
ultrasonic cleaners.
• Do not leave the key where it may be exposed to high temperature or high humidity.
●
The engine is designed so that it will not start if the ID code registered in the immobi
lizer computer and the key’s
ID code do not match. Refer to the section entitled “Elec- tronic immobilizer” for details and key usage.
Electronic immobilizer
(Anti-theft starting system)
E00300201087
The electronic immobilizer is de
signed to reduce significantly
the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an inva
lid start is attempted. A valid
start attempt can only be achieved using a key “registered” to the immobilizer system.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 3 Wednesday, January 9, 2008 4:22 PM

1-4 Locking and unlocking
1

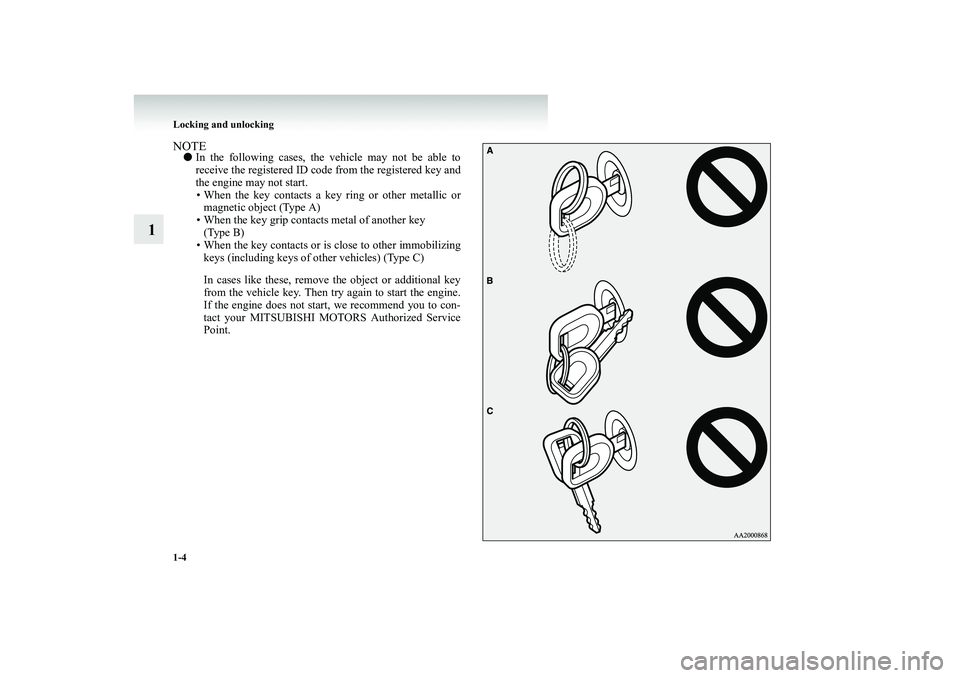

NOTE●
In the following cases, the
vehicle may not be able to
receive the registered ID code
from the registered key and
the engine may not start. • When the key contacts a key ring or other metallic ormagnetic object (Type A) • When the key grip contacts metal of another key (Type B)• When the key contacts or is close to other immobilizing keys (including keys of other vehicles) (Type C) In cases like these, remove the object or additional key from the vehicle key. Then tr
y again to start the engine.
If the engine does not start, we recommend you to con- tact your MITSUBISHI MOTORS Authorized Service Point.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 4 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-5
1
●

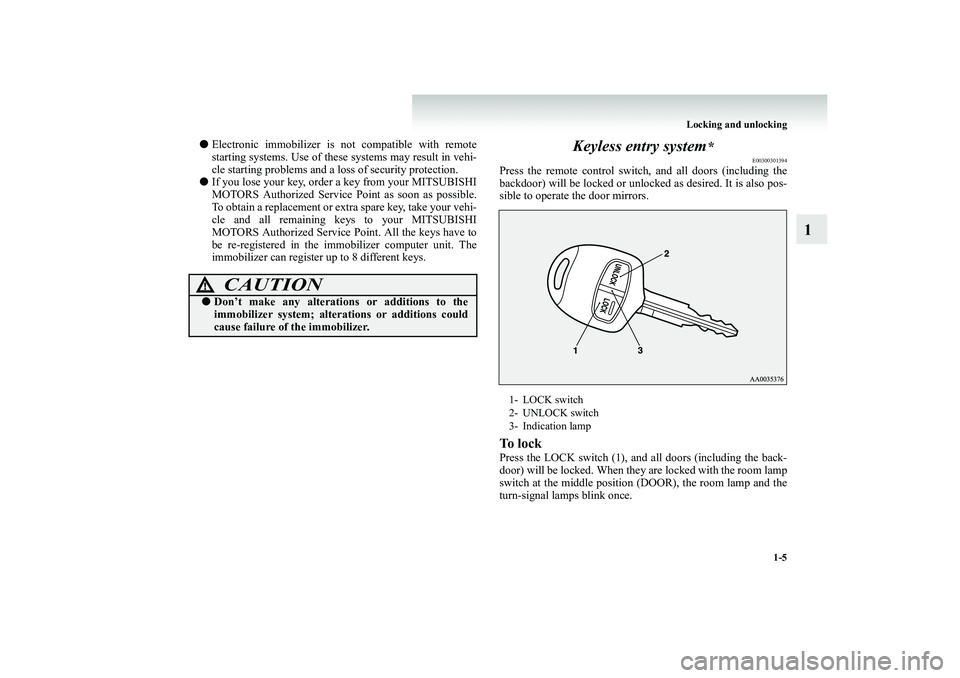

Electronic immobilizer is not compatible with remote starting systems. Use of these
systems may result in vehi-
cle starting problems and a lo
ss of security protection.
●
If you lose your key, orde
r a key from your MITSUBISHI
MOTORS Authorized Service
Point as soon as possible.
To obtain a replacement or extr
a spare key, take your vehi-
cle and all remaining keys to your MITSUBISHIMOTORS Authorized Service Point. All the keys have to be re-registered in the immobilizer computer unit. The immobilizer can register up to 8 different keys.
Keyless entry system
*
E00300301394
Press the remote control switch, and all doors (including the backdoor) will be locked or unlocked as desired. It is also pos- sible to operate the door mirrors.To l o c kPress the LOCK switch (1), and
all doors (including the back-
door) will be locked. When they
are locked with the room lamp
switch at the middle position (
DOOR), the room lamp and the
turn-signal lamps blink once.
CAUTION
!●
Don’t make any alterations or additions to the immobilizer system; alterati
ons or additions could
cause failure of
the immobilizer.
1- LOCK switch 2- UNLOCK switch 3- Indication lamp
BK-BK2008E1ENUK.en-uk-Section4.fm Page 5 Wednesday, January 9, 2008 4:22 PM

1-6 Locking and unlocking
1

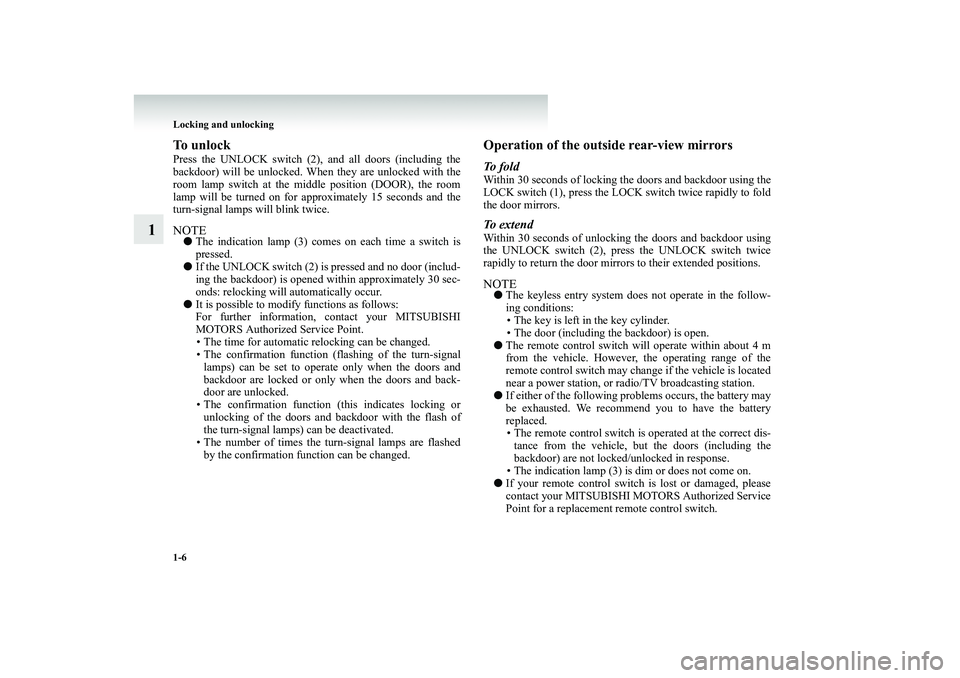

To unlockPress the UNLOCK switch (2), and all doors (including the backdoor) will be unlocked. When
they are unlocked with the
room lamp switch at the mi
ddle position (DOOR), the room
lamp will be turned on for appr
oximately 15 seconds and the
turn-signal lamps will blink twice.NOTE●
The indication lamp (3) comes on each time a switch is pressed.
●
If the UNLOCK switch (2) is pressed and no door (includ- ing the backdoor) is opened
within approximately 30 sec-
onds: relocking will automatically occur.
●
It is possible to modify functions as follows: For further information, contact your MITSUBISHI MOTORS Authorized Service Point. • The time for automatic relocking can be changed.• The confirmation function (f
lashing of the turn-signal
lamps) can be set to operate only when the doors and backdoor are locked or only when the doors and back-door are unlocked. • The confirmation function (this indicates locking or unlocking of the doors and backdoor with the flash ofthe turn-signal lamps) can be deactivated. • The number of times the turn-signal lamps are flashed by the confirmation function can be changed.
Operation of the outside rear-view mirrorsTo f o l dWithin 30 seconds of locking the doors and backdoor using theLOCK switch (1), press the LOCK switch twice rapidly to foldthe door mirrors.To e x t e n dWithin 30 seconds of unlocking the doors and backdoor usingthe UNLOCK switch (2), press the UNLOCK switch twicerapidly to return the door mirrors to their extended positions.NOTE●
The keyless entry system does
not operate in the follow-
ing conditions:• The key is left in the key cylinder. • The door (including the backdoor) is open.
●
The remote control switch will operate within about 4 m from the vehicle. However, the operating range of the remote control switch may chan
ge if the vehicle is located
near a power station, or radio/TV broadcasting station.
●
If either of the following problems occurs, the battery may be exhausted. We recommend you to have the battery replaced.• The remote control switch is
operated at the correct dis-
tance from the vehicle, but the doors (including the backdoor) are not locked/unlocked in response.• The indication lamp (3) is dim or does not come on.
●
If your remote control switch
is lost or damaged, please
contact your MITSUBISHI MOTORS Authorized Service Point for a replacement
remote control switch.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 6 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-7
1
●

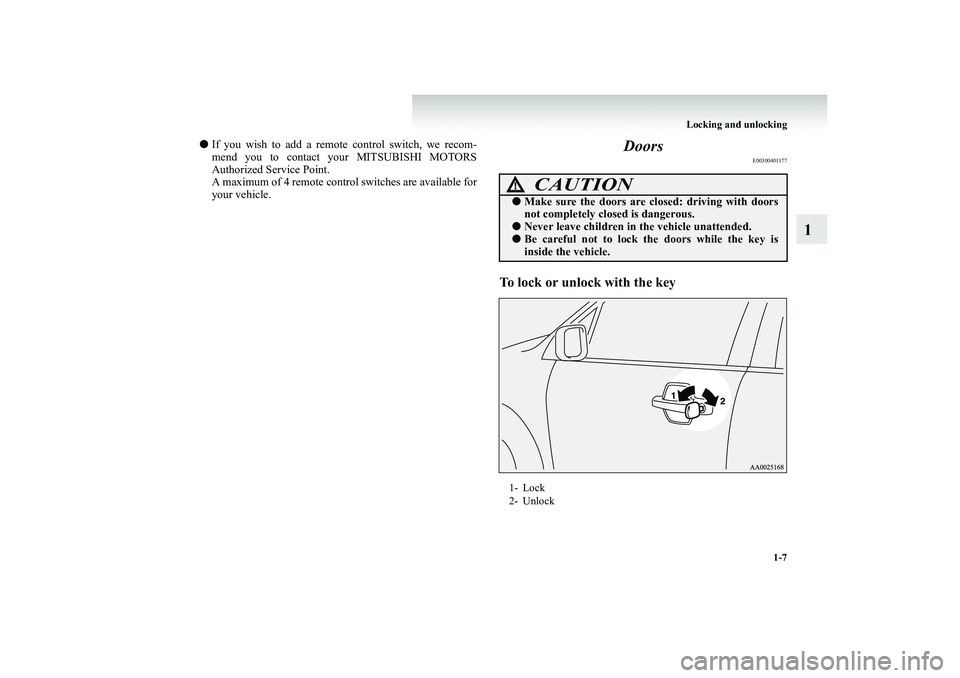

If you wish to add a remote
control switch, we recom-
mend you to contact your MITSUBISHI MOTORS Authorized Service Point. A maximum of 4 remote contro
l switches are available for
your vehicle.
Doors
E00300401177
To lock or unlock with the key
CAUTION
!●
Make sure the doors are closed: driving with doors not completely closed is dangerous.
●
Never leave children in the vehicle unattended.
●
Be careful not to lock the doors while the key is inside the vehicle.
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page 7 Wednesday, January 9, 2008 4:22 PM

1-8 Locking and unlocking
1

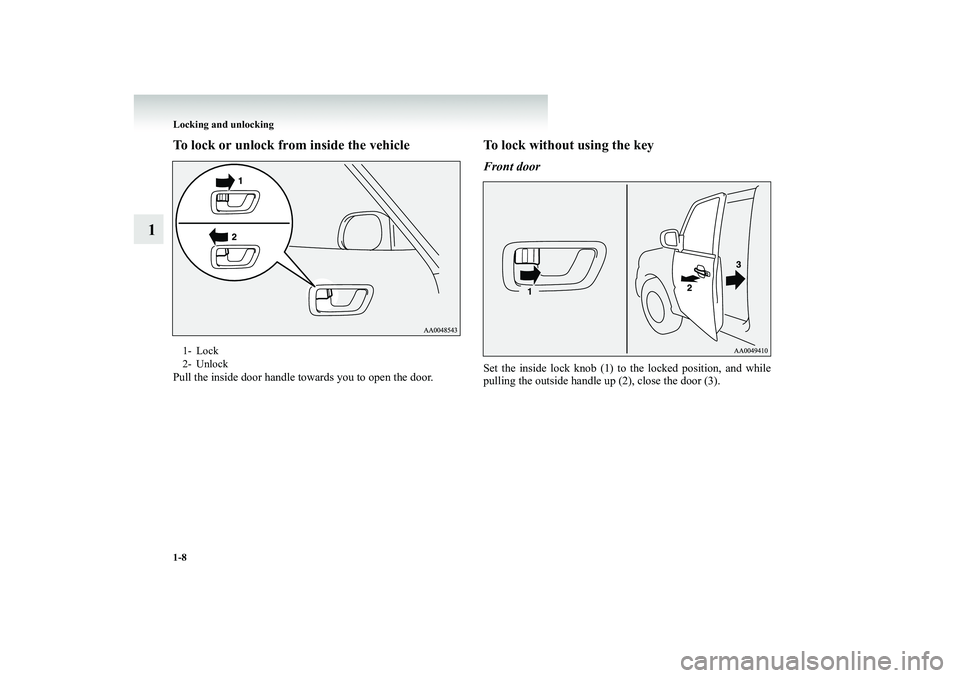

To lock or unlock from
inside the vehicle
Pull the inside door handle towards you to open the door.
To lock without using the keyFront doorSet the inside lock knob (1) to the locked position, and while pulling the outside handle up (2), close the door (3).
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page 8 Wednesday, January 9, 2008 4:22 PM

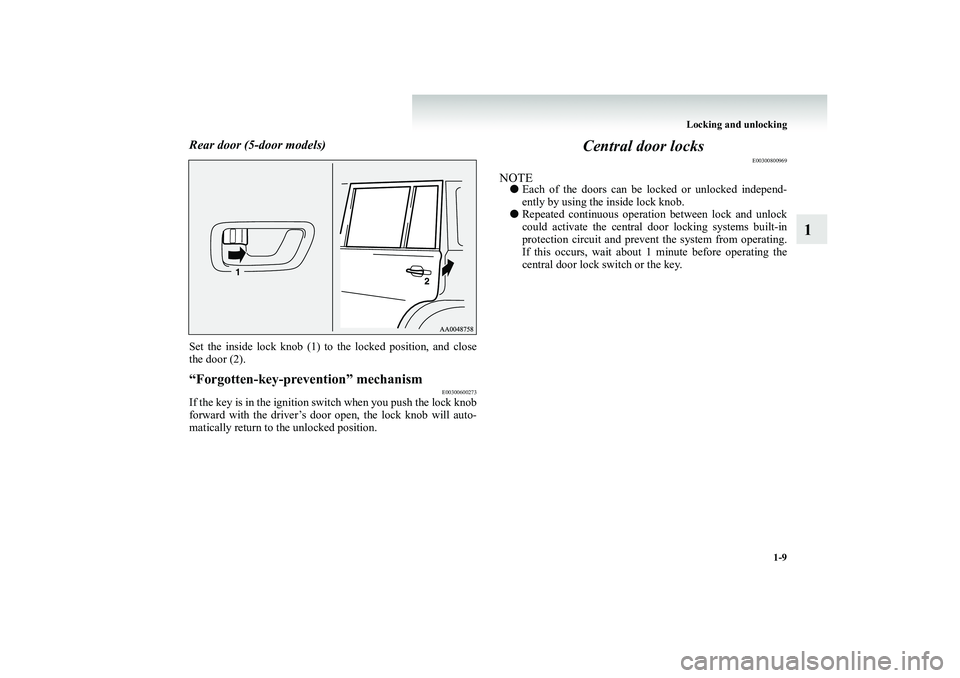

Locking and unlocking
1-9
1
Rear door (5-door models)Set the inside lock knob (1) to the locked position, and close the door (2).“Forgotten-key-prevention” mechanism
E00300600273
If the key is in the ignition switch when you push the lock knobforward with the driver’s door open, the lock knob will auto-matically return to the unlocked position.
Central door locks
E00300800969
NOTE●
Each of the doors can be locked or unlocked independ- ently by using the inside lock knob.
●
Repeated continuou
s operation between
lock and unlock
could activate the central doo
r locking systems built-in
protection circuit and prevent
the system from operating.
If this occurs, wait about 1 minute before operating the central door lock switch or the key.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 9 Wednesday, January 9, 2008 4:22 PM

1-10 Locking and unlocking
1

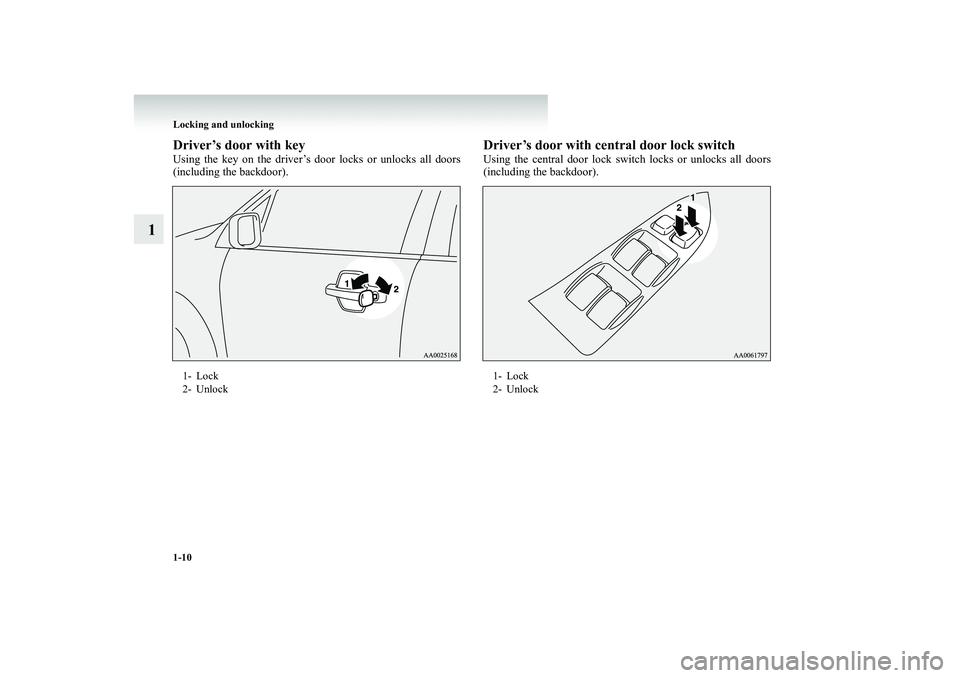

Driver’s door with keyUsing the key on the driver’s door locks or unlocks all doors (including the backdoor).
Driver’s door with central door lock switchUsing the central door lock switch locks or unlocks all doors(including the backdoor).
1- Lock 2- Unlock
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page
10 Wednesday, January 9, 2008 4:22 PM
