MITSUBISHI SHOGUN 2008 (in English) User Guide

Overview

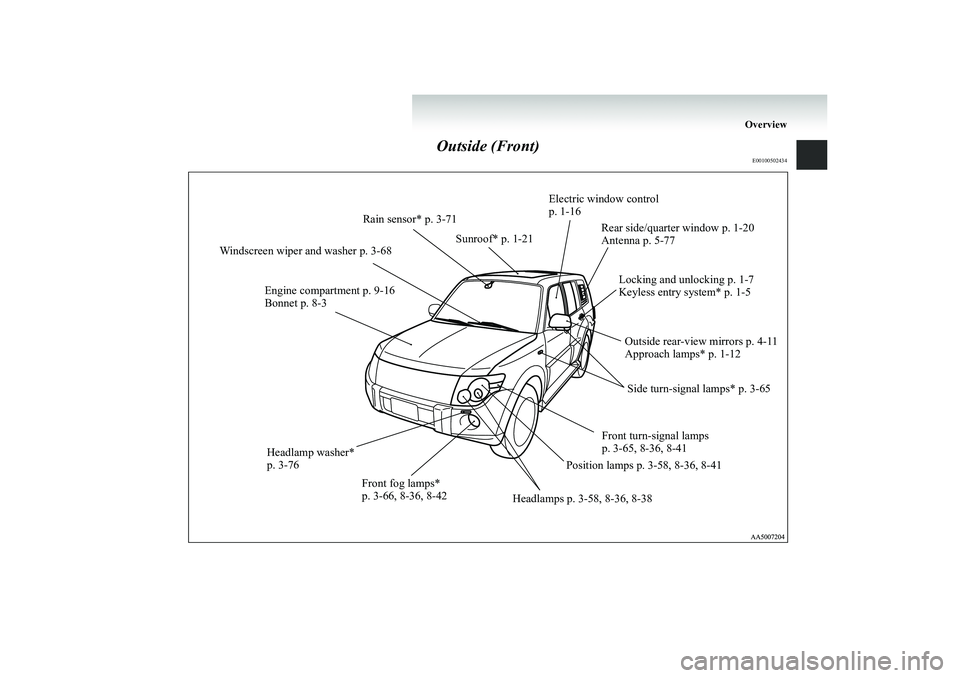

Outside (Front)
E00100502434
Front fog lamps* p. 3-66, 8-36, 8-42
Engine compartment p. 9-16 Bonnet p. 8-3
Windscreen wiper and washer p. 3-68
Headlamps p. 3-58, 8-36, 8-38
Electric window control p. 1-16
Outside rear-view mirrors p. 4-11 Approach lamps* p. 1-12
Sunroof* p. 1-21
Front turn-signal lamps p. 3-65, 8-36, 8-41
Side turn-signal lamps* p. 3-65
Position lamps p. 3-58, 8-36, 8-41
Locking and unlocking p. 1-7 Keyless entry system* p. 1-5
Rear side/quarter window p. 1-20 Antenna p. 5-77
Headlamp washer* p. 3-76
Rain sensor* p. 3-71
BK-BK2008E1ENUK.en-uk-Section2.fm Page 8 Wednesday, January 9, 2008 4:26 PM

Overview

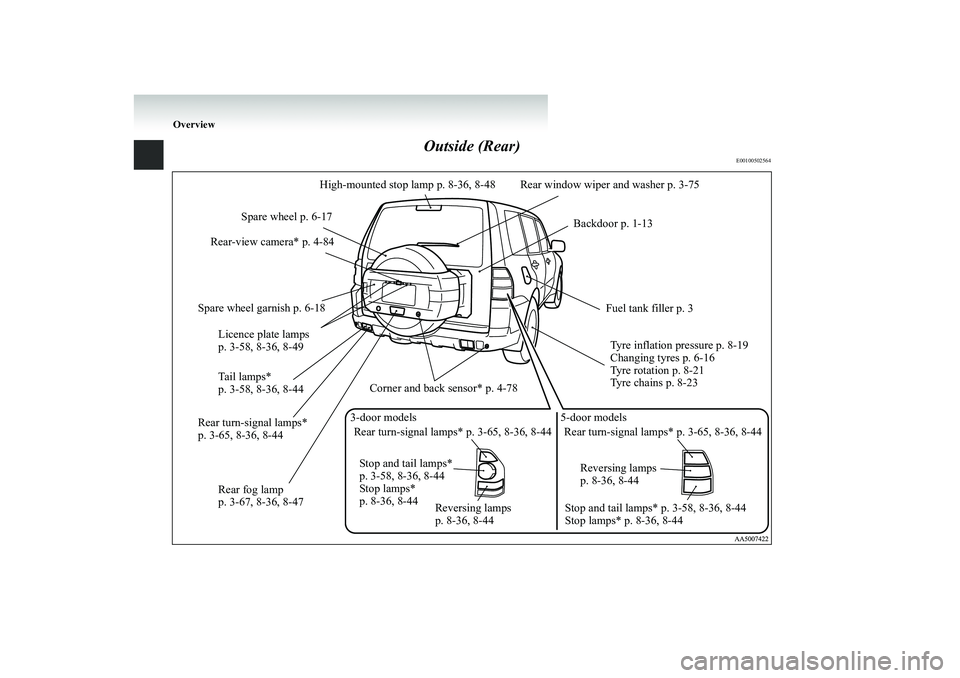

Outside (Rear)
E00100502564
Rear turn-signal lamps* p. 3-65, 8-36, 8-44
Fuel tank filler p. 3
Reversing lamps p. 8-36, 8-44
Licence plate lamps p. 3-58, 8-36, 8-49
Spare wheel p. 6-17
Backdoor p. 1-13
High-mounted stop lamp p. 8-36, 8-48
Rear window wiper and washer p. 3-75
Tyre inflation pressure p. 8-19 Changing tyres p. 6-16 Tyre rotation p. 8-21Tyre chains p. 8-23
Rear fog lamp p. 3-67, 8-36, 8-47
Stop and tail lamps* p. 3-58, 8-36, 8-44 Stop lamps* p. 8-36, 8-44
Spare wheel garnish p. 6-18
Tail lamps* p. 3-58, 8-36, 8-44
3-door models 5-door models Rear turn-signal lamps* p. 3-65, 8-36, 8-44
Rear turn-signal lamps*
p. 3-65, 8-36, 8-44
Stop and tail lamps* p. 3-58, 8-36, 8-44 Stop lamps* p. 8-36, 8-44
Reversing lamps p. 8-36, 8-44
Rear-view camera* p. 4-84
Corner and back sensor* p. 4-78
BK-BK2008E1ENUK.en-uk-Section2.fm Page 9 Wednesday, January 9, 2008 4:26 PM

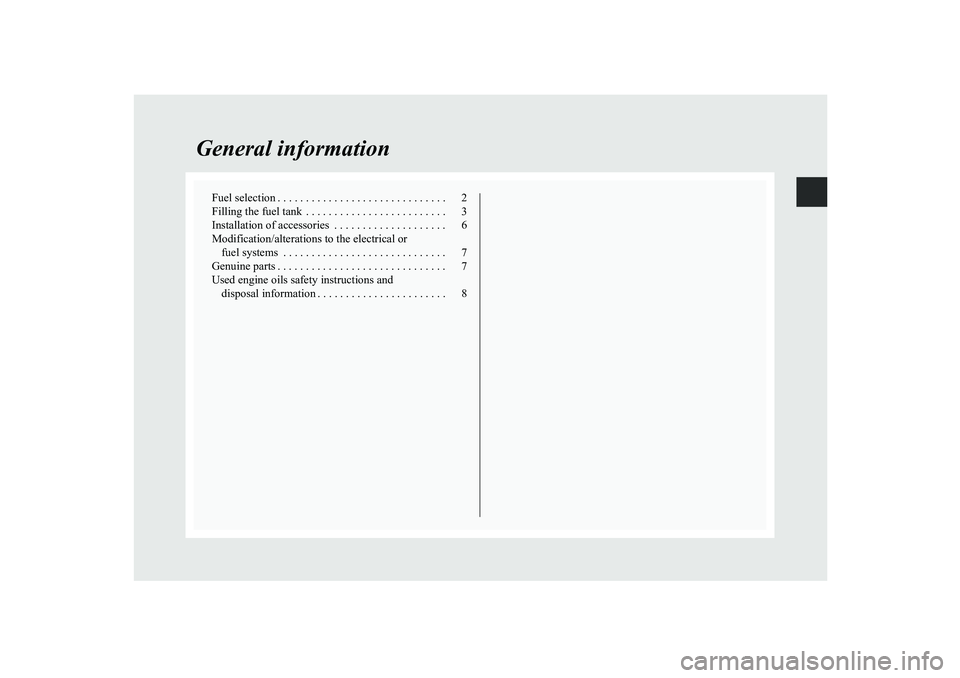

General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . 3Installation of accessories . . . . . . . . . . . . . . . . . . . . 6Modification/alterations
to the electrical or
fuel systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Genuine parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Used engine oils safety instructions and disposal information . . . . . . . . . . . . . . . . . . . . . . . 8
BK-BK2008E1ENUK.en-uk-Section3.fm Page 1 Wednesday, January 9, 2008 4:21 PM

2 General information
Fuel selection
E00200101362
NOTE●
Petrol-powered vehicles have
the knock control system so
that you can use unleaded pe
trol 91 RON as an emergent
measure in case unleaded petrol
95 RON or higher is not
available on journey, etc. In
such a case, you don’t need to
adjust the engine specially. In case of using unleaded petrol 91 RON, the engine per- formance level is reduced.
●
In petrol-powered vehicles,
repeatedly driving short dis-
tance at low speeds can cause deposits to form in the fuel system and engine, resulting in poor starting and pooracceleration. If these problems occur, you
are advised to add a deter-
gent additive to the gasoline
when you refuel the vehicle.
The additive will remove the deposits, thereby returning the engine to a normal condition. Be sure to use a genuine MITSUBISHI FUEL SYSTEM CLEANER. Using anunsuitable additive could make the engine malfunction. For details, please contact your MITSUBISHI MOTORS Authorized Service Point.
●
Poor quality petrol can cause
problems such as hard start-
ing, stalling, engine noise and hesitation. If your experi- ence these problems, try another brand and/or grade ofpetrol. If the check engine warning lamp flashes, have the system checked as soon as possible at a MITSUBISHI MOTORSAuthorized Service Point.
Recommended
fuel
Petrol-powered vehicles Unleaded petrol octane number (EN228) 95 RON or higher Diesel-powered vehicles Vehicles to comply with the Euro 4 regulation Cetane number (EN590) 51 or higher Vehicles to comply with the Euro 3 regulation Cetane number 45 or higher
CAUTION
!●
For petrol-powered vehicles, the use of leaded fuel can result in serious damage
to the engine and cata-
lytic converter.
●
Diesel-powered vehicles to
comply with the Euro 4
regulation are designed to
use only diesel fuel that
meets the EN 590 standard. Use of any other type of
diesel fuel can adversely
affect the engine.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 2 Wednesday, January 9, 2008 4:21 PM

General information
3
●
In diesel-powered vehicles,
poor-quality diesel fuel can
cause deposits form in the injector, resulting in black smoke and rough idling. If these problems occur, you are advised to add a cleaningadditive to the diesel fuel
when you refuel the vehicle.
The additive will break up and remove the deposits, thereby returning the engine to a normal condition.Be sure to use a genuine MITSUBISHI DIESEL FUEL SYSTEM CLEANER. Using an unsuitable additive could make the engine malfunction. For details, please contactyour MITSUBISHI MOTORS Authorized Service Point.
Filling the fuel tank
E00200201578
Fuel tank capacity3-door models: 69 litres 5-door models: 88 litres
WARNING
!●
When handling fuel, comply
with the safety regula-
tions displayed by garages and filling stations.
●
Before removing the fuel cap, be sure to get rid of your body’s static electricity by touching a metalpart of the car or fuel pu
mp. Any static electricity on
your body could create a spark that ignites fuel vapor.
●
Perform the whole refuelling process (opening the fuel tank filler door, removi
ng the fuel cap, etc.) by
yourself. Do not let any other person come near thefuel tank filler. If you allowed a person to help you and that person was carryin
g static electricity, fuel
vapor could be ignited.
●
Do not move away from the fuel tank filler until refueling is finished. If you moved away and did something else (for exam
ple, cleaning your wind-
screen) partway through th
e refueling process, you
could pick up a fresh char
ge of static electricity.
●
If the tank cap must be replaced, use only a MIT- SUBISHI MOTORS original part.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 3 Wednesday, January 9, 2008 4:21 PM

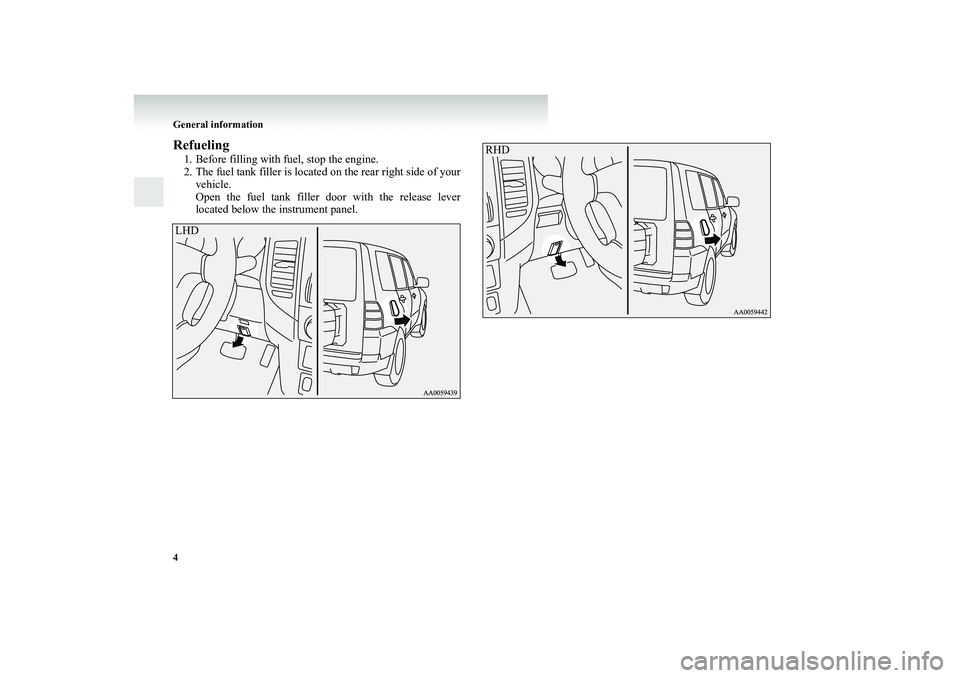

4 General informationRefueling1. Before filling with fuel, stop the engine. 2. The fuel tank filler is located on the rear right side of your
vehicle. Open the fuel tank filler
door with the release lever
located below the instrument panel.
LHD
RHD
BK-BK2008E1ENUK.en-uk-Section3.fm Page 4 Wednesday, January 9, 2008 4:21 PM

General information
5

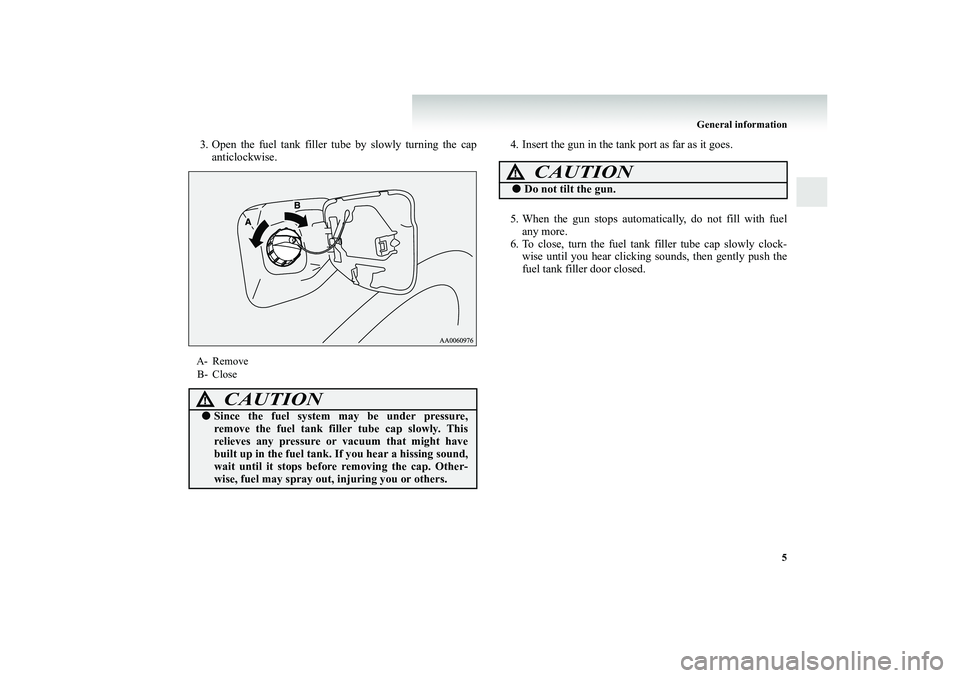

3. Open the fuel tank filler tube by slowly turning the cap
anticlockwise.
4. Insert the gun in the tank port as far as it goes. 5. When the gun stops automatically, do not fill with fuel
any more.
6. To close, turn the fuel tank filler tube cap slowly clock-
wise until you hear clicking sounds, then gently push thefuel tank filler door closed.
A- Remove B- Close
CAUTION
!●
Since the fuel system may be under pressure, remove the fuel tank fill
er tube cap slowly. This
relieves any pressure or vacuum that might have built up in the fuel tank. If you hear a hissing sound, wait until it stops before
removing the cap. Other-
wise, fuel may spray out,
injuring you or others.
CAUTION
!●
Do not tilt the gun.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 5 Wednesday, January 9, 2008 4:21 PM

6 General information

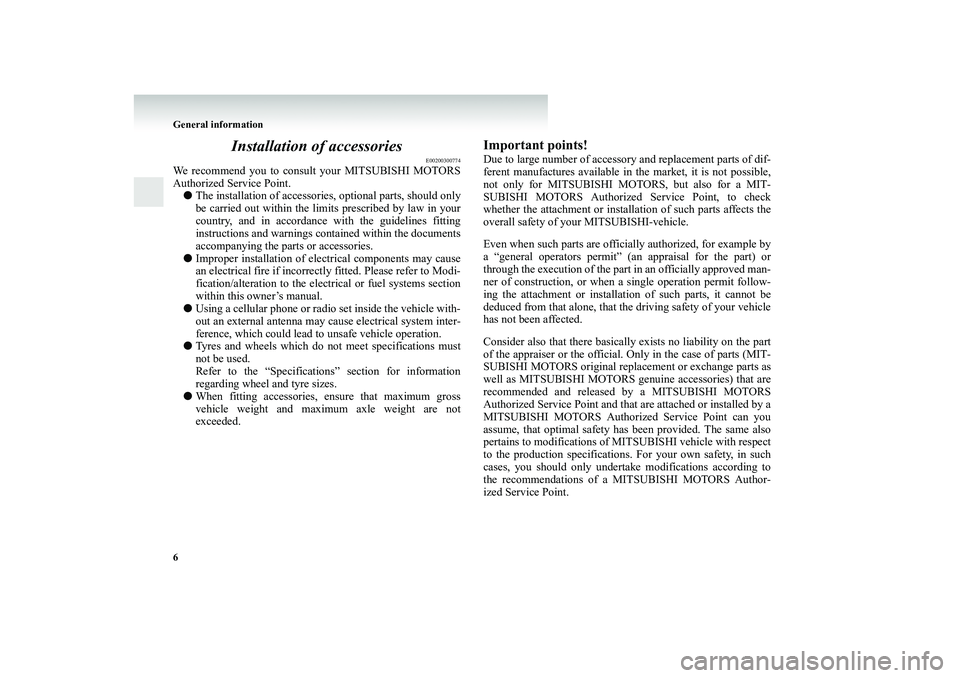

Installation of accessories
E00200300774
We recommend you to consult your MITSUBISHI MOTORS Authorized Service Point. ●
The installation of accessories
, optional parts, should only
be carried out within the limits prescribed by law in your country, and in accordance wi
th the guidelines fitting
instructions and warnings contained within the documentsaccompanying the parts or accessories.
●
Improper installation of el
ectrical components may cause
an electrical fire if incorrectly
fitted. Please refer to Modi-
fication/alteration to the electri
cal or fuel systems section
within this owner’s manual.
●
Using a cellular phone or radio set inside the vehicle with- out an external antenna may
cause electrical system inter-
ference, which could lead to
unsafe vehicle operation.
●
Tyres and wheels which do not meet specifications must not be used. Refer to the “Specifications
” section for information
regarding wheel and tyre sizes.
●
When fitting accessories, ensure that maximum gross vehicle weight and maximum axle weight are not exceeded.
Important points!Due to large number of accessory
and replacement parts of dif-
ferent manufactures available in the market, it is not possible,not only for MITSUBISHI MOTORS, but also for a MIT- SUBISHI MOTORS Authorized
Service Point, to check
whether the attachment or installa
tion of such parts affects the
overall safety of your MITSUBISHI-vehicle. Even when such parts are offici
ally authorized, for example by
a “general operators permit”
(an appraisal for the part) or
through the execution of the part
in an officially approved man-
ner of construction, or when a single operation permit follow- ing the attachment or installation of such parts, it cannot be deduced from that alone, that the driving safety of your vehiclehas not been affected. Consider also that there basically
exists no liability on the part
of the appraiser or the official.
Only in the case of parts (MIT-
SUBISHI MOTORS original repl
acement or exchange parts as
well as MITSUBISHI MOTORS
genuine accessories) that are
recommended and released by a MITSUBISHI MOTORSAuthorized Service Point and that
are attached or installed by a
MITSUBISHI MOTORS Author
ized Service Point can you
assume, that optimal safety ha
s been provided. The same also
pertains to modifications of
MITSUBISHI vehicle with respect
to the production specifications. For your own safety, in such cases, you should only undert
ake modifications according to
the recommendations of a MI
TSUBISHI MOTORS Author-
ized Service Point.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 6 Wednesday, January 9, 2008 4:21 PM

General information
7

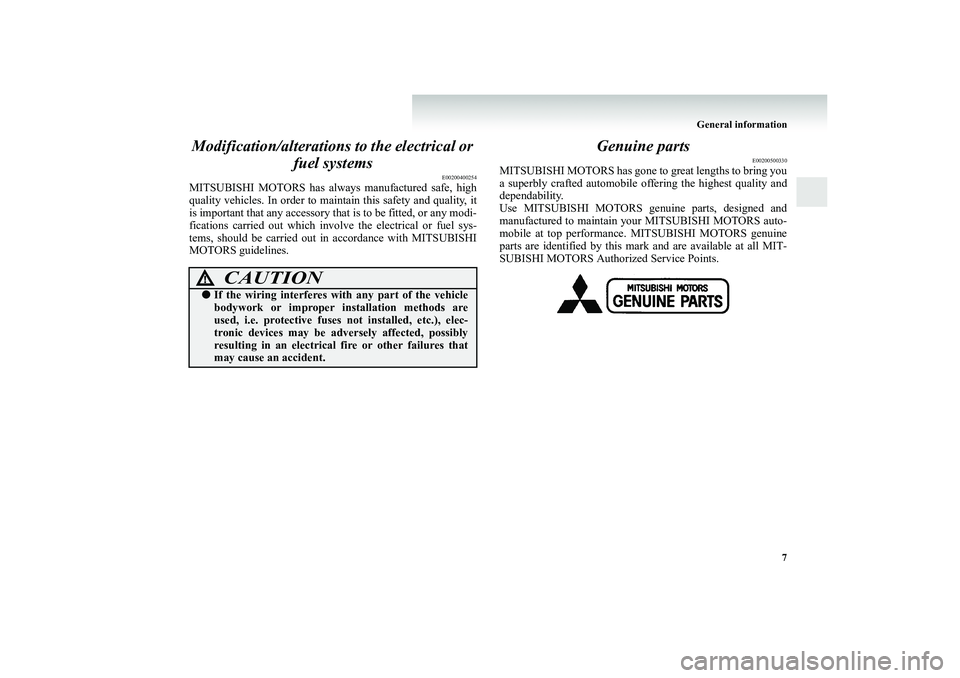

Modification/alterations
to the electrical or
fuel systems
E00200400254
MITSUBISHI MOTORS has always manufactured safe, high quality vehicles. In order to maintain this safety and quality, it is important that any accessory that
is to be fitted, or any modi-
fications carried out which invo
lve the electrical or fuel sys-
tems, should be carried out
in accordance with MITSUBISHI
MOTORS guidelines.
Genuine parts
E00200500330
MITSUBISHI MOTORS has gone to great lengths to bring you a superbly crafted automobile offering the highest quality and dependability.Use MITSUBISHI MOTORS genuine parts, designed and manufactured to maintain your MITSUBISHI MOTORS auto- mobile at top performance. MITSUBISHI MOTORS genuineparts are identified by this mark
and are available at all MIT-
SUBISHI MOTORS Authorized Service Points.
CAUTION
!●
If the wiring interferes wi
th any part of the vehicle
bodywork or improper installation methods areused, i.e. protective fuses
not installed,
etc.), elec-
tronic devices may be ad
versely affected, possibly
resulting in an electrical
fire or other failures that
may cause an accident.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 7 Wednesday, January 9, 2008 4:21 PM

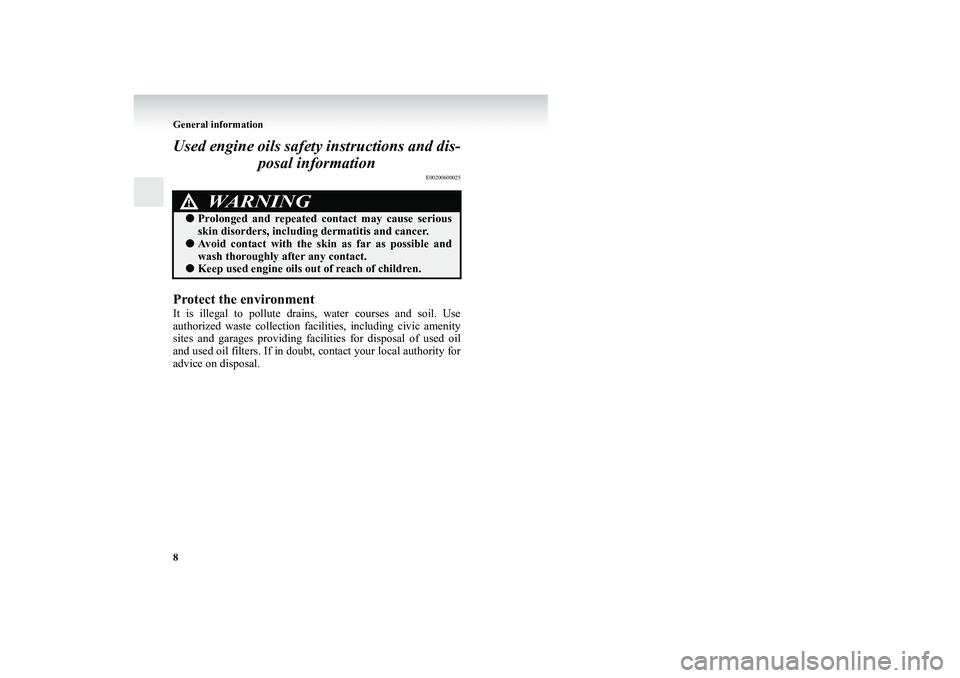

8 General informationUsed engine oils safety
instructions and dis-
posal information
E00200600025
Protect the environmentIt is illegal to pollute drains, water courses and soil. Use authorized waste collection faci
lities, includi
ng civic amenity
sites and garages providing facili
ties for disposal of used oil
and used oil filters. If in doub
t, contact your local authority for
advice on disposal.
WARNING
!●
Prolonged and repeated contact may cause serious skin disorders, including
dermatitis and cancer.
●
Avoid contact with the skin as far as possible and wash thoroughly after any contact.
●
Keep used engine oils ou
