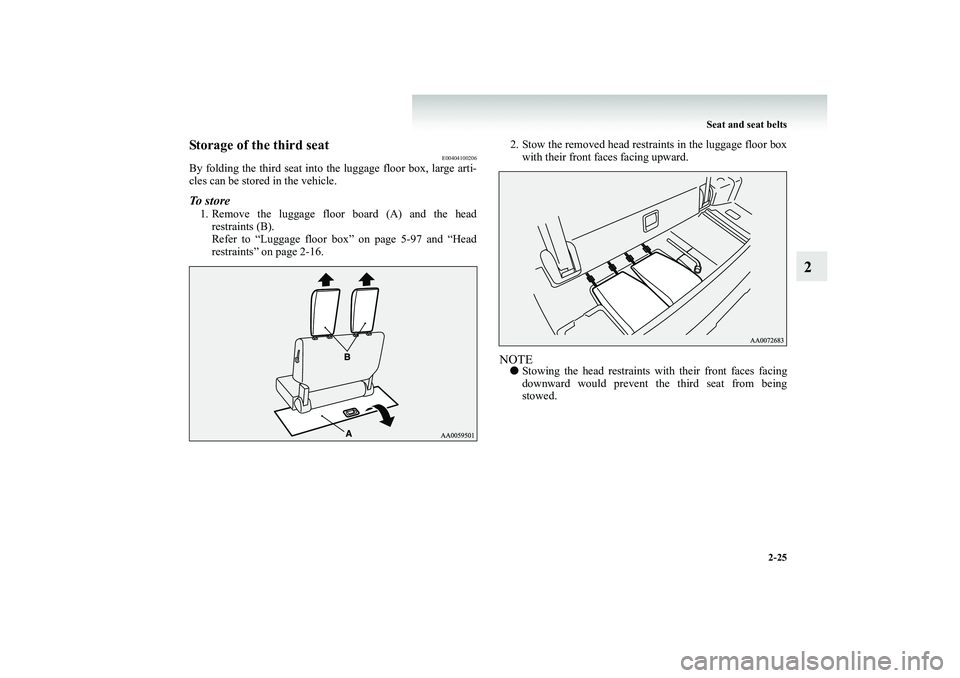

Seat and seat belts
2-25
2
Storage of the third seat
E00404100206
By folding the third seat into the luggage floor box, large arti- cles can be stored in the vehicle.To s t o r e1. Remove the luggage floor board (A) and the head
restraints (B).Refer to “Luggage floor box” on page 5-97 and “Head restraints” on page 2-16.
2. Stow the removed head restraints in the luggage floor box
with their front faces facing upward.
NOTE●
Stowing the head restraints
with their fron
t faces facing
downward would prevent the third seat from beingstowed.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
25 Wednesday, January 9, 2008 4:28 PM

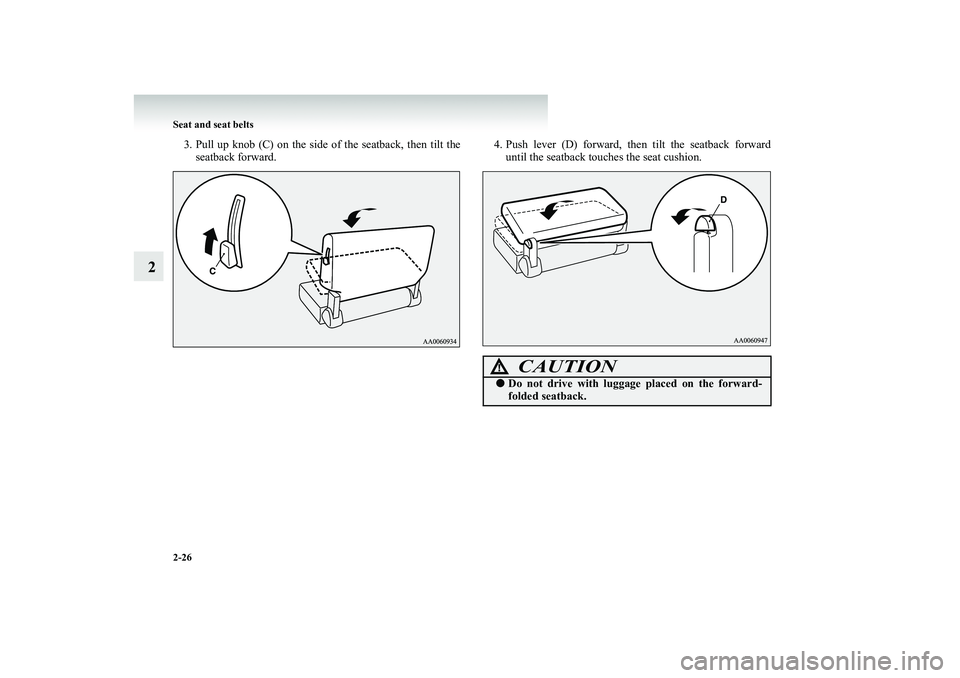

2-26 Seat and seat belts
2
3. Pull up knob (C) on the side of the seatback, then tilt the
seatback forward.
4. Push lever (D) forward, th
en tilt the seatback forward
until the seatback touches the seat cushion.
CAUTION
!●
Do not drive with luggage placed on the forward- folded seatback.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
26 Wednesday, January 9, 2008 4:28 PM

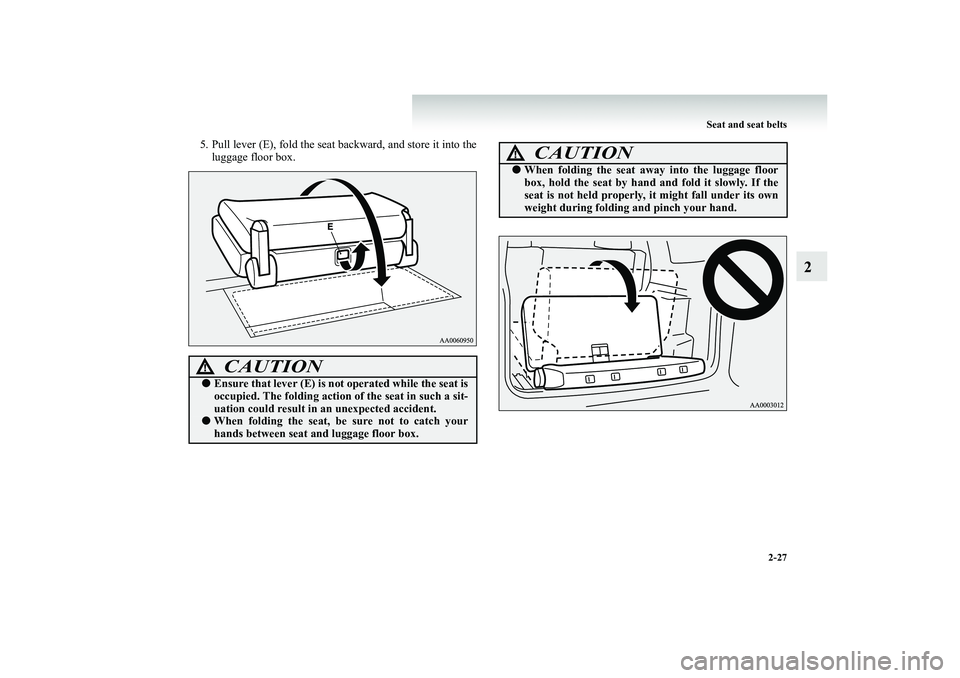

Seat and seat belts
2-27
2
5. Pull lever (E), fold the seat backward, and store it into the
luggage floor box.
CAUTION
!●
Ensure that lever (E) is not operated while the seat is occupied. The folding action
of the seat in such a sit-
uation could result in
an unexpected
accident.
●
When folding the seat, be
sure not to catch your
hands between seat and luggage floor box.
CAUTION
!●
When folding the seat away into the luggage floor box, hold the seat by hand and fold it slowly. If theseat is not held properly,
it might fall under its own
weight during folding
and pinch your hand.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
27 Wednesday, January 9, 2008 4:28 PM

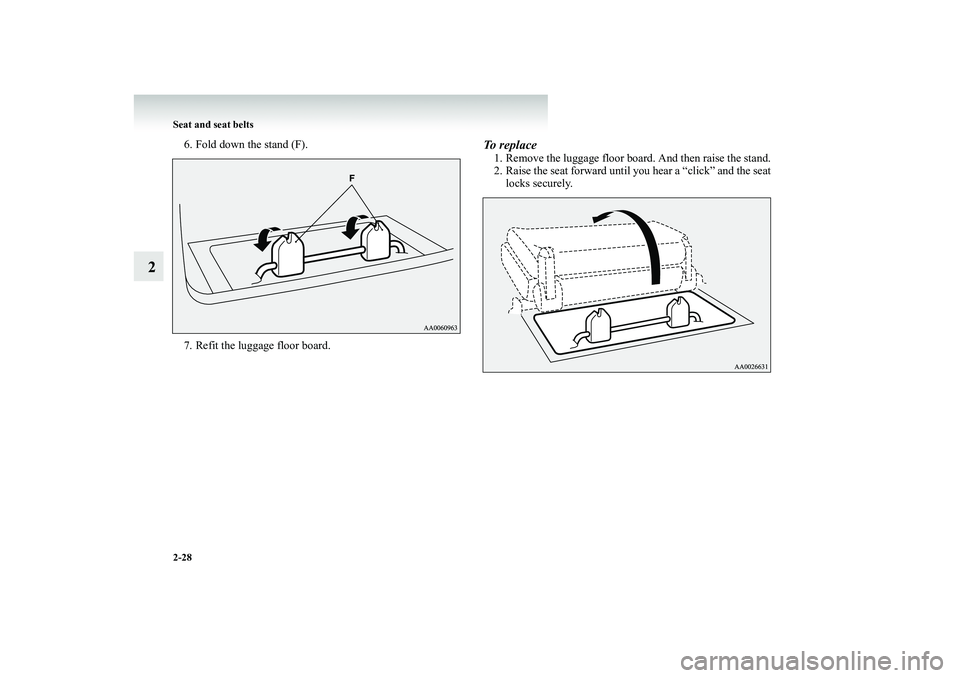

2-28 Seat and seat belts
2
6. Fold down the stand (F). 7. Refit the luggage floor board.
To r e p l a c e1. Remove the luggage floor board. And then raise the stand. 2. Raise the seat forward until
you hear a “click” and the seat
locks securely.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
28 Wednesday, January 9, 2008 4:28 PM

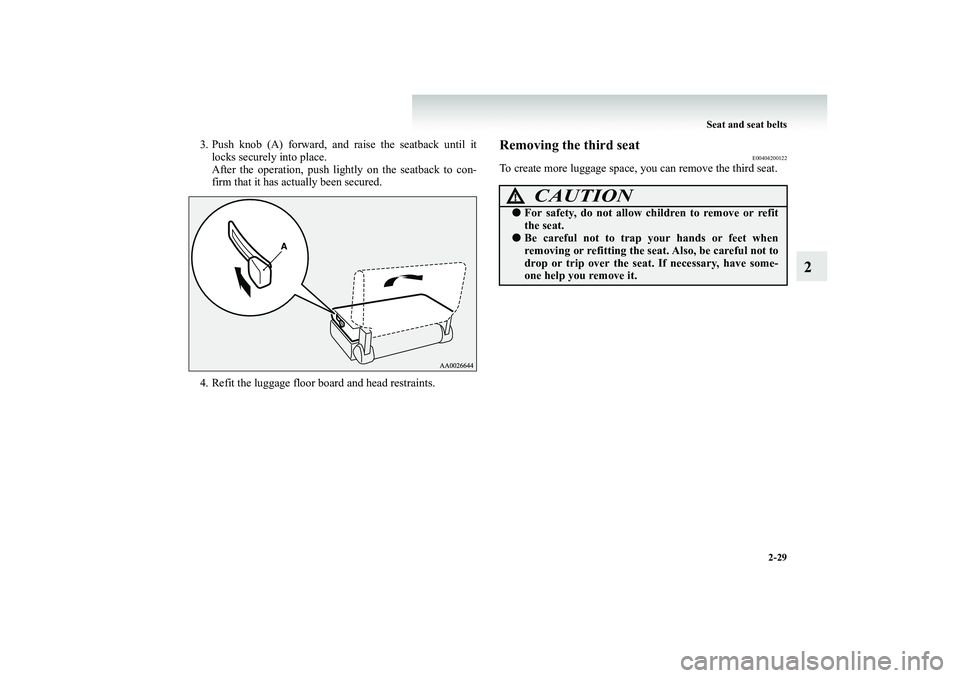

Seat and seat belts
2-29
2
3. Push knob (A) forward, a
nd raise the seatback until it
locks securely into place. After the operation, push lightly on the seatback to con- firm that it has act
ually been secured.
4. Refit the luggage floor board and head restraints.
Removing the third seat
E00404200122
To create more luggage space, you can remove the third seat.
CAUTION
!●
For safety, do not allow children to remove or refit the seat.
●
Be careful not to trap your hands or feet when removing or refitting the seat. Also, be careful not to drop or trip over the seat. If necessary, have some-one help you remove it.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
29 Wednesday, January 9, 2008 4:28 PM

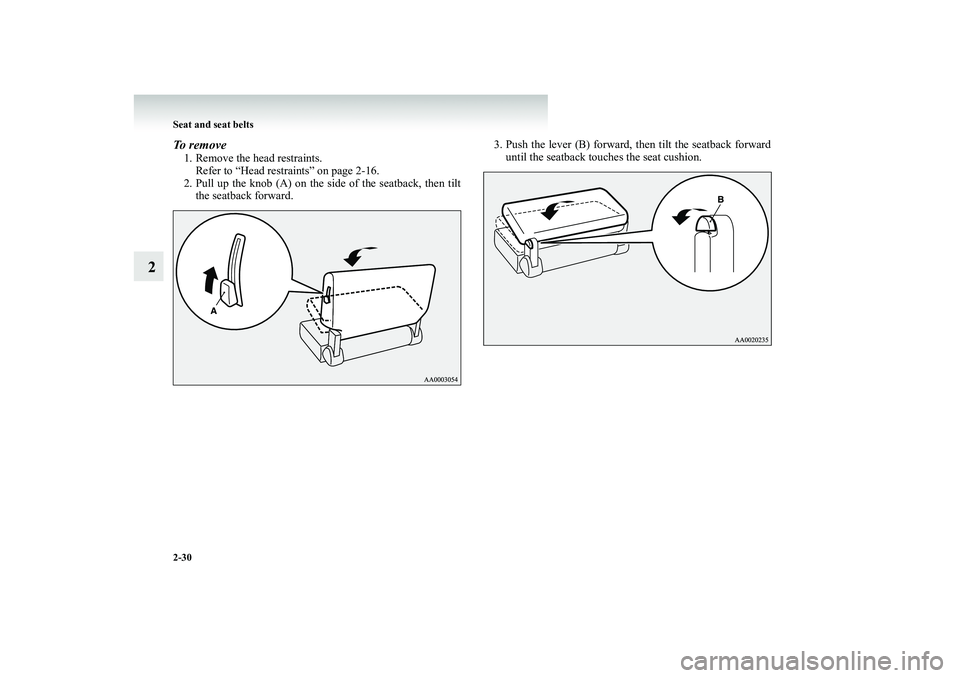

2-30 Seat and seat belts
2
To remove1. Remove the head restraints.
Refer to “Head restraints” on page 2-16.
2. Pull up the knob (A) on the si
de of the seatback, then tilt
the seatback forward.
3. Push the lever (B) forward, th
en tilt the seatback forward
until the seatback touches the seat cushion.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
30 Wednesday, January 9, 2008 4:28 PM

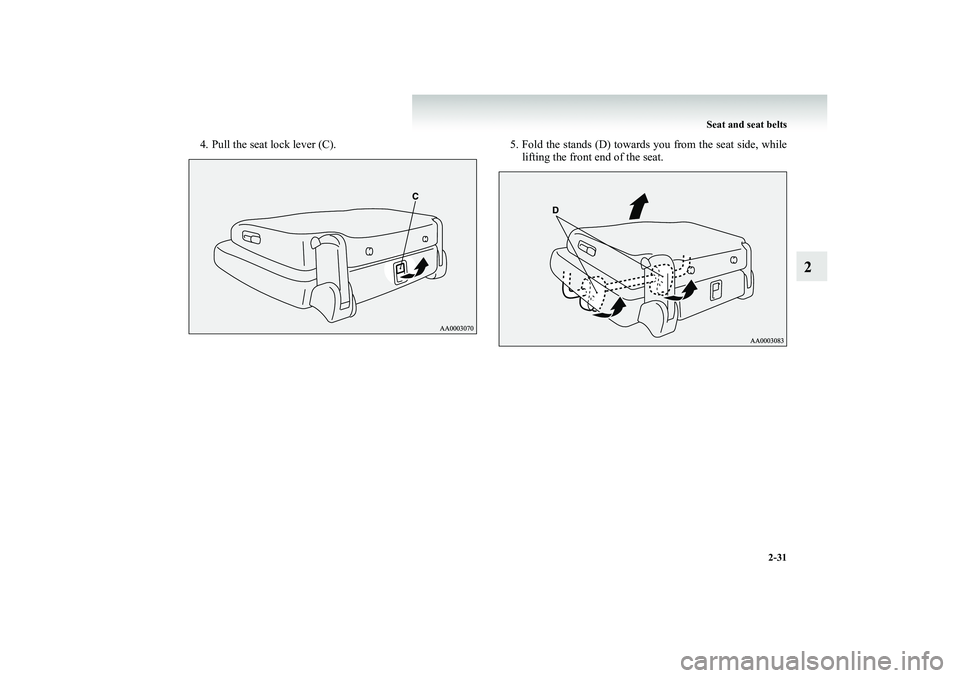

Seat and seat belts
2-31
2
4. Pull the seat lock lever (C). 5. Fold the stands (D) towards you from the seat side, while
lifting the front end of the seat.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
31 Wednesday, January 9, 2008 4:28 PM

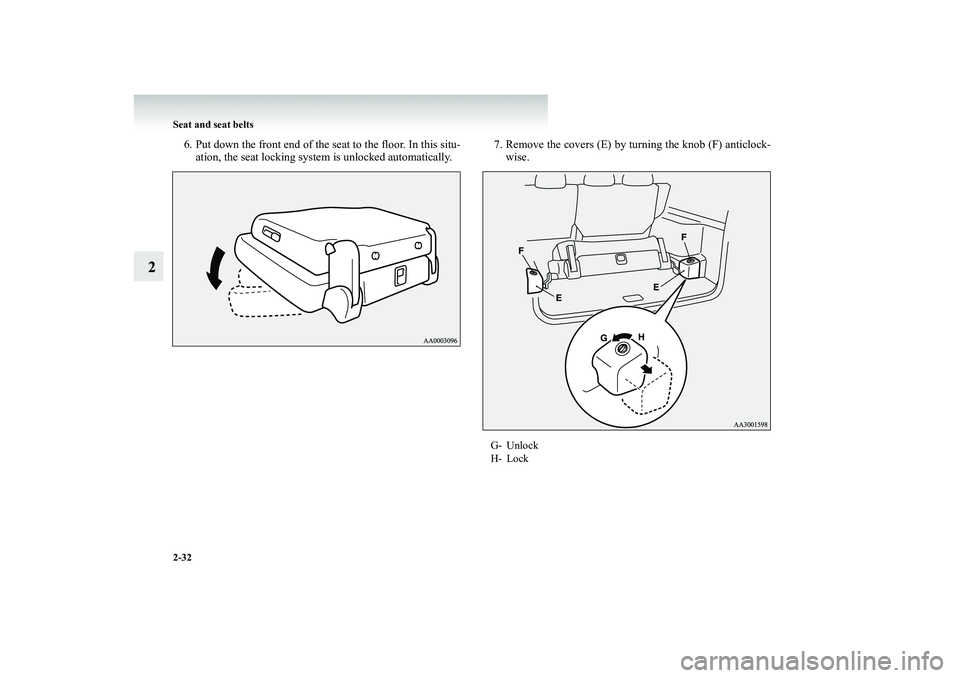

2-32 Seat and seat belts
2
6. Put down the front end of the seat to the floor. In this situ-
ation, the seat locking syst
em is unlocked automatically.
7. Remove the covers (E) by turning the knob (F) anticlock-
wise.
G- Unlock H- Lock
BK-BK2008E1ENUK.en-uk-Section5.fm Page
32 Wednesday, January 9, 2008 4:28 PM

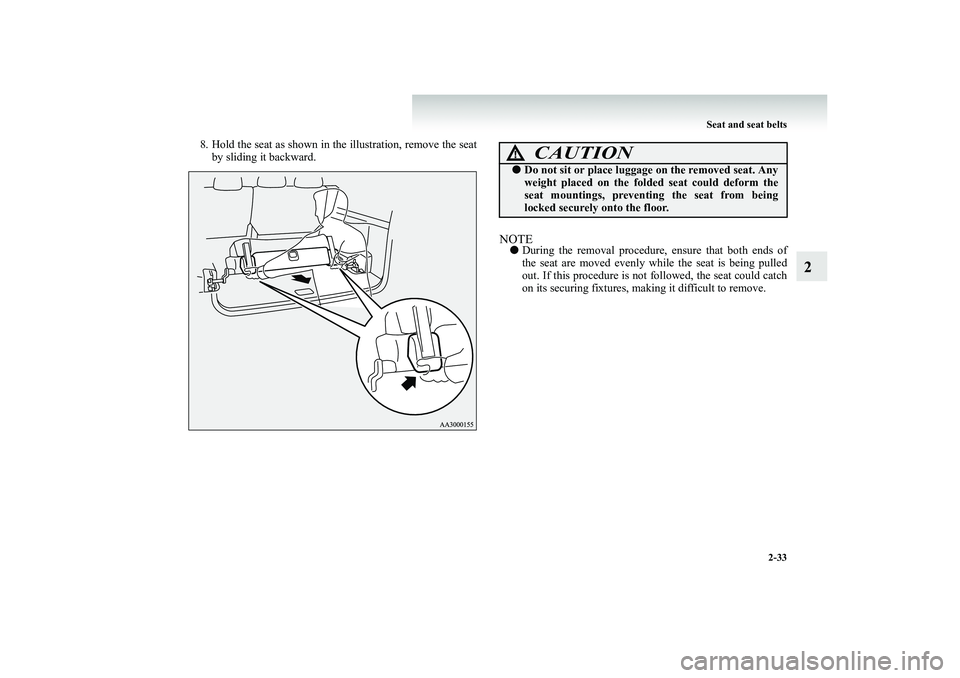

Seat and seat belts
2-33
2
8. Hold the seat as shown in the illustration, remove the seat
by sliding it backward.
NOTE●
During the removal procedure, ensure that both ends of the seat are moved evenly wh
ile the seat is being pulled
out. If this procedure is not followed, the seat could catch on its securing fixtures, making it difficult to remove.
CAUTION
!●
Do not sit or place luggage on the removed seat. Any weight placed on the fold
ed seat could deform the
seat mountings, preventing the seat from being locked securely onto the floor.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
33 Wednesday, January 9, 2008 4:28 PM

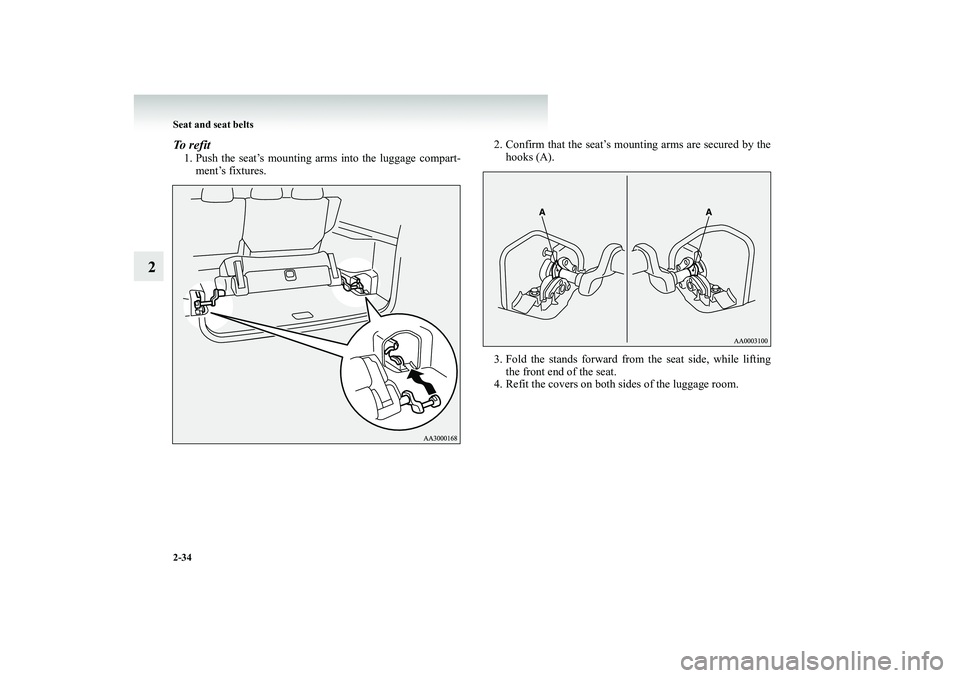

2-34 Seat and seat belts
2
To refit1. Push the seat’s mounting ar
ms into the luggage compart-
ment’s fixtures.
2. Confirm that the seat’s mo
unting arms are secured by the
hooks (A).
3. Fold the stands forward from
the seat side, while lifting
the front end of the seat.
4. Refit the covers on both sides of the luggage room.
