Seat and seat belts
2-5
2

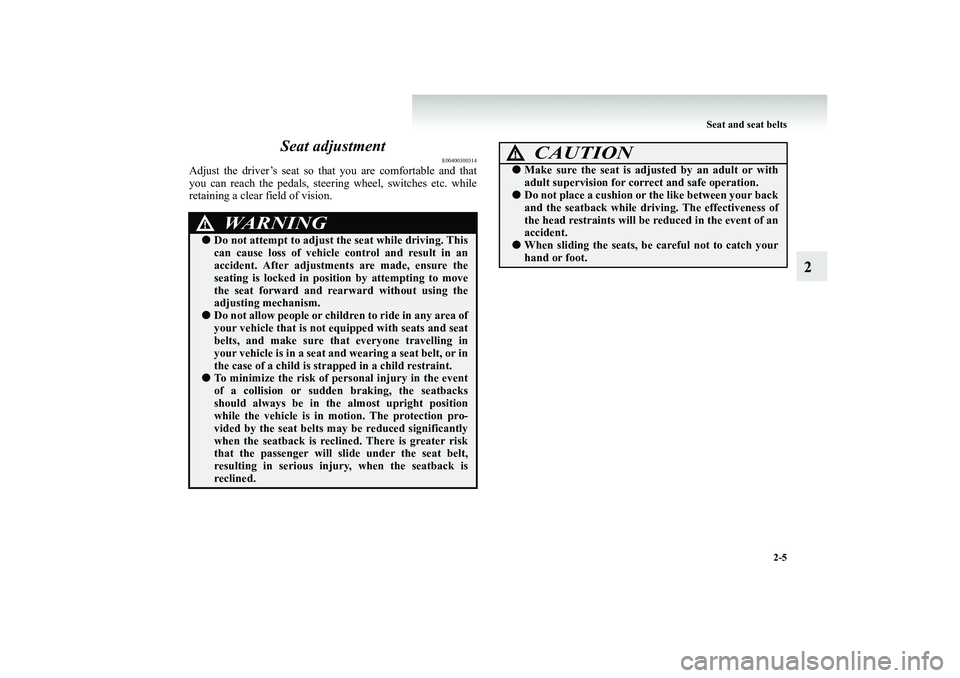

Seat adjustment
E00400300314
Adjust the driver’s seat so th
at you are comfortable and that
you can reach the pedals, steer
ing wheel, switches etc. while
retaining a clear field of vision.
WARNING
!●
Do not attempt to adjust the seat while driving. This can cause loss of vehicle
control and result in an
accident. After adjustment
s are made, ensure the
seating is locked in positi
on by attempting to move
the seat forward and rearward without using theadjusting mechanism.
●
Do not allow people or children to ride in any area of your vehicle that is not equipped with seats and seatbelts, and make sure th
at everyone travelling in
your vehicle is in a seat and wearing a seat belt, or in the case of a child is stra
pped in a child restraint.
●
To minimize the risk of pers
onal injury in the event
of a collision or sudden braking, the seatbacks should always be in th
e almost upright position
while the vehicle is in
motion. The protection pro-
vided by the seat belts may be reduced significantly when the seatback is reclined. There is greater riskthat the passenger will slide under the seat belt, resulting in serious inju
ry, when the seatback is
reclined.
CAUTION
!●
Make sure the seat is adju
sted by an adult or with
adult supervision for corr
ect and safe operation.
●
Do not place a cushion or the like between your back and the seatback while driving. The effectiveness of the head restraints will be reduced in the event of anaccident.
●
When sliding the seats, be
careful not to catch your
hand or foot.
BK-BK2008E1ENUK.en-uk-Section5.fm Page 5 Wednesday, January 9, 2008 4:28 PM

2-6 Seat and seat belts
2

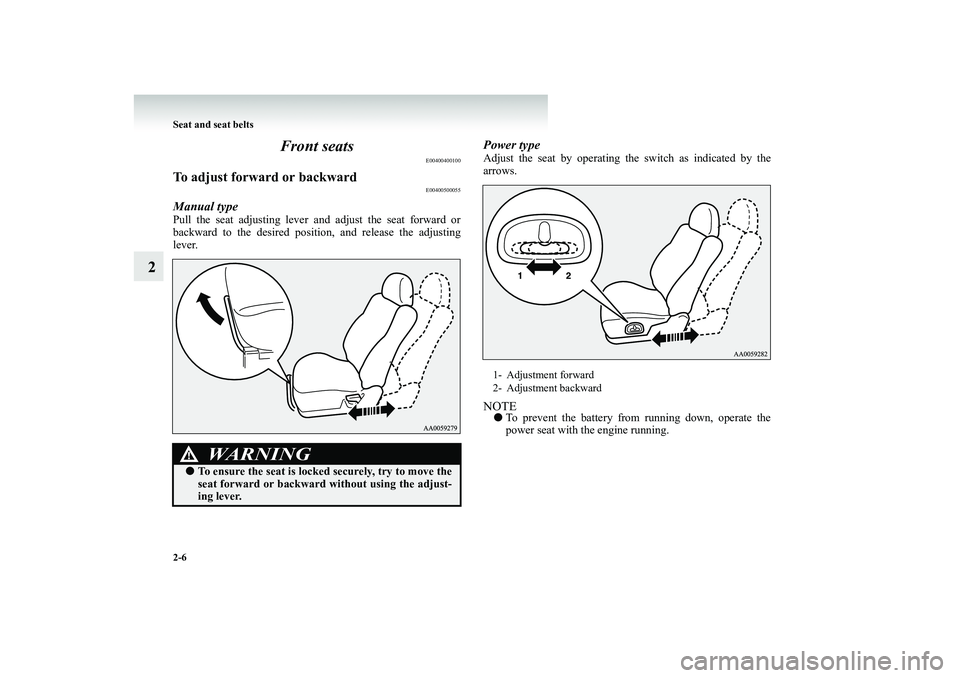

Front seats
E00400400100
To adjust forward or backward
E00400500055
Manual typePull the seat adjusting lever
and adjust the seat forward or
backward to the desired positi
on, and release the adjusting
lever.
Power typeAdjust the seat by operating
the switch as indicated by the
arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
WARNING
!●
To ensure the seat is locked securely, try to move the seat forward or backward
without using the adjust-
ing lever.
1- Adjustment forward 2- Adjustment backward
BK-BK2008E1ENUK.en-uk-Section5.fm Page 6 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-7
2

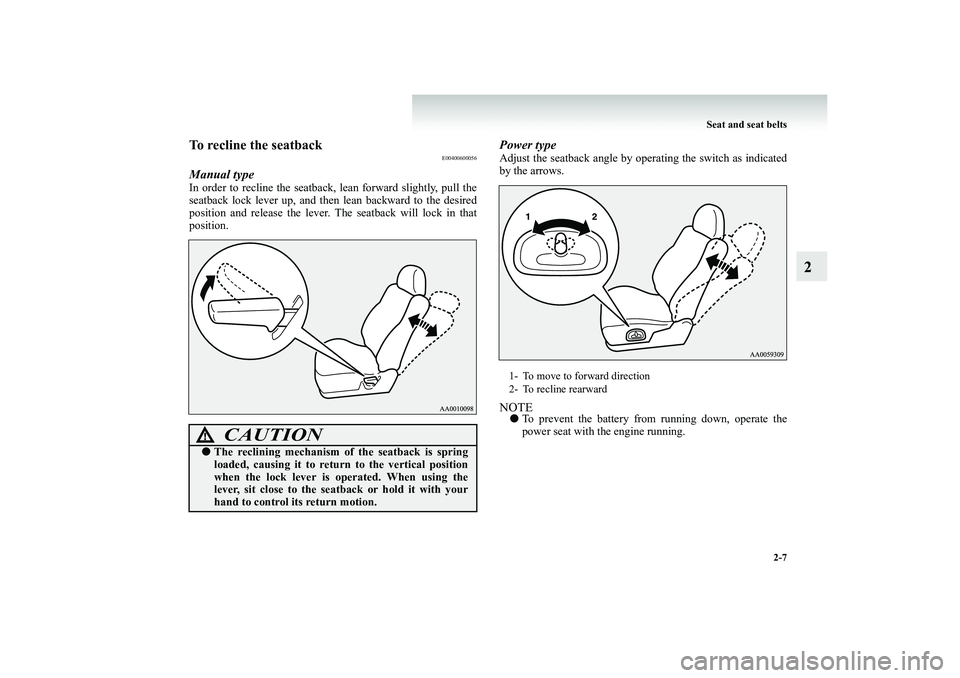

To recline the seatback
E00400600056
Manual typeIn order to recline the seatback
, lean forward slightly, pull the
seatback lock lever up, and then
lean backward to the desired
position and release the lever. Th
e seatback will lock in that
position.
Power typeAdjust the seatback angle by
operating the switch as indicated
by the arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
CAUTION
!●
The reclining mechanism of
the seatback is spring
loaded, causing it to return
to the vertical position
when the lock lever is operated. When using thelever, sit close to the seatback or hold it with your hand to control its return motion.
1- To move to forward direction 2- To recline rearward
BK-BK2008E1ENUK.en-uk-Section5.fm Page 7 Wednesday, January 9, 2008 4:28 PM

2-8 Seat and seat belts
2

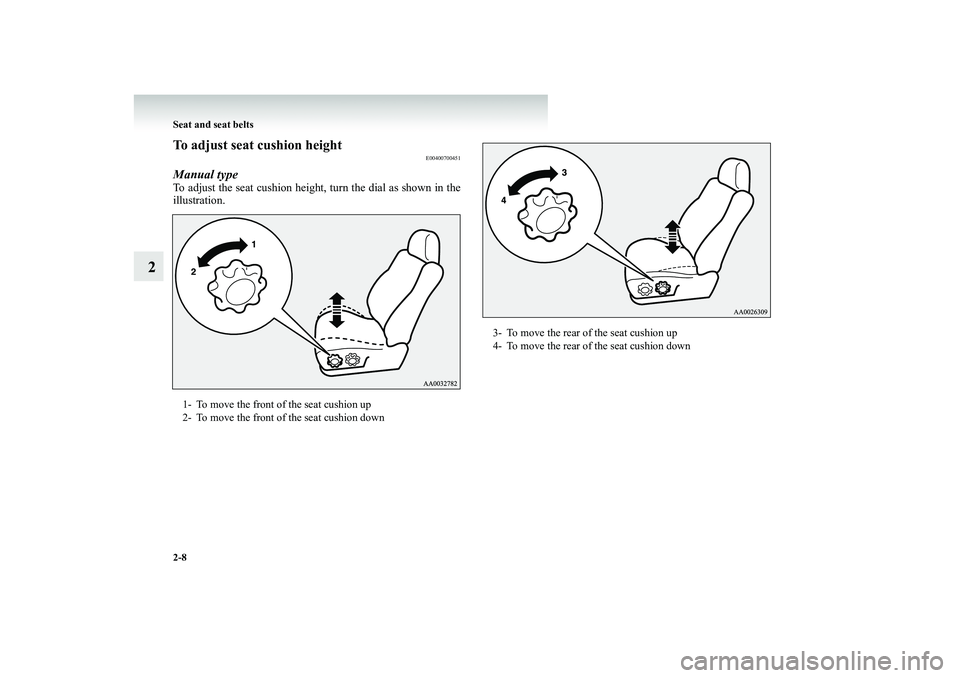

To adjust seat cushion height
E00400700451
Manual typeTo adjust the seat cushion height
, turn the dial as shown in the
illustration.1- To move the front of the seat cushion up 2- To move the front of the seat cushion down
3- To move the rear of the seat cushion up4- To move the rear of the seat cushion down
BK-BK2008E1ENUK.en-uk-Section5.fm Page 8 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-9
2

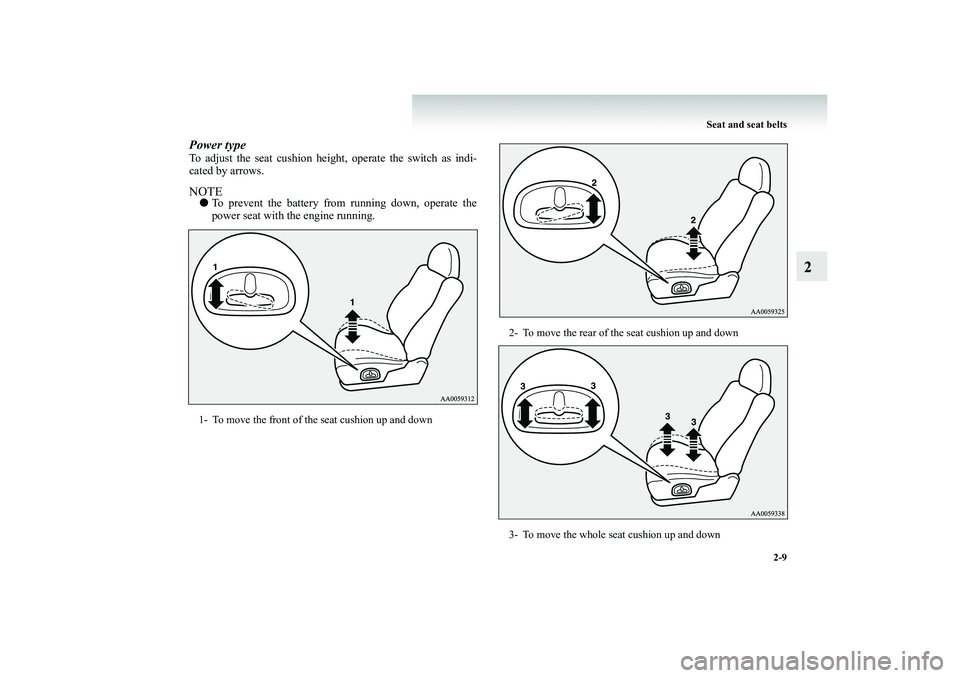

Power typeTo adjust the seat cushion heig
ht, operate the switch as indi-
cated by arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
1- To move the front of the seat cushion up and down
2- To move the rear of the seat cushion up and down 3- To move the whole seat cushion up and down
BK-BK2008E1ENUK.en-uk-Section5.fm Page 9 Wednesday, January 9, 2008 4:28 PM

2-10 Seat and seat belts
2

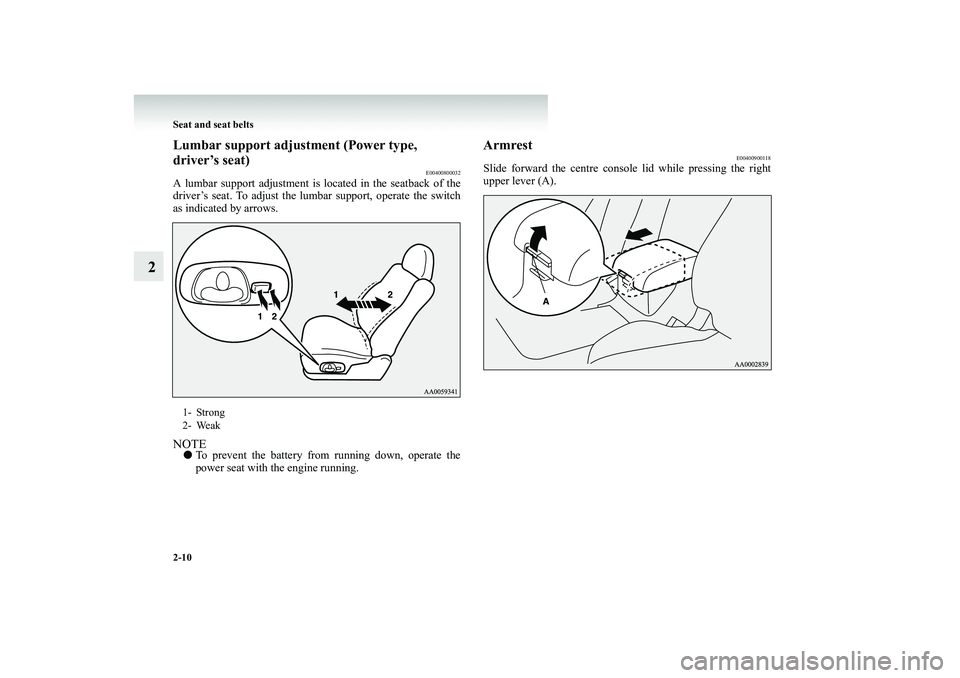

Lumbar support adjustment (Power type, driver’s seat)
E00400800032
A lumbar support adjustment is located in the seatback of the driver’s seat. To adjust the lu
mbar support, operate the switch
as indicated by arrows.NOTE●
To prevent the battery from running down, operate the power seat with the engine running.
Armrest
E00400900118
Slide forward the centre consol
e lid while pressing the right
upper lever (A).
1- Strong 2- Weak
BK-BK2008E1ENUK.en-uk-Section5.fm Page
10 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-11
2

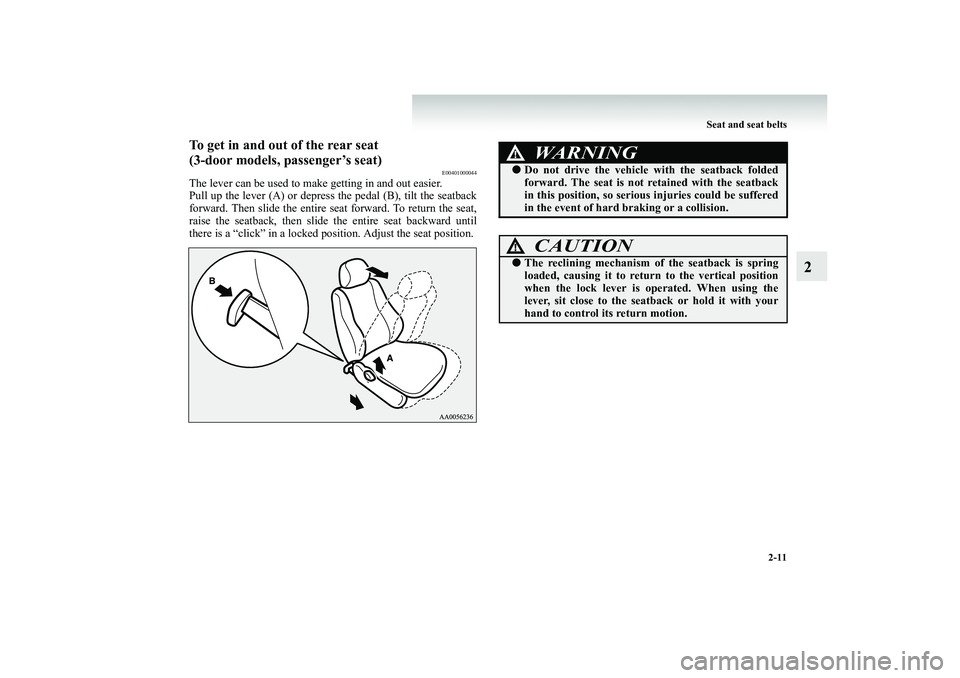

To get in and out of the rear seat (3-door models, passenger’s seat)
E00401000044
The lever can be used to make getting in and out easier. Pull up the lever (A) or depress the pedal (B), tilt the seatbackforward. Then slide the entire s
eat forward. To
return the seat,
raise the seatback, then slide
the entire seat backward until
there is a “click” in a locked po
sition. Adjust the seat position.
WARNING
!●
Do not drive the vehicle
with the seatback folded
forward. The seat is not retained with the seatbackin this position, so seriou
s injuries could be suffered
in the event of hard
braking or a collision.
CAUTION
!●
The reclining mech
anism of the seatback is spring
loaded, causing it to return
to the vertical position
when the lock lever is
operated. When using the
lever, sit close to the seatback or hold it with your hand to control its return motion.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
11 Wednesday, January 9, 2008 4:28 PM

2-12 Seat and seat belts
2

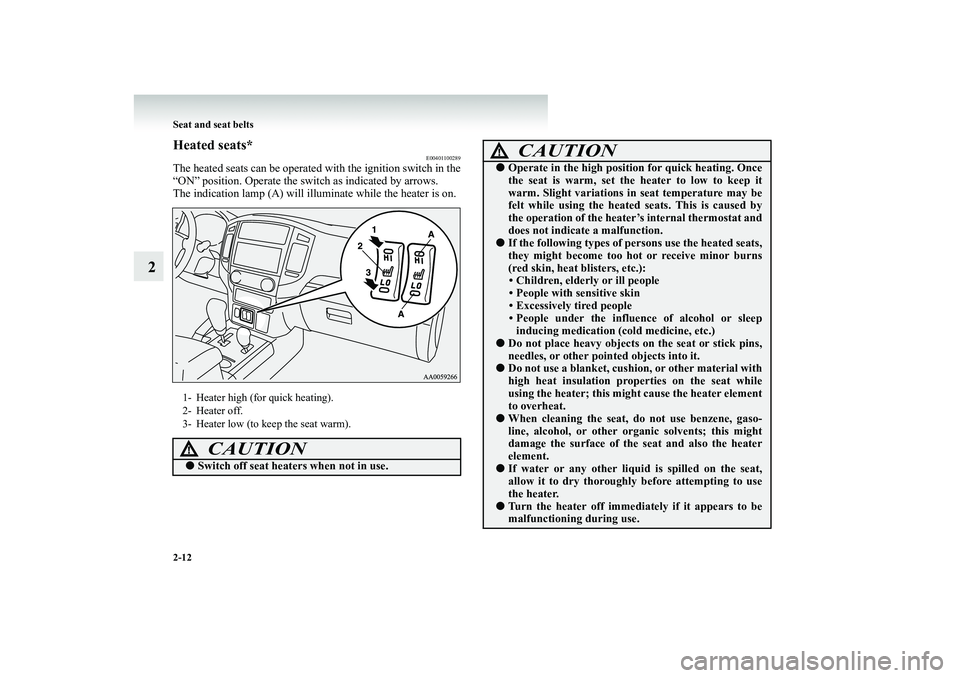

Heated seats*
E00401100289
The heated seats can be operated
with the ignition switch in the
“ON” position. Operate the switch as indicated by arrows. The indication lamp (A) will illuminate while the heater is on.1- Heater high (for quick heating). 2- Heater off.3- Heater low (to keep the seat warm).
CAUTION
!●
Switch off seat heat
ers when not in use.
●
Operate in the high positi
on for quick heating. Once
the seat is warm, set the
heater to low to keep it
warm. Slight variations in
seat temperature may be
felt while using the heated
seats. This is caused by
the operation of the heater’s
internal thermostat and
does not indicate a malfunction.
●
If the following types of p
ersons use the heated seats,
they might become too ho
t or receive minor burns
(red skin, heat blisters, etc.):• Children, elderly or ill people • People with sensitive skin • Excessively tired people • People under the influe
nce of alcohol or sleep
inducing medication (cold medicine, etc.)
●
Do not place heavy objects on the seat or stick pins, needles, or other poin
ted objects into it.
●
Do not use a blanket, cushio
n, or other material with
high heat insulation prop
erties on the seat while
using the heater; this migh
t cause the heater element
to overheat.
●
When cleaning the seat,
do not use benzene, gaso-
line, alcohol, or other organic solvents; this might damage the surface of the
seat and also the heater
element.
●
If water or any other liquid
is spilled on the seat,
allow it to dry thoroughly
before attempting to use
the heater.
●
Turn the heater off immediately if it appears to be malfunctioning during use.CAUTION
!
BK-BK2008E1ENUK.en-uk-Section5.fm Page
12 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-13
2
Rear seats (3-door models)*/ Second seats (5-door models)*
E00402000184

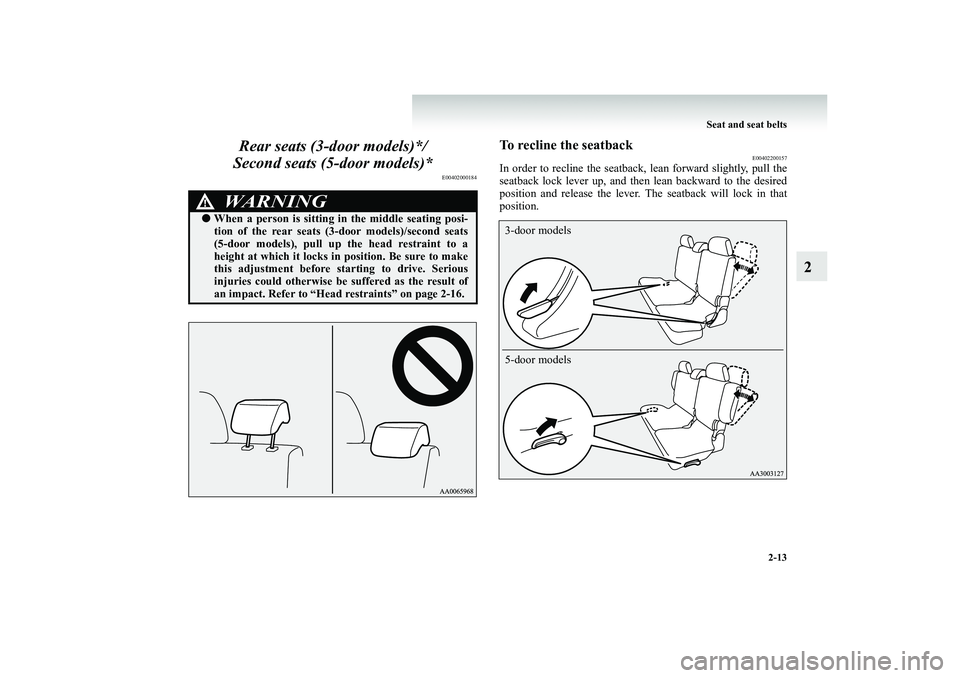

To recline the seatback
E00402200157
In order to recline the seatback
, lean forward slightly, pull the
seatback lock lever up, and then
lean backward to the desired
position and release the lever.
The seatback will lock in that
position.
WARNING
!●
When a person is sitting in
the middle seating posi-
tion of the rear seats (3-door models)/second seats (5-door models), pull up the head restraint to a height at which it locks in
position. Be sure to make
this adjustment before starting to drive. Serious injuries could otherwise be
suffered as the result of
an impact. Refer to “Head restraints” on page 2-16.
3-door models 5-door models
BK-BK2008E1ENUK.en-uk-Section5.fm Page
13 Wednesday, January 9, 2008 4:28 PM

2-14 Seat and seat belts
2
NOTE●
Each seatback can be adjusted by the lever on its side.
●
On 5-door models, each of the
second seat’s sidebacks (A)
is foldable. When either side
of the seatback is reclined to
a new position, its sideback automatically folds inward accordingly.

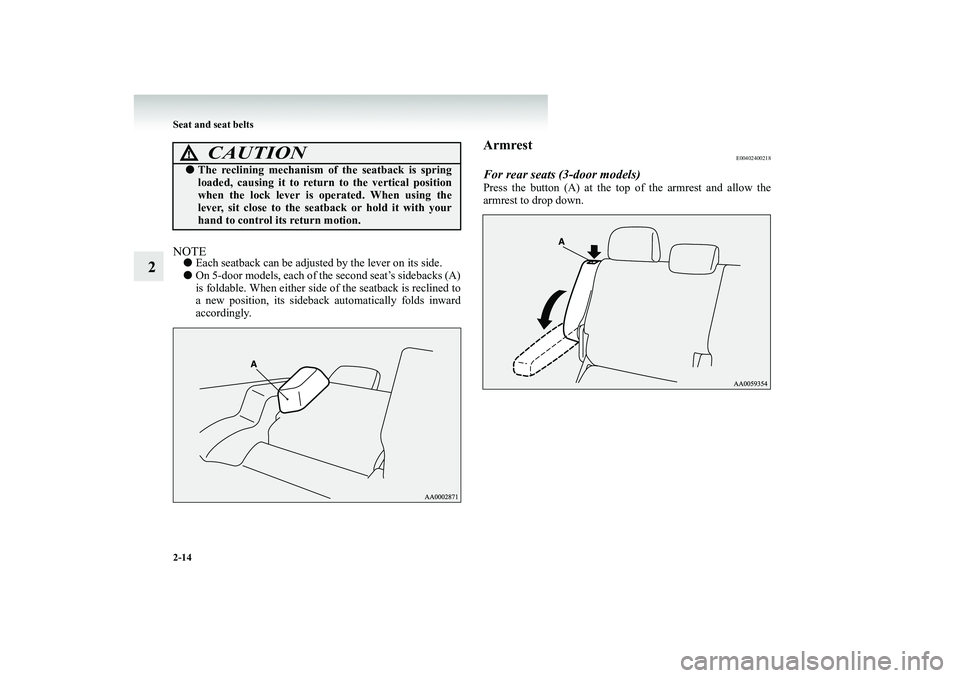

Armrest
E00402400218
For rear seats (3-door models)Press the button (A) at the top
of the armrest and allow the
armrest to drop down.
CAUTION
!●
The reclining mechanism of
the seatback is spring
loaded, causing it to return
to the vertical position
when the lock lever is
operated. When using the
lever, sit close to the seat
back or hold it with your
hand to control its return motion.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
