NISSAN 300ZX 1984 Z31 Electrical System User Guide ~~ STARTING SYSTEM -Starter-

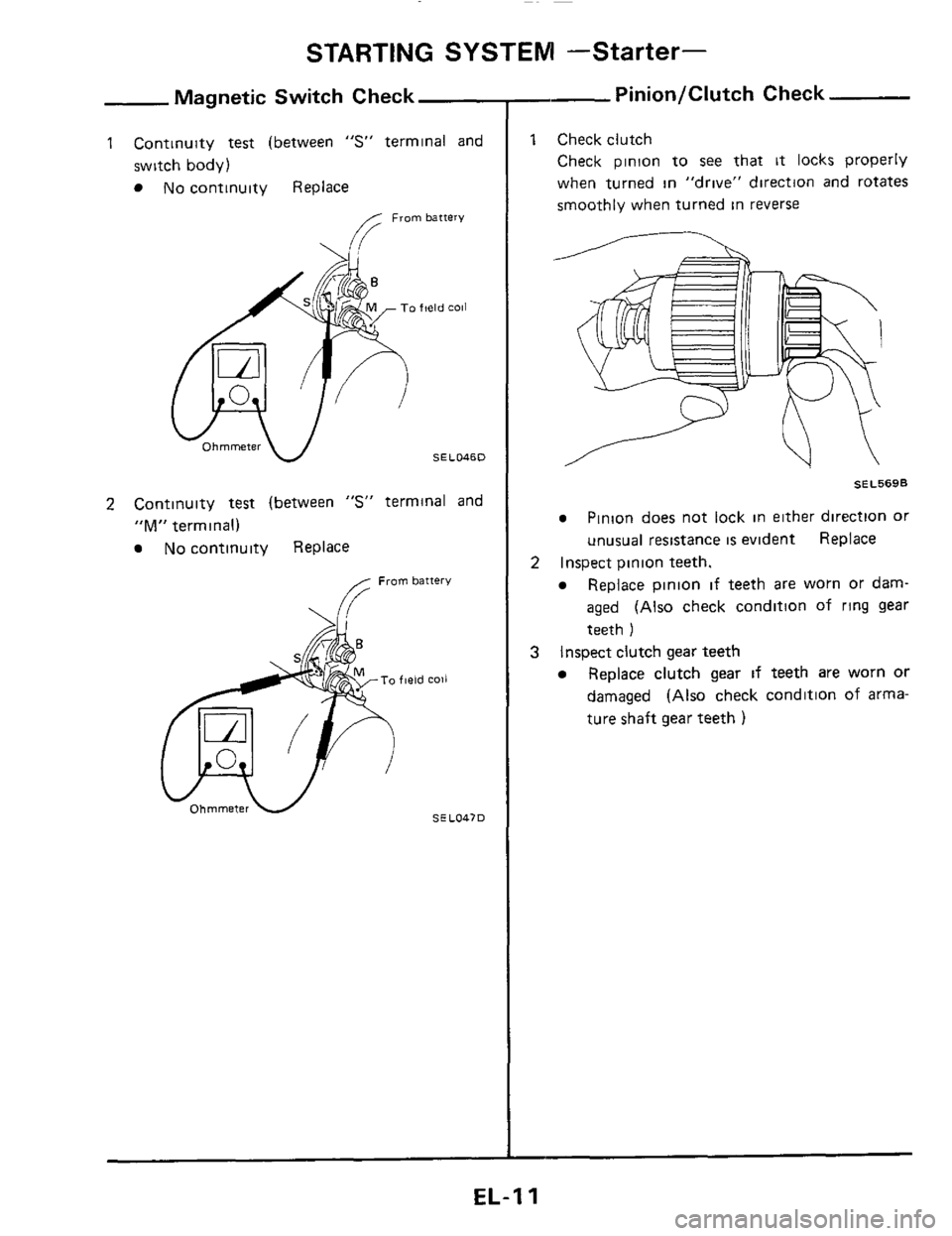

Magnetic  Switch
Check
1 Continuity test (between "S" terminal and
switch body)
No continuity  Replace
From battery
VL Ohmrnet
2 Continuity test (between "S" termi

Page 12 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide STARTING SYSTEM -Starter-

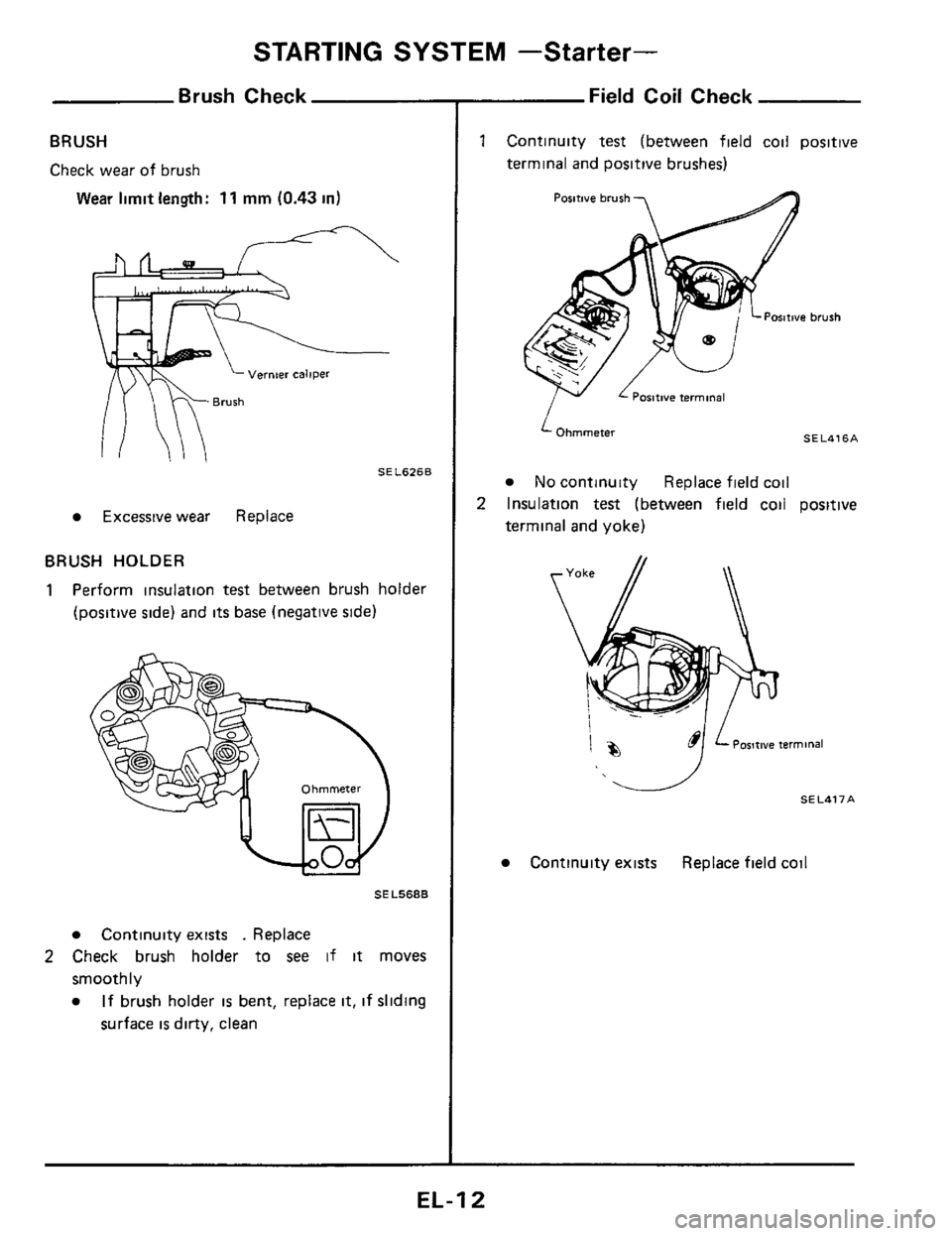

Brush Check
BRUSH
Check wear of brush
Wear limit length: 11 mm (0.43 in)
Vernier caliper
SEL626B
Excessive  wear Replace
BRUSH HOLDER
1 Perform  insulation  test  be

Page 13 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide STARTING SYSTEM -Starter-

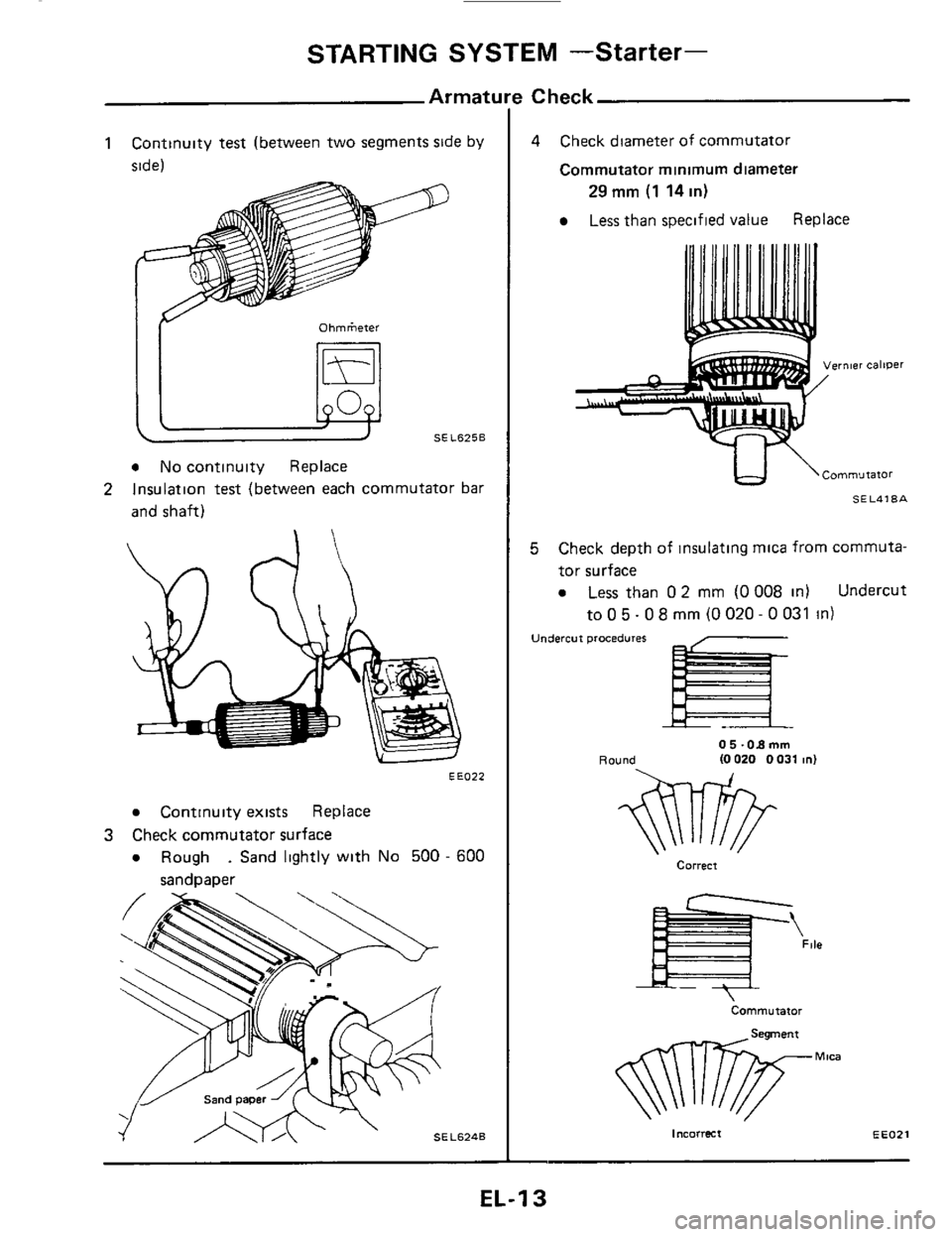

1 Continuity test (between two segments  side by
side)
IY Ohrnketer
a No continuity  Replace
Insulation
test (between  each commutator  bar
and  shaft) 2
EE022
a Con

Page 14 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide STARTING SYSTEM -Starter-
Minimum length of brush mm (In)

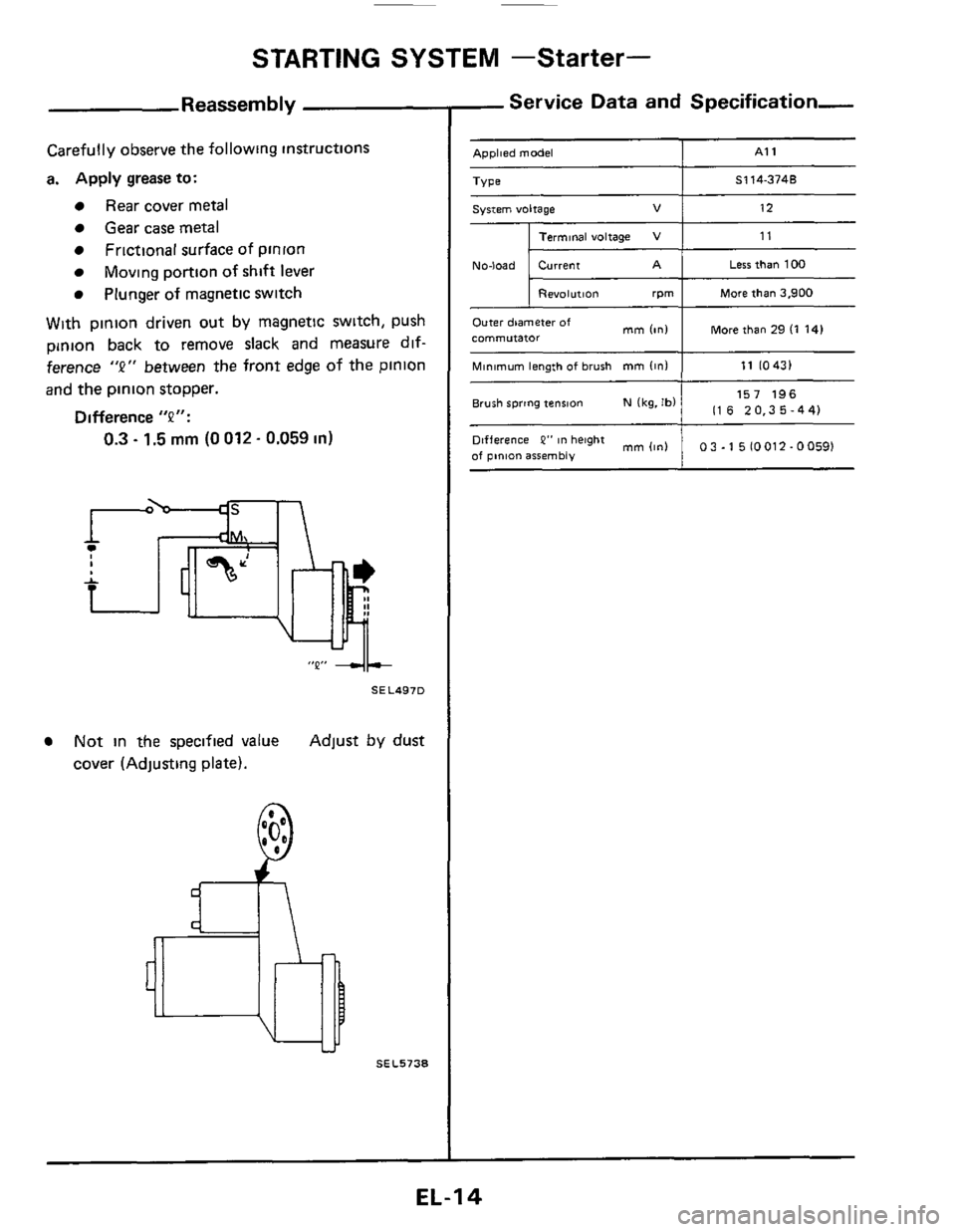

Reassembly
11 10431
Carefully observe the following  instructions
a.  Apply  grease
to:
Rear cover  metal
Gear case metal
Frictional

Page 15 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide CHARGING SYSTEM
Wiring  Diagram
SEL6240
EL-I 5

Page 16 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide CHARGING SYSTEM
Make sure "S  termmal 8s con- IC-RG IC regulator
When  reaching  "Damaged
A C G.",  remove
0 K. IC-alternator 16 In good  condltlon nected COrreCtly

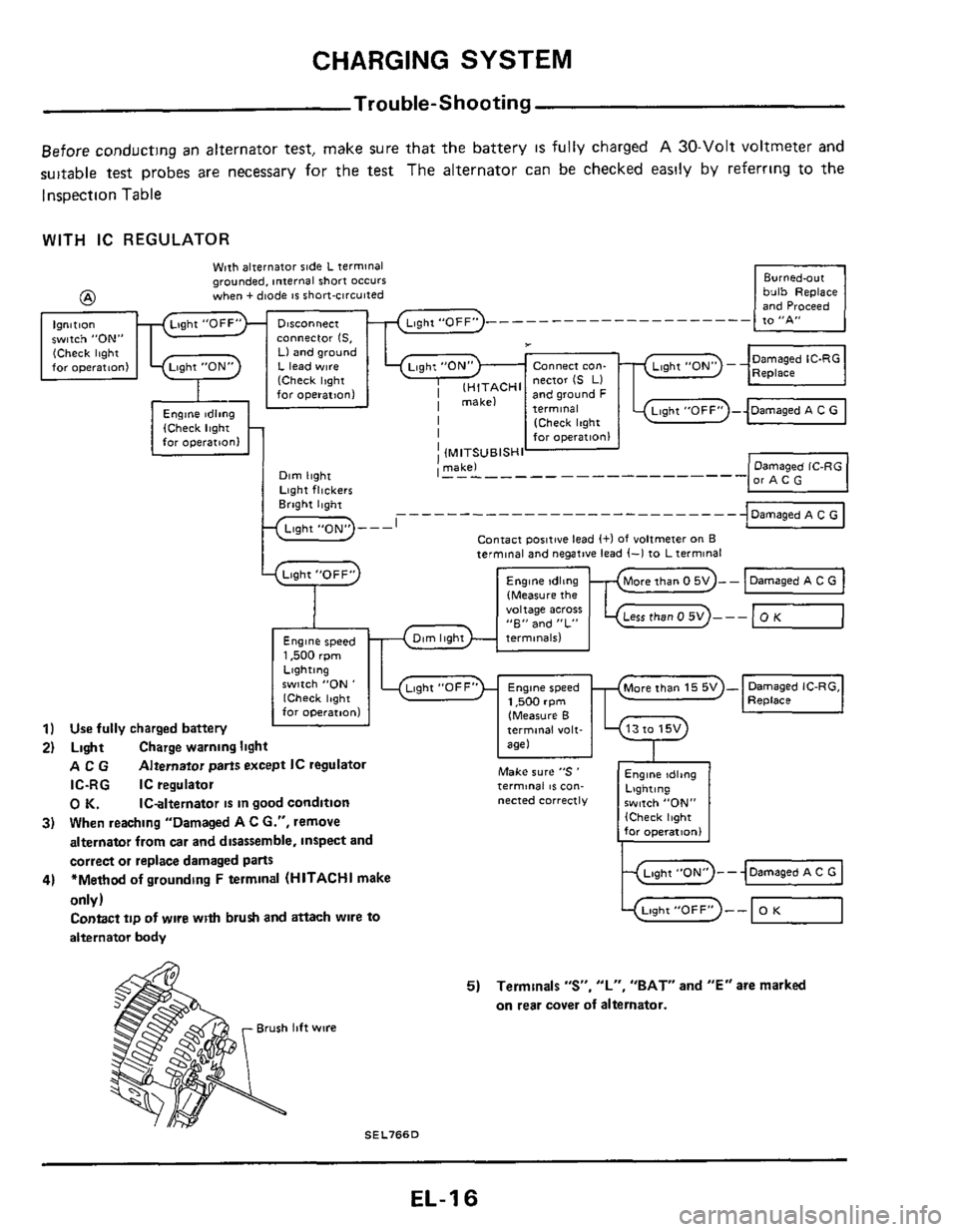

Trouble-Shooting
Before  con

Page 17 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide CHARGING SYSTEM -Alternator-

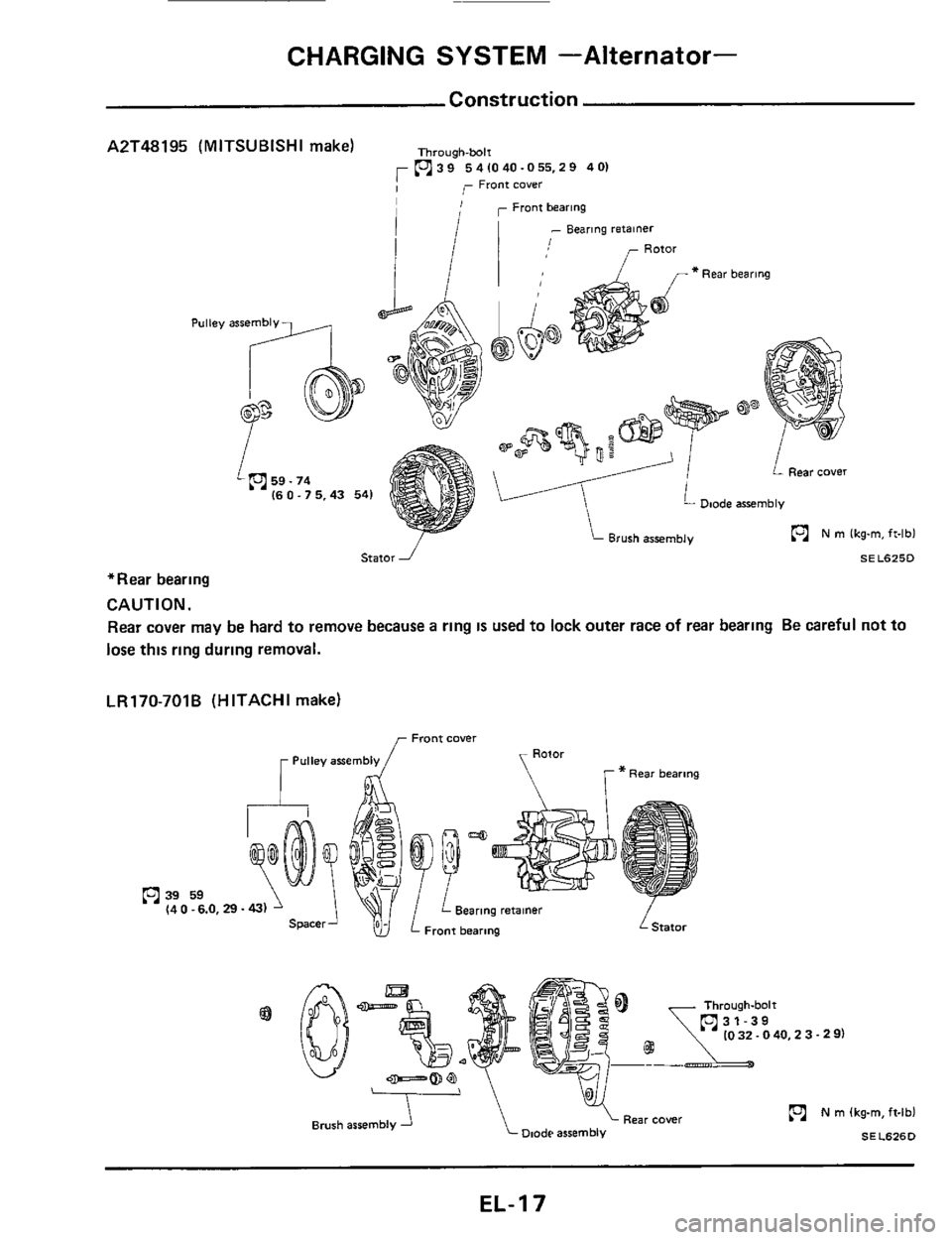

Construction
A2T48195 (MITSUBISHI  make) Through-bolt m39 541040-055.29  401
,- Front cover r I
- ~ear~ng retainer
- Diode assembly 16 0.7 5,43 54)
("1 N m lkg-rn. i

Page 18 of 116

NISSAN 300ZX 1984 Z31 Electrical System User Guide ____ ____
CHARGING SYSTEM -Alternator-

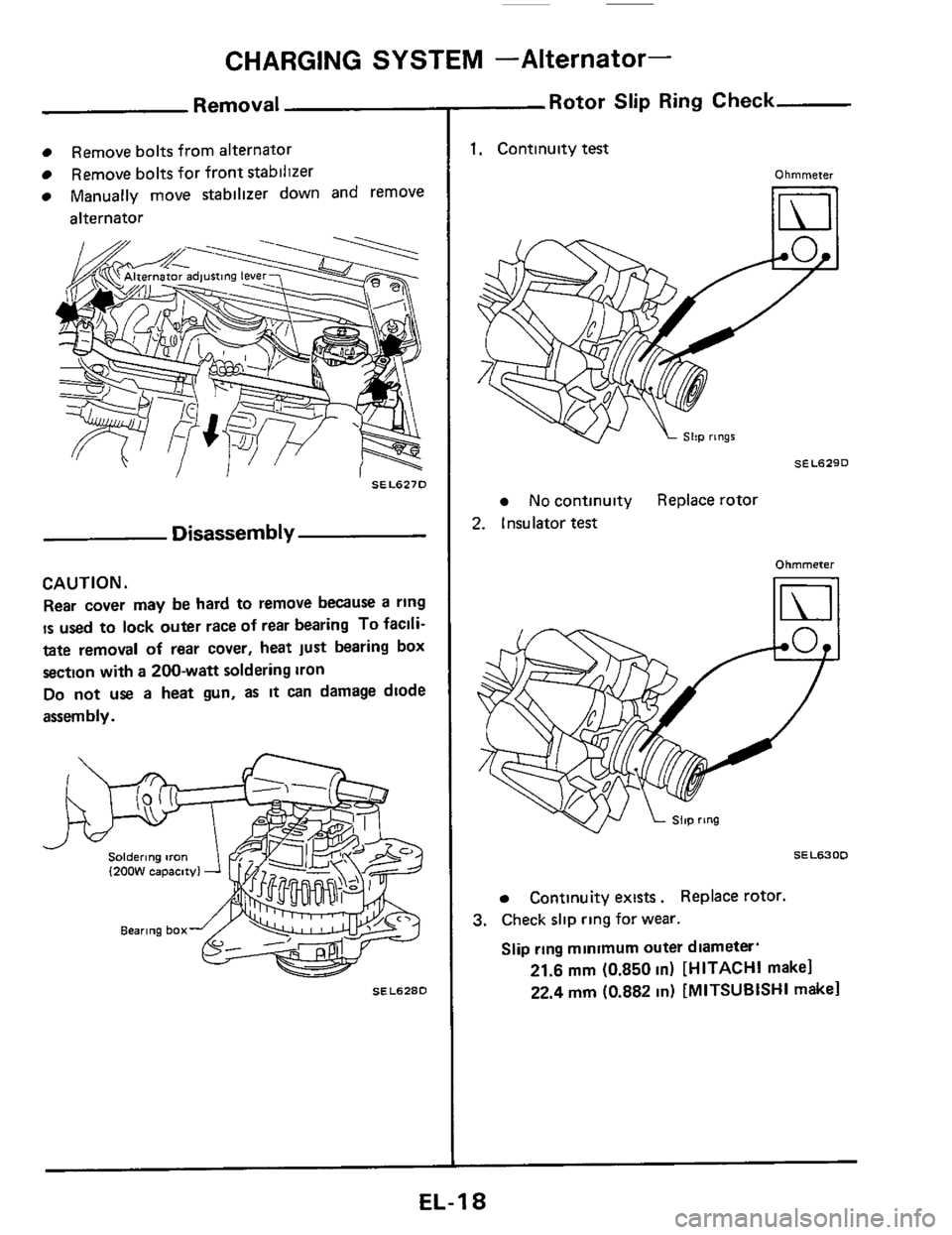

Removal
Remove bolts from  alternator
Remove  bolts for front  stabilizer
Manually
move stabilizer  down and remove
alternator
SEL627D
Disassembly
CAUT

Page 19 of 116

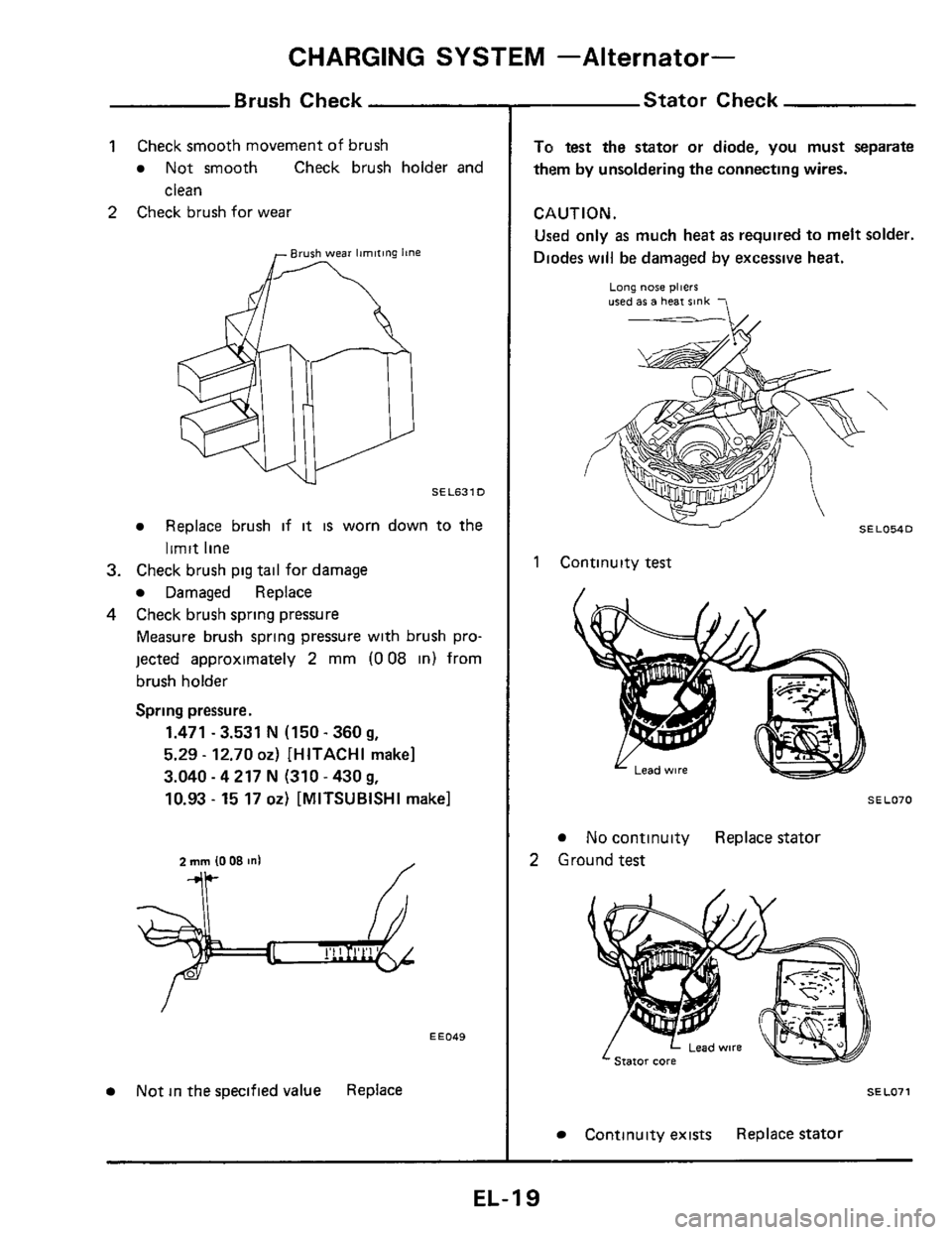

NISSAN 300ZX 1984 Z31 Electrical System User Guide CHARGING SYSTEM -Alternator-
Brush Check
1 Check smooth movement  of brush
Not  smooth  Check  brush  holder and
clean
2 Check brush for wear
SEL631D
Replace  brush if it is worn down  to the

Page 20 of 116

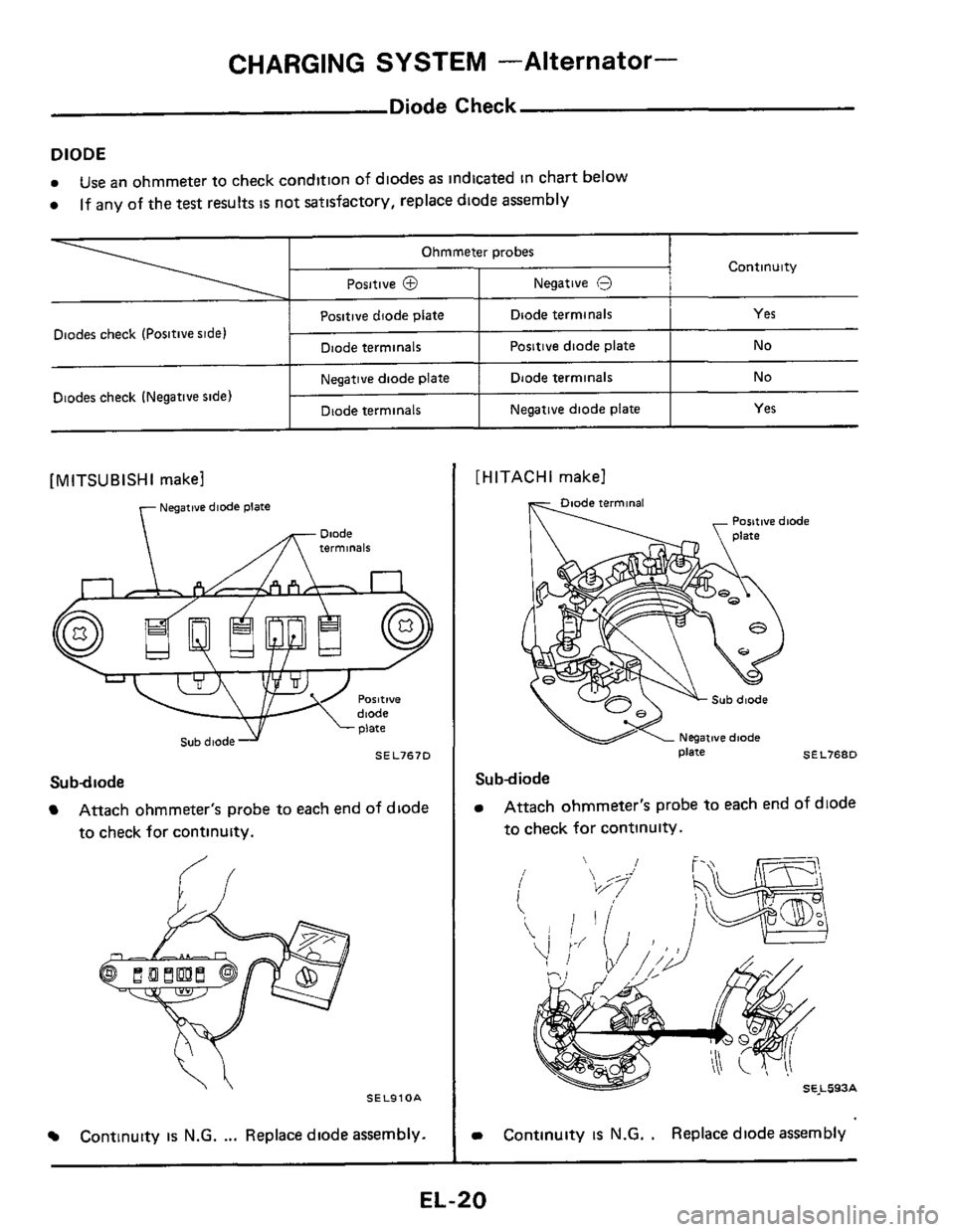

NISSAN 300ZX 1984 Z31 Electrical System User Guide CHARGING SYSTEM -Alternator-
Ohmmeter probes
~ositive 0 Negative 8
Positive diode plate Diode  terminals
Diode terminals Positive  diode plate
Negative  diode plate Diode  terminals
Diode termin
