BODY
I
SECTION BF
CONTENTS
GENERAL SERVICING . . ............ .... ..... BF- 2
BODY END AND DOOR .. ...... .......... BF- 6
INSTRUMENT
........ ........ ..... . . BF-49
SEAT
... .. ........ .. ..... . BF-50
SEAT BELT
. .... ... ......... . . BF-57
TRIM AND MOLDING
.. ... .. . . BF-58
WINDSHIELD AND WINDOWS
...... ... .............. BF-63
T-BAR ROOF
........ ...... .. ......... BF-68
MIRROR
...... ... ... .. .... .. . . BF-69
REAR COMBINATION LAMP
........ .............. BF-70
BODY ALIGNMENT
.... ..... ... ... BF-71
Page 2 of 77

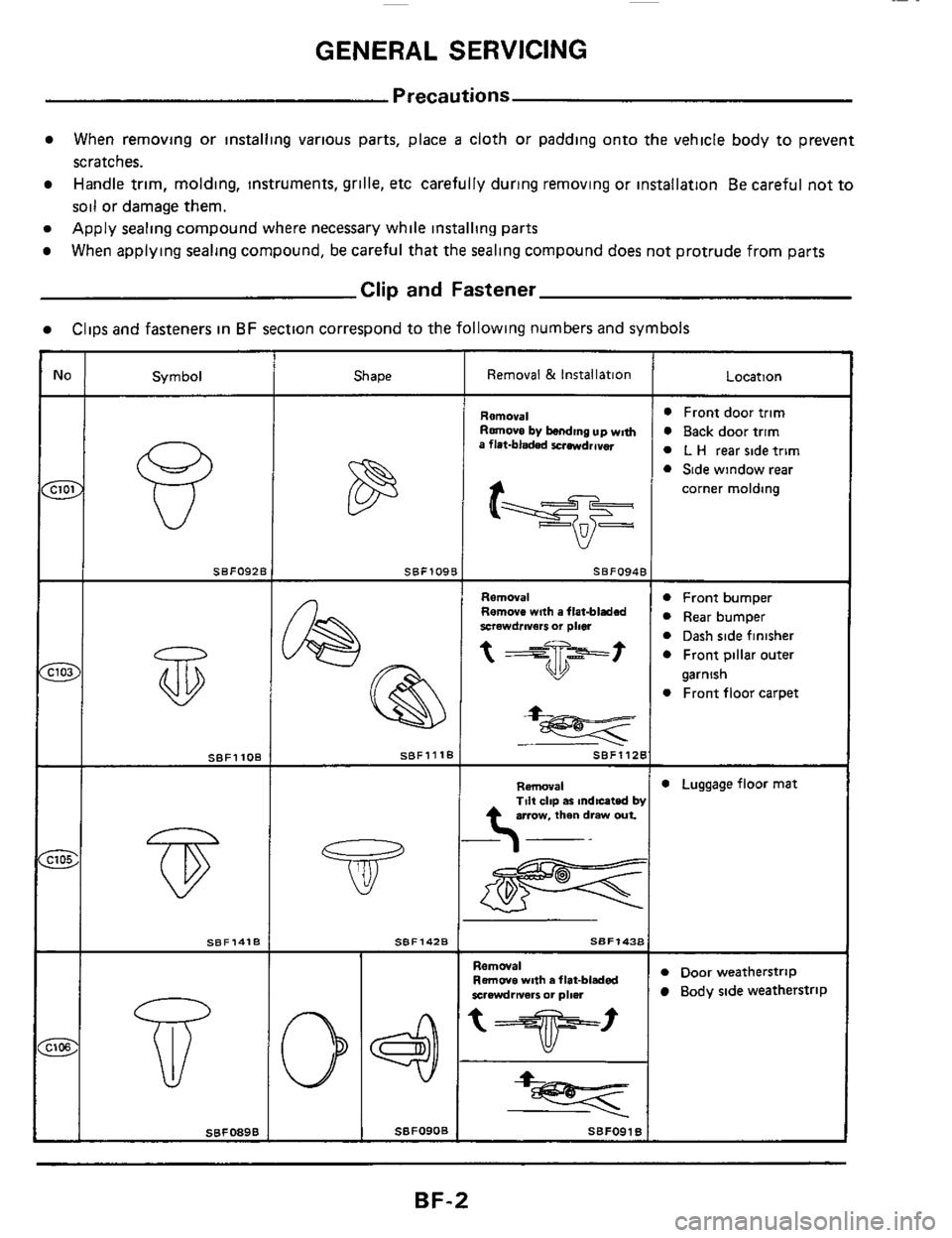

GENERAL SERVICING
Removal & Installation
Precautions
Location
When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.
Handle trim, molding, instruments, grille, etc carefully during removing or installation Be careful not to
soil or damage them.
Apply sealing compound where necessary while installing parts
When applying sealing compound, be careful that the sealing compound does not protrude from parts
Clip and Fastener
Clips and fasteners in BF section correspond to the following numbers and symbols
Removal Remove by bending up wm~ a flat-bladed xrmdrava
Symbol
F 0 Front door trim
0 Back door trim
0 L H rear side trim
0 Side wlndow rear
;N SBF092E SBFO948
Removal Remove with a flat-bladed xrawdrivarr or plm
t
1OB -
0 Front bumper
R~~~ bumper
0 Dash side finisher
0 Front pillar outer
0 Front floor carpet
garnish
SBF1418
jT
SBFO89B
Shape
SBFlOP
SBFlllf
SBF142B
I
SBFO9OB
SBF112B
Removal 0 Luggage floor mat Tilt clip as mdtcated by arrow. then draw out
0 Door weatherstrip Removal Remwe with a fiat-bladed rsrewdrnarr 0. pimr Body side weatherstrip
âTâ I
BF-2
Page 3 of 77
GENERAL SERVICING
Clip and Fastener (Cont'd)
y,-~ Symbol
SBF3658
+
I SBF374B
SBF103B
+
Shape
SBF3668
SBF1398
T I
f? SBF375B
SBF104B
-
Removal & Installation
-
Removal
Remove
by bending UP wlth
flat-bladed rrewdrlverr
SBF367B
Phillips
screwdriver
--& SBFl4OB
SBF1478
SBF795A
Location
B Rear upper side trim
B Rear lower side trim
B Rear wheelhouse trim
B Front seat back finisher
(2+2 seater)
(2 seater)
8 Fender Protector
0 Air inlet grille
8 Center pillar garnish
(Dash upper)
8 Door weatherstrip
8 Bodv side weatherstrip
8 Kicking plate
BF-3
Page 4 of 77
~ GENERAL SERVICING
Clip
and Fastener (Cont'd)
Symbol
z==
SBF368B
t
SBF371B
+
Shape
4 SBF369B
SBF41lB
SBF106B
Removal & Installation
Removal:
SBF373E
1 y-F
Flat-bladed screwdnve
SBF412l
Remwal
SEFl46E
Location
D Reartrim
1 Spare tire cover
1 Back door upper
molding
' Front door lock system
' Back door lock system
BF-4
Page 5 of 77
GENERAL SERVICING
Note:
BF-5
Page 6 of 77

BODYENDANDDOOR
When removing and installing hood or back door, place a cloth or other padding on hood or back door
corners to avoid scratching vehicle body
When removing clip or fastener,
refer to CLIP & FASTENER.
Apply sealing compound where necessary when installing parts
Front End
Hood adjustment Adjust at hinge portion
Hood lock adjustment After adjusting, check hood lock control operation Apply a coat of grease to
hood locks engaging mechanism
Hood opener
Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.
Bumper fascia.
It is made of plastic, so do not use excessive force and take care to keep oil away from it
When adjusting or removing/installing hood or removing/installing hood switch, check theft warning sys-
tem operation
WARNING:
a. Be careful not to scratch hood stay when installing hood. A scratched stay may cause gas leakage.
b. The contents
of the hood stay are under pressure. Do not take apart, puncture, apply heat or allow fire
near It.
Bumper shock absorber inspection
1. Check shock absorber for oil leakage, cracks or deformation
2. Function of shock absorber,
(1) Place vehicle in front of a wall
(2) Place a jack between bumper and wall, jack is positioned squarely with bumper directly in line with
(3) Apply pressure to compress shock absorber at least 10.0 mm (0.394 in).
Use a jack with capacity of more than 600 kg (1,323 Ib).
(4) Make sure bumper returns to its original position when jack is retracted Replace if necessary
CAUTION:
It IS not recommended to confirm proper installation by driving into walls or other barriers as this could
cause personal injury
or damage to the vehicle.
When replacing shock absorbers, make sure they
are of the same type and rating, and manufactured by the
same maker
Apply parking brake and place tire stoppers securely.
shock absorber
to be checked
BF-6
Page 7 of 77
BODY END AND DOOR
Front End (Cont'd)
Secondary Latch hwkmg lengl
Secondary latch
Approx 11 mm m37 50 10 43 In1 (0 30 0 51.2 7.3 71
(3 2 4 3.23.311
BF-7
Page 8 of 77
BODY END AND DOOR
Rear End
Back door adjustment. Adjust at hinge for proper back door fit
Lock Adjust lock
so that it is in the center of the striker. After adjusting, check back door lock opera-
tion Bumper fascia
It is made of plastic, so do not use excessive force and take care to keep oil away from it.
When adjusting or removing/installing back door or removing/installing back door lock system, check
theft warning system operation.
WARNING:
a. Be careful not to scratch back door stay when installing back door. A scratched stay may cause gas
leakage.
b. The contents of the back door stay are under pressure. Do not take apart, puncture, apply heat or allow
fire near
it.
BF-8
Page 9 of 77
BODYENDANDDOOR
Back Door and Fuel Filler Lid Opener
Opener cable Do not attempt to bend cable using excessive force.
After installation, make sure that back door and fuel filler lid open smoothly
Fuel filter lid opener
n1
hack door lock
Back door lock
SBF3898
BF-9
