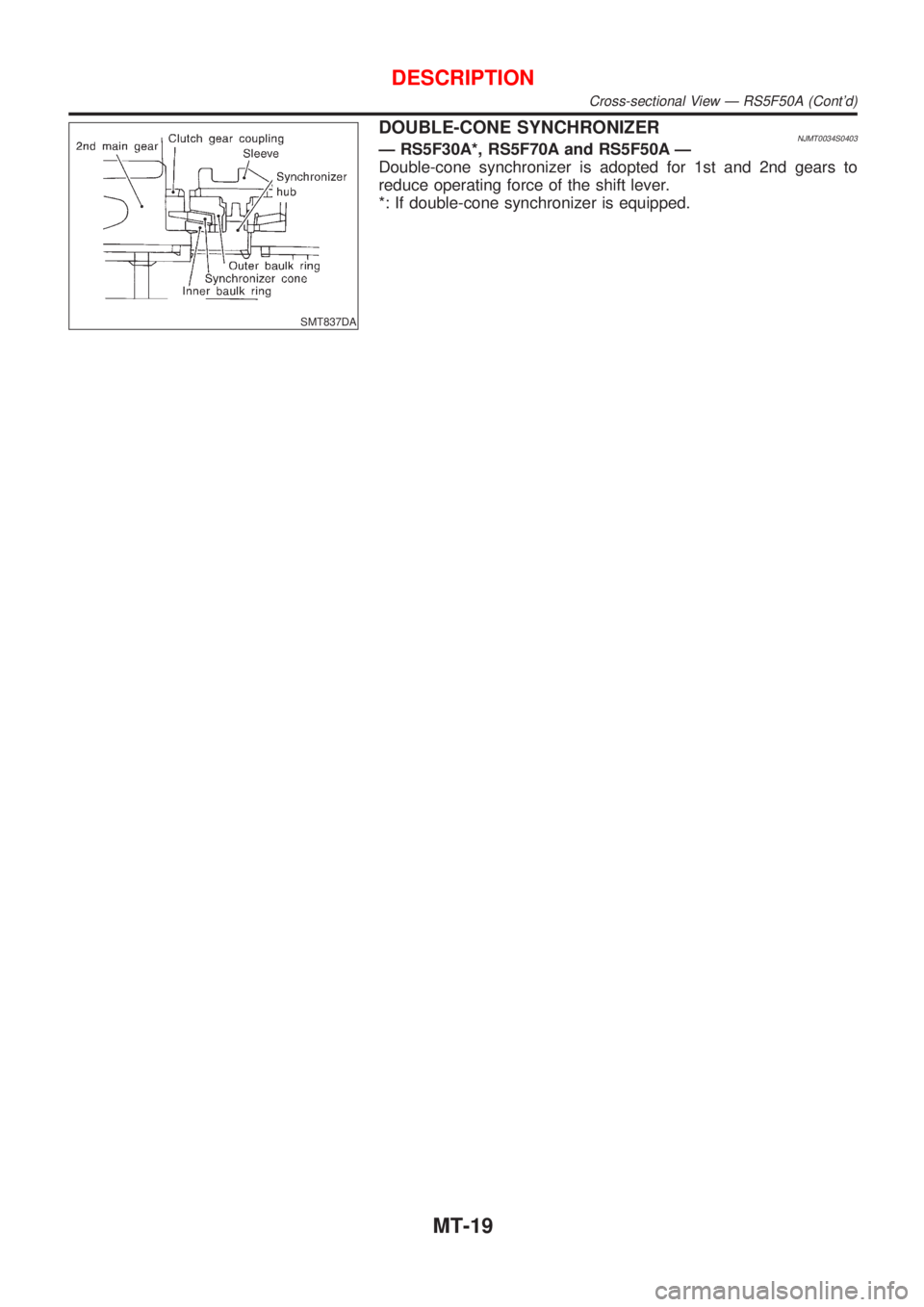

DOUBLE-CONE SYNCHRONIZERNJMT0034S0403Ð RS5F30A*, RS5F70A and RS5F50A Ð
Double-cone synchronizer is adopted for 1st and 2nd gears to
reduce operating force of the shift lever.
*: If double-cone synchronizer is equipped.
DESCRIPTION
Cross-sectional View Ð RS5F50A (Cont'd)
MT-19

SMT563AA

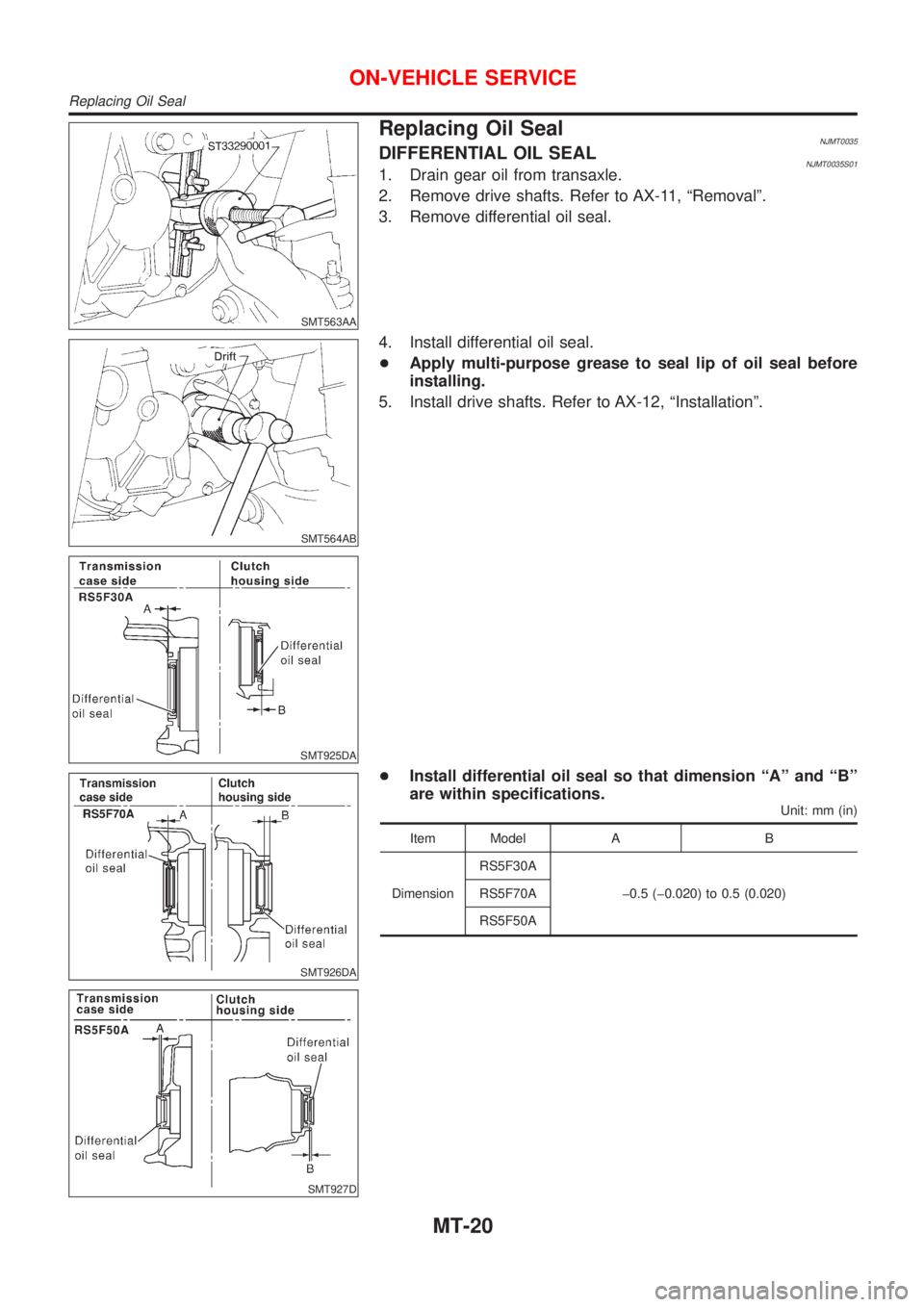

Replacing Oil SealNJMT0035DIFFERENTIAL OIL SEALNJMT0035S011. Drain gear oil from transaxle.
2. Remove drive shafts. Refer to AX-11, ªRemovalº.
3. Remove differential oil seal.
SMT564AB
SMT925DA
4. Install differential oil seal.
+Apply multi-purpose grease to seal lip of oil seal before
installing.
5. Install drive shafts. Refer to AX-12, ªInstallationº.
SMT926DA
SMT927D
+Install differential oil seal so that dimension ªAº and ªBº
are within specifications.
Unit: mm (in)
Item Model A B
DimensionRS5F30A
þ0.5 (þ0.020) to 0.5 (0.020) RS5F70A
RS5F50A
ON-VEHICLE SERVICE
Replacing Oil Seal
MT-20

SMT143DC

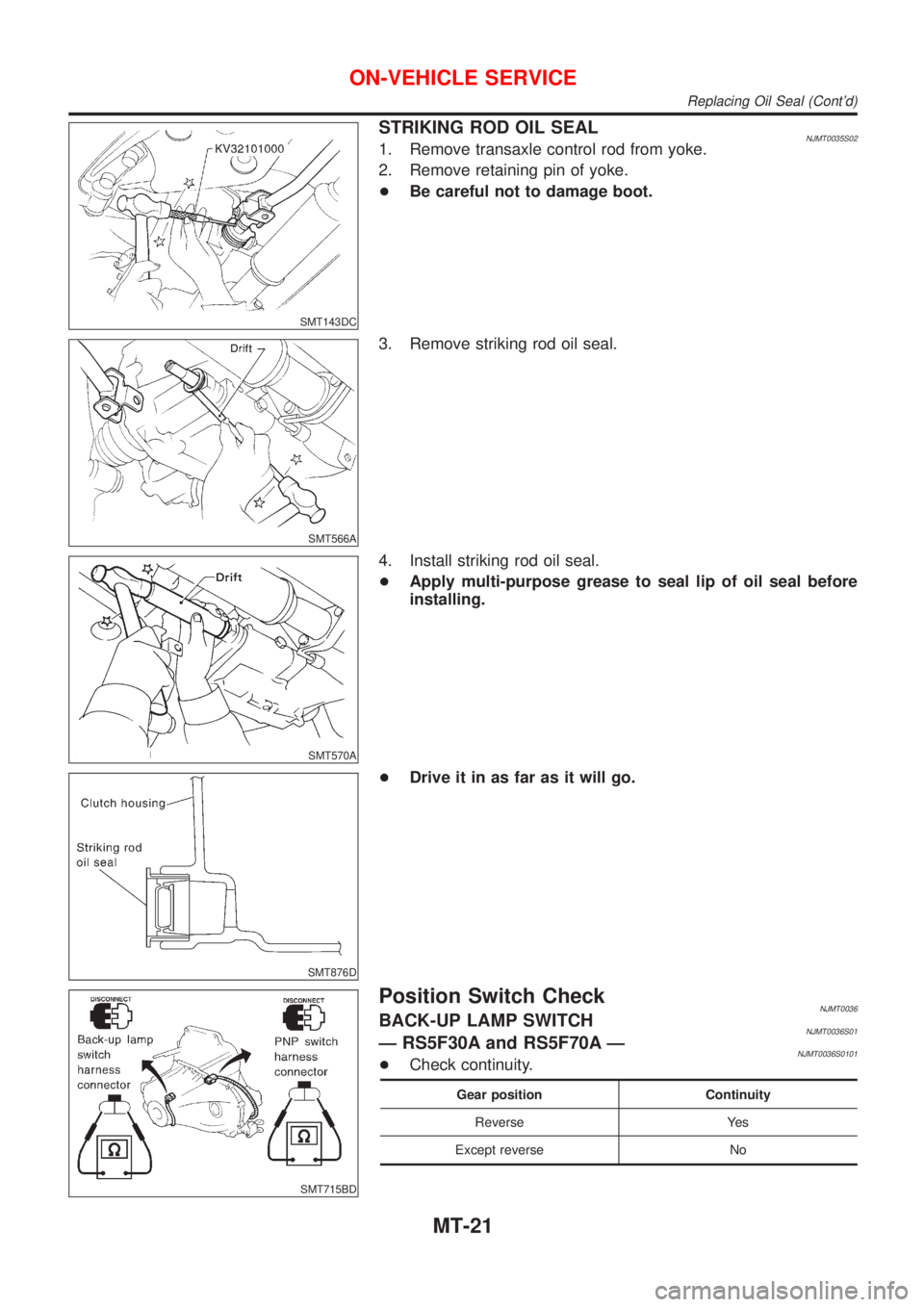

STRIKING ROD OIL SEALNJMT0035S021. Remove transaxle control rod from yoke.
2. Remove retaining pin of yoke.
+Be careful not to damage boot.
SMT566A
3. Remove striking rod oil seal.
SMT570A
4. Install striking rod oil seal.
+Apply multi-purpose grease to seal lip of oil seal before
installing.
SMT876D
+Drive it in as far as it will go.
SMT715BD
Position Switch CheckNJMT0036BACK-UP LAMP SWITCHNJMT0036S01Ð RS5F30A and RS5F70A ÐNJMT0036S0101+Check continuity.
Gear position Continuity
Reverse Yes
Except reverse No
ON-VEHICLE SERVICE
Replacing Oil Seal (Cont'd)
MT-21

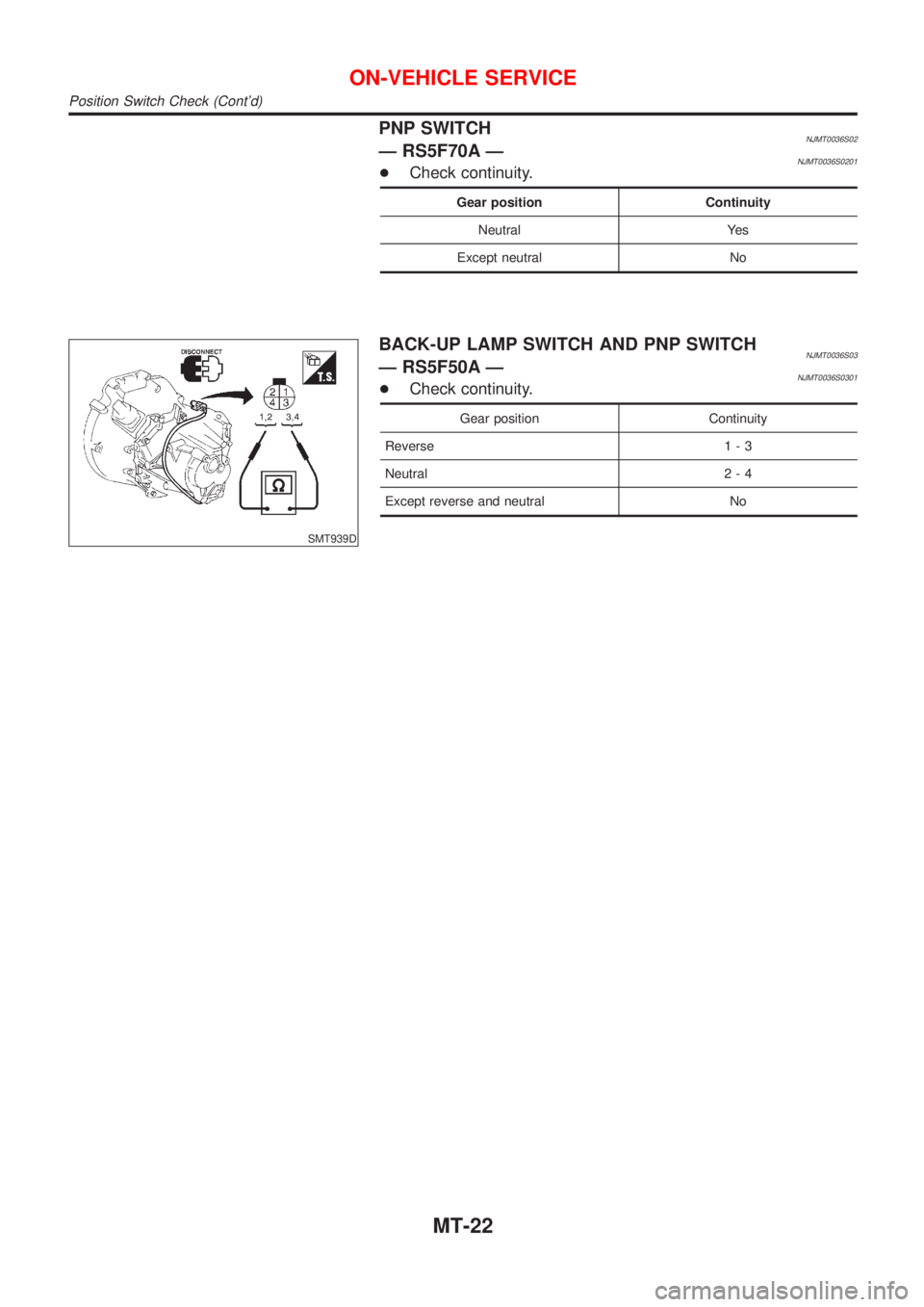

PNP SWITCHNJMT0036S02Ð RS5F70A ÐNJMT0036S0201+Check continuity.
Gear position Continuity
Neutral Yes
Except neutral No
SMT939D
BACK-UP LAMP SWITCH AND PNP SWITCHNJMT0036S03Ð RS5F50A ÐNJMT0036S0301+Check continuity.
Gear position Continuity
Reverse 1 - 3
Neutral 2 - 4
Except reverse and neutral No
ON-VEHICLE SERVICE
Position Switch Check (Cont'd)
MT-22

NJMT0008
SMT928D

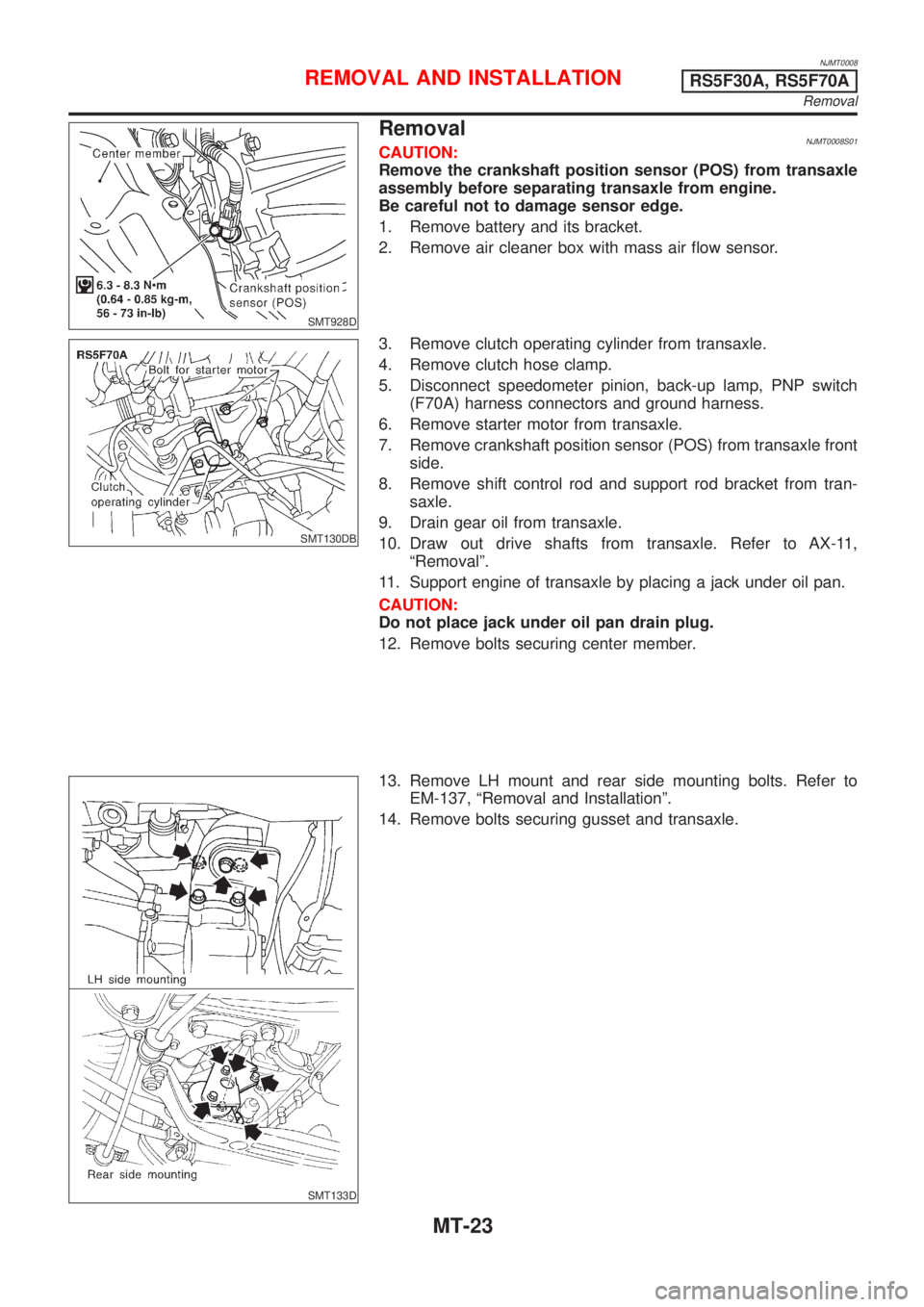

RemovalNJMT0008S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove air cleaner box with mass air flow sensor.
SMT130DB
3. Remove clutch operating cylinder from transaxle.
4. Remove clutch hose clamp.
5. Disconnect speedometer pinion, back-up lamp, PNP switch
(F70A) harness connectors and ground harness.
6. Remove starter motor from transaxle.
7. Remove crankshaft position sensor (POS) from transaxle front
side.
8. Remove shift control rod and support rod bracket from tran-
saxle.
9. Drain gear oil from transaxle.
10. Draw out drive shafts from transaxle. Refer to AX-11,
ªRemovalº.
11. Support engine of transaxle by placing a jack under oil pan.
CAUTION:
Do not place jack under oil pan drain plug.
12. Remove bolts securing center member.
SMT133D
13. Remove LH mount and rear side mounting bolts. Refer to
EM-137, ªRemoval and Installationº.
14. Remove bolts securing gusset and transaxle.
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal
MT-23

SMT652C
15. Lower transaxle while supporting it with a jack.

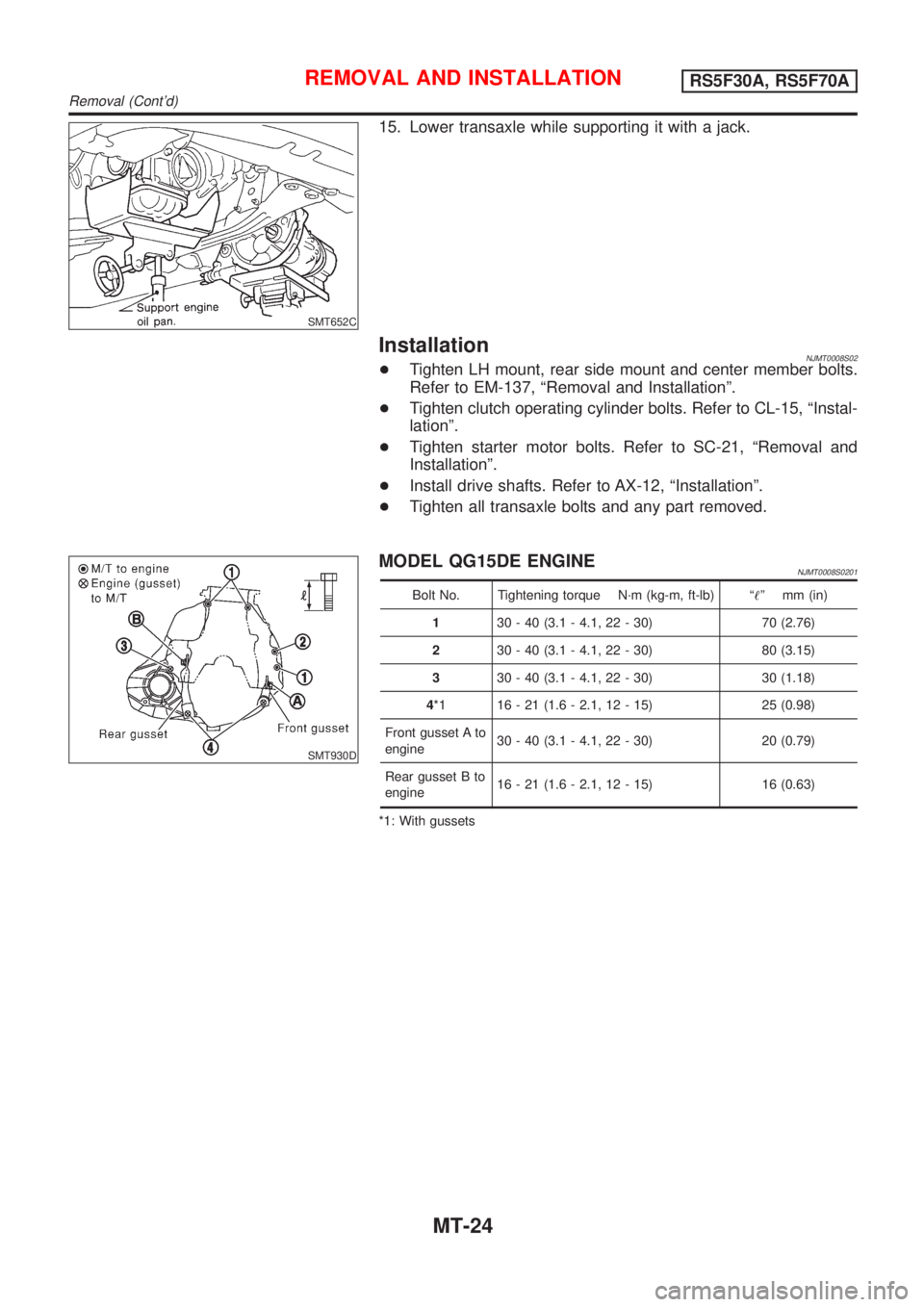

InstallationNJMT0008S02+Tighten LH mount, rear side mount and center member bolts.
Refer to EM-137, ªRemoval and Installationº.
+Tighten clutch operating cylinder bolts. Refer to CL-15, ªInstal-
lationº.
+Tighten starter motor bolts. Refer to SC-21, ªRemoval and
Installationº.
+Install drive shafts. Refer to AX-12, ªInstallationº.
+Tighten all transaxle bolts and any part removed.
SMT930D
MODEL QG15DE ENGINENJMT0008S0201
Bolt No. Tightening torque N´m (kg-m, ft-lb) ª!º mm (in)
130 - 40 (3.1 - 4.1, 22 - 30) 70 (2.76)
230 - 40 (3.1 - 4.1, 22 - 30) 80 (3.15)
330 - 40 (3.1 - 4.1, 22 - 30) 30 (1.18)
4*1 16 - 21 (1.6 - 2.1, 12 - 15) 25 (0.98)
Front gusset A to
engine30 - 40 (3.1 - 4.1, 22 - 30) 20 (0.79)
Rear gusset B to
engine16 - 21 (1.6 - 2.1, 12 - 15) 16 (0.63)
*1: With gussets
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal (Cont'd)
MT-24

SMT931D
MODEL QG18DE ENGINE=NJMT0008S0202
Bolt No. Tightening torque N´m (kg-m, ft-lb) ª!º mm (in)
131 - 40 (3.1 - 4.1, 23 - 29) 70 (2.76)
231 - 40 (3.1 - 4.1, 23 - 29) 80 (3.15)
316 - 21 (1.6 - 2.2, 12 - 15) 25 (0.98)
431 - 40 (3.1 - 4.1, 23 - 29) 30 (1.18)
A31 - 40 (3.1 - 4.1, 23 - 29) 20 (0.79)
B31 - 40 (3.1 - 4.1, 23 - 29) 20 (0.79)
C15 - 20 (1.5 - 2.1, 11 - 15) 17.5 (0.69)
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Installation (Cont'd)
MT-25

NJMT0090
SMT928D
RemovalNJMT0090S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove fuse box from battery bracket.
3. Remove air cleaner box with mass air flow sensor.
4. Remove air breather hose and vacuum pump hose.
SMT650CB
5. Remove terminal and connector from starter motor.
6. Remove starter motor from transaxle.
7. Remove clutch hose clamp.
8. Remove clutch operating cylinder from transaxle.
9. Disconnect speedometer pinion, PNP switch harness connec-
tors and ground harness.
10. Remove crankshaft position sensor (POS) from transaxle front
side.
11. Remove front exhaust tube.
SMT929D
12. Remove shift control rod and support rod bracket from tran-
saxle.
13. Drain gear oil from transaxle.
14. Draw out drive shafts from transaxle. Refer to AX-11,
ªRemovalº.
15. Support engine and transaxle by placing a jack under the tran-
saxle.
16. Remove bolts securing center member.
SMT950D
17. Take out engine mounting bracket and transaxle installation
bolts. Refer to EM-137, ªRemoval and Installationº.
18. Remove bolts securing transaxle under side.
19. Temporarily tighten center member.
20. Lower the lift.
REMOVAL AND INSTALLATIONRS5F50A
Removal
MT-26

SMT940D
SMT951D

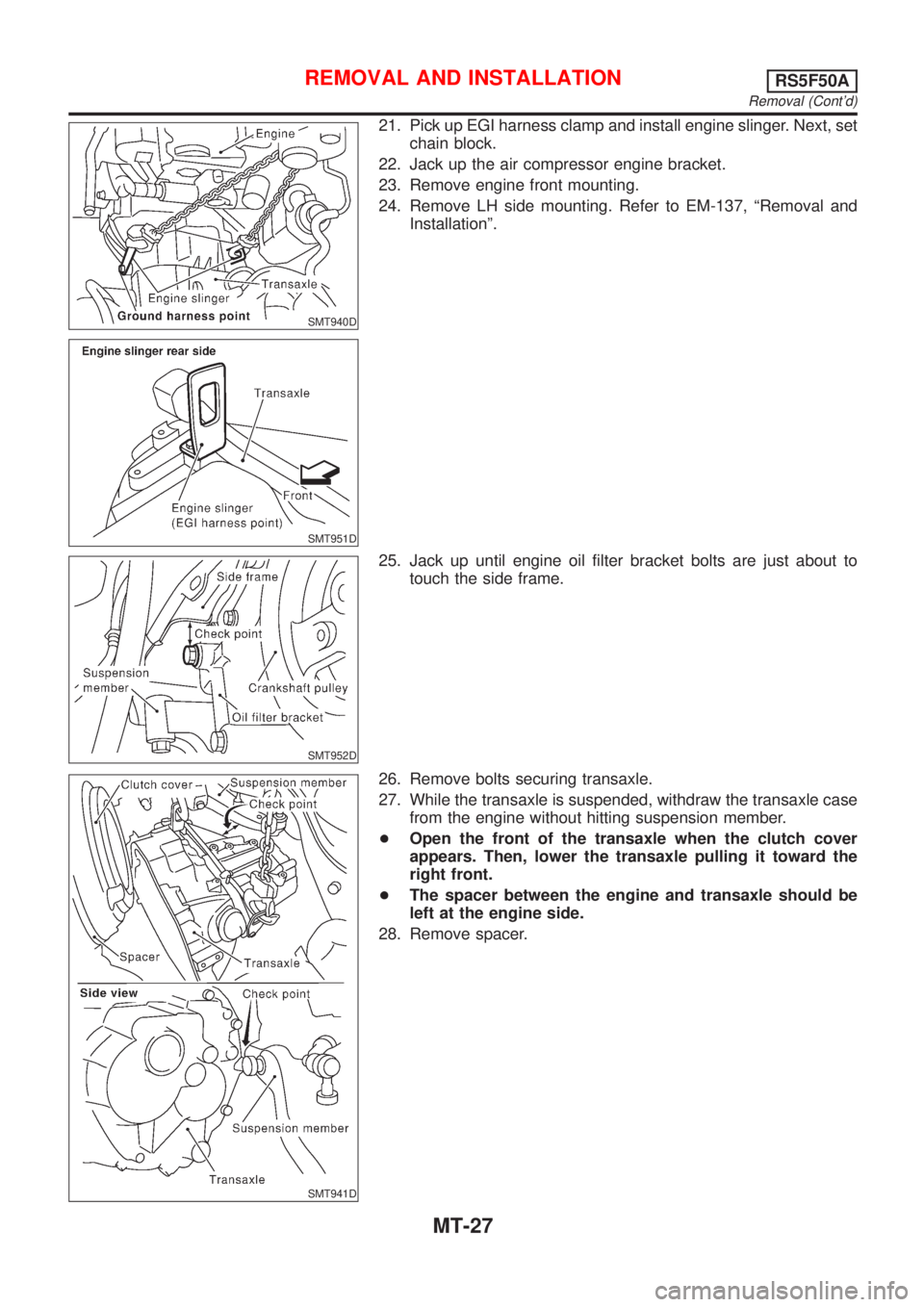

21. Pick up EGI harness clamp and install engine slinger. Next, set
chain block.
22. Jack up the air compressor engine bracket.
23. Remove engine front mounting.
24. Remove LH side mounting. Refer to EM-137, ªRemoval and
Installationº.
SMT952D
25. Jack up until engine oil filter bracket bolts are just about to
touch the side frame.
SMT941D
26. Remove bolts securing transaxle.
27. While the transaxle is suspended, withdraw the transaxle case
from the engine without hitting suspension member.
+Open the front of the transaxle when the clutch cover
appears. Then, lower the transaxle pulling it toward the
right front.
+The spacer between the engine and transaxle should be
left at the engine side.
28. Remove spacer.
REMOVAL AND INSTALLATIONRS5F50A
Removal (Cont'd)
MT-27

SMT941D

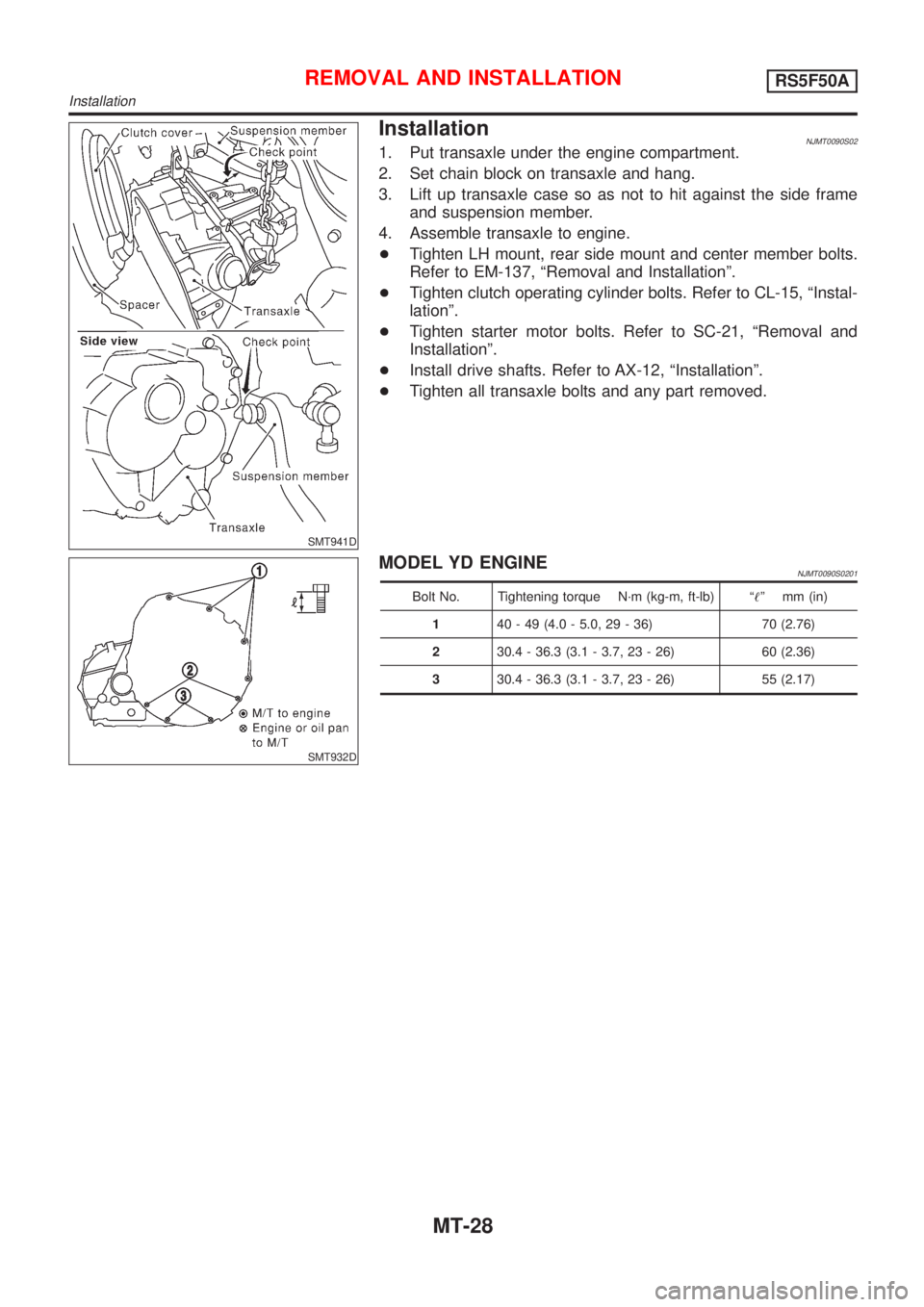

InstallationNJMT0090S021. Put transaxle under the engine compartment.
2. Set chain block on transaxle and hang.
3. Lift up transaxle case so as not to hit against the side frame
and suspension member.
4. Assemble transaxle to engine.
+Tighten LH mount, rear side mount and center member bolts.
Refer to EM-137, ªRemoval and Installationº.
+Tighten clutch operating cylinder bolts. Refer to CL-15, ªInstal-
lationº.
+Tighten starter motor bolts. Refer to SC-21, ªRemoval and
Installationº.
+Install drive shafts. Refer to AX-12, ªInstallationº.
+Tighten all transaxle bolts and any part removed.
SMT932D
MODEL YD ENGINENJMT0090S0201
Bolt No. Tightening torque N´m (kg-m, ft-lb) ª!º mm (in)
140 - 49 (4.0 - 5.0, 29 - 36) 70 (2.76)
230.4 - 36.3 (3.1 - 3.7, 23 - 26) 60 (2.36)
330.4 - 36.3 (3.1 - 3.7, 23 - 26) 55 (2.17)
REMOVAL AND INSTALLATIONRS5F50A
Installation
