Page 451 of 2898

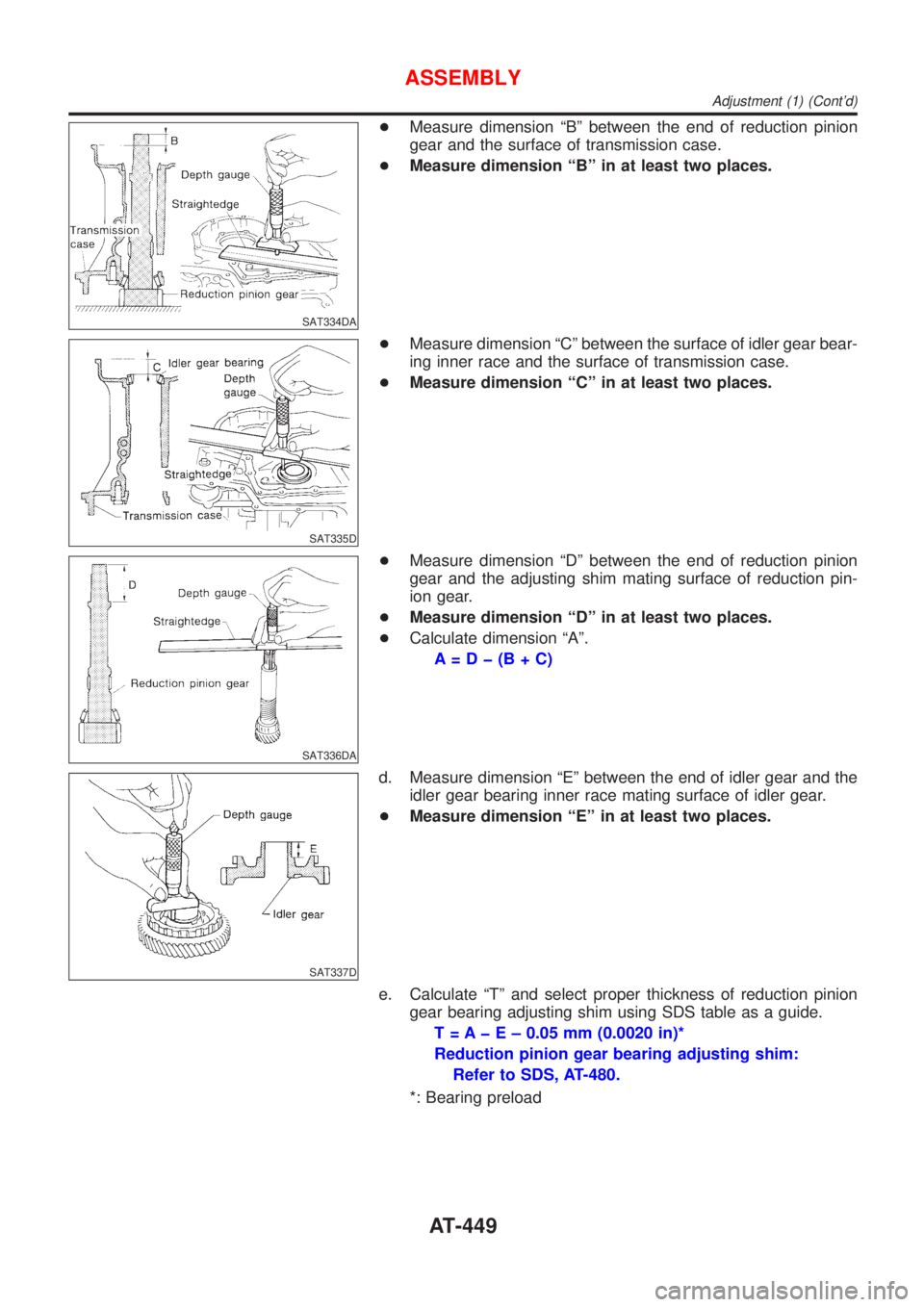

NISSAN ALMERA 2001  Service Manual SAT334DA
+Measure dimension ªBº between the end of reduction pinion
gear and the surface of transmission case.
+Measure dimension ªBº in at least two places.
SAT335D
+Measure dimension ªCº betwe

Page 452 of 2898

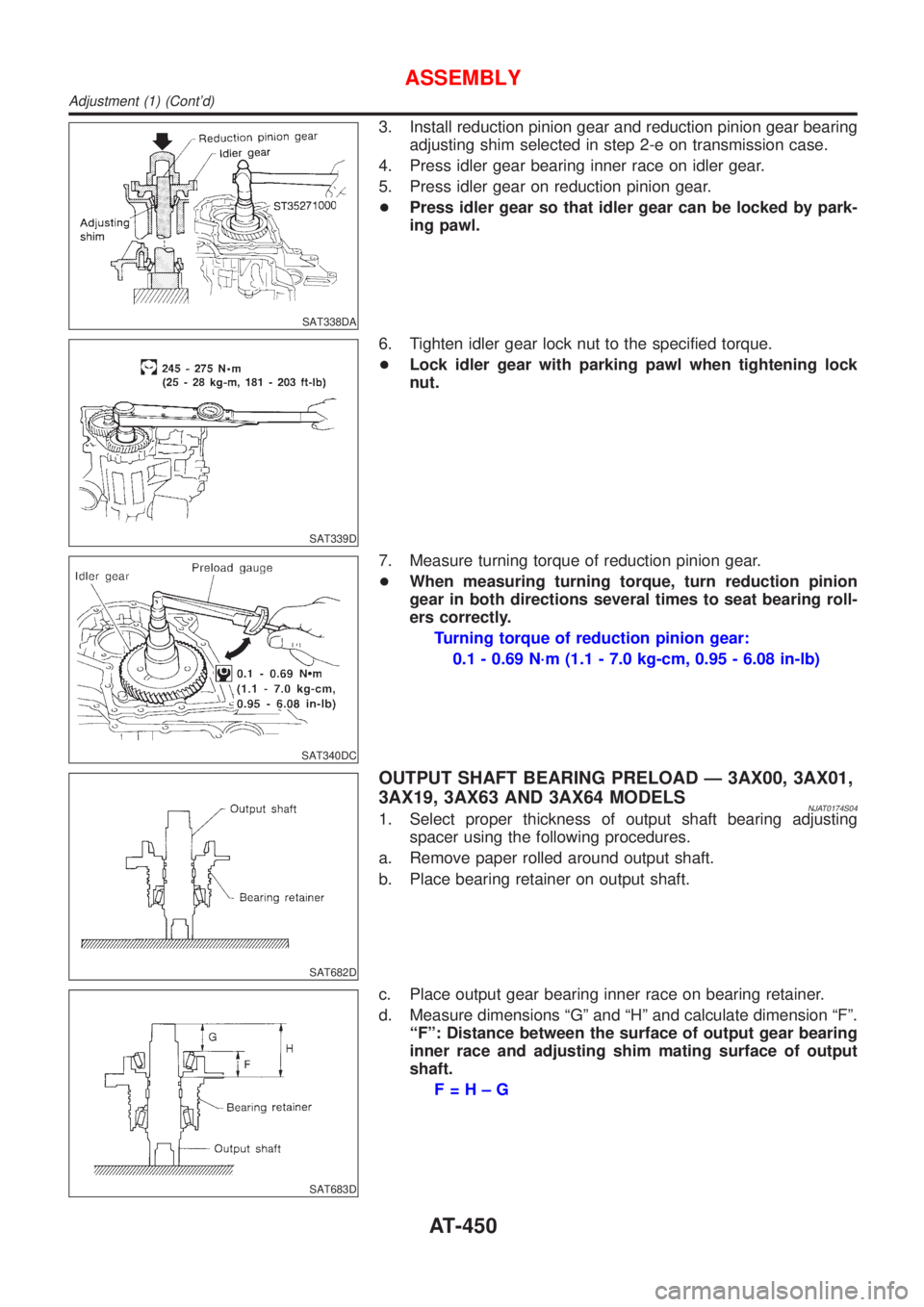

NISSAN ALMERA 2001  Service Manual SAT338DA
3. Install reduction pinion gear and reduction pinion gear bearing
adjusting shim selected in step 2-e on transmission case.
4. Press idler gear bearing inner race on idler gear.
5. Press idl

Page 453 of 2898

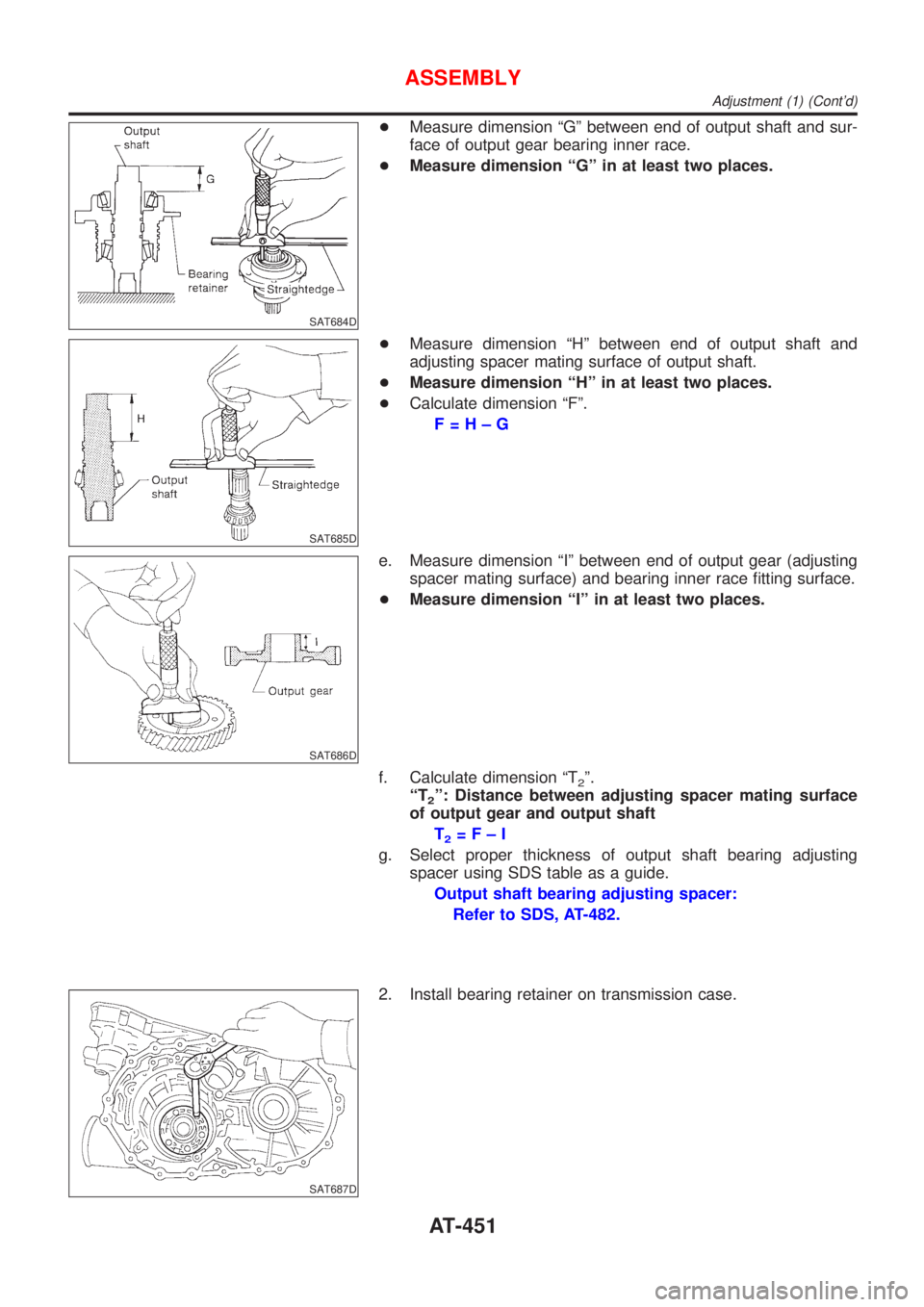

NISSAN ALMERA 2001  Service Manual SAT684D
+Measure dimension ªGº between end of output shaft and sur-
face of output gear bearing inner race.
+Measure dimension ªGº in at least two places.
SAT685D
+Measure dimension ªHº between

Page 454 of 2898

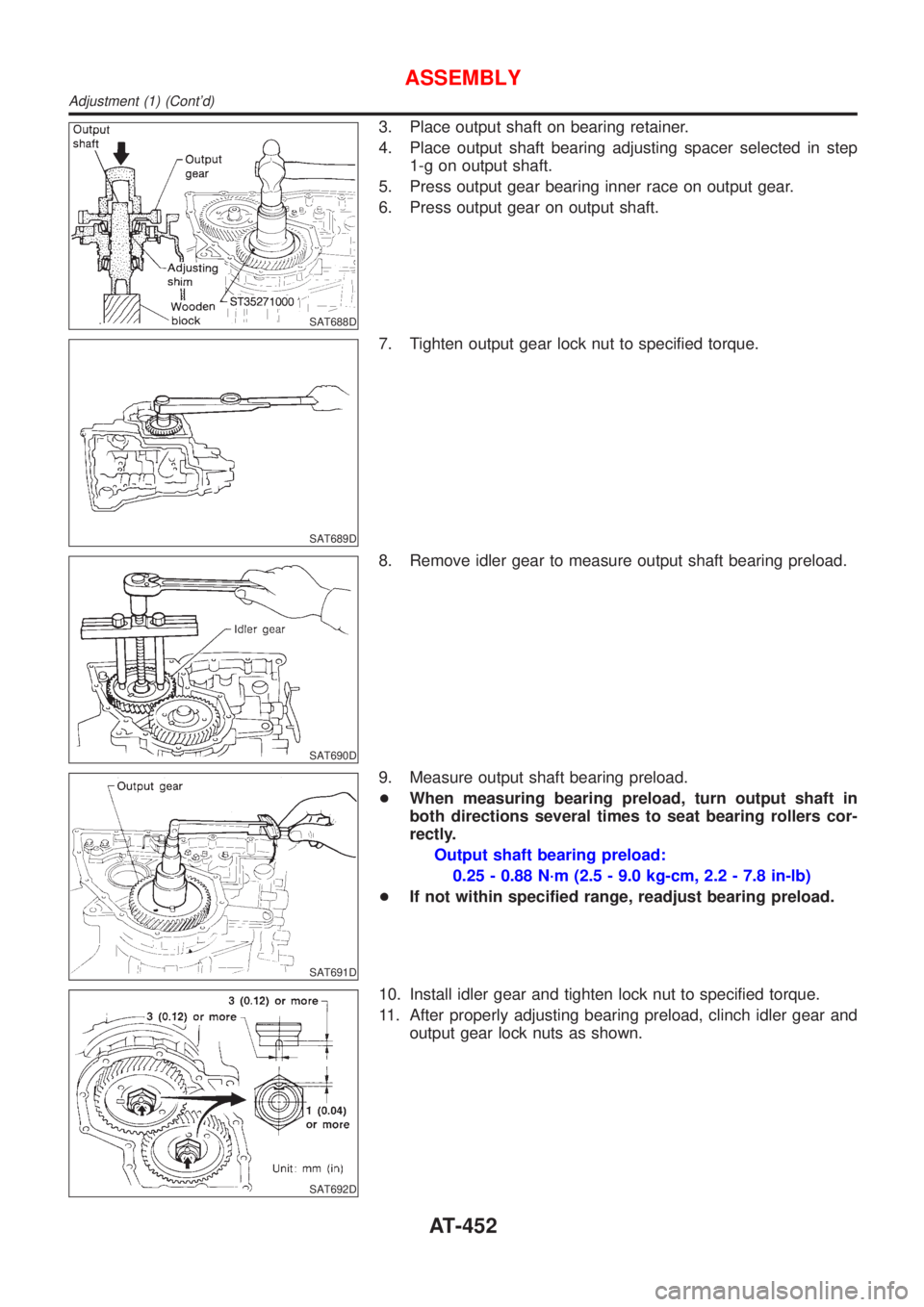

NISSAN ALMERA 2001  Service Manual SAT688D
3. Place output shaft on bearing retainer.
4. Place output shaft bearing adjusting spacer selected in step
1-g on output shaft.
5. Press output gear bearing inner race on output gear.
6. Press

Page 455 of 2898

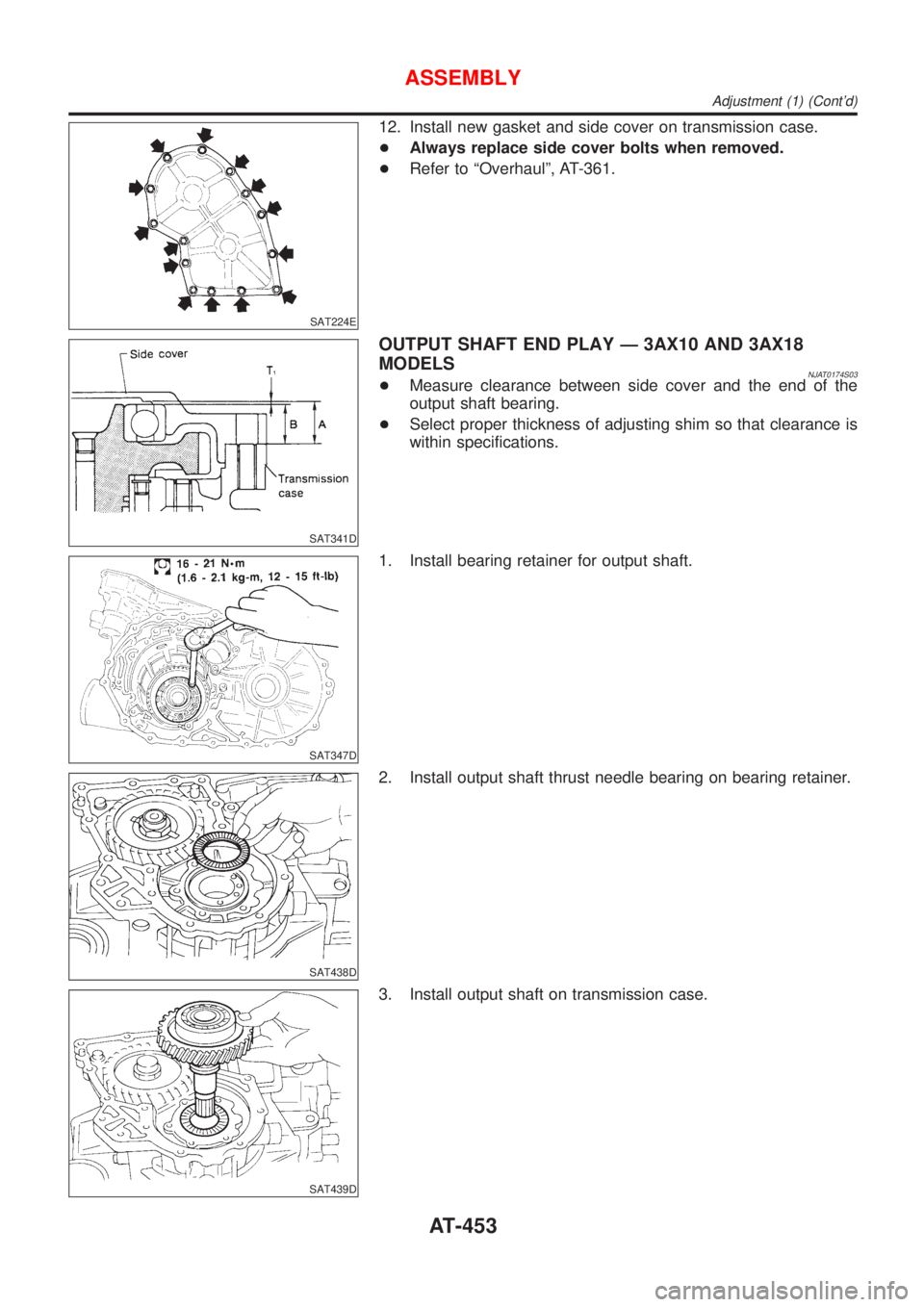

NISSAN ALMERA 2001  Service Manual SAT224E
12. Install new gasket and side cover on transmission case.
+Always replace side cover bolts when removed.
+Refer to ªOverhaulº, AT-361.
SAT341D
OUTPUT SHAFT END PLAY Ð 3AX10 AND 3AX18
MODE

Page 456 of 2898

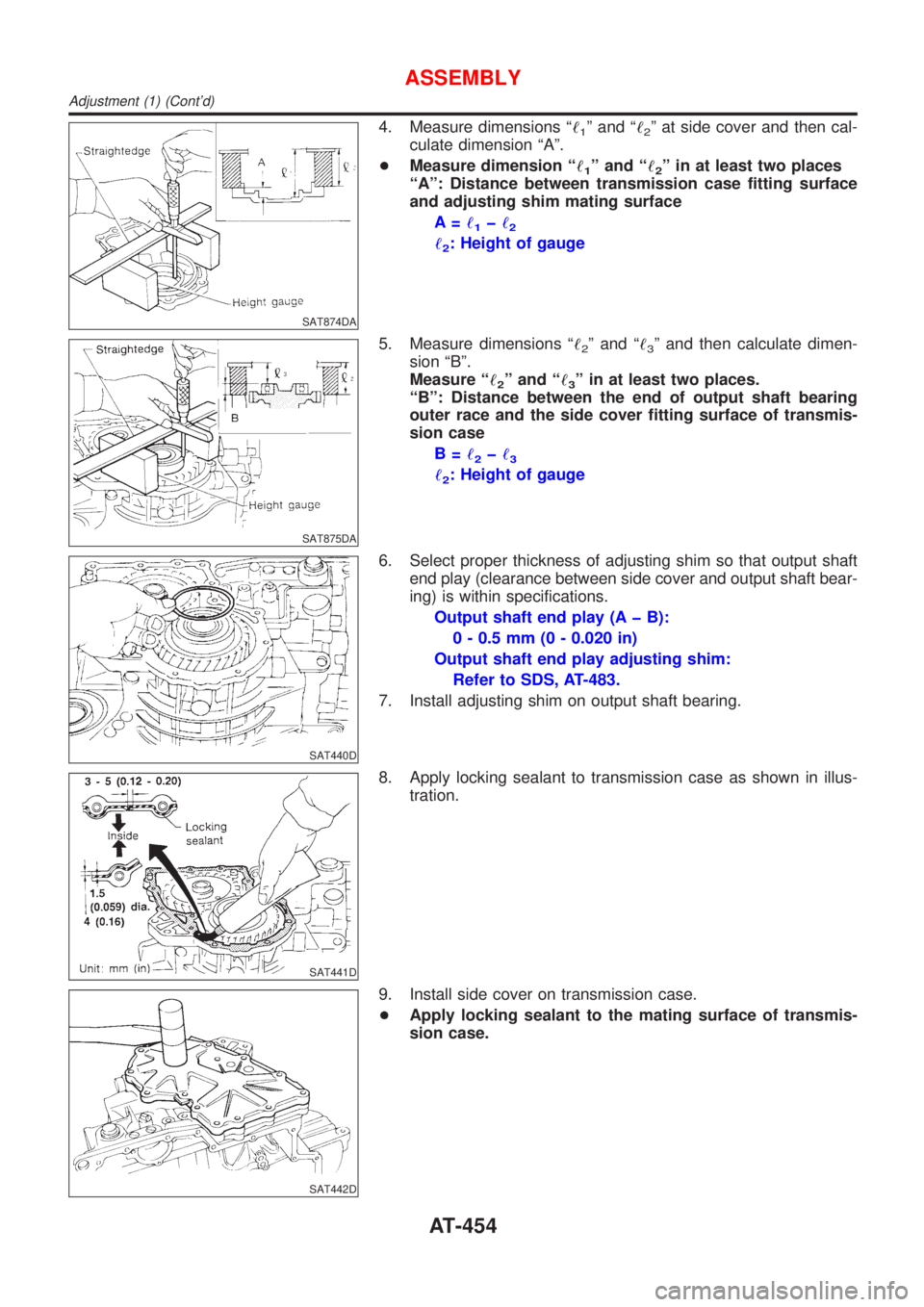

NISSAN ALMERA 2001  Service Manual SAT874DA
4. Measure dimensions ª!1º and ª!2º at side cover and then cal-
culate dimension ªAº.
+Measure dimension ª!
1º and ª!2º in at least two places
ªAº: Distance between transmission c

Page 457 of 2898

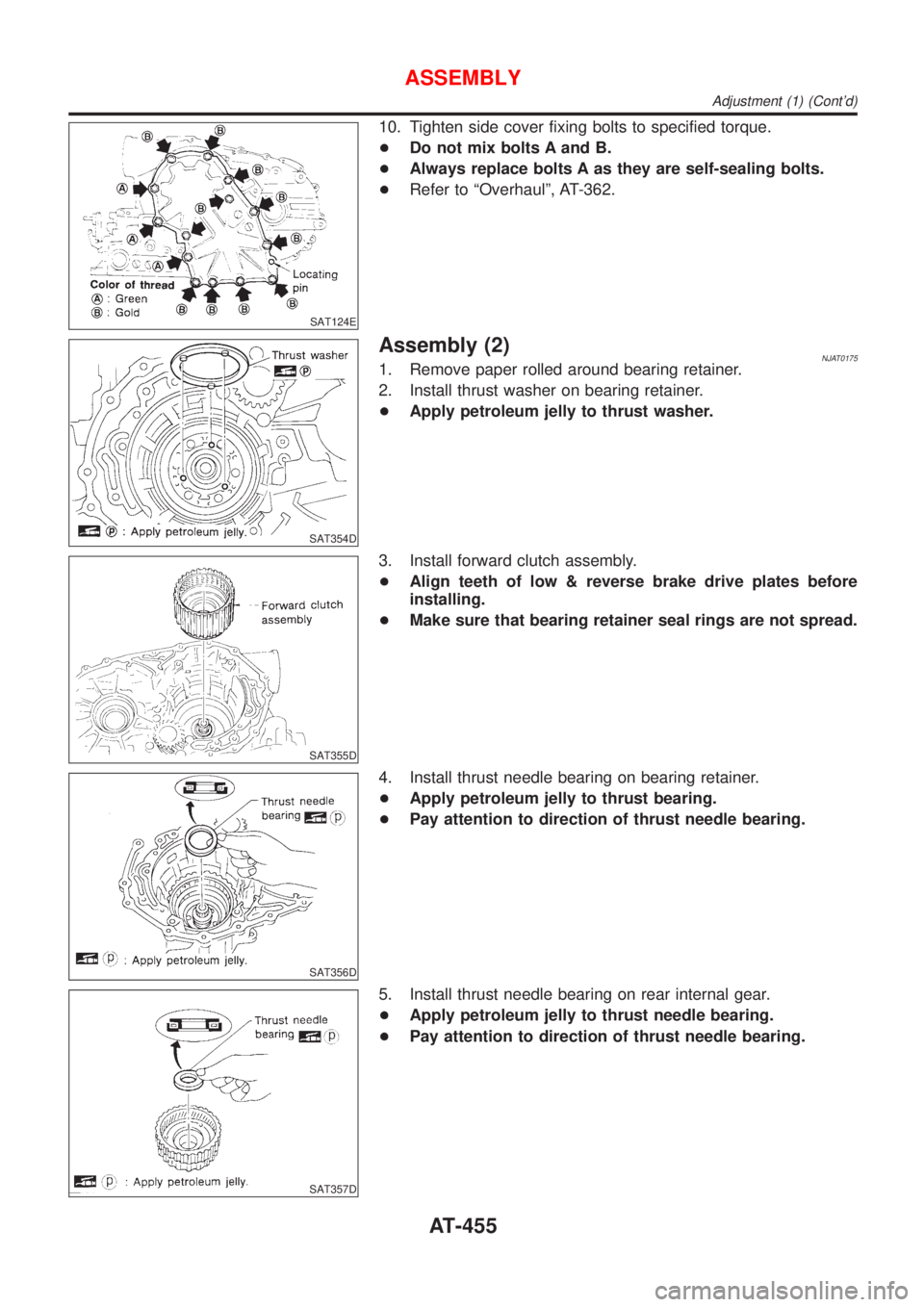

NISSAN ALMERA 2001  Service Manual SAT124E
10. Tighten side cover fixing bolts to specified torque.
+Do not mix bolts A and B.
+Always replace bolts A as they are self-sealing bolts.
+Refer to ªOverhaulº, AT-362.
SAT354D
Assembly (2)

Page 458 of 2898

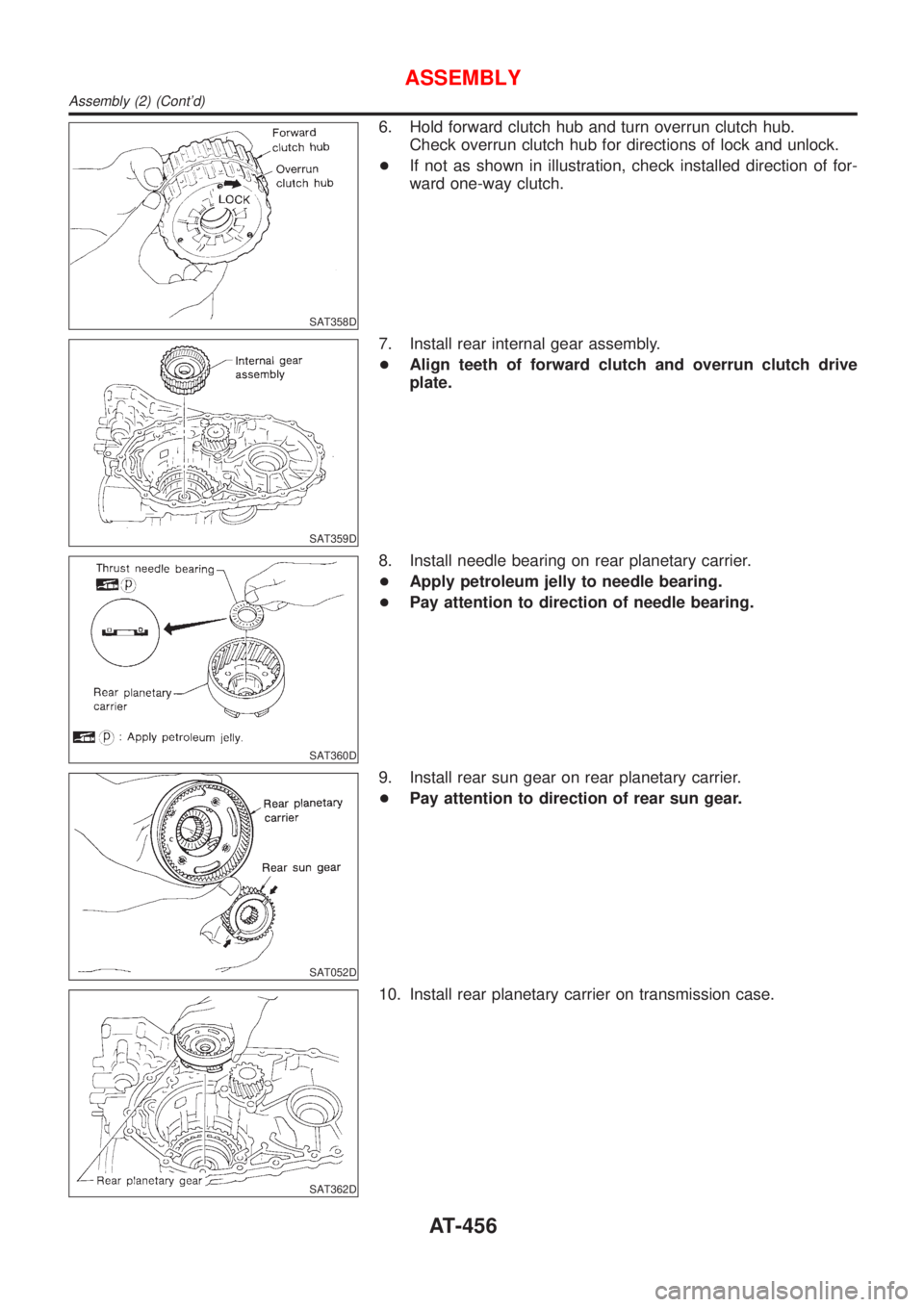

NISSAN ALMERA 2001  Service Manual SAT358D
6. Hold forward clutch hub and turn overrun clutch hub.
Check overrun clutch hub for directions of lock and unlock.
+If not as shown in illustration, check installed direction of for-
ward one

Page 459 of 2898

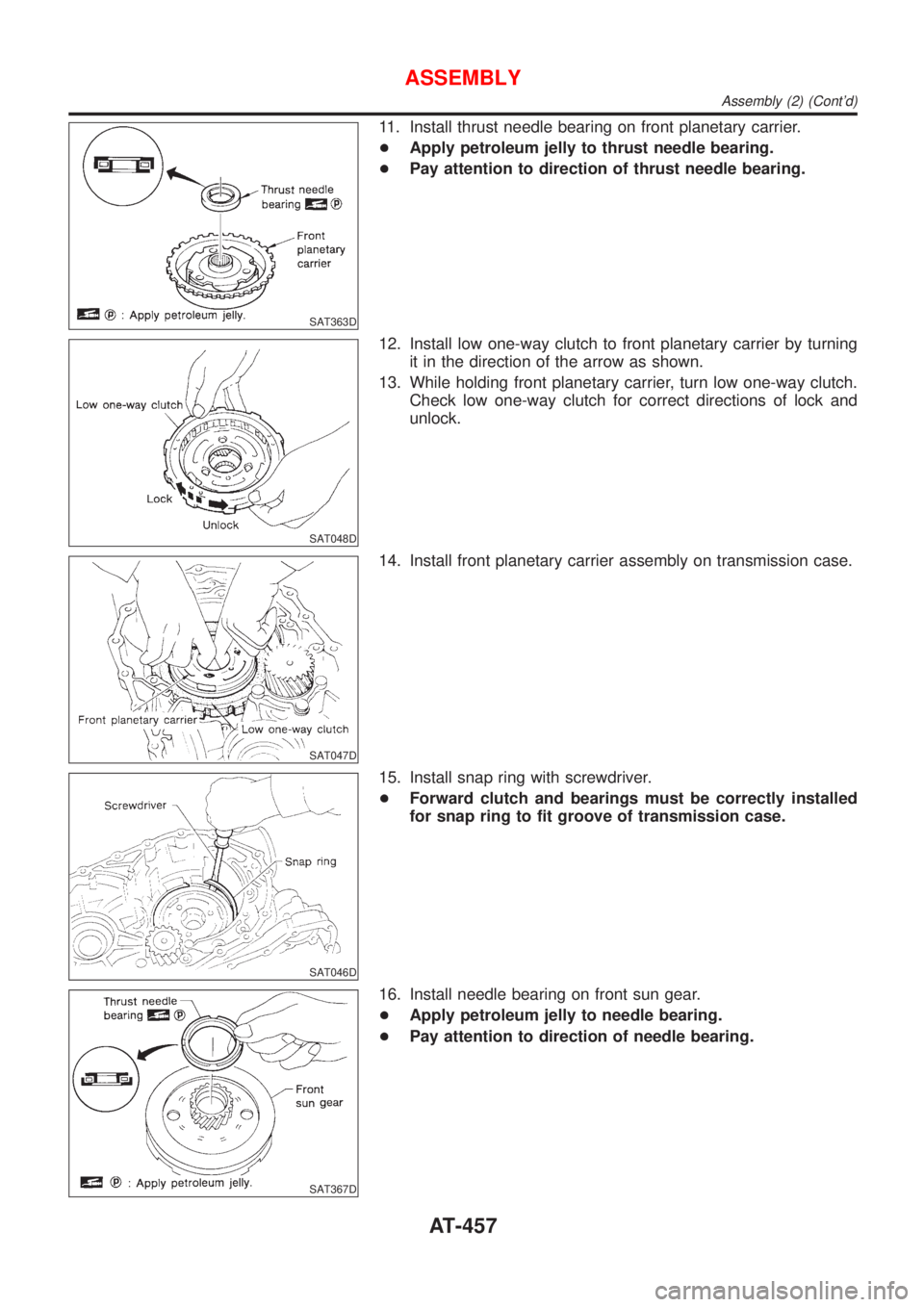

NISSAN ALMERA 2001  Service Manual SAT363D
11. Install thrust needle bearing on front planetary carrier.
+Apply petroleum jelly to thrust needle bearing.
+Pay attention to direction of thrust needle bearing.
SAT048D
12. Install low one

Page 460 of 2898

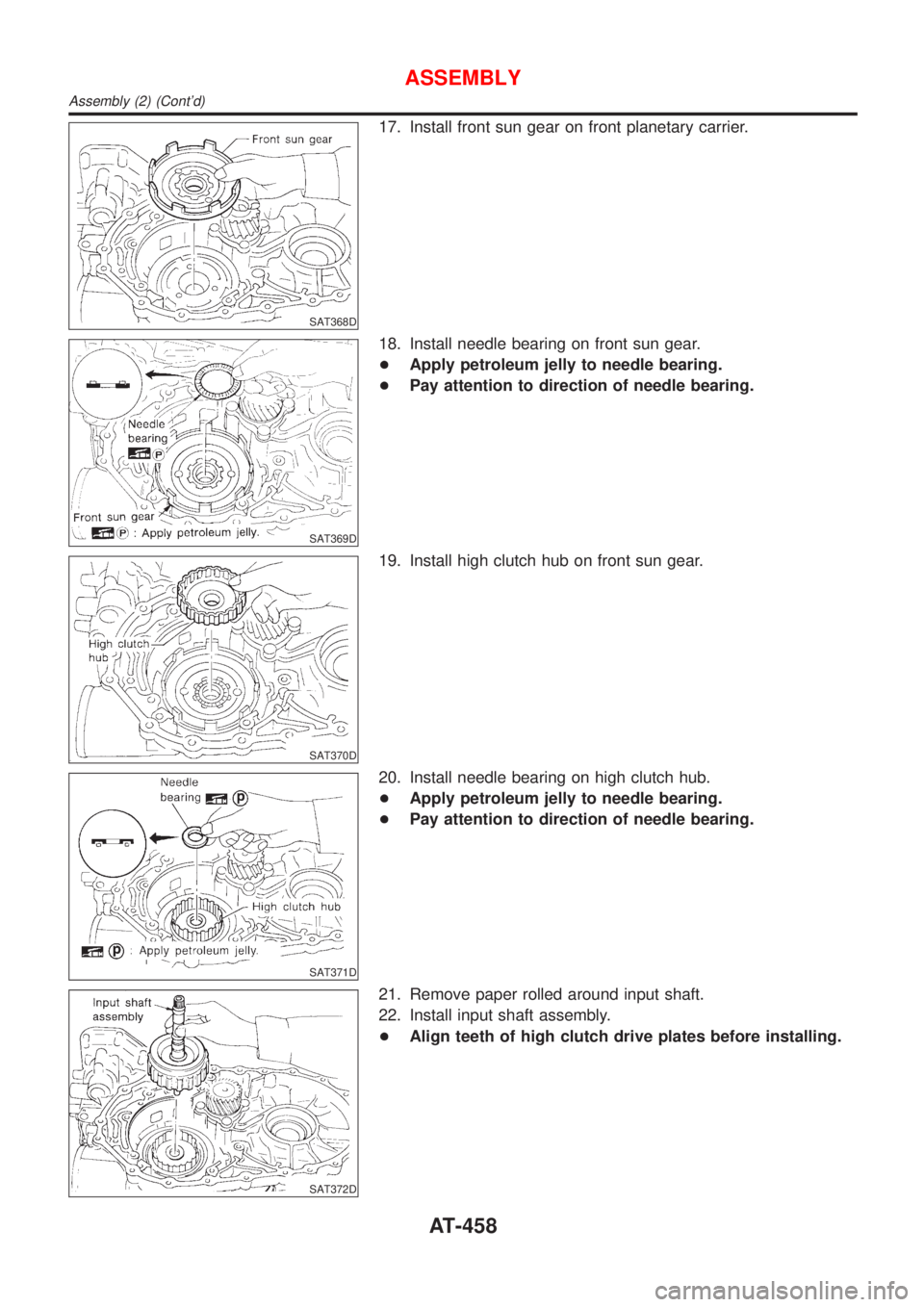

NISSAN ALMERA 2001  Service Manual SAT368D
17. Install front sun gear on front planetary carrier.
SAT369D
18. Install needle bearing on front sun gear.
+Apply petroleum jelly to needle bearing.
+Pay attention to direction of needle bea
