NISSAN ALMERA N15 1995 Service Manual

PREPARATION

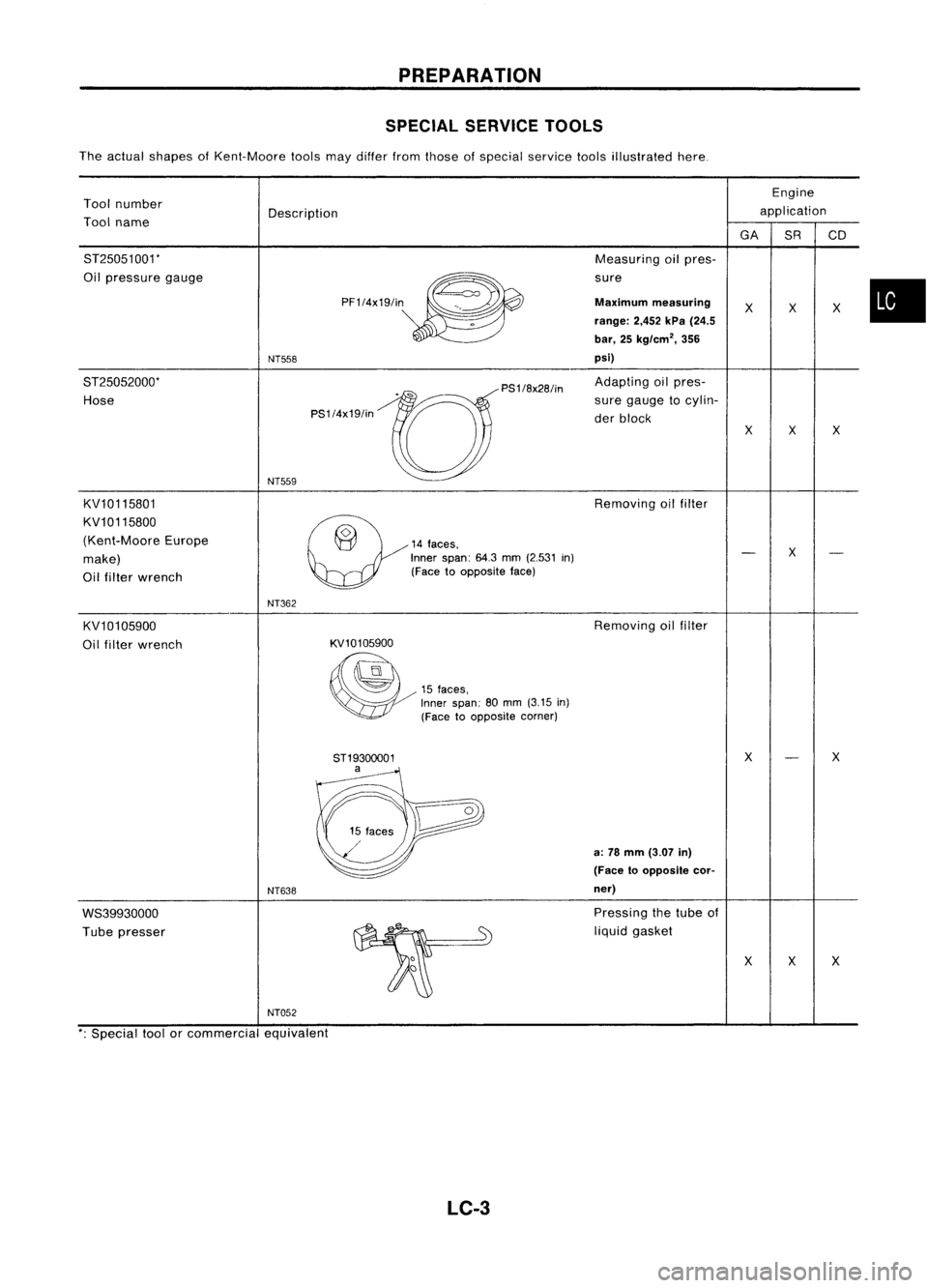

SPECIAL SERVICETOOLS

The actual shapes ofKent-Moore toolsmaydiller fromthose ofspecial service toolsillustrated here.
Tool number
Tool name

ST25051001'

Oil pressure gauge

ST25052000'
Hose

KV10115801
KV10115800

(Kent-Moore Europe
make)
Oil filter wrench

KV10105900

Oil filter wrench

WS39930000

Tube presser
NT559
NT362
NT638
~o

14faces,
Inner span:
64.3
mm
(2.531
in)
(Face toopposite face)

KV101 05900
~
15
faces,
Inner span:
80
mm
(3.15
in)
(Face toopposite corner)

8T1930oo01 a
Removing
oilfilter
Removing oilfilter

a:
78
mm
(3.07
in)

(Face 10opposite cor-

ner)

Pressing thetube of
liquid gasket
x

x
x

x
x

x

NT052

'; Special toolorcommercial equivalent

LC-3

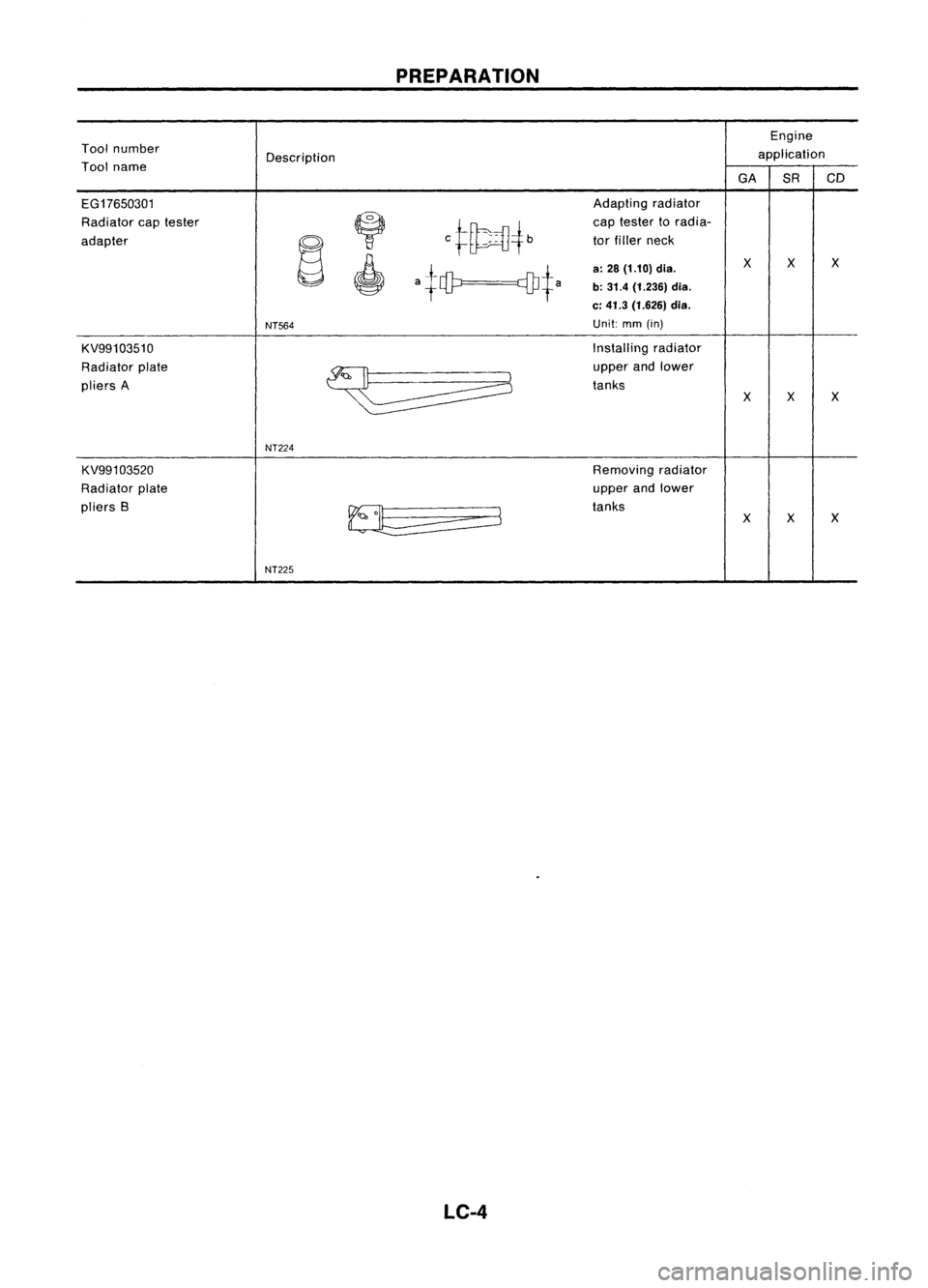

PREPARATION
Engine
Tool number
Description application
Tool name
GASRCD
EG17650301 Adapting
radiator
Radiator captester

~
C~~4b
cap
tester toradia-
adapter

~
tor
filler neck

,
atet? cDJtaa:
28 (1.10) dia.
X
X X

b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
NT564
Unit:
mm(in)

KV99103510 Installing
radiator
Radiator plate

~
upper
andlower
pliers A tanks

XX
X

NT224

KV991 03520 Removingradiator
Radiator plate upper
andlower
pliers B

~
tanks

XXX

NT225
LC-4

Maingallery

Chain tenfioner
ENGINE
LUBRICATION SYSTEM

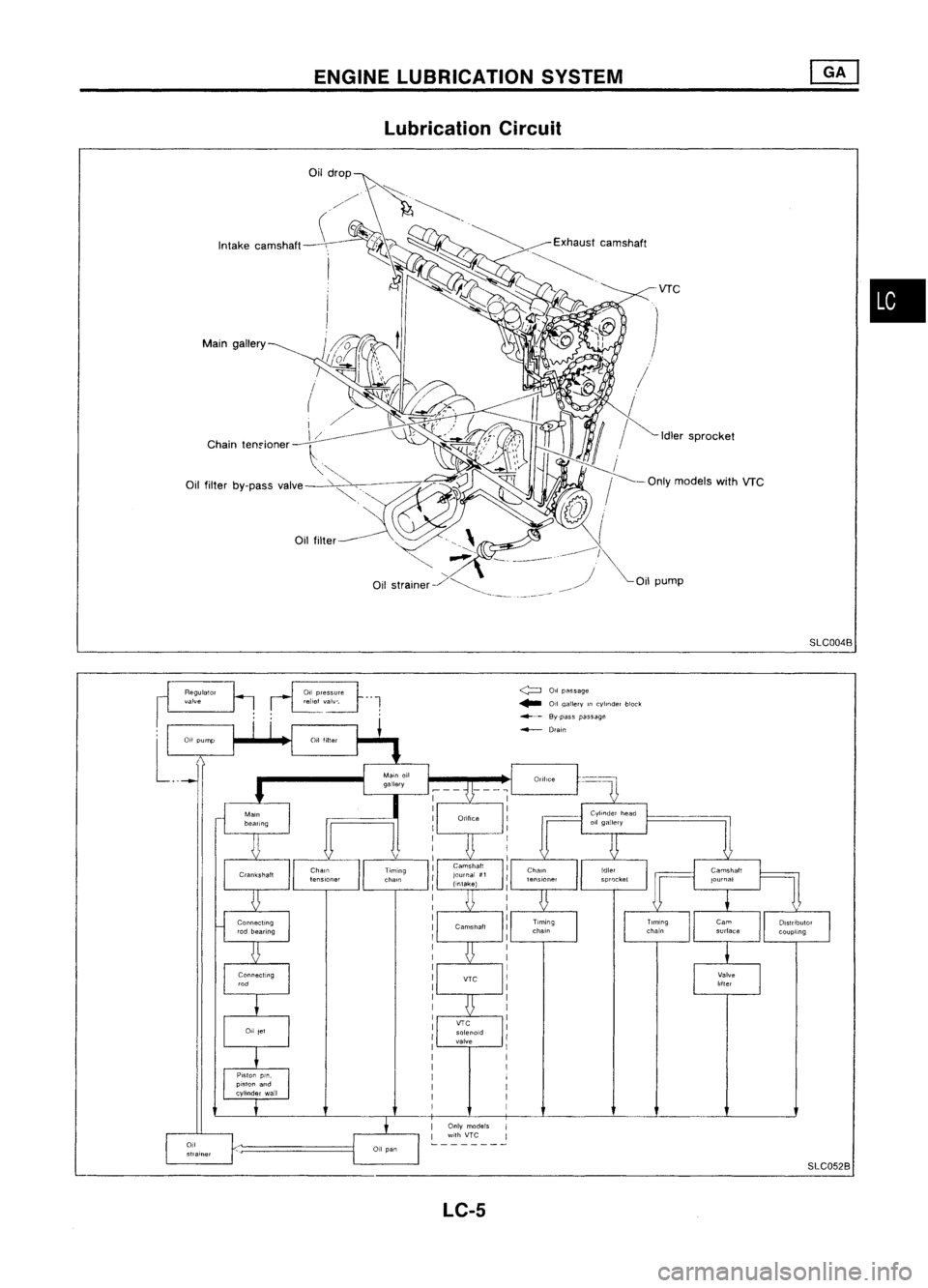

Lubrication Circuit

Oil drop

./~.

"

Oil strainer ~__.

<:;=::J
011
passage

~ Oil
qallely In
cylinder
block

~ ..- 8y.pass passage

..-- Drain

Only models

with VTC
LC-5 VTC

Idler sprocket

SLC0048
SLC052B
•

ENGINELUBRICATION SYSTEM

3. Install pressure gauge.
4. Start engine andwarm itup tonormal operating tempera-
ture.
5. Check oilpressure withengine running underno-load.

If difference isextreme, checkoilpassage andoilpump foroil
leaks.

6. Install oilpressure switchwithsealant.

Oil

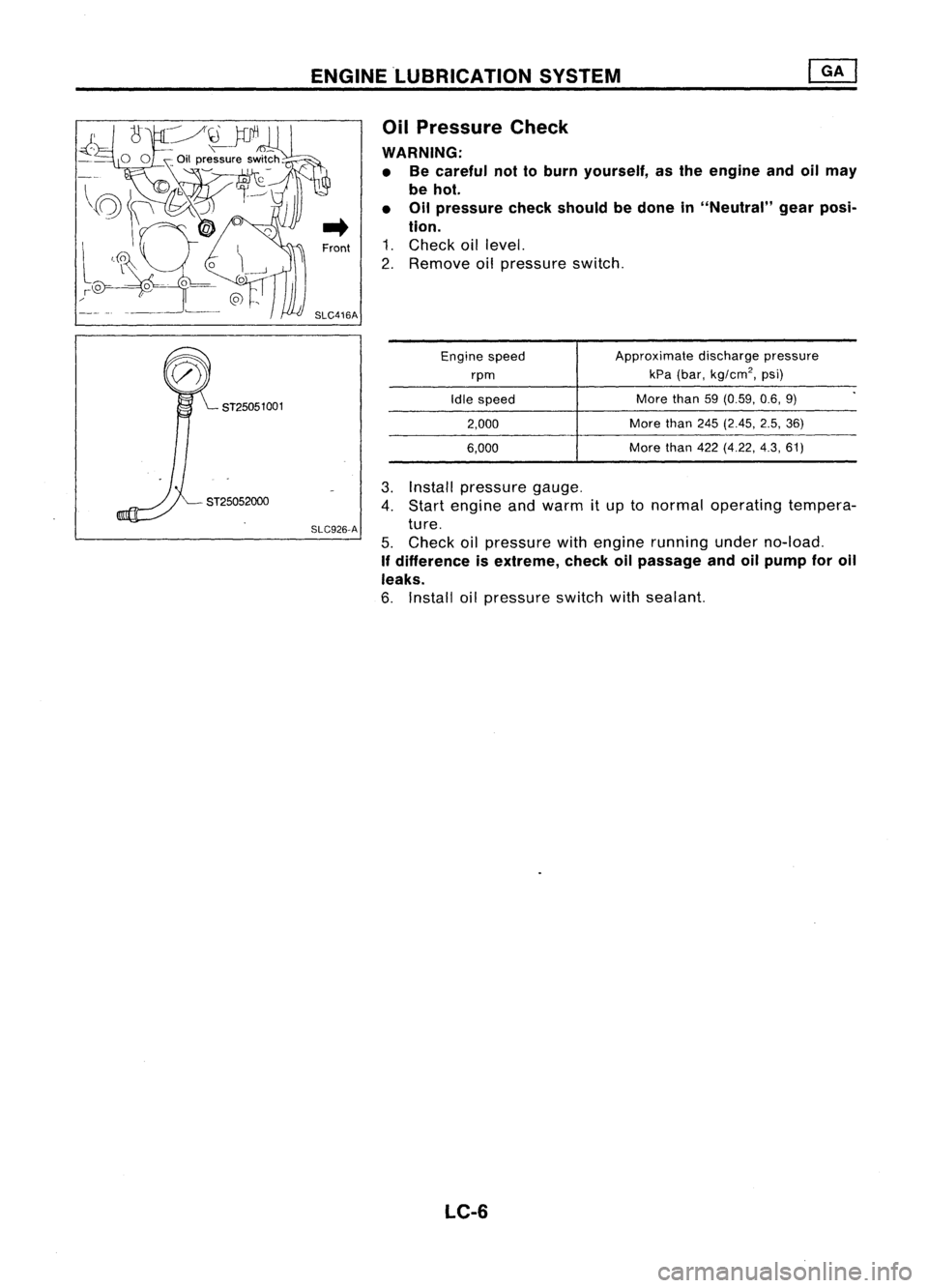

Pressure Check
WARNING: • Becareful nottoburn yourself, asthe engine andoilmay
be hot.
• Oilpressure checkshould bedone in"Neutral" gearposi-
tion.

1. Check oillevel.
2. Remove oilpressure switch.

ST25051001 SLC926-A
Engine
speed
rpm
Idle speed
2,000
6,000 Approximate
dischargepressure
kPa (bar,
kg/cm
2,
psi)
More than59(0.59, 0.6,9)
More than245(2.45, 2.5,36)
More than422(4.22, 4.3,61)

LC-6

ENGINELUBRICATION SYSTEM
SEC.
135.150

lil
N.m(kg-m, in-Ib)
~. N.m(kg-m, ft-Ib)

rJ .
Liquid gasket
Oil

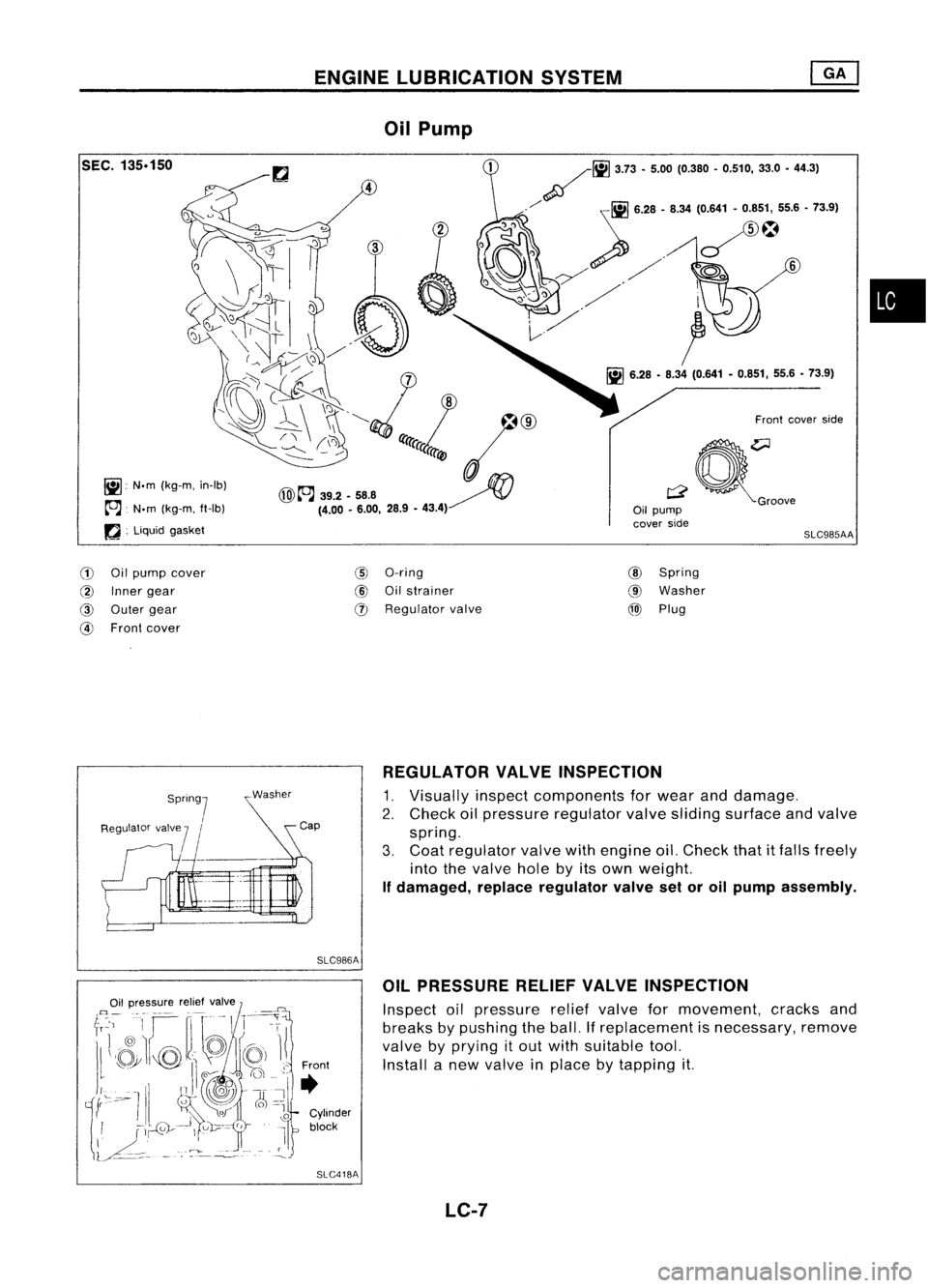

Pump

Frontcover side

a~:oo"

Oil pump
cover side

SLC985AA
•

CD
Oilpump cover

@
Inner gear

@
Outer gear

@
Front cover
I])

O-ring

@J
Oilstrainer

(J)
Regulator valve
@

Spring

@
Washer

@)
Plug
Spring]
I

Regulator valve
7
I
REGULATOR
VALVEINSPECTION

1. Visually inspectcomponents forwear anddamage.
2. Check oilpressure regulator valvesliding surface andvalve
spring.
3. Coat regulator valvewithengine oil.Check thatitfalls freely
into thevalve holebyitsown weight.

If damaged, replaceregulator valvesetoroil pump assembly.
SLC986A OILPRESSURE RELIEFVALVEINSPECTION

Inspect oilpressure reliefvalve formovement, cracksand
breaks bypushing theball. Ifreplacement isnecessary, remove
valve byprying itout with suitable tool.
Front Installanew valve inplace bytapping it.

•
Cylinder
block

SLC418A
LC-7

0.045-0.091 (0.0018 -0.0036)
0.110
-0.200 (0.0043 -0.0079)
0.217 -0.327 (0.0085 -0.0129)
0.21 -0.32 (0.0083 -0.0126)
0.05 -0.09 (0.0020 -0.0035)
0.05 -0.11 (0.0020 -0.0043)

Body
toouter gearclearance
CD

Inner geartocrescent clearance @
Outer geartocrescent clearance
@

Body toinner gearclearance @
Body toouter gearclearance @
Inner geartobrazed portionof
housing clearance
@

• Ifthe tipclearance (@)exceeds thelimit, replace gearset.
• Ifbody togear clearances (
(1), ~,
@,
@,
@)
exceed the
limit, replace frontcover assembly.

Using
afeeler gauge, checkthefollowing clearance.

Unit:mm(in)

SLC420A
ENGINE
LUBRICATION SYSTEM
Oil Pump (ConI'd)

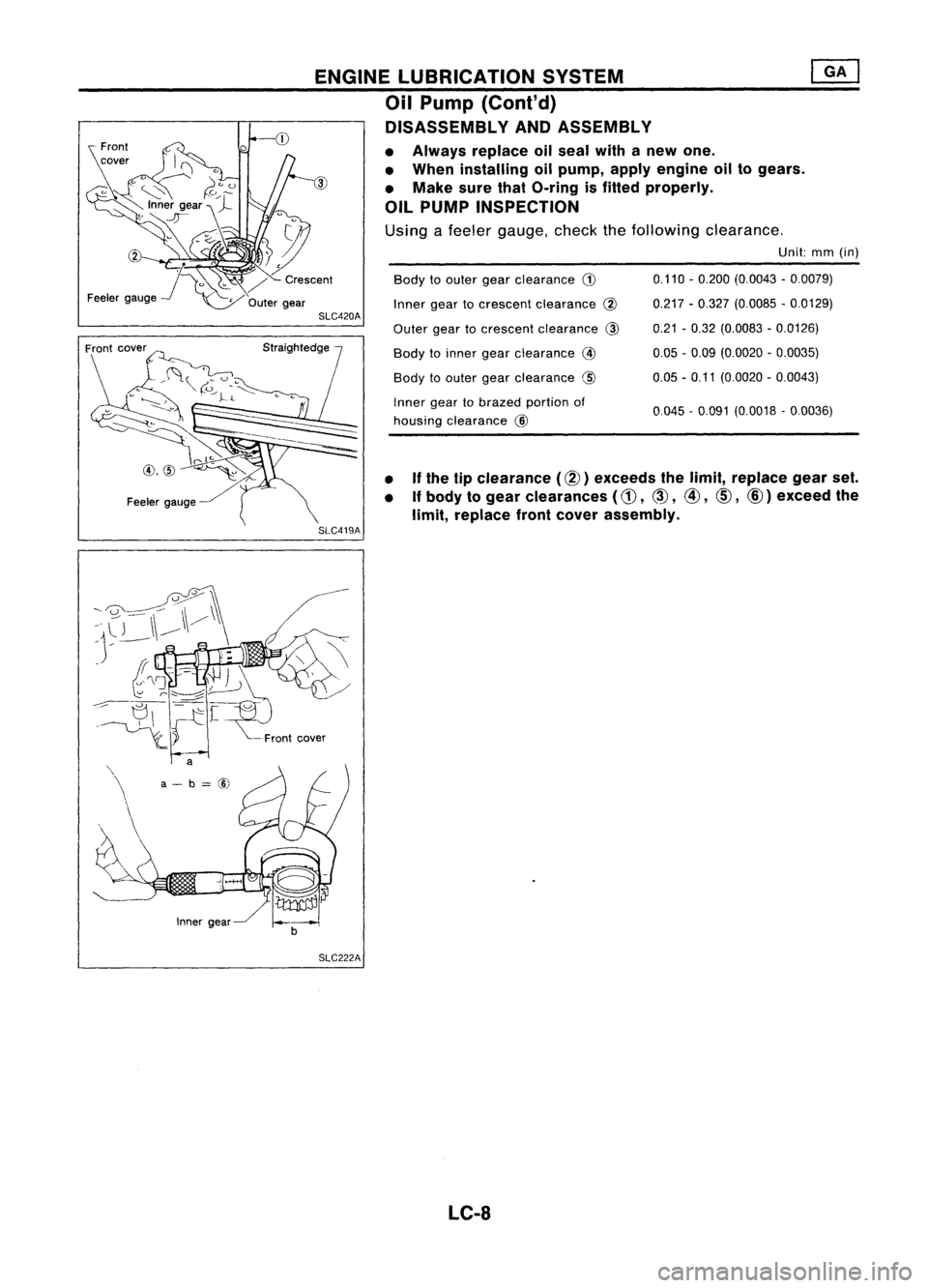

DISASSEMBLY ANDASSEMBLY
• Always replace oilseal withanew one.
• When installing oilpump, applyengine oiltogears.
• Make surethatO-ring isfitted properly.
OIL PUMP INSPECTION
Feeler gauge
SLC419A
b SLC222A
LC-8

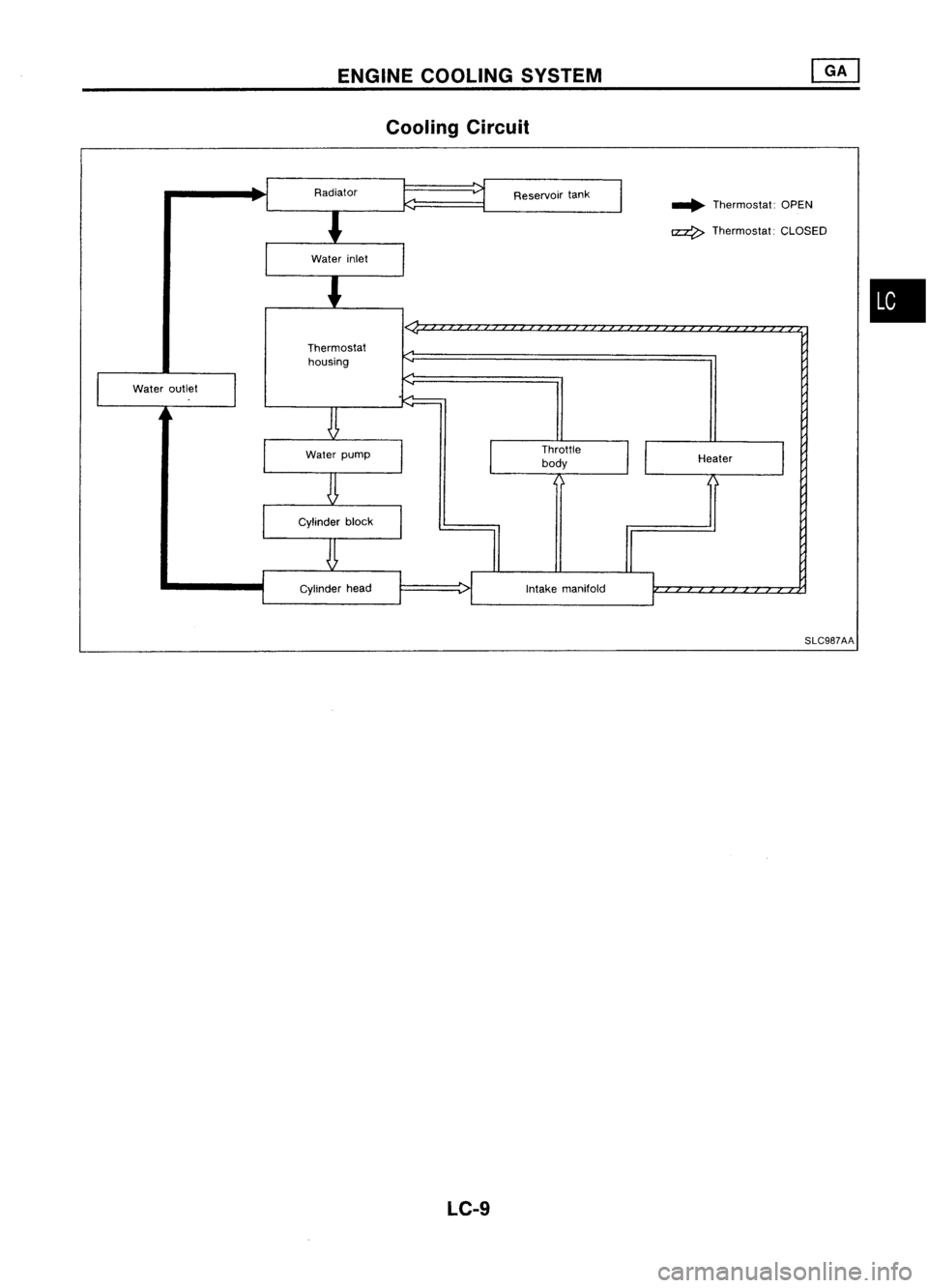

ENGINECOOLING SYSTEM
Cooling Circuit
Reservoir tank
...Thermostat: OPEN
~ Thermostat: CLOSED

•

Water outlet Thermostat
housing
Throttlebody
Intake manifold Heater
SLC9S7AA
LC-9

ENGINECOOLING SYSTEM

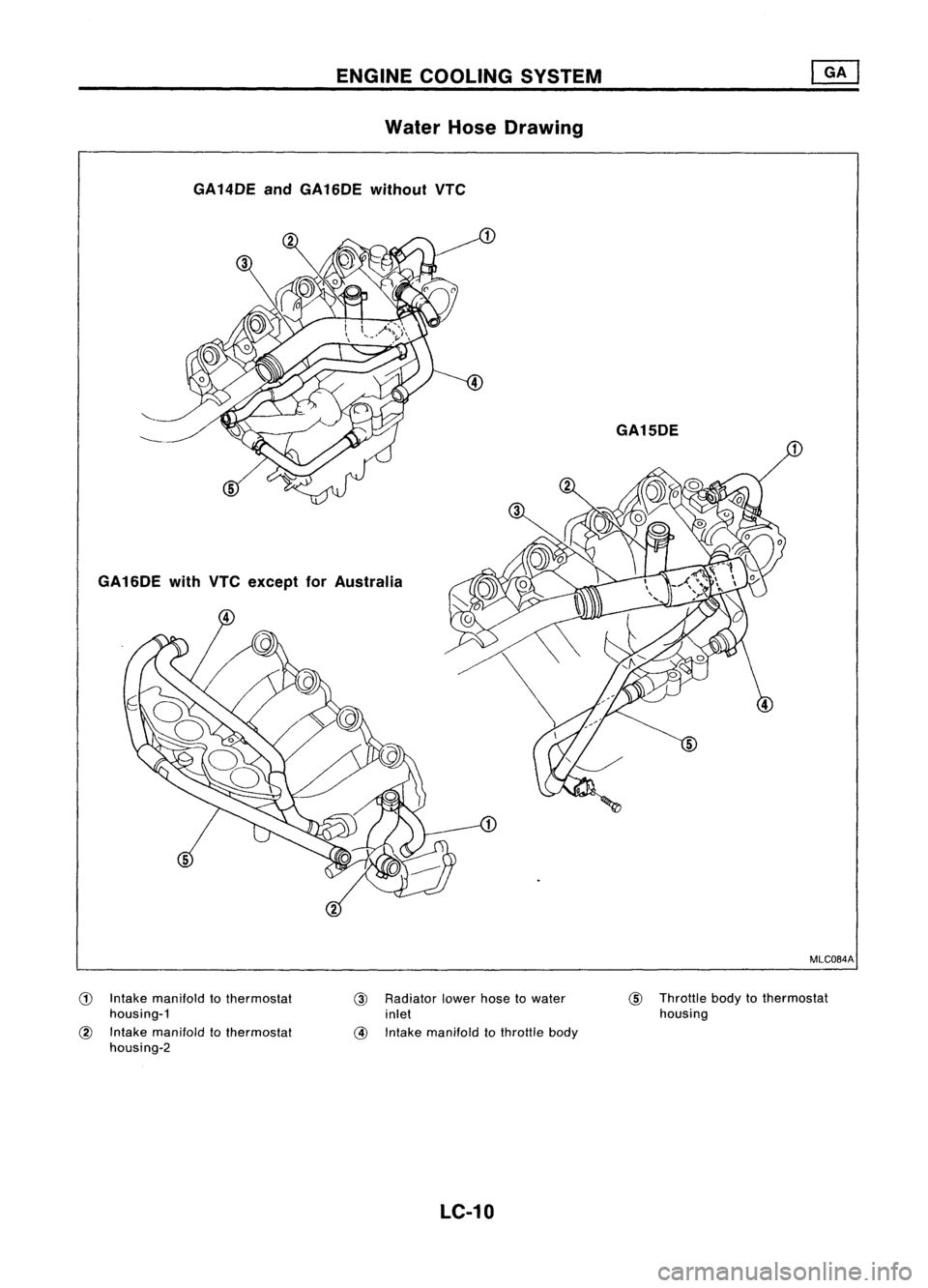

Water HoseDrawing
GA14DE andGA16DE withoutVTC
GA 16DE withVTCexcept forAustralia GA15DE
MLC084A

CD
Intake manifold tothermostat
housing-1

@
Intake manifold tothermostat
housing-2
@

Radiator lowerhosetowater
inlet

@
Intake manifold tothrottle body

LC-10
@

Throttle bodytothermostat
housing

ENGINECOOLING SYSTEM
Water HoseDrawing (Cont'd)

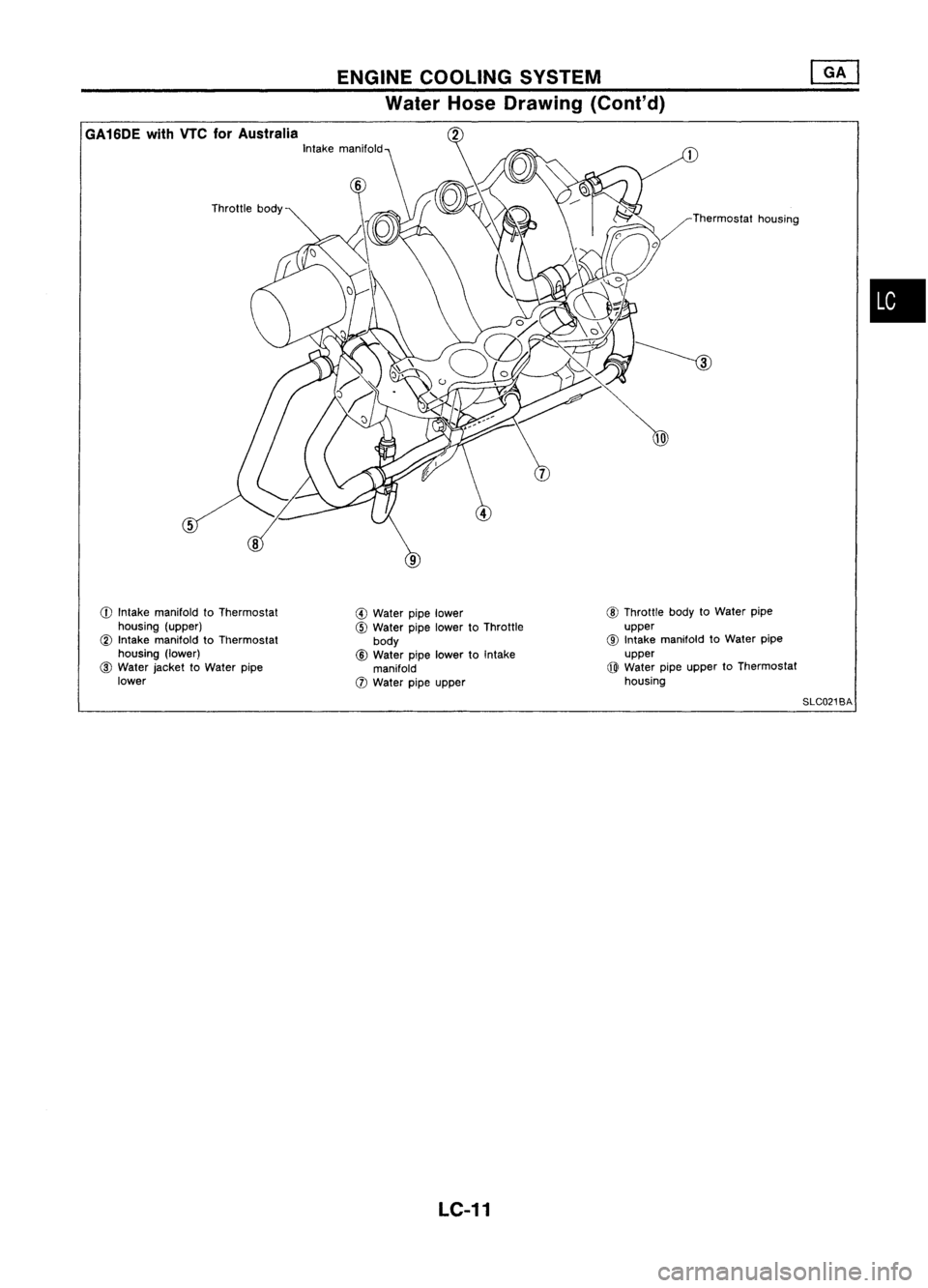

GA16DE withVTCforAustralia

Intakemanifold

5
9
•

Q)
Intake manifold toThermostat
housing (upper)

@
Intake manifold toThermostat
housing (lower)

@
Water jacket toWater pipe
lower
@

Water pipelower

CID
Water pipelower toThrottle
body

@
Water pipelower toIntake
manifold

(J)
Water pipeupper

LC-11 @

Throttle bodytoWater pipe
upper

@
Intake manifold toWater pipe
upper

@
Water pipeupper toThermostat
housing

SLC021BA

ENGINECOOLING SYSTEM

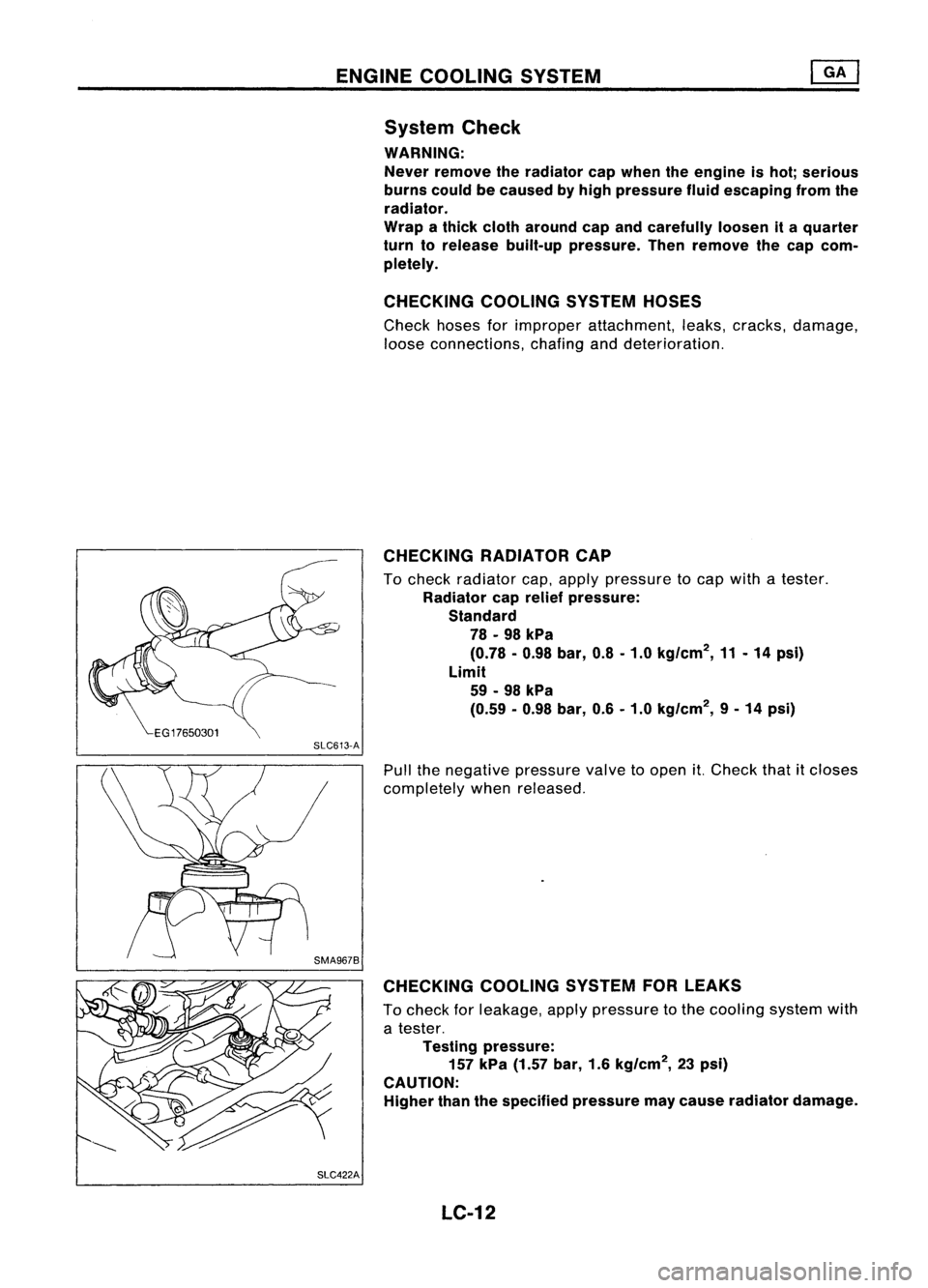

System Check

WARNING: Never remove theradiator capwhen theengine ishot; serious
burns couldbecaused byhigh pressure fluidescaping fromthe
radiator.
Wrap athick cloth around capandcarefUlly loosenita quarter
turn torelease built-uppressure. Thenremove thecap com-
pletely.

CHECKING COOLINGSYSTEMHOSES

Check hosesforimproper attachment, leaks,cracks, damage,
loose connections, chafinganddeterioration.

CHECKING RADIATORCAP

To check radiator cap,apply pressure tocap with atester.
Radiator caprelief pressure:
Standard
78 -98 kPa
(0.78 -0.98 bar,0.8-1.0 kg/cm
2,
11-14 psi)
Limit
59 -98 kPa
(0.59 -0.98 bar,0.6-1.0 kg/cm
2,
9-14 psi)

SLC613-A
Pullthenegative pressure valvetoopen it.Check thatitcloses
completely whenreleased.

CHECKING COOLINGSYSTEMFORLEAKS

To check forleakage, applypressure tothe cooling systemwith
a tester.
Testing pressure:
157 kPa (1.57 bar,1.6kg/cm
2,
23psi)
CAUTION: Higher thanthespecified pressure maycause radiator damage.

SLC422A LC-12
