NISSAN ALMERA N16 2003 Electronic Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-335
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

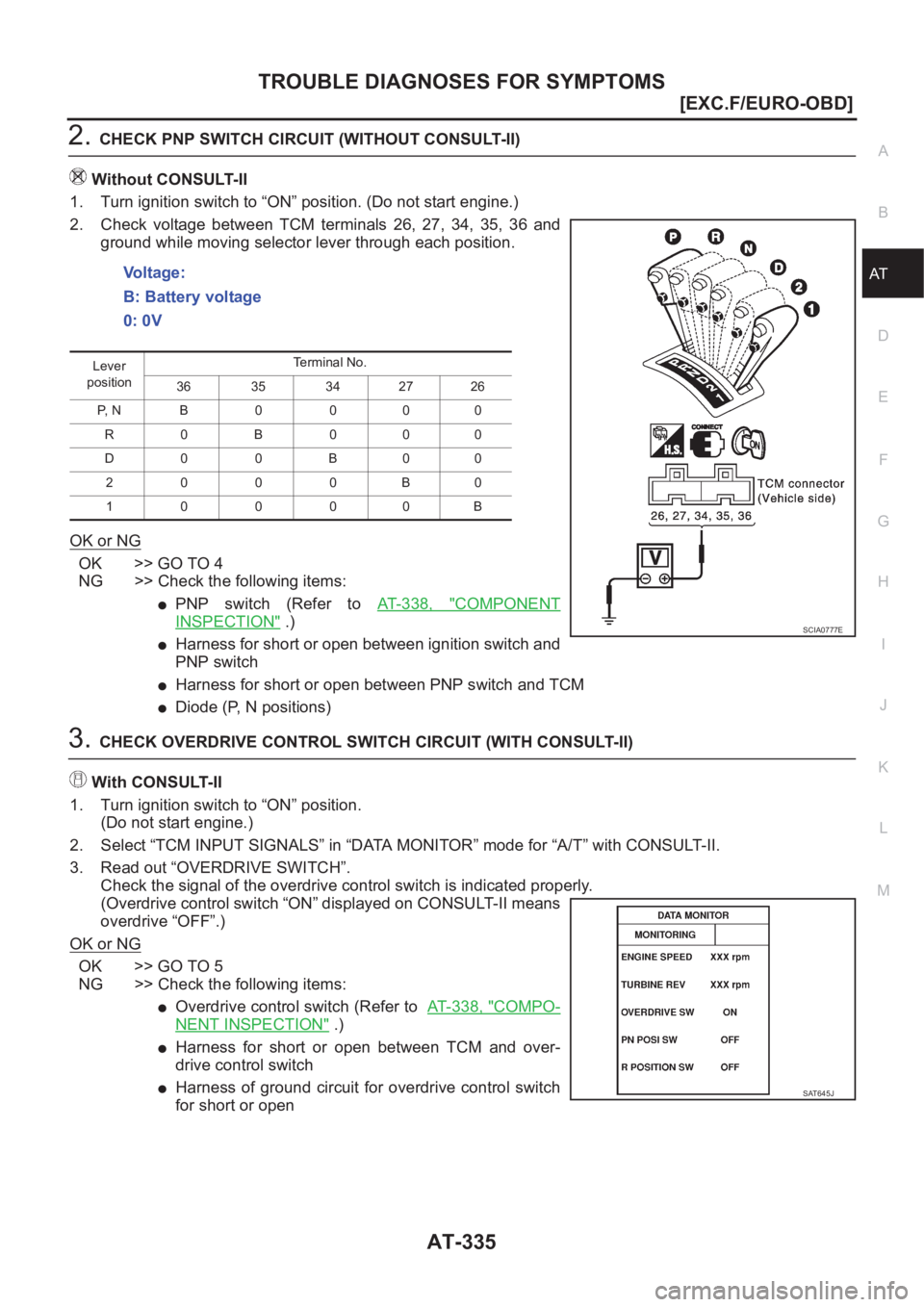

2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●PNP switch (Refer to AT- 3 3 8 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and TCM
●Diode (P, N positions)
3.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GO TO 5
NG >> Check the following items:
●Overdrive control switch (Refer to AT- 3 3 8 , "COMPO-
NENT INSPECTION" .)
●Harness for short or open between TCM and over-
drive control switch
●Harness of ground circuit for overdrive control switch
for short or open Vo l t a g e :
B: Battery voltage
0: 0V
Lever
positionTerminal No.
36 35 34 27 26
P, N B 0 0 0 0
R0B000
D0 0B00
2000B0
10000B
SCIA0777E
SAT645J

AT-336
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

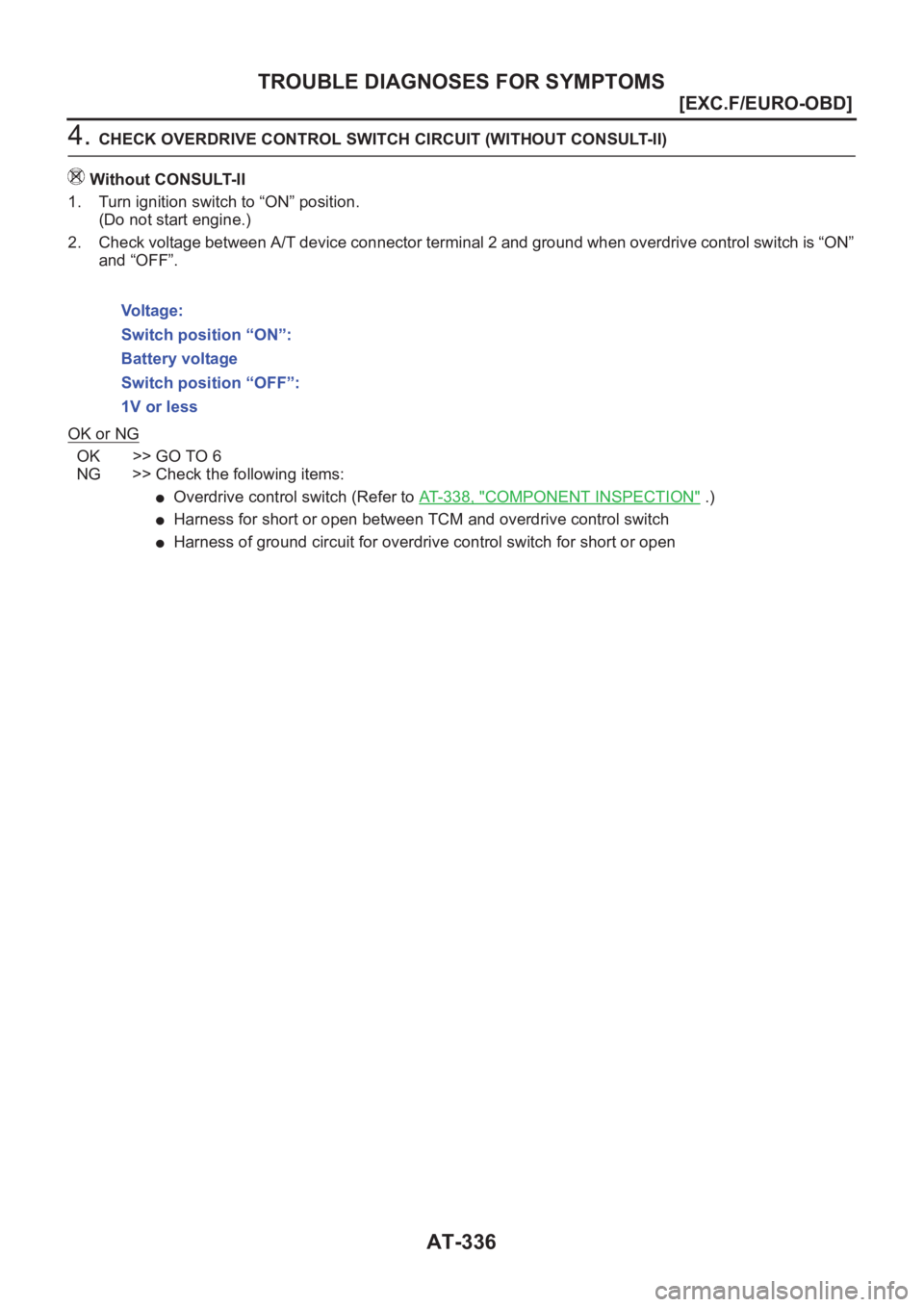

4. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between A/T device connector terminal 2 and ground when overdrive control switch is “ON”
and “OFF”.
OK or NG
OK >> GO TO 6
NG >> Check the following items:
●Overdrive control switch (Refer to AT-338, "COMPONENT INSPECTION" .)
●Harness for short or open between TCM and overdrive control switch
●Harness of ground circuit for overdrive control switch for short or open
Voltage:
Switch position “ON”:
Battery voltage
Switch position “OFF”:
1V or less

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-337
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

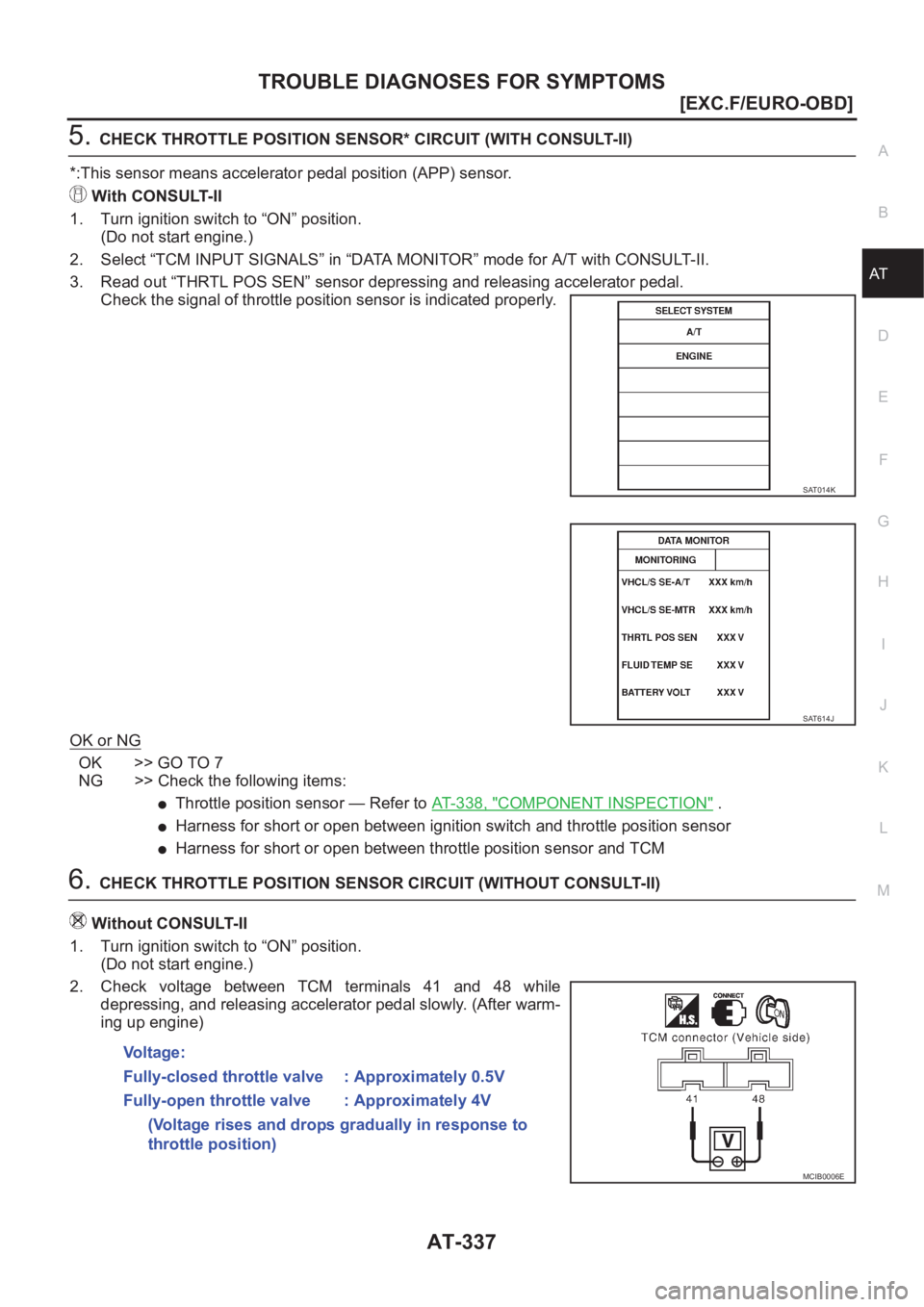

5.CHECK THROTTLE POSITION SENSOR* CIRCUIT (WITH CONSULT-II)
*:This sensor means accelerator pedal position (APP) sensor.
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for A/T with CONSULT-II.
3. Read out “THRTL POS SEN” sensor depressing and releasing accelerator pedal.
Check the signal of throttle position sensor is indicated properly.
OK or NG
OK >> GO TO 7
NG >> Check the following items:
●Throttle position sensor — Refer to AT-338, "COMPONENT INSPECTION" .
●Harness for short or open between ignition switch and throttle position sensor
●Harness for short or open between throttle position sensor and TCM
6.CHECK THROTTLE POSITION SENSOR CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 41 and 48 while
depressing, and releasing accelerator pedal slowly. (After warm-
ing up engine)
SAT014K
SAT614J
Vo l t a g e :
Fully-closed throttle valve : Approximately 0.5V
Fully-open throttle valve : Approximately 4V
(Voltage rises and drops gradually in response to
throttle position)
MCIB0006E

AT-338
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

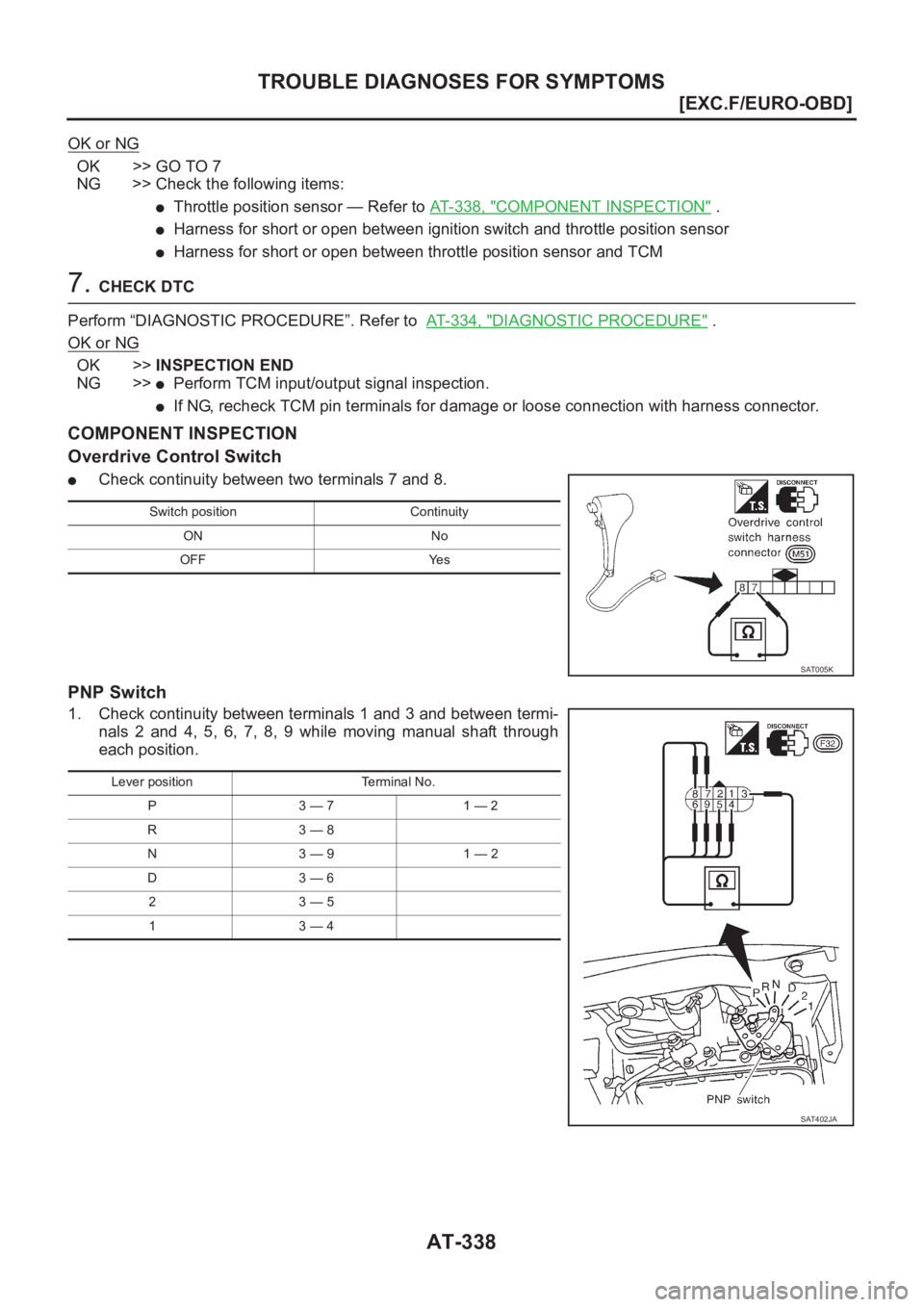

OK or NG
OK >> GO TO 7
NG >> Check the following items:
●Throttle position sensor — Refer to AT- 3 3 8 , "COMPONENT INSPECTION" .
●Harness for short or open between ignition switch and throttle position sensor
●Harness for short or open between throttle position sensor and TCM
7. CHECK DTC
Perform “DIAGNOSTIC PROCEDURE”. Refer to AT- 3 3 4 , "
DIAGNOSTIC PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >>
●Perform TCM input/output signal inspection.
●If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
COMPONENT INSPECTION
Overdrive Control Switch
●Check continuity between two terminals 7 and 8.
PNP Switch
1. Check continuity between terminals 1 and 3 and between termi-
nals 2 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
Switch position Continuity
ON No
OFF Yes
SAT005K
Lever position Terminal No.
P3 — 71 — 2
R3 — 8
N3 — 91 — 2
D3 — 6
23 — 5
13 — 4
SAT402JA

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-339
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

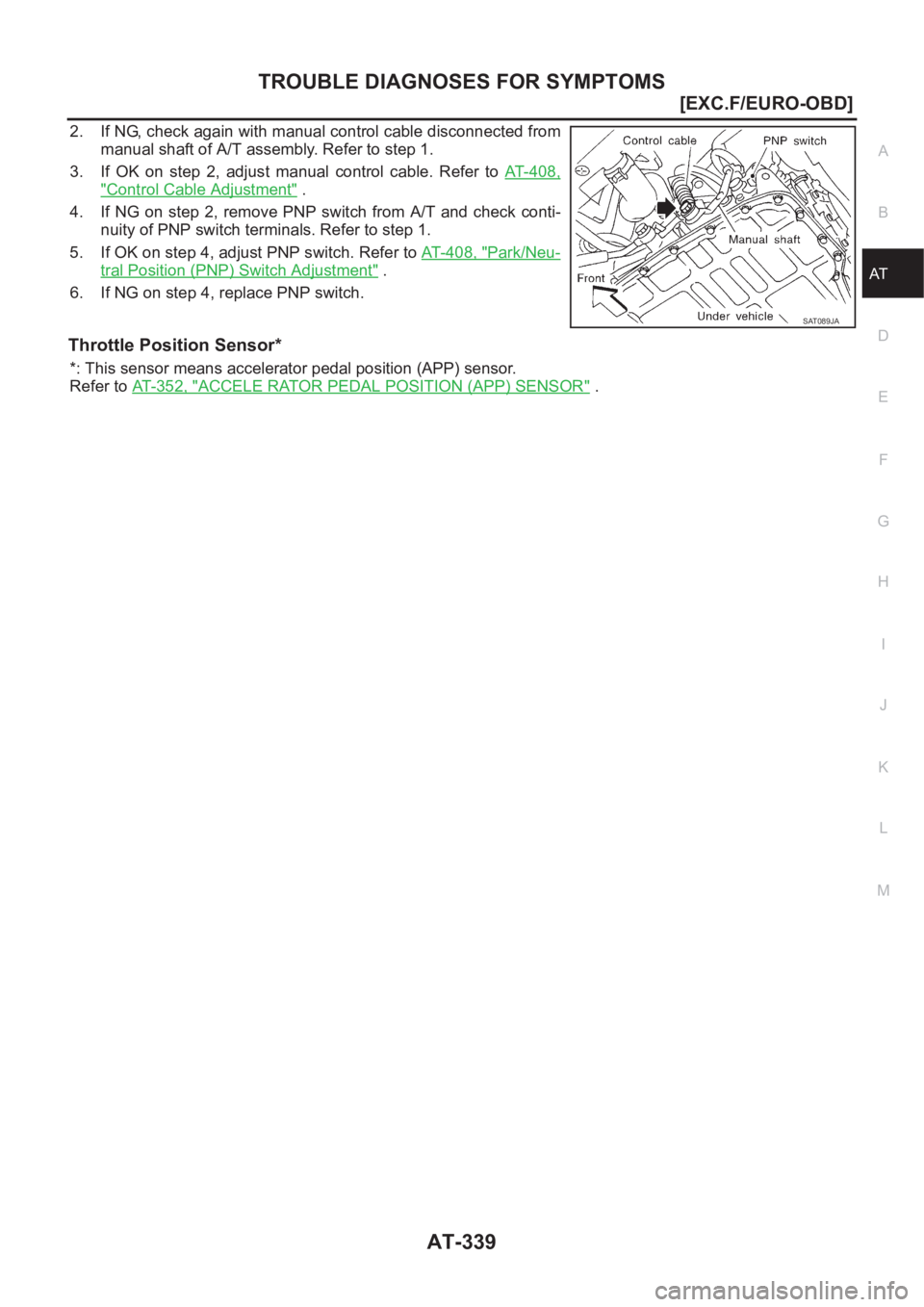

2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer to AT- 4 0 8 ,
"Control Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 4 0 8 , "
Park/Neu-
tral Position (PNP) Switch Adjustment" .
6. If NG on step 4, replace PNP switch.
Throttle Position Sensor*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 3 5 2 , "
ACCELE RATOR PEDAL POSITION (APP) SENSOR" .
SAT089JA

AT-340
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT

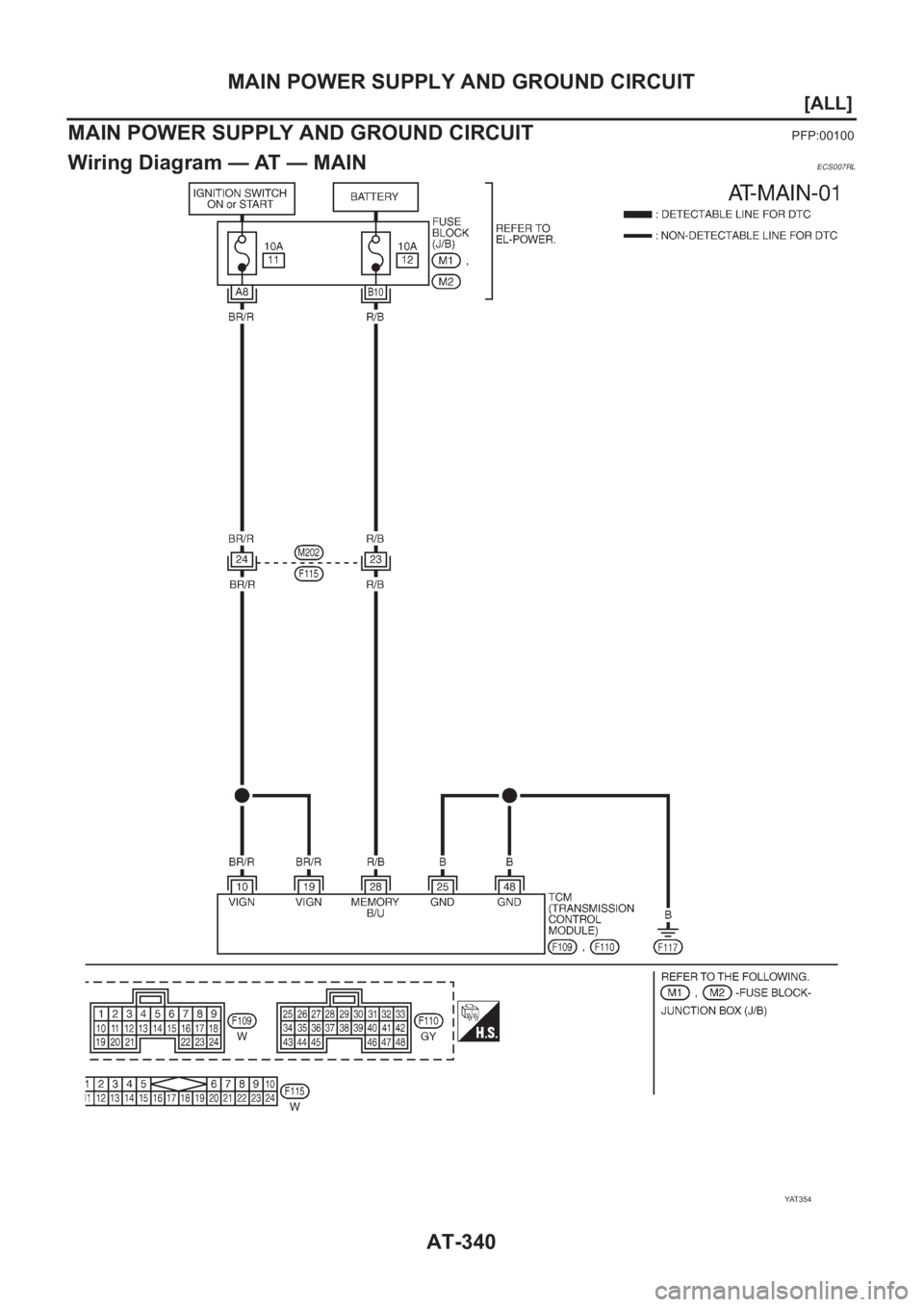

[ALL]MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100
Wiring Diagram — AT — MAINECS007RL
YAT 3 5 4

MAIN POWER SUPPLY AND GROUND CIRCUIT
AT-341
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

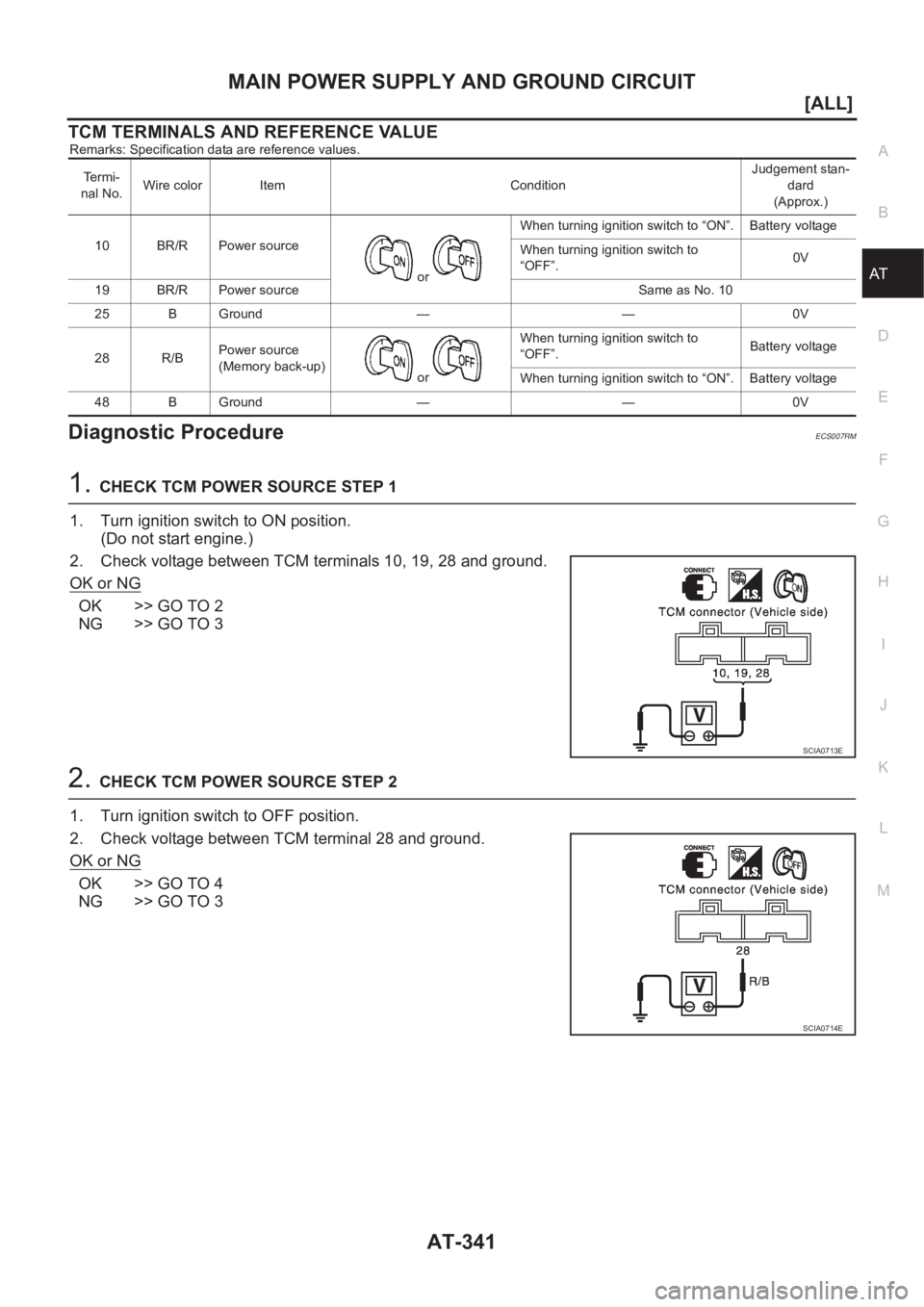

TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
Diagnostic ProcedureECS007RM
1.CHECK TCM POWER SOURCE STEP 1
1. Turn ignition switch to ON position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
OK or NG
OK >> GO TO 2
NG >> GO TO 3
2.CHECK TCM POWER SOURCE STEP 2
1. Turn ignition switch to OFF position.
2. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 4
NG >> GO TO 3
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/R Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/R Power source Same as No. 10
25 B Ground — — 0V
28 R/BPower source
(Memory back-up)
or When turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
48 B Ground — — 0V
SCIA0713E
SCIA0714E

AT-342
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT

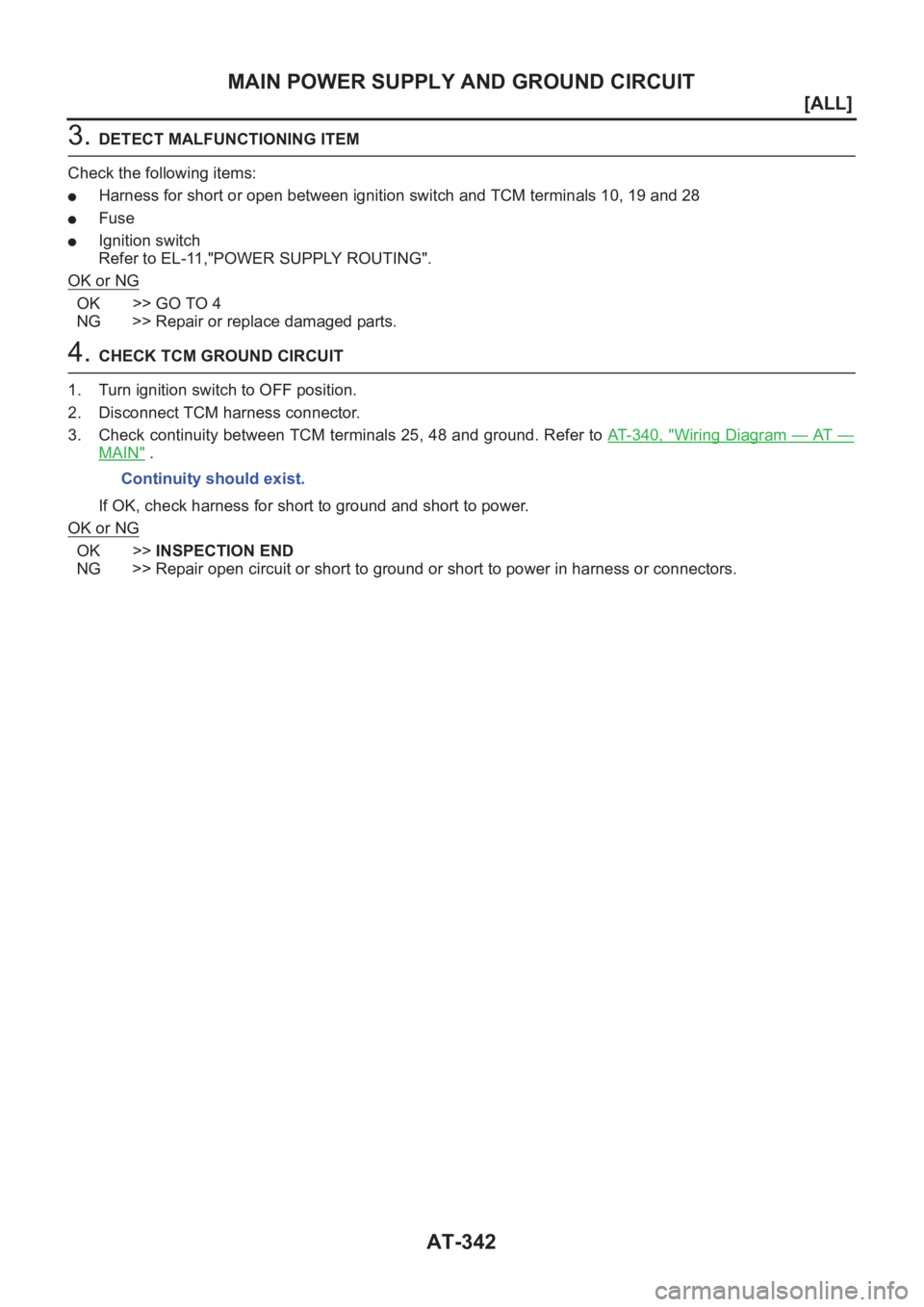

3. DETECT MALFUNCTIONING ITEM
Check the following items:
●Harness for short or open between ignition switch and TCM terminals 10, 19 and 28
●Fuse
●Ignition switch
Refer to EL-11,"POWER SUPPLY ROUTING".
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground. Refer to AT- 3 4 0 , "
Wiring Diagram — AT —
MAIN" .
If OK, check harness for short to ground and short to power.
OK or NG
OK >>INSPECTION END
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)
AT-343
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

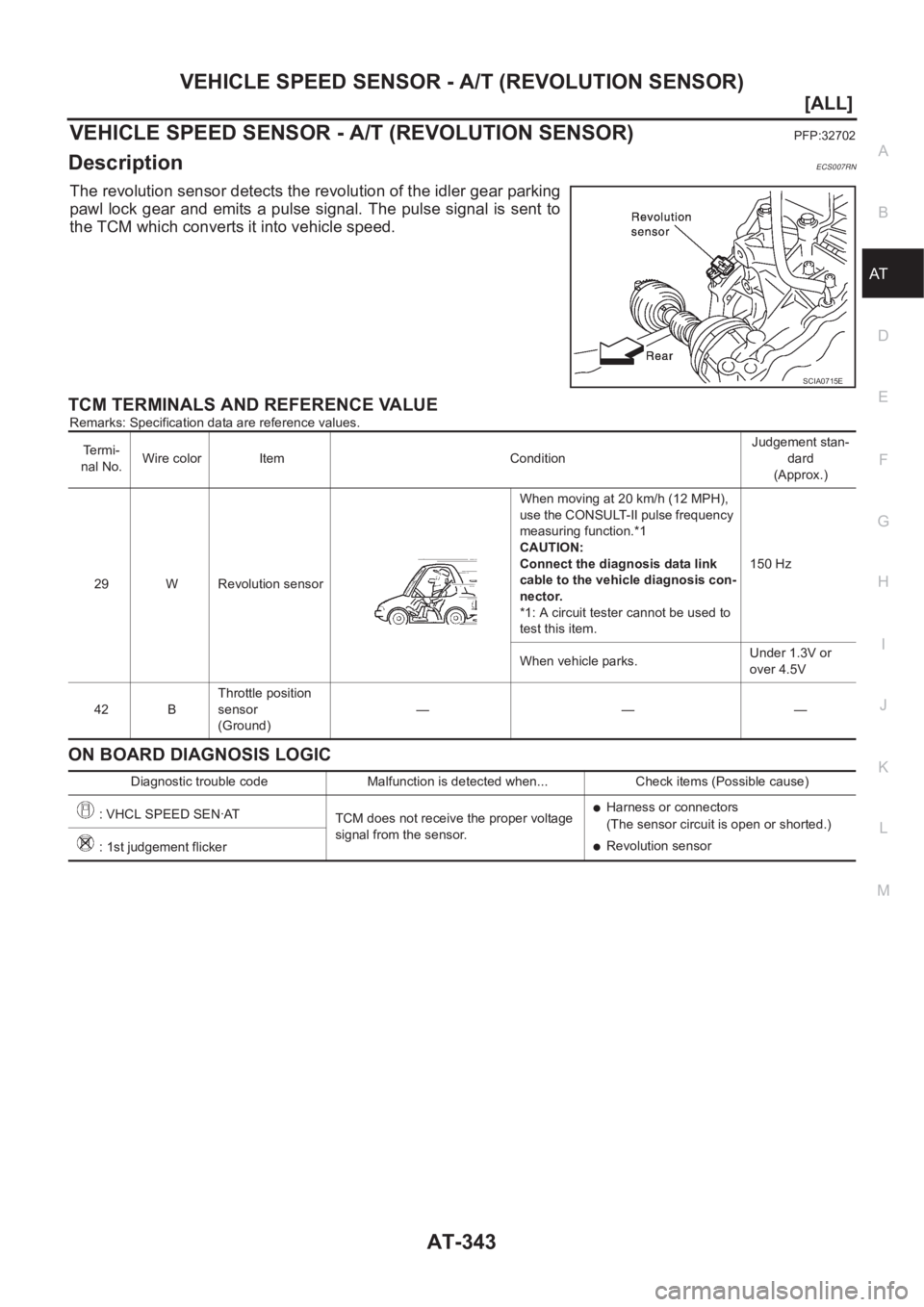

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS007RN
The revolution sensor detects the revolution of the idler gear parking
pawl lock gear and emits a pulse signal. The pulse signal is sent to
the TCM which converts it into vehicle speed.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0715E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis con-
nector.
*1: A circuit tester cannot be used to
test this item.150 Hz
When vehicle parks.Under 1.3V or
over 4.5V
42 BThrottle position
sensor
(Ground)———
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·AT
TCM does not receive the proper voltage
signal from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Revolution sensor
: 1st judgement flicker

AT-344
[ALL]
VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)

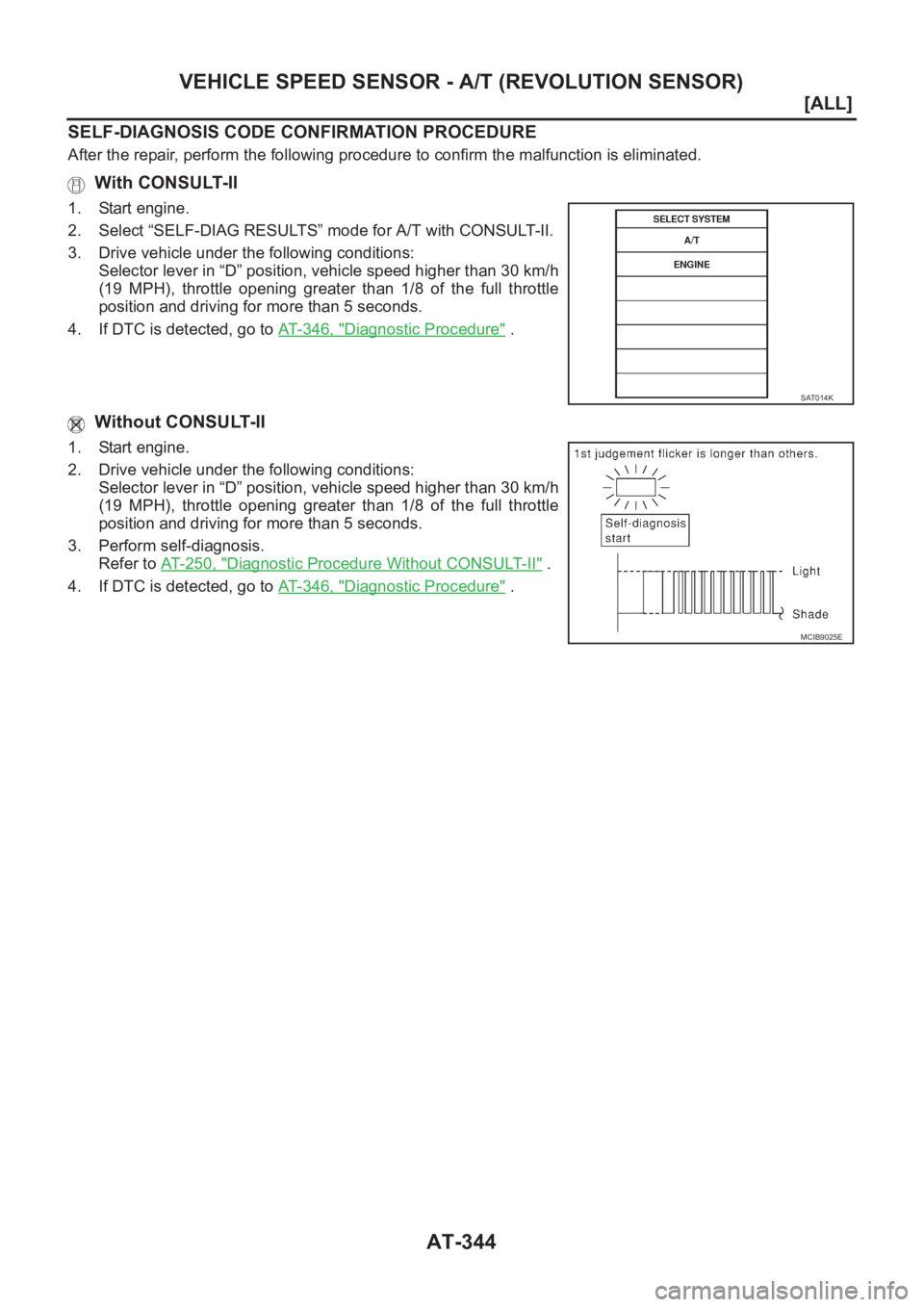

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.
4. If DTC is detected, go to AT- 3 4 6 , "
Diagnostic Procedure" .
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.
3. Perform self-diagnosis.
Refer to AT- 2 5 0 , "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 4 6 , "
Diagnostic Procedure" .
SAT014K
MCIB9025E
