ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-355
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

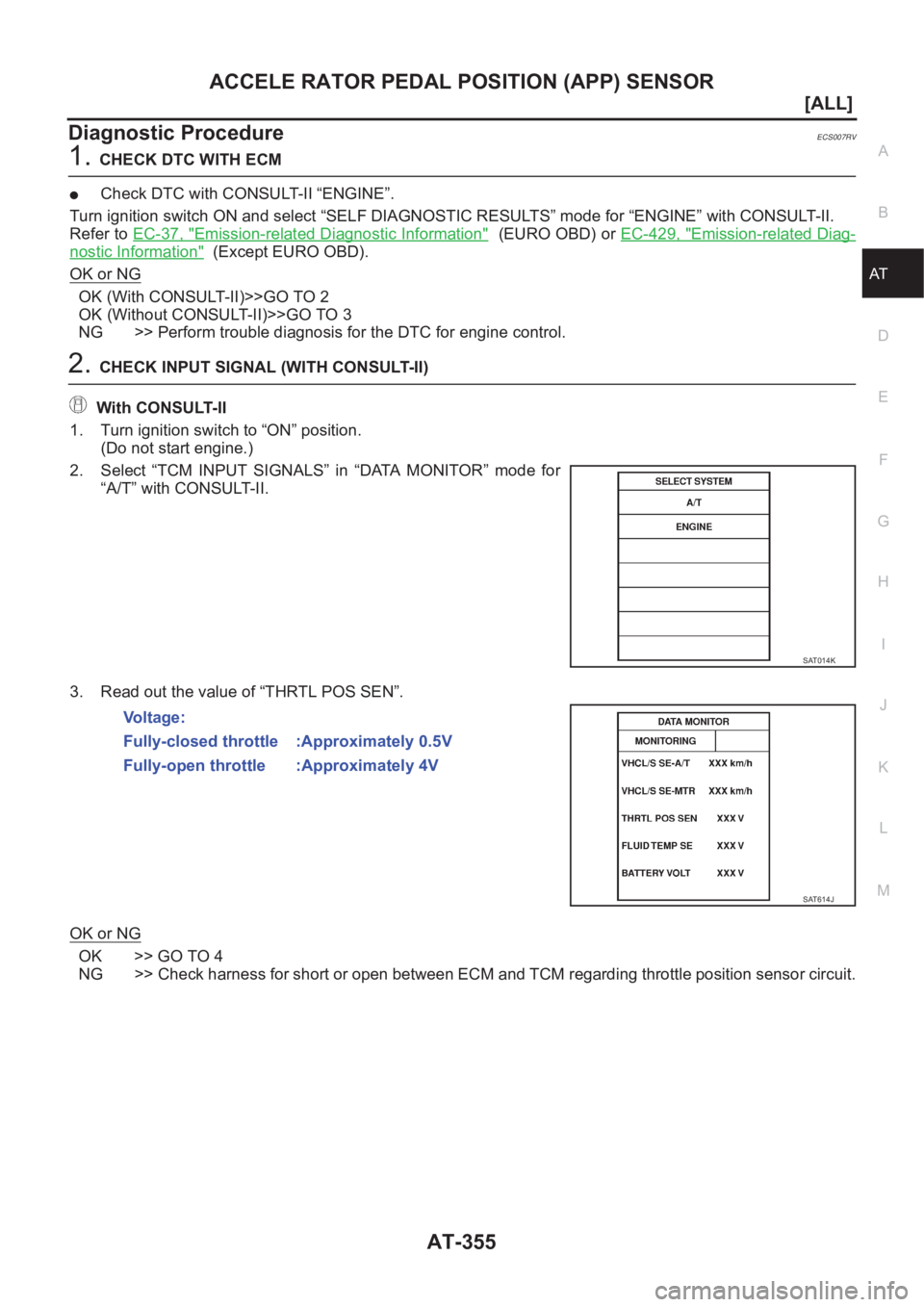

Diagnostic ProcedureECS007RV
1.CHECK DTC WITH ECM
●Check DTC with CONSULT-II “ENGINE”.
Turn ignition switch ON and select “SELF DIAGNOSTIC RESULTS” mode for “ENGINE” with CONSULT-II.
Refer to EC-37, "
Emission-related Diagnostic Information" (EURO OBD) or EC-429, "Emission-related Diag-
nostic Information" (Except EURO OBD).
OK or NG
OK (With CONSULT-II)>>GO TO 2
OK (Without CONSULT-II)>>GO TO 3
NG >> Perform trouble diagnosis for the DTC for engine control.
2.CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “THRTL POS SEN”.
OK or NG
OK >> GO TO 4
NG >> Check harness for short or open between ECM and TCM regarding throttle position sensor circuit.
SAT014K
Vo l t a g e :
Fully-closed throttle :Approximately 0.5V
Fully-open throttle :Approximately 4V
SAT614J

AT-356
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
3. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 41 and 48 while acceler-
ator pedal is depressed slowly.
(Voltage rises gradually in response to throttle position.)
OK or NG
OK >> GO TO 4
NG >> Check harness for short or open between ECM and
TCM regarding throttle position sensor circuit.
4. CHECK DTC
Perform AT-353, "
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Voltage:
Fully-closed throttle valve :Approximately 0.5V
Fully-open throttle valve :Approximately 4V
MCIB0006E

SHIFT SOLENOID VALVE A
AT-357
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SHIFT SOLENOID VALVE APFP:31940

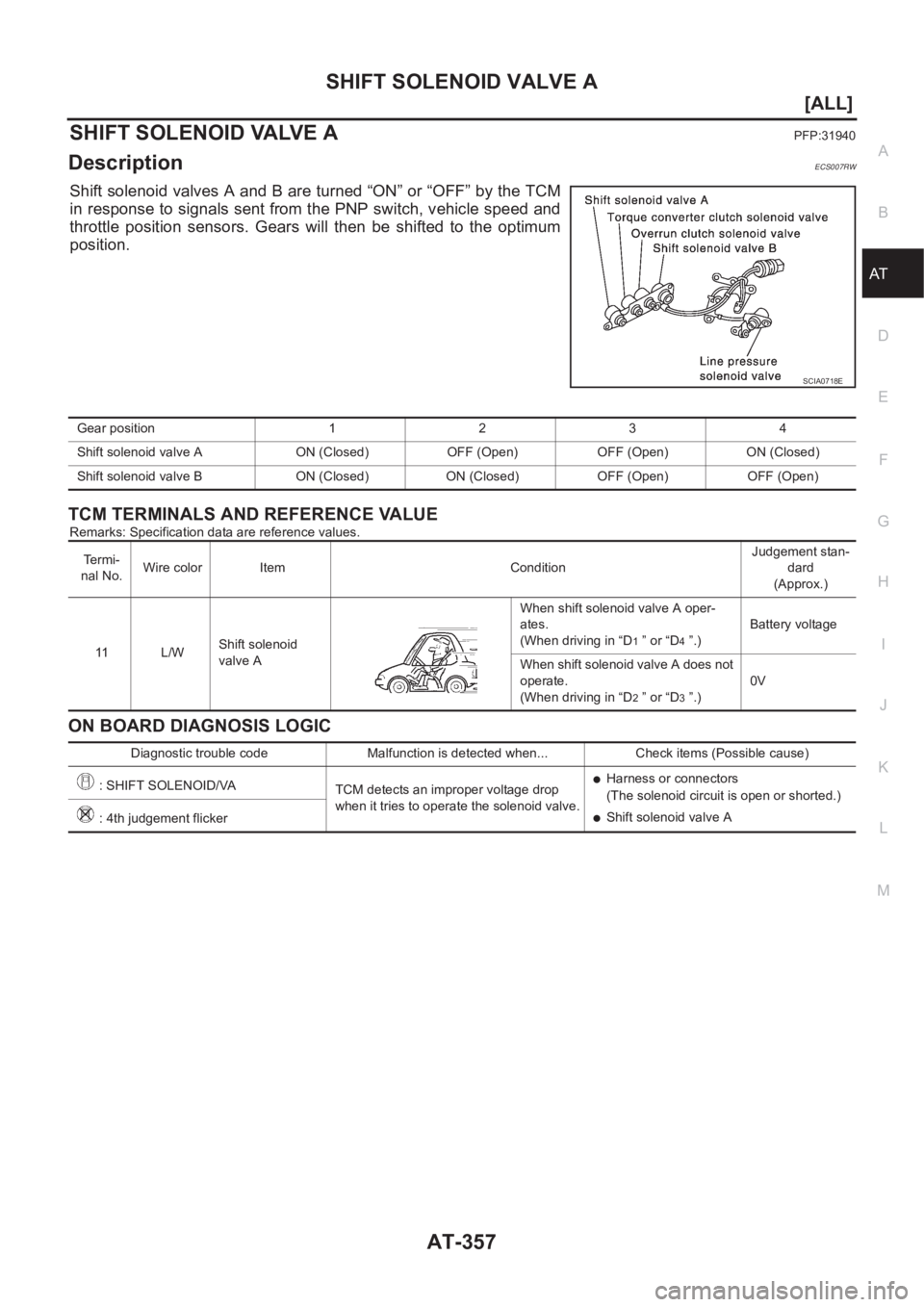

DescriptionECS007RW
Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VA
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Shift solenoid valve A
: 4th judgement flicker

AT-358
[ALL]
SHIFT SOLENOID VALVE A

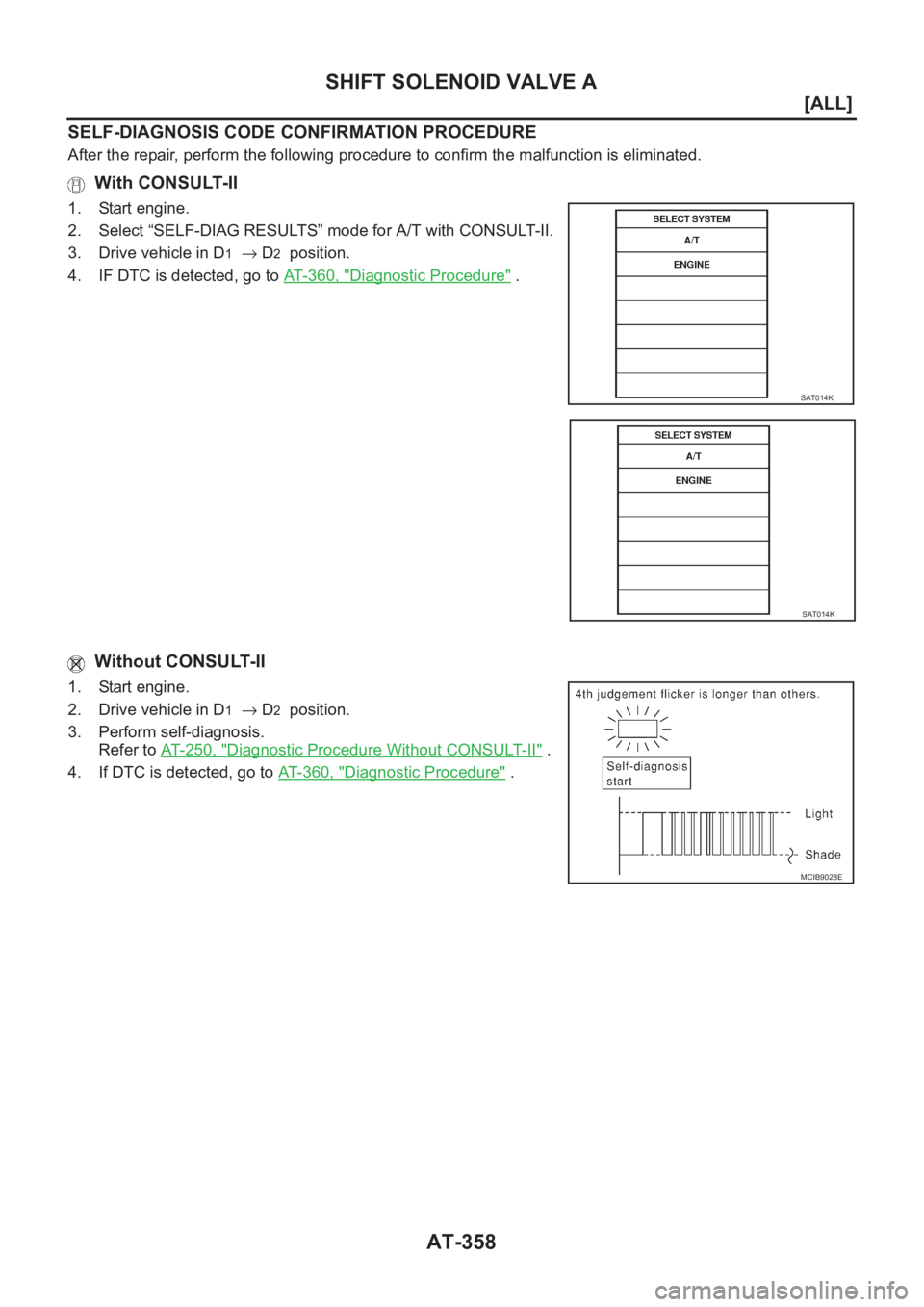

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle in D
1→ D2 position.
4. IF DTC is detected, go to AT- 3 6 0 , "
Diagnostic Procedure" .
Without CONSULT-II
1. Start engine.
2. Drive vehicle in D
1→ D2 position.
3. Perform self-diagnosis.
Refer to AT- 2 5 0 , "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 6 0 , "
Diagnostic Procedure" .
SAT014K
SAT014K
MCIB9028E

SHIFT SOLENOID VALVE A
AT-359
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — SSV/AECS007RX
YAT 2 4 1

AT-360
[ALL]
SHIFT SOLENOID VALVE A

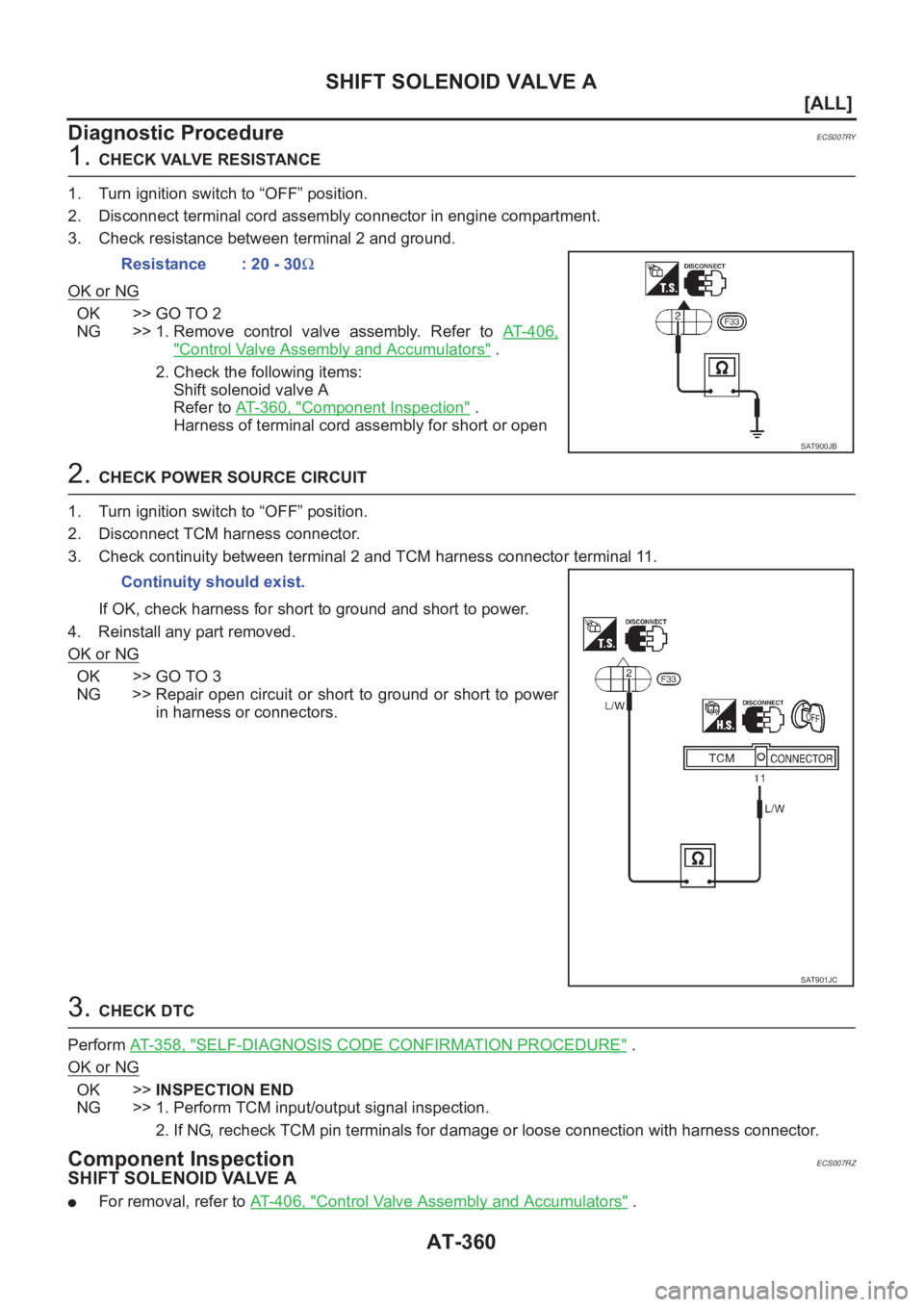

Diagnostic Procedure
ECS007RY
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
OK or NG
OK >> GO TO 2
NG >> 1. Remove control valve assembly. Refer to AT- 4 0 6 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
Shift solenoid valve A
Refer to AT-360, "
Component Inspection" .
Harness of terminal cord assembly for short or open
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK DTC
Perform AT-358, "
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Component InspectionECS007RZ
SHIFT SOLENOID VALVE A
●For removal, refer to AT-406, "Control Valve Assembly and Accumulators" . Resistance : 20 - 30Ω
SAT900JB
Continuity should exist.
SAT901JC

SHIFT SOLENOID VALVE A
AT-361
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

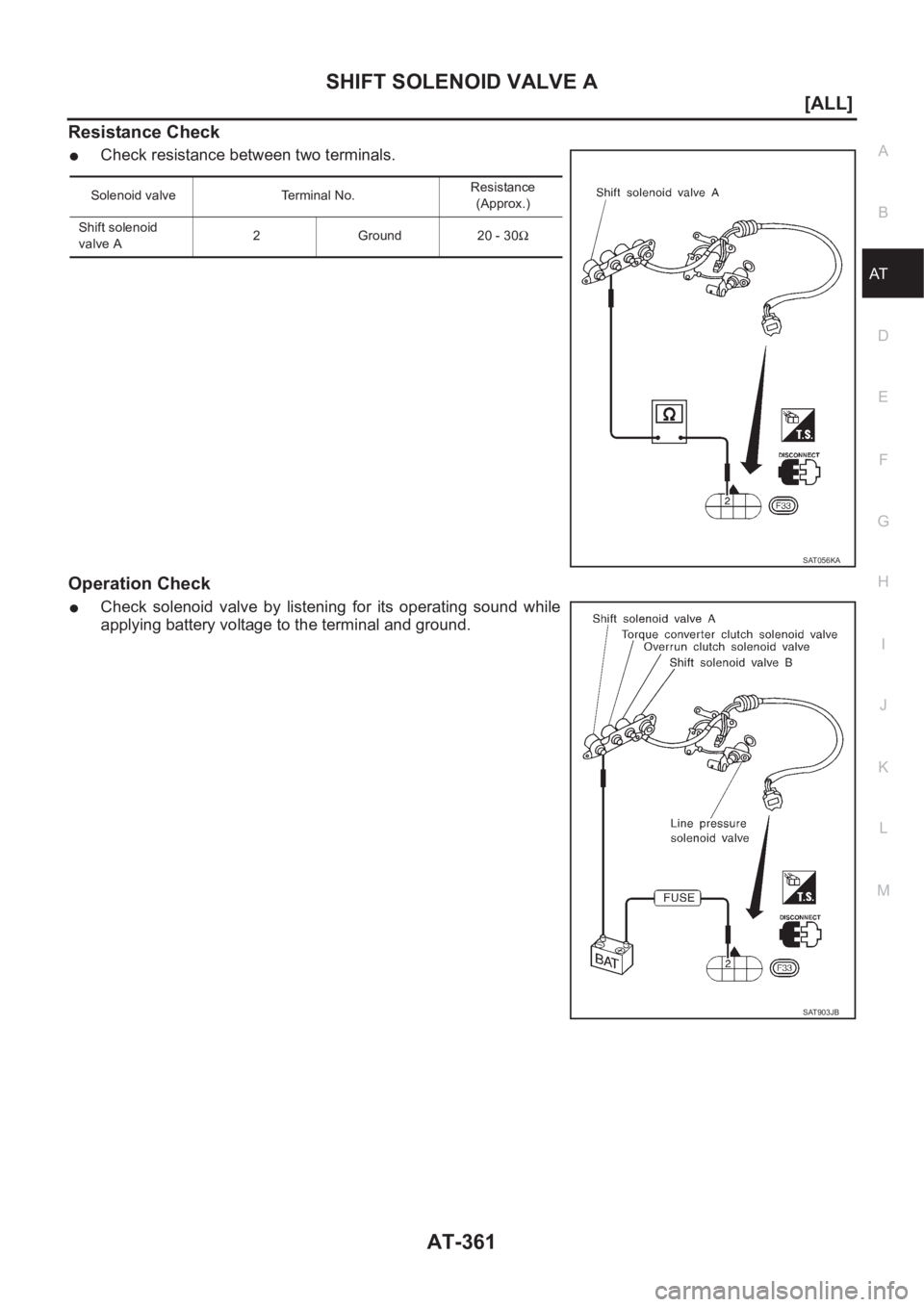

Resistance Check
●Check resistance between two terminals.
Operation Check
●Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30Ω
SAT056KA
SAT903JB

AT-362
[ALL]
SHIFT SOLENOID VALVE B
SHIFT SOLENOID VALVE B
PFP:31940

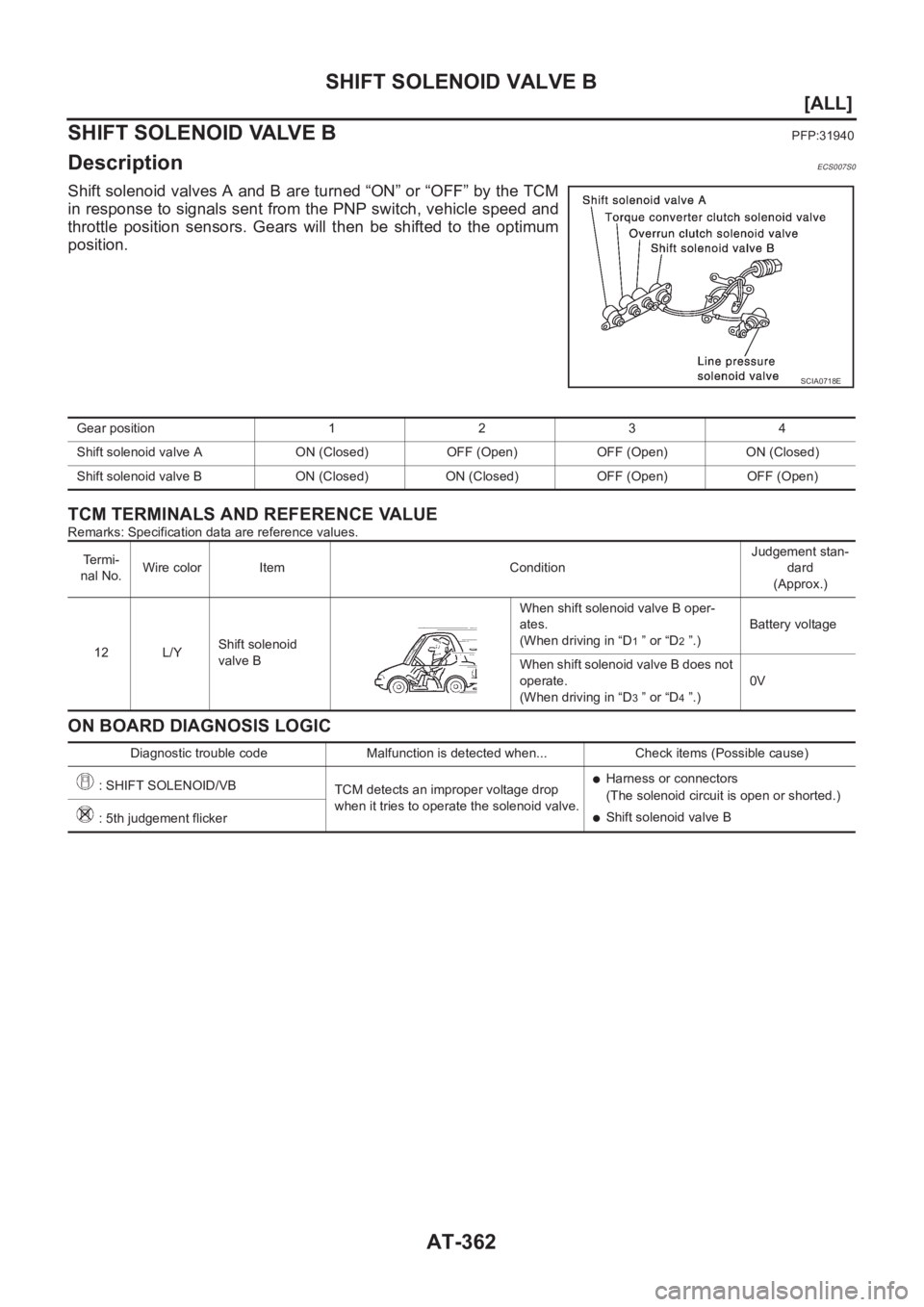

DescriptionECS007S0
Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VB
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Shift solenoid valve B
: 5th judgement flicker

SHIFT SOLENOID VALVE B
AT-363
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

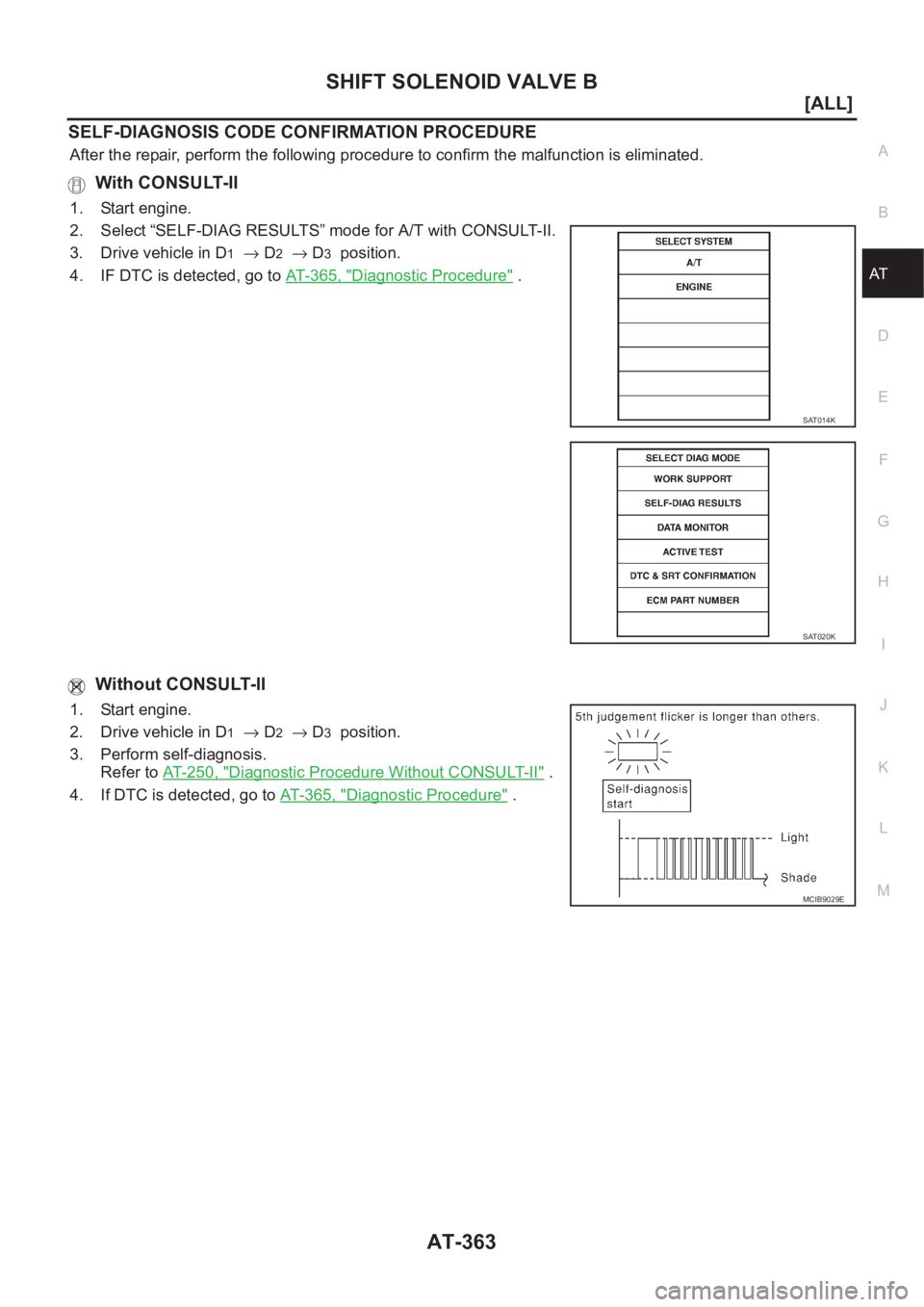

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle in D
1→ D2→ D3 position.
4. IF DTC is detected, go to AT- 3 6 5 , "
Diagnostic Procedure" .
Without CONSULT-II
1. Start engine.
2. Drive vehicle in D
1→ D2→ D3 position.
3. Perform self-diagnosis.
Refer to AT-250, "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 6 5 , "
Diagnostic Procedure" .
SAT014K
SAT020K
MCIB9029E

AT-364
[ALL]
SHIFT SOLENOID VALVE B
Wiring Diagram — AT — SSV/B
ECS007S1
YAT 2 4 2
