VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)
AT-345
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

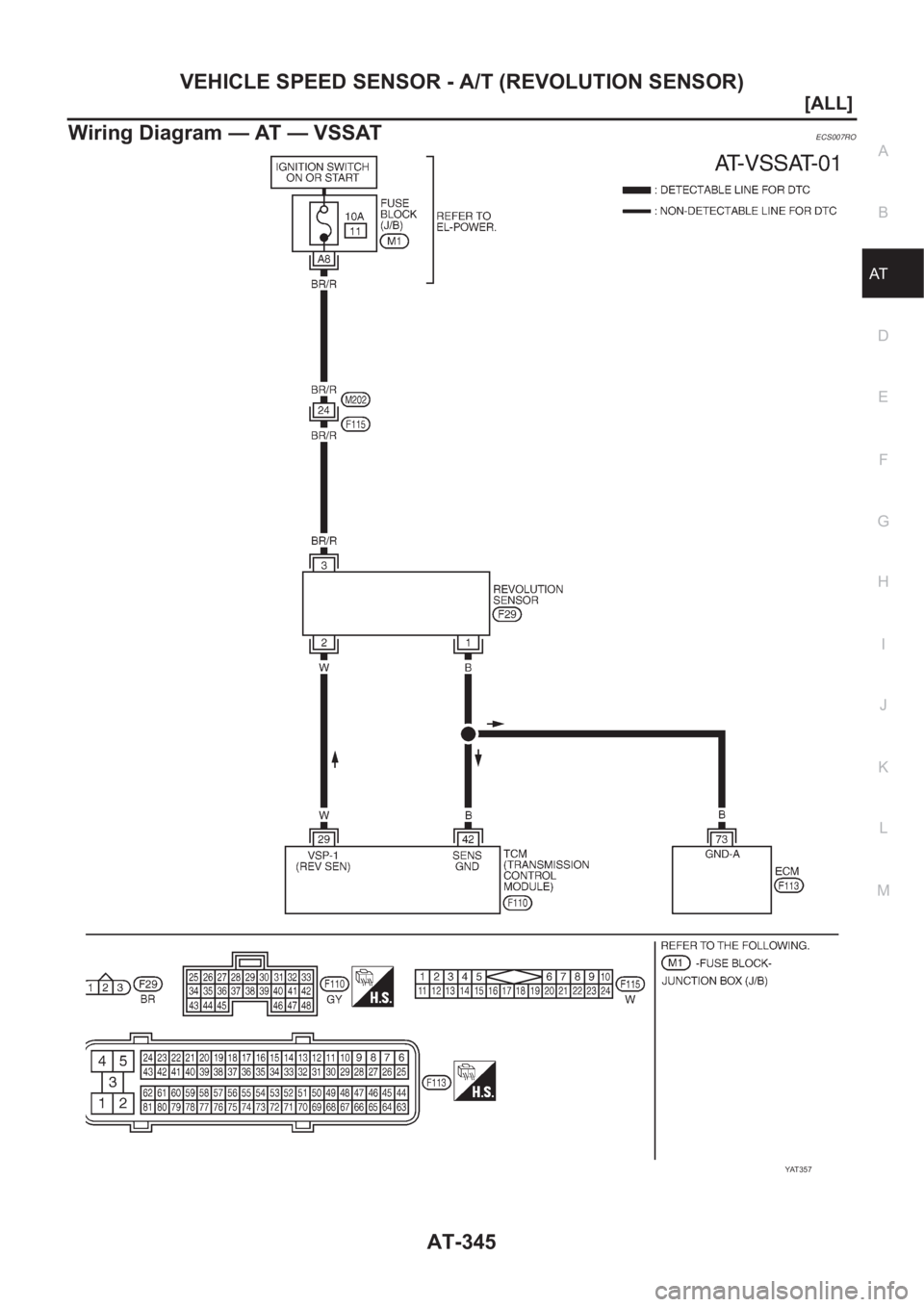

Wiring Diagram — AT — VSSATECS007RO
YAT 3 5 7

AT-346
[ALL]
VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)

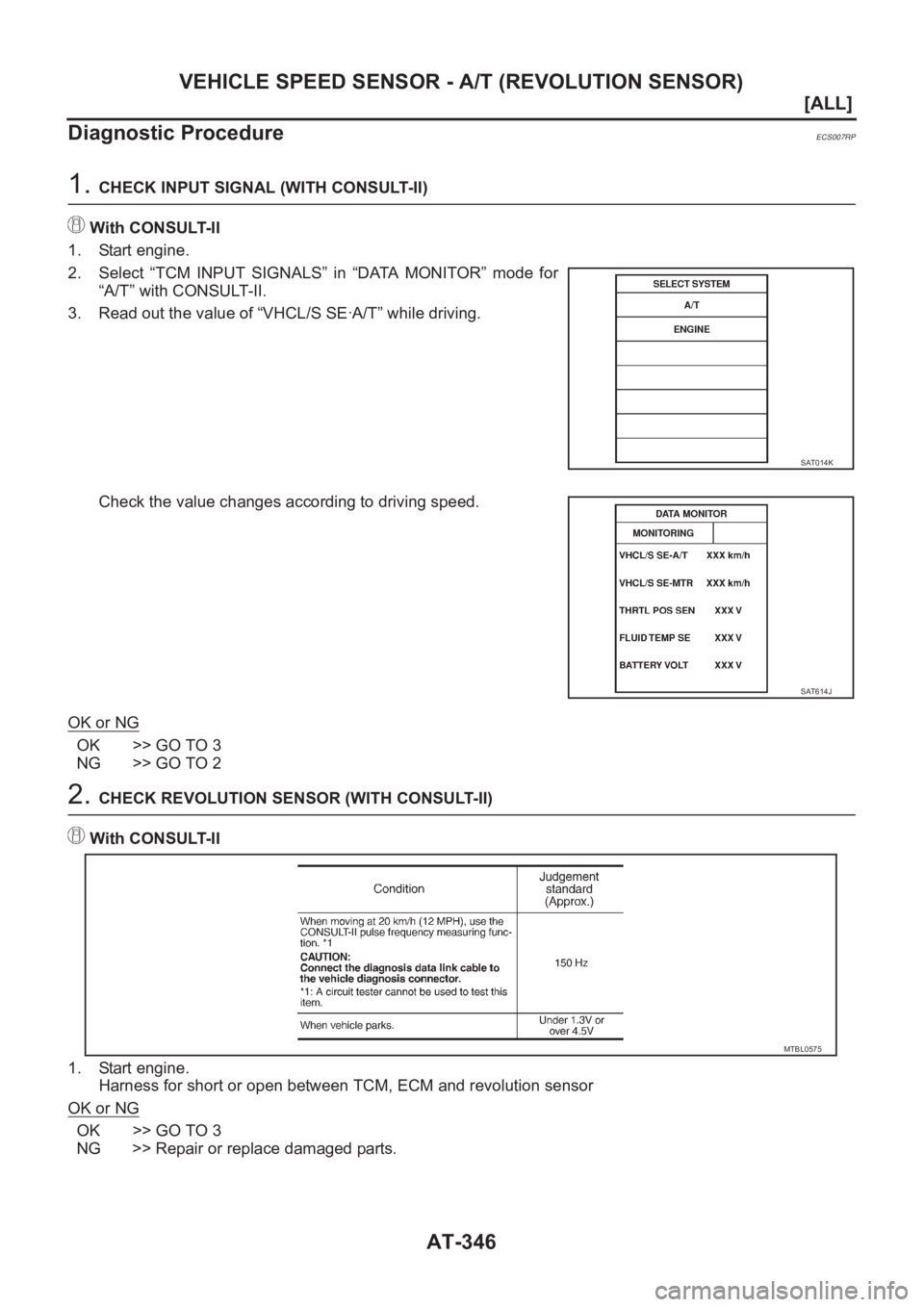

Diagnostic Procedure
ECS007RP
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 3
NG >> GO TO 2
2. CHECK REVOLUTION SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
Harness for short or open between TCM, ECM and revolution sensor
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
SAT014K
SAT614J
MTBL0575

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)
AT-347
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

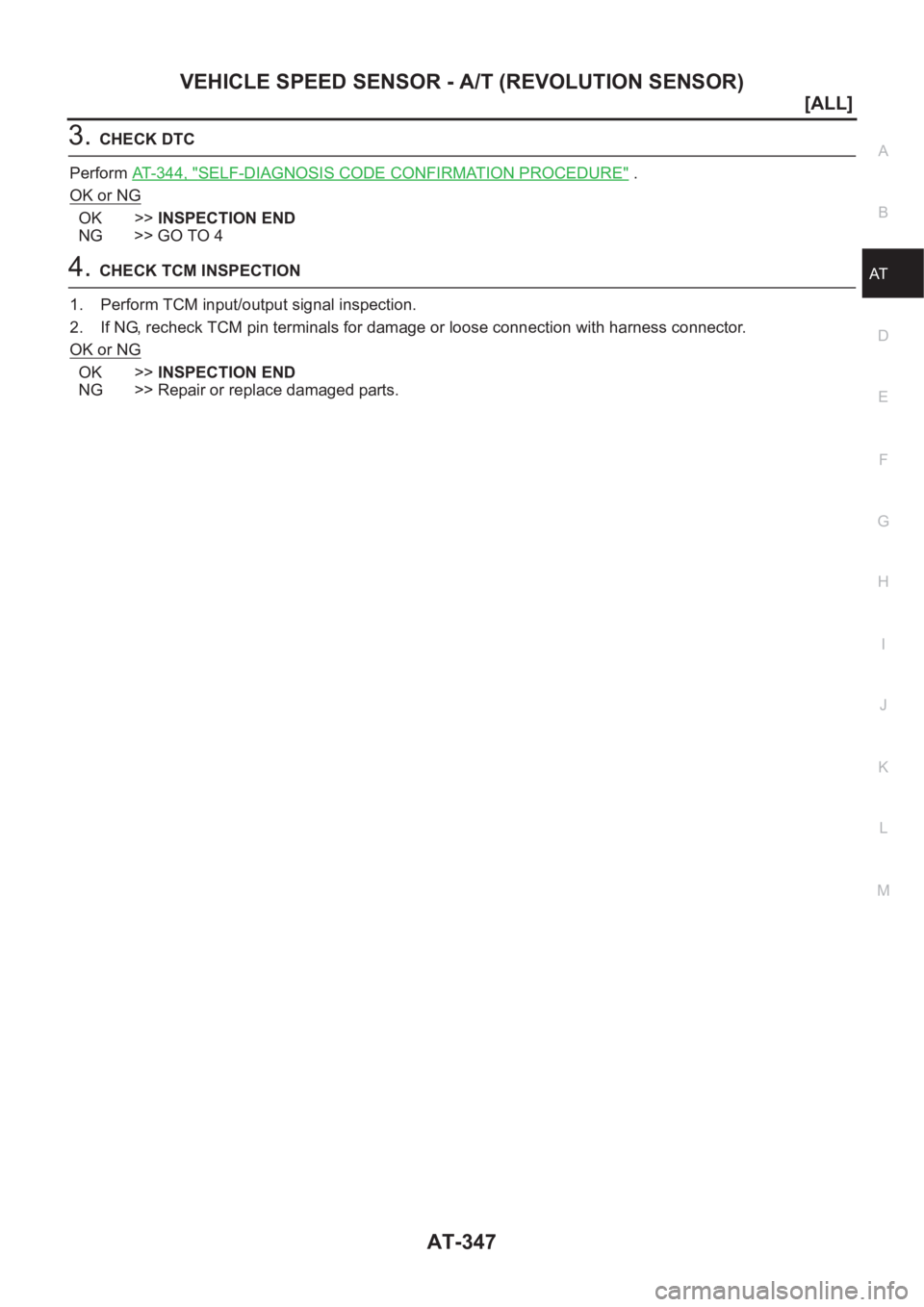

3.CHECK DTC
Perform AT- 3 4 4 , "
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4
4.CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

AT-348
[ALL]
DTC VEHICLE SPEED SENSOR MTR
DTC VEHICLE SPEED SENSOR MTR
PFP:24814

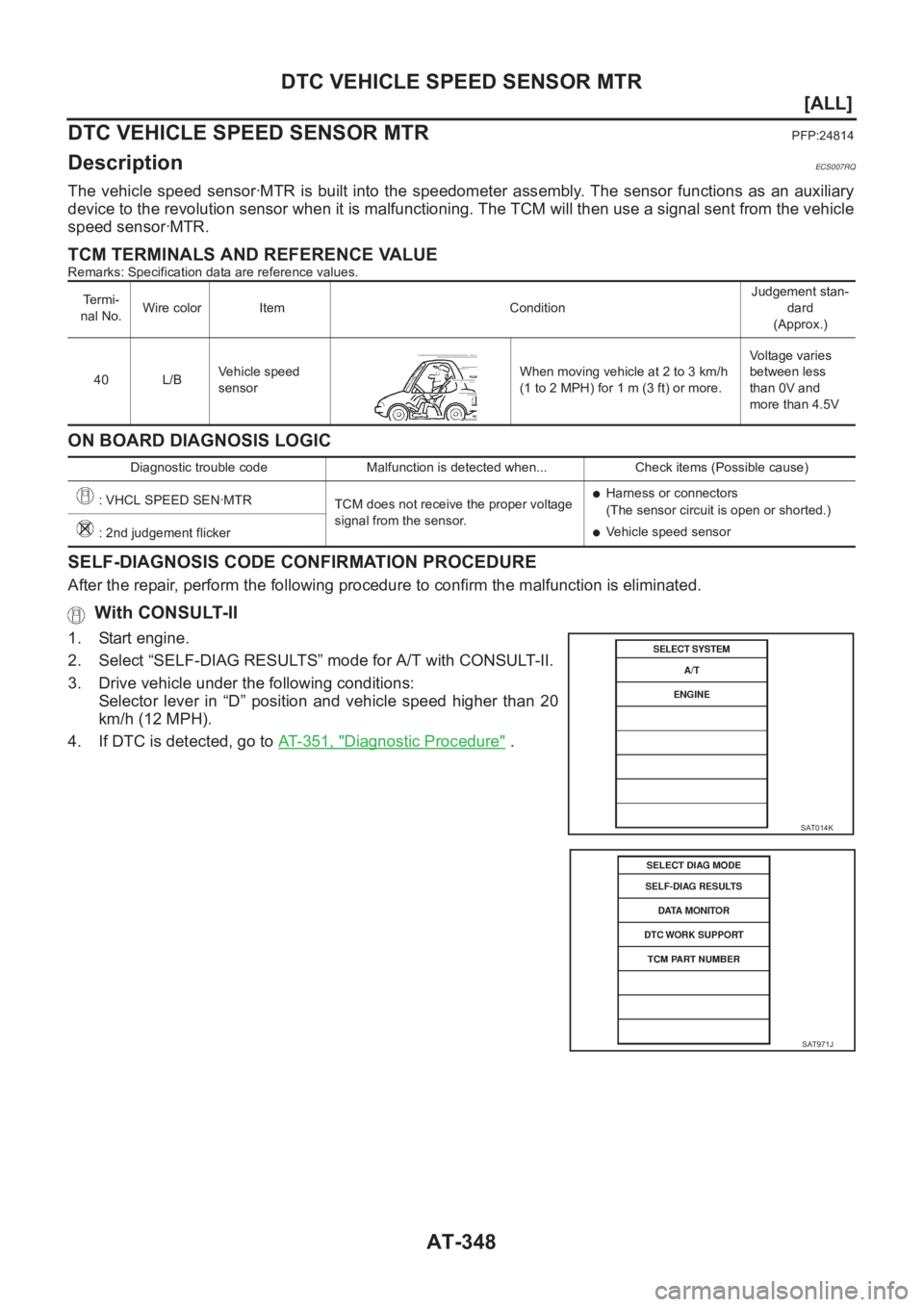

DescriptionECS007RQ
The vehicle speed sensor·MTR is built into the speedometer assembly. The sensor functions as an auxiliary
device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle
speed sensor·MTR.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position and vehicle speed higher than 20
km/h (12 MPH).
4. If DTC is detected, go to AT- 3 5 1 , "
Diagnostic Procedure" .
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·MTR
TCM does not receive the proper voltage
signal from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Vehicle speed sensor
: 2nd judgement flicker
SAT014K
SAT971J

DTC VEHICLE SPEED SENSOR MTR
AT-349
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position and vehicle speed higher than 20
km/h (12 MPH).
3. Perform self-diagnosis.
Refer to AT-250, "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 5 1 , "
Diagnostic Procedure" .
MCIB9026E

AT-350
[ALL]
DTC VEHICLE SPEED SENSOR MTR

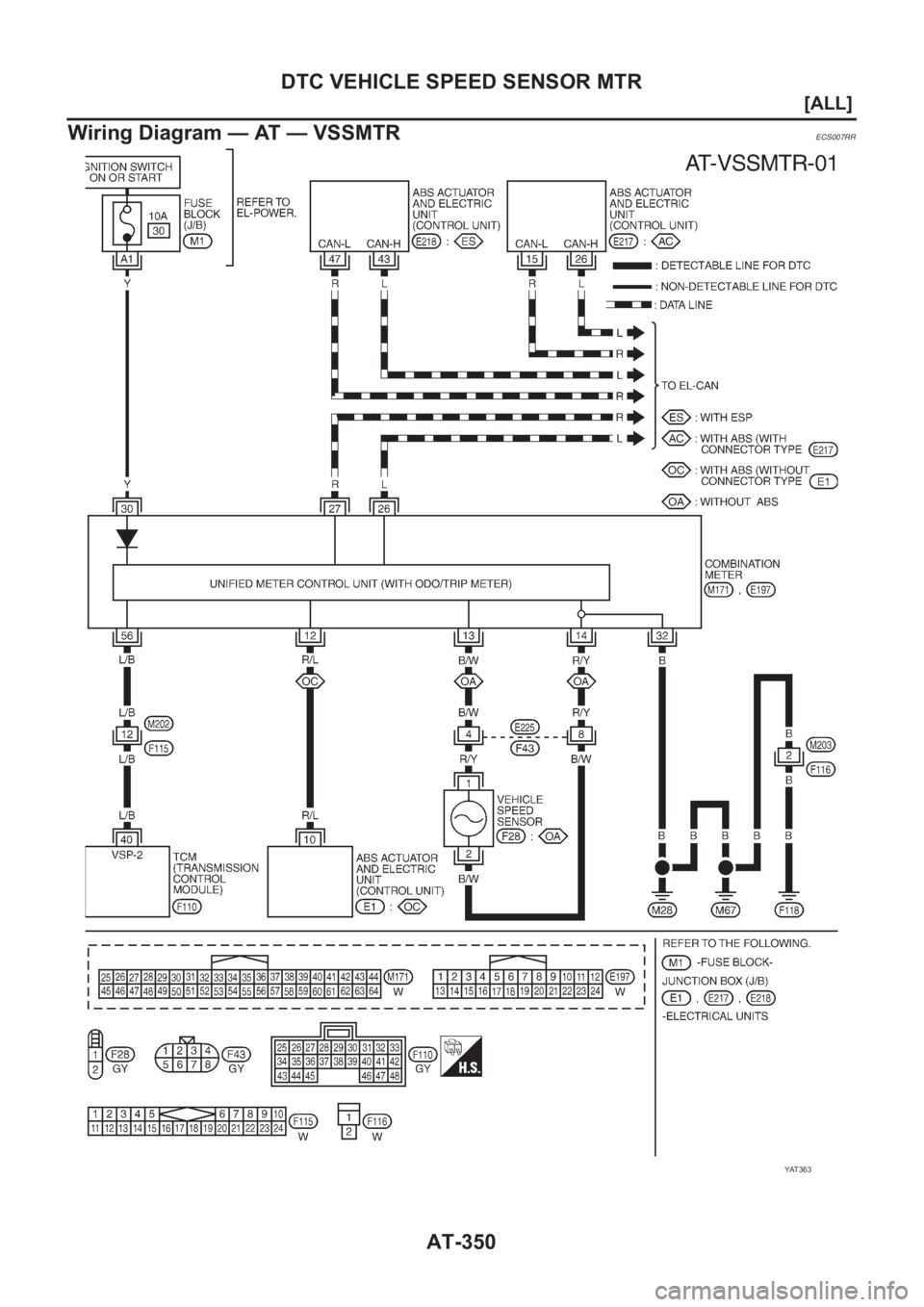

Wiring Diagram — AT — VSSMTR
ECS007RR
YAT 3 6 3

DTC VEHICLE SPEED SENSOR MTR
AT-351
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

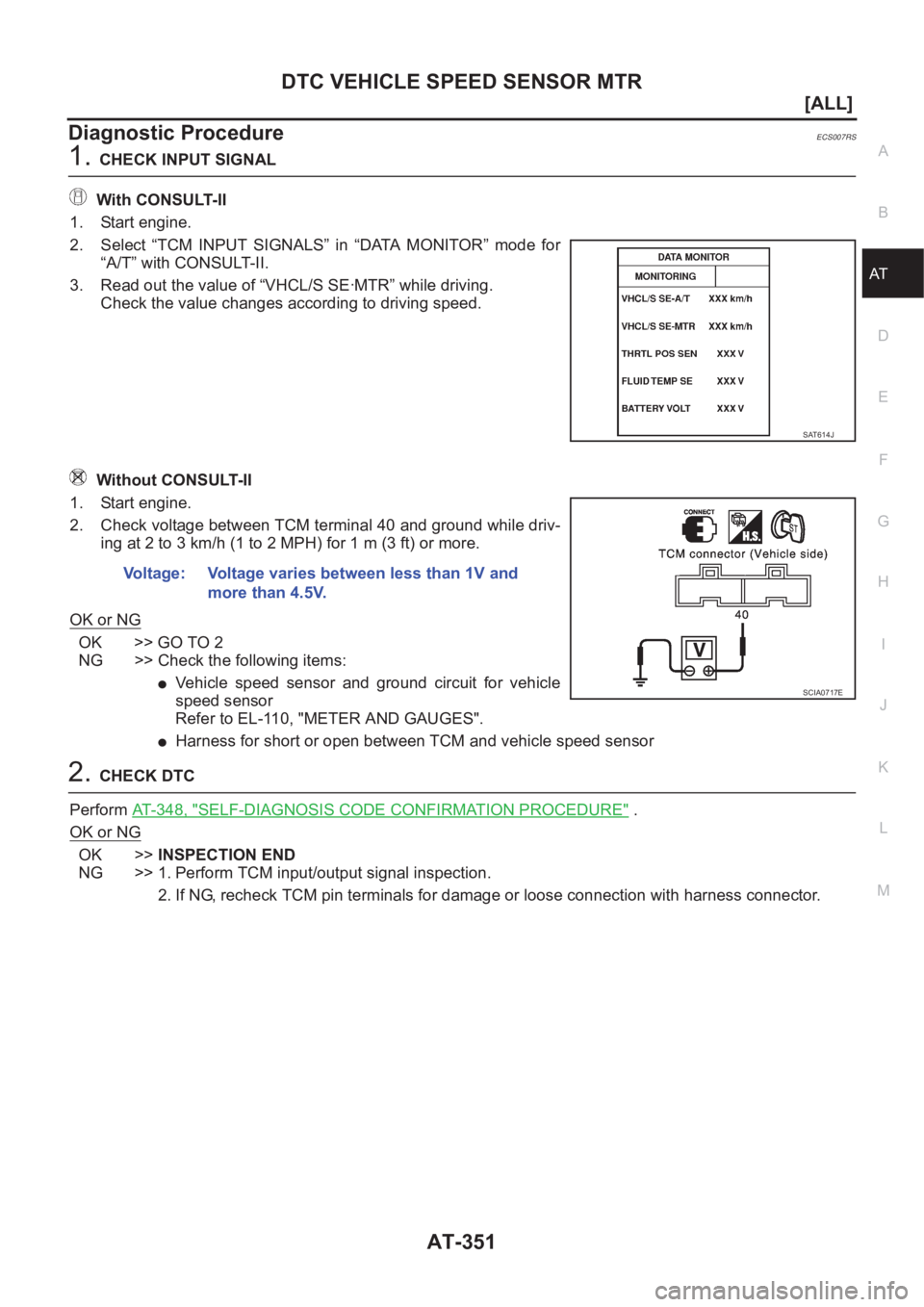

Diagnostic ProcedureECS007RS
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 40 and ground while driv-
ing at 2 to 3 km/h (1 to 2 MPH) for 1 m (3 ft) or more.
OK or NG
OK >> GO TO 2
NG >> Check the following items:
●Vehicle speed sensor and ground circuit for vehicle
speed sensor
Refer to EL-110, "METER AND GAUGES".
●Harness for short or open between TCM and vehicle speed sensor
2.CHECK DTC
Perform AT- 3 4 8 , "
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT614J
Voltage: Voltage varies between less than 1V and
more than 4.5V.
SCIA0717E

AT-352
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
ACCELE RATOR PEDAL POSITION (APP) SENSOR
PFP:22620

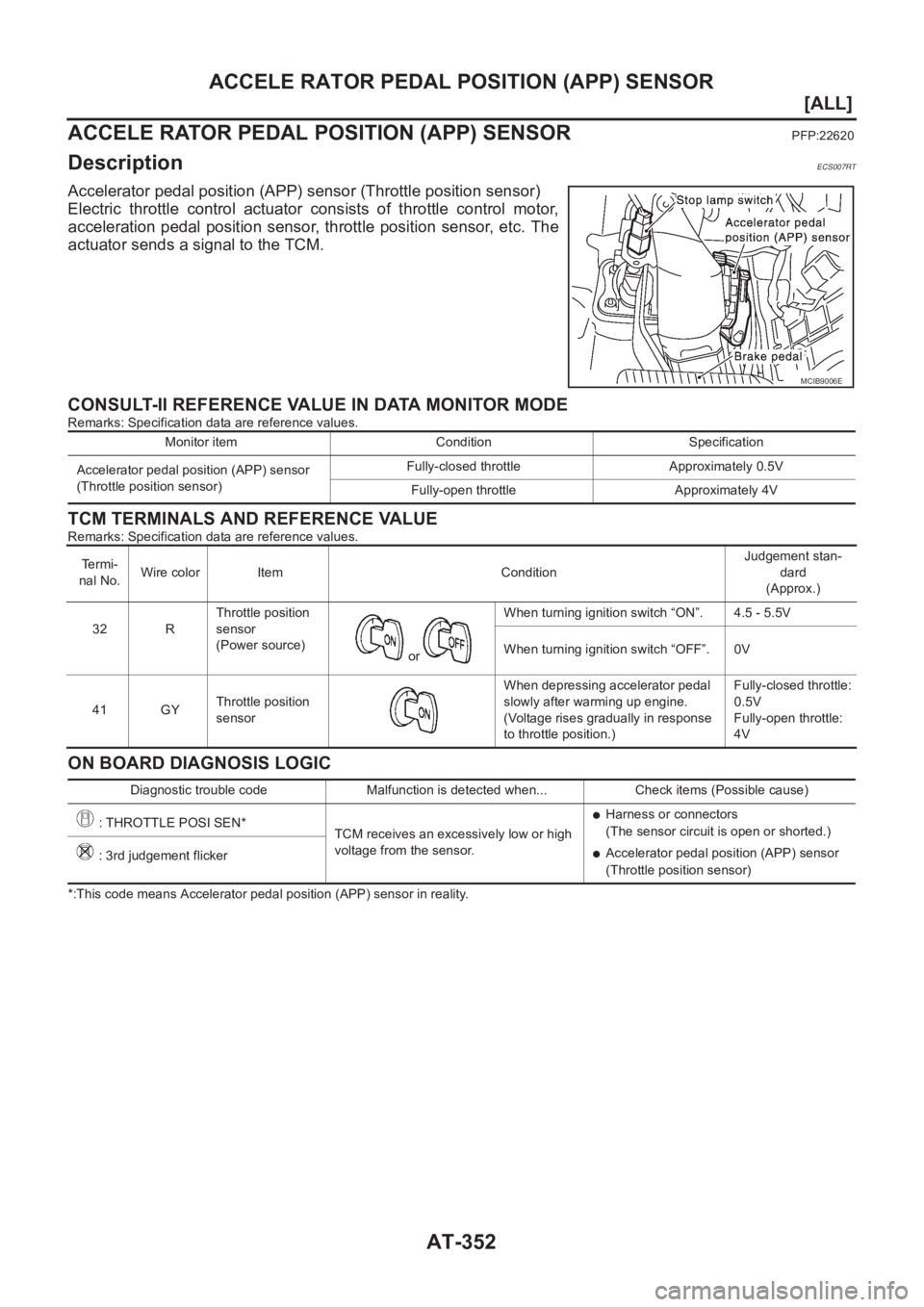

DescriptionECS007RT
Accelerator pedal position (APP) sensor (Throttle position sensor)
Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc. The
actuator sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
*:This code means Accelerator pedal position (APP) sensor in reality.
MCIB9006E
Monitor item Condition Specification
Accelerator pedal position (APP) sensor
(Throttle position sensor)Fully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
32 RThrottle position
sensor
(Power source)
or When turning ignition switch “ON”. 4.5 - 5.5V
When turning ignition switch “OFF”. 0V
41 GYThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed throttle:
0.5V
Fully-open throttle:
4V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: THROTTLE POSI SEN*
TCM receives an excessively low or high
voltage from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Accelerator pedal position (APP) sensor
(Throttle position sensor) : 3rd judgement flicker

ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-353
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

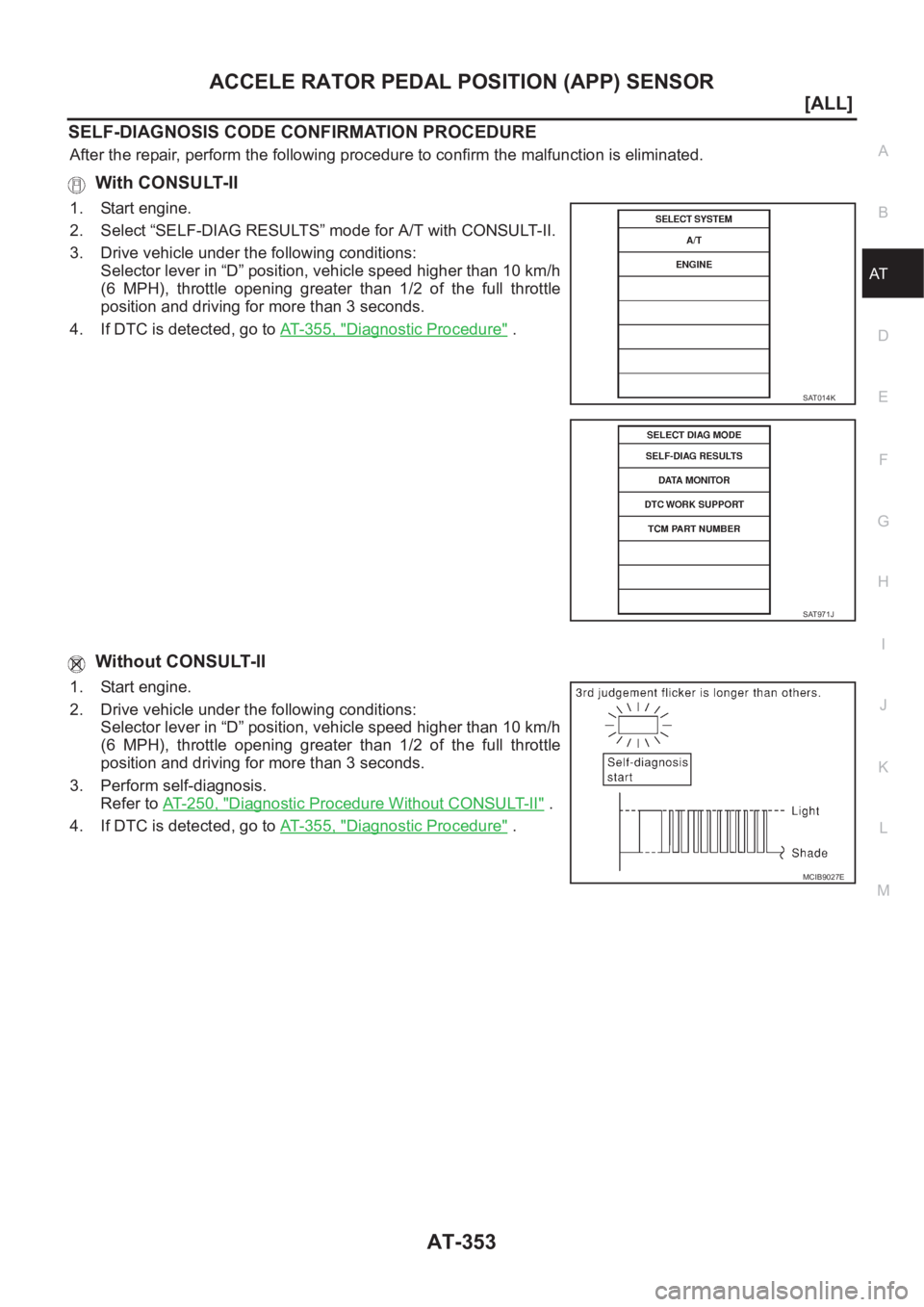

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/2 of the full throttle
position and driving for more than 3 seconds.
4. If DTC is detected, go to AT- 3 5 5 , "
Diagnostic Procedure" .
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/2 of the full throttle
position and driving for more than 3 seconds.
3. Perform self-diagnosis.
Refer to AT-250, "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 5 5 , "
Diagnostic Procedure" .
SAT014K
SAT971J
MCIB9027E

AT-354
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
Wiring Diagram — AT — TPS
ECS007RU
YAT 3 6 1
