TROUBLE DIAGNOSES FOR SYMPTOMS

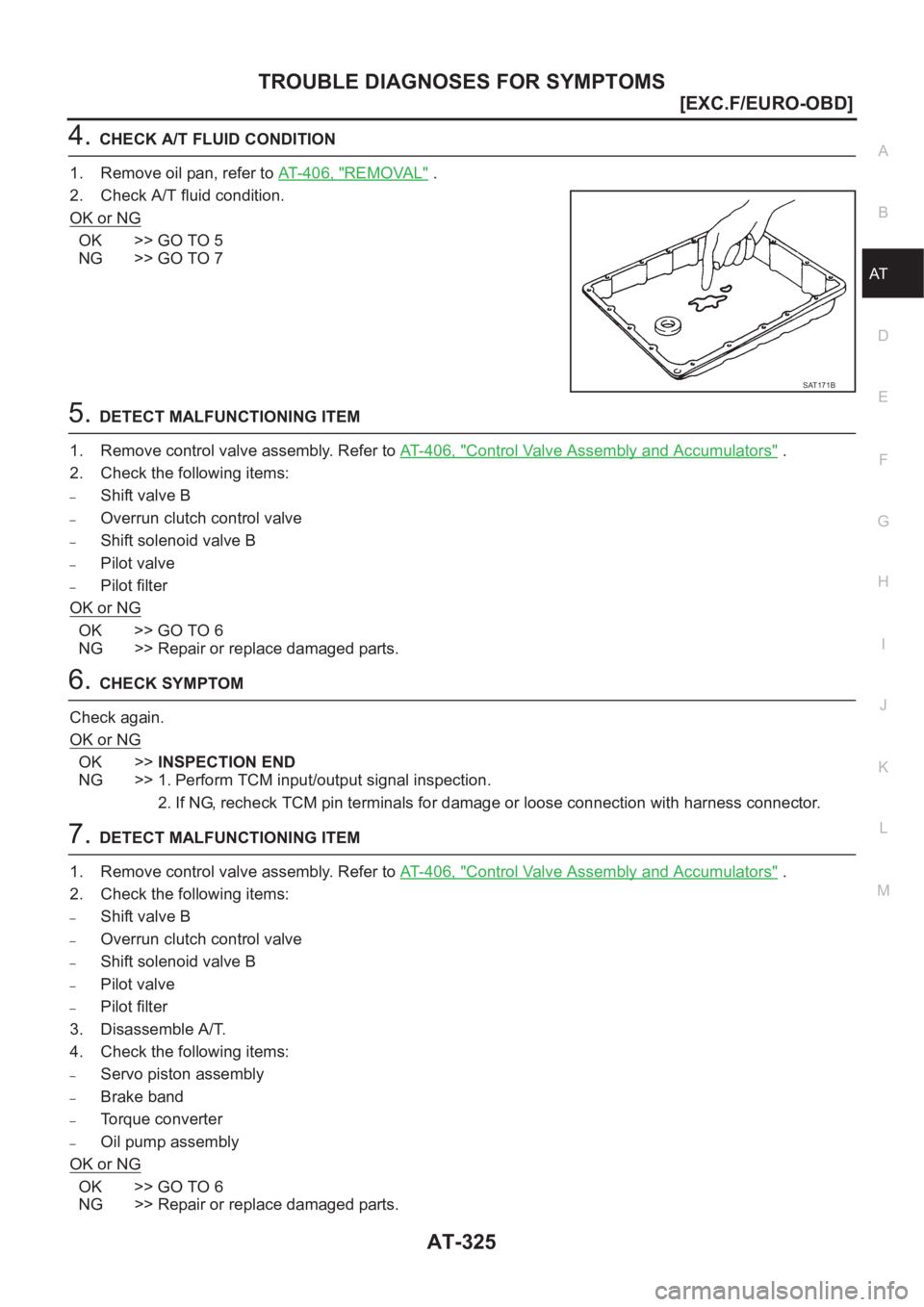

AT-325
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5
NG >> GO TO 7
5.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Overrun clutch control valve
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.
6.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
7.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Overrun clutch control valve
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check the following items:
–Servo piston assembly
–Brake band
–Torque converter
–Oil pump assembly
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.
SAT171B

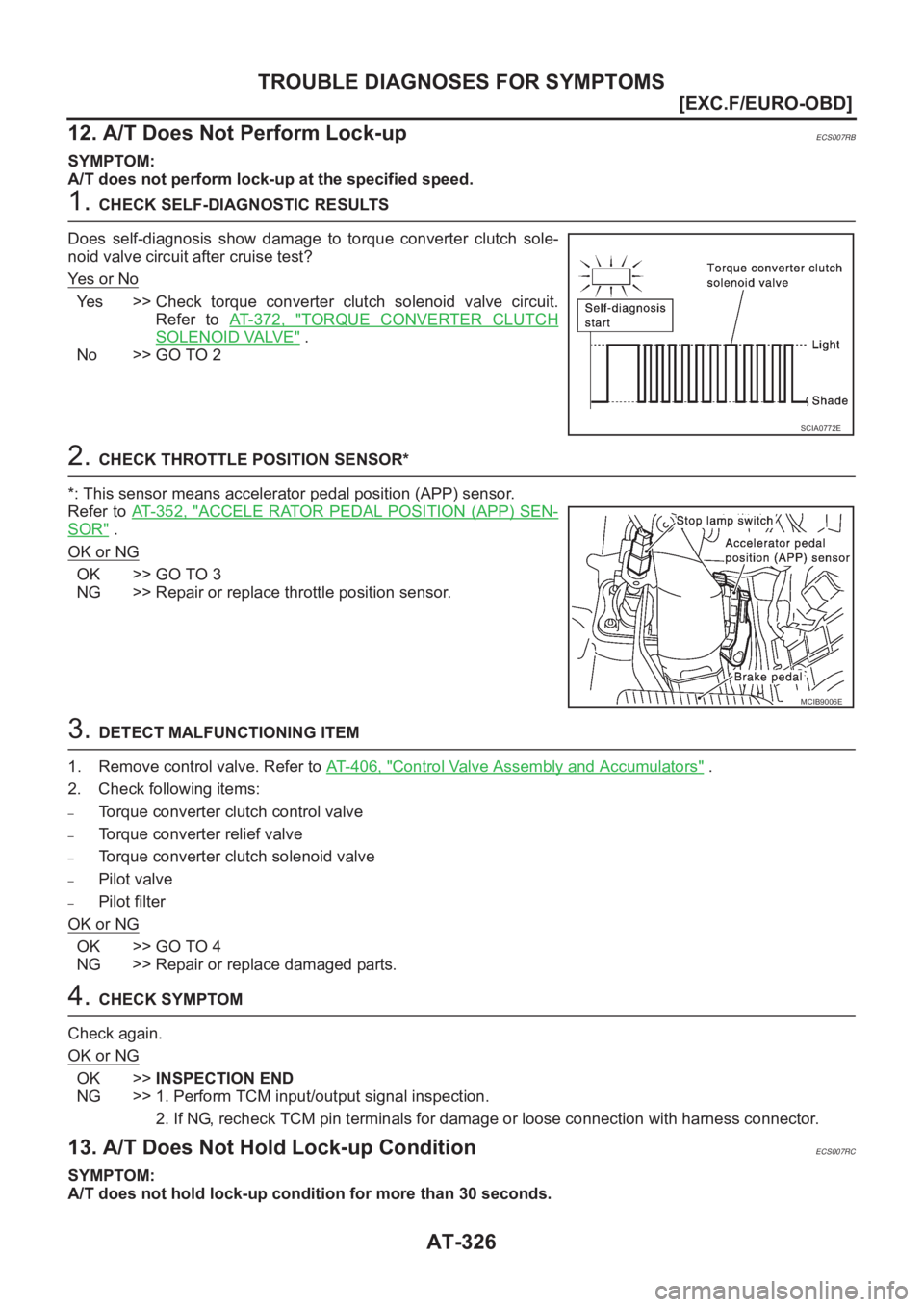

AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
12. A/T Does Not Perform Lock-up
ECS007RB
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch sole-
noid valve circuit after cruise test?
Ye s o r N o
Yes >> Check torque converter clutch solenoid valve circuit.
Refer to AT- 3 7 2 , "
TORQUE CONVERTER CLUTCH
SOLENOID VALVE" .
No >> GO TO 2
2. CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 3 5 2 , "
ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace throttle position sensor.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Torque converter clutch solenoid valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
13. A/T Does Not Hold Lock-up ConditionECS007RC
SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
SCIA0772E
MCIB9006E

TROUBLE DIAGNOSES FOR SYMPTOMS

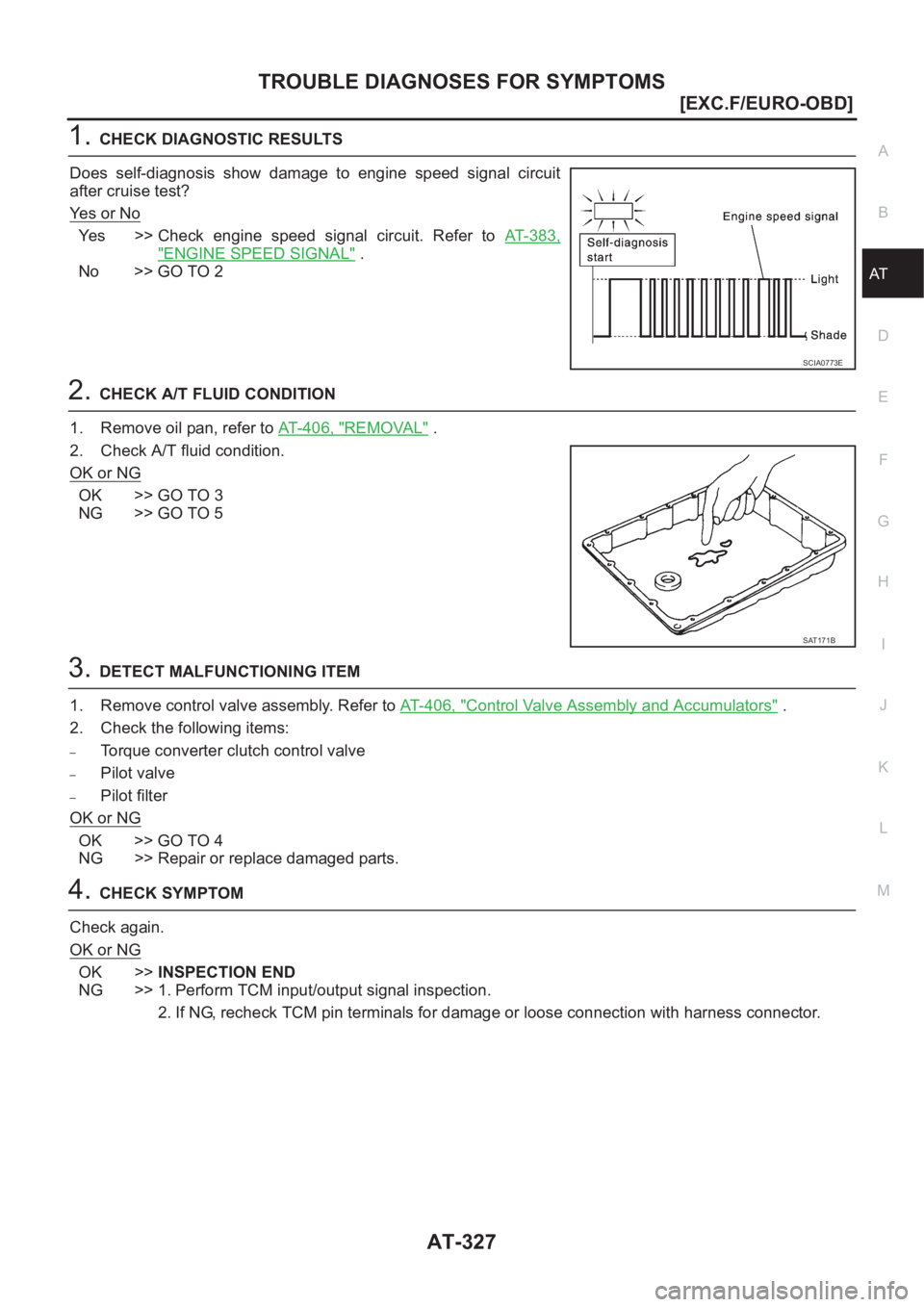

AT-327
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
1.CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal circuit
after cruise test?
Ye s o r N o
Yes >> Check engine speed signal circuit. Refer to AT- 3 8 3 ,
"ENGINE SPEED SIGNAL" .
No >> GO TO 2
2.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 3
NG >> GO TO 5
3.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0773E
SAT171B

AT-328
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

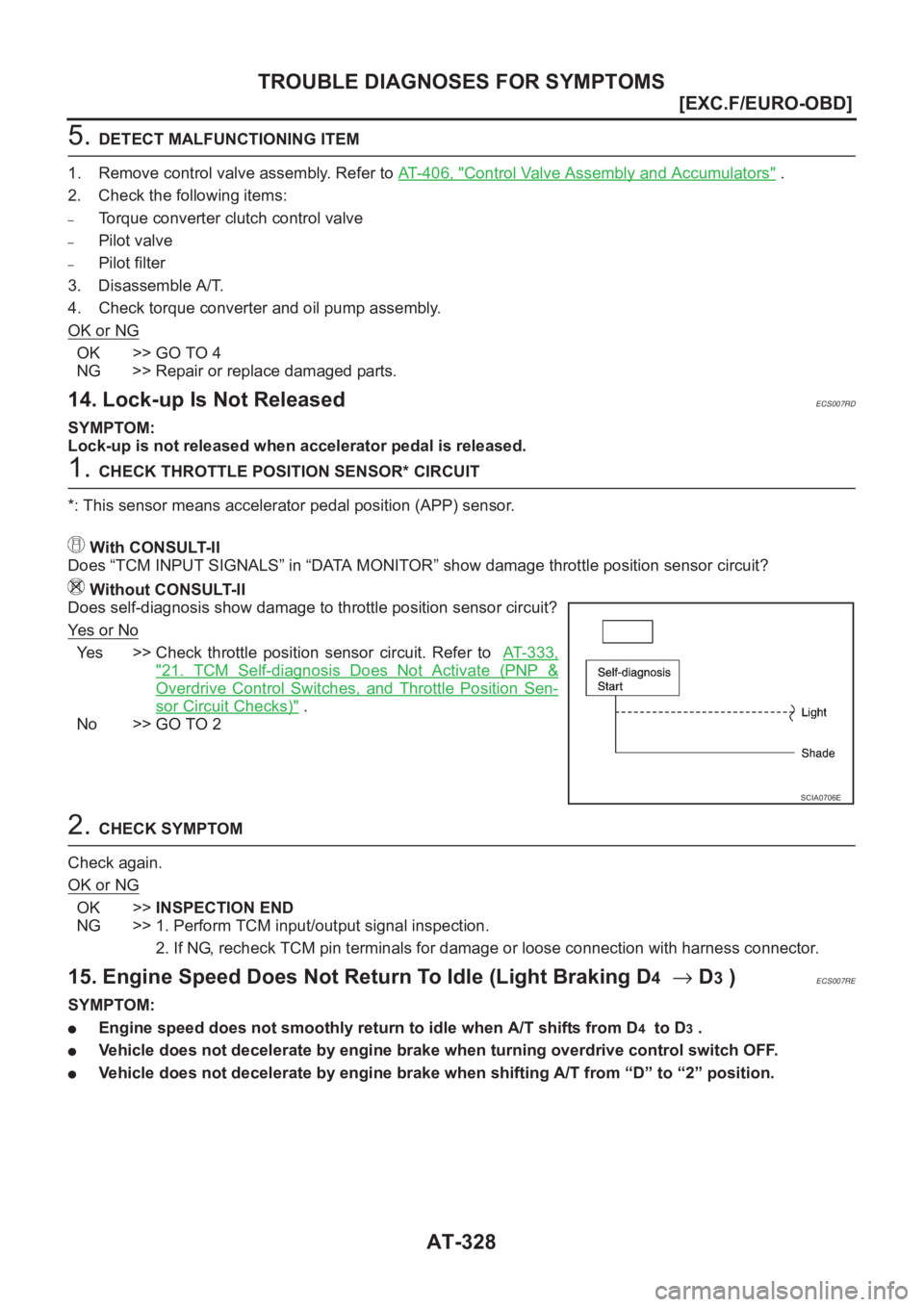

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter and oil pump assembly.
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
14. Lock-up Is Not ReleasedECS007RD
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1. CHECK THROTTLE POSITION SENSOR* CIRCUIT
*: This sensor means accelerator pedal position (APP) sensor.
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage throttle position sensor circuit?
Without CONSULT-II
Does self-diagnosis show damage to throttle position sensor circuit?
Ye s o r N o
Yes >> Check throttle position sensor circuit. Refer to AT- 3 3 3 ,
"21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)" .
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )ECS007RE
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
SCIA0706E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-329
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer to AT-
367, "OVERRUN CLUTCH SOLENOID VALVE" .
No >> GO TO 2
2.CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 3 5 2 , "
ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace accelerator pedal position (APP) sen-
sor. (AT- 3 5 2 , "
ACCELE RATOR PEDAL POSITION
(APP) SENSOR" )
3.CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4
NG >> GO TO 6
4.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT-367, "OVERRUN CLUTCH SOLENOID VALVE" ).
OK or NG
OK >> GO TO 5
NG >> Repair or replace damaged parts.
SCIA0774E
MCIB9006E
SAT171B

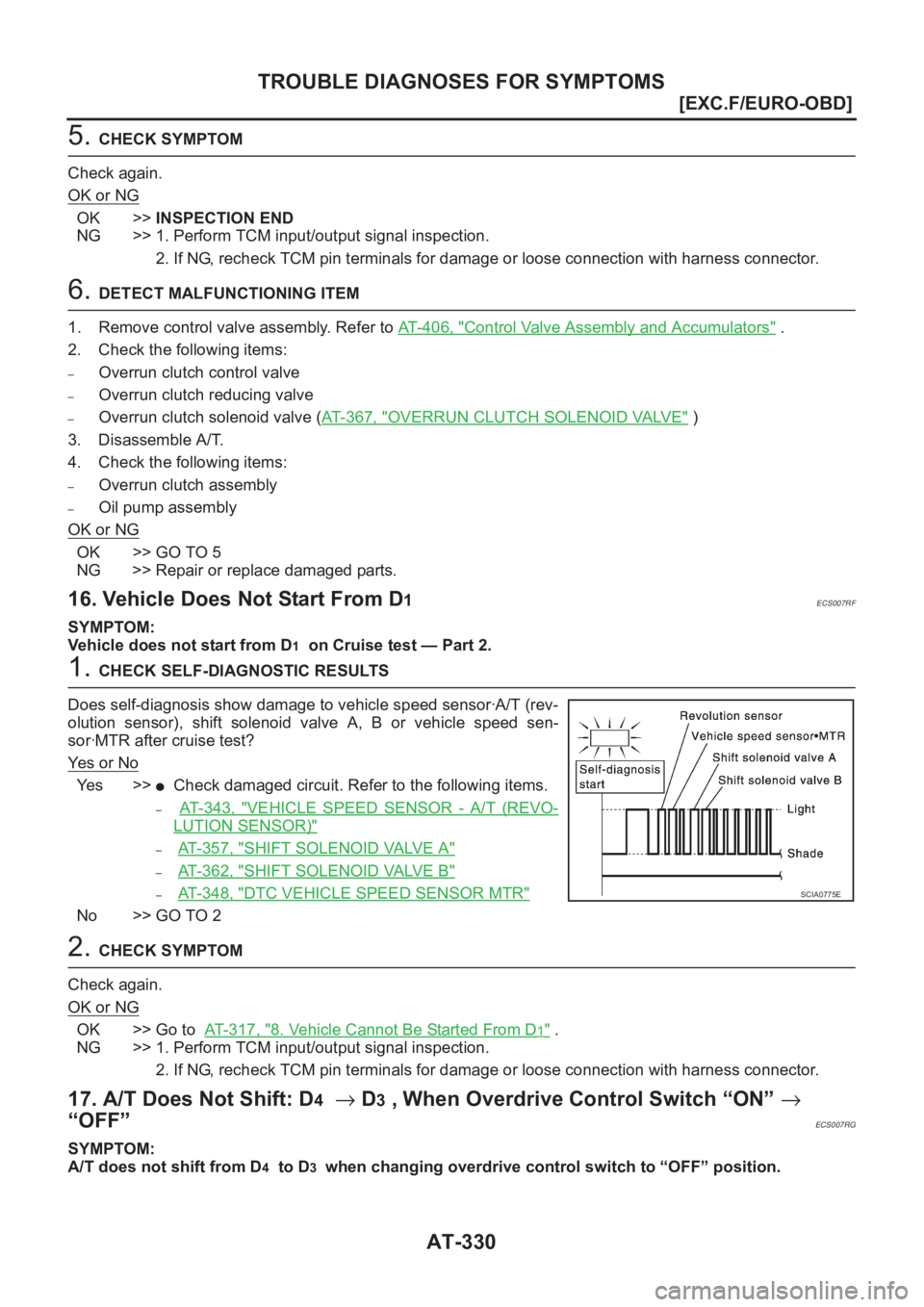

AT-330
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT-367, "OVERRUN CLUTCH SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following items:
–Overrun clutch assembly
–Oil pump assembly
OK or NG
OK >> GO TO 5
NG >> Repair or replace damaged parts.
16. Vehicle Does Not Start From D1ECS007RF
SYMPTOM:
Vehicle does not start from D
1 on Cruise test — Part 2.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
–AT- 3 4 3 , "VEHICLE SPEED SENSOR - A/T (REVO-
LUTION SENSOR)"
–AT- 3 5 7 , "SHIFT SOLENOID VALVE A"
–AT- 3 6 2 , "SHIFT SOLENOID VALVE B"
–AT- 3 4 8 , "DTC VEHICLE SPEED SENSOR MTR"
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-317, "8. Vehicle Cannot Be Started From D1" .
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
17. A/T Does Not Shift: D4→ D3 , When Overdrive Control Switch “ON” →
“OFF”
ECS007RG
SYMPTOM:
A/T does not shift from D
4 to D3 when changing overdrive control switch to “OFF” position.
SCIA0775E

TROUBLE DIAGNOSES FOR SYMPTOMS

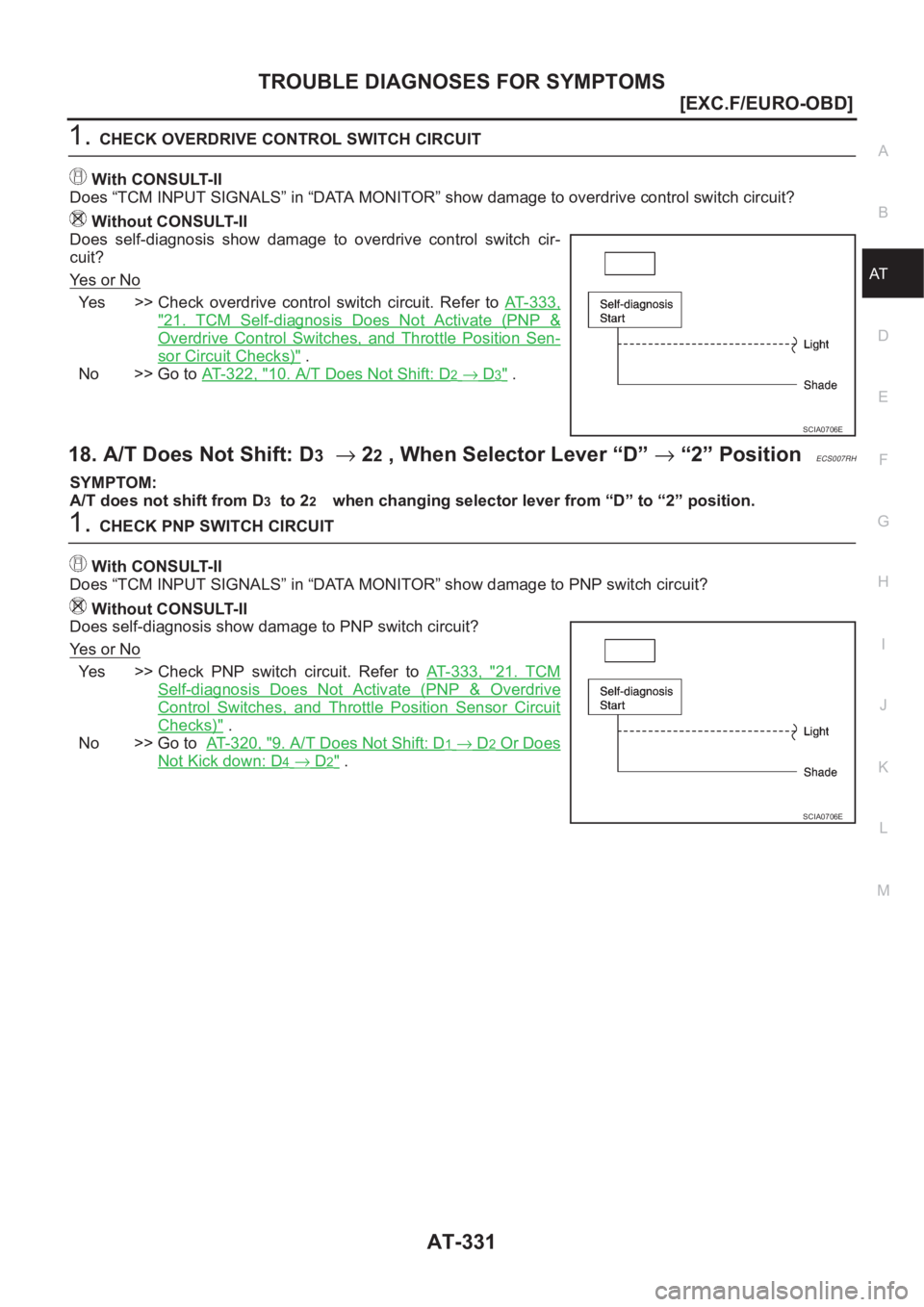

AT-331
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
1.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to overdrive control switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to overdrive control switch cir-
cuit?
Ye s o r N o
Yes >> Check overdrive control switch circuit. Refer to AT- 3 3 3 ,
"21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)" .
No >> Go to AT-322, "
10. A/T Does Not Shift: D2→ D3" .
18. A/T Does Not Shift: D3→ 22 , When Selector Lever “D” → “2” PositionECS007RH
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 3 3 , "21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)" .
No >> Go to AT-320, "
9. A/T Does Not Shift: D1→ D2 Or Does
Not Kick down: D4→ D2" .
SCIA0706E
SCIA0706E

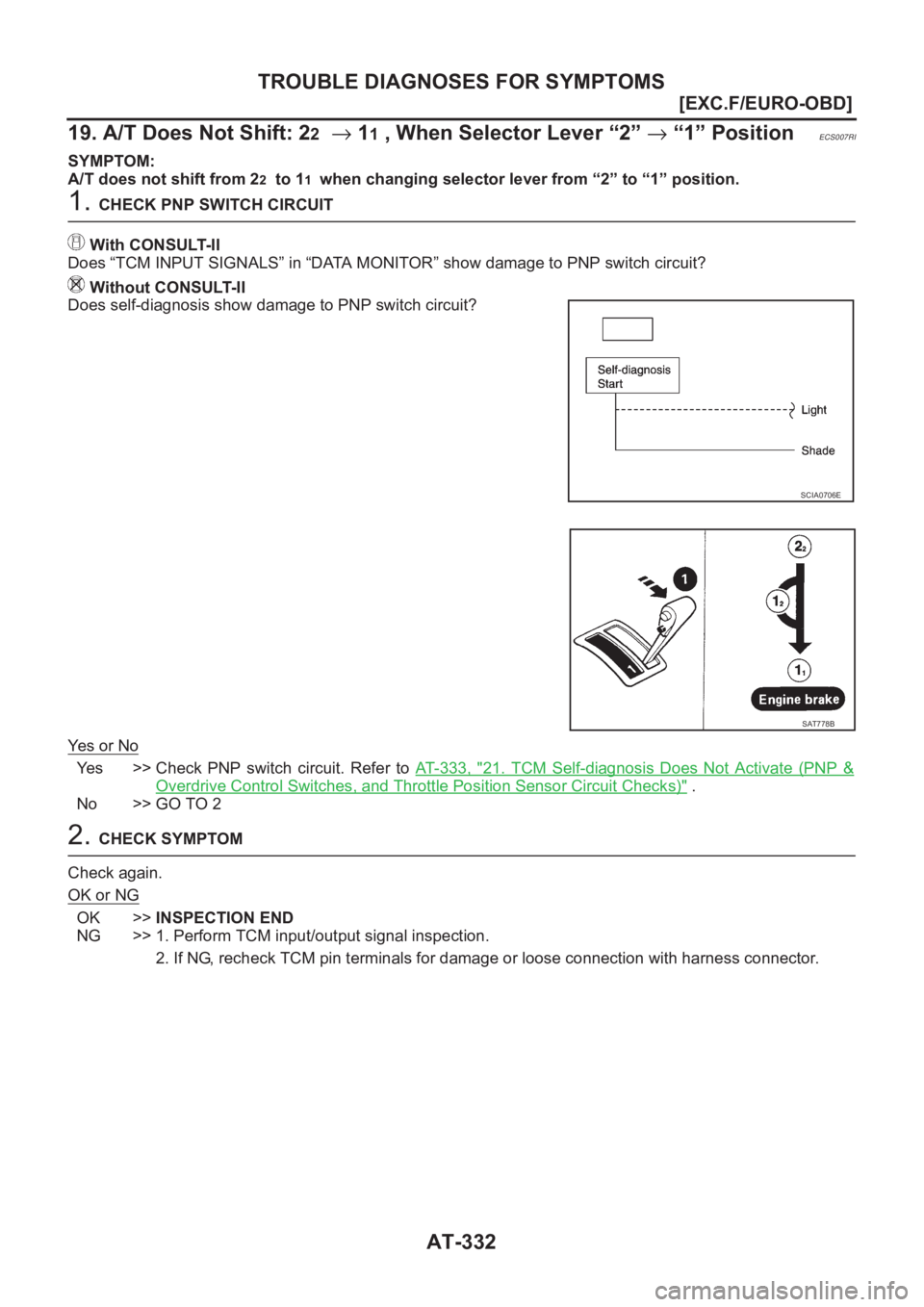

AT-332
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
19. A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” PositionECS007RI
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 3 3 , "21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor Circuit Checks)" .
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0706E
SAT778B

TROUBLE DIAGNOSES FOR SYMPTOMS

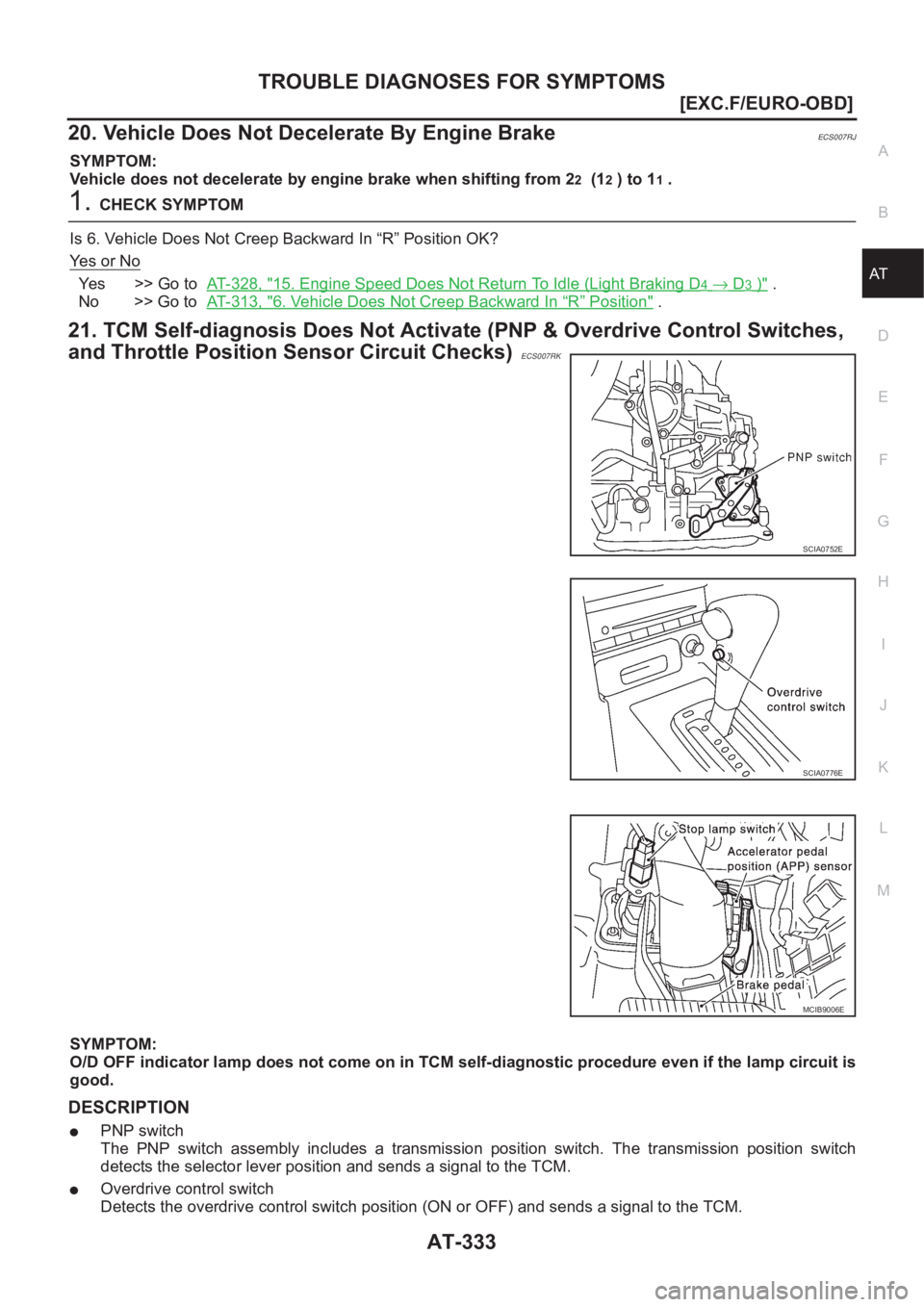

AT-333
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
20. Vehicle Does Not Decelerate By Engine BrakeECS007RJ
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1.CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Yes >> Go to AT- 3 2 8 , "15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )" .
No >> Go to AT- 3 1 3 , "
6. Vehicle Does Not Creep Backward In “R” Position" .
21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches,
and Throttle Position Sensor Circuit Checks)
ECS007RK
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position switch. The transmission position switch
detects the selector lever position and sends a signal to the TCM.
●Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
SCIA0752E
SCIA0776E
MCIB9006E

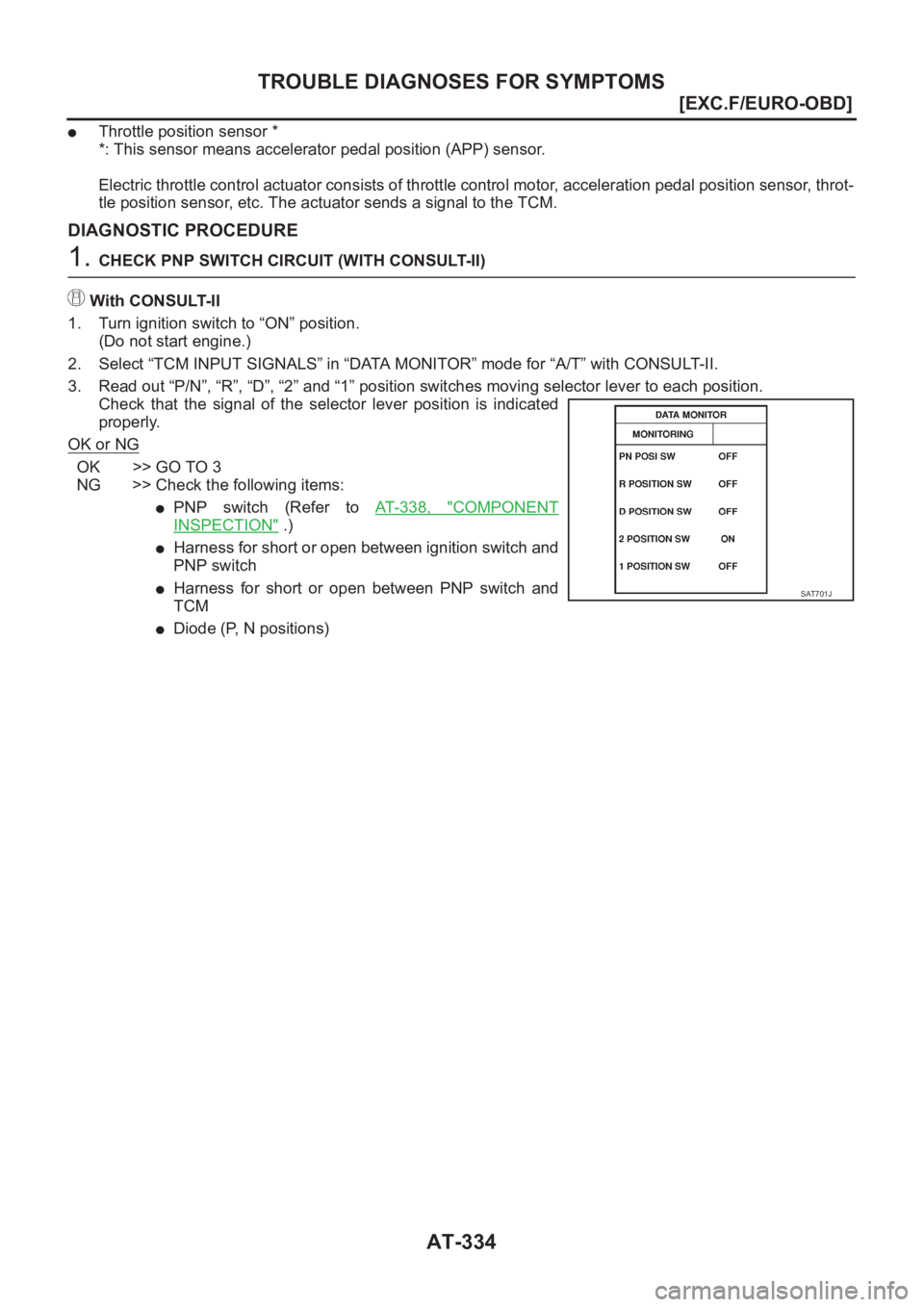

AT-334
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
●Throttle position sensor *
*: This sensor means accelerator pedal position (APP) sensor.
Electric throttle control actuator consists of throttle control motor, acceleration pedal position sensor, throt-
tle position sensor, etc. The actuator sends a signal to the TCM.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
●PNP switch (Refer to AT- 3 3 8 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Diode (P, N positions)
SAT701J
