NISSAN ALMERA N16 2003 Electronic Repair Manual

REPAIR FOR COMPONENT PARTS
AT-435
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

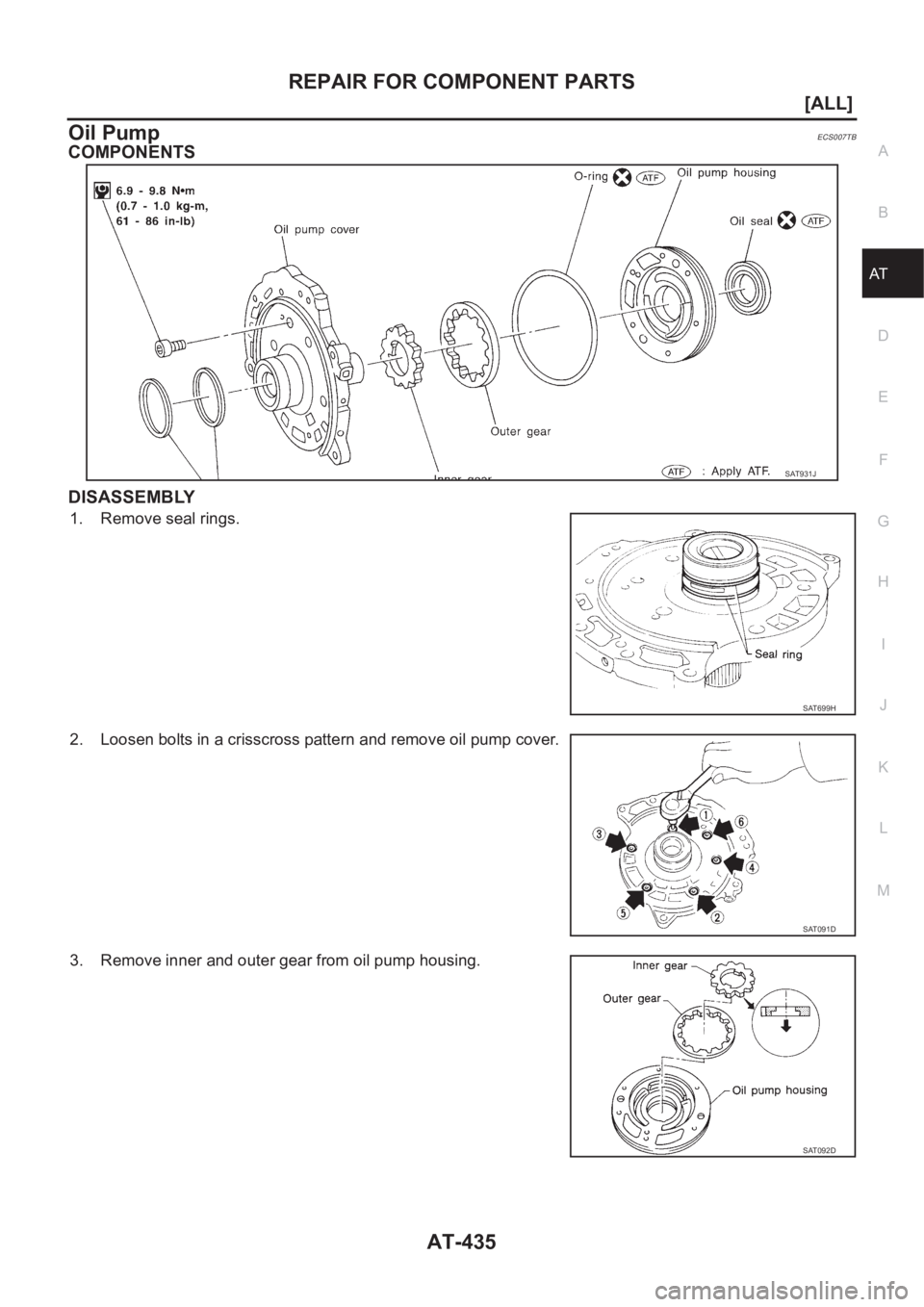

Oil PumpECS007TB
COMPONENTS
DISASSEMBLY
1. Remove seal rings.
2. Loosen bolts in a crisscross pattern and remove oil pump cover.
3. Remove inner and outer gear from oil pump housing.
SAT931J
SAT699H
SAT091D
SAT092D

AT-436
[ALL]
REPAIR FOR COMPONENT PARTS

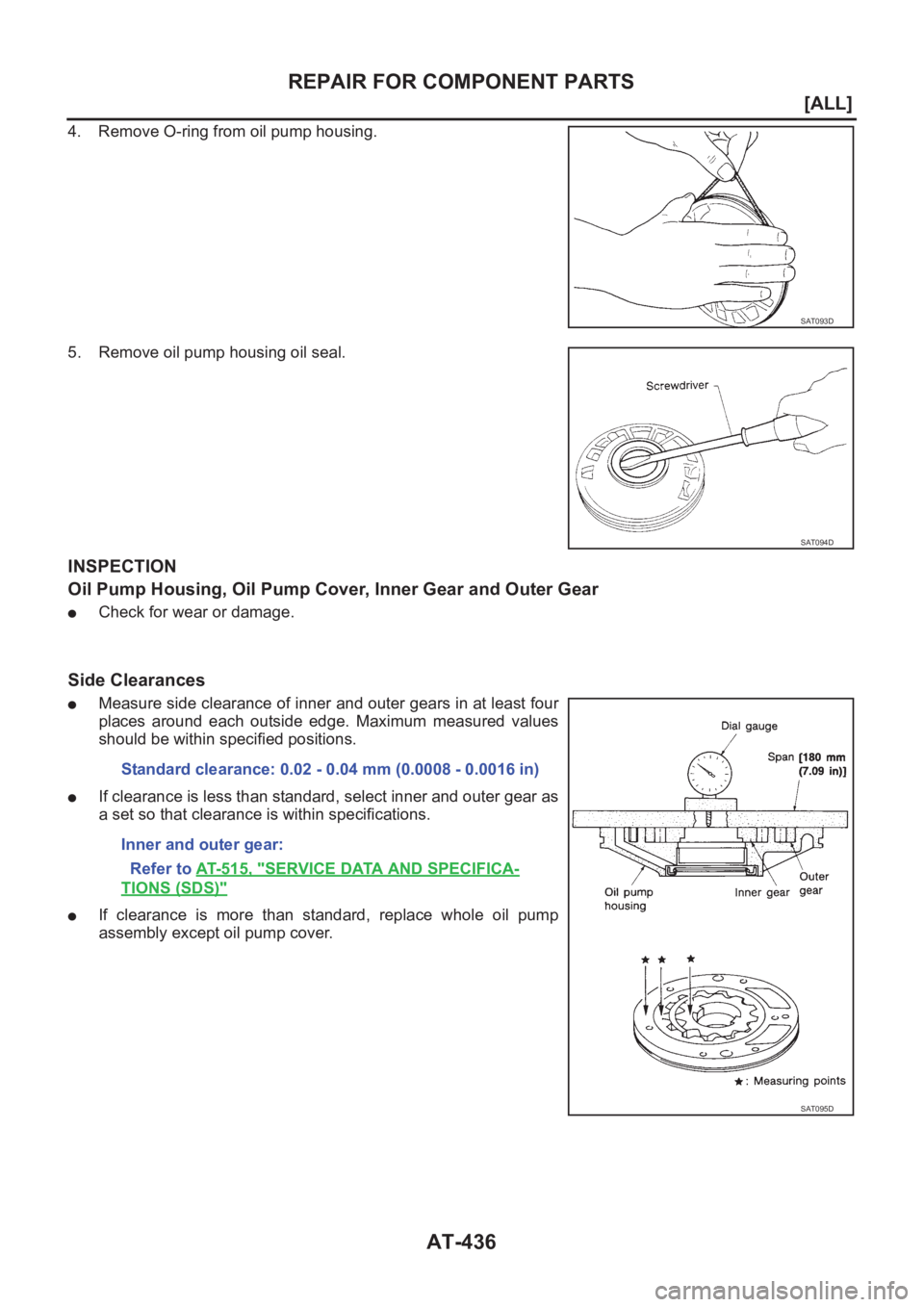

4. Remove O-ring from oil pump housing.
5. Remove oil pump housing oil seal.
INSPECTION
Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear
●Check for wear or damage.
Side Clearances
●Measure side clearance of inner and outer gears in at least four
places around each outside edge. Maximum measured values
should be within specified positions.
●If clearance is less than standard, select inner and outer gear as
a set so that clearance is within specifications.
●If clearance is more than standard, replace whole oil pump
assembly except oil pump cover.
SAT093D
SAT094D
Standard clearance: 0.02 - 0.04 mm (0.0008 - 0.0016 in)
Inner and outer gear:
Refer to AT-515, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)"
SAT095D

REPAIR FOR COMPONENT PARTS
AT-437
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
●Measure clearance between outer gear and oil pump housing.
●If not within allowable limit, replace whole oil pump assembly
except oil pump cover.
Seal Ring Clearance
●Install new seal rings onto oil pump cover.
●Measure clearance between seal ring and ring groove.
●If not within allowable limit, replace oil pump cover assembly.
ASSEMBLY
1. Install oil seal on oil pump housing.
●Apply ATF to oil seal.
2. Install O-ring on oil pump housing.
●Apply ATF to O-ring.Standard clearance: 0.08 - 0.15 mm (0.0031 - 0.0059 in)
Allowable limit: 0.15 mm (0.0059 in)
SAT096D
Standard clearance: 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Allowable limit: 0.25 mm (0.0098 in)
SAT097D
SAT922D
SAT093D

AT-438
[ALL]
REPAIR FOR COMPONENT PARTS
3. Install inner and outer gears on oil pump housing.
●Take care with the direction of inner gear.
4. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten bolts in a crisscross pattern. Tighten oil pump cover
bolts to the specified torque. Refer to AT- 4 3 5 , "
COMPONENTS"
.
5. Install new seal rings carefully after packing ring groove with
petroleum jelly.
●Do not spread gap of seal ring excessively while install-
ing. The ring may be deformed.
SAT092D
SAT101D
SAT699H

REPAIR FOR COMPONENT PARTS
AT-439
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

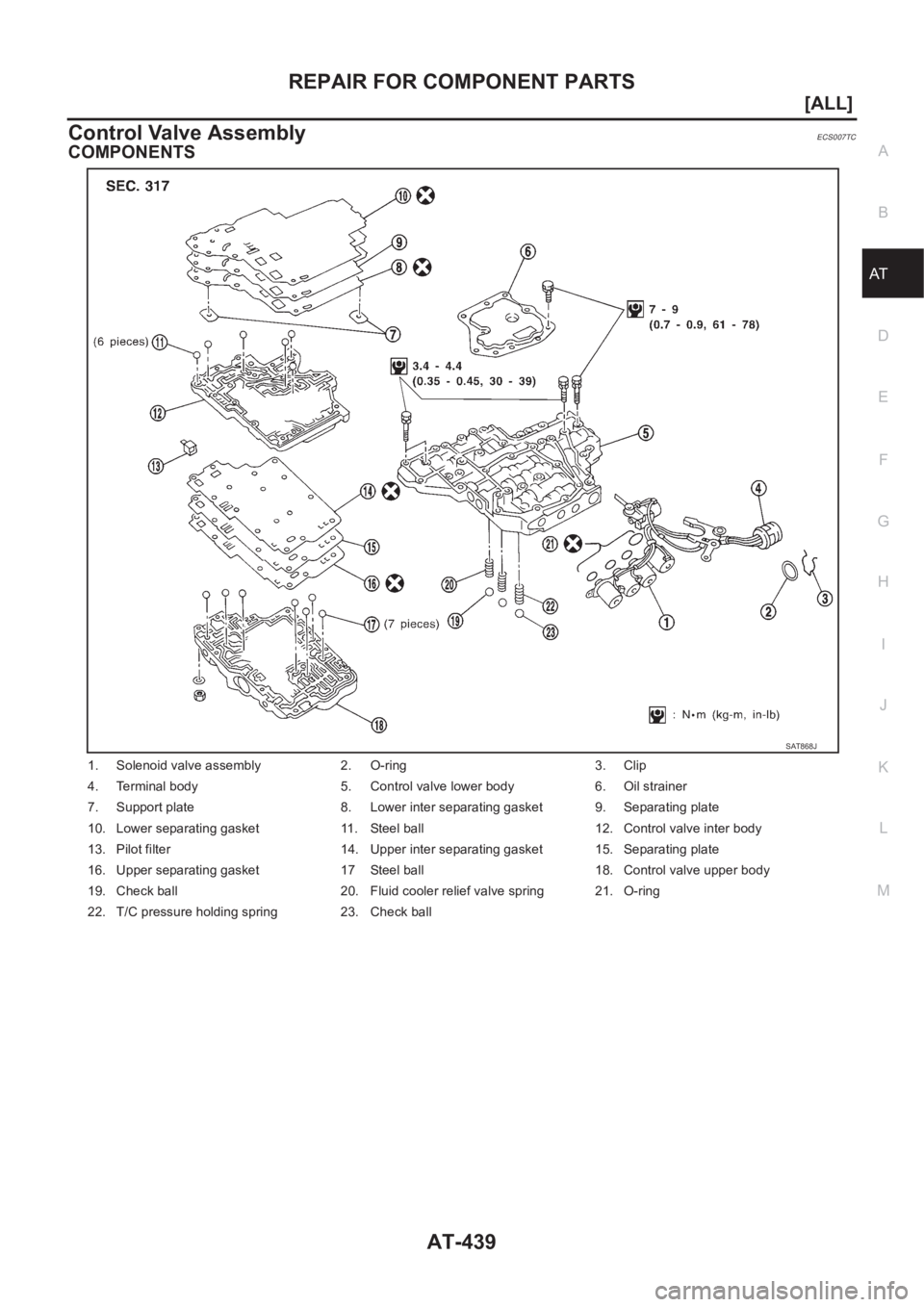

Control Valve AssemblyECS007TC
COMPONENTS
1. Solenoid valve assembly 2. O-ring 3. Clip
4. Terminal body 5. Control valve lower body 6. Oil strainer
7. Support plate 8. Lower inter separating gasket 9. Separating plate
10. Lower separating gasket 11. Steel ball 12. Control valve inter body
13. Pilot filter 14. Upper inter separating gasket 15. Separating plate
16. Upper separating gasket 17 Steel ball 18. Control valve upper body
19. Check ball 20. Fluid cooler relief valve spring 21. O-ring
22. T/C pressure holding spring 23. Check ball
SAT868J

AT-440
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
●Disassemble upper, inter and lower bodies.
Bolt length, number and location:
F: Reamer bolt and nut
1. Remove bolts A, D and F, and remove oil strainer from control
valve assembly.
2. Remove solenoid valve assembly and line pressure solenoid
valve from control valve assembly.
●Be careful not to lose the line pressure solenoid valve
spring.
Bolt symbolABC D E F G
Bolt length “ ”
13.5 mm
(0.531 in)58.0 mm
(2.283 in)40.0 mm
(1.575 in)66.0 mm
(2.598 in)33.0 mm
(1.299 in)78.0 mm
(3.071 in)18.0 mm
(0.709 in)
Number of bolts 6 3 6 11 2 2 1
SAT869J
SAT083F
SAT316GA

REPAIR FOR COMPONENT PARTS
AT-441
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
3. Remove O-rings from solenoid valves and terminal body.
4. Place upper body facedown, and remove bolts B, C and F.
5. Remove lower body from inter body.
6. Turn over lower body, and accumulator support plates.
7. Remove bolts E, separating plate and separating gaskets from
lower body.
8. Remove check balls, fluid cooler relief valve springs and T/C
pressure holding spring from lower body.
●Be careful not to lose steel balls and relief valve springs.
SAT317G
SAT064F
SAT432D
SAT109D
MCIB9019E

AT-442
[ALL]
REPAIR FOR COMPONENT PARTS

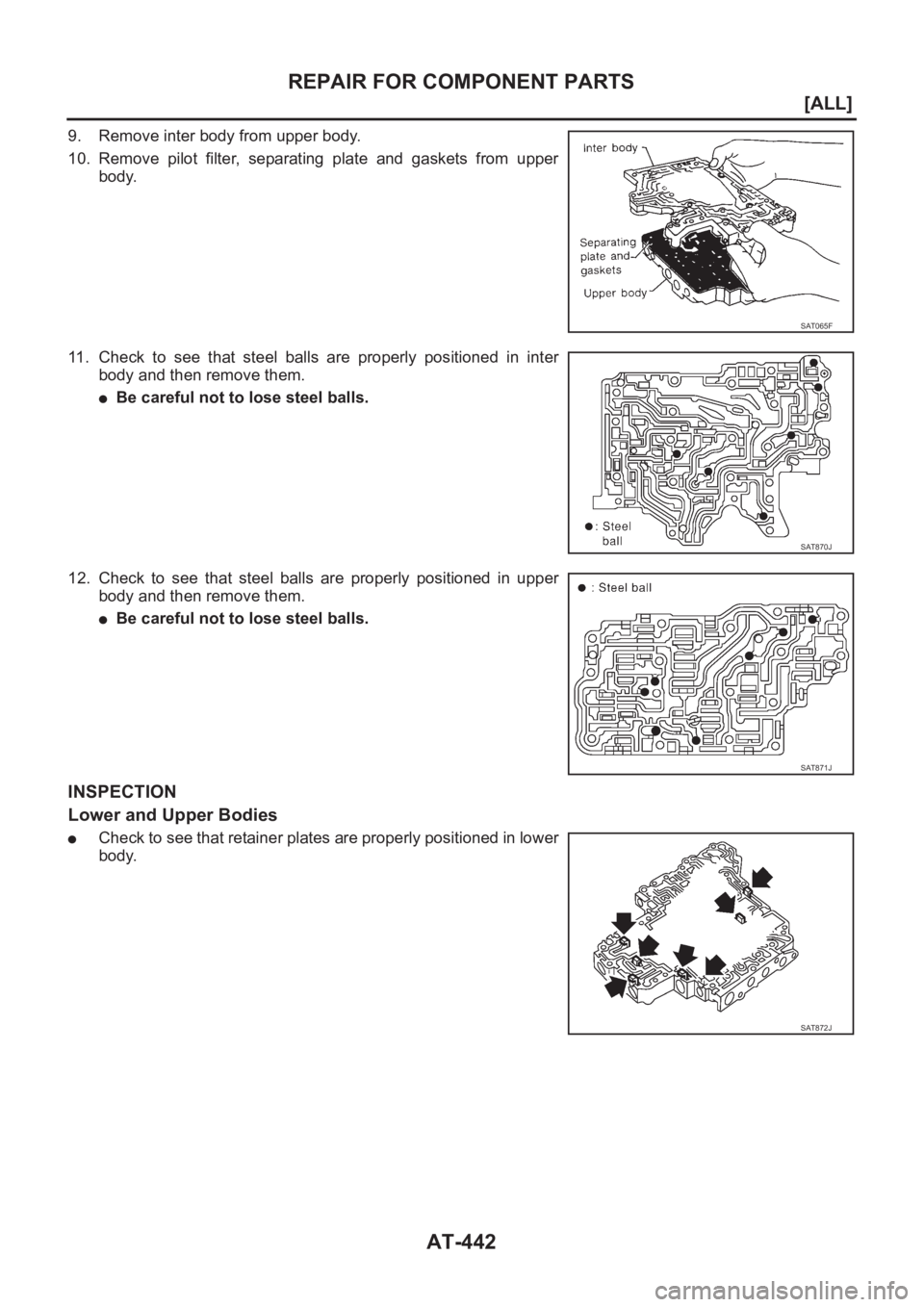

9. Remove inter body from upper body.
10. Remove pilot filter, separating plate and gaskets from upper
body.
11. Check to see that steel balls are properly positioned in inter
body and then remove them.
●Be careful not to lose steel balls.
12. Check to see that steel balls are properly positioned in upper
body and then remove them.
●Be careful not to lose steel balls.
INSPECTION
Lower and Upper Bodies
●Check to see that retainer plates are properly positioned in lower
body.
SAT065F
SAT870J
SAT871J
SAT872J

REPAIR FOR COMPONENT PARTS
AT-443
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

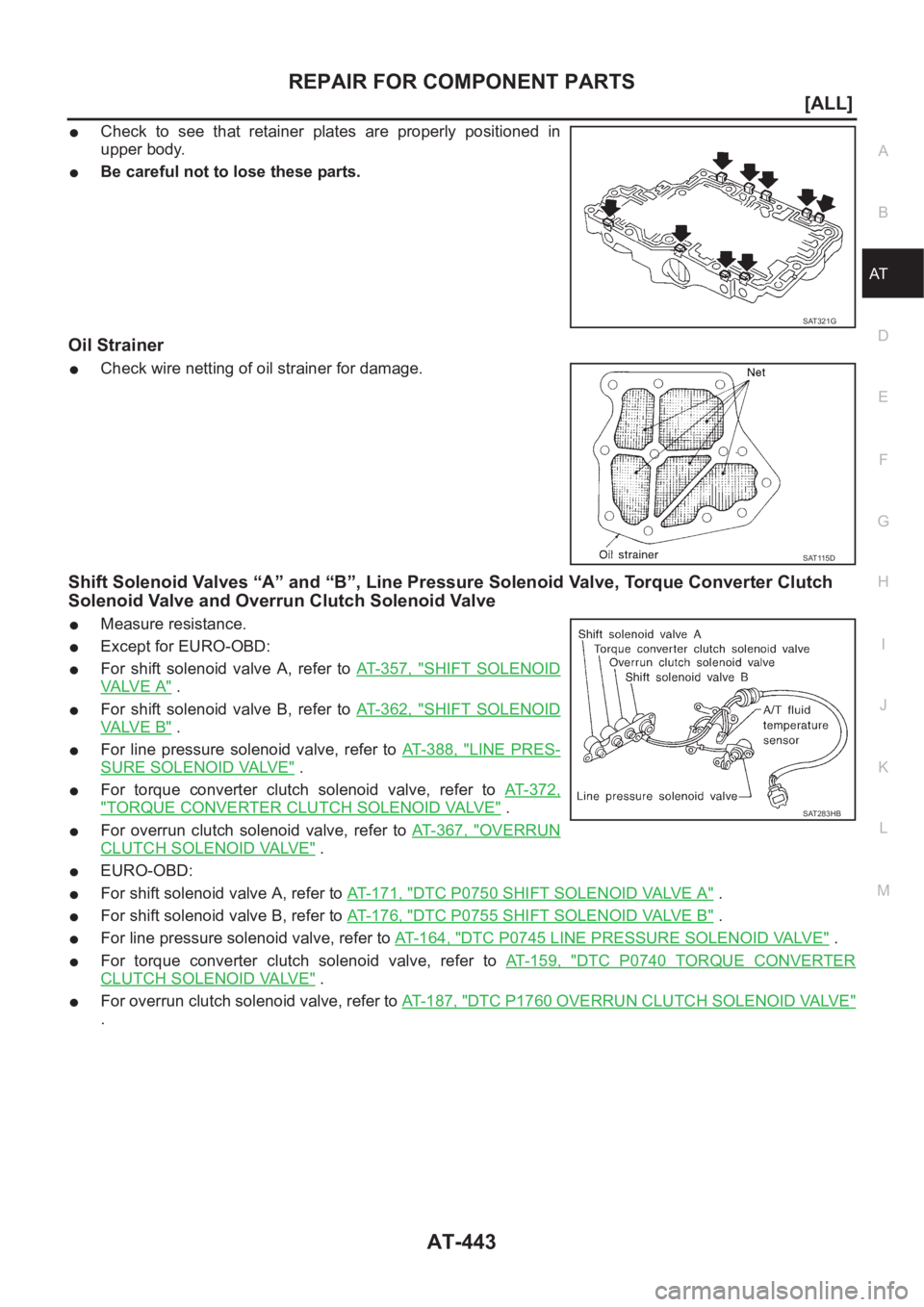

●Check to see that retainer plates are properly positioned in
upper body.
●Be careful not to lose these parts.
Oil Strainer
●Check wire netting of oil strainer for damage.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch
Solenoid Valve and Overrun Clutch Solenoid Valve
●Measure resistance.
●Except for EURO-OBD:
●For shift solenoid valve A, refer to AT- 3 5 7 , "SHIFT SOLENOID
VA LV E A" .
●For shift solenoid valve B, refer to AT- 3 6 2 , "SHIFT SOLENOID
VA LV E B" .
●For line pressure solenoid valve, refer to AT- 3 8 8 , "LINE PRES-
SURE SOLENOID VALVE" .
●For torque converter clutch solenoid valve, refer to AT- 3 7 2 ,
"TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
●For overrun clutch solenoid valve, refer to AT- 3 6 7 , "OVERRUN
CLUTCH SOLENOID VALVE" .
●EURO-OBD:
●For shift solenoid valve A, refer to AT-171, "DTC P0750 SHIFT SOLENOID VALVE A" .
●For shift solenoid valve B, refer to AT-176, "DTC P0755 SHIFT SOLENOID VALVE B" .
●For line pressure solenoid valve, refer to AT-164, "DTC P0745 LINE PRESSURE SOLENOID VALVE" .
●For torque converter clutch solenoid valve, refer to AT-159, "DTC P0740 TORQUE CONVERTER
CLUTCH SOLENOID VALVE" .
●For overrun clutch solenoid valve, refer to AT- 1 8 7 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE"
.
SAT321G
SAT115D
SAT283HB

AT-444
[ALL]
REPAIR FOR COMPONENT PARTS

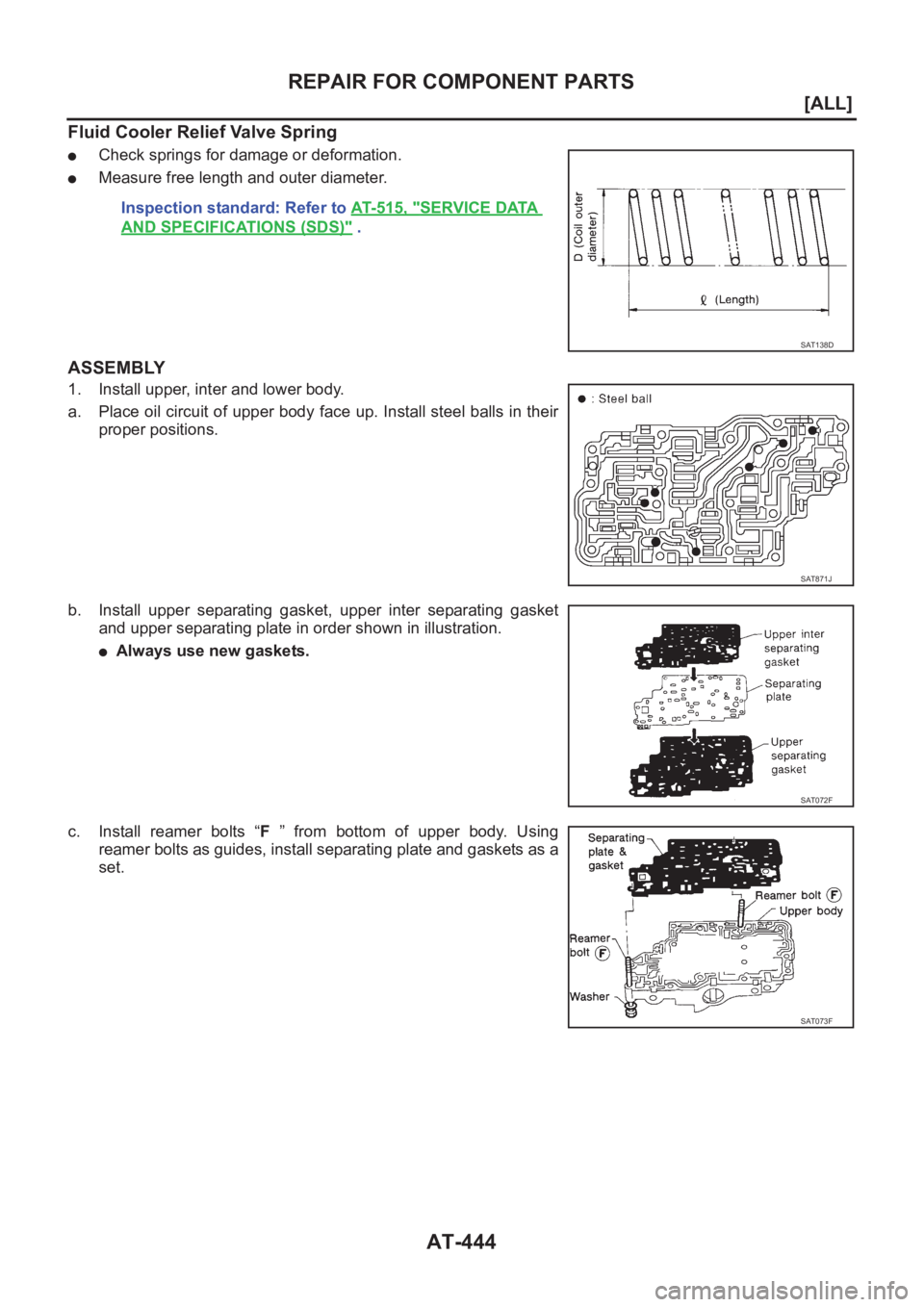

Fluid Cooler Relief Valve Spring
●Check springs for damage or deformation.
●Measure free length and outer diameter.
ASSEMBLY
1. Install upper, inter and lower body.
a. Place oil circuit of upper body face up. Install steel balls in their
proper positions.
b. Install upper separating gasket, upper inter separating gasket
and upper separating plate in order shown in illustration.
●Always use new gaskets.
c. Install reamer bolts “F ” from bottom of upper body. Using
reamer bolts as guides, install separating plate and gaskets as a
set.Inspection standard: Refer to AT- 5 1 5 , "
SERVICE DATA
AND SPECIFICATIONS (SDS)" .
SAT138D
SAT871J
SAT072F
SAT073F
