NISSAN ALMERA N16 2003 Electronic Repair Manual

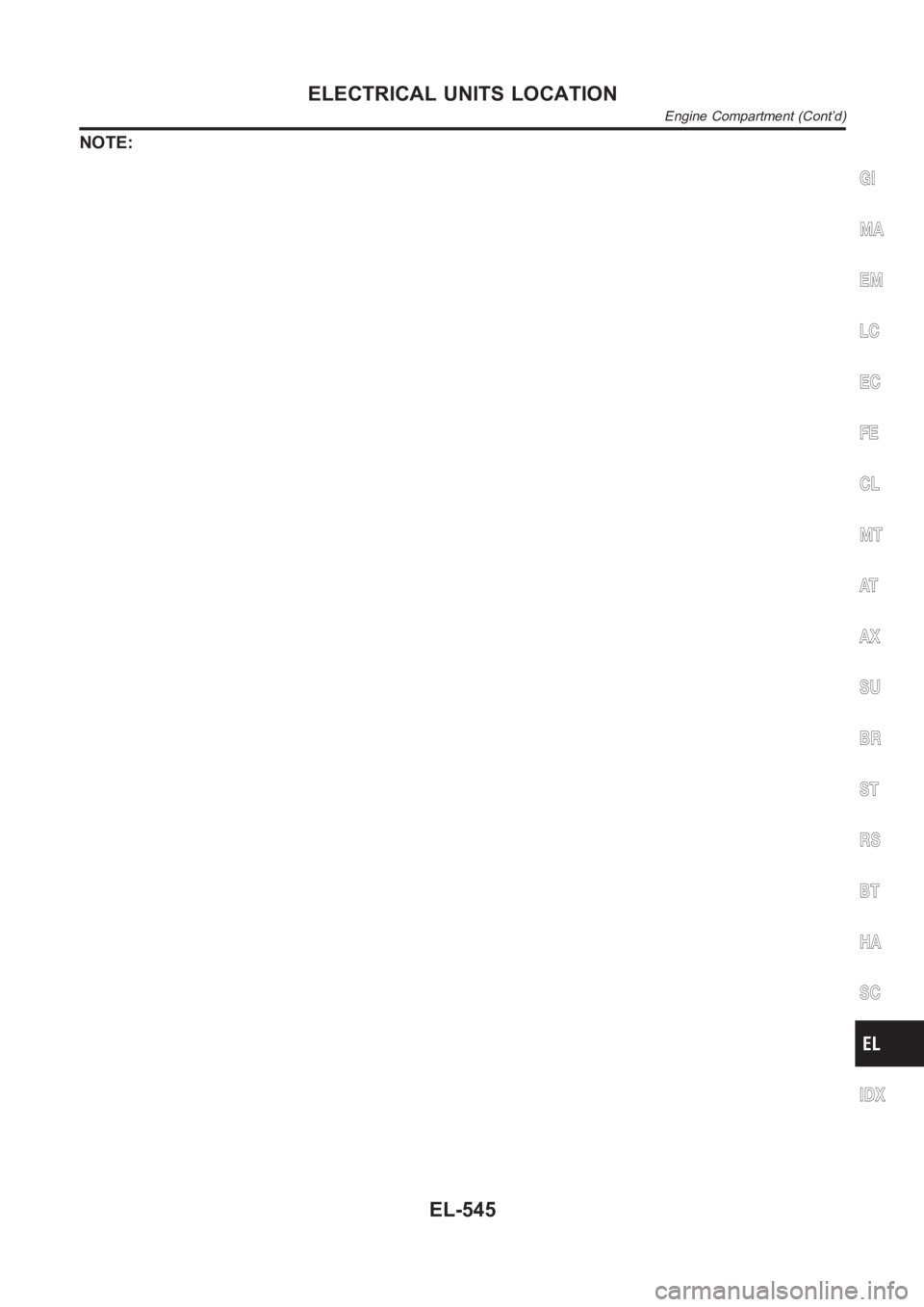

NOTE:
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
ELECTRICAL UNITS LOCATION
Engine Compartment (Cont’d)
EL-545

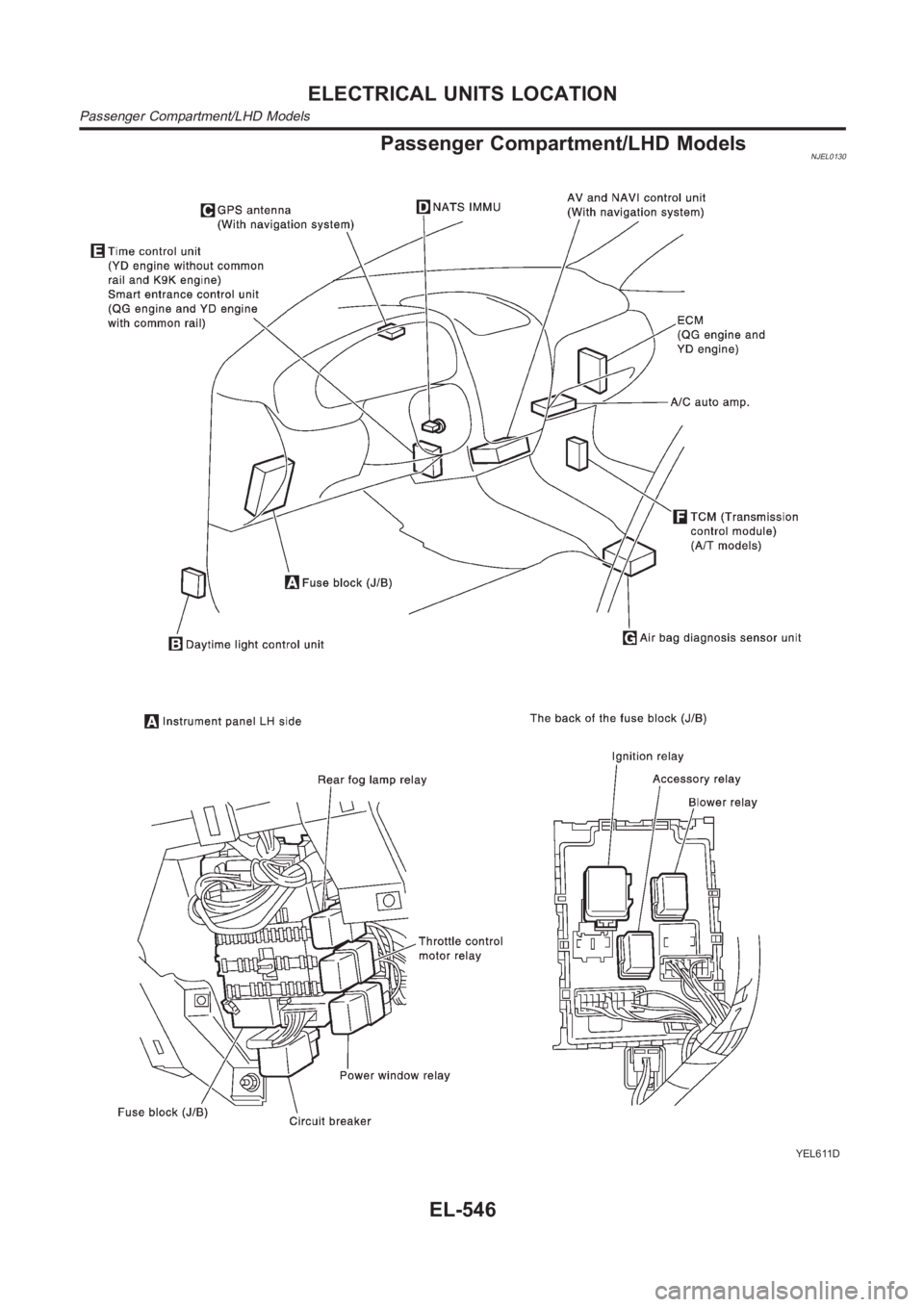

Passenger Compartment/LHD ModelsNJEL0130
YEL611D
ELECTRICAL UNITS LOCATION
Passenger Compartment/LHD Models
EL-546

YEL612D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
ELECTRICAL UNITS LOCATION

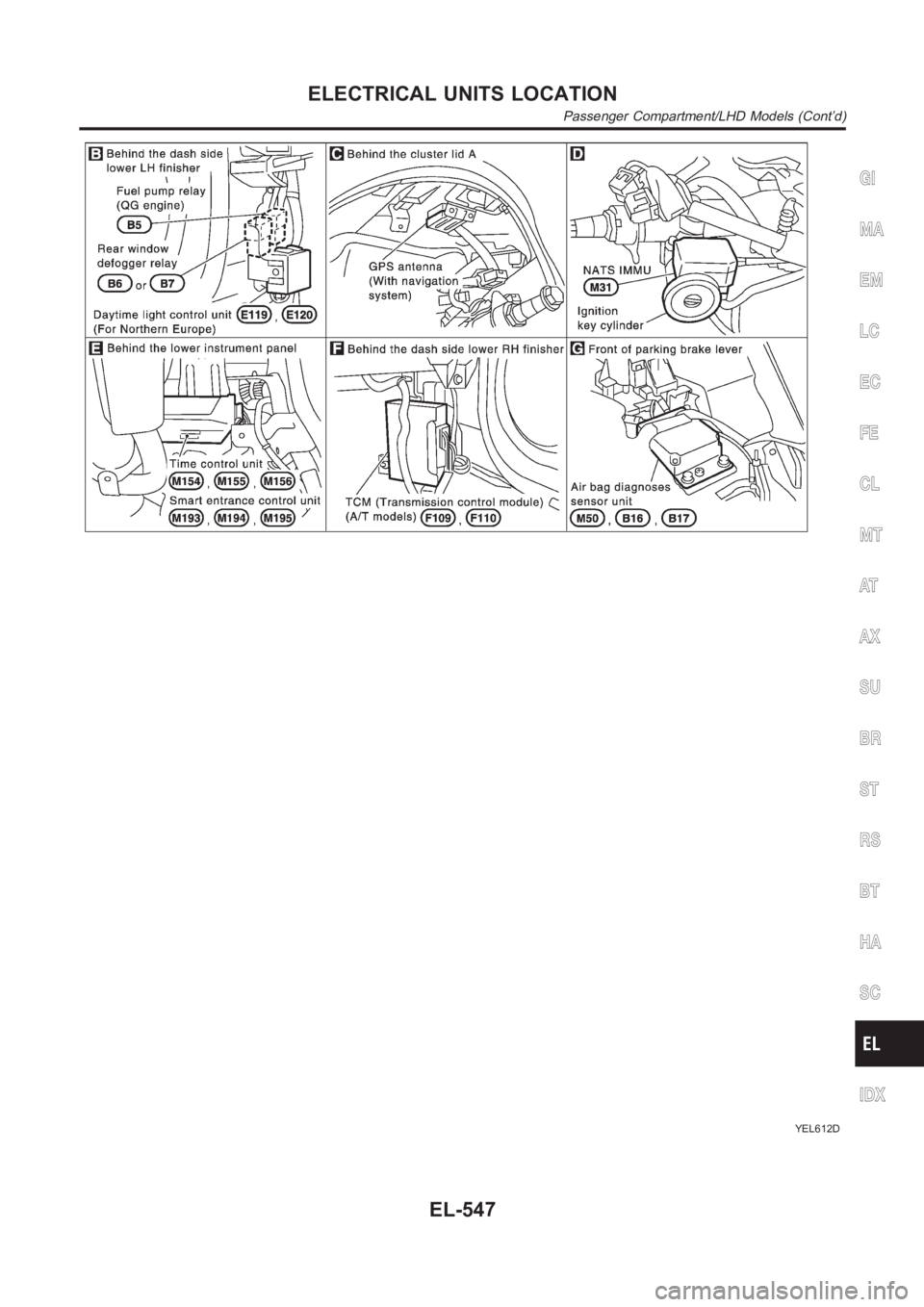

Passenger Compartment/LHD Models (Cont’d)
EL-547

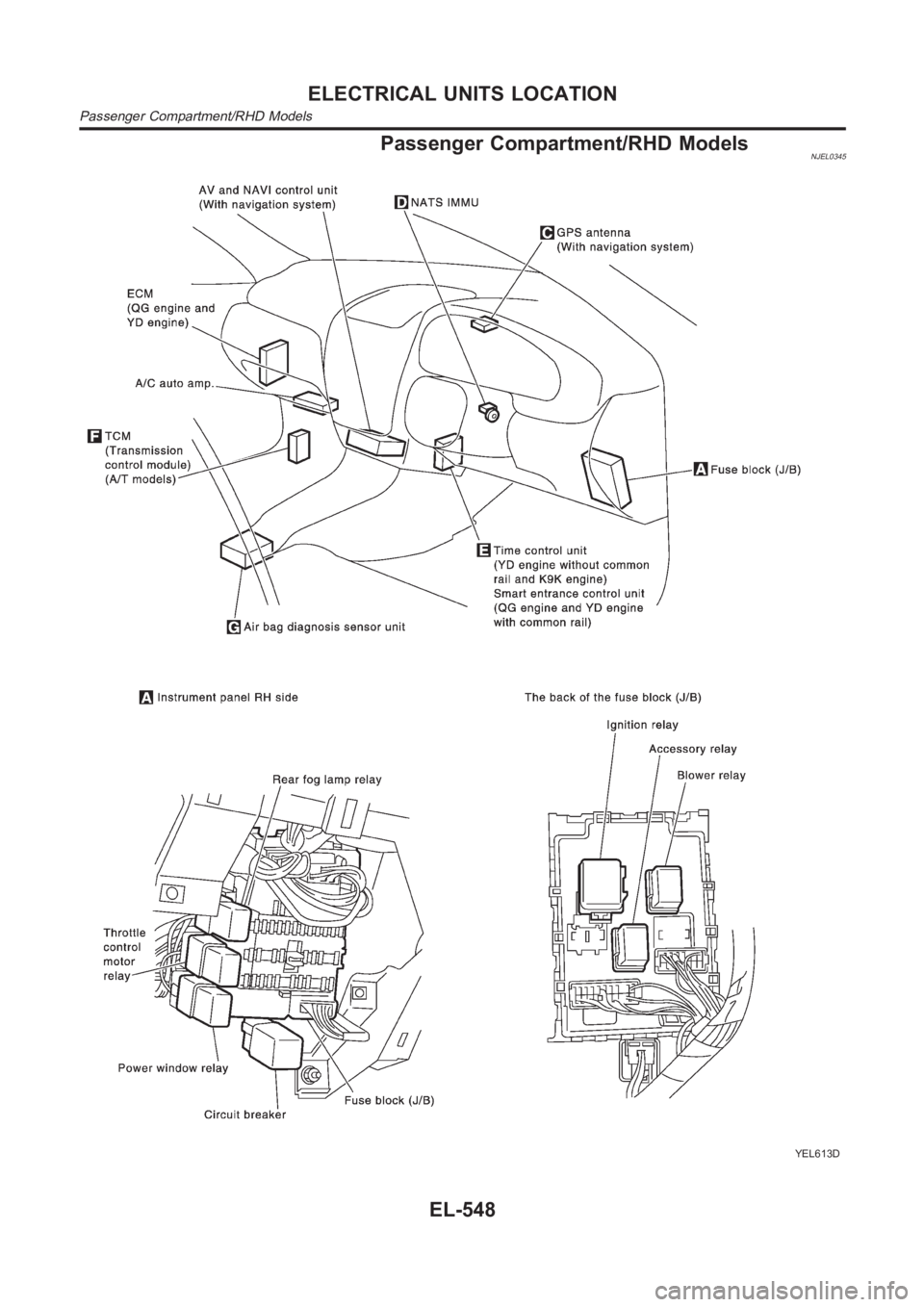

Passenger Compartment/RHD ModelsNJEL0345
YEL613D
ELECTRICAL UNITS LOCATION
Passenger Compartment/RHD Models
EL-548

YEL614D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
ELECTRICAL UNITS LOCATION

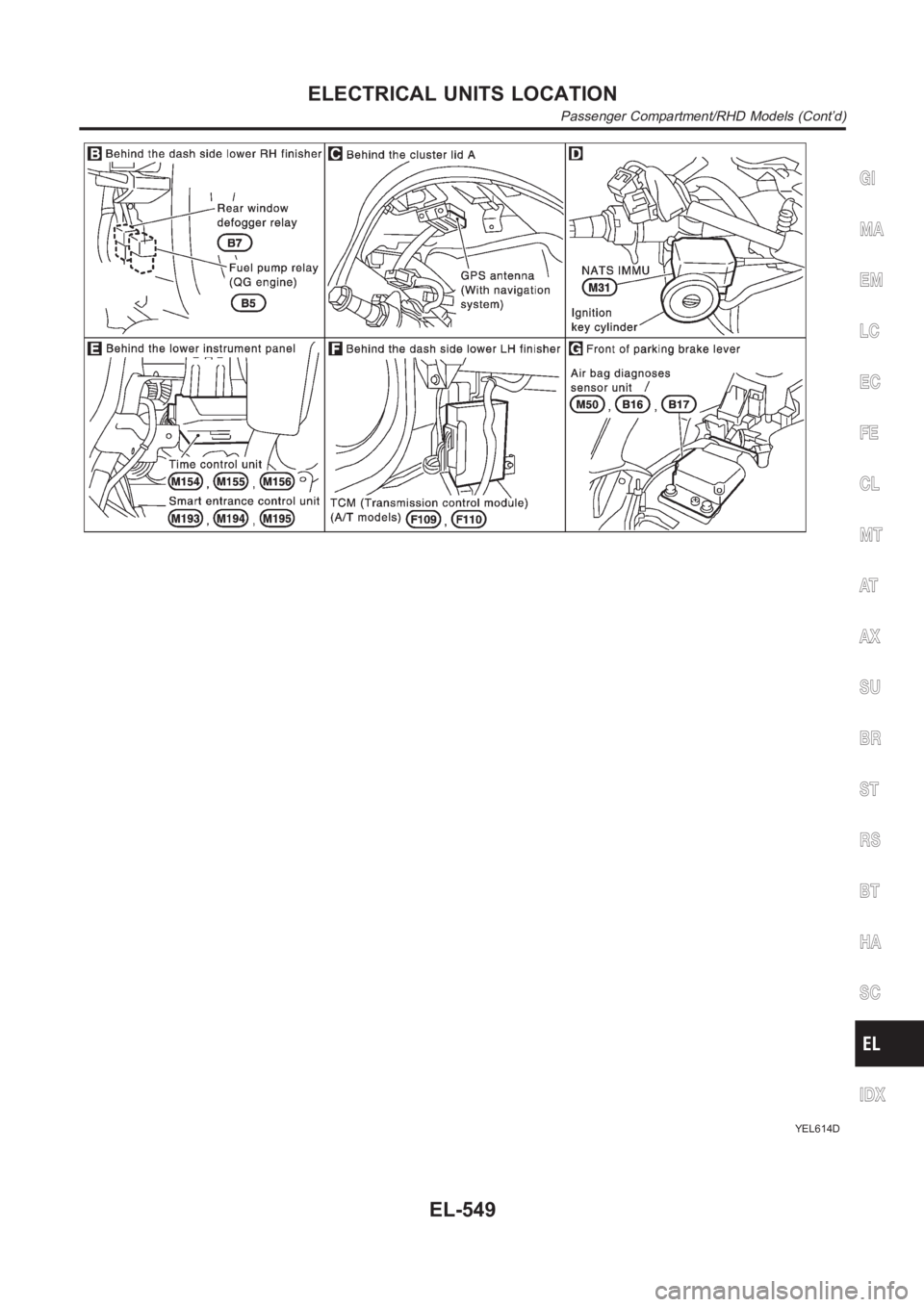

Passenger Compartment/RHD Models (Cont’d)
EL-549

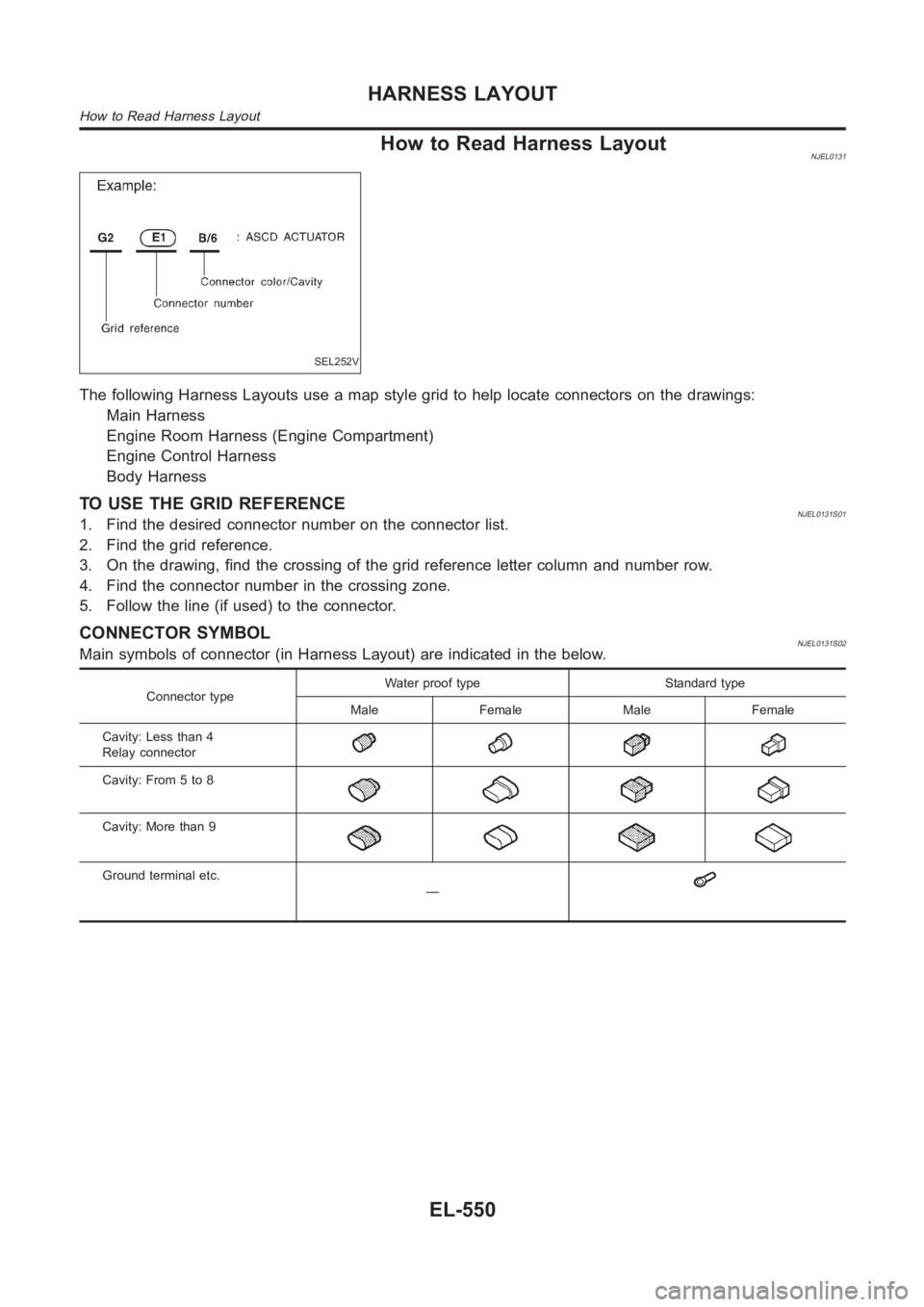

How to Read Harness LayoutNJEL0131
SEL252V
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
Main Harness
Engine Room Harness (Engine Compartment)
Engine Control Harness
Body Harness
TO USE THE GRID REFERENCENJEL0131S011. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column andnumber row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOLNJEL0131S02Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
Cavity: Less than 4
Relay connector
Cavity: From 5 to 8
Cavity: More than 9
Ground terminal etc.
—
HARNESS LAYOUT
How to Read Harness Layout
EL-550

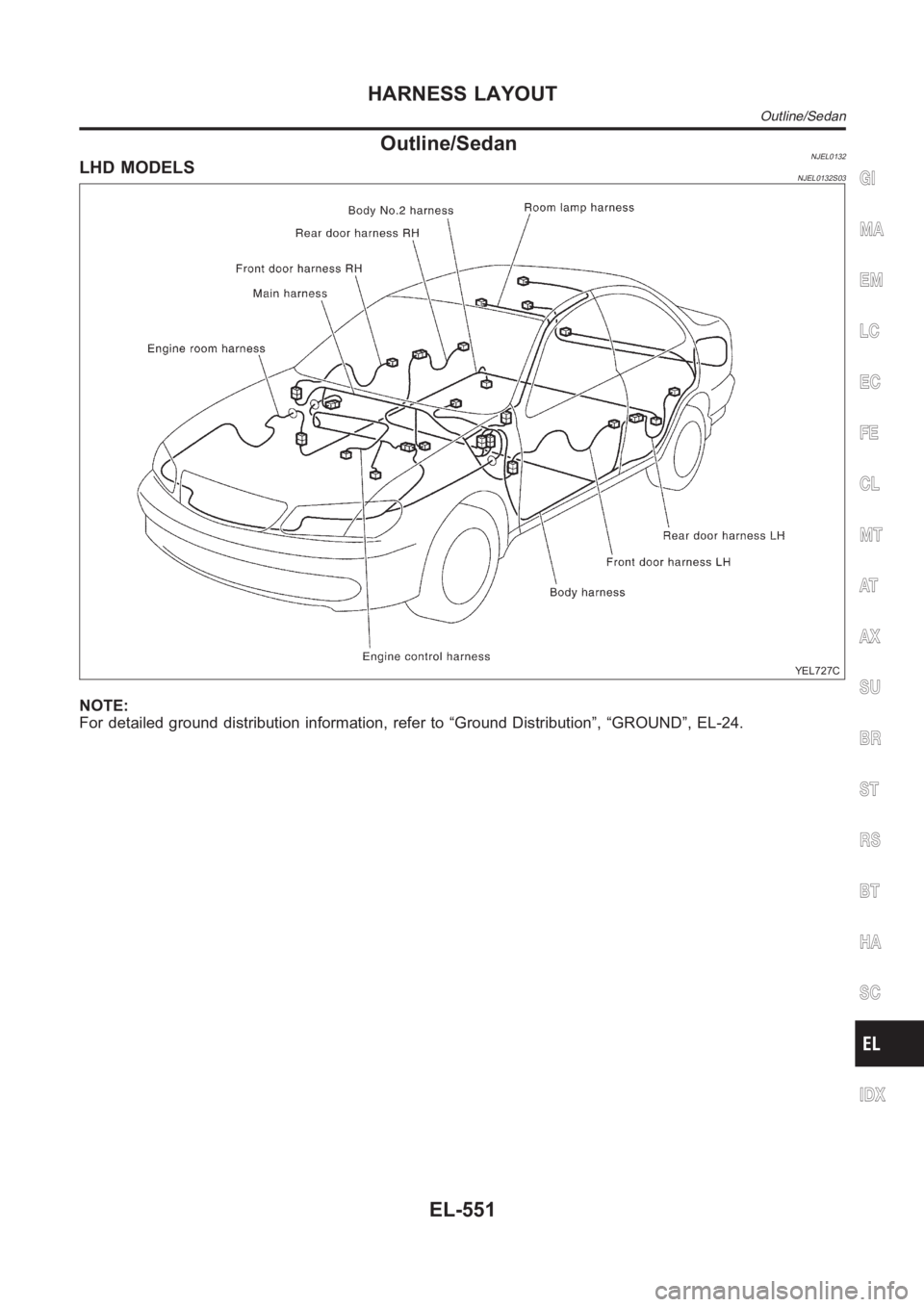

Outline/SedanNJEL0132LHD MODELSNJEL0132S03
YEL727C
NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-24.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
HARNESS LAYOUT
Outline/Sedan
EL-551

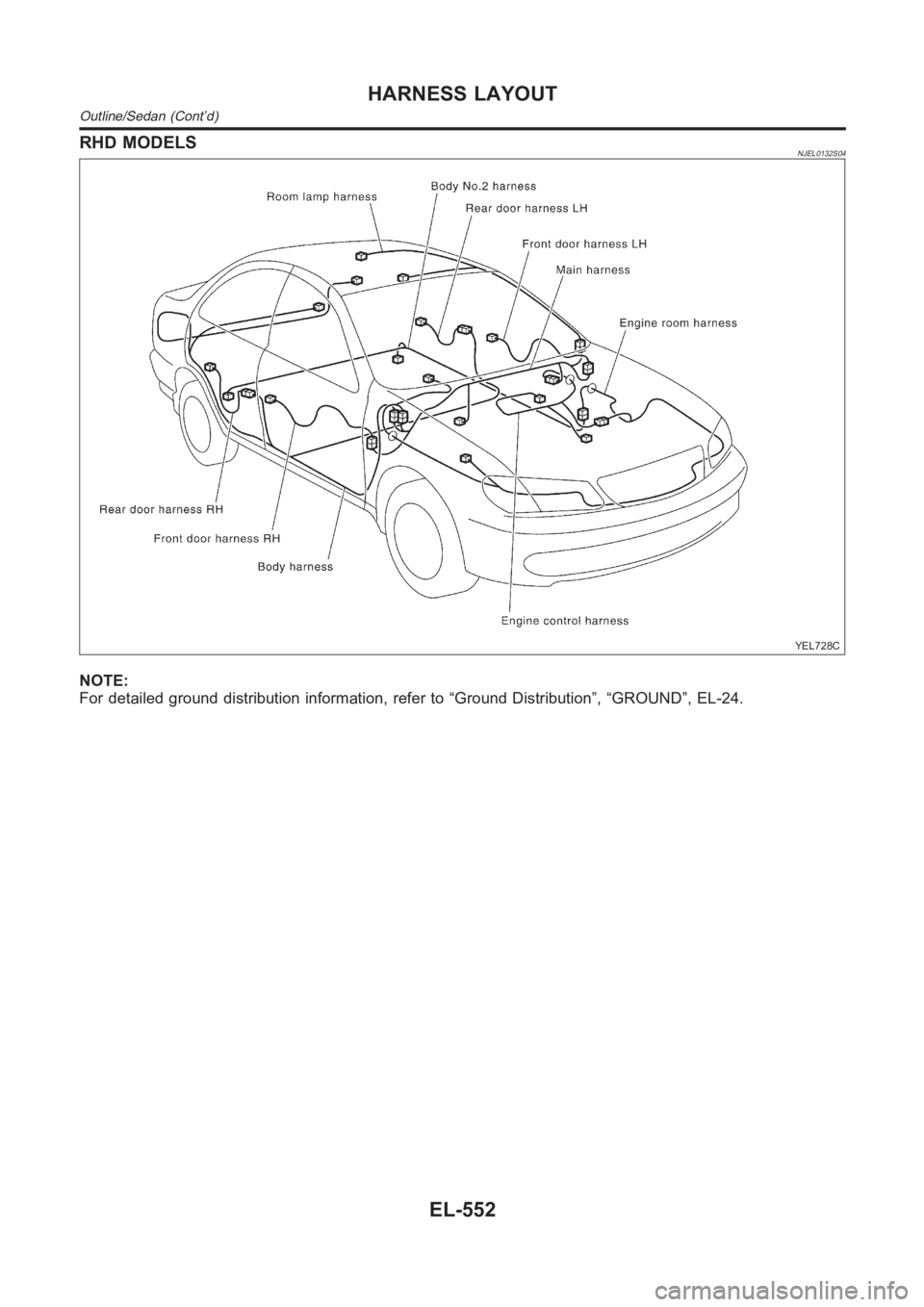

RHD MODELSNJEL0132S04
YEL728C
NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-24.
HARNESS LAYOUT
Outline/Sedan (Cont’d)
EL-552

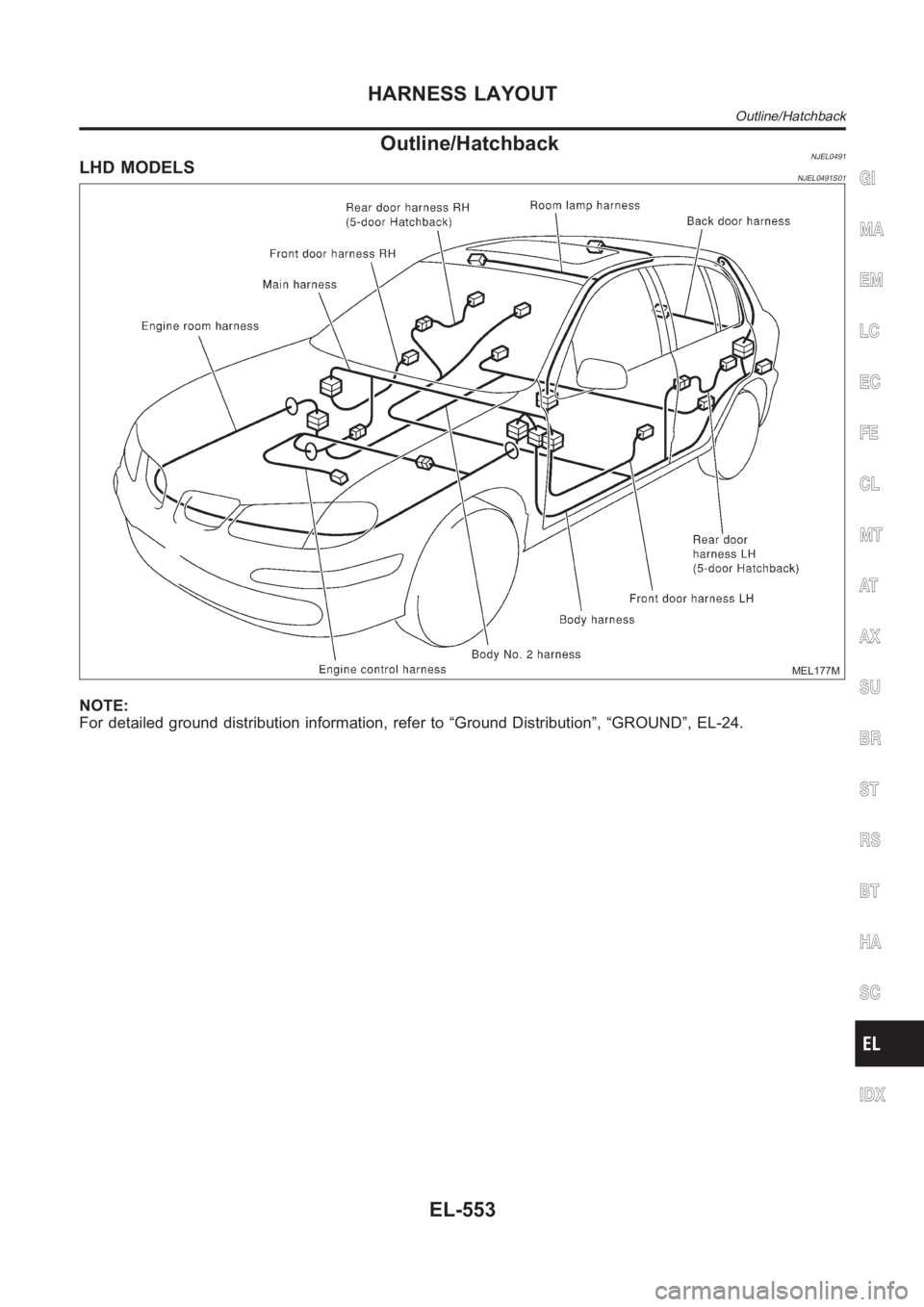

Outline/HatchbackNJEL0491LHD MODELSNJEL0491S01
MEL177M
NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-24.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
HARNESS LAYOUT
Outline/Hatchback
EL-553

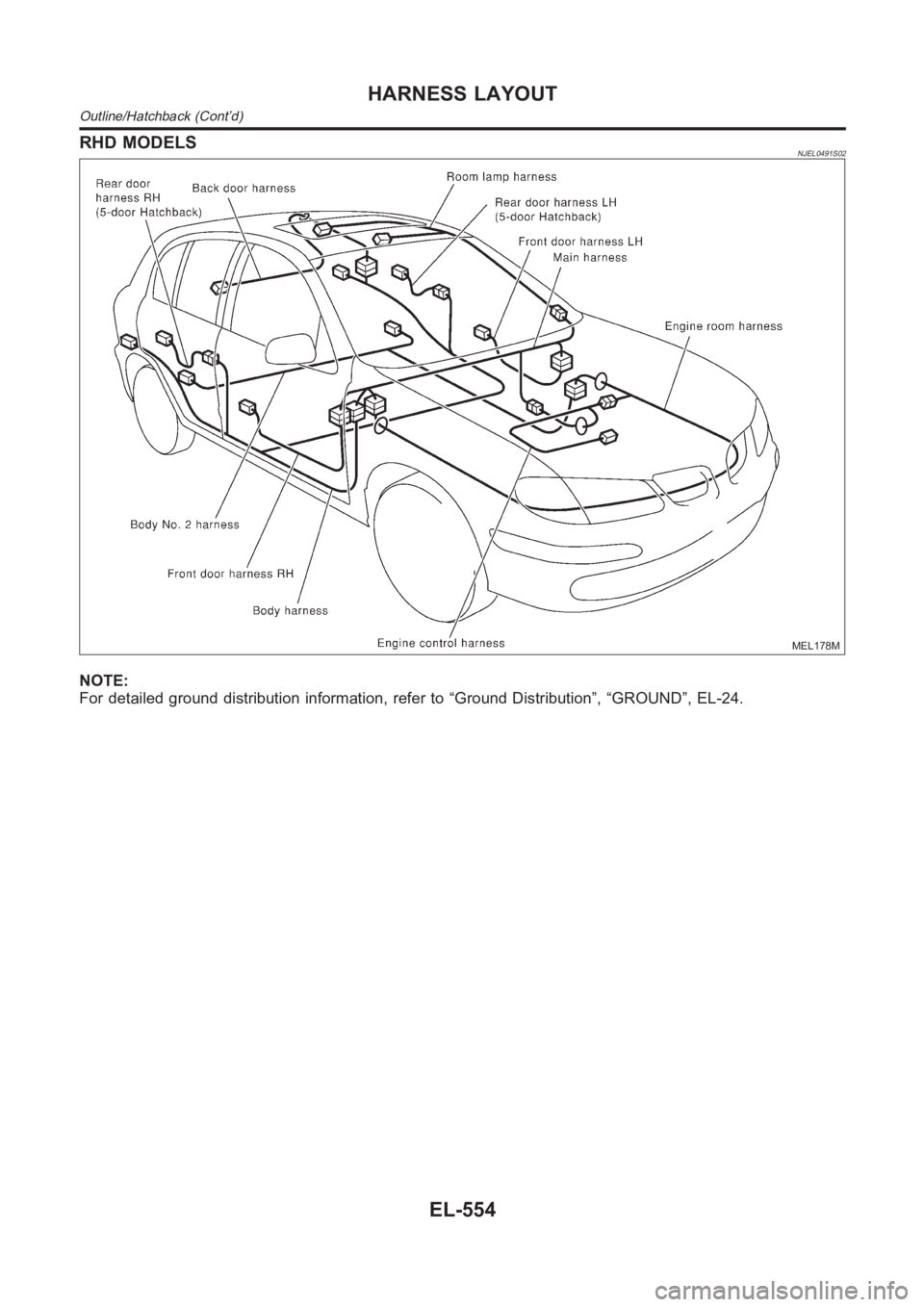

RHD MODELSNJEL0491S02
MEL178M
NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-24.
HARNESS LAYOUT
Outline/Hatchback (Cont’d)
EL-554
