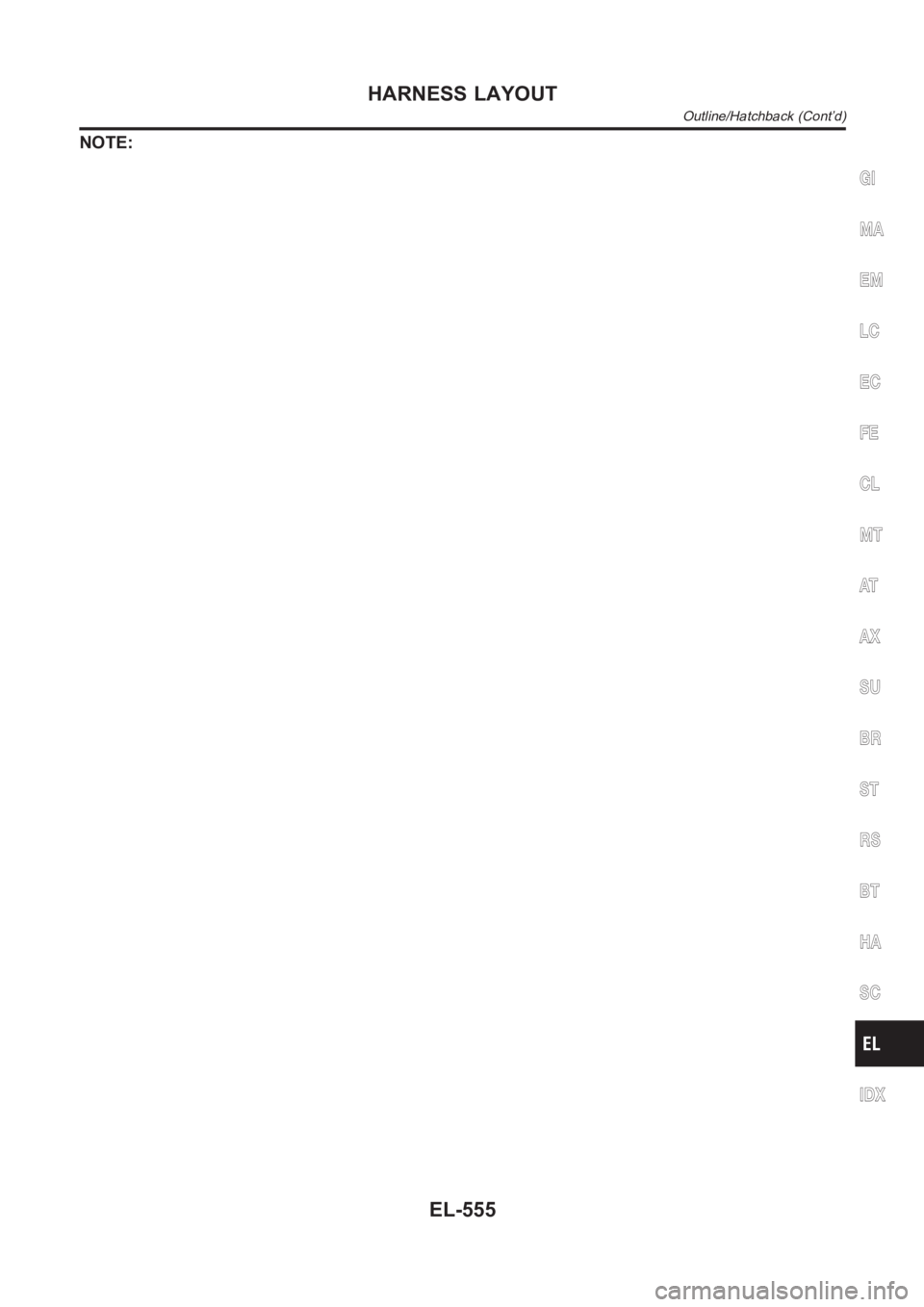

NISSAN ALMERA N16 2003 Electronic Repair Manual NOTE: GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX HARNESS LAYOUT Outline/Hatchback (Cont’d) EL-555

Page 2892 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Main HarnessNJEL0347LHD MODELSNJEL0347S01 YEL615D HARNESS LAYOUT Main Harness EL-556

Page 2893 of 3189

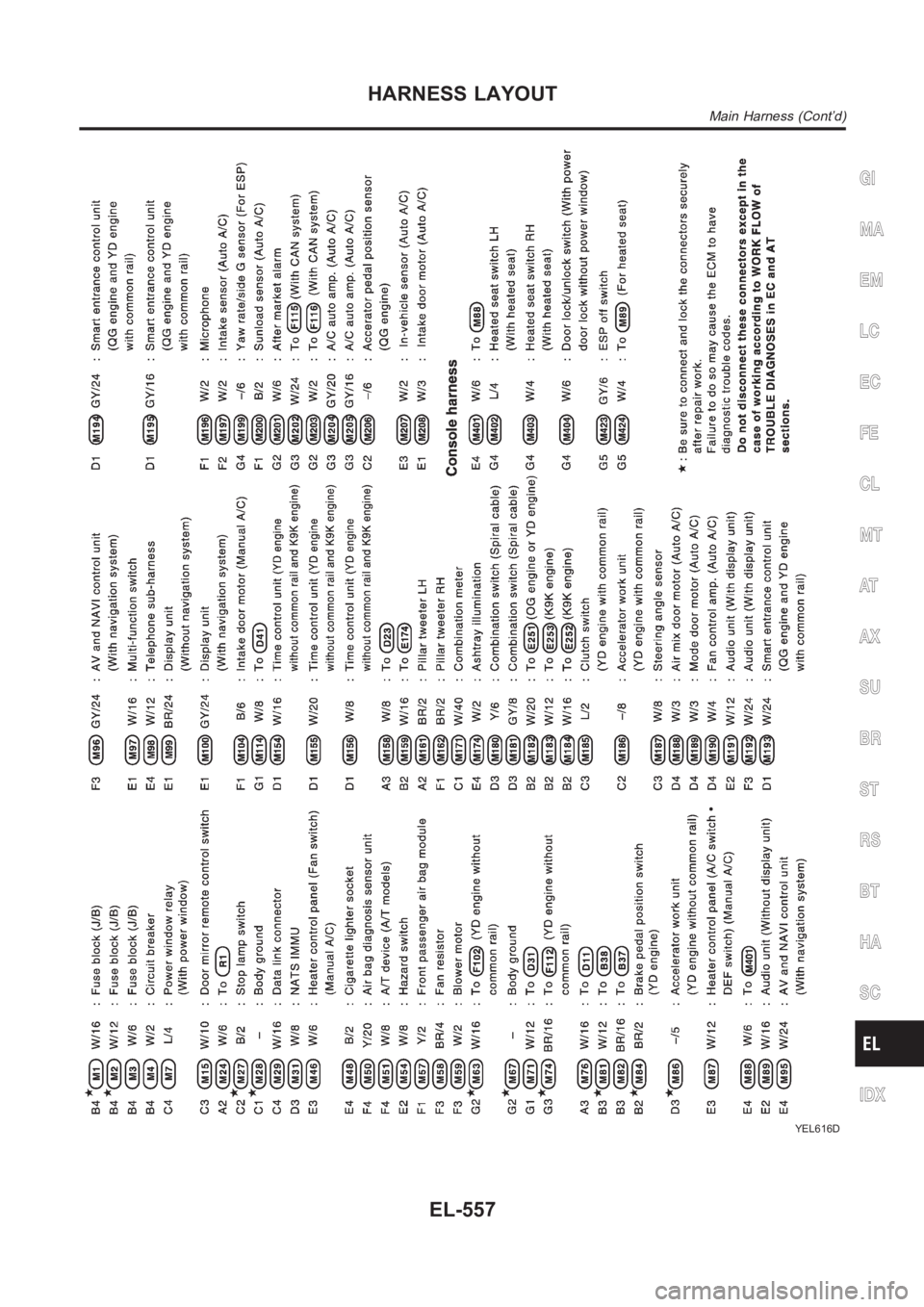

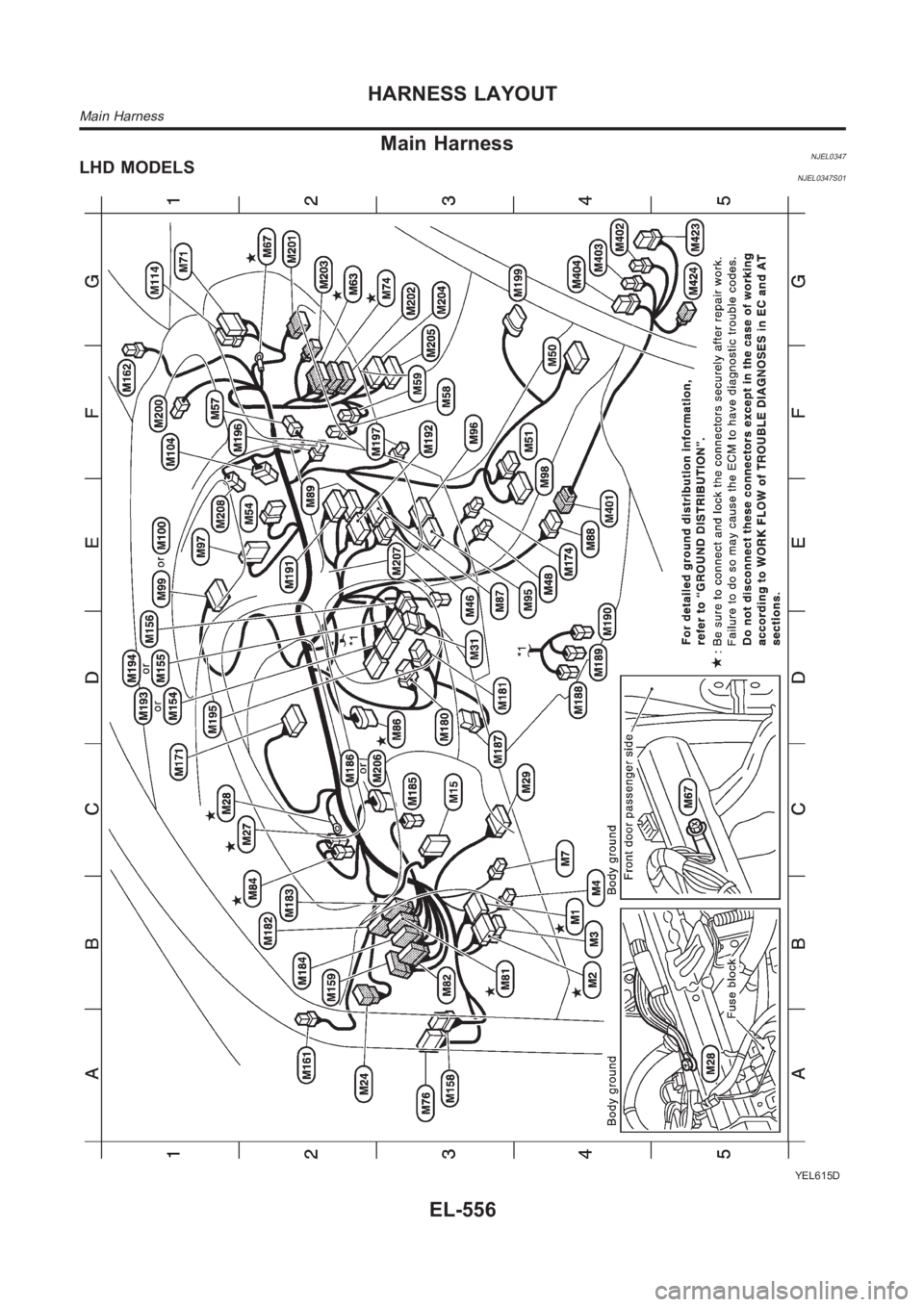

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL616D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX HARNESS LAYOUT Main Harness (Cont’d) EL-557

Page 2894 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual RHD MODELSNJEL0347S02 YEL617D HARNESS LAYOUT Main Harness (Cont’d) EL-558

Page 2895 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL618D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX HARNESS LAYOUT Main Harness (Cont’d) EL-559

Page 2896 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual Engine Room HarnessNJEL0342ENGINE COMPARTMENT — LHD MODELSNJEL0342S01 YEL619D HARNESS LAYOUT Engine Room Harness EL-560

Page 2897 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL620D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX HARNESS LAYOUT Engine Room Harness (Cont’d) EL-561

Page 2898 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual ENGINE COMPARTMENT — RHD MODELSNJEL0342S03 YEL623D HARNESS LAYOUT Engine Room Harness (Cont’d) EL-562

Page 2899 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual YEL624D GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT HA SC IDX HARNESS LAYOUT Engine Room Harness (Cont’d) EL-563

Page 2900 of 3189

NISSAN ALMERA N16 2003 Electronic Repair Manual PASSENGER COMPARTMENT — LHD MODELSNJEL0342S04 YEL625D HARNESS LAYOUT Engine Room Harness (Cont’d) EL-564
