DTC P0340 CMP SENSOR (PHASE)
EC-241
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

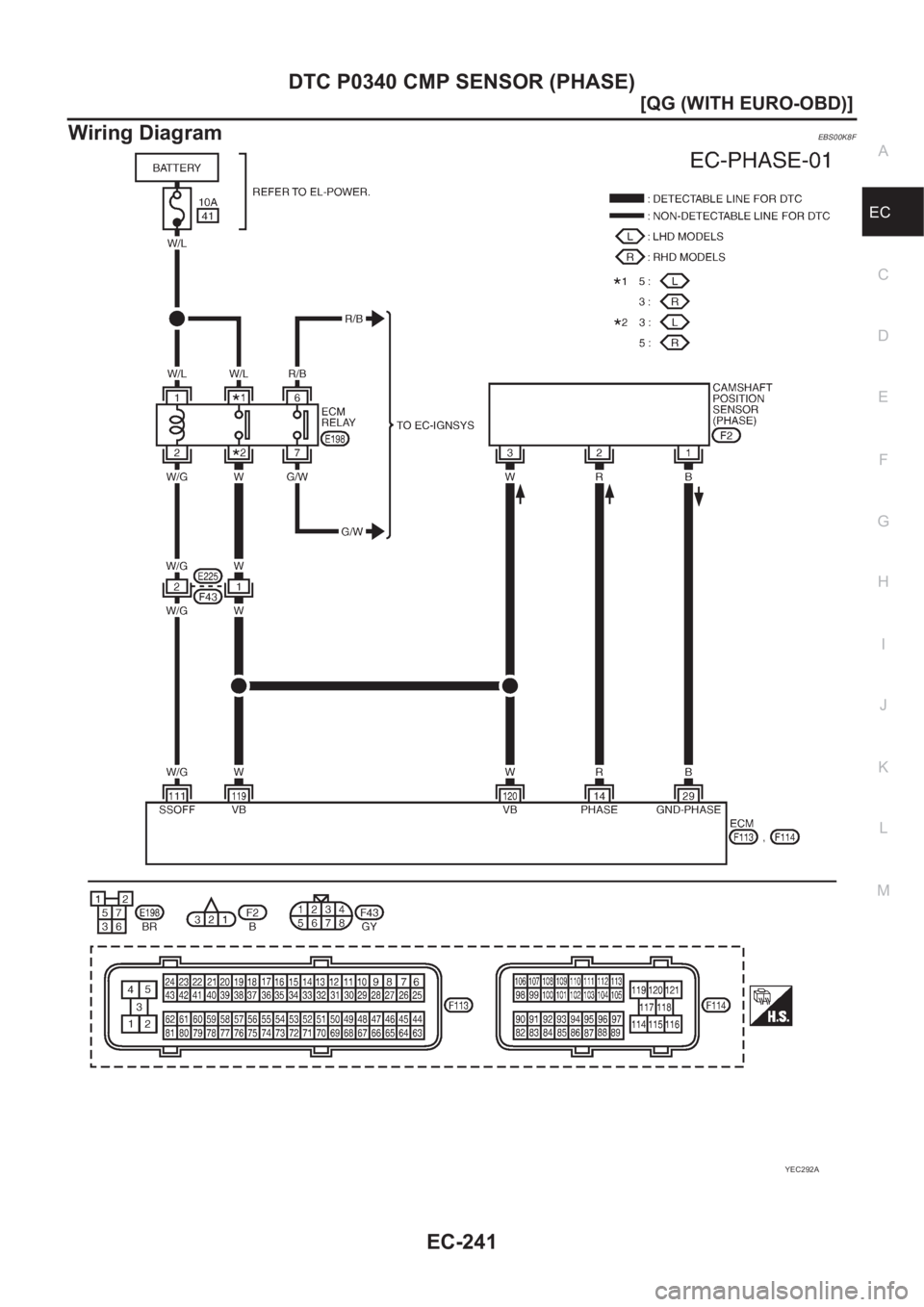

Wiring DiagramEBS00K8F
YEC292A

EC-242
[QG (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

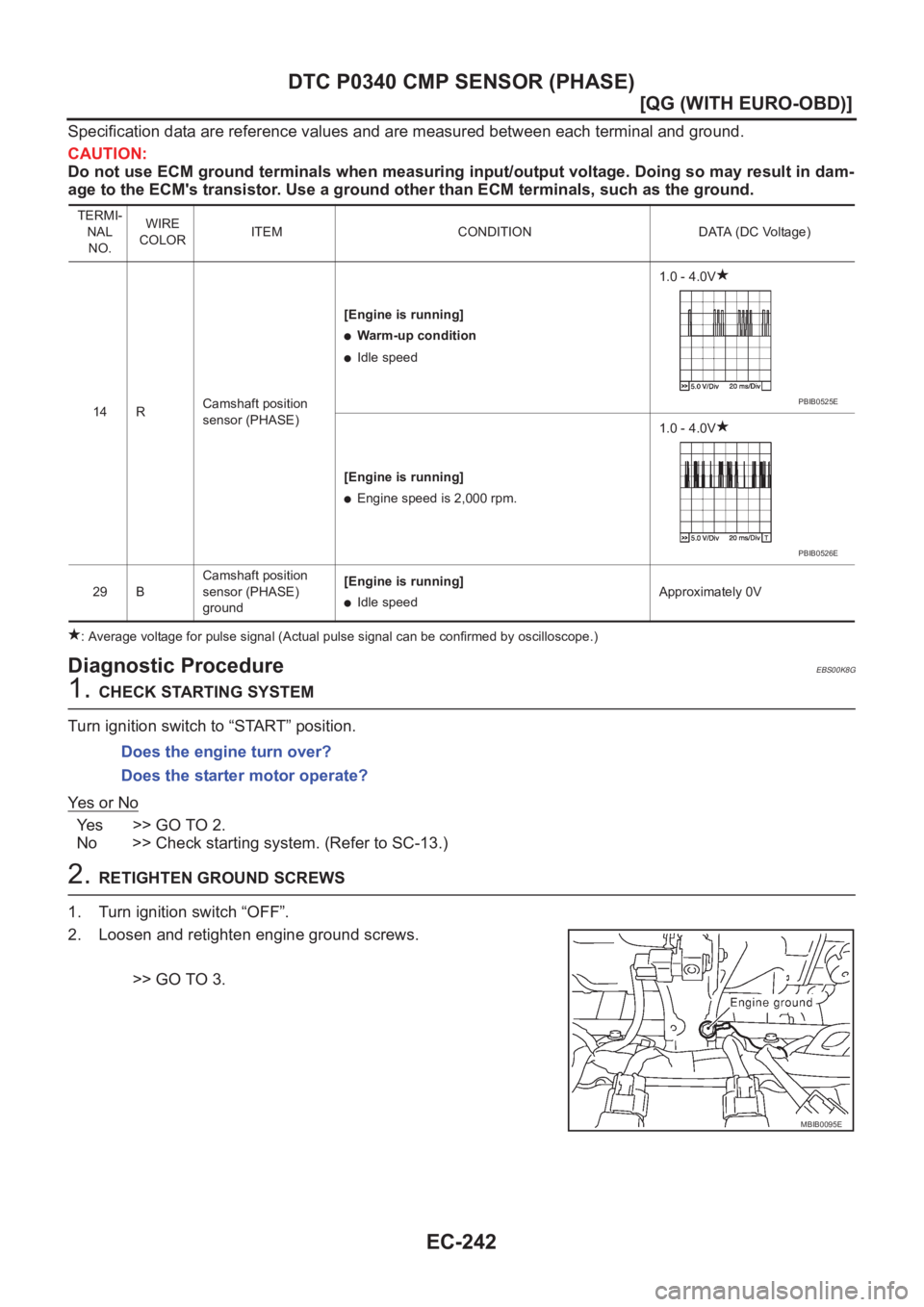

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS00K8G
1. CHECK STARTING SYSTEM
Turn ignition switch to “START” position.
Ye s o r N o
Yes >> GO TO 2.
No >> Check starting system. (Refer to SC-13.)
2. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
14 RCamshaft position
sensor (PHASE)[Engine is running]
●Warm-up condition
●Idle speed1.0 - 4.0V
[Engine is running]
●Engine speed is 2,000 rpm.1.0 - 4.0V
29 BCamshaft position
sensor (PHASE)
ground[Engine is running]
●Idle speedApproximately 0V
PBIB0525E
PBIB0526E
Does the engine turn over?
Does the starter motor operate?
MBIB0095E

DTC P0340 CMP SENSOR (PHASE)
EC-243
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

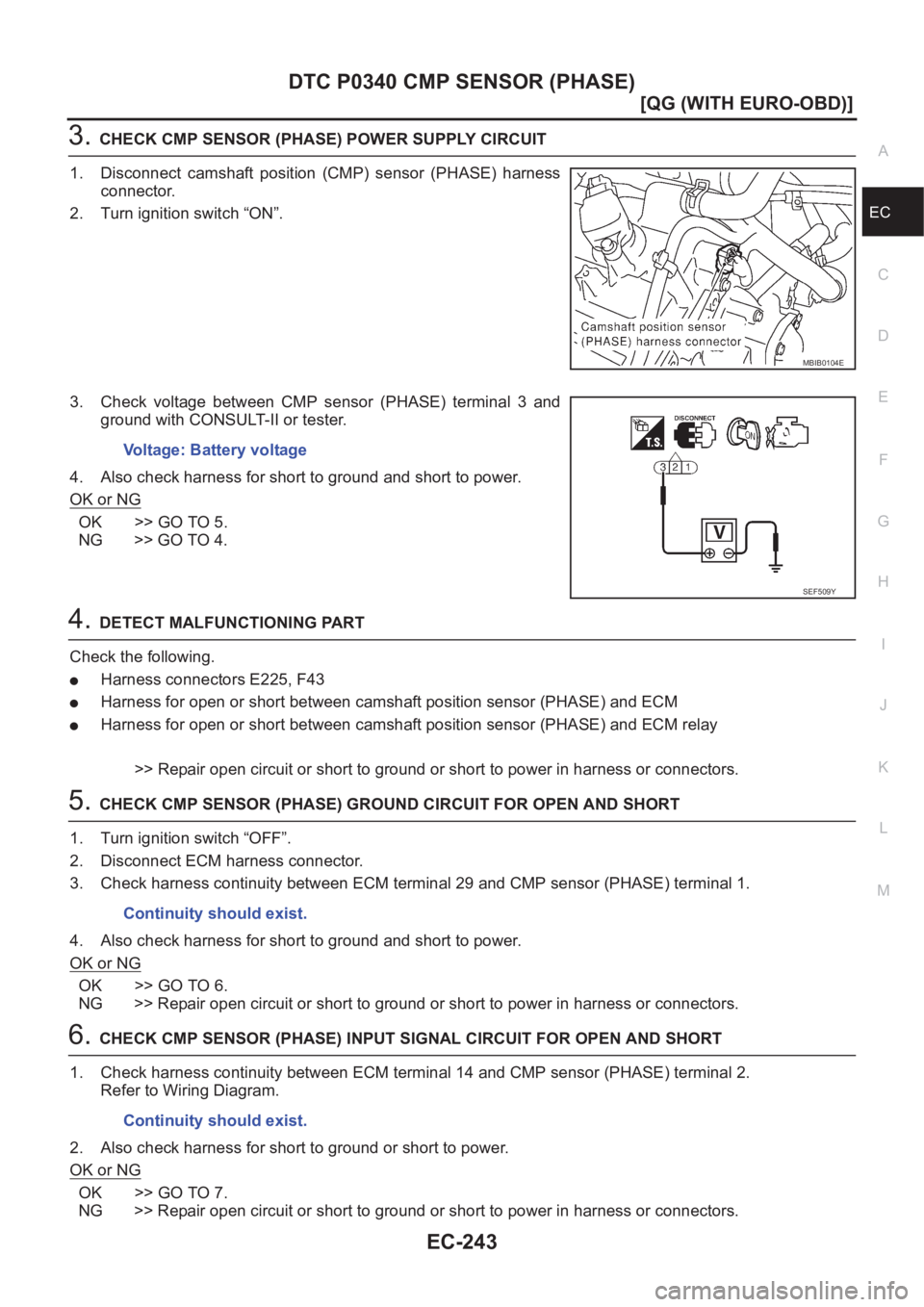

3.CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness
connector.
2. Turn ignition switch “ON”.
3. Check voltage between CMP sensor (PHASE) terminal 3 and
ground with CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●Harness for open or short between camshaft position sensor (PHASE) and ECM
●Harness for open or short between camshaft position sensor (PHASE) and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and CMP sensor (PHASE) terminal 1.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 14 and CMP sensor (PHASE) terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
MBIB0104E
Voltage: Battery voltage
SEF509Y
Continuity should exist.
Continuity should exist.

EC-244
[QG (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

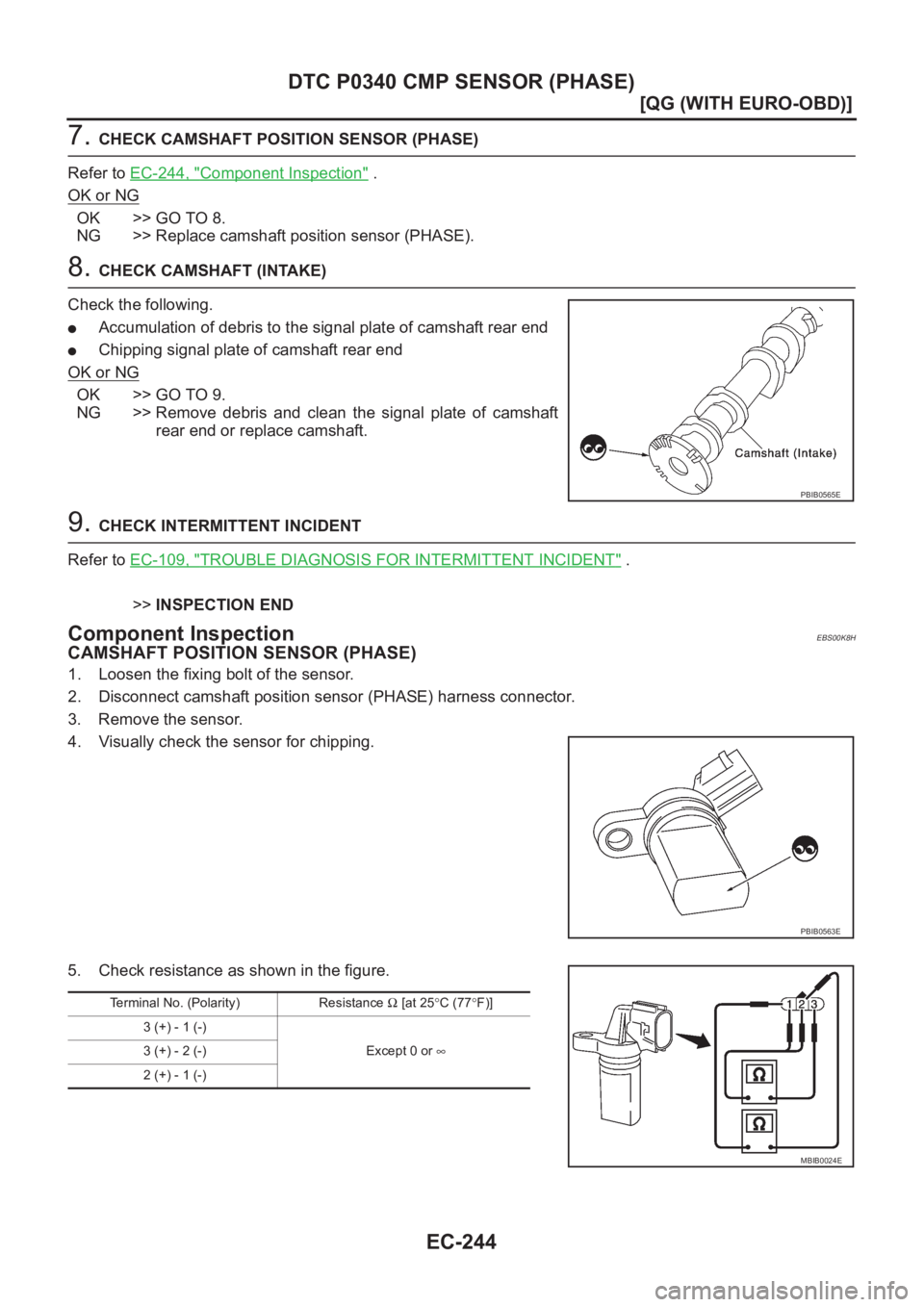

7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-244, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).
8. CHECK CAMSHAFT (INTAKE)
Check the following.
●Accumulation of debris to the signal plate of camshaft rear end
●Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00K8H
CAMSHAFT POSITION SENSOR (PHASE)
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor (PHASE) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
PBIB0565E
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
3 (+) - 1 (-)
Except 0 or ∞ 3 (+) - 2 (-)
2 (+) - 1 (-)
MBIB0024E

DTC P0340 CMP SENSOR (PHASE)
EC-245
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

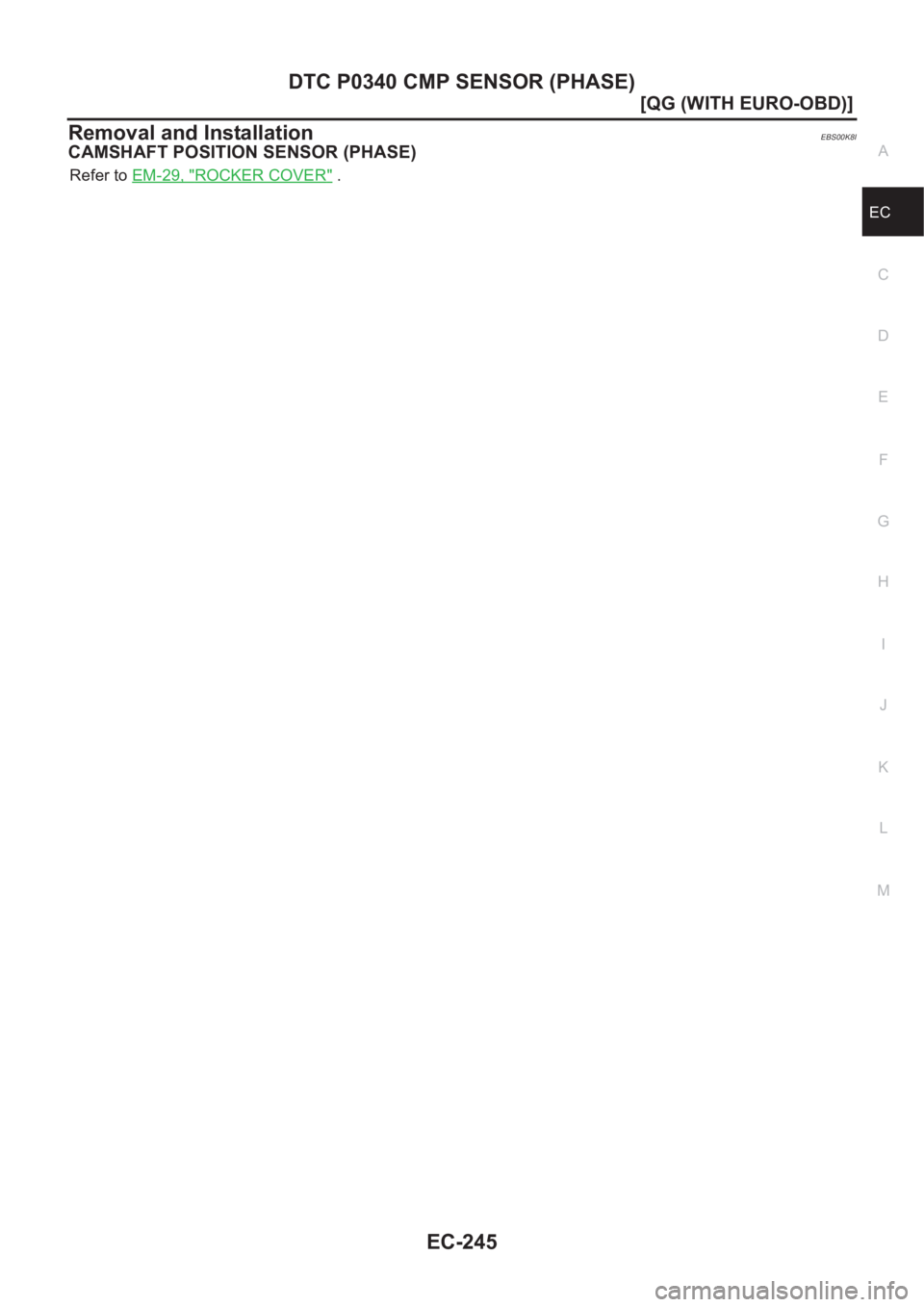

Removal and InstallationEBS00K8I
CAMSHAFT POSITION SENSOR (PHASE)
Refer to EM-29, "ROCKER COVER" .

EC-246
[QG (WITH EURO-OBD)]
DTC P0420 THREE WAY CATALYST FUNCTION
DTC P0420 THREE WAY CATALYST FUNCTION
PFP:20905
On Board Diagnosis LogicEBS00K8J
The ECM monitors the switching frequency ratio of heated oxygen
sensors 1 and 2.
A three way catalyst (Manifold) with high oxygen storage capacity
will indicate a low switching frequency of heated oxygen sensor 2.
As oxygen storage capacity decreases, the heated oxygen sensor 2
switching frequency will increase.
When the frequency ratio of heated oxygen sensors 1 and 2
approaches a specified limit value, the three way catalyst (Manifold)
malfunction is diagnosed.
DTC Confirmation ProcedureEBS00K8K
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
TESTING CONDITION:
●Open engine hood before conducting the following procedure.
●Do not hold engine speed for more than the specified minutes below.
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch ″OFF″ and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Select “DTC & SRT CONFIRMATION” then “SRT WORK SUP-
PORT” mode with CONSULT-II.
6. Rev engine up to 2,500 to 3,500 rpm and hold it for 3 consecu-
tive minutes then release the accelerator pedal completely.
If “INCMP” of “CATALYST” changed to “COMPLT”, go to step 9
7. Wait 5 seconds at idle.
SEF484YF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0420
0420Catalyst system efficiency
below threshold
●Three way catalyst (Manifold) does not operate
properly.
●Three way catalyst (Manifold) does not have
enough oxygen storage capacity.
●Three way catalyst (Manifold)
●Exhaust tube
●Intake air leaks
●Fuel injectors
●Fuel injector leaks
●Spark plug
●Improper ignition timing
PBIB0566E

DTC P0420 THREE WAY CATALYST FUNCTION
EC-247
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

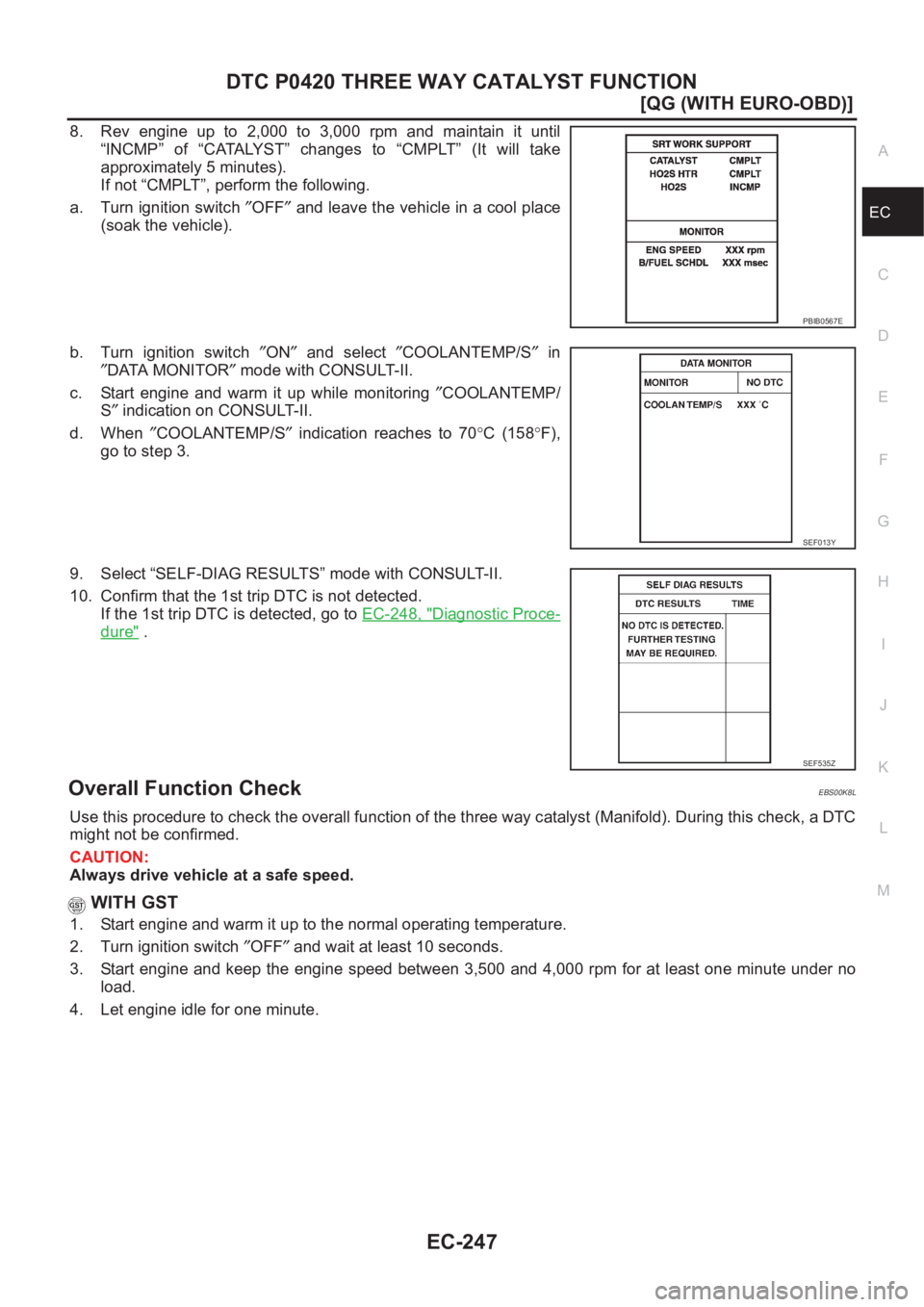

8. Rev engine up to 2,000 to 3,000 rpm and maintain it until
“INCMP” of “CATALYST” changes to “CMPLT” (It will take
approximately 5 minutes).
If not “CMPLT”, perform the following.
a. Turn ignition switch ″OFF″ and leave the vehicle in a cool place
(soak the vehicle).
b. Turn ignition switch ″ON″ and select ″COOLANTEMP/S″ in
″DATA MONITOR″ mode with CONSULT-II.
c. Start engine and warm it up while monitoring ″COOLANTEMP/
S″ indication on CONSULT-II.
d. When ″COOLANTEMP/S″ indication reaches to 70°C (158°F),
go to step 3.
9. Select “SELF-DIAG RESULTS” mode with CONSULT-II.
10. Confirm that the 1st trip DTC is not detected.
If the 1st trip DTC is detected, go to EC-248, "
Diagnostic Proce-
dure" .
Overall Function CheckEBS00K8L
Use this procedure to check the overall function of the three way catalyst (Manifold). During this check, a DTC
might not be confirmed.
CAUTION:
Always drive vehicle at a safe speed.
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch ″OFF″ and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
PBIB0567E
SEF013Y
SEF535Z

EC-248
[QG (WITH EURO-OBD)]
DTC P0420 THREE WAY CATALYST FUNCTION

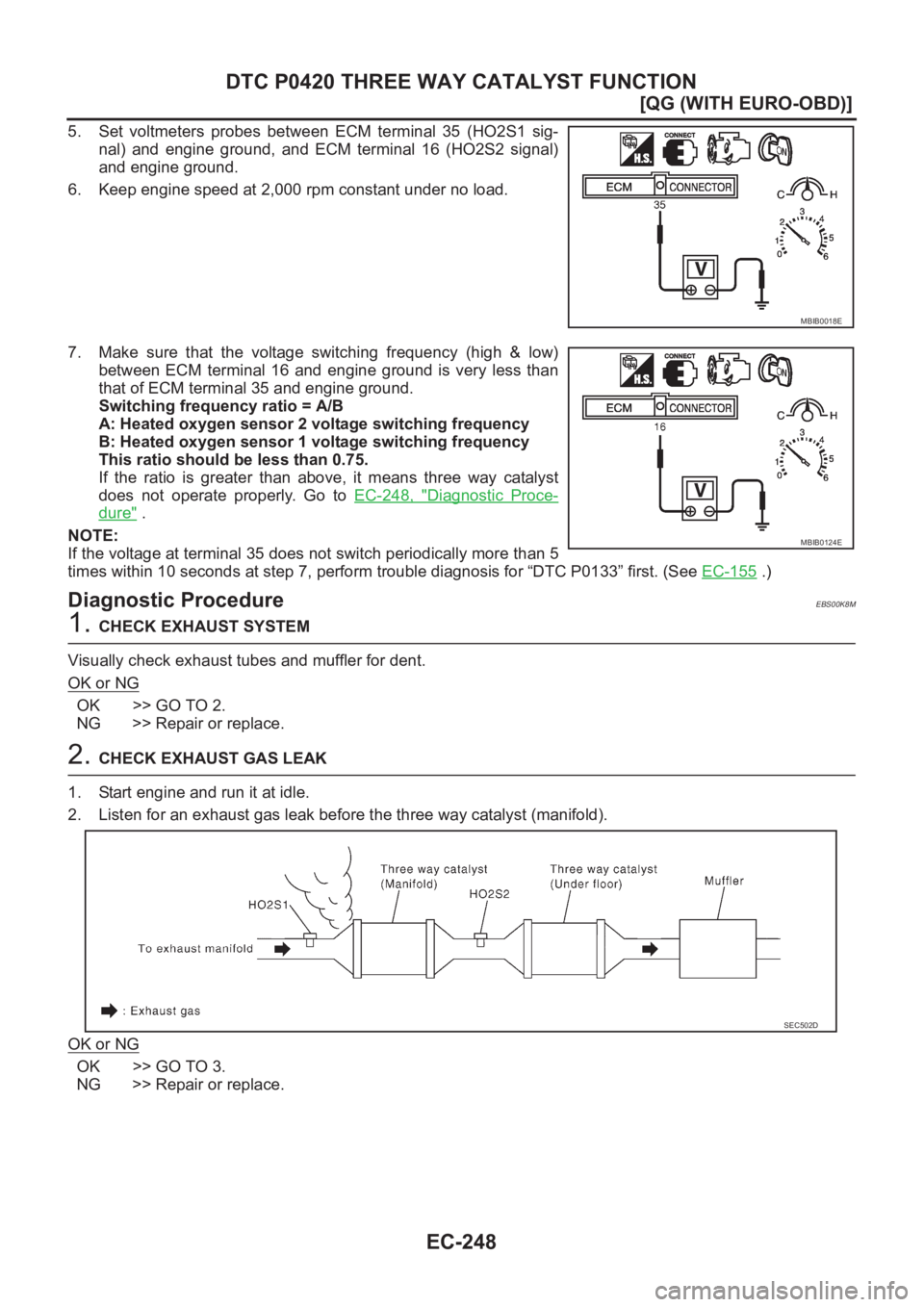

5. Set voltmeters probes between ECM terminal 35 (HO2S1 sig-
nal) and engine ground, and ECM terminal 16 (HO2S2 signal)
and engine ground.
6. Keep engine speed at 2,000 rpm constant under no load.
7. Make sure that the voltage switching frequency (high & low)
between ECM terminal 16 and engine ground is very less than
that of ECM terminal 35 and engine ground.
Switching frequency ratio = A/B
A: Heated oxygen sensor 2 voltage switching frequency
B: Heated oxygen sensor 1 voltage switching frequency
This ratio should be less than 0.75.
If the ratio is greater than above, it means three way catalyst
does not operate properly. Go to EC-248, "
Diagnostic Proce-
dure" .
NOTE:
If the voltage at terminal 35 does not switch periodically more than 5
times within 10 seconds at step 7, perform trouble diagnosis for “DTC P0133” first. (See EC-155
.)
Diagnostic ProcedureEBS00K8M
1. CHECK EXHAUST SYSTEM
Visually check exhaust tubes and muffler for dent.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before the three way catalyst (manifold).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
MBIB0018E
MBIB0124E
SEC502D

DTC P0420 THREE WAY CATALYST FUNCTION
EC-249
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

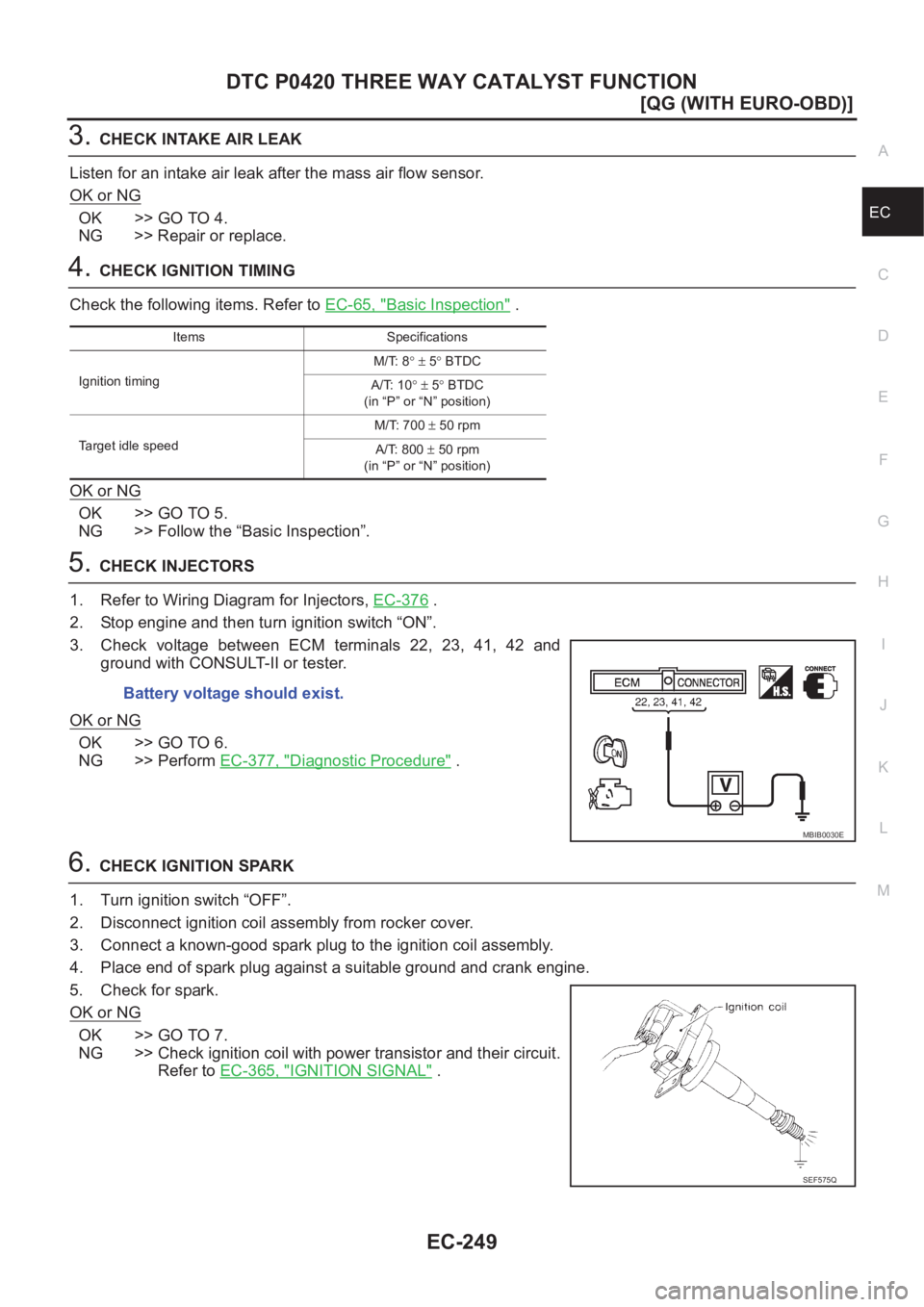

3.CHECK INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
4.CHECK IGNITION TIMING
Check the following items. Refer to EC-65, "
Basic Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Follow the “Basic Inspection”.
5.CHECK INJECTORS
1. Refer to Wiring Diagram for Injectors, EC-376
.
2. Stop engine and then turn ignition switch “ON”.
3. Check voltage between ECM terminals 22, 23, 41, 42 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> Perform EC-377, "
Diagnostic Procedure" .
6.CHECK IGNITION SPARK
1. Turn ignition switch “OFF”.
2. Disconnect ignition coil assembly from rocker cover.
3. Connect a known-good spark plug to the ignition coil assembly.
4. Place end of spark plug against a suitable ground and crank engine.
5. Check for spark.
OK or NG
OK >> GO TO 7.
NG >> Check ignition coil with power transistor and their circuit.
Refer to EC-365, "
IGNITION SIGNAL" .
Items Specifications
Ignition timingM/T: 8°± 5° BTDC
A/T: 10°± 5° BTDC
(in “P” or “N” position)
Target idle speedM/T: 700 ± 50 rpm
A/T: 800 ± 50 rpm
(in “P” or “N” position)
Battery voltage should exist.
MBIB0030E
SEF575Q

EC-250
[QG (WITH EURO-OBD)]
DTC P0420 THREE WAY CATALYST FUNCTION

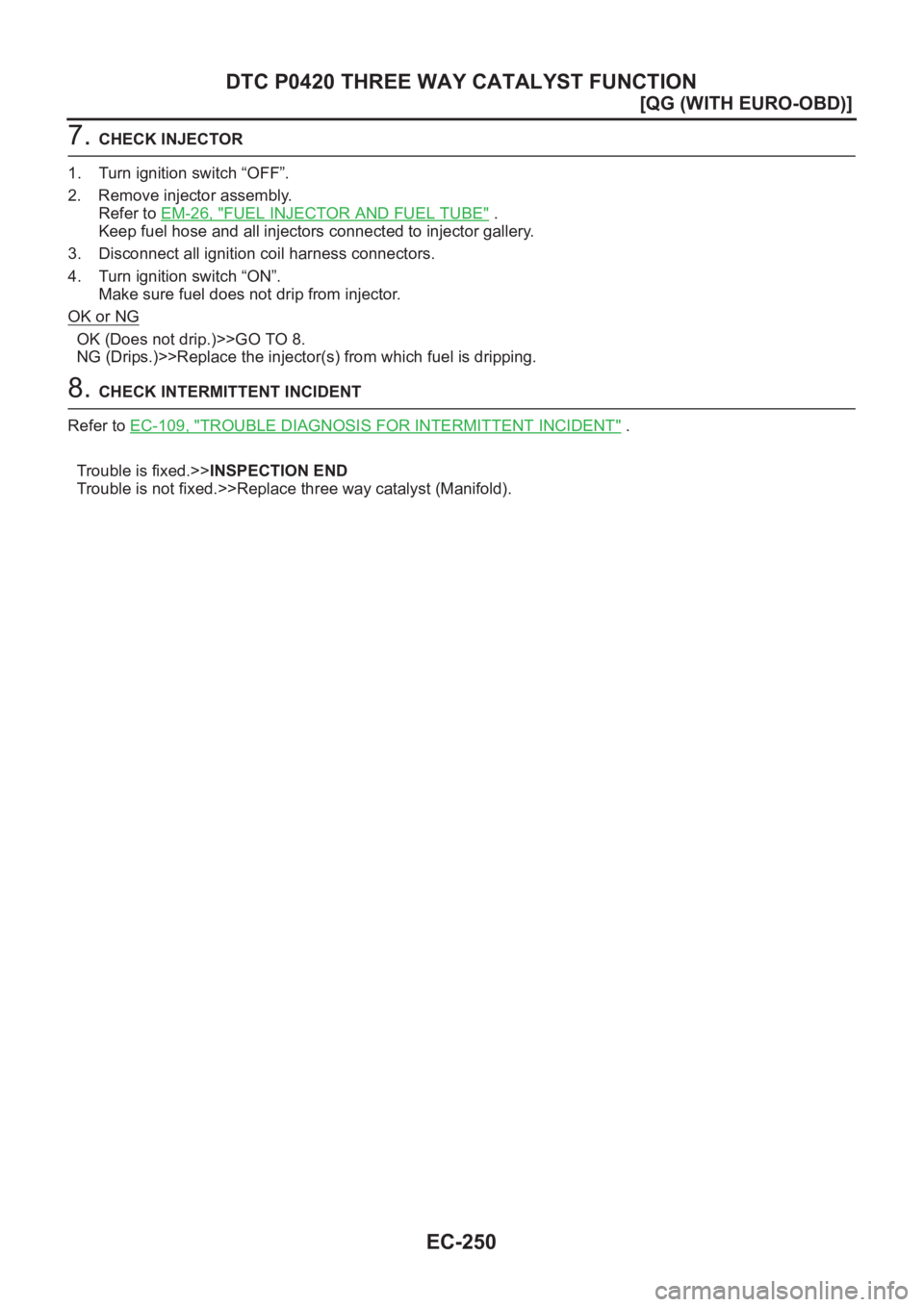

7. CHECK INJECTOR
1. Turn ignition switch “OFF”.
2. Remove injector assembly.
Refer to EM-26, "
FUEL INJECTOR AND FUEL TUBE" .
Keep fuel hose and all injectors connected to injector gallery.
3. Disconnect all ignition coil harness connectors.
4. Turn ignition switch “ON”.
Make sure fuel does not drip from injector.
OK or NG
OK (Does not drip.)>>GO TO 8.
NG (Drips.)>>Replace the injector(s) from which fuel is dripping.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Trouble is fixed.>>INSPECTION END
Trouble is not fixed.>>Replace three way catalyst (Manifold).
