DTC P0226 APP SENSOR
EC-211
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0226 APP SENSORPFP:18002

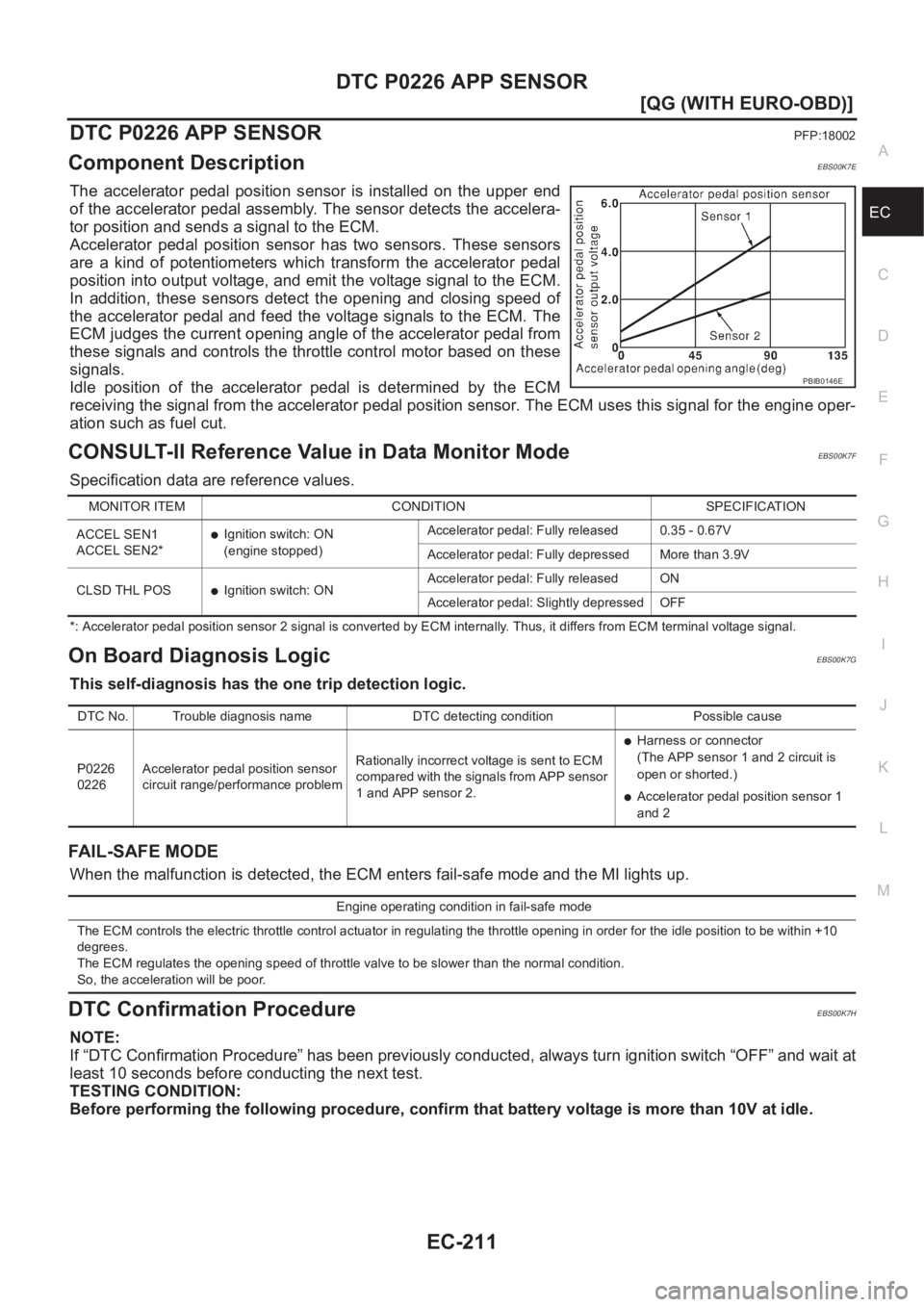

Component DescriptionEBS00K7E
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00K7F
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicEBS00K7G
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00K7H
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
ACCEL SEN2*
●Ignition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.35 - 0.67V
Accelerator pedal: Fully depressed More than 3.9V
CLSD THL POS
●Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0226
0226Accelerator pedal position sensor
circuit range/performance problemRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.
●Harness or connector
(The APP sensor 1 and 2 circuit is
open or shorted.)
●Accelerator pedal position sensor 1
and 2
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 542 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-212
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. NISSAN ALMERA N16 2003 Electronic Repair Manual EC-212
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4.](/img/5/57350/w960_57350-541.png)
EC-212
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-214, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 543 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-213
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

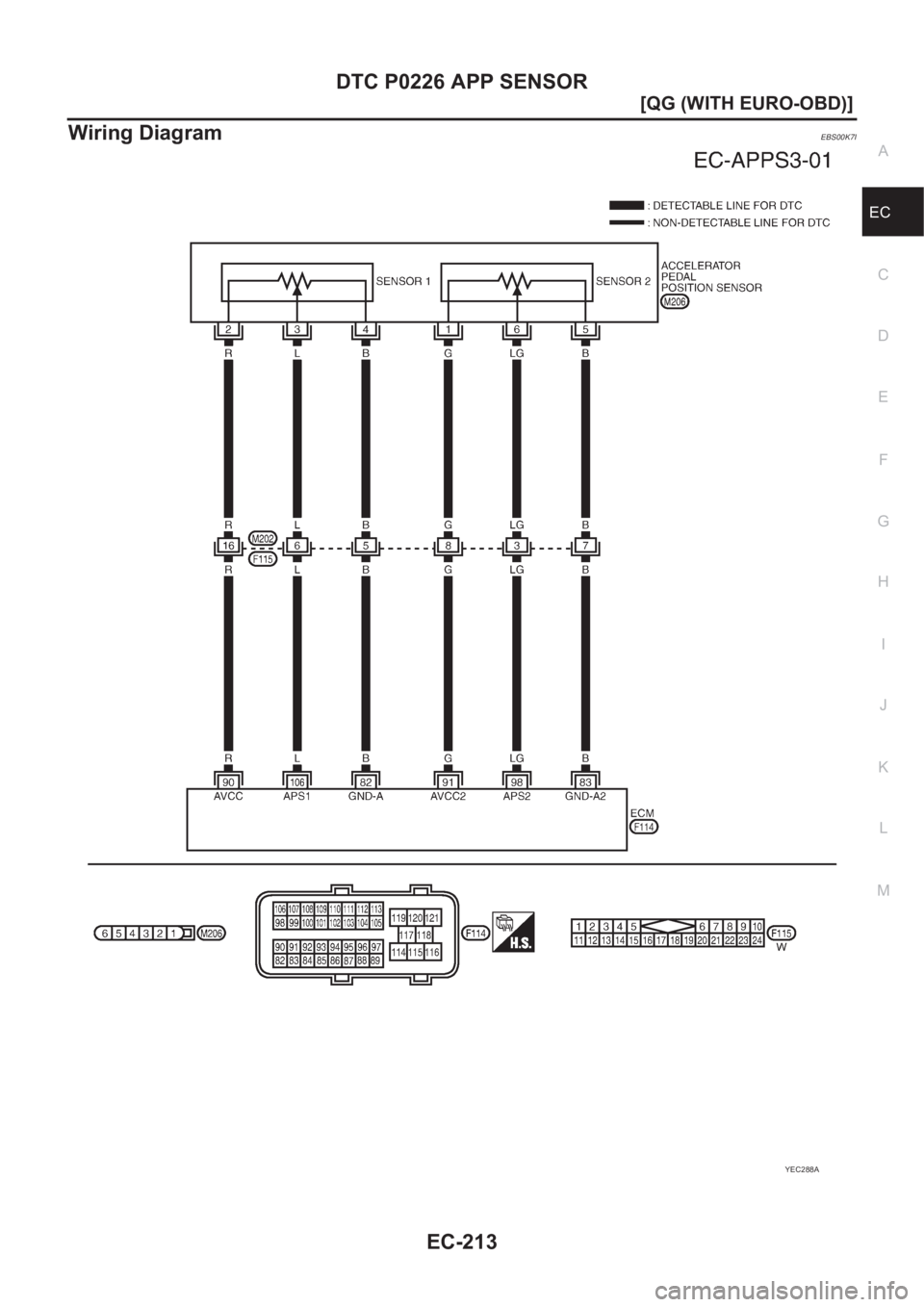

Wiring DiagramEBS00K7I
YEC288A NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-213
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00K7I
YEC288A](/img/5/57350/w960_57350-542.png)
DTC P0226 APP SENSOR
EC-213
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00K7I
YEC288A
Page 544 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-214
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR

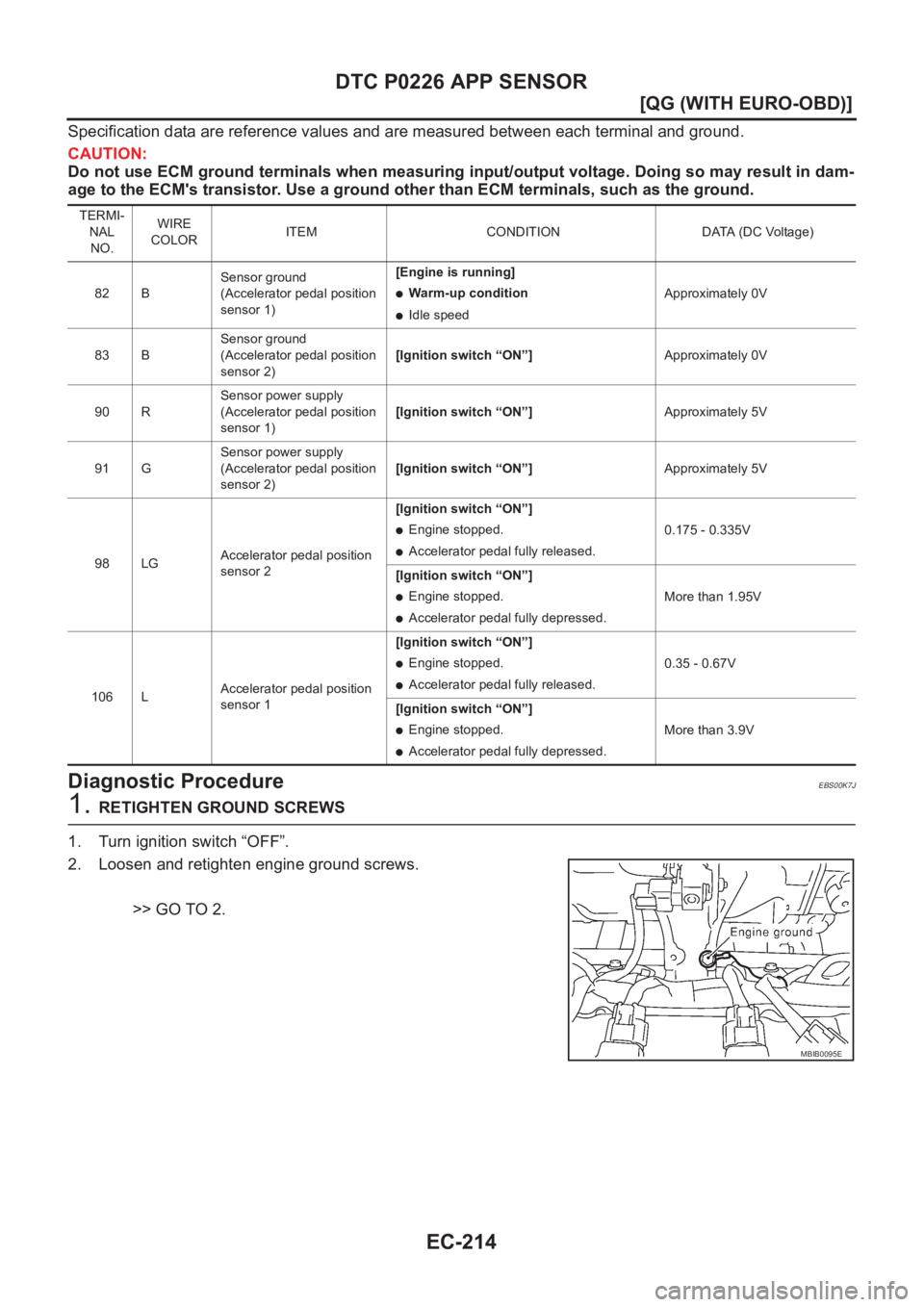

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring inpu NISSAN ALMERA N16 2003 Electronic Repair Manual EC-214
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring inpu](/img/5/57350/w960_57350-543.png)
EC-214
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00K7J
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 BSensor ground
(Accelerator pedal position
sensor 1)[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
83 BSensor ground
(Accelerator pedal position
sensor 2)[Ignition switch “ON”]Approximately 0V
90 RSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch “ON”]Approximately 5V
91 GSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch “ON”]Approximately 5V
98 LGAccelerator pedal position
sensor 2[Ignition switch “ON”]
●Engine stopped.
●Accelerator pedal fully released.0.175 - 0.335V
[Ignition switch “ON”]
●Engine stopped.
●Accelerator pedal fully depressed.More than 1.95V
106 LAccelerator pedal position
sensor 1[Ignition switch “ON”]
●Engine stopped.
●Accelerator pedal fully released.0.35 - 0.67V
[Ignition switch “ON”]
●Engine stopped.
●Accelerator pedal fully depressed.More than 3.9V
MBIB0095E
Page 545 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-215
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK APP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Tur NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-215
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK APP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Tur](/img/5/57350/w960_57350-544.png)
DTC P0226 APP SENSOR
EC-215
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

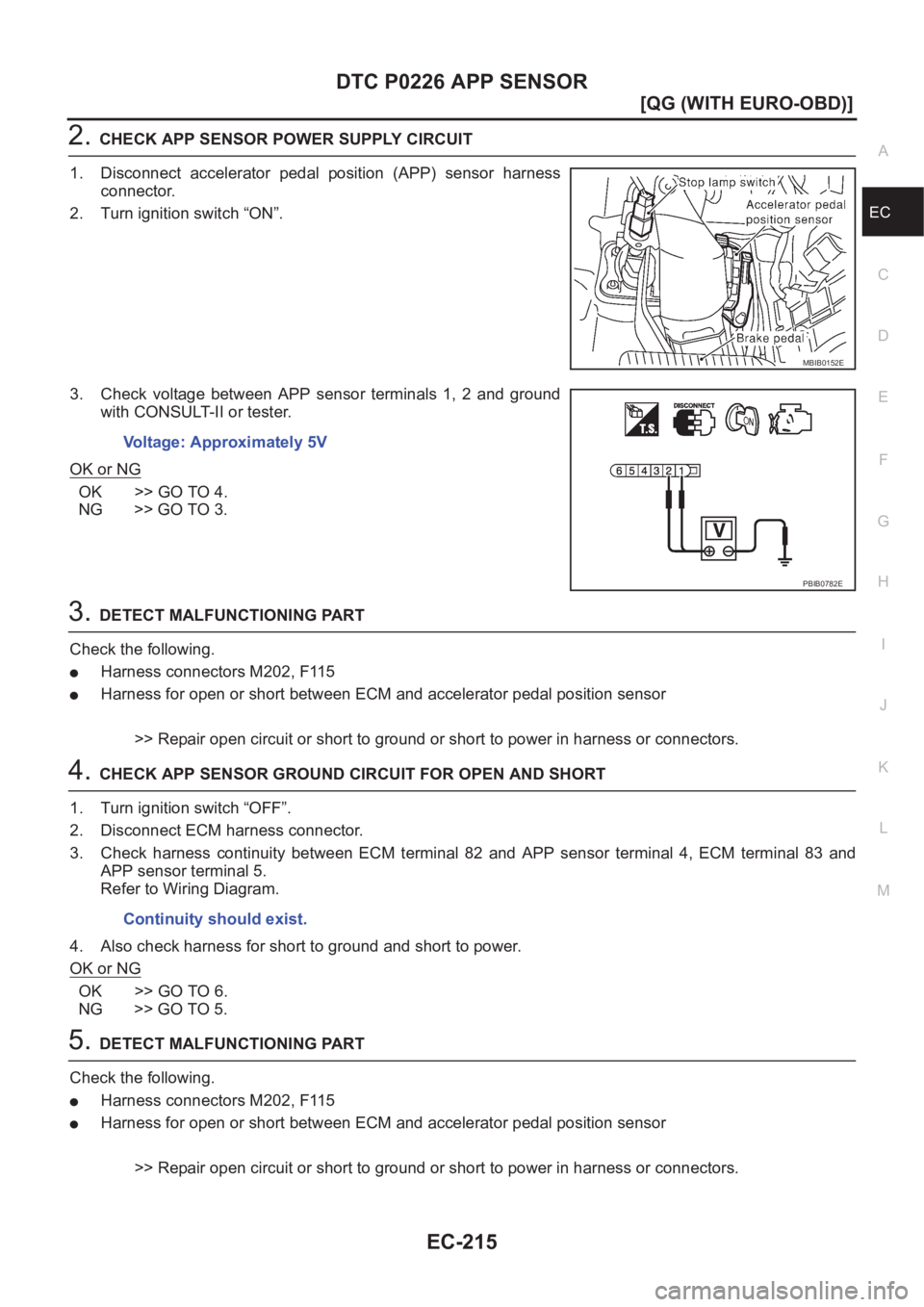

2.CHECK APP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch “ON”.
3. Check voltage between APP sensor terminals 1, 2 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 82 and APP sensor terminal 4, ECM terminal 83 and
APP sensor terminal 5.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
MBIB0152E
Voltage: Approximately 5V
PBIB0782E
Continuity should exist.
Page 546 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-216
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
6. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 3, EC NISSAN ALMERA N16 2003 Electronic Repair Manual EC-216
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR
6. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 3, EC](/img/5/57350/w960_57350-545.png)
EC-216
[QG (WITH EURO-OBD)]
DTC P0226 APP SENSOR

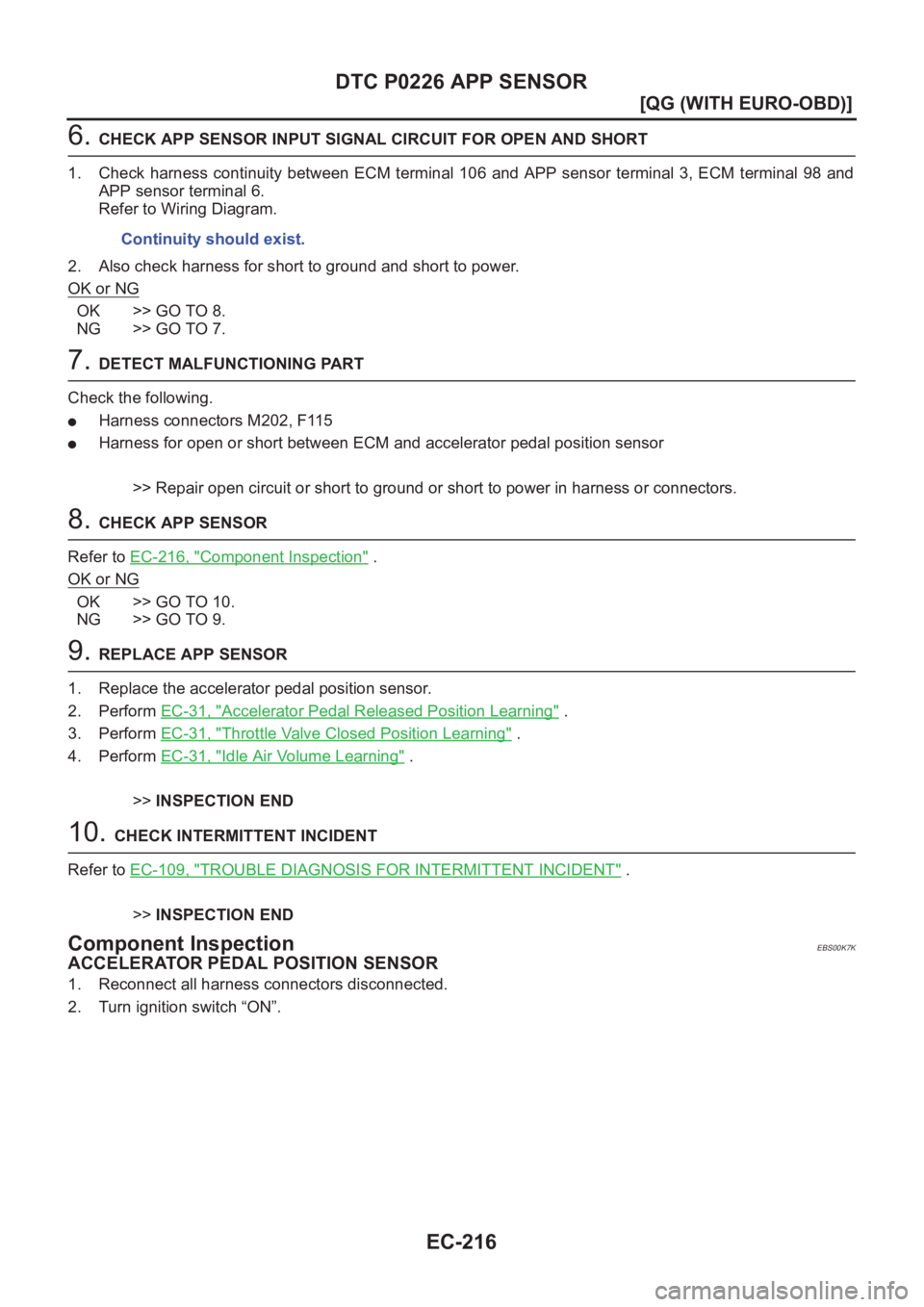

6. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 3, ECM terminal 98 and
APP sensor terminal 6.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK APP SENSOR
Refer to EC-216, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. REPLACE APP SENSOR
1. Replace the accelerator pedal position sensor.
2. Perform EC-31, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-31, "
Throttle Valve Closed Position Learning" .
4. Perform EC-31, "
Idle Air Volume Learning" .
>>INSPECTION END
10. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00K7K
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch “ON”.Continuity should exist.
Page 547 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-217
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

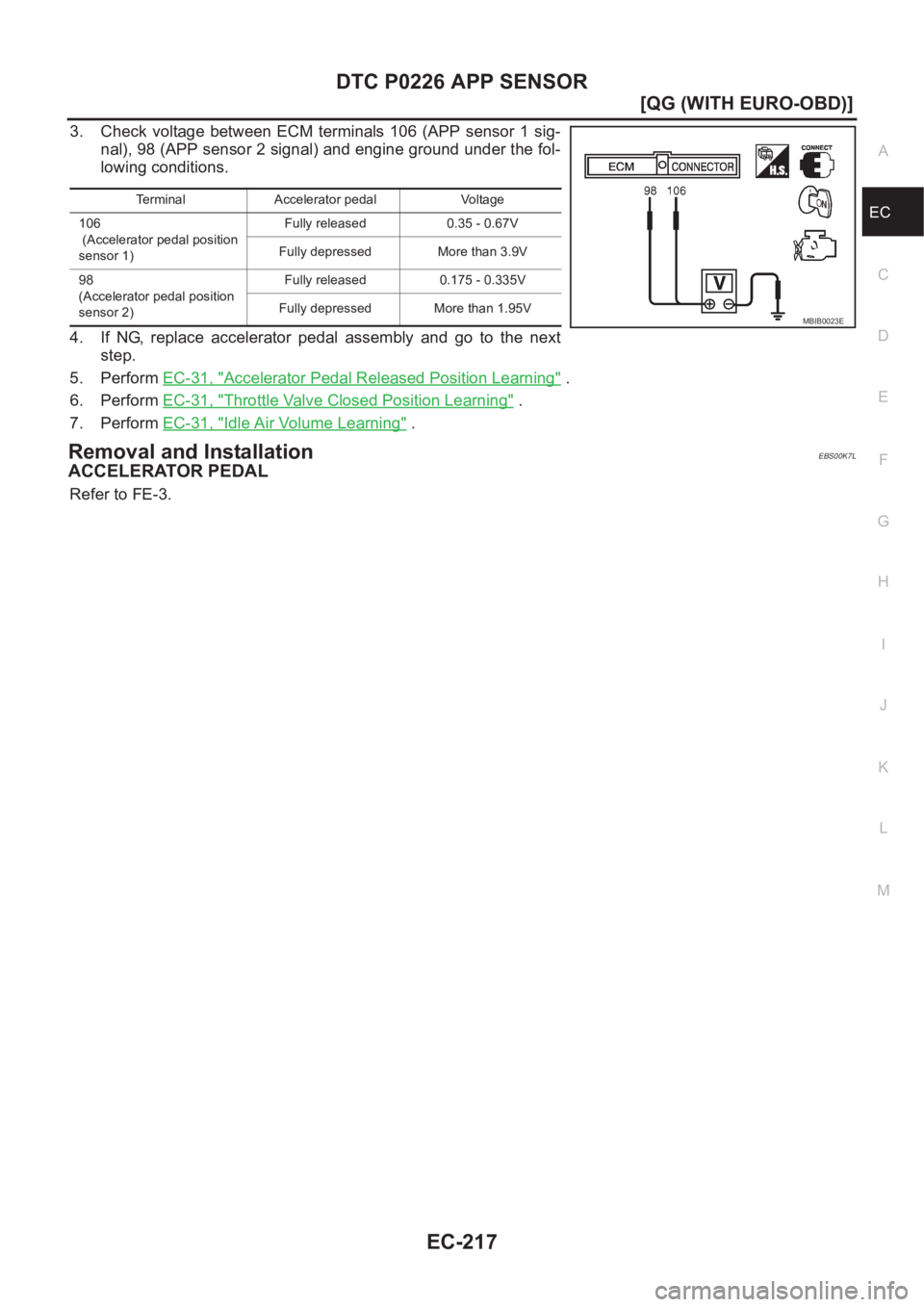

3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and engine ground under the fo NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0226 APP SENSOR
EC-217
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and engine ground under the fo](/img/5/57350/w960_57350-546.png)
DTC P0226 APP SENSOR
EC-217
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and engine ground under the fol-
lowing conditions.
4. If NG, replace accelerator pedal assembly and go to the next
step.
5. Perform EC-31, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-31, "
Throttle Valve Closed Position Learning" .
7. Perform EC-31, "
Idle Air Volume Learning" .
Removal and InstallationEBS00K7L
ACCELERATOR PEDAL
Refer to FE-3.
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.35 - 0.67V
Fully depressed More than 3.9V
98
(Accelerator pedal position
sensor 2)Fully released 0.175 - 0.335V
Fully depressed More than 1.95V
MBIB0023E
Page 548 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-218
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
DTC P0227, P0228 APP SENSOR
PFP:18002
Component DescriptionEBS00K7M
The accelerator pedal position sensor is installed on the upper end NISSAN ALMERA N16 2003 Electronic Repair Manual EC-218
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
DTC P0227, P0228 APP SENSOR
PFP:18002
Component DescriptionEBS00K7M
The accelerator pedal position sensor is installed on the upper end](/img/5/57350/w960_57350-547.png)
EC-218
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
DTC P0227, P0228 APP SENSOR
PFP:18002

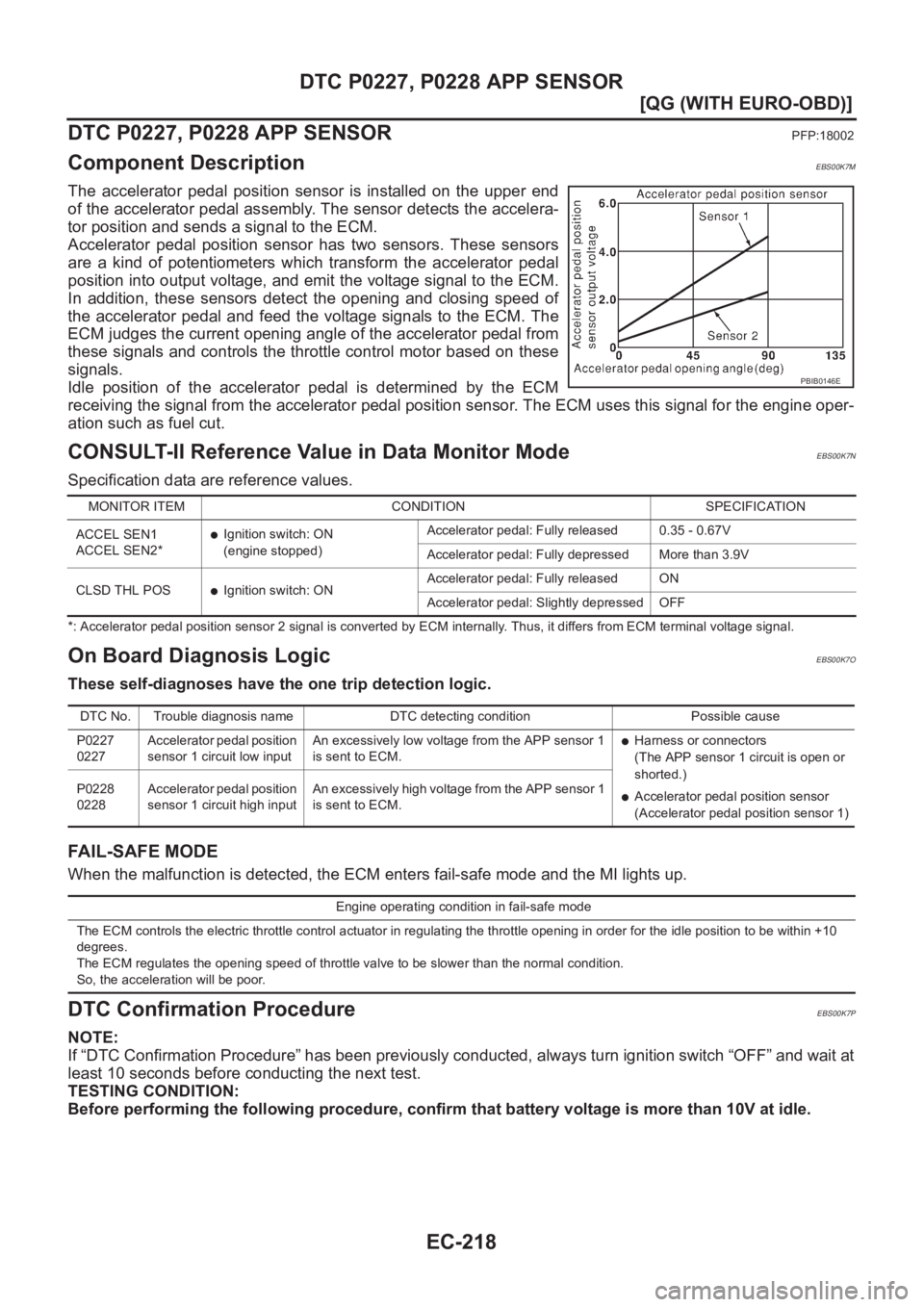

Component DescriptionEBS00K7M
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00K7N
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicEBS00K7O
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00K7P
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
ACCEL SEN2*
●Ignition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.35 - 0.67V
Accelerator pedal: Fully depressed More than 3.9V
CLSD THL POS
●Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0227
0227Accelerator pedal position
sensor 1 circuit low inputAn excessively low voltage from the APP sensor 1
is sent to ECM.
●Harness or connectors
(The APP sensor 1 circuit is open or
shorted.)
●Accelerator pedal position sensor
(Accelerator pedal position sensor 1) P0228
0228Accelerator pedal position
sensor 1 circuit high inputAn excessively high voltage from the APP sensor 1
is sent to ECM.
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 549 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0227, P0228 APP SENSOR
EC-219
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine NISSAN ALMERA N16 2003 Electronic Repair Manual DTC P0227, P0228 APP SENSOR
EC-219
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine](/img/5/57350/w960_57350-548.png)
DTC P0227, P0228 APP SENSOR
EC-219
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
WITH CONSULT-II

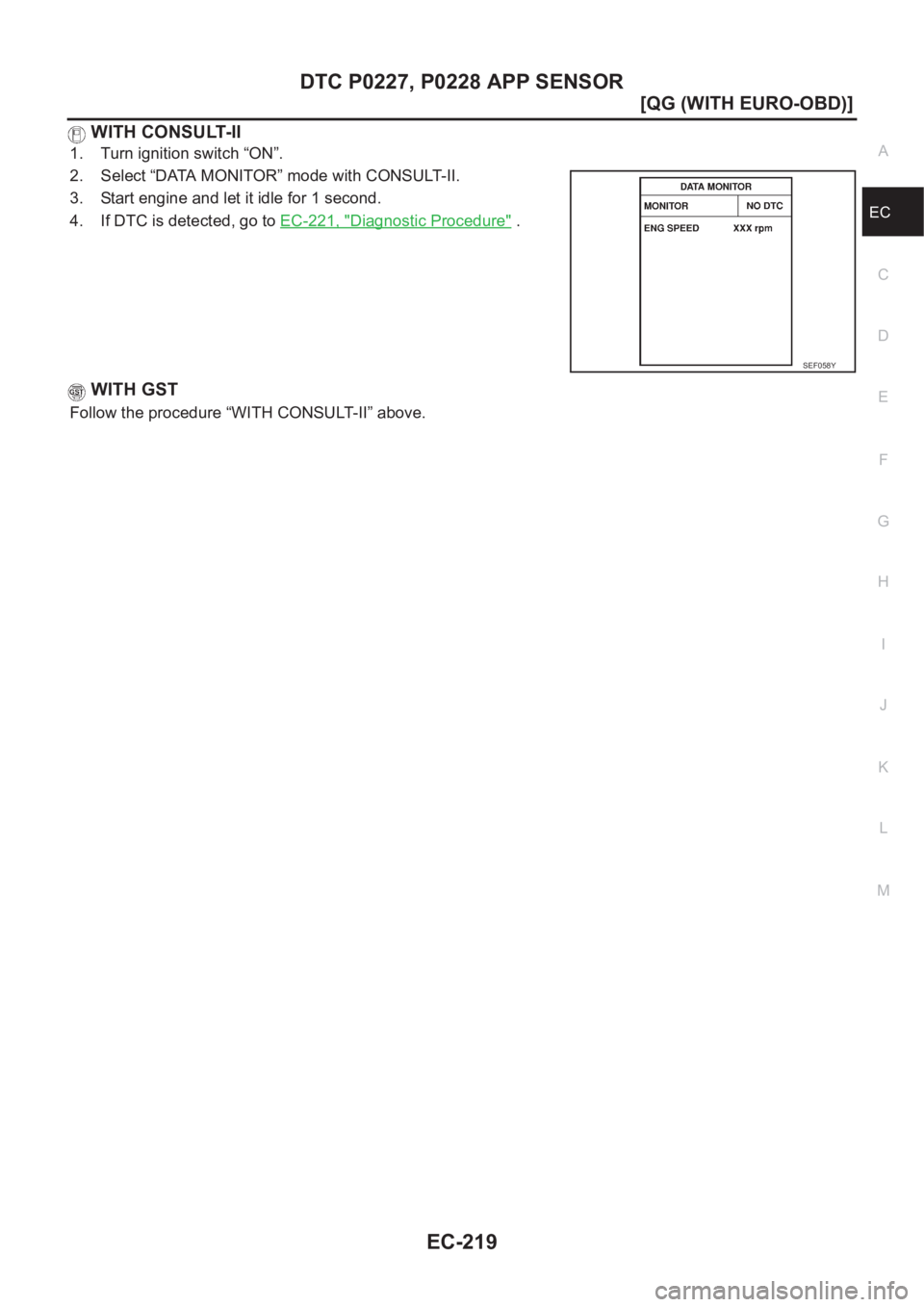

1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-221, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 550 of 3189
![NISSAN ALMERA N16 2003 Electronic Repair Manual EC-220
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
Wiring Diagram
EBS00K7Q
YEC289A NISSAN ALMERA N16 2003 Electronic Repair Manual EC-220
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR
Wiring Diagram
EBS00K7Q
YEC289A](/img/5/57350/w960_57350-549.png)
EC-220
[QG (WITH EURO-OBD)]
DTC P0227, P0228 APP SENSOR

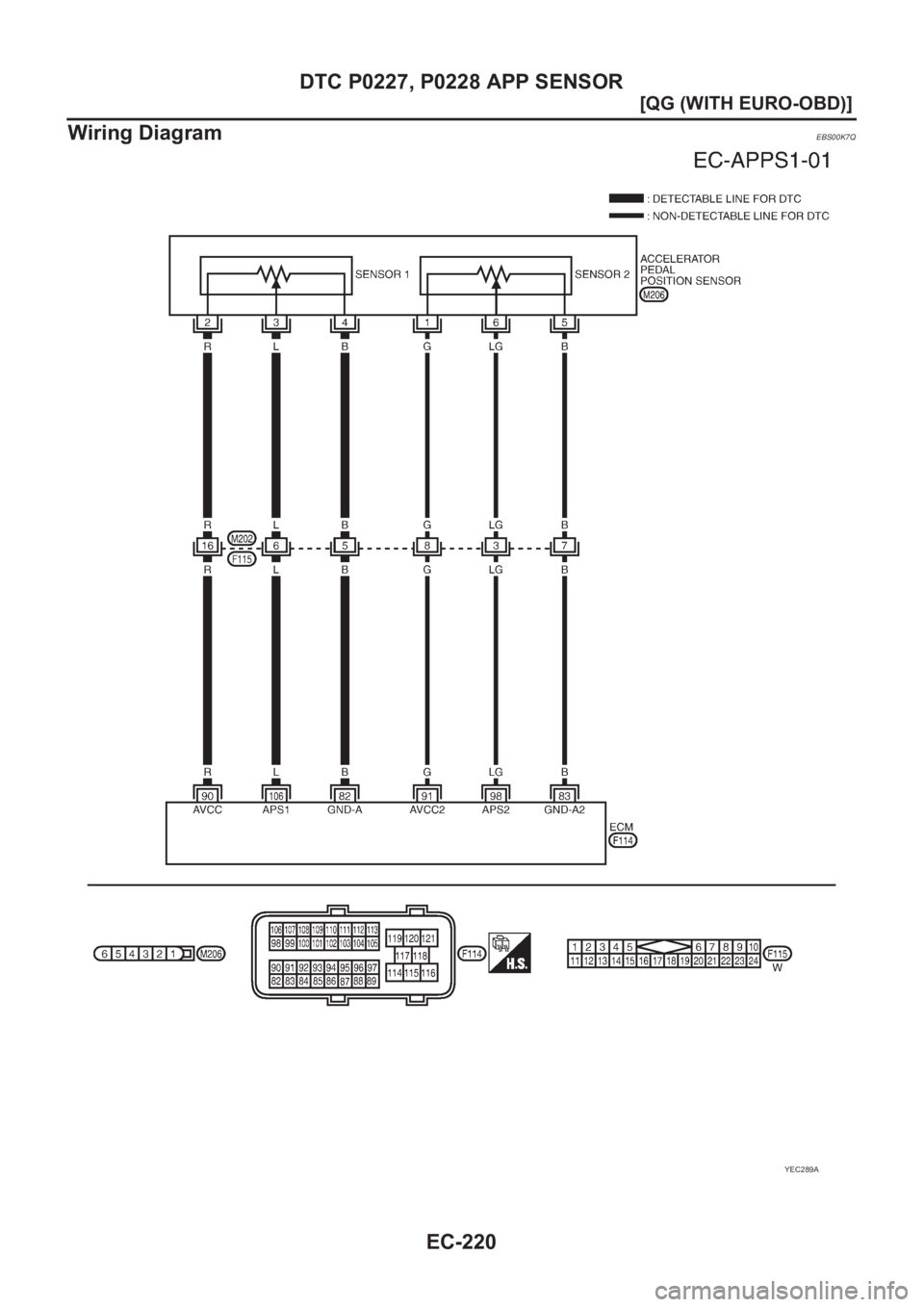

Wiring Diagram
EBS00K7Q
YEC289A
