NISSAN ALMERA N16 2003 Electronic Repair Manual

DTC P0550 PSP SENSOR
EC-261
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

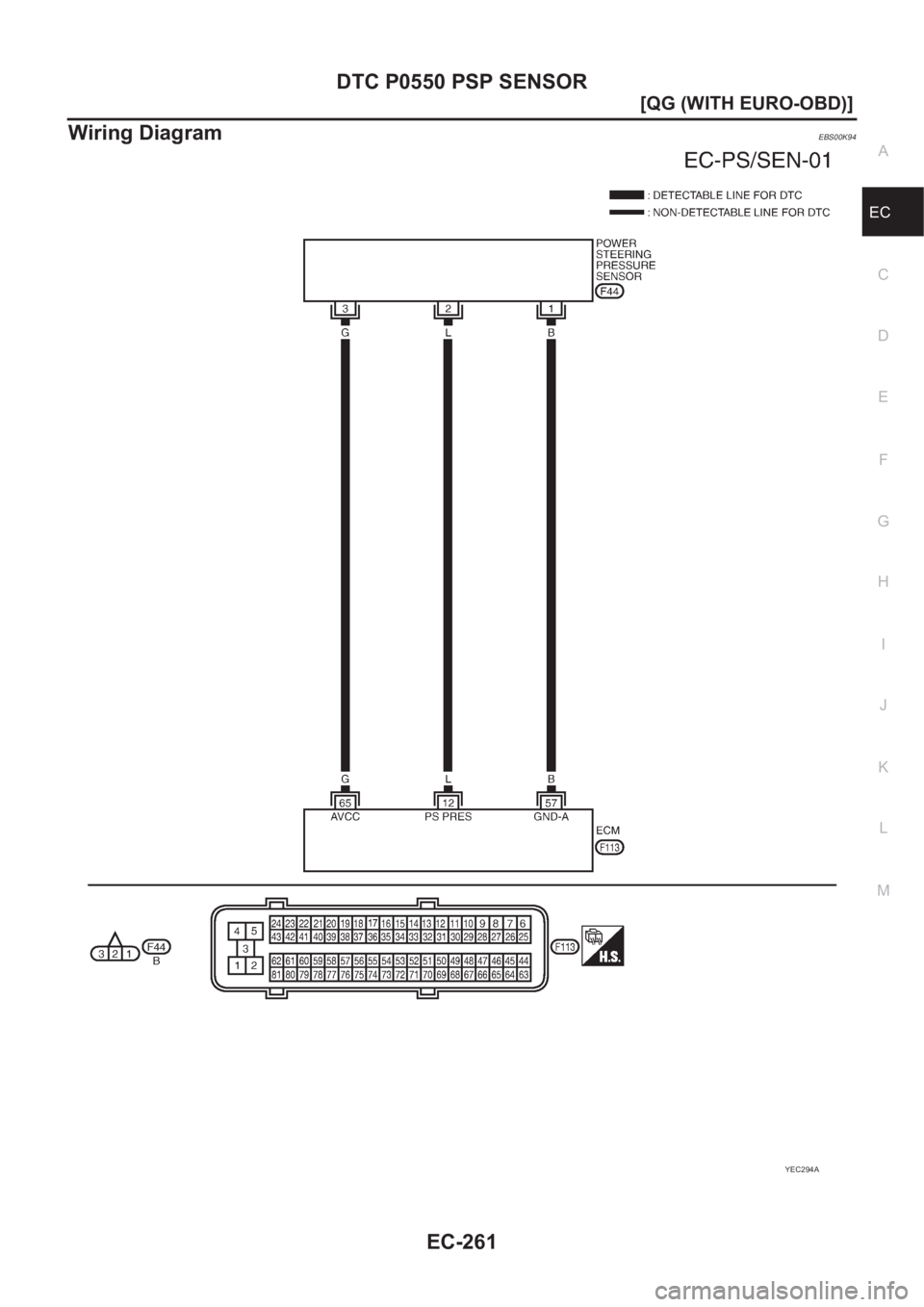

Wiring DiagramEBS00K94
YEC294A

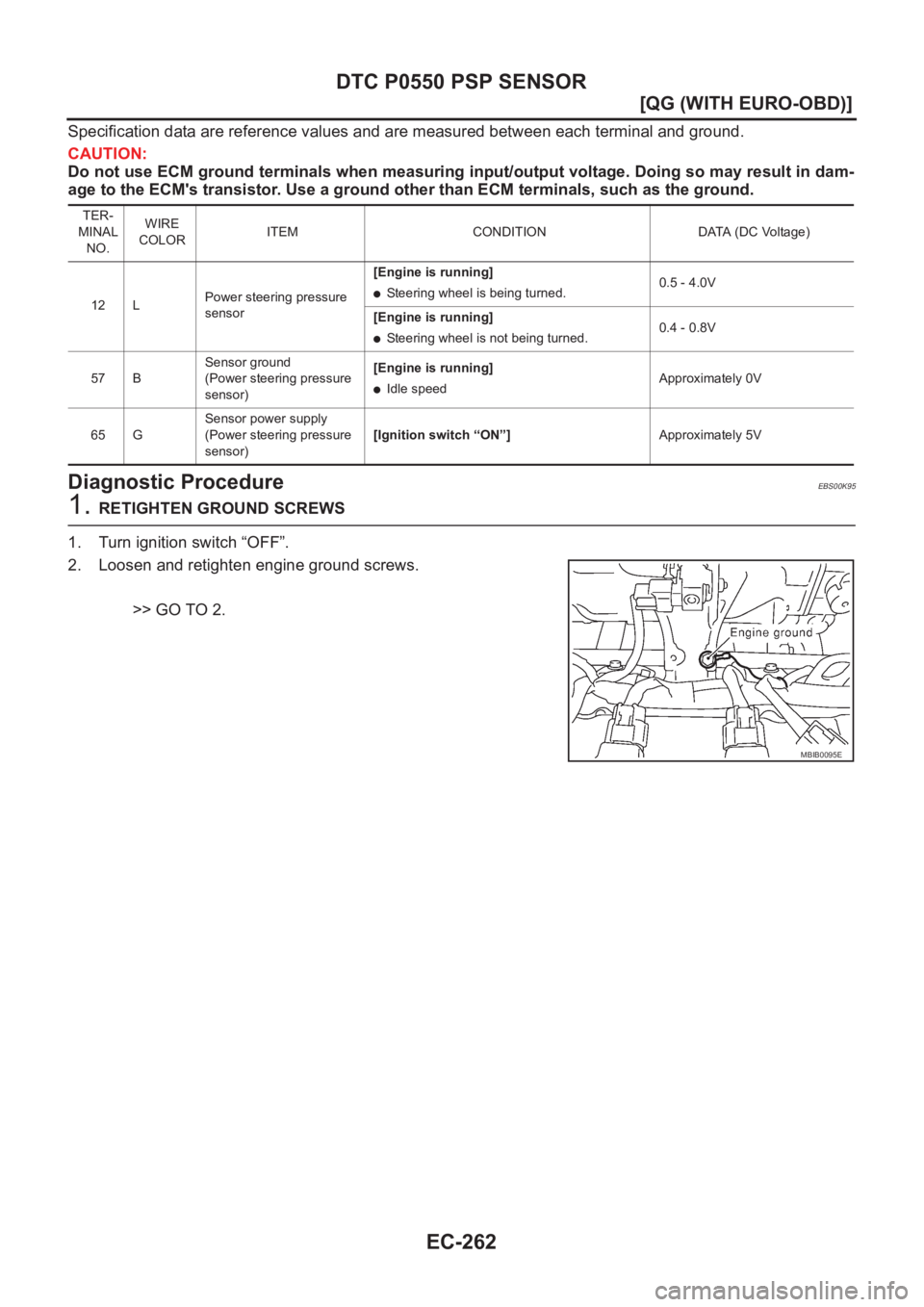

EC-262
[QG (WITH EURO-OBD)]
DTC P0550 PSP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00K95
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
12 LPower steering pressure
sensor[Engine is running]
●Steering wheel is being turned.0.5 - 4.0V
[Engine is running]
●Steering wheel is not being turned.0.4 - 0.8V
57 BSensor ground
(Power steering pressure
sensor)[Engine is running]
●Idle speedApproximately 0V
65 GSensor power supply
(Power steering pressure
sensor)[Ignition switch “ON”]Approximately 5V
MBIB0095E

DTC P0550 PSP SENSOR
EC-263
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

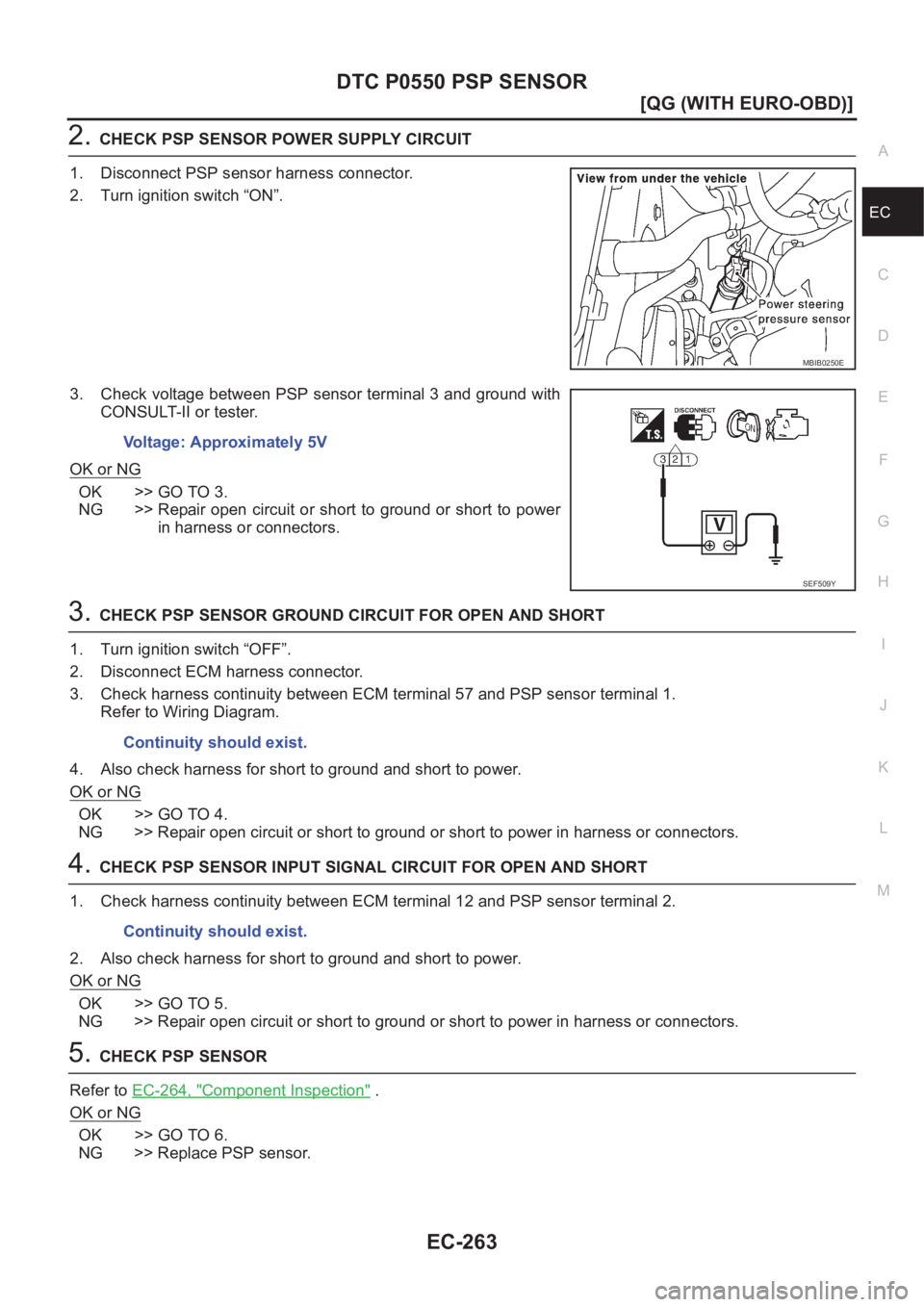

2.CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between PSP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 57 and PSP sensor terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK PSP SENSOR
Refer to EC-264, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace PSP sensor.
MBIB0250E
Voltage: Approximately 5V
SEF509Y
Continuity should exist.
Continuity should exist.

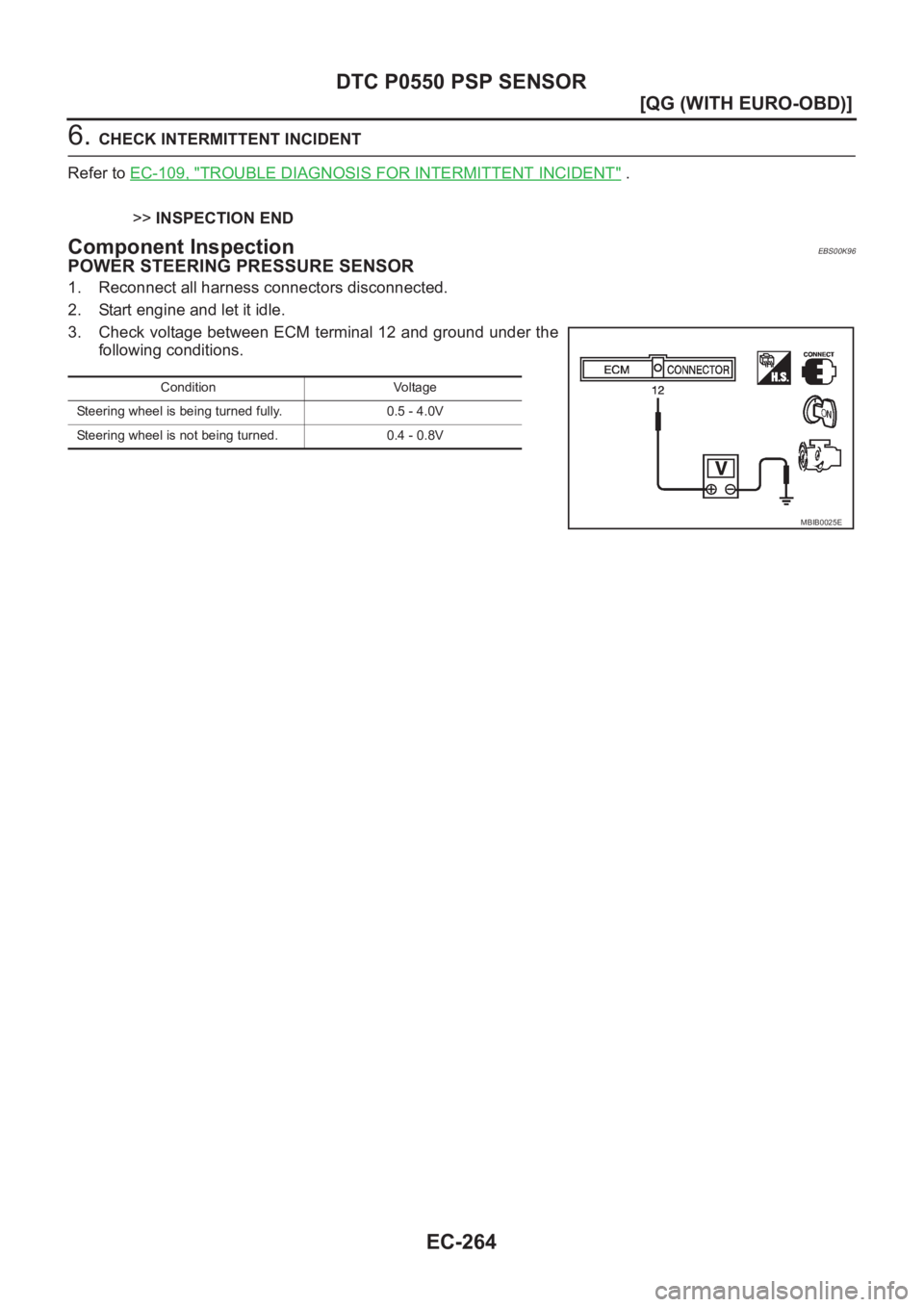

EC-264
[QG (WITH EURO-OBD)]
DTC P0550 PSP SENSOR
6. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00K96
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 12 and ground under the
following conditions.
Condition Voltage
Steering wheel is being turned fully. 0.5 - 4.0V
Steering wheel is not being turned. 0.4 - 0.8V
MBIB0025E

DTC P0605 ECM
EC-265
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

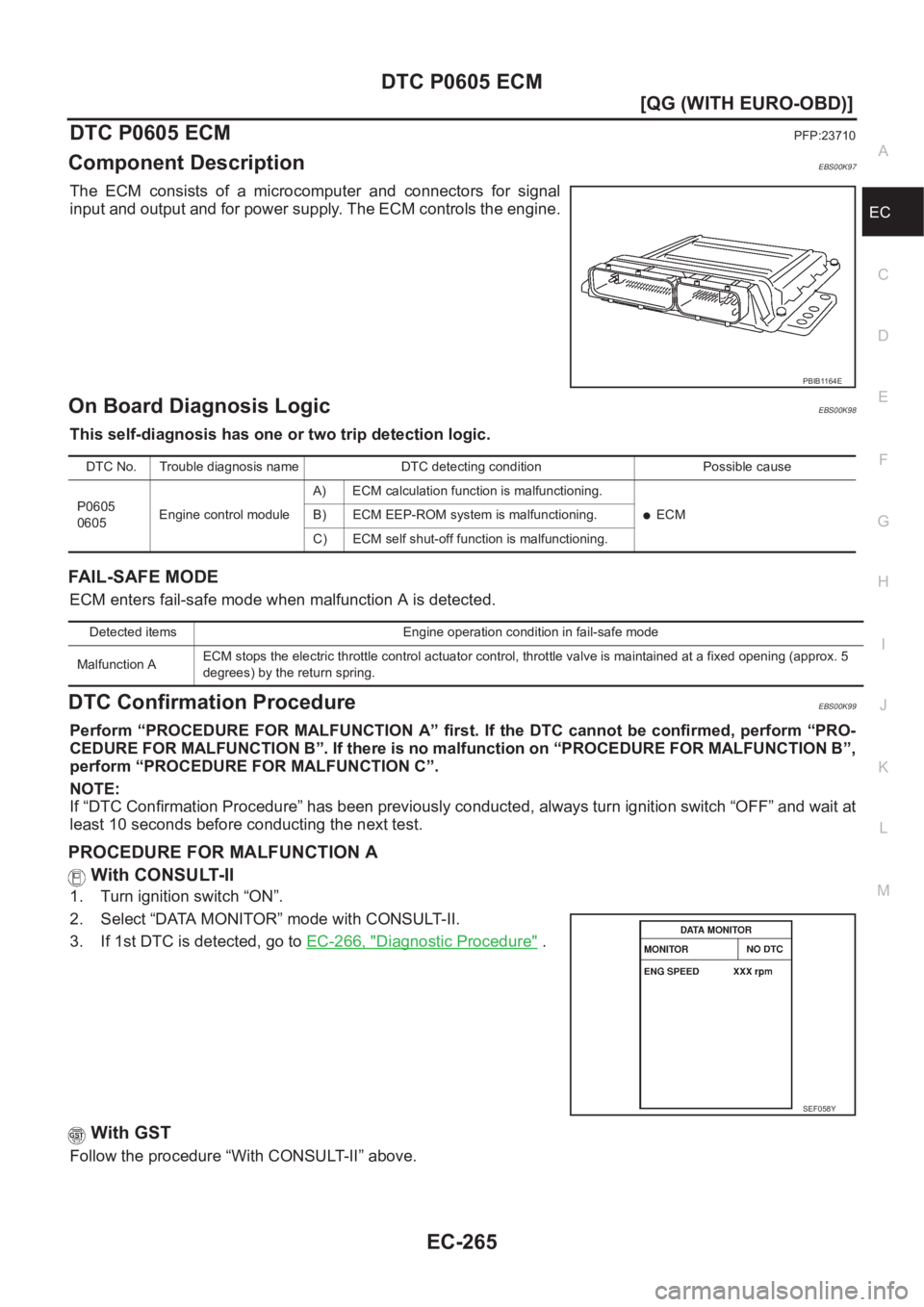

DTC P0605 ECMPFP:23710
Component DescriptionEBS00K97
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
On Board Diagnosis LogicEBS00K98
This self-diagnosis has one or two trip detection logic.
FAIL-SAFE MODE
ECM enters fail-safe mode when malfunction A is detected.
DTC Confirmation ProcedureEBS00K99
Perform “PROCEDURE FOR MALFUNCTION A” first. If the DTC cannot be confirmed, perform “PRO-
CEDURE FOR MALFUNCTION B”. If there is no malfunction on “PROCEDURE FOR MALFUNCTION B”,
perform “PROCEDURE FOR MALFUNCTION C”.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st DTC is detected, go to EC-266, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0605
0605Engine control moduleA) ECM calculation function is malfunctioning.
●ECM B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Detected items Engine operation condition in fail-safe mode
Malfunction AECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.
SEF058Y

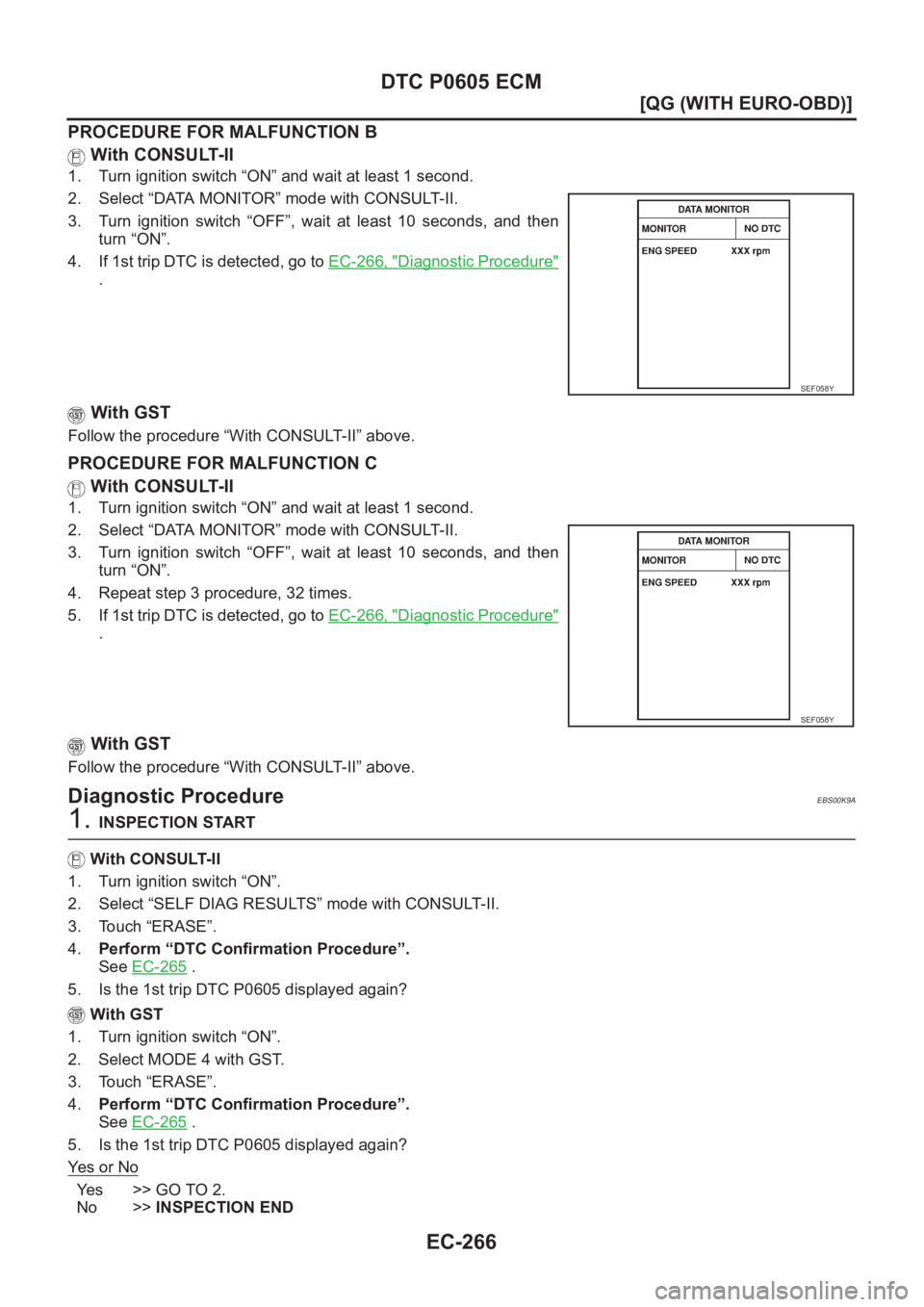

EC-266
[QG (WITH EURO-OBD)]
DTC P0605 ECM
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
4. If 1st trip DTC is detected, go to EC-266, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
4. Repeat step 3 procedure, 32 times.
5. If 1st trip DTC is detected, go to EC-266, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
Diagnostic ProcedureEBS00K9A
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform “DTC Confirmation Procedure”.
See EC-265
.
5. Is the 1st trip DTC P0605 displayed again?
With GST
1. Turn ignition switch “ON”.
2. Select MODE 4 with GST.
3. Touch “ERASE”.
4.Perform “DTC Confirmation Procedure”.
See EC-265
.
5. Is the 1st trip DTC P0605 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >>INSPECTION END
SEF058Y
SEF058Y

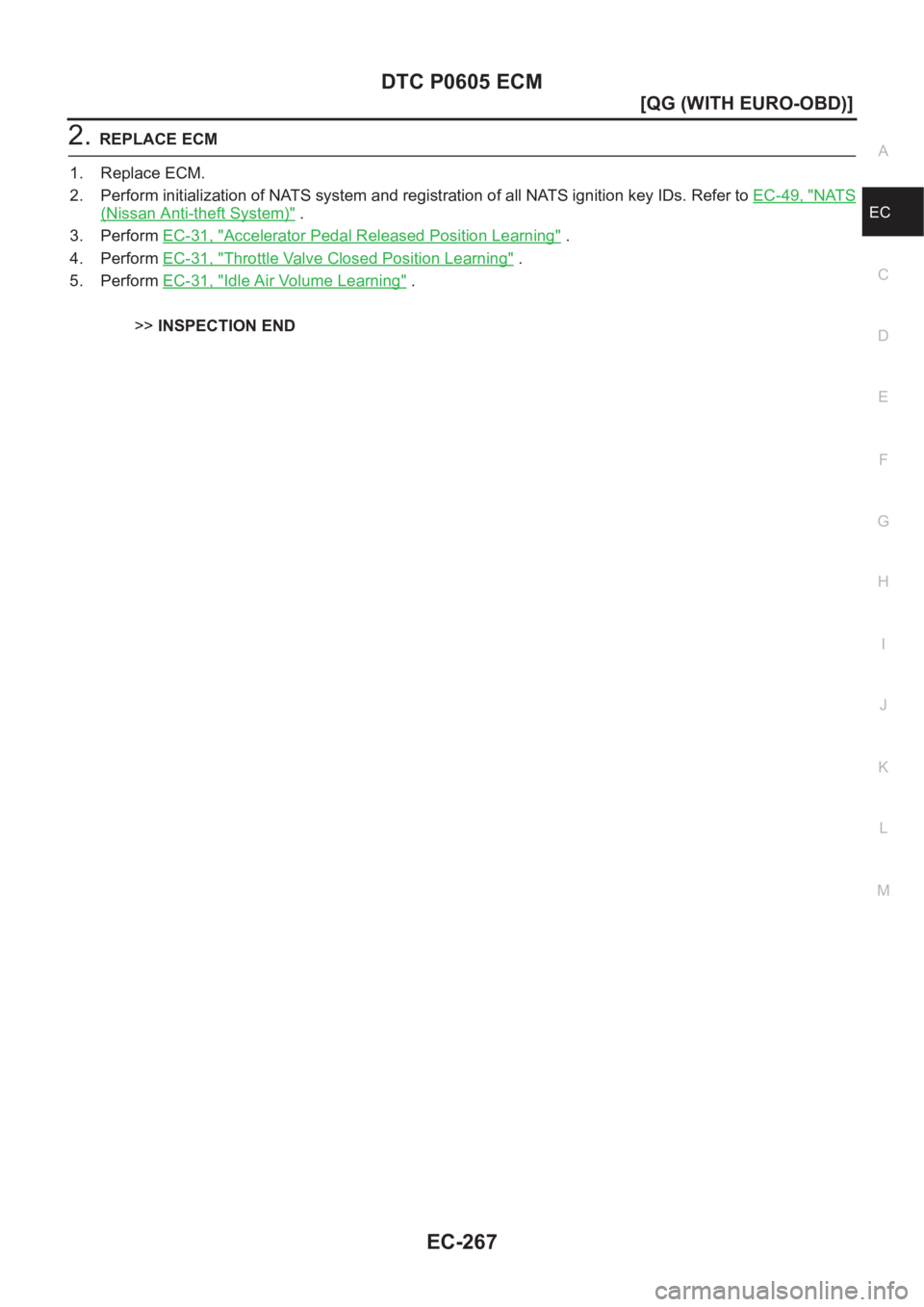

DTC P0605 ECM
EC-267
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-49, "
NATS
(Nissan Anti-theft System)" .
3. Perform EC-31, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-31, "
Throttle Valve Closed Position Learning" .
5. Perform EC-31, "
Idle Air Volume Learning" .
>>INSPECTION END

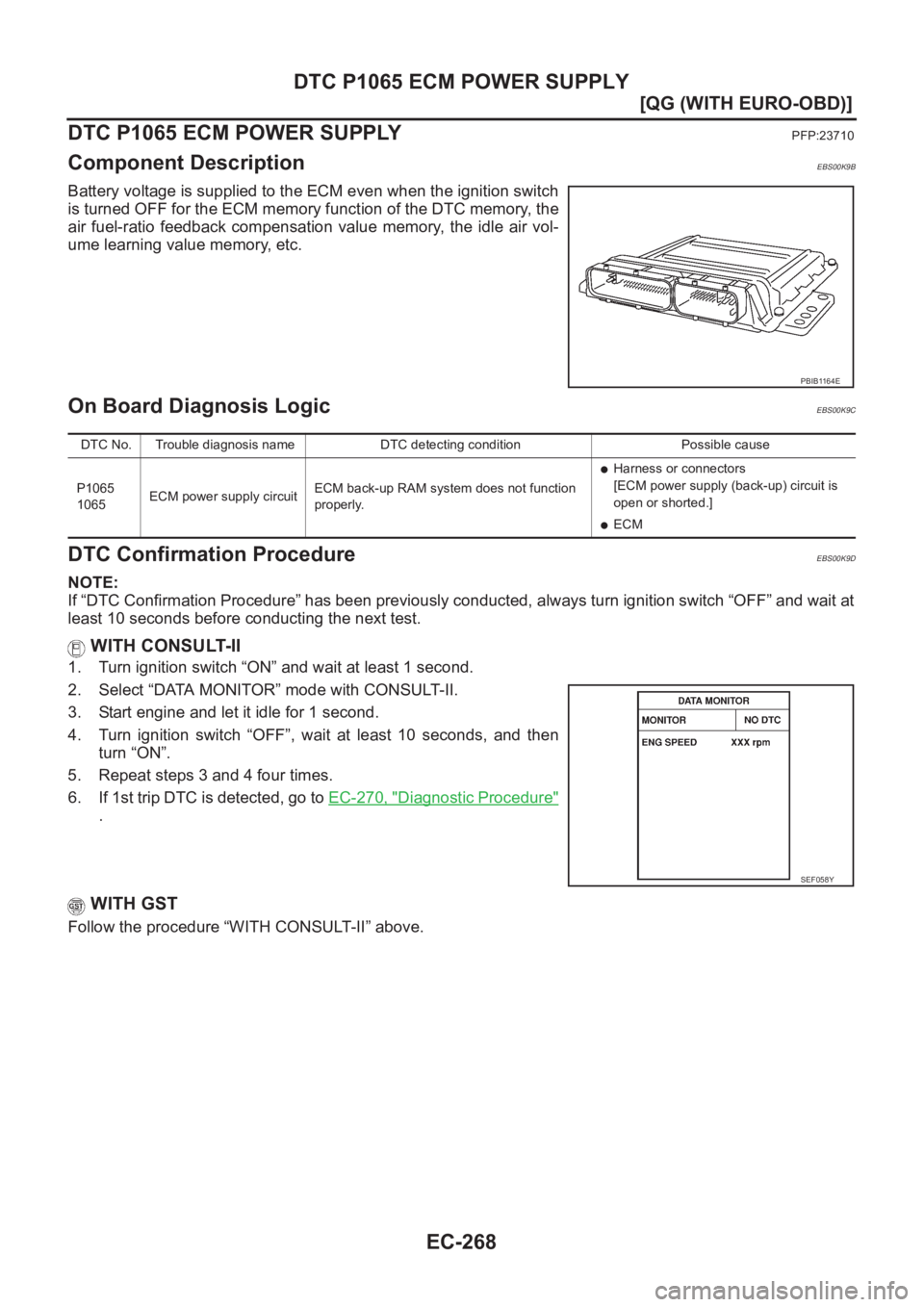

EC-268
[QG (WITH EURO-OBD)]
DTC P1065 ECM POWER SUPPLY
DTC P1065 ECM POWER SUPPLY
PFP:23710
Component DescriptionEBS00K9B
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air fuel-ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicEBS00K9C
DTC Confirmation ProcedureEBS00K9D
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
5. Repeat steps 3 and 4 four times.
6. If 1st trip DTC is detected, go to EC-270, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065ECM power supply circuitECM back-up RAM system does not function
properly.
●Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
●ECM
SEF058Y

DTC P1065 ECM POWER SUPPLY
EC-269
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

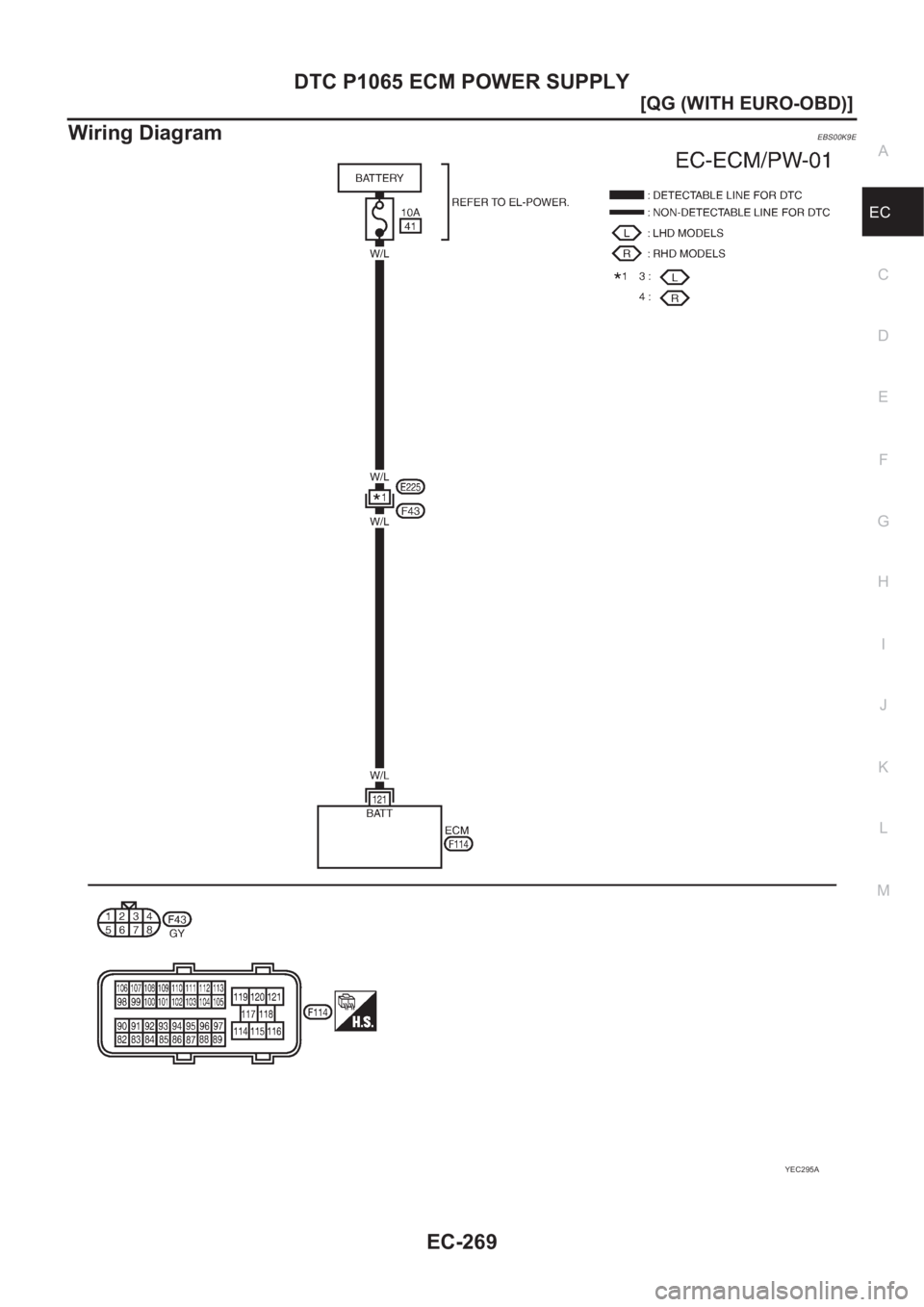

Wiring DiagramEBS00K9E
YEC295A

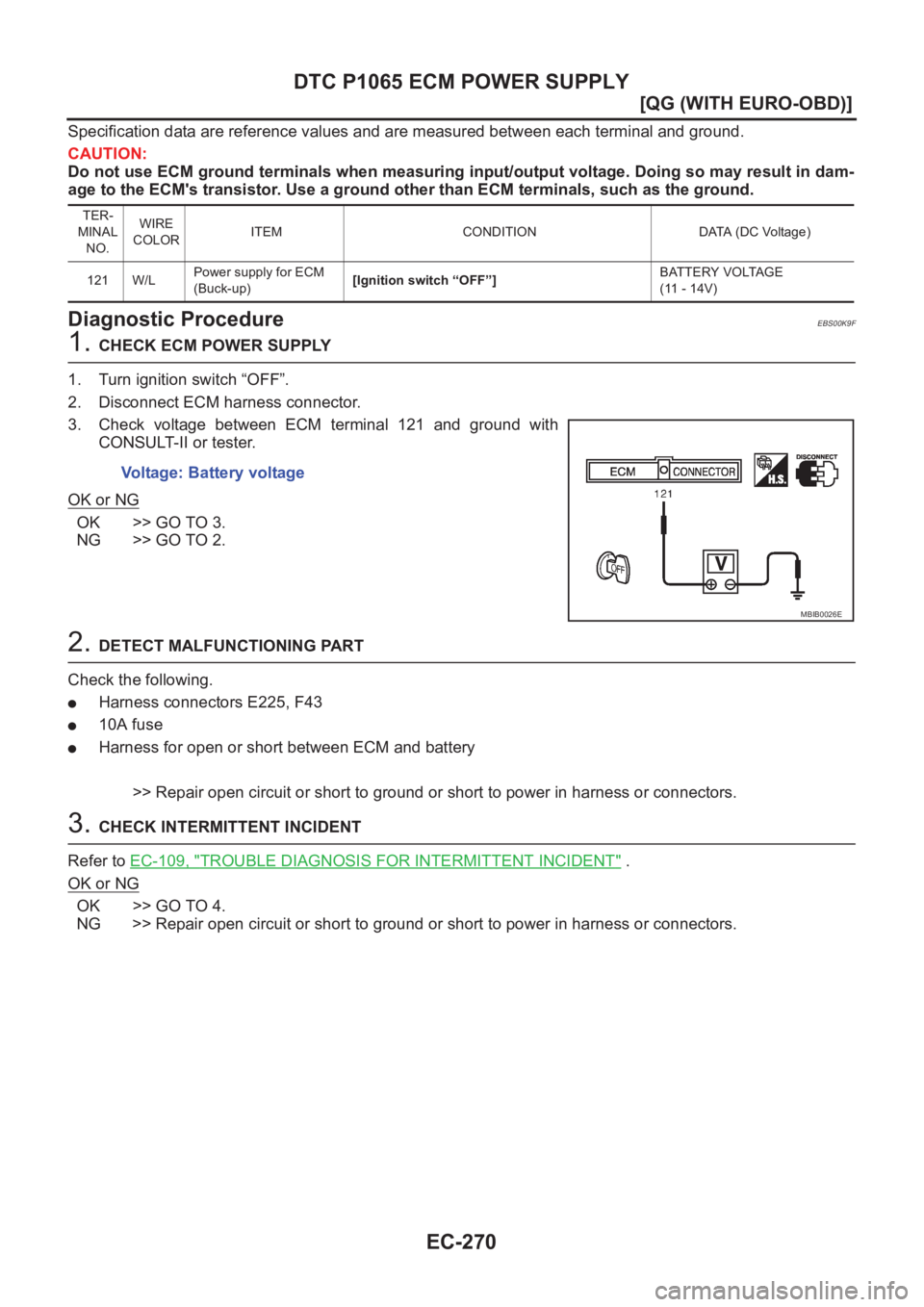

EC-270
[QG (WITH EURO-OBD)]
DTC P1065 ECM POWER SUPPLY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00K9F
1. CHECK ECM POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●10A fuse
●Harness for open or short between ECM and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
121 W/LPower supply for ECM
(Buck-up)[Ignition switch “OFF”]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E
