NISSAN ALMERA TINO 2001 Service Repair Manual

Wiring DiagramNLEC0056MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0056S01
YEC651
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Wiring Diagram
EC-156

MODELS WITH ECM IN CABINNLEC0056S02
YEC873
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Wiring Diagram (Cont'd)
EC-157

Diagnostic ProcedureNLEC0057
1 INSPECTION START
Which malfunction (A, or B) is duplicated?
Malfunction A or B
A©GO TO 3.
B©GO TO 2.
2 CHECK INTAKE SYSTEM
Check the following for connection.
+Air duct
+Vacuum hoses
+Intake air passage between air duct to collector
OK or NG
OK©GO TO 3.
NG©Reconnect the parts.
3 RETIGHTEN GROUND SCREWS
1. Turn ignition switch ªOFFº.
2. Loosen and retighten engine ground screws.
JEF104Y
©GO TO 4.
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Diagnostic Procedure
EC-158

4 CHECK POWER SUPPLY
1. Disconnect mass air flow sensor harness connector.
JEF105Y
2. Turn ignition switch ªONº.
3. Check voltage between terminal 2, 4 and ground with CONSULT-II or tester.
SEF297X
OK or NG
OK©GO TO 6.
NG©GO TO 5.
5 DETECT MALFUNCTIONING PART
Check the following.
+Joint connector-3 (where fitted)
+Harness connectors M72, F44 (where fitted)
+Harness connectors M11, E106 (LHD models) (where fitted)
+Harness connectors M78, E120 (RHD models) (where fitted)
+Joint connector F46 (where fitted)
+Harness for open or short between ECM relay and mass air flow sensor
+Harness for open or short between mass air flow sensor and ECM
©Repair harness or connectors.
6 CHECK GROUND CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Check harness continuity between mass air flow sensor harness connector terminal 3 and ECM terminal 73.
Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to power.
OK or NG
OK©GO TO 7.
NG©Repair open circuit or short to power in harness or connectors.
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Diagnostic Procedure (Cont'd)
EC-159

7 CHECK INPUT SIGNAL CIRCUIT
1. Check harness continuity between mass air flow sensor harness connector terminal 1 and ECM terminal 61.
Refer to wiring diagram.
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 8.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
8 CHECK MASS AIR FLOW SENSOR
Refer to ªComponent Inspectionº, EC-160.
OK or NG
OK©GO TO 9.
NG©Replace mass air flow sensor.
9 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-145.
©INSPECTION END
SEF993W
SEF987W
Component InspectionNLEC0058MASS AIR FLOW SENSORNLEC0058S011. Turn ignition switch ªONº.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 61 (Mass air flow sen-
sor signal) and ground.
Conditions Voltage V
Ignition switch ªONº (Engine stopped.) Less than 1.2
Idle (Engine is warmed-up to normal operating
temperature.)1.0 - 1.7
2,500 rpm (Engine is warmed-up to normal oper-
ating temperature.)1.7 - 2.1
Idle to about 4,000 rpm* 1.0 - 1.7 to Approx. 4.0
*: Check for linear voltage rise in response to increases to about 4,000 rpm in
engine speed.
4. If the voltage is out of specification, disconnect mass air flow
sensor harness connector and connect it again. Repeat above
check.
5. If NG, remove mass air flow sensor from air duct. Check hot
film for damage or dust.
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Diagnostic Procedure (Cont'd)
EC-160

SEF206T
Component DescriptionNLEC0066MODELS WITH INTAKE AIR TEMPERATURE SENSOR
ON INTAKE AIR DUCT
NLEC0066S01The intake air temperature sensor is mounted to the air duct hous-
ing. The sensor detects intake air temperature and transmits a sig-
nal to the ECM.
The temperature sensing unit uses a thermistor which is sensitive
to the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.
SEF012P

Intake air temperature
ÉC (ÉF)Voltage*
VResistance
kW
20 (68) 3.5 2.1 - 2.9
80 (176) 1.23 0.27 - 0.38
*: These data are reference values and are measured between ECM terminal 64
(Intake air temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
SEF987W
MODELS WITH INTAKE AIR TEMPERATURE SENSOR
IN MASS AIR FLOW SENSOR
NLEC0066S02The intake air temperature sensor is built into the mass air flow
sensor. The sensor detects intake air temperature and transmits a
signal to the ECM.
The temperature sensing unit uses a thermistor which is sensitive
to the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.
SEF012P

Intake air temperature
ÉC (ÉF)Voltage*
VResistance
kW
20 (68) 3.5 2.1 - 2.9
80 (176) 1.23 0.27 - 0.38
*: These data are reference values and are measured between ECM terminal 64
(Intake air temperature sensor) and ground.
DTC P0110 INTAKE AIR TEMPERATURE SENSORQG18DE
Component Description
EC-161

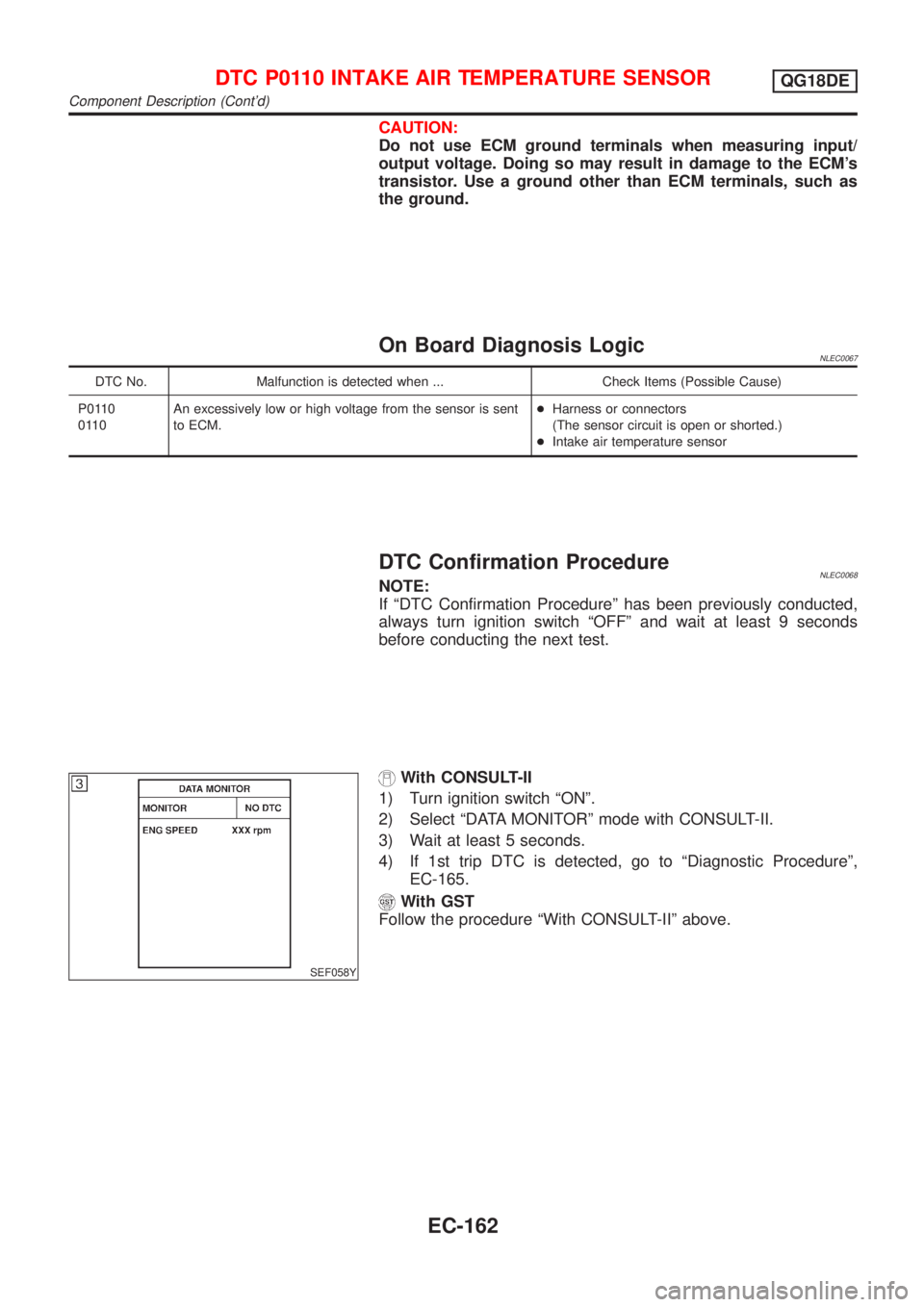

CAUTION:
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
On Board Diagnosis LogicNLEC0067
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0110
0110An excessively low or high voltage from the sensor is sent
to ECM.+Harness or connectors
(The sensor circuit is open or shorted.)
+Intake air temperature sensor
DTC Confirmation ProcedureNLEC0068NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch ªOFFº and wait at least 9 seconds
before conducting the next test.
SEF058Y
With CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Wait at least 5 seconds.
4) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-165.
With GST
Follow the procedure ªWith CONSULT-IIº above.
DTC P0110 INTAKE AIR TEMPERATURE SENSORQG18DE
Component Description (Cont'd)
EC-162

Wiring DiagramNLEC0069MODELS WITH INTAKE AIR TEMPERATURE SENSOR
ON INTAKE AIR DUCT
NLEC0069S01
YEC652
DTC P0110 INTAKE AIR TEMPERATURE SENSORQG18DE
Wiring Diagram
EC-163

MODELS WITH INTAKE AIR TEMPERATURE SENSOR
IN MASS AIR FLOW SENSOR
NLEC0069S02
YEC874
DTC P0110 INTAKE AIR TEMPERATURE SENSORQG18DE
Wiring Diagram (Cont'd)
EC-164

Diagnostic ProcedureNLEC0070
1 CHECK POWER SUPPLY (Models with intake air temperature sensor on intake air duct)
1. Turn ignition switch ªOFFº.
2. Disconnect intake air temperature sensor harness connector.
SEF602Y
3. Turn ignition switch ªONº.
4. Check voltage between terminal 1 and ground with CONSULT-II or tester.
SEF301X
OK or NG
OK©GO TO 3.
NG©GO TO 2.
DTC P0110 INTAKE AIR TEMPERATURE SENSORQG18DE
Diagnostic Procedure
EC-165
