To set the home location as the destination:
“Navigation” “Home” (Standard Mode)
“Home” (Alternate Command Mode)SEARCHING FROM ADDRESS
BOOKStoring frequently used destinations in the
Address Book makes it easy for the system to
set and calculate a route. To utilize this function
more effectively, destinations that are often
traveled to should be stored in advance.1. Push.
2. Highlight [Address Book] and push TER>. A list screen is displayed.
3. Highlight the preferred location from the list and push .
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.“STORING LOCATION” page 2-71
INFO:
. Sorted By Number:
The Address Book entries are displayed
in ascending numerical order.
. Sorted By Name:
The Address Book entries are displayed
in alphabetic order.
. Sorted By Icon:
By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
. Sorted By Group:
By selecting a particular group (family,
friends, leisure, etc.) , the selected group
is displayed at the top of the list.
4. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
Navigation
2-33

Black plate (60,1)
Model "R35-N" EDITED: 2009/ 10/ 30
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“PROCEDURES AFTER SETTING DES-
TINATION” page 2-43Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
“Navigation” “Address Book” (Standard Mode)
“Address book” (Alternate Command Mode)
SETTING PREVIOUS DESTINATIONIt is possible to set the destination to a location
that has been previously set as a destination and
have the system calculate a route. Up to 300
previous destinations will be automatically
stored.
If the number of previous destinations exceeds
300, the oldest one will be replaced by the
newest one.1. Push .
2. Highlight [Previous Destinations] and push . A list screen is displayed.
3. Highlight the preferred destination from the
list and push .
INFO:
The list can be sorted by selecting [By Date]
or [By Name]. Highlight [By Date] to sort the
list in chronological order. Highlight [By
Name] to sort the list in alphabetical order.
4. The entire route is shown on the map. Highlight [Start] after confirming the location
2-34
Navigation

Black plate (61,1)
Model "R35-N" EDITED: 2009/ 10/ 30
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“PROCEDURES AFTER SETTING DES-
TINATION” page 2-43Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the previous destinations list:
“Navigation” “Previous Destinations” (Standard
Mode)
“Previous Destinations” (Alternate Command
Mode)
SETTING PREVIOUS START POINTIt is possible to set the destination to the start
point of a previous route guidance and have the
system calculate a route.1. Push .
2. Highlight [Next Page] and push .3. Highlight [Previous Start Point] and push
.
4. The previous start point is set as a destina-
tion, and the entire route is shown on the
map. Highlight [Start] after confirming the
location of the displayed destination, and
push . The system sets the
destination to the selected location and
starts calculating a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“PROCEDURES AFTER SETTING DES-
TINATION” page 2-43Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Navigation
2-35

Black plate (62,1)
Model "R35-N" EDITED: 2009/ 10/ 30

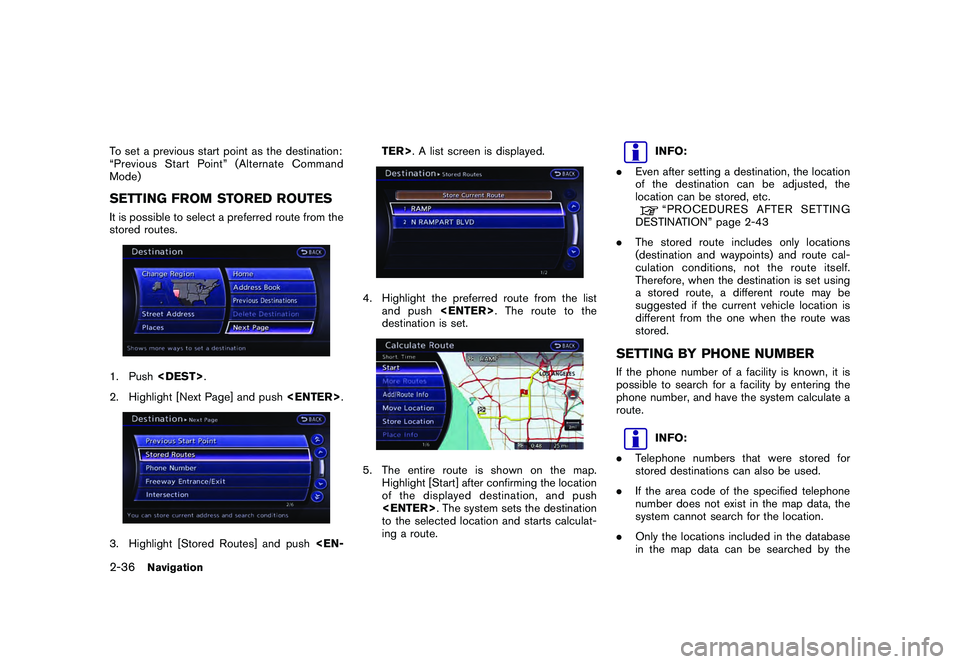

To set a previous start point as the destination:
“Previous Start Point” (Alternate Command
Mode)SETTING FROM STORED ROUTESIt is possible to select a preferred route from the
stored routes.1. Push.
2. Highlight [Next Page] and push .3. Highlight [Stored Routes] and push . A list screen is displayed.
4. Highlight the preferred route from the list
and push . The route to the
destination is set.5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
. Even after setting a destination, the location
of the destination can be adjusted, the
location can be stored, etc.“PROCEDURES AFTER SETTING
DESTINATION” page 2-43
. The stored route includes only locations
(destination and waypoints) and route cal-
culation conditions, not the route itself.
Therefore, when the destination is set using
a stored route, a different route may be
suggested if the current vehicle location is
different from the one when the route was
stored.
SETTING BY PHONE NUMBERIf the phone number of a facility is known, it is
possible to search for a facility by entering the
phone number, and have the system calculate a
route.
INFO:
. Telephone numbers that were stored for
stored destinations can also be used.
. If the area code of the specified telephone
number does not exist in the map data, the
system cannot search for the location.
. Only the locations included in the database
in the map data can be searched by the
2-36
Navigation

Black plate (63,1)
Model "R35-N" EDITED: 2009/ 10/ 30

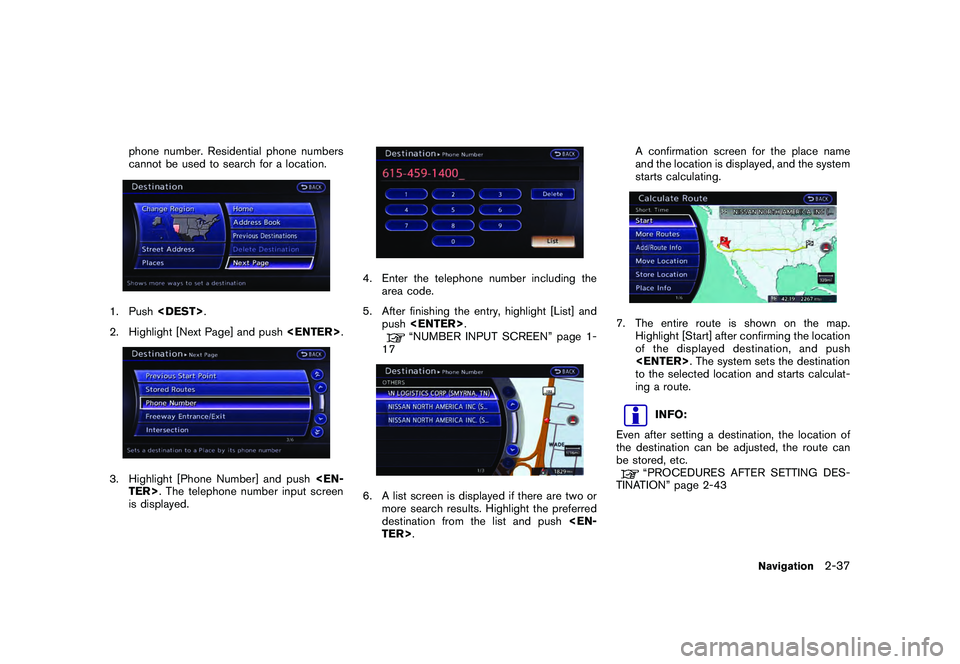

phone number. Residential phone numbers
cannot be used to search for a location.
1. Push.
2. Highlight [Next Page] and push .3. Highlight [Phone Number] and push TER>. The telephone number input screen
is displayed.
4. Enter the telephone number including the area code.
5. After finishing the entry, highlight [List] and push .
“NUMBER INPUT SCREEN” page 1-
17
6. A list screen is displayed if there are two or more search results. Highlight the preferred
destination from the list and push TER>. A confirmation screen for the place name
and the location is displayed, and the system
starts calculating.
7. The entire route is shown on the map.
Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“PROCEDURES AFTER SETTING DES-
TINATION” page 2-43
Navigation
2-37

Black plate (64,1)
Model "R35-N" EDITED: 2009/ 10/ 30

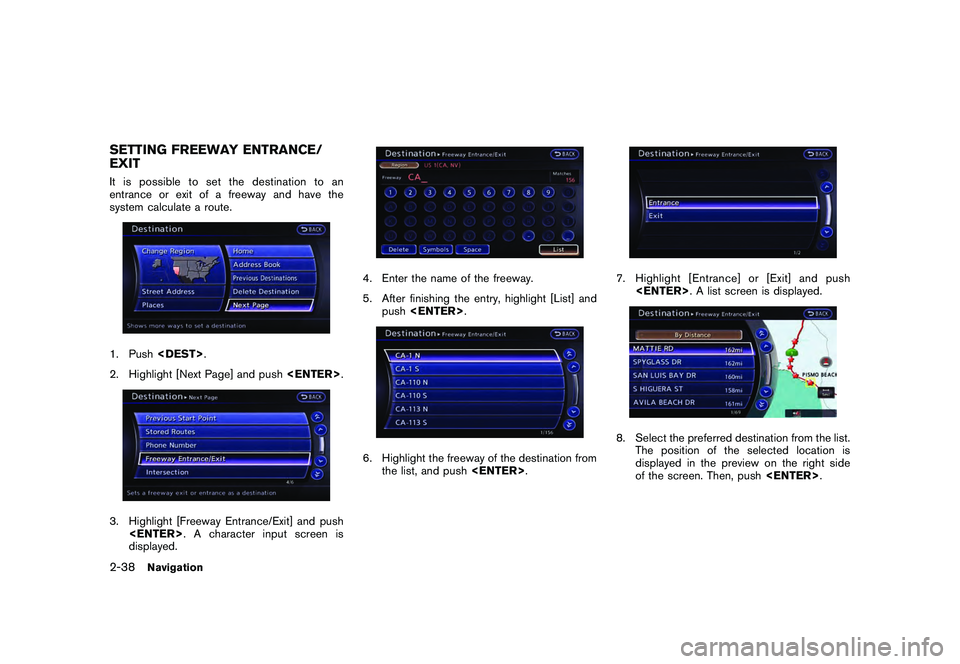

SETTING FREEWAY ENTRANCE/
EXITIt is possible to set the destination to an
entrance or exit of a freeway and have the
system calculate a route.1. Push.
2. Highlight [Next Page] and push .3. Highlight [Freeway Entrance/Exit] and push
. A character input screen is
displayed.
4. Enter the name of the freeway.
5. After finishing the entry, highlight [List] and
push .6. Highlight the freeway of the destination from
the list, and push .
7. Highlight [Entrance] or [Exit] and push
. A list screen is displayed.8. Select the preferred destination from the list.
The position of the selected location is
displayed in the preview on the right side
of the screen. Then, push .
2-38
Navigation

Black plate (65,1)
Model "R35-N" EDITED: 2009/ 10/ 30

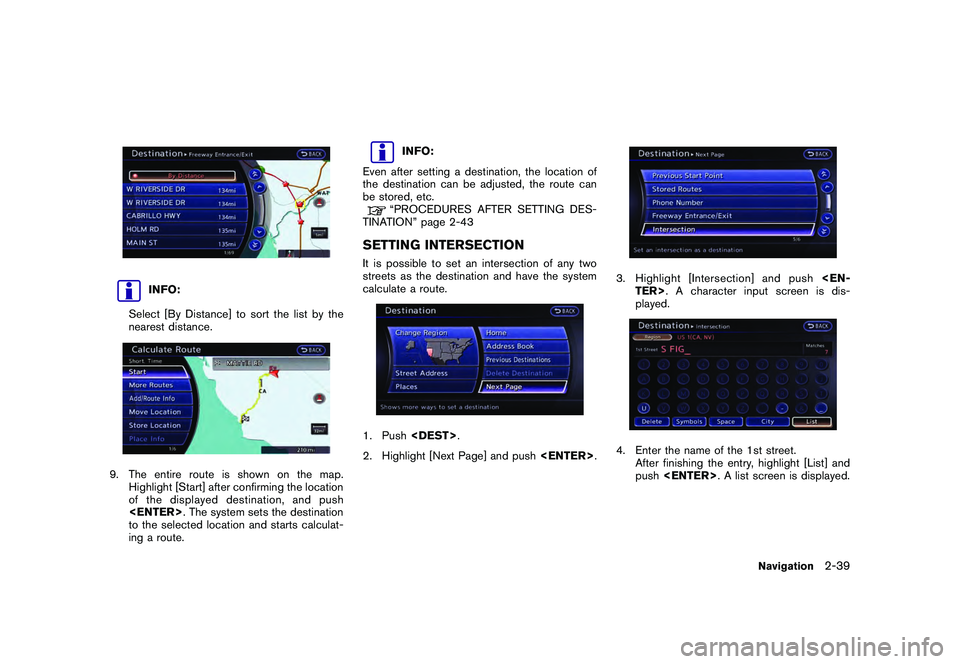

INFO:
Select [By Distance] to sort the list by the
nearest distance.
9. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“PROCEDURES AFTER SETTING DES-
TINATION” page 2-43
SETTING INTERSECTIONIt is possible to set an intersection of any two
streets as the destination and have the system
calculate a route.1. Push .
2. Highlight [Next Page] and push .
3. Highlight [Intersection] and push TER>. A character input screen is dis-
played.4. Enter the name of the 1st street.
After finishing the entry, highlight [List] and
push . A list screen is displayed.
Navigation
2-39

Black plate (66,1)
Model "R35-N" EDITED: 2009/ 10/ 30

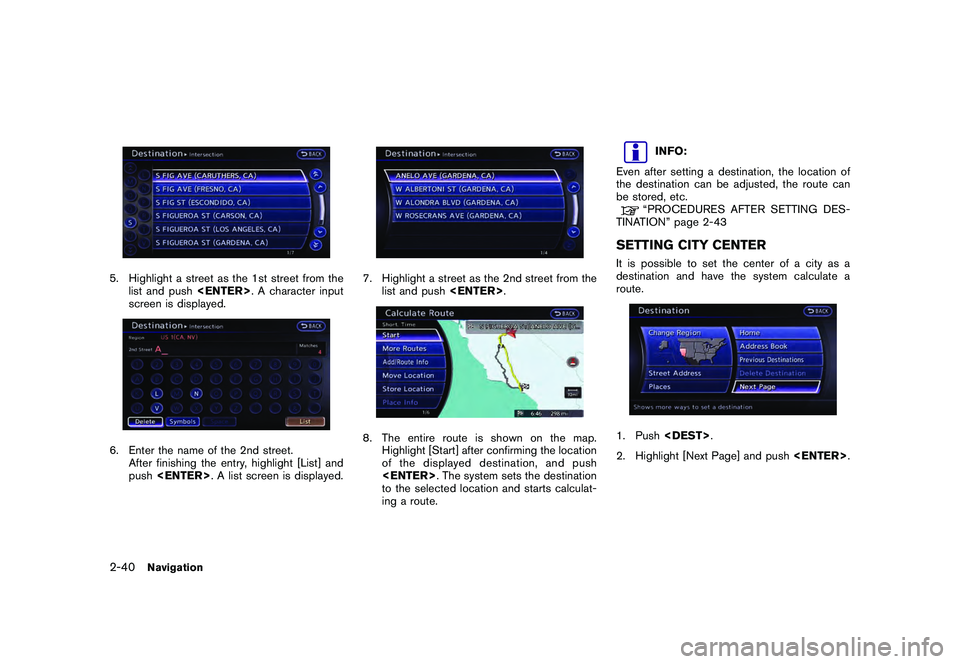

5. Highlight a street as the 1st street from thelist and push . A character input
screen is displayed.6. Enter the name of the 2nd street. After finishing the entry, highlight [List] and
push . A list screen is displayed.
7. Highlight a street as the 2nd street from the
list and push .8. The entire route is shown on the map.
Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“PROCEDURES AFTER SETTING DES-
TINATION” page 2-43
SETTING CITY CENTERIt is possible to set the center of a city as a
destination and have the system calculate a
route.1. Push .
2. Highlight [Next Page] and push .
2-40
Navigation

Black plate (67,1)
Model "R35-N" EDITED: 2009/ 10/ 30

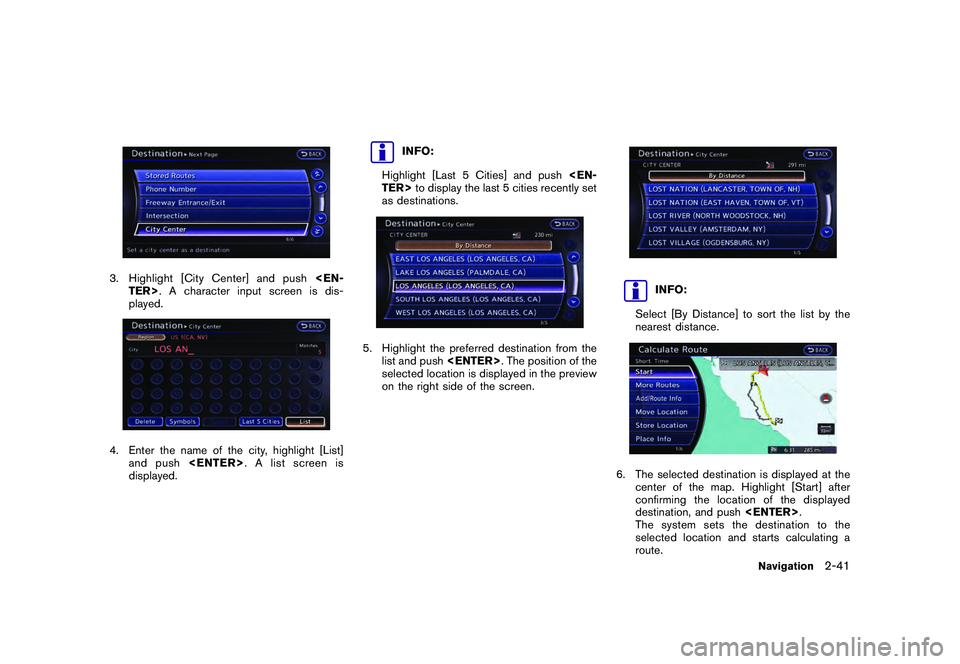

3. Highlight [City Center] and push TER>. A character input screen is dis-
played.4. Enter the name of the city, highlight [List]
and push . A list screen is
displayed.
INFO:
Highlight [Last 5 Cities] and push TER> to display the last 5 cities recently set
as destinations.
5. Highlight the preferred destination from the list and push . The position of the
selected location is displayed in the preview
on the right side of the screen.
INFO:
Select [By Distance] to sort the list by the
nearest distance.
6. The selected destination is displayed at the center of the map. Highlight [Start] after
confirming the location of the displayed
destination, and push .
The system sets the destination to the
selected location and starts calculating a
route.
Navigation
2-41

Black plate (68,1)
Model "R35-N" EDITED: 2009/ 10/ 30
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.“PROCEDURES AFTER SETTING
DESTINATION” page 2-43
SETTING POINT ON MAPIt is possible to set a location scrolled to on the
map as the destination and have the system
calculate a route.1. Scroll the map, place the cross pointer over the preferred location, and push .
INFO:
. The map scale should be adjusted to
search for a location more effectively.
. The point on the blinking road where the
center of the cross pointer is located can be set as a destination.
2. Highlight [New Dest.] and push
.
INFO:
For the items other than [New Dest.], refer to
“Map menu screen”.“Scrolled location map screen” page
2-19
3. The system sets the destination to the selected location and starts calculating a route.
INFO:
If a point on a freeway is set as the destination, a
confirmation message is displayed.
DELETE DESTINATIONIt is possible to delete a destination and all
waypoints that have already been set.1. Press .
2-42
Navigation
