NISSAN GT-R 2011 Manual PDF

Black plate (69,1)
Model "R35-N" EDITED: 2009/ 10/ 30
2. Select [Delete Destination] and press TER>.3. A confirmation message is displayed. Select [Yes] and press .
The destination and the waypoints are
deleted.
INFO:
The deleted destination and waypoints are not
able to be reactivated.Setting by voice command
1. Push <
>on the steering wheel.
2. After the tone sounds, speak a command.
To delete a destination and all waypoints:
“Delete Destination” (Alternate Command
Mode)
PROCEDURES AFTER SETTING
DESTINATIONAfter performing a route search, the route
guidance can be immediately started. Also, it is
possible to confirm or change a route.Available items after setting destination
. [Start]:
Starts route guidance to the selected
destination.
“Starting route guidance” page 2-44
. [More Routes]:
Displays 3 alternative routes.“Selecting route” page 2-44 .
[Add/Route Info]:
Displays the route information. A destination
or a waypoint can also be added.
“Confirming route” page 2-45
. [Move Location]:
Displays a map screen. The location of the
destination can be adjusted.“Moving location of destination” page
2-46
. [Store Location]:
Stores the location in the Address Book.“Storing location” page 2-47
. [Place Info]:
Displays information about the facility that
has been set as the destination, if it is
included in the map data.“Viewing information about searched
location” page 2-47INFO:
. If no operations have been performed on the
system for several seconds, [Start] is auto-
matically selected, and the system starts
route guidance.
. When using waypoints, [More Routes] is
disabled. After the route is started, push
then select [Edit/Add to
Route] to change the route between each
waypoint.
Navigation
2-43
ROUTE GUIDANCE

Black plate (70,1)
Model "R35-N" EDITED: 2009/ 10/ 30
“Editing route” page 2-55
. Even if the map screen is touched or
directional buttons other than the up or
down button are pushed, the same map
screen as when [Move Location] is selected
is displayed.

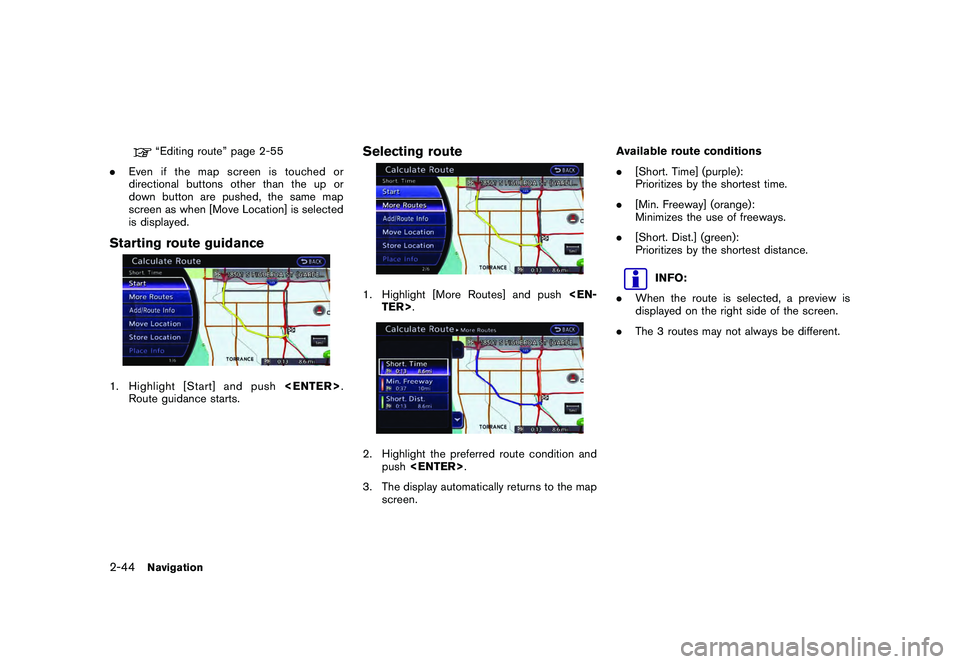

Starting route guidance1. Highlight [Start] and push .
Route guidance starts.
Selecting route1. Highlight [More Routes] and push TER>.2. Highlight the preferred route condition and push .
3. The display automatically returns to the map screen. Available route conditions
.
[Short. Time] (purple):
Prioritizes by the shortest time.
. [Min. Freeway] (orange):
Minimizes the use of freeways.
. [Short. Dist.] (green):
Prioritizes by the shortest distance.
INFO:
. When the route is selected, a preview is
displayed on the right side of the screen.
. The 3 routes may not always be different.
2-44
Navigation

Black plate (71,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Confirming route1. Highlight [Add/Route Info] and push TER>.
2. Highlight the preferred information item and push .
3. Push to return to the previous
screen.
Available information
. [Turn List]:
Displays the details of the suggested route.
“Using turn list” page 2-60
. [Preview]:
The system will trace the planned route
going forward or in reverse.“Using route preview” page 2-61
. [Add Way Pt.]:
Edits the route by adding a waypoint or a
destination.“Adding destination or waypoint” page
2-45
. [Store Route]:
Stores a calculated route. A maximum of 5
routes can be stored. Stored routes can be
easily retrieved and set as the suggested
route.“STORING ROUTE” page 2-74
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed. Even if the
map screen is touched or directional buttons
other than the up or down button are
pushed, the same map screen as when
[Map Scroll] is selected is displayed.
Adding destination or waypoint:Before starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.1. Highlight [Add Way Pt.] and push TER>.2. Set additional destinations or waypoints and push .
The method of searching for a location is the
same as the one for a destination.
“SETTING DESTINATION” page 2-23
Navigation
2-45

Black plate (72,1)
Model "R35-N" EDITED: 2009/ 10/ 30
3. Highlight [Add Destination] or [Add Way-point] and push .4. The system starts calculating a route that
includes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:
. If a waypoint was added, [More Routes]
cannot be selected. .
If a destination was added, the prior
destination becomes a waypoint.
Moving location of destinationThe location of the destination can be adjusted
by moving the cross pointer across the map.1. Highlight [Move Location] and push TER>.
INFO:
The screen for adjusting the location also
changes by touching the map screen dis-
played on the right side of the screen.
2. Adjust the location by moving the cross pointer across the map and push TER>. The location of the destination is
modified.
INFO:
Even if the map screen is touched or the
directional buttons other than the up or down
button are operated, the same map screen as
when [Move Location] is selected is displayed.
2-46
Navigation

Black plate (73,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Storing locationA searched location can be stored in the
Address Book. Then it can be easily retrieved
and set as a destination (or waypoint) .1. Highlight [Store Location] and push TER>.2. The location is stored in the Address Book. The corresponding icon is displayed at the
set location on the map.
Viewing information about searched
locationInformation (street address and phone number)
about places stored in the map data can be
displayed.1. Select [Place Info] and push .2. Information about the location is displayed.
3. Push to return to the previous
screen.
INFO:
. If [Call] is displayed on the right side of the
screen, it is possible to call the location
indicated.
. The Bluetooth
®Hands-Free Phone system
is required to be active and the cellular
phone connected to call the location in-
dicated.
. Information about locations is not displayed
while driving.
ABOUT ROUTE GUIDANCEAfter setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates you through the guide points using visual
and voice guidance.
CAUTION
.The navigation system’s visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. Follow all traffic regulations when
driving along the suggested route
(e.g., one-way traffic) .
“ROUTE GUIDANCE” page 10-7
Navigation
2-47

Black plate (74,1)
Model "R35-N" EDITED: 2009/ 10/ 30

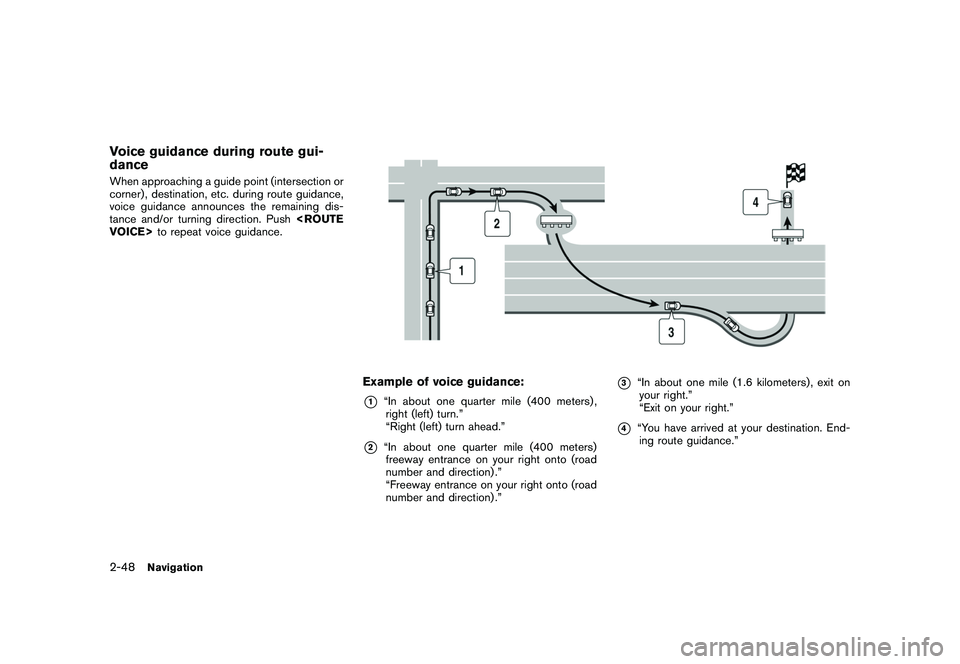

Voice guidance during route gui-
danceWhen approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push VOICE> to repeat voice guidance.
Example of voice guidance:*1
“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
*2
“In about one quarter mile (400 meters)freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
*3
“In about one mile (1.6 kilometers) , exit onyour right.”
“Exit on your right.”
*4
“You have arrived at your destination. End-ing route guidance.”
2-48
Navigation

Black plate (75,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Guidance screens and preview
modeRoute guidance displays map screens and
various information according to the situation.When route guidance starts, the Small Turn
Arrow on Map is displayed in the upper left
corner of the map screen. This arrow indicates
the turning direction at the next guide point
(corner or intersection) . The distance is also
displayed. At the top of the screen, the distance
to the next guide point and the name of the next
street to turn on to are displayed. Also, there
may be cases that next street names are
announced. The Small Turn Arrow on Map can
be enabled or disabled by the user.
“Displaying small turn arrow on map” page
2-69
Enlarged intersection view:When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection on
the left screen. After passing through the
intersection, the system automatically returns
to the full screen mode. To switch to the full
screen mode while the enlarged intersection
view is displayed, push

Black plate (76,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Turn list:Depending on the setting, the system can
constantly display the split screen and show
the turn list on the left screen. When approach-
ing a guide point, the left screen automatically
switches to an enlarged view of the intersection.
To switch to the full screen mode, push

Black plate (77,1)
Model "R35-N" EDITED: 2009/ 10/ 30
.Turn listThe list screen for showing the guide points to
the destination and the map screen can be
displayed at the same time. An enlarged
intersection view is automatically displayed
when the vehicle approaches the guide point.
The turn list can be scrolled using the center
dial, the main directional buttons or by touching
the up/down buttons on the screen.
Push

Black plate (78,1)
Model "R35-N" EDITED: 2009/ 10/ 30

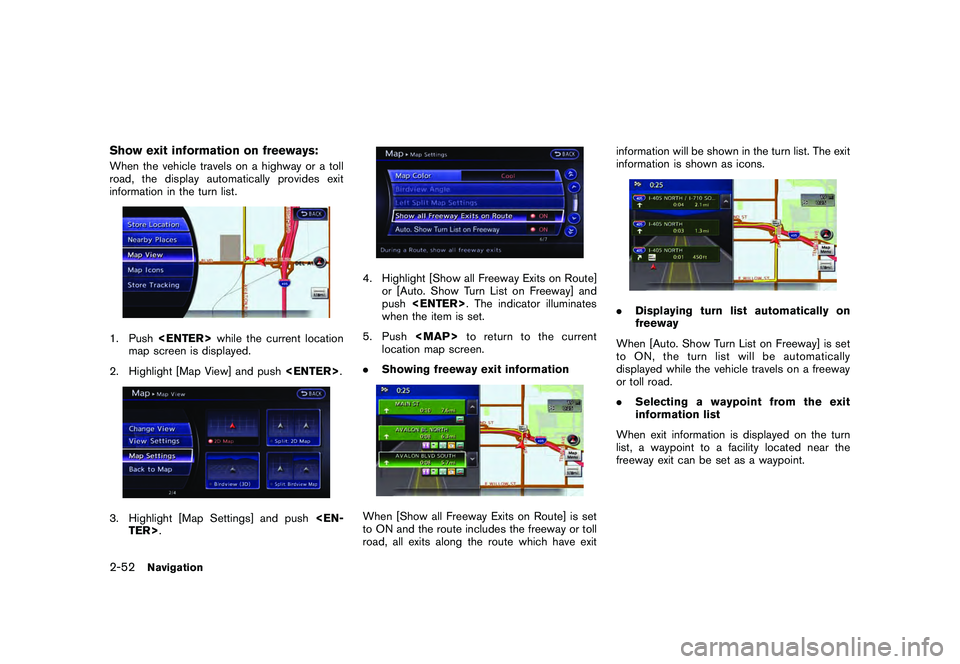

Show exit information on freeways:When the vehicle travels on a highway or a toll
road, the display automatically provides exit
information in the turn list.1. Push while the current location
map screen is displayed.
2. Highlight [Map View] and push .3. Highlight [Map Settings] and push TER>.
4. Highlight [Show all Freeway Exits on Route] or [Auto. Show Turn List on Freeway] and
push . The indicator illuminates
when the item is set.
5. Push
