NISSAN LATIO 2010 Service Repair Manual

EC-176
< COMPONENT DIAGNOSIS >[HR16DE]
P0130 A/F SENSOR 1
P0130 A/F SENSOR 1
DescriptionINFOID:0000000005398360
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the
A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In additi on, a heater is integrated in the
sensor to ensure the required operating temperature of about 800° C
(1,472° F).
DTC LogicINFOID:0000000005398361
DTC DETECTION LOGIC
To judge the malfunction, the diagnosis checks that t he A/F signal computed by ECM from the A/F sensor 1
signal fluctuates according to fuel feedback control.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Let it idle for 2 minutes.
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-179, "Diagnosis Procedure".
JMBIA0112GB
PBIB3354E
DTC No. Trouble diagnosis name DTC detecting conditionPossible Cause
P0130 Air fuel ratio (A/F) sensor 1
circuit A)
The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly in the range other
than approx. 2.2 V. • Harness or connectors
(The A/F sensor 1 circuit is open
or shorted.)
• A/F sensor 1
B) The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 2.2 V.
Revision: January 20102010 Versa

P0130 A/F SENSOR 1EC-177
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NO-1 >> With CONSULT-III: GO TO 3.
NO-2 >> Without CONSULT-III: GO TO 7.
3.CHECK AIR FUEL RATIO (A/F) SENSOR 1 FUNCTION
1. Select “A/F SEN1 (B1)” in “DAT A MONITOR” mode with CONSULT-III.
2. Check “A/F SEN1 (B1)” indication.
Does the indication fluctuates around 2.2 V?
YES >> GO TO 4.
NO >> Go to EC-179, "
Diagnosis Procedure".
4.PERFORM DTC CONFIRMATION PR OCEDURE FOR MALFUNCTION B-I
1. Select “A/F SEN1 (B1) P1276” of “A/F SEN1” in “DTC WORK SUPPORT” mode with CONSULT-III.
2. Touch “START”.
3. When the following conditions are met, “TESTIN G” will be displayed on the CONSULT-III screen.
If “TESTING” is not displayed after 20 seconds, retry from step 2.
CAUTION:
Always drive vehicle at a safe speed.
Is
“TESTING” displayed on CONSULT-III screen?
YES >> GO TO 5.
NO >> Check A/F sensor 1 function again. GO TO 3.
5.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B-II
Release accelerator pedal fully.
NOTE:
Never apply brake during releasing the accelerator pedal.
Which does
“TESTING” change to?
COMPLETED>>GO TO 6.
OUT OF CONDITION>>Retry DTC CO NFIRMATION PROCEDURE. GO TO 4.
6.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B-III
Touch “SELF-DIAG RESULT”
Which is displayed on CONSULT-III screen?
YES >> INSPECTION END
NO >> Go to EC-179, "
Diagnosis Procedure".
7.PERFORM COMPONENT FUNCTION CHECK FOR MALFUNCTION B
Perform Component Function Check. Refer to EC-177, "
Component Function Check".
NOTE:
Use component function check to check the overall function of the A/F sensor 1 circuit. During this check, a
1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-179, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000005398362
1.PERFORM COMPONENT FUNCTION CHECK
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle at a speed of 80 km/h (50 MPH) for a few minutes in the suitable gear position.
ENG SPEED1,000 - 3,200 rpm
VHCL SPEED SE More than 64 km/h (40 mph)
B/FUEL SCHDL 1.0 - 8.0 msec
Selector lever D position (A/T)
5th position (M/T)
Revision: January 20102010 Versa

EC-178
< COMPONENT DIAGNOSIS >[HR16DE]
P0130 A/F SENSOR 1
3. Shift the selector lever to the D position (A/T) or 1st position (M/T), then release the accelerator pedal fully
until the vehicle speed decreases to 50 km/h (31 MPH).
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
Never apply brake during releasing the accelerator pedal.
4. Repeat steps 2 to 3 for five times.
5. Stop the vehicle and turn ignition switch OFF.
6. Wait at least 10 seconds and restart engine.
7. Repeat steps 2 to 3 for five times.
8. Stop the vehicle.
9. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-179, "Diagnosis Procedure".
NO >> INSPECTION END
Revision: January 20102010 Versa

P0130 A/F SENSOR 1EC-179
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

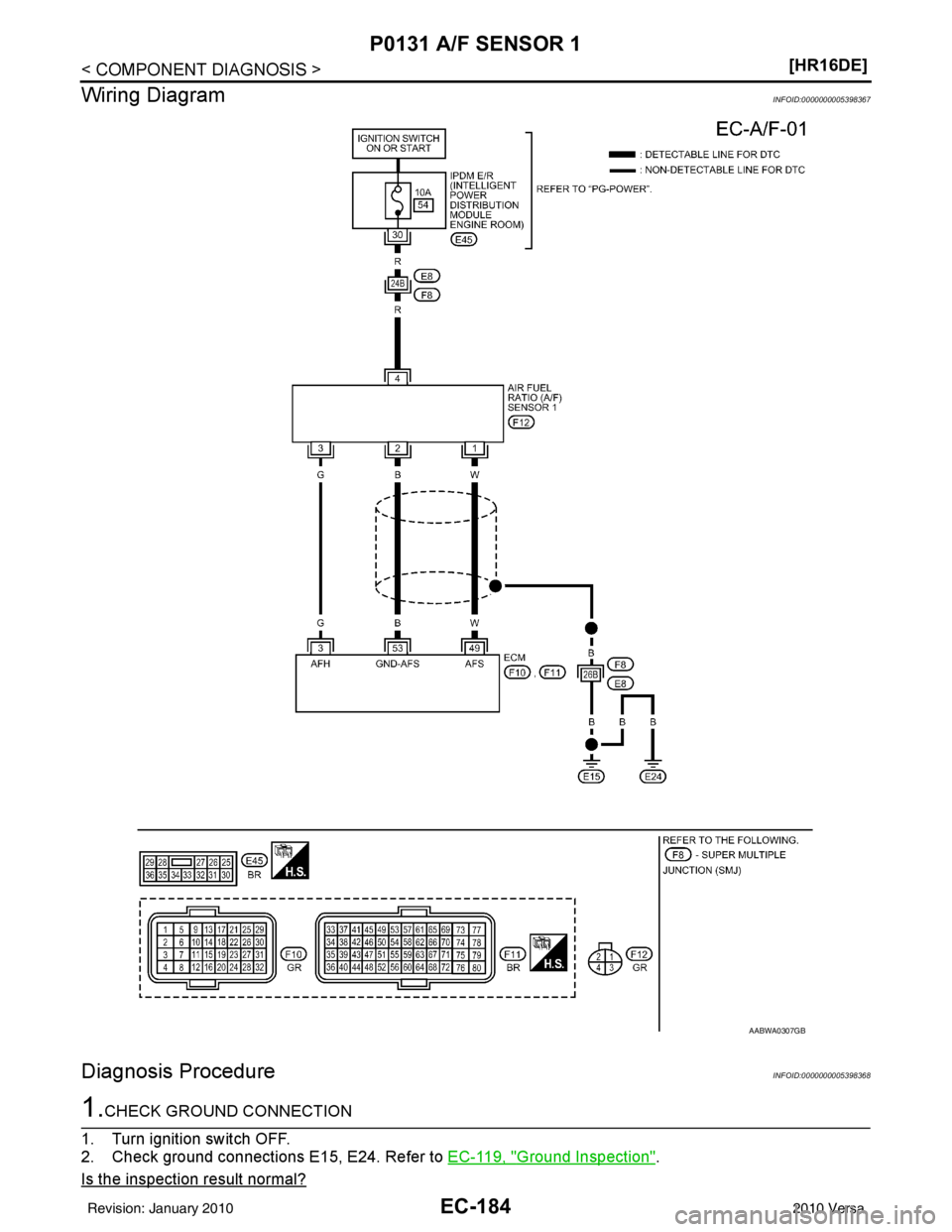

Wiring DiagramINFOID:0000000005398363
Diagnosis ProcedureINFOID:0000000005398364
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
AABWA0307GB
Revision: January 20102010 Versa

EC-180
< COMPONENT DIAGNOSIS >[HR16DE]
P0130 A/F SENSOR 1
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check the voltage between A/F sensor 1 harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• IPDM E/R harness connector E45
• 10 A fuse (No. 54)
• Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4.CHECK A/F SENSOR 1 INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.
4. Check the continuity between A/F sensor 1 harness connector and ground, or ECM harness connector
and ground.
5. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTERMITTENT INCIDENT
Perform EC-114, "
Diagnosis Procedure".
A/F sensor 1
Ground Voltage
Connector Terminal
F12 4 Ground Battery voltage
PBIB3308E
A/F sensor 1 ECM
Continuity
Connector Terminal Connector Terminal
F12 1
F11 49
Existed
25 3
A/F sensor 1 Ground Continuity
Connector Terminal
F12 1
Ground Not existed
2
ECM Ground Continuity
Connector Terminal
F11 49
Ground Not existed
53
Revision: January 20102010 Versa

P0130 A/F SENSOR 1EC-181
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace.
6.REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:
• Discard any sensor which has been dropped from a he ight of more than 0.5 m (19.7 in) onto a hard
surface such as a concrete floor; use a new one.
• Before installing new sensor, clean exhaust syst em threads using Oxygen Sensor Thread Cleaner
[commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial
service tool).
>> INSPECTION END
Revision: January 20102010 Versa

EC-182
< COMPONENT DIAGNOSIS >[HR16DE]
P0131 A/F SENSOR 1
P0131 A/F SENSOR 1
DescriptionINFOID:0000000005398365
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the
A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In additi on, a heater is integrated in the
sensor to ensure the required operating temperature of about 800° C
(1,472° F).
DTC LogicINFOID:0000000005398366
DTC DETECTION LOGIC
To judge the malfunction, the diagnosis checks that t he A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately low.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.
>> GO TO 2.
2.CHECK A/F SENSOR FUNCTION
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “D ATA MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
With GST
Follow the procedure “With CONSULT-III” above.
Is the indication constantly approx. 0 V?
JMBIA0112GB
PBIB3354E
DTC No. Trouble diagnosis name DTC detecting conditionPossible Cause
P0131 Air fuel ratio (A/F) sensor 1
circuit low voltage • The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 0 V. • Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)
• A/F sensor 1
Revision: January 20102010 Versa

P0131 A/F SENSOR 1EC-183
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> Go to EC-184, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch OFF, wait at least 10 seconds and then restart engine.
2. Drive and accelerate vehicle to more than 40 km/h (25 MPH) within 20 seconds after restarting engine. CAUTION:
Always drive vehicle at a safe speed.
3. Maintain the following conditions for about 20 consecutive seconds.
NOTE:
•Keep the accelerator pedal as steady as possible during the cruising.
• If this procedure is not completed within 1 minute after restarting engine at step 1, return to step
1.
4. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> Go to EC-184, "Diagnosis Procedure".
NO >> INSPECTION END
ENG SPEED 1,000 - 3,200 rpm
VHCL SPEED SE More than 40 km/h (25 mph)
B/FUEL SCHDL 1.5 - 9.0 msec
Selector lever Suitable position
Revision: January 20102010 Versa

EC-184
< COMPONENT DIAGNOSIS >[HR16DE]
P0131 A/F SENSOR 1
Wiring Diagram
INFOID:0000000005398367
Diagnosis ProcedureINFOID:0000000005398368
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
AABWA0307GB
Revision: January 20102010 Versa

P0131 A/F SENSOR 1EC-185
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check the voltage between A/F sensor 1 harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• IPDM E/R harness connector E45
• 10 A fuse (No. 54)
• Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4.CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.
4. Check the continuity between A/F sensor 1 harness connector and ground, or ECM harness connector
and ground.
5. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTERMITTENT INCIDENT
A/F sensor 1 Ground Voltage
Connector Terminal
F12 4 Ground Battery voltage
PBIB3308E
A/F sensor 1 ECM
Continuity
Connector Terminal Connector Terminal
F12 1
F11 49
Existed
25 3
A/F sensor 1 Ground Continuity
Connector Terminal
F12 1
Ground Not existed
2
ECM Ground Continuity
Connector Terminal
F11 49
Ground Not existed
53
Revision: January 20102010 Versa
