HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-00EEBEC4-5143-4CCB-86B1-A271E0BA8673
WARNING
.Always turn and check that it is safe
to park your car before backing up.
Always back up slowly.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tion and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. If the battery is disconnected or
becomes discharged, the predictive
course lines may not be displayed
correctly. If this occurs, perform the
following procedures.
— Drive the vehicle on a straight
road for more than 5 minutes. .
When the steering wheel is turned
with the ignition switch in the “ACC”
position, the predictive course lines
may not be displayed correctly.
. The displayed lines will appear
slightly off to the right because the
RearView camera is not installed in
the rear center of the vehicle.
. The distance guide line and the
vehicle width guide line should be
used as a reference only when the
vehicle is on a level paved surface.
The distance viewed on the monitor
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing up the vehicle up a
hill, objects viewed in the monitor
are further than they appear. When
backing up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
The vehicle width and predictive course
lines are wider than the actual width and course.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-33
Condition:
Page 242 of 507
Black plate (240,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-34Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1897

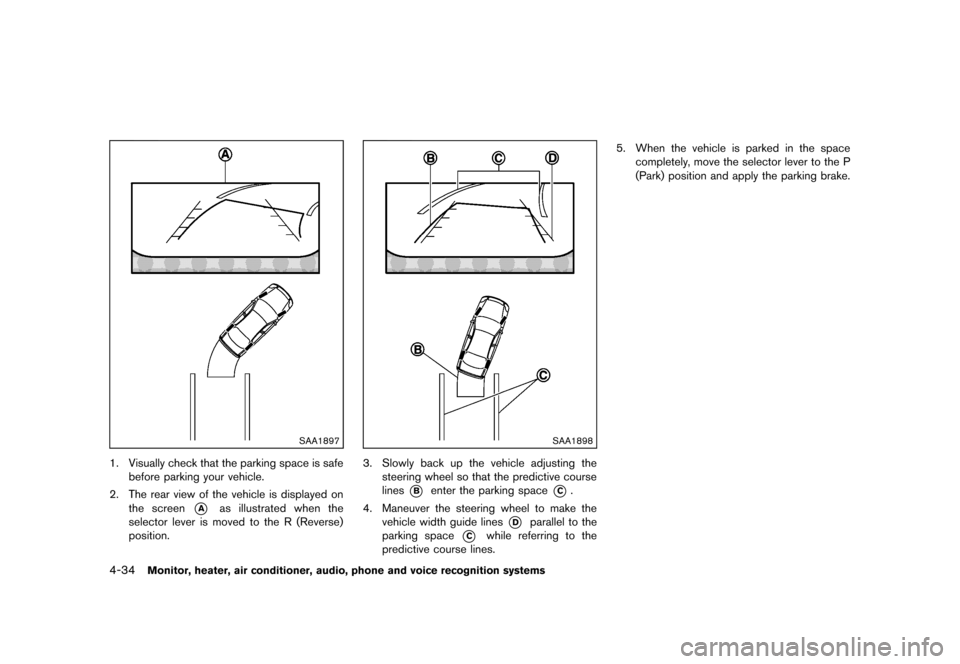

1. Visually check that the parking space is safebefore parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
*Aas illustrated when the
selector lever is moved to the R (Reverse)
position.
SAA1898
3. Slowly back up the vehicle adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines. 5. When the vehicle is parked in the space
completely, move the selector lever to the P
(Park) position and apply the parking brake.
Condition:
Page 243 of 507
Black plate (241,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

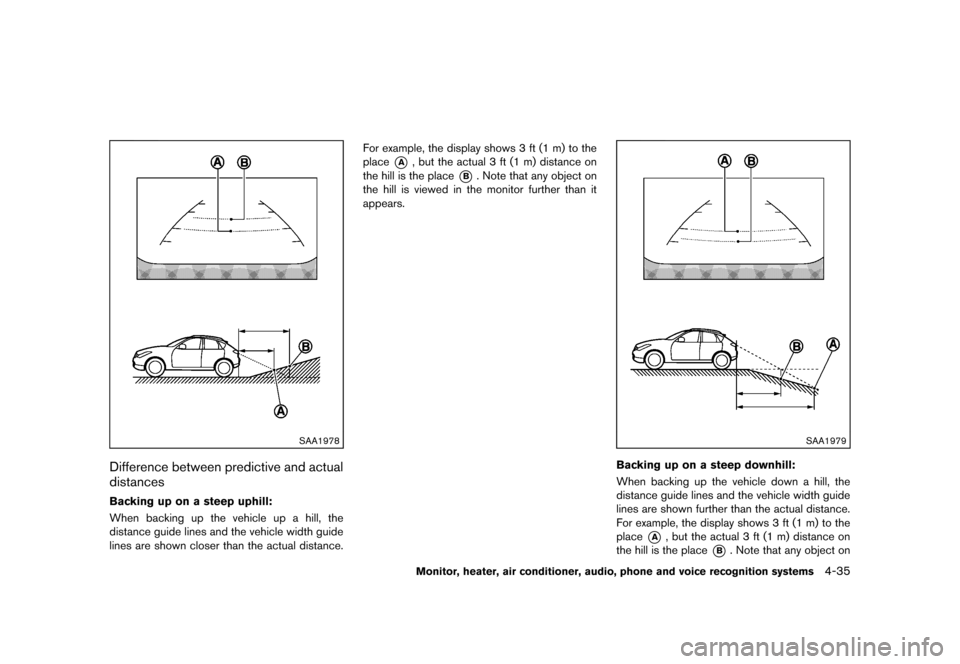

SAA1978
Difference between predictive and actual
distances
GUID-B23DB747-73AB-40B0-A401-6731AEBFF5E1
Backing up on a steep uphill:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
SAA1979
Backing up on a steep downhill:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-35
Condition:
Page 244 of 507
Black plate (242,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

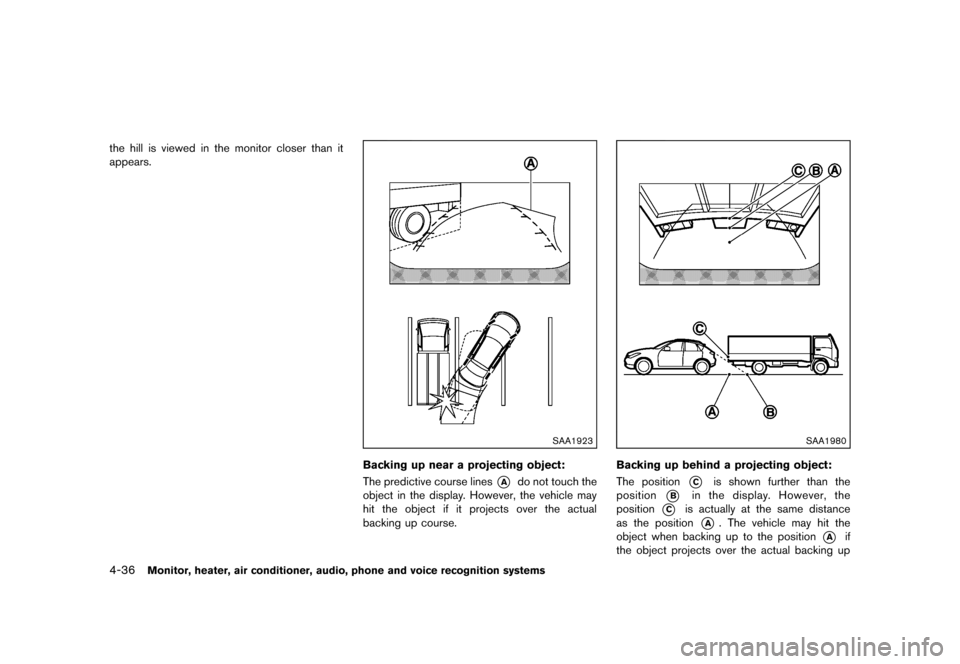

4-36Monitor, heater, air conditioner, audio, phone and voice recognition systems
the hill is viewed in the monitor closer than it
appears.
SAA1923
Backing up near a projecting object:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
SAA1980
Backing up behind a projecting object:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up
Condition:
Page 245 of 507
Black plate (243,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

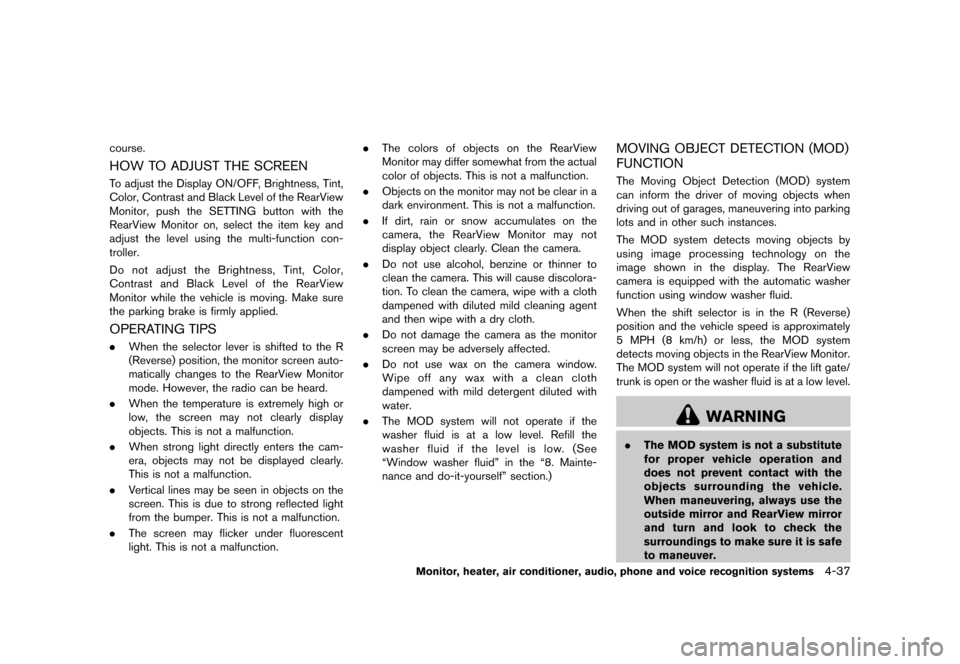

course.
HOW TO ADJUST THE SCREENGUID-676089A8-8409-437E-AF8B-BB7CEF8236C5To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor, push the SETTING button with the
RearView Monitor on, select the item key and
adjust the level using the multi-function con-
troller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
OPERATING TIPSGUID-8F6C8715-08BF-4B5F-BC87-114E3BD955AA.When the selector lever is shifted to the R
(Reverse) position, the monitor screen auto-
matically changes to the RearView Monitor
mode. However, the radio can be heard.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction. .
The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display object clearly. Clean the camera.
. Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
. Do not damage the camera as the monitor
screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
. The MOD system will not operate if the
washer fluid is at a low level. Refill the
washer fluid if the level is low. (See
“Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.)
MOVING OBJECT DETECTION (MOD)
FUNCTION
GUID-AEEBBBF8-0266-4DE4-9FF1-58ED071056E6The Moving Object Detection (MOD) system
can inform the driver of moving objects when
driving out of garages, maneuvering into parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display. The RearView
camera is equipped with the automatic washer
function using window washer fluid.
When the shift selector is in the R (Reverse)
position and the vehicle speed is approximately
5 MPH (8 km/h) or less, the MOD system
detects moving objects in the RearView Monitor.
The MOD system will not operate if the lift gate/
trunk is open or the washer fluid is at a low level.
WARNING
.The MOD system is not a substitute
for proper vehicle operation and
does not prevent contact with the
objects surrounding the vehicle.
When maneuvering, always use the
outside mirror and RearView mirror
and turn and look to check the
surroundings to make sure it is safe
to maneuver.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-37
Condition:
Page 246 of 507
Black plate (244,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

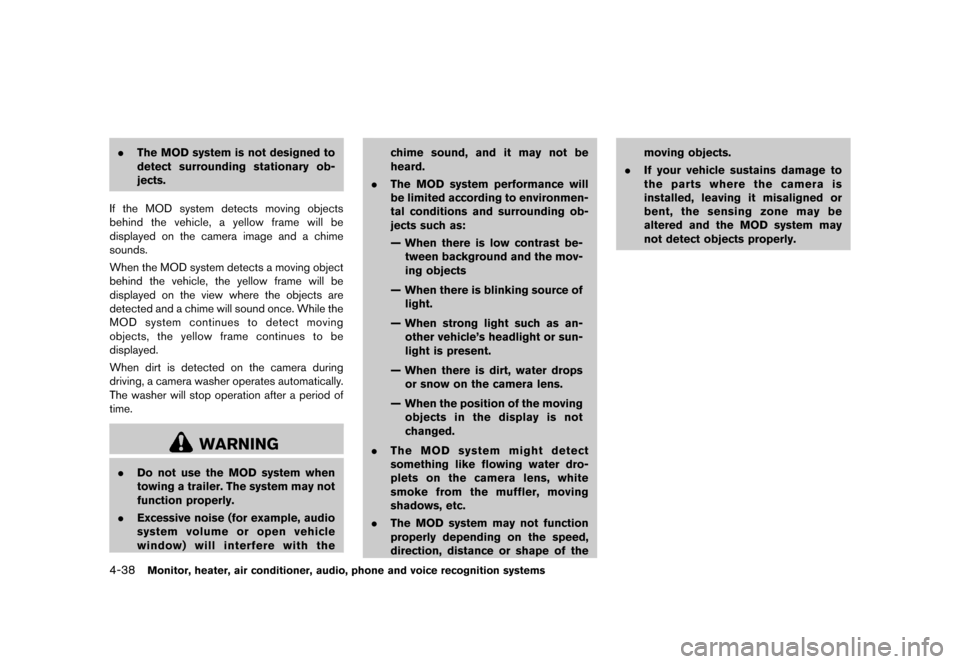

4-38Monitor, heater, air conditioner, audio, phone and voice recognition systems
.The MOD system is not designed to
detect surrounding stationary ob-
jects.
If the MOD system detects moving objects
behind the vehicle, a yellow frame will be
displayed on the camera image and a chime
sounds.
When the MOD system detects a moving object
behind the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving
objects, the yellow frame continues to be
displayed.
When dirt is detected on the camera during
driving, a camera washer operates automatically.
The washer will stop operation after a period of
time.
WARNING
. Do not use the MOD system when
towing a trailer. The system may not
function properly.
. Excessive noise (for example, audio
system volume or open vehicle
window) will interfere with the chime sound, and it may not be
heard.
. The MOD system performance will
be limited according to environmen-
tal conditions and surrounding ob-
jects such as:
— When there is low contrast be-
tween background and the mov-
ing objects
— When there is blinking source of light.
— When strong light such as an- other vehicle’s headlight or sun-
light is present.
— When there is dirt, water drops or snow on the camera lens.
— When the position of the moving objects in the display is not
changed.
. The MOD system might detect
something like flowing water dro-
plets on the camera lens, white
smoke from the muffler, moving
shadows, etc.
. The MOD system may not function
properly depending on the speed,
direction, distance or shape of the moving objects.
. If your vehicle sustains damage to
the parts where the camera is
installed, leaving it misaligned or
bent, the sensing zone may be
altered and the MOD system may
not detect objects properly.
Condition:
Page 247 of 507
Black plate (245,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

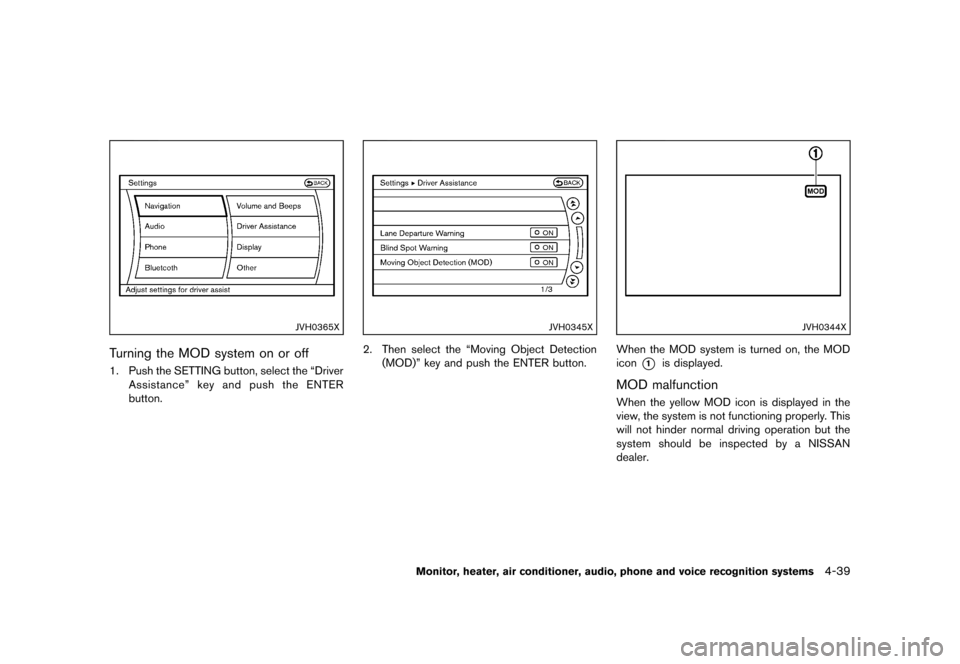

JVH0365X
Turning the MOD system on or offGUID-6FFC799C-38DE-47D7-9694-F22E33AA88F31. Push the SETTING button, select the “DriverAssistance” key and push the ENTER
button.
JVH0345X
2. Then select the “Moving Object Detection
(MOD)” key and push the ENTER button.
JVH0344X
When the MOD system is turned on, the MOD
icon
*1is displayed.
MOD malfunctionGUID-9253042E-52DF-4D2C-9CC8-EB45D6EC9B51When the yellow MOD icon is displayed in the
view, the system is not functioning properly. This
will not hinder normal driving operation but the
system should be inspected by a NISSAN
dealer.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-39
Condition:
Page 248 of 507
Black plate (246,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

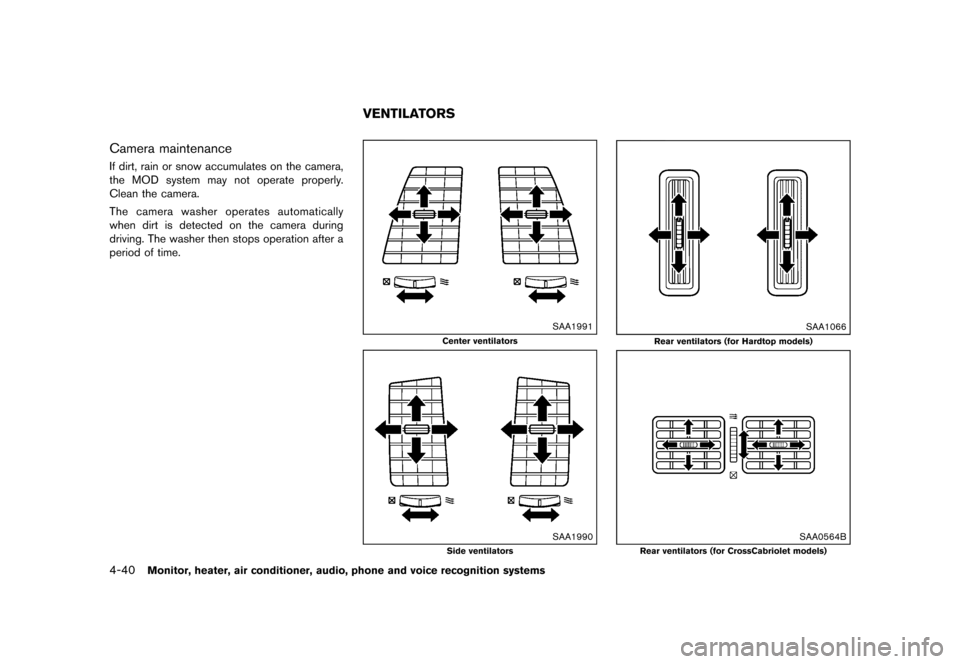

4-40Monitor, heater, air conditioner, audio, phone and voice recognition systems
Camera maintenanceGUID-D122E1B9-F1F3-4CC4-AB1D-AEAA63E13D58If dirt, rain or snow accumulates on the camera,
the MOD system may not operate properly.
Clean the camera.
The camera washer operates automatically
when dirt is detected on the camera during
driving. The washer then stops operation after a
period of time.
GUID-5620F45C-95A1-4691-9F0B-E47071C3B894
SAA1991
Center ventilators
SAA1990
Side ventilators
SAA1066
Rear ventilators (for Hardtop models)
SAA0564B
Rear ventilators (for CrossCabriolet models)
VENTILATORS
Condition:
Page 249 of 507
Black plate (247,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Open or close, and adjust the air flow direction
of ventilators.
: This symbol indicates that the ventilators areclosed.
: This symbol indicates that the ventilators are
open.
GUID-FC7D28D6-FA80-42E2-A3B4-6CF8ABD33B6A
WARNING
. The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
You can individually set the driver and front
passenger side temperature using each tem-
perature control buttons.

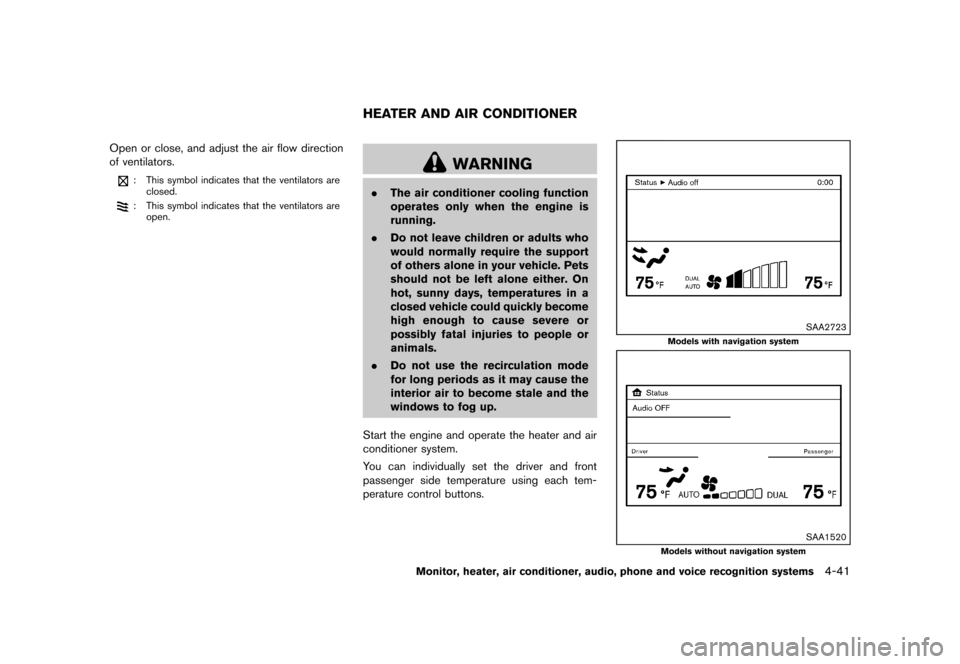

SAA2723
Models with navigation system
SAA1520
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-41
HEATER AND AIR CONDITIONER
Condition:
Page 250 of 507
Black plate (248,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-42Monitor, heater, air conditioner, audio, phone and voice recognition systems
For the models with the color display screen,
push the “STATUS” button to display the heater
and air conditioner status screen. (See “How to
use STATUS button” earlier in this section.)

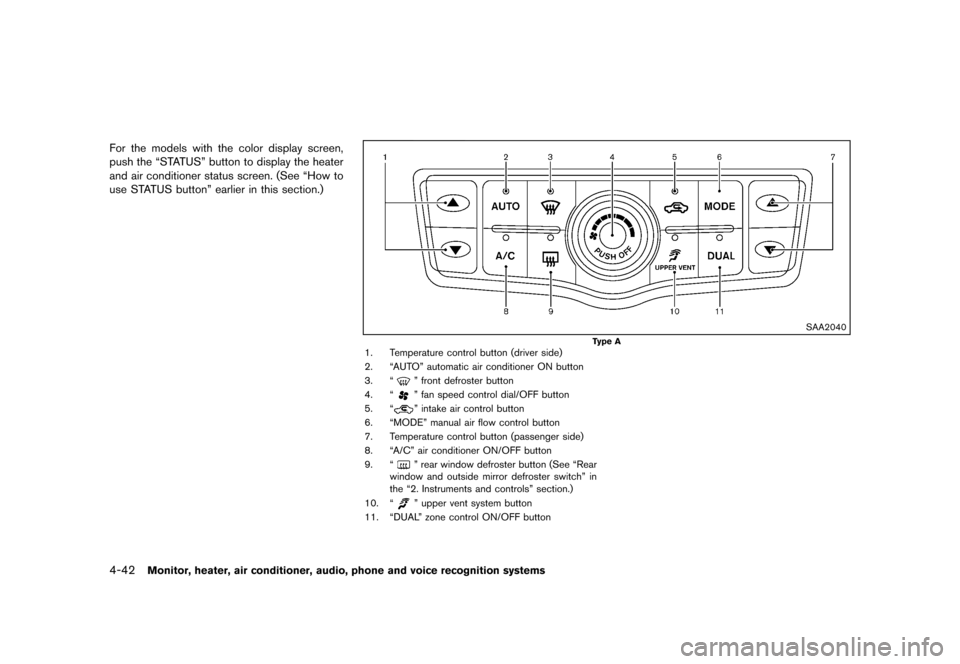

SAA2040
Type A1. Temperature control button (driver side)
2. “AUTO” automatic air conditioner ON button
3. “
” front defroster button
4. “
” fan speed control dial/OFF button
5. “
” intake air control button
6. “MODE” manual air flow control button
7. Temperature control button (passenger side)
8. “A/C” air conditioner ON/OFF button
9. “
” rear window defroster button (See “Rear
window and outside mirror defroster switch” in
the “2. Instruments and controls” section.)
10. “
” upper vent system button
11. “DUAL” zone control ON/OFF button
Condition:
